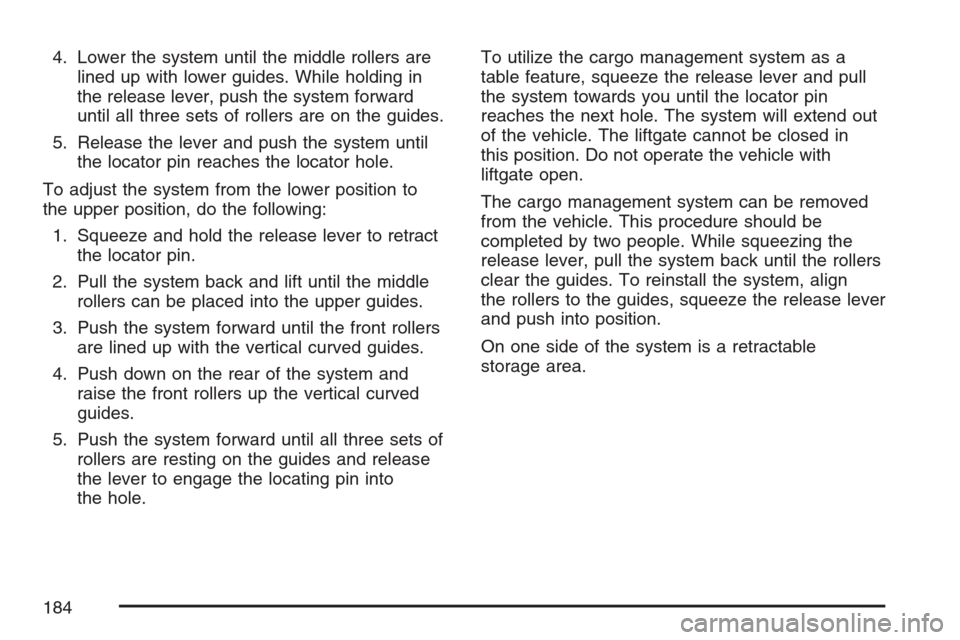

4. Lower the system until the middle rollers are
lined up with lower guides. While holding in
the release lever, push the system forward
until all three sets of rollers are on the guides.
5. Release the lever and push the system until
the locator pin reaches the locator hole.
To adjust the system from the lower position to
the upper position, do the following:
1. Squeeze and hold the release lever to retract
the locator pin.
2. Pull the system back and lift until the middle
rollers can be placed into the upper guides.
3. Push the system forward until the front rollers
are lined up with the vertical curved guides.
4. Push down on the rear of the system and
raise the front rollers up the vertical curved
guides.
5. Push the system forward until all three sets of
rollers are resting on the guides and release
the lever to engage the locating pin into
the hole.To utilize the cargo management system as a
table feature, squeeze the release lever and pull
the system towards you until the locator pin
reaches the next hole. The system will extend out
of the vehicle. The liftgate cannot be closed in
this position. Do not operate the vehicle with
liftgate open.
The cargo management system can be removed
from the vehicle. This procedure should be
completed by two people. While squeezing the
release lever, pull the system back until the rollers
clear the guides. To reinstall the system, align
the rollers to the guides, squeeze the release lever
and push into position.
On one side of the system is a retractable
storage area.
184

Engine Coolant Temperature Gage............ 238
Tire Pressure Light.................................... 238
Malfunction Indicator Lamp........................ 239
Oil Pressure Light..................................... 242
Security Light............................................ 242
Fog Lamp Light......................................... 243
Lights On Reminder.................................. 243
Cruise Control Light.................................. 243
Highbeam On Light................................... 243
Tow/Haul Mode Light................................ 244
Fuel Gage................................................. 244
Driver Information Center (DIC).................. 245
DIC Operation and Displays...................... 245
DIC Warnings and Messages.................... 250
DIC Vehicle Customization........................ 259Audio System(s)......................................... 270
Setting the Time........................................ 272
Radio with CD and DVD........................... 273
XM Radio Messages................................. 302
Navigation/Radio System........................... 303
Rear Seat Entertainment System............... 303
Rear Seat Audio (RSA)............................. 314
Theft-Deterrent Feature............................. 316
Audio Steering Wheel Controls.................. 317
Radio Reception........................................ 318
Care of Your CDs and DVDs.................... 319
Care of the CD and DVD Player............... 319
Rear Side Window Antenna....................... 319
XM™ Satellite Radio Antenna System....... 320
Chime Level Adjustment............................ 320
Section 3 Instrument Panel
190

A. Air Outlets. SeeOutlet Adjustment on
page 225.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 196.
C. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 229.
D. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 194.
E. Shift Lever and Range Selection Mode. See
Automatic Transmission Operation on
page 144.
F. Tow/Haul Selector Button. SeeTow/Haul Mode
on page 150.
G. Driver Information Center Controls. SeeDriver
Information Center (DIC) on page 245.
H. Analog Clock. SeeAnalog Clock on page 219.
I. Audio System. SeeAudio System(s) on
page 270.
J. StabiliTrak
®Button. SeeStabiliTrak®System
on page 330. Rear Park Aid Disable Button.
SeeUltrasonic Rear Parking Assist (URPA) on
page 214.K. Tilt Wheel Lever. SeeTilt Wheel on page 195.
L. Exterior Lamps Control. SeeExterior Lamps
on page 205.
M. Dome Lamp Override Button. SeeDome Lamp
Override on page 213.
N. Cruise Control Buttons. SeeAudio Steering
Wheel Controls on page 317.
O. Horn. SeeHorn on page 194.
P. Audio Steering Wheel Controls. SeeAudio
Steering Wheel Controls on page 317.
Q. Dual Automatic Climate Controls. SeeDual
Automatic Climate Control System on
page 220.
R. Pedal Adjust Button. SeeAdjustable Throttle
and Brake Pedal on page 142. Heated
Windshield Washer Fluid Button. See
Windshield Washer on page 200. Power
Running Boards Disable Button (If Equipped).
SeePower Running Boards on page 132.
S. Glove Box. SeeGlove Box on page 178.
193

Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:
GTurn and Lane Change Signals. See
Turn and Lane-Change Signals on page 196.
53Headlamp High/Low-Beam Changer.
SeeHeadlamp High/Low-Beam Changer on
page 197.
NWindshield Wipers. SeeWindshield
Wipers on page 198.
LWindshield Washer. SeeWindshield
Washer on page 200.
5Rear Wiper Delay. SeeRear Window
Wiper/Washer on page 201.
ZRear Wiper. SeeRear Window
Wiper/Washer on page 201.
=Rear Wiper Wash. SeeRear Window
Wiper/Washer on page 201.
Turn and Lane-Change Signals
The turn signal has two upward (for right) and two
downward (for left) positions. These positions
allow you to signal a turn or a lane change.
To signal a turn, move the lever all the way up or
down. When the turn is nished, the lever will
return automatically.
To signal a lane change, raise or lower the lever for
less than one second until the arrow starts to ash.
This will cause the turn signals to automatically
ash three times. It will ash six times if tow-haul
mode is active.
196

Holding the turn signal lever for more than
one second will cause the turn signals to ash until
you release the lever. The lever will return by itself
when it is released.
An arrow on the
instrument panel cluster
will ash in the
direction of the turn or
lane change.
As you signal a turn or a lane change, if the
arrows ash more quickly than normal, a signal
bulb may be burned out and other drivers will not
see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows do not go on at all when
you signal a turn, check for burned-out bulbs and a
blown fuse. SeeFuses and Circuit Breakers on
page 507.Turn Signal On Chime
If your turn signal is left on for more than
3/4 of a mile (1.2 km), a chime will sound at each
ash of the turn signal and the message TURN
SIGNAL ON will also appear in the Driver
Information Control (DIC). To turn the chime and
message off, move the turn signal lever to the
off position.
Headlamp High/Low-Beam Changer
53(Headlamp High/Low Beam Changer):To
change the headlamps from low to high beam, push
the lever toward the instrument panel. To return to
low-beam headlamps, pull the multifunction lever
toward you. Then release it.
When the high beams
are on, this indicator light
on the instrument panel
cluster will also be on.
197

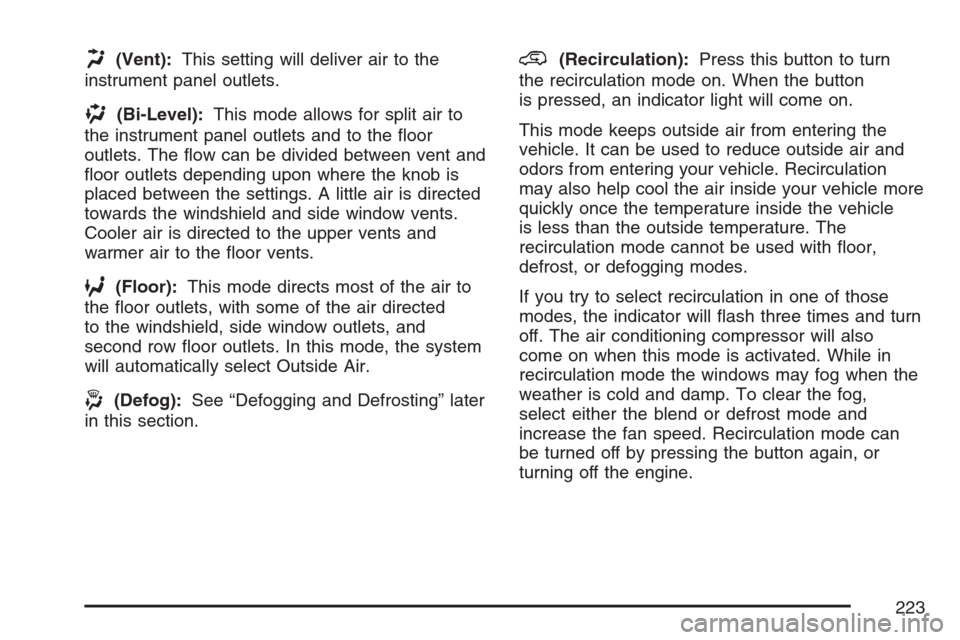

H(Vent):This setting will deliver air to the
instrument panel outlets.
)(Bi-Level):This mode allows for split air to
the instrument panel outlets and to the oor
outlets. The ow can be divided between vent and
oor outlets depending upon where the knob is
placed between the settings. A little air is directed
towards the windshield and side window vents.
Cooler air is directed to the upper vents and
warmer air to the oor vents.
6(Floor):This mode directs most of the air to
the oor outlets, with some of the air directed
to the windshield, side window outlets, and
second row oor outlets. In this mode, the system
will automatically select Outside Air.
-(Defog):See “Defogging and Defrosting” later
in this section.
@(Recirculation):Press this button to turn
the recirculation mode on. When the button
is pressed, an indicator light will come on.
This mode keeps outside air from entering the
vehicle. It can be used to reduce outside air and
odors from entering your vehicle. Recirculation
may also help cool the air inside your vehicle more
quickly once the temperature inside the vehicle
is less than the outside temperature. The
recirculation mode cannot be used with oor,
defrost, or defogging modes.
If you try to select recirculation in one of those
modes, the indicator will ash three times and turn
off. The air conditioning compressor will also
come on when this mode is activated. While in
recirculation mode the windows may fog when the
weather is cold and damp. To clear the fog,
select either the blend or defrost mode and
increase the fan speed. Recirculation mode can
be turned off by pressing the button again, or
turning off the engine.
223

If the warning light comes on and a chime sounds
there could be a brake problem. Have your
brake system inspected right away.
This light may also come on due to low brake
uid. SeeBrakes on page 433for more
information.
This light should come on briey when you turn
the ignition key to RUN. If it does not come
on then, have it xed so it will be ready to warn
you if there’s a problem.If the light comes on while you are driving, pull
off the road and stop carefully. You may notice that
the pedal is harder to push or may go closer to
the oor. It may take longer to stop. If the light is
still on, have the vehicle towed for service.
SeeTowing Your Vehicle on page 376.
{CAUTION:
Your brake system may not be working
properly if the brake system warning light
is on. Driving with the brake system
warning light on can lead to an accident.
If the light is still on after you have pulled
off the road and stopped carefully, have
the vehicle towed for service.
United StatesCanada
236

If the StabiliTrak®system warning light comes
on and stays on for an extended period of
time when the system is turned on, your vehicle
needs service. SeeStabiliTrak
®System on
page 330for more information.
Engine Coolant Temperature Gage
This gage shows the
engine coolant
temperature.
If the gage pointer moves towards the shaded in
thermostat, it means that your engine coolant
has overheated. If you have been operating your
vehicle under normal driving conditions, you
should pull off the road, stop your vehicle and turn
off the engine as soon as possible.
SeeEngine Overheating on page 422.
Tire Pressure Light
This light will come on
briey when you turn
the ignition to RUN.
This light will also come on when one or more of
your tires are signicantly underinated.
If equipped, a CHECK TIRE PRESSURE DIC
message will accompany the light.
Stop and check your tires as soon as it is safe to do
so. If underinated, inate to the proper pressure.
SeeTires on page 454for more information.
This light will ash for 60 seconds and then turn
on solid if a problem is detected with the Tire
Pressure Monitor system.
SeeTire Pressure Monitor System on page 462
for more information.
238

This light should come on, as a check to show
you it is working, when the ignition is on and the
engine is not running. If the light does not
come on, have it repaired. This light will also
come on during a malfunction in one of two ways:
Light Flashing— A misre condition has
been detected. A misre increases vehicle
emissions and may damage the emission
control system on your vehicle. Diagnosis and
service may be required.
Light On Steady— An emission control
system malfunction has been detected on your
vehicle. Diagnosis and service may be
required.
If the Light is Flashing
The following may prevent more serious damage
to your vehicle:
Reducing vehicle speed
Avoiding hard accelerations
Avoiding steep uphill grades
If you are towing a trailer, reduce the amount
of cargo being hauled as soon as it is
possibleIf the light stops ashing and remains on steady,
see “If the Light Is On Steady” following.
If the light continues to ash, when it is safe to do
so, stop the vehicle. Find a safe place to park
your vehicle. Turn the key off, wait at least
10 seconds and restart the engine. If the light
remains on steady, see “If the Light Is On Steady”
following. If the light is still ashing, follow the
previous steps, and see your dealer for service as
soon as possible.
If the Light Is On Steady
You may be able to correct the emission system
malfunction by considering the following:
Did you recently put fuel into your vehicle?
If so, reinstall the fuel cap, making sure to fully
install the cap. SeeFilling the Tank on page 401.
The diagnostic system can determine if the fuel cap
has been left off or improperly installed. A loose or
missing fuel cap will allow fuel to evaporate into the
atmosphere. A few driving trips with the cap
properly installed should turn the light off.
240

Oil Pressure Light
This light will come on
briey when you start
your engine.
{CAUTION:
Do not keep driving if the oil pressure is
low. If you do, your engine can become so
hot that it catches re. You or others could
be burned. Check your oil as soon as
possible and have your vehicle serviced.
Notice:Lack of proper engine oil maintenance
may damage the engine. The repairs would
not be covered by your warranty. Always follow
the maintenance schedule in this manual for
changing engine oil.That is a check to be sure the light works. If it
does not come on, be sure to have it xed so it will
be there to warn you if something goes wrong.
When the light comes on and stays on, it means
that oil is not owing through your engine
properly. You could be low on oil and you might
have some other system problem.
Security Light
This light will come on
briey when you turn
the key toward START.
The light will stay on
until the engine starts.
SeePASS-Key
®III+ Operation on page 137for
more information.
242
