mirror CADILLAC ESCALADE ESV 2007 2.G Owners Manual

Seats and Restraint Systems....................... 7
Front Seats
.............................................. 9
Rear Seats
............................................. 18
Safety Belts
............................................ 38
Child Restraints
...................................... 60
Airbag System
........................................ 90
Restraint System Check
....................... 108
Features and Controls.............................. 111
Keys
..................................................... 113
Doors and Locks
.................................. 123
Windows
............................................... 133
Theft-Deterrent Systems
....................... 135
Starting and Operating Your Vehicle
..... 139
Mirrors
.................................................. 157
OnStar
®System
................................... 165
Universal Home Remote System
.......... 167
Storage Areas
...................................... 178
Sunroof
................................................ 186Instrument Panel....................................... 189
Instrument Panel Overview
................... 192
Climate Controls
................................... 220
Warning Lights, Gages, and
Indicators
.......................................... 228
Driver Information Center (DIC)
............ 245
Audio System(s)
................................... 270
Driving Your Vehicle................................. 321
Your Driving, the Road, and
Your Vehicle
..................................... 322
Towing
................................................. 376
Service and Appearance Care.................. 393
Service
................................................. 396
Fuel
...................................................... 398
Checking Things Under the Hood
......... 404
All-Wheel Drive
..................................... 443
Rear Axle
............................................. 444
Front Axle
............................................ 445
2007 Cadillac Escalade/Escalade ESV Owner ManualM
1

Front Seats..................................................... 9
Power Seats................................................. 9
Power Lumbar............................................. 10
Heated Seats.............................................. 11
Heated and Cooled Seats........................... 12
Memory Seat, Mirrors, and Pedals.............. 13
Power Reclining Seatbacks......................... 15
Head Restraints.......................................... 17
Center Seat................................................ 18
Rear Seats.................................................... 18
Heated Seats.............................................. 18
60/40 Split Bench Seat (Second Row)........ 19
Bucket Seats (Second Row)........................ 26
Third Row Seat........................................... 33
Safety Belts.................................................. 38
Safety Belts: They Are for Everyone........... 38
Questions and Answers About
Safety Belts............................................. 42
How to Wear Safety Belts Properly............. 43
Driver Position............................................. 43Shoulder Belt Height Adjustment................. 50
Safety Belt Use During Pregnancy.............. 51
Right Front Passenger Position................... 51
Center Front Passenger Position................. 52
Rear Seat Passengers................................ 53
Rear Safety Belt Comfort Guides................ 56
Safety Belt Pretensioners............................ 59
Safety Belt Extender................................... 59
Child Restraints............................................ 60
Older Children............................................. 60
Infants and Young Children......................... 63
Child Restraint Systems.............................. 67
Where to Put the Restraint.......................... 72
Lower Anchors and Tethers for Children
(LATCH).................................................. 73
Securing a Child Restraint in a Rear
Seat Position........................................... 82
Securing a Child Restraint in the Center
Front Seat Position.................................. 85
Securing a Child Restraint in the Right
Front Seat Position.................................. 86

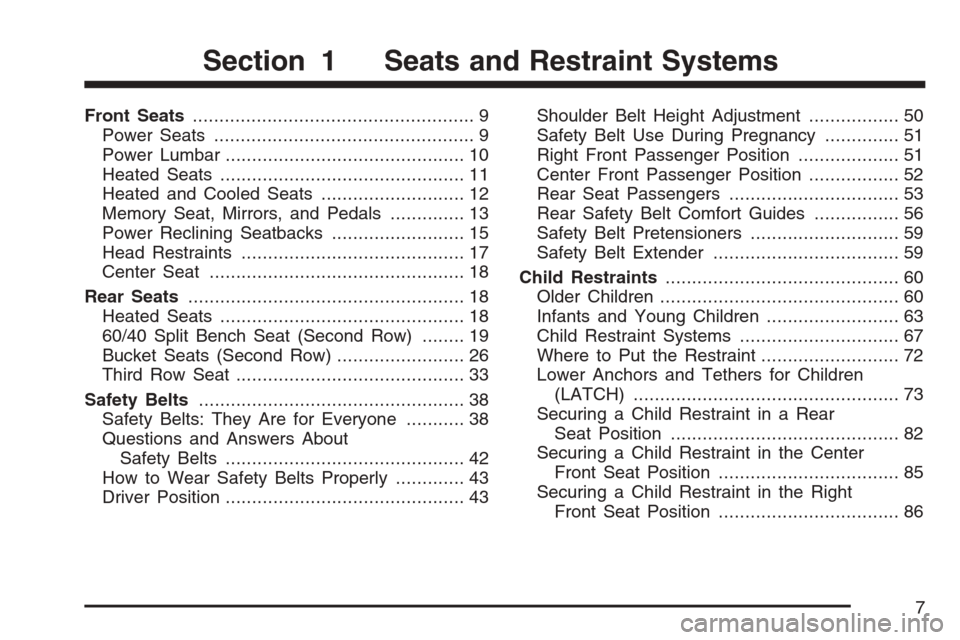

Section 1 Seats and Restraint Systems
7

Front Seats
Power Seats
The power seat controls are located on the
outboard side of the front seats.
Move the seat forward or rearward by sliding
the control forward or rearward.
Raise or lower the front part of the seat
cushion by moving the front of the control up
or down.
Raise or lower the rear part of the seat
cushion by moving the rear of the control up
or down.
Raise or lower the entire seat by moving the
entire control up or down.
The power reclining seatback control is located
behind the power seat control on the outboard side
of the seats. SeePower Reclining Seatbacks on
page 15.
Your vehicle has a memory function which allows
seat settings to be saved and recalled. See
Memory Seat, Mirrors, and Pedals on page 13.
Driver’s Seat with Power Seat Control, Power
Recline, and Power Lumbar shown
9

Power Lumbar
The controls used to operate the power lumbar
feature are located on the outboard side of
the seats.
To increase lumbar support, press and hold
the front of the control.
To decrease lumbar support, press and hold
the rear of the control.
To raise the height of the support, press and
hold the top of the control.
To lower the height of the support, press and
hold the bottom of the control.
Let go of the control when the lower seatback
reaches the desired level of support.
Your vehicle has a memory function which allows
seat settings to be saved and recalled. See
Memory Seat, Mirrors, and Pedals on page 13for
more information.
Keep in mind that as your seating position
changes, as it may during long trips, so should the
position of your lumbar support. Adjust the seat
as needed.
10

Memory Seat, Mirrors, and Pedals
Your vehicle has the memory package.
The controls for this
feature are located on
the driver’s door
panel, and are used to
program and recall
memory settings for the
driver’s seat, outside
mirrors, and the
adjustable throttle and
brake pedal feature
if your vehicle has it.
To save your positions in memory, do the
following:
1. Adjust the driver’s seat, including the seatback
recliner and lumbar, both outside mirrors, and
the throttle and brake pedals to a comfortable
position.SeeOutside Power Foldaway Mirrors on
page 162andAdjustable Throttle and Brake
Pedal on page 142for more information.
Not all mirrors will have the ability to save and
recall the mirror positions.
2. Press and hold button 1 until two beeps let
you know that the position has been stored.
A second seating, mirror, and throttle and brake
pedal position can be programmed by repeating
the above steps and pressing button 2.
To recall the memory positions, the vehicle must be
in PARK (P). Press and release either button 1 or
button 2 corresponding to the desired driving
position. The seat, outside mirrors, and adjustable
throttle and brake pedals will move to the position
previously stored. You will hear a single beep.
13

If you use the remote keyless entry transmitter to
enter your vehicle and the remote recall memory
feature is on, automatic seat, mirror, and
adjustable pedal movement will occur. See
“MEMORY SEAT RECALL” underDIC Vehicle
Customization on page 259for more information.
To stop recall movement of the memory feature
at any time, press one of the power seat controls,
memory buttons, power mirror buttons, or
adjustable pedal switch.
If something has blocked the driver’s seat and/or
the adjustable pedals while recalling a memory
position, the driver’s seat and/or the adjustable
pedals recall may stop working. If this happens,
press the appropriate control for the area that
is not recalling for two seconds, after the
obstruction is removed. Then try recalling the
memory position again by pressing the appropriate
memory button. If the memory position is still
not recalling, see your dealer for service.Easy Exit Seat
The control for this feature is located on the
driver’s door panel between buttons 1 and 2.
With the vehicle in PARK (P), the exit position can
be recalled by pressing the exit button. You will
hear a single beep. The driver’s seat will
move back.
If the easy exit seat feature is on in the Driver
Information Center (DIC), automatic seat
movement will occur when the key is removed
from the ignition. See “EASY EXIT SEAT” under
DIC Vehicle Customization on page 259for
more information.
Further programming for the memory seat feature
can be done using the DIC. You can select or
not select the following:
The automatic easy exit seat feature
The remote memory seat recall feature
For programming information, seeDIC Vehicle
Customization on page 259.
14

{CAUTION:
Sitting in a reclined position when your
vehicle is in motion can be dangerous.
Even if you buckle up, your safety belts
cannot do their job when you are reclined
like this.
CAUTION: (Continued)
CAUTION: (Continued)
The shoulder belt cannot do its job. In a
crash, you could go into it, receiving neck
or other injuries.
The lap belt cannot do its job either. In a
crash the belt could go up over your
abdomen. The belt forces would be there,
not at your pelvic bones. This could cause
serious internal injuries.
For proper protection when the vehicle is
in motion, have the seatback upright.
Then sit well back in the seat and wear
your safety belt properly.
Do not have a seatback reclined if your vehicle is
moving.
Your vehicle has a memory function which allows
seat settings to be saved and recalled. See
Memory Seat, Mirrors, and Pedals on page 13.
16

Keys............................................................ 113
Remote Keyless Entry System.................. 114
Remote Keyless Entry System
Operation............................................... 115
Doors and Locks........................................ 123
Door Locks................................................ 123
Power Door Locks..................................... 124
Delayed Locking........................................ 124
Programmable Automatic Door Locks........ 124
Rear Door Security Locks......................... 124
Lockout Protection..................................... 125
Liftgate/Liftglass......................................... 126
Power Liftgate........................................... 128
Power Running Boards.............................. 132
Windows...................................................... 133
Power Windows........................................ 134
Sun Visors................................................ 135
Theft-Deterrent Systems............................. 135
Content Theft-Deterrent............................. 135
PASS-Key
®III+......................................... 137
PASS-Key®III+ Operation......................... 137Starting and Operating Your Vehicle......... 139
New Vehicle Break-In................................ 139
Ignition Positions....................................... 140
Retained Accessory Power (RAP)............. 141
Starting the Engine.................................... 141
Adjustable Throttle and Brake Pedal.......... 142
Engine Coolant Heater.............................. 143
Automatic Transmission Operation............. 144
Tow/Haul Mode......................................... 150
Parking Brake........................................... 151
Shifting Into Park (P) ................................. 152
Shifting Out of Park (P)............................. 153
Parking Over Things That Burn................. 154
Engine Exhaust......................................... 155
Running the Engine While Parked............. 156
Mirrors......................................................... 157
Automatic Dimming Rearview Mirror with
Intellibeam™, OnStar
®, Compass, and
Temperature Display.............................. 157
Automatic Dimming Rearview Mirror with
OnStar
®, Compass and Temperature
Display................................................... 159
Outside Power Foldaway Mirrors............... 162
Section 2 Features and Controls
111

Sun Visors
Pull the sun visor down to block glare. Detach the
sun visor from the center mount and slide it
along the rod from side-to-side to cover the driver
or passenger side of the front window. Swing
the sun visor to the side to cover the side window.
It can be moved along the rod from side-to-side
in this position also.
Lighted Visor Vanity Mirror
Your vehicle has lighted visor vanity mirrors on
both the driver’s and passenger’s sun visors. Pull
the sun visor down and lift the mirror cover to
turn the lamps on.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
Content Theft-Deterrent
Your vehicle has a content theft-deterrent alarm
system.
This is the security light.
To activate the theft-deterrent system, do the
following:
1. Open the door.
2. Lock the door with the Remote Keyless Entry
(RKE) transmitter. The security light should
come on and stay on.
3. Close all doors. The security light should go
off after about 30 seconds. The alarm is not
armed until the security light goes off.
135

The switch used to adjust the pedals is located on
the center console below the climate control
system.
Press the right and left arrows to move the pedals
either closer or further from your body.
Your vehicle has a memory function which allows
seat settings to be saved and recalled. See
Memory Seat, Mirrors, and Pedals on page 13for
more information.
Engine Coolant Heater
Your vehicle may have an engine coolant heater.
In very cold weather, 0°F (−18°C) or colder,
the engine coolant heater can help. You will get
easier starting and better fuel economy during
engine warm-up.
Usually, the coolant heater should be plugged in a
minimum of four hours prior to starting your
vehicle. At temperatures above 32°F (0°C), use of
the coolant heater is not required. Your vehicle
may also have an internal thermostat in the
plug end of the cord. This will prevent operation of
the engine coolant heater when the temperature
is at or above 0°F (−18°C) as noted on the cord.
143
