4. At a wall, measure from the ground upward (A) to
the recorded distance from Step 3 and mark it.
5. Draw or tape a horizontal line (B) on the wall the
width of the vehicle at the height of the mark in
Step 4.
Notice: Do not cover a headlamp to improve beam
cut-off when aiming. Covering a headlamp may
cause excessive heat build-up which may cause
damage to the headlamp.
6. Turn on the low-beam headlamps and place a
piece of cardboard or equivalent in front of the
headlamp not being adjusted. This allows only the
beam of light from the headlamp being adjusted to
be seen on the flat surface. 7. Locate the vertical headlamp aiming screws, which
are under the hood near each headlamp assembly.
The adjustment screw can be turned with a E8
Torx ®
socket.
8. Turn the vertical aiming screw until the headlamp
beam is aimed to the horizontal tape line. Turn it
clockwise or counterclockwise to raise or lower the
angle of the beam.
7-53

Black plate (55,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
LED Lighting The vehicle may have LED headlamps.
For replacement of the LED lighting assembly
contact your dealer.
Back-Up Lamps To replace this bulb:
1. Open the liftgate.
See Power Liftgate
on
page 3 ‑ 14 for more
information. 2. Remove the two
screws from the
taillamp assembly.
3. Pull the taillamp assembly rearward until you
disengage the inner pins on the taillamp assembly
from the vehicle.
4. Press the release tab, if the bulb socket has one,
and turn the socket counterclockwise to remove it
from the taillamp assembly.
5. Pull the old bulb straight out from the socket.
6. Press a new bulb into the socket, insert the socket
into the taillamp assembly and turn the socket
clockwise into the taillamp assembly until it clicks.
7-55

Black plate (56,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
7. Reinstall the taillamp assembly. When reinstalling,
make sure to line up the pins on the taillamp
assembly with the vehicle. If you do not line up the
pins correctly, you will not be able install the
taillamp assembly properly.
If you need to replace the taillamp, stoplamp, or turn
signal, you will need to see your dealer for service.
License Plate Lamp
1. Remove the two screws holding each of the
license plate lamps to the molding that is part of
the liftgate. 2. Twist and pull the license plate lamp forward
through the molding opening.
3. Turn the bulb socket counterclockwise and pull the
bulb straight out of the socket.
4. Install the new bulb.
5. Reverse Steps 1 through 3 to reinstall the license
plate lamp.
Replacement Bulbs Exterior Lamp Bulb Number
Back-up Lamp 7440
License Plate Lamp W5W
For replacement bulbs not listed here, contact your
dealer.
7-56

Black plate (82,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
2. Remove the wing nut (B) used to retain the tool
bag by turning it counterclockwise.
3. Turn the knob (A) on the jack counterclockwise to
release the jack and wheel blocks from the
bracket.
4. Remove the wheel blocks and the wheel block
retainer by turning the wing nut (C)
counterclockwise. The tools you will be using include the following:
A. Jack
B. Wheel Blocks
C. Jack Handle D. Jack Handle
Extensions
E. Wheel Wrench
7-82

Black plate (83,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
To access the spare tire:
A. Hoist Assembly
B. Hoist Shaft
C. Hoist Shaft Access
Cover/Hole
D. Jack Handle
Extensions
E. Wheel Wrench
F. Hoist Cable G. Tire/Wheel Retainer
H. Spare Tire (Valve Stem
Pointed Down)
I. Hoist Shaft Access Hole
J. Hoist End of
Extension Tool
K. Spare Tire Lock 1. To reach the hoist shaft access cover (C), you will
first need to remove the hitch cover. Remove it by
turning the two fasteners located at the bottom of
the cover counterclockwise and then pull the cover
down and rotate towards you.
2. Open the hoist shaft access cover (C) on the
bumper to access the spare tire lock (K).
3. To remove the spare tire lock insert the ignition
key, turn it clockwise and then pull the lock out.
7-83

Black plate (84,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
4. Assemble the two jack handle extensions (D) and
wheel wrench (E) as shown.
5. Insert the open end of
the extension (J)
through the hole in the
rear bumper (I) (hoist
shaft access hole). Be sure the hoist end (J) of the extension (D)
connects to the hoist shaft (B). The ribbed square
end of the extension is used to lower the spare tire.
6. Turn the wheel wrench (E) counterclockwise to
lower the spare tire (H) to the ground. Continue to
turn the wheel wrench until the spare tire can be
pulled out from under the vehicle.
If the spare tire does not lower to the ground, the
secondary latch is engaged causing the tire not to
lower. See Secondary Latch System on page 7 ‑ 91
for more information.
7. Use the wheel wrench
hook that allows you to
pull the hoist cable
towards you, to assist
in reaching the
spare tire.
7-84

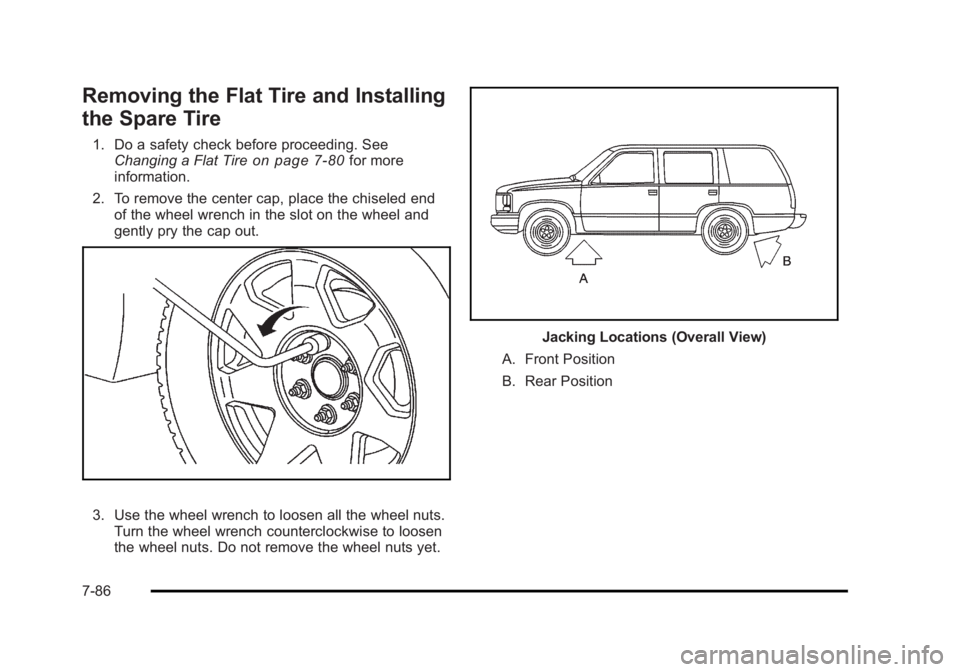

Black plate (86,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Removing the Flat Tire and Installing
the Spare Tire 1. Do a safety check before proceeding. See
Changing a Flat Tire on page 7 ‑ 80 for more
information.
2. To remove the center cap, place the chiseled end
of the wheel wrench in the slot on the wheel and
gently pry the cap out.
3. Use the wheel wrench to loosen all the wheel nuts.
Turn the wheel wrench counterclockwise to loosen
the wheel nuts. Do not remove the wheel nuts yet. Jacking Locations (Overall View)
A. Front Position
B. Rear Position
7-86

Black plate (87,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
{ WARNING: Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under a
vehicle when it is supported only by a jack.
{ WARNING: Raising your vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall. To help avoid personal
injury and vehicle damage, be sure to fit the jack
lift head into the proper location before raising the
vehicle.
4. Position the jack under the vehicle as shown. Front Position
Front Tire Flat: If the flat tire is on a front tire of
the vehicle, you will need to use the jack handle
and only one jack handle extension. Attach the
wheel wrench to the jack handle extension. Attach
the jack handle to the jack (A). Position the jack on
the frame behind the flat tire where the frame
sections overlap. Turn the wheel wrench clockwise
to raise the vehicle. Raise the vehicle far enough
off the ground so there is enough room for the
spare tire to clear the ground.
7-87

Black plate (88,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Rear Position
Rear Tire Flat: If the flat tire is on a rear tire of the
vehicle, you will need to use the jack handle (B)
and both jack handle extensions (C). Attach
the wheel wrench (D) to the jack handle
extensions (C). Attach the jack handle (B) to the
jack (A). Use the jacking pad (E) provided on the
rear axle. Turn the wheel wrench (D) clockwise to
raise the vehicle. Raise the vehicle far enough off
the ground so there is enough room for the spare
tire to clear the ground. 5. Remove all of the
wheel nuts.
6. Take off the flat tire.
7-88

Black plate (90,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
10. Turn the wheel wrench counterclockwise to lower
the vehicle. Lower the jack completely.
{ WARNING: Wheel nuts that are improperly or incorrectly
tightened can cause the wheels to become loose
or come off. The wheel nuts should be tightened
with a torque wrench to the proper torque
specification after replacing. Follow the torque
specification supplied by the aftermarket
manufacturer when using accessory locking wheel
nuts. See Capacities and Specifications
on
page 7 ‑ 117 for original equipment wheel nut
torque specifications.
Notice: Improperly tightened wheel nuts can lead
to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification. See Capacities and
Specifications on page 7 ‑ 117 for the wheel nut
torque specification. 11. Tighten the nuts
firmly in a crisscross
sequence as shown by
turning the wheel
wrench clockwise.
When you reinstall the regular wheel and tire, you must
also reinstall the center cap. Line the tab on the back of
the cap with the slot in the wheel. Place the cap on the
wheel and press until it snaps into place.
