If No Steam Is Coming From The
Engine Compartment The ENGINE OVERHEATED STOP ENGINE or the
ENGINE OVERHEATED IDLE ENGINE message, along
with a low coolant condition, can indicate a serious
problem.
If you get an engine overheat warning, but see or
hear no steam, the problem may not be too serious.
Sometimes the engine can get a little too hot when you: .
Climb a long hill on a hot day. .
Stop after high-speed driving. .
Idle for long periods in traffic. .
Tow a trailer. See Towing a Trailer on page 6 ‑ 42 .
If you get the ENGINE OVERHEATED STOP ENGINE
or the ENGINE OVERHEATED IDLE ENGINE message
with no sign of steam, try this for a minute or so:
If the overheat warning is displayed with no sign of
steam:
1. Turn the air conditioning off.
2. Turn the heater on to the highest temperature and
to the highest fan speed. Open the windows as
necessary. 3. In heavy traffic, let the engine idle in N (Neutral)
while stopped. If it is safe to do so, pull off the
road, shift to P (Park) or N (Neutral) and let the
engine idle.
If the temperature overheat gauge is no longer in
the overheat zone or an overheat warning no longer
displays, the vehicle can be driven. Continue to drive
the vehicle slow for about 10 minutes. Keep a safe
vehicle distance from the car in front of you. If the
warning does not come back on, continue to drive
normally.
If the warning continues, pull over, stop, and park
the vehicle right away.
If there is no sign of steam, idle the engine for
five minutes while parked. If the warning is still
displayed, turn off the engine until it cools down.
Also, see “ Overheated Engine Protection Operating
Mode ” later in this section.
7-36

Black plate (37,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Overheated Engine Protection
Operating Mode If an overheated engine condition exists and the
ENGINE POWER IS REDUCED message is displayed,
an overheat protection mode which alternates firing
groups of cylinders helps prevent engine damage. In
this mode, you will notice a loss in power and engine
performance. This operating mode allows the vehicle to
be driven to a safe place in an emergency. Driving
extended miles (km) and/or towing a trailer in the
overheat protection mode should be avoided.
Notice: After driving in the overheated engine
protection operating mode, to avoid engine damage,
allow the engine to cool before attempting any
repair. The engine oil will be severely degraded.
Repair the cause of coolant loss, change the oil
and reset the oil life system. See Engine Oil
on
page 7 ‑ 17 . Engine Fan Noise The vehicle has electric cooling fans. You might hear
the fans spinning at low speed during most everyday
driving. The fans can turn off if no cooling is required.
Under heavy vehicle loading, trailer towing, and/or high
outside temperatures, or if you are operating the air
conditioning system, the fans can change to high speed
and you might hear an increase in fan noise. This is
normal and indicates that the cooling system is
functioning properly. The fans change to low speed
when additional cooling is no longer required.
7-37

Black plate (39,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Windshield Washer Fluid What to Use When windshield washer fluid needs to be added, be
sure to read the manufacturer's instructions before use.
Use a fluid that has sufficient protection against freezing
in an area where the temperature may fall below
freezing.
Adding Washer Fluid The vehicle has a low washer fluid message in the DIC
that comes on when the washer fluid is low. The
message is displayed for 15 seconds at the start of
each ignition cycle. When the WASHER FLUID LOW
ADD FLUID message displays, you will need to add
washer fluid to the windshield washer fluid reservoir.
Open the cap with the
washer symbol on it. Add
washer fluid until the tank
is full. See Engine
Compartment Overview
on page 7 ‑ 16 for
reservoir location. Notice: .
When using concentrated washer fluid,
follow the manufacturer's instructions for
adding water. .
Do not mix water with ready-to-use washer
fluid. Water can cause the solution to freeze
and damage the washer fluid tank and other
parts of the washer system. Also, water does
not clean as well as washer fluid. .
Fill the washer fluid tank only three-quarters
full when it is very cold. This allows for fluid
expansion if freezing occurs, which could
damage the tank if it is completely full. .
Do not use engine coolant (antifreeze) in the
windshield washer. It can damage the
windshield washer system and paint.
7-39

Black plate (4,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Every Engine Oil Change .
Change engine oil and filter. See Engine Oil on
page 7 ‑ 17 . An Emission Control Service..
Engine coolant level check. See Engine Coolant
on page 7 ‑ 29 ..
Windshield washer fluid level check. See
Windshield Washer Fluid on page 7 ‑ 39 ..
Tire inflation check. See Inflation - Tire Pressure
on page 7 ‑ 65 ..
Tire wear inspection. See Tire Inspection and
Rotation on page 7 ‑ 71 ..
Rotate tires. See Tire Inspection and Rotation on
page 7 ‑ 71 ..
Fluids visual leak check (or every 12 months,
whichever occurs first). A leak in any system must
be repaired and the fluid level checked. .
Engine air cleaner filter inspection. See Engine Air
Cleaner/Filter on page 7 ‑ 22 ..
Brake system inspection (or every 12 months,
whichever occurs first). .
Lubricate the front suspension, steering linkage,
and parking brake cable guides. Control arm ball
joints are maintenance ‐ free..
Steering and suspension inspection. Visual
inspection for damaged, loose, or missing parts or
signs of wear. .
Engine cooling system inspection. Visual
inspection of hoses, pipes, fittings, and clamps and
replacement, if needed. .
Windshield wiper blade inspection for wear,
cracking, or contamination and windshield and
wiper blade cleaning, if contaminated. See
Windshield, Backglass, and Wiper Blades
on
page 7 ‑ 105 . Worn or damaged wiper blade
replacement. See Windshield Wiper Blade
Replacement on page 7 ‑ 57 . .
Body hinges and latches, key lock cylinders, rear
compartment hinges, outer tailgate handle pivot
points, and folding seat hardware lubrication.
See Recommended Fluids and Lubricants on
page 8 ‑ 10
. More frequent lubrication may be
required when vehicle is exposed to a corrosive
environment. Applying silicone grease on
weatherstrips with a clean cloth makes them last
longer, seal better, and not stick or squeak. .
Restraint system component check. See Checking
the Restraint Systems on page 2 ‑ 91 . .
Automatic transmission fluid level check and
adding fluid, if needed. See Automatic
Transmission Fluid on page 7 ‑ 24 .
8-4

Black plate (5,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010

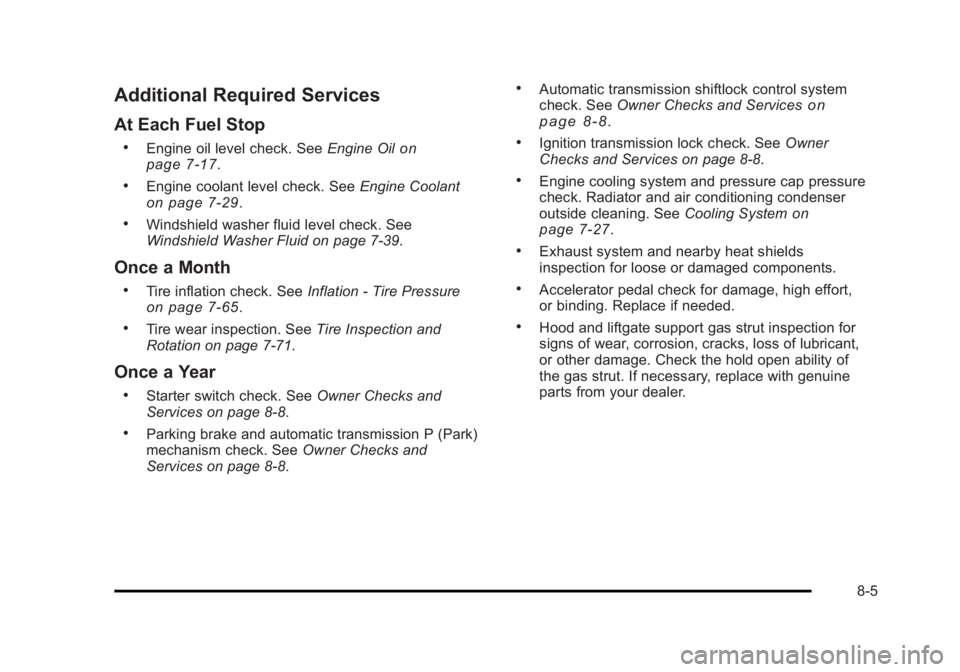

Additional Required Services At Each Fuel Stop .
Engine oil level check. See Engine Oil on
page 7 ‑ 17
..
Engine coolant level check. See Engine Coolant
on page 7 ‑ 29 ..
Windshield washer fluid level check. See
Windshield Washer Fluid on page 7 ‑ 39 .
Once a Month .
Tire inflation check. See Inflation - Tire Pressure
on page 7 ‑ 65 ..
Tire wear inspection. See Tire Inspection and
Rotation on page 7 ‑ 71 .
Once a Year .
Starter switch check. See Owner Checks and
Services on page 8 ‑ 8 ..
Parking brake and automatic transmission P (Park)
mechanism check. See Owner Checks and
Services on page 8 ‑ 8 . .
Automatic transmission shiftlock control system
check. See Owner Checks and Services on
page 8 ‑ 8 . .
Ignition transmission lock check. See Owner
Checks and Services on page 8 ‑ 8 . .
Engine cooling system and pressure cap pressure
check. Radiator and air conditioning condenser
outside cleaning. See Cooling System
on
page 7 ‑ 27 . .
Exhaust system and nearby heat shields
inspection for loose or damaged components. .
Accelerator pedal check for damage, high effort,
or binding. Replace if needed. .
Hood and liftgate support gas strut inspection for
signs of wear, corrosion, cracks, loss of lubricant,
or other damage. Check the hold open ability of
the gas strut. If necessary, replace with genuine
parts from your dealer.
8-5

Black plate (7,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010

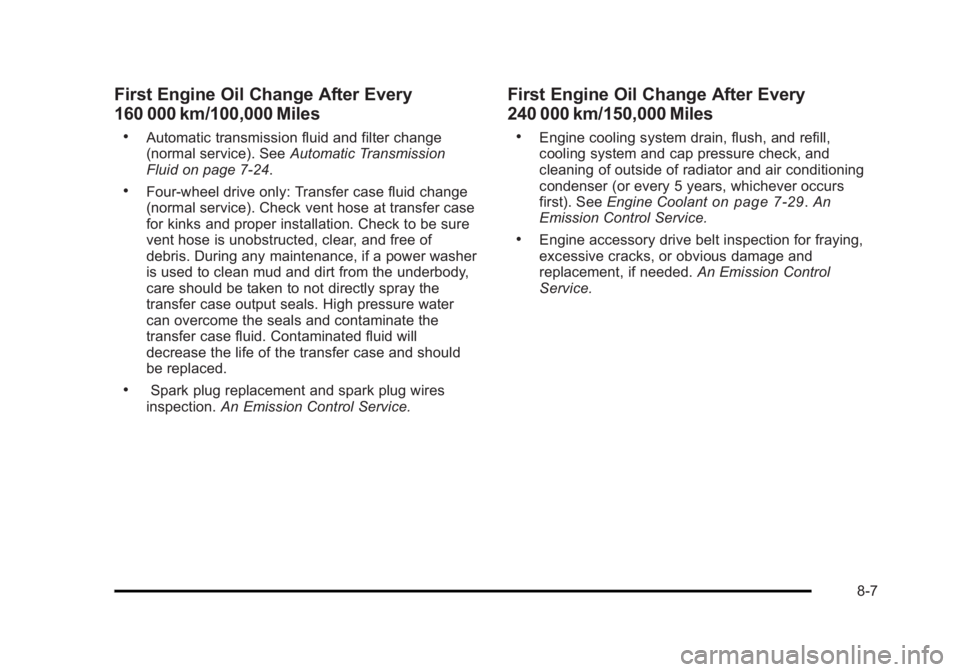

First Engine Oil Change After Every
160 000 km/100,000 Miles .
Automatic transmission fluid and filter change
(normal service). See Automatic Transmission
Fluid on page 7 ‑ 24 ..
Four ‐ wheel drive only: Transfer case fluid change
(normal service). Check vent hose at transfer case
for kinks and proper installation. Check to be sure
vent hose is unobstructed, clear, and free of
debris. During any maintenance, if a power washer
is used to clean mud and dirt from the underbody,
care should be taken to not directly spray the
transfer case output seals. High pressure water
can overcome the seals and contaminate the
transfer case fluid. Contaminated fluid will
decrease the life of the transfer case and should
be replaced. .
Spark plug replacement and spark plug wires
inspection. An Emission Control Service. First Engine Oil Change After Every
240 000 km/150,000 Miles .
Engine cooling system drain, flush, and refill,
cooling system and cap pressure check, and
cleaning of outside of radiator and air conditioning
condenser (or every 5 years, whichever occurs
first). See Engine Coolant
on page 7 ‑ 29 . An
Emission Control Service. .
Engine accessory drive belt inspection for fraying,
excessive cracks, or obvious damage and
replacement, if needed. An Emission Control
Service.
8-7

Black plate (10,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Recommended Fluids and
Lubricants Fluids and lubricants identified below by name, part
number, or specification can be obtained from your
dealer.
Usage Fluid/Lubricant
Engine Oil The engine requires a special engine
oil meeting GM Standard GM4718M.
Oils meeting this standard can be
identified as synthetic, and should
also be identified with the American
Petroleum Institute (API) Certified for
Gasoline Engines starburst symbol.
However, not all synthetic API oils
with the starburst symbol will meet
this GM standard. Look for and use
only oil that meets GM Standard
GM4718M. For the proper viscosity,
see Engine Oil on page 7 ‑ 17 . Usage Fluid/Lubricant
Engine Coolant 50/50 mixture of clean, drinkable
water and use only DEX-COOL ®
Coolant. See Engine Coolant on
page 7 ‑ 29
.
Hydraulic Brake
System DOT 3 Hydraulic Brake Fluid
(GM Part No. U.S. 12377967, in
Canada 89021320).
Windshield
Washer Optikleen ®
Washer Solvent.
Power Steering
System GM Power Steering Fluid
(GM Part No. U.S. 89021184, in
Canada 89021186).
Automatic
Transmission DEXRON ®
-VI Automatic Transmission
Fluid.
Key Lock
Cylinders Multi-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
8-10

Black plate (4,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Cleaning (cont.)
Weatherstrips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-103
Windshield, Backglass, and Wiper Blades . . . . . . .7-105
Wood Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-102
Climate Control System
Outlet Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25
Rear Air Conditioning and Heating System,
Electronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26
Climate Control Systems
Dual Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
Climate Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
Collision Damage Repair . . . . . . . . . . . . . . . . . . . . . . . . . . 9-13
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47
Content Theft-Deterrent . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22
Control of a Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-3
Coolant
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
Engine Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . 4-35
Cooled Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-27
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . 9-11
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-62 Customer Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-6
Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6
Text Telephone (TTY) Users . . . . . . . . . . . . . . . . . . . . . . . 9-6
Customer Information
Service Publications Ordering Information . . . . . . . . 9-18
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . .9-2
D Damage Repair, Collision . . . . . . . . . . . . . . . . . . . . . . . . . . 9-13
Data Recorders, Event . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-20
Database Coverage Explanations . . . . . . . . . . . . . . . . . 5-59
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . . . . 4-15
Defensive Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
DIC Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47
Doing Your Own Service Work . . . . . . . . . . . . . . . . . . . . . . .7-6
Dome Lamp Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Door
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Programmable Automatic Door Locks . . . . . . . . . . . . 3-11
Rear Door Security Locks . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Drive Systems
All-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-49
i - 4

Black plate (5,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . . . . 4-41
DIC Operation and Displays . . . . . . . . . . . . . . . . . . . . . . 4-42
DIC Vehicle Customization . . . . . . . . . . . . . . . . . . . . . . . 4-58
DIC Warnings and Messages . . . . . . . . . . . . . . . . . . . . . 4-49
Driving
At Night . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-24
Before a Long Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-26
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Highway Hypnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-26
Hill and Mountain Roads . . . . . . . . . . . . . . . . . . . . . . . . . . 6-27
In Rain and on Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . 6-25
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
Off-Road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Recovery Hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-31
Rocking Your Vehicle to Get it Out . . . . . . . . . . . . . . . . 6-30
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-28
Driving for Better Fuel Economy . . . . . . . . . . . . . . . . . . . 1-25
Dual Automatic Climate Control System . . . . . . . . . . . 4-20
DVD
Rear Seat Entertainment System . . . . . . . . . . . 4-78, 4-87 E E85 Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-9
EDR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-19
Electrical Equipment, Add-On . . . . . . . . . . . . . . . . . . . . 7-109
Electrical System
Center Instrument Panel Fuse Block . . . . . . . . . . . . . 7-112
Fuses and Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . 7-110
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . 7-110
Power Windows and Other Power Options . . . . . . 7-110
Underhood Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . 7-113
Windshield Wiper Fuses . . . . . . . . . . . . . . . . . . . . . . . . .7-109
Electronic Immobilizer
PASS-Key ®
III+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24
Electronic Immobilizer Operation
PASS-Key ®
III+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24
Engine
Air Cleaner/Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-22
Check and Service Engine Soon Light . . . . . . . . . . . . 4-36
Compartment Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-16
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
Coolant Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . 4-35
i - 5

Black plate (7,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Fuel Economy
Driving for Better . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-25
Fuses
Center Instrument Panel Fuse Block . . . . . . . . . . . . . 7-112
Fuses and Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . 7-110
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . 7-110
Underhood Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . 7-113
Windshield Wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-109
GGarage Door Opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-55
Garment Hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-64
Gasoline
Octane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Gauges
Engine Coolant Temperature . . . . . . . . . . . . . . . . . . . . . 4-35
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29
Getting Started, Navigation . . . . . . . . . . . . . . . . . . . . . . . . . .5-4
Global Positioning System (GPS) . . . . . . . . . . . . . . . . . . 5-57
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-62
GM Mobility Reimbursement Program . . . . . . . . . . . . . . .9-7 H Hazard Warning Flashers . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-54
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . . . 4-15
Exterior Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
High Intensity Discharge (HID) Lighting . . . . . . . . . . . 7-54
High/Low Beam Changer . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
On Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Heated
Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Heated Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
Heater
Engine Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
High-Speed Operation, Tires . . . . . . . . . . . . . . . . . . . . . . 7-66
Highbeam On Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Highway Hypnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-26
Hill and Mountain Roads . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-27
Hood
Checking Things Under . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14
Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . 2-30
i - 7
