key CADILLAC ESCALADE ESV 2011 Owner's Manual

Black plate (16,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
2-16 Keys, Doors and Windows 3. After the engine has started,
turn the key to LOCK/OFF, and
remove the key.
4. Insert the new key to be
programmed and turn it to the
ON/RUN position within
five seconds of turning the
ignition to the LOCK/OFF
position in Step 3.
The security light will turn off
once the key has been
programmed.
5. Repeat Steps 1 through 4 if
additional keys are to be
programmed.
If you lose or damage your
PASS-Key III+ key, see your dealer
or a locksmith who can service
PASS-Key III+ to have a new
key made.
Do not leave the key or device
that disarms or deactivates the
theft-deterrent system in the vehicle. Exterior Mirrors Convex Mirrors
{ WARNINGA convex mirror can make things,
like other vehicles, look farther
away than they really are. If you
cut too sharply into the right lane,
you could hit a vehicle on the
right. Check the inside mirror or
glance over your shoulder before
changing lanes.
The passenger side mirror is convex
shaped. A convex mirror's surface is
curved so more can be seen from
the driver seat. Power Mirrors
Controls for the outside power
foldaway mirrors are on the driver
door armrest.

Black plate (17,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Keys, Doors and Windows 2-17Mirror Adjustment 1. Press (A) or (B) to select the
driver or passenger side mirror.
2. Press the arrows on the control
pad to move the mirror up,
down, right, or left.
3. Press the opposite side to get
the control pad to a neutral
position.
Power Foldaway Mirrors 1. Press (C) to fold the mirrors out
to the driving position.
2. Press (D) to fold the mirrors into
the folded position. Resetting the Power Foldaway
Mirrors Reset the power foldaway mirrors if: .
The mirrors are accidentally
obstructed while folding. .
They are accidentally manually
folded/unfolded. .
The mirrors will not stay in the
unfolded position. .
The mirrors vibrate at normal
driving speeds.
Fold and unfold the mirrors one time
using the mirror controls to reset
them to their normal position.
A popping noise may be heard
during the resetting of the power
foldaway mirrors. This sound is
normal after a manual folding
operation.
See Power Mirrors on page 2 ‑ 16 .Turn Signal Indicator The vehicle has a turn signal
indicator on the mirror. An arrow
on the mirror flashes in the direction
of the turn or lane change.
Heated Mirrors The heated outside rearview mirrors
turn on when the rear window
defogger is on and helps to clear
fog or frost from the surface of the
mirrors.
< (Rear Window Defogger):
This button is on the climate control
panel.
See “ Rear Window Defogger ” under
Dual Automatic Climate Control
System on page 8 ‑ 1 .

Black plate (18,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
2-18 Keys, Doors and Windows
Automatic Dimming
Mirror The vehicle has an automatic
dimming mirror. The driver outside
mirror automatically adjusts for the
glare of headlamps behind you. This
feature is controlled by the on and
off setting on the inside rearview
mirror. See Automatic Dimming
Rearview Mirror on page 2 ‑ 18 for
more information. Park Tilt Mirrors If the vehicle has the memory
package, the passenger and/or
driver mirror tilts to a preselected
position when the vehicle is in
R (Reverse). This feature lets the
driver view the curb when parallel
parking. The mirror(s) return to the
original position when the vehicle is
shifted out of R (Reverse), or the
ignition is turned off or to
OFF/LOCK.
Turn this feature on or off through
the Driver Information Center (DIC).
See Driver Information Center (DIC)
on page 5 ‑ 26 for more information.Interior Mirrors Automatic Dimming
Rearview Mirror Automatic dimming reduces the
glare of lights from behind the
vehicle. The dimming feature comes
on and the indicator light illuminates
each time the vehicle is started.
O (On/Off): Press to turn the
dimming feature on or off.
The vehicle may have IntelliBeam ®
.
For more information on IntelliBeam,
see “ IntelliBeam Intelligent
High ‐ Beam Headlamp Control
System ” under Exterior Lamp
Controls on page 6 ‑ 1 .

Black plate (19,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Keys, Doors and Windows 2-19Vehicles with OnStar ®
have three
additional control buttons located at
the bottom of the mirror. See your
dealer for more information about
OnStar and how to subscribe to it.
See the OnStar Owner's Guide for
more information about the services
OnStar provides.
Cleaning the Mirror Do not spray glass cleaner directly
on the mirror. Use a soft towel
dampened with water. Windows
{ WARNINGLeaving children, helpless adults,
or pets in a vehicle with the
windows closed is dangerous.
They can be overcome by
the extreme heat and suffer
permanent injuries or even death
from heat stroke. Never leave a
child, a helpless adult, or a pet
alone in a vehicle, especially with
the windows closed in warm or
hot weather. The vehicle aerodynamics are
designed to improve fuel economy
performance. This may result in a
pulsing sound when either rear
window is down and the front
windows are up. To reduce the
sound, open either a front window
or the sunroof (if equipped).

Black plate (20,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011

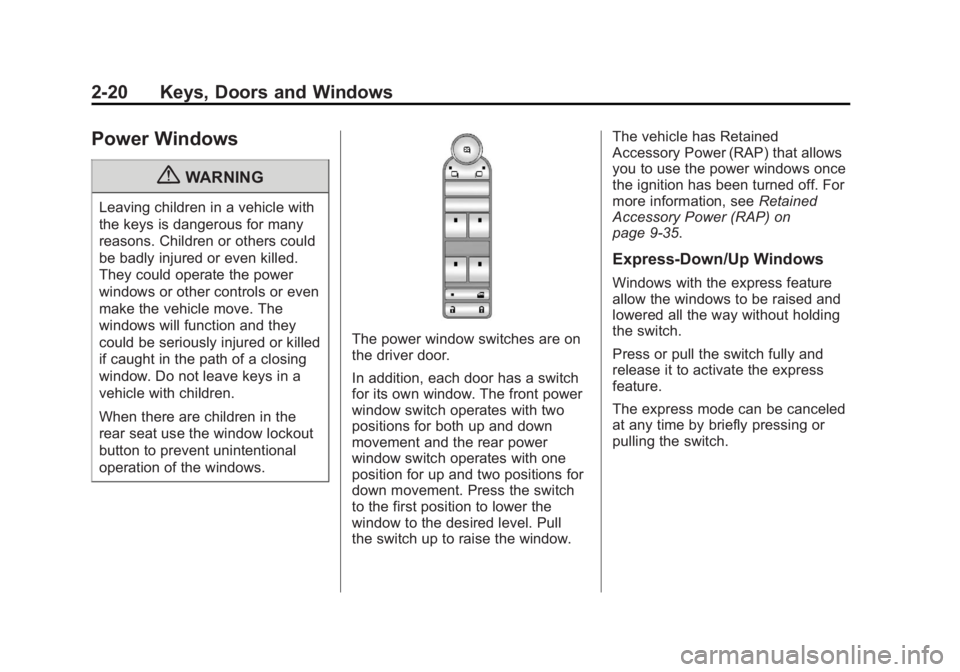

2-20 Keys, Doors and Windows
Power Windows
{ WARNINGLeaving children in a vehicle with
the keys is dangerous for many
reasons. Children or others could
be badly injured or even killed.
They could operate the power
windows or other controls or even
make the vehicle move. The
windows will function and they
could be seriously injured or killed
if caught in the path of a closing
window. Do not leave keys in a
vehicle with children.
When there are children in the
rear seat use the window lockout
button to prevent unintentional
operation of the windows. The power window switches are on
the driver door.
In addition, each door has a switch
for its own window. The front power
window switch operates with two
positions for both up and down
movement and the rear power
window switch operates with one
position for up and two positions for
down movement. Press the switch
to the first position to lower the
window to the desired level. Pull
the switch up to raise the window. The vehicle has Retained
Accessory Power (RAP) that allows
you to use the power windows once
the ignition has been turned off. For
more information, see Retained
Accessory Power (RAP) on
page 9 ‑ 35 .
Express-Down/Up Windows Windows with the express feature
allow the windows to be raised and
lowered all the way without holding
the switch.
Press or pull the switch fully and
release it to activate the express
feature.
The express mode can be canceled
at any time by briefly pressing or
pulling the switch.

Black plate (21,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Keys, Doors and Windows 2-21Express Window Anti-Pinch
Feature If any object is in the path of the
window when the express ‐ up is
active, the window will stop at the
obstruction and auto ‐ reverse to a
preset factory position. Weather
conditions such as severe icing
may also cause the window to
auto ‐ reverse. The window will
return to normal operation once the
obstruction or condition is removed.
Express Window Anti ‐ Pinch
Override
{ WARNING
If express override is activated,
the window will not reverse
automatically. You or others could
be injured and the window could
be damaged. Before you use
express override, make sure that
all people and obstructions are
clear of the window path. In an emergency, the anti ‐ pinch
feature can be overridden in a
supervised mode. Hold the window
switch all the way up to the second
position. The window will rise for as
long as the switch is held. Once the
switch is released, the express
mode is re ‐ activated.
In this mode, the window can still
close on an object in its path. Use
care when using the override mode.
Programming the Power
Windows If the battery on the vehicle has
been recharged, disconnected,
or is not working, you will need to
reprogram each front power window
for the express-up feature to work.
Before reprogramming, replace or
recharge the vehicle's battery. To program each front window,
follow these steps:
1. With the ignition in ACC/
ACCESSORY, ON/RUN,
or when Retained Accessory
Power (RAP) is active, close all
doors.
2. Press and hold the power
window switch until the window
is fully open.
3. Pull the power window switch up
until the window is fully closed.
4. Continue holding the switch up
for approximately two seconds
after the window is completely
closed.
The window is now reprogrammed.
Repeat the process for the other
windows.

Black plate (22,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
2-22 Keys, Doors and Windows Window Lockout
o (Window Lockout): This button
is on the driver door near the
window switches.
Press the right side of the
button to disable the rear window
controls. The light on the button
will illuminate, indicating the feature
is in use. The rear windows still
can be raised or lowered using the
driver window switches when the
lockout feature is active.
To restore power to the rear
windows, press the button again.
The light on the button will go out. Sun Visors
Pull the sun visor down to block
glare. Detach the sun visor from the
center mount to pivot to the side
window, or to extend along the rod,
if available. Roof Sunroof
A. Open or Close Sunroof
B. Vent
On vehicles with a sunroof, there
are two sunroof switches on the
overhead console above the
rearview mirror.

Black plate (23,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011

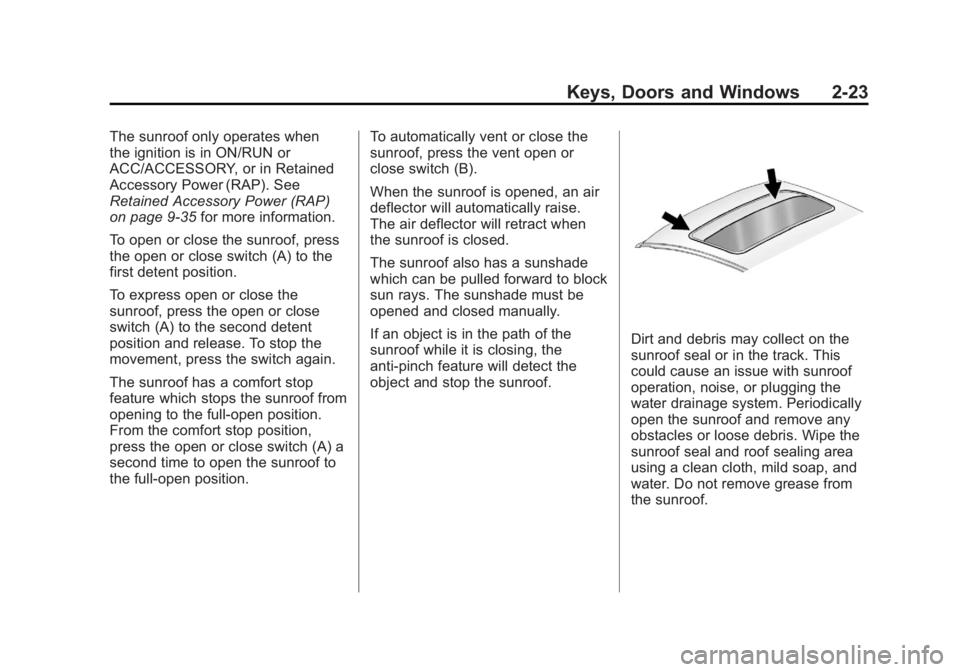

Keys, Doors and Windows 2-23The sunroof only operates when
the ignition is in ON/RUN or
ACC/ACCESSORY, or in Retained
Accessory Power (RAP). See
Retained Accessory Power (RAP)
on page 9 ‑ 35 for more information.
To open or close the sunroof, press
the open or close switch (A) to the
first detent position.
To express open or close the
sunroof, press the open or close
switch (A) to the second detent
position and release. To stop the
movement, press the switch again.
The sunroof has a comfort stop
feature which stops the sunroof from
opening to the full-open position.
From the comfort stop position,
press the open or close switch (A) a
second time to open the sunroof to
the full-open position. To automatically vent or close the
sunroof, press the vent open or
close switch (B).
When the sunroof is opened, an air
deflector will automatically raise.
The air deflector will retract when
the sunroof is closed.
The sunroof also has a sunshade
which can be pulled forward to block
sun rays. The sunshade must be
opened and closed manually.
If an object is in the path of the
sunroof while it is closing, the
anti-pinch feature will detect the
object and stop the sunroof. Dirt and debris may collect on the
sunroof seal or in the track. This
could cause an issue with sunroof
operation, noise, or plugging the
water drainage system. Periodically
open the sunroof and remove any
obstacles or loose debris. Wipe the
sunroof seal and roof sealing area
using a clean cloth, mild soap, and
water. Do not remove grease from
the sunroof.

Black plate (24,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
2-24 Keys, Doors and Windows
2 NOTES

Black plate (5,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Seats and Restraints 3-5Memory Remote Recall
The memory feature can recall the
driver seat, outside mirrors, power
steering column, and pedals to
stored positions when entering the
vehicle.
To activate, unlock the driver
door with the Remote Keyless
Entry (RKE) transmitter. The driver
seat, outside mirrors, power steering
column, and adjustable pedals
will move to the memory positions
associated with the transmitter
used to unlock the vehicle.
This feature can be turned on or off
using the vehicle personalization
menu. See “ Memory Seat Recall ”
under Vehicle Personalization on
page 5 ‑ 40 for more information. To stop recall movement, press one
of the power seat controls, memory
or power mirror buttons, power
steering column control, or the
adjustable pedal switch.
If something has blocked the driver
seat, power steering column, or the
adjustable pedals while recalling a
memory position, the recall may
stop. Remove the obstruction; then
press and hold the appropriate
manual control for the memory item
that is not recalling for two seconds.
Try recalling the memory position
again by pressing the appropriate
memory button. If the memory
position is still not recalling, see
your dealer for service. Easy Exit Positions
This feature can move the driver
seat rearward and the power
steering column up and forward to
allow extra room to exit the vehicle.
B (Easy Exit Positions): Press
to recall the easy exit positions.
The vehicle must be in P (Park).
If the easy exit feature is
programmed on in the vehicle
personalization menu, automatic
driver seat and power steering
column movement occur when
the ignition key is removed.
