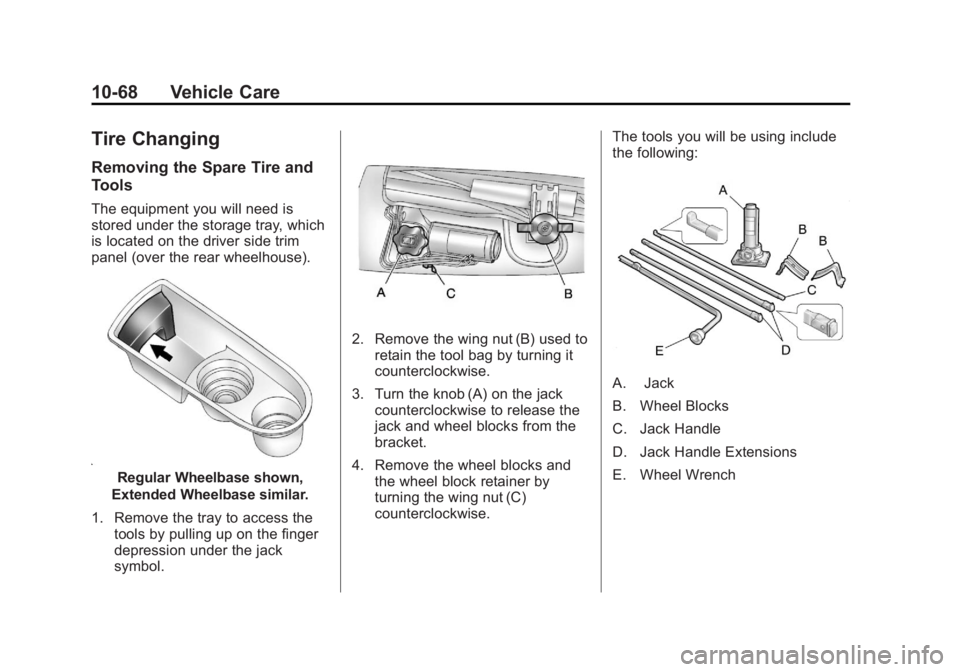

Black plate (68,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-68 Vehicle Care
Tire Changing Removing the Spare Tire and
Tools The equipment you will need is
stored under the storage tray, which
is located on the driver side trim
panel (over the rear wheelhouse).
Regular Wheelbase shown,
Extended Wheelbase similar.
1. Remove the tray to access the
tools by pulling up on the finger
depression under the jack
symbol. 2. Remove the wing nut (B) used to
retain the tool bag by turning it
counterclockwise.
3. Turn the knob (A) on the jack
counterclockwise to release the
jack and wheel blocks from the
bracket.
4. Remove the wheel blocks and
the wheel block retainer by
turning the wing nut (C)
counterclockwise. The tools you will be using include
the following:
A. Jack
B. Wheel Blocks
C. Jack Handle
D. Jack Handle Extensions
E. Wheel Wrench

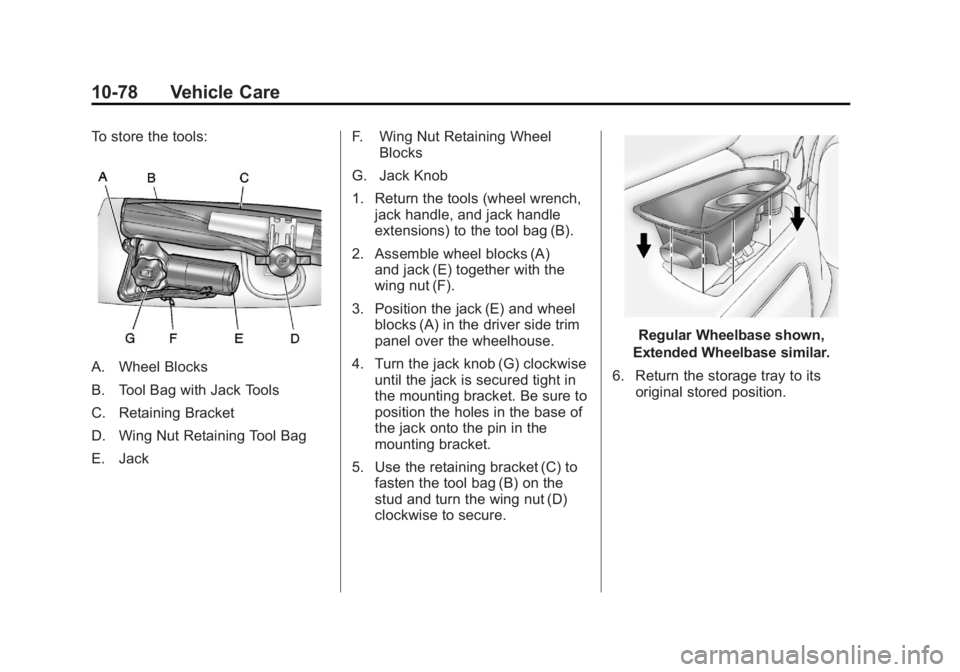

Black plate (78,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-78 Vehicle Care To store the tools:
A. Wheel Blocks
B. Tool Bag with Jack Tools
C. Retaining Bracket
D. Wing Nut Retaining Tool Bag
E. Jack F. Wing Nut Retaining Wheel
Blocks
G. Jack Knob
1. Return the tools (wheel wrench,
jack handle, and jack handle
extensions) to the tool bag (B).
2. Assemble wheel blocks (A)
and jack (E) together with the
wing nut (F).
3. Position the jack (E) and wheel
blocks (A) in the driver side trim
panel over the wheelhouse.
4. Turn the jack knob (G) clockwise
until the jack is secured tight in
the mounting bracket. Be sure to
position the holes in the base of
the jack onto the pin in the
mounting bracket.
5. Use the retaining bracket (C) to
fasten the tool bag (B) on the
stud and turn the wing nut (D)
clockwise to secure. Regular Wheelbase shown,
Extended Wheelbase similar.
6. Return the storage tray to its
original stored position.
