CADILLAC ESCALADE ESV 2015 4.G User Guide

Black plate (4,1)Cadillac 2015i Escalade Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431501) - 2015 - CRC - 2/10/15
1-4 In Brief
18.Steering Wheel Adjustment on
page 5-2.
19. Horn on page 5-3.
20. Steering Wheel Controls on
page 5-2.
Driver Information Center (DIC)
Controls. See Driver
Information Center (DIC) on
page 5-27.
21. ENGINE START/STOP Button. SeeIgnition Positions on
page 9-20.
22. CD Player. See Infotainment
on page 7-1.
23. Dual Automatic Climate Control
System on page 8-1.
Instrument Panel Storage on
page 4-1.Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner manual.
Remote Keyless Entry
(RKE) System
The RKE transmitter is used to
remotely lock and unlock the doors
from up to 60 m (197 ft) away from
the vehicle.
K:Press to unlock the driver door.
Press
Kagain within three seconds
to unlock all remaining doors.
Q: Press to lock all doors.
Lock and unlock feedback can be
personalized. See Vehicle
Personalization on page 5-46.
b: Press twice to open or close
the liftgate. Press once to stop the
liftgate from moving.
c: Press twice to open the
liftglass.

Black plate (5,1)Cadillac 2015i Escalade Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431501) - 2015 - CRC - 2/10/15
In Brief 1-5
7:Press and release to initiate
vehicle locate. The turn signal
lamps flash and the horn sound
three times.
Press
7and hold for more than
three seconds to sound the panic
alarm.
Press
7again to cancel the panic
alarm.
See Keys on page 2-1 andRemote
Keyless Entry (RKE) System on
page 2-2.
Remote Vehicle Start
If equipped, the engine can be
started from outside of the vehicle.
Starting the Vehicle
1. Press and releaseQ.
2. Immediately, press and hold
/
for at least four seconds or until
the turn signal lamps flash. When the vehicle starts, the parking
lamps will turn on. The doors will be
locked and the climate control
system may come on.
The engine will continue to run for
10 minutes. After 30 seconds,
repeat the steps if a 10-minute
extension is desired. Remote start
can be extended only once.
Canceling a Remote Start
To cancel a remote start, do one of
the following:
.Press and hold/until the
parking lamps turn off.
.Turn on the hazard warning
flashers.
.Turn the vehicle on and then off.
See Remote Vehicle Start on
page 2-10.
Door Locks
To lock or unlock the doors from
inside the vehicle:
.PressQorKon a power door
lock switch.
.Push down the manual lock
knob on the driver door to lock
all doors. Push down the lock
knob on a passenger door to
lock that door only.
.Pull the door handle once to
unlock that door. Pull the handle
again to unlatch it.
To lock or unlock the doors from
outside the vehicle press
QorKon
the RKE transmitter or use the key
in the front doors. The key cylinder
is covered by a cap. See Door
Locks on page 2-11. See Remote
Keyless Entry (RKE) System
Operation on page 2-3.

Black plate (6,1)Cadillac 2015i Escalade Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431501) - 2015 - CRC - 2/10/15
1-6 In Brief
Power Door Locks
Q:Press to lock the doors.
K: Press to unlock the doors.
See Door Locks on page 2-11.
Keyless Access
The RKE transmitter must be within
1 m (3 ft) of the door being opened.
Pressing the button on the driver
door handle will unlock the driver
door. If the handle button is pressed
again within five seconds, the passenger doors and liftgate will
unlock. See
“Keyless Access
Operation” inRemote Keyless Entry
(RKE) System Operation on
page 2-3.
Liftgate
To open the liftgate, pressKon the
power door lock switch or press
K
on the Remote Keyless Entry (RKE)
transmitter twice to unlock all doors.
Press the touch pad (1) on the
underside of the liftgate handle and lift up. See
Remote Keyless Entry
(RKE) System Operation on
page 2-3.
Use the pull cup to lower and close
the liftgate. Do not press the touch
pad while closing the liftgate. This
will cause the liftgate to be
unlatched.
To open the liftglass, press the
button (2) above the license plate.
Close the liftglass before opening
the liftgate to avoid damaging it.
Power Liftgate Operation
If equipped with a power liftgate, the
switch is on the overhead console.
The vehicle must be in P (Park).
Choose the power liftgate mode
selecting MAX or 3/4. Press
8on
the overhead console or on the RKE
transmitter press
btwice quickly.
Press any liftgate button while the
liftgate is moving to stop it. Pressing
again reverses the direction.

Black plate (7,1)Cadillac 2015i Escalade Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431501) - 2015 - CRC - 2/10/15
In Brief 1-7

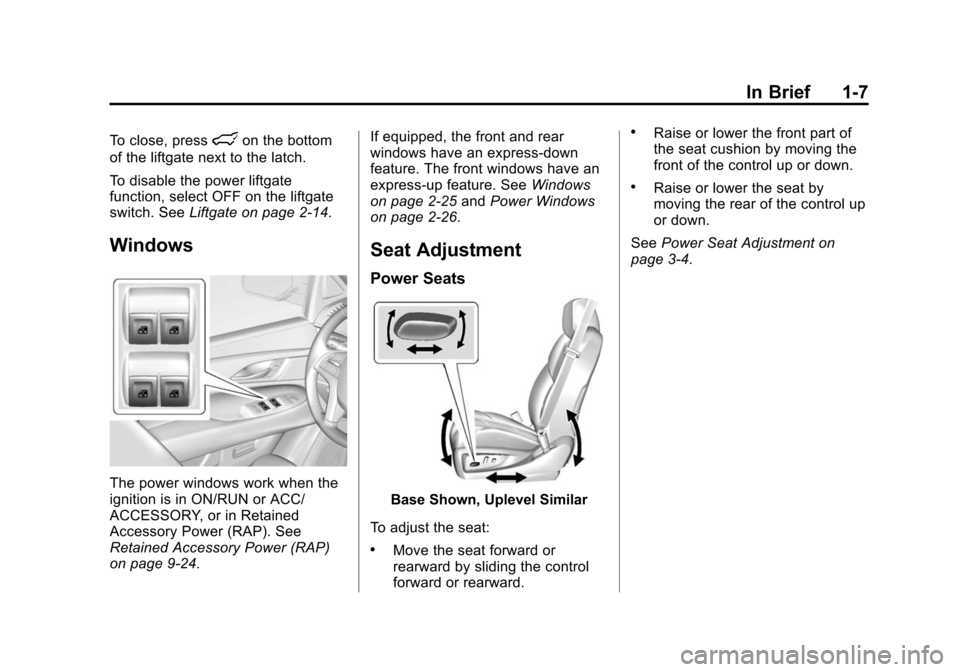

To close, presslon the bottom
of the liftgate next to the latch.
To disable the power liftgate
function, select OFF on the liftgate
switch. See Liftgate on page 2-14.
Windows
The power windows work when the
ignition is in ON/RUN or ACC/
ACCESSORY, or in Retained
Accessory Power (RAP). See
Retained Accessory Power (RAP)
on page 9-24. If equipped, the front and rear
windows have an express-down
feature. The front windows have an
express-up feature. See
Windows
on page 2-25 andPower Windows
on page 2-26.
Seat Adjustment
Power Seats
Base Shown, Uplevel Similar
To adjust the seat:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the front part of
the seat cushion by moving the
front of the control up or down.
.Raise or lower the seat by
moving the rear of the control up
or down.
See Power Seat Adjustment on
page 3-4.

Black plate (8,1)Cadillac 2015i Escalade Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431501) - 2015 - CRC - 2/10/15
1-8 In Brief
Lumbar Adjustment
Base
To adjust the lumbar support:
.Press and hold the control
forward to increase or rearward
to decrease upper and lower
lumbar support at the same time.
.Press and hold the control up to
increase upper lumbar support
and decrease lower lumbar
support.
Press and hold the control down
to increase lower lumbar support
and decrease upper lumbar
support.
See Lumbar Adjustment on
page 3-5.Reclining Seatbacks
Base Shown, Uplevel Similar
To recline the seatback:
.Tilt the top of the control
rearward to recline.
.Tilt the top of the control forward
to raise.
See Reclining Seatbacks on
page 3-6.

Black plate (9,1)Cadillac 2015i Escalade Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431501) - 2015 - CRC - 2/10/15
In Brief 1-9
Uplevel Seat Adjustment
If equipped, the ignition must be on
to use all uplevel seat features.
Uplevel Seat Control
1. Feature Select
2. Up
3. Rearward
4. Down
5. Forward
.Move Feature Select (1) to
display seat adjustments on the
center stack. Press and release
or hold to scroll through
features.
.Press Up (2) to make upward
adjustments of the selected
feature.
.Press Rearward (3) to make
rearward adjustments of the
selected feature.
.Press Down (4) to make
downward adjustments of the
selected feature.
.Press Forward (5) to make
forward adjustments of the
selected feature.
See Seat Adjustment on page 3-3.
Massage
Driver Seat Shown, Passenger
Seat Similar
1. Feature Select
2. Next Higher Massage Type
3. Decrease Massage Intensity
4. Next Lower Massage Type
5. Increase Massage Intensity
6. Massage On/Off
If equipped, the ignition must be on
to display massage controls (1–5).
SeeMassage on page 3-9.

Black plate (10,1)Cadillac 2015i Escalade Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431501) - 2015 - CRC - 2/10/15
1-10 In Brief
Memory Features
The SET, "1," "2," andB(Exit)
buttons on the driver door are used
to manually store and recall memory
settings for the driver seat, outside
mirrors, power tilt and telescoping
steering column, adjustable pedals,
and massage settings (if equipped).
See Memory Seats on page 3-7 and
Vehicle Personalization on
page 5-46.
Second Row Seats
The second row seatbacks can be
folded for additional cargo space,
or the seats can be folded and
tumbled for easy entry/exit to the
third row seats. The seatbacks also
recline.
See Second Row Seats on
page 3-11.
Third Row Seats
Third row seatbacks can be folded.
See Third Row Seats on page 3-16.
Heated and Cooled Front
Seats
The buttons are near the climate
controls on the center stack. To
operate, the engine must be
running.
Press
Ior+to heat the driver or
passenger seatback only.
Press
Jorzto heat the driver or
passenger seat cushion and
seatback.

Black plate (11,1)Cadillac 2015i Escalade Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431501) - 2015 - CRC - 2/10/15
In Brief 1-11

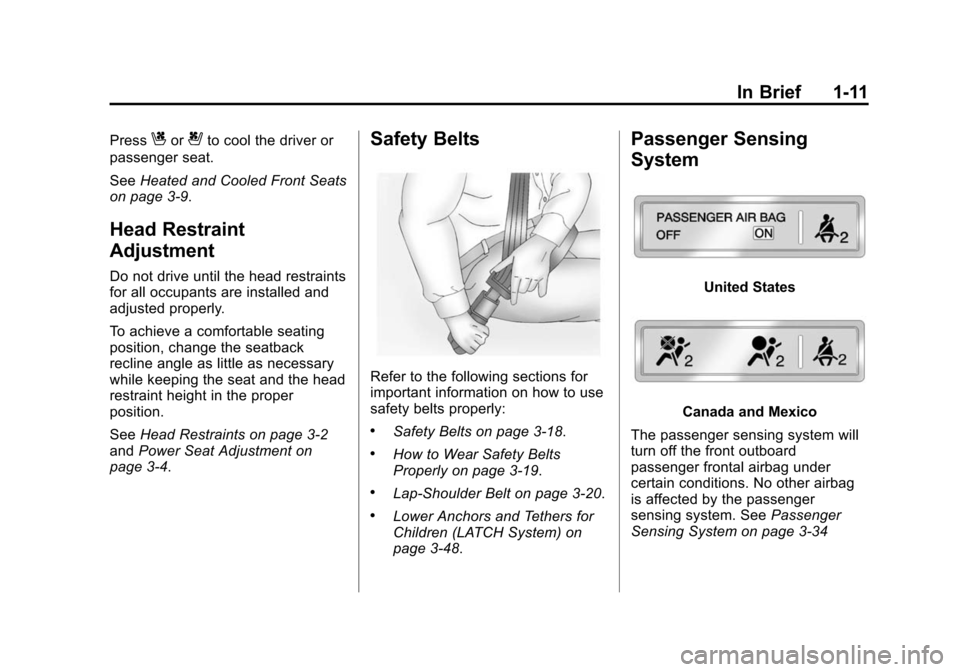

PressCor{to cool the driver or
passenger seat.
See Heated and Cooled Front Seats
on page 3-9.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
See Head Restraints on page 3-2
and Power Seat Adjustment on
page 3-4.
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly:
.Safety Belts on page 3-18.
.How to Wear Safety Belts
Properly on page 3-19.
.Lap-Shoulder Belt on page 3-20.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3-48.
Passenger Sensing
System
United States
Canada and Mexico
The passenger sensing system will
turn off the front outboard
passenger frontal airbag under
certain conditions. No other airbag
is affected by the passenger
sensing system. See Passenger
Sensing System on page 3-34

Black plate (12,1)Cadillac 2015i Escalade Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431501) - 2015 - CRC - 2/10/15
1-12 In Brief
The passenger airbag status
indicator will light on the overhead
console when the vehicle is started.
SeePassenger Airbag Status
Indicator on page 5-17.
Mirror Adjustment
Interior Mirror
Adjustment
Adjust the rearview mirror for a clear
view of the area behind the vehicle.
Automatic Dimming Rearview
Mirror
The mirror automatically dims to
reduce the glare of headlamps from
behind. The dimming feature comes
on when the vehicle is started.
Exterior Mirrors
Power Mirrors
To adjust the mirrors:
1. Press (1) or (2) to select the driver or passenger side mirror.
2. Press the arrows on the control pad to move each mirror in the
desired direction.
3. Press either (1) or (2) again to deselect the mirror.
See Power Mirrors on page 2-23. Power Folding Mirrors
The vehicle has power folding
mirrors. To adjust:
1. Press
{to fold the mirrors
inward.
2. Press
{again to return the
mirrors to the driving position.
Heated Mirrors
If equipped, press
1to heat the
outside mirrors.

Black plate (13,1)Cadillac 2015i Escalade Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431501) - 2015 - CRC - 2/10/15
In Brief 1-13
See“Rear Window Defogger” under
Dual Automatic Climate Control
System on page 8-1.
Steering Wheel
Adjustment
To adjust the power tilt and
telescoping steering wheel,
if equipped:
Press the control to move the
steering wheel up and down or
forward and rearward.
Do not adjust the steering wheel
while driving.
Throttle and Brake Pedal
Adjustment
If equipped, the position of the
throttle and brake pedals can be
changed.
The switch used to adjust the
pedals is on the center stack, to the
left of the touch screen.
Press the top of the switch to move
the pedals closer to your body.
Press the bottom of the switch to
move the pedals away. See
Adjustable Throttle and Brake
Pedal on page 9-19.
The vehicle may have a memory
function, which lets pedal settings
be saved and recalled. See Memory
Seats on page 3-7.
Interior Lighting
Dome Lamps
There are dome lamps in the
overhead console and the headliner,
if equipped.
