Luggage Carrier
You can load things on top of your vehicle if it has
this feature.
The luggage carrier has slats and siderails attached to
the roof and may have crossrails which can be moved
back and forth to help secure cargo. Tie the load to the
siderails or siderail supports.
Notice:Loading cargo on the luggage carrier that
weighs more than 200 lbs (91 kg) or hangs over
the rear or sides of the vehicle may damage your
vehicle. Load cargo so that it rests on the slats
as far forward as possible and against the side rails,
making sure to fasten it securely.
Don’t exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, seeLoading Your Vehicle on
page 4-44.
To prevent damage or loss of cargo as you’re leaving,
check now and then to make sure the luggage and
cargo are still securely fastened.Be sure the cargo is properly loaded.If small heavy objects are placed on the roof cut a
piece of 3/8 inch plywood to t inside the crossrails
and siderails to spread the load. If plywood is
used, tie it to the siderail supports.
Tie the load to the crossrails or the siderail supports.
Use the crossrails only to keep the load from
sliding. To move a crossrail, turn the release knobs,
on both sides of the rail, counterclockwise to
loosen it. Slide the crossrail to the desired position
balancing the force side to side. Turn the release
knobs, on both sides of the rail, clockwise to tighten
it and try to slide the crossrail back and forth
slightly to be sure it is tight.
If you need to carry long items, move the crossrails
as far apart as they will go. Tie the load to the
crossrails and the siderails or siderail supports.
Also tie the load to the bumpers. Do not tie the
load so tightly that the crossrails or siderails
are damaged.
After moving a crossrail, be sure it is securely
locked into the siderail.
2-54

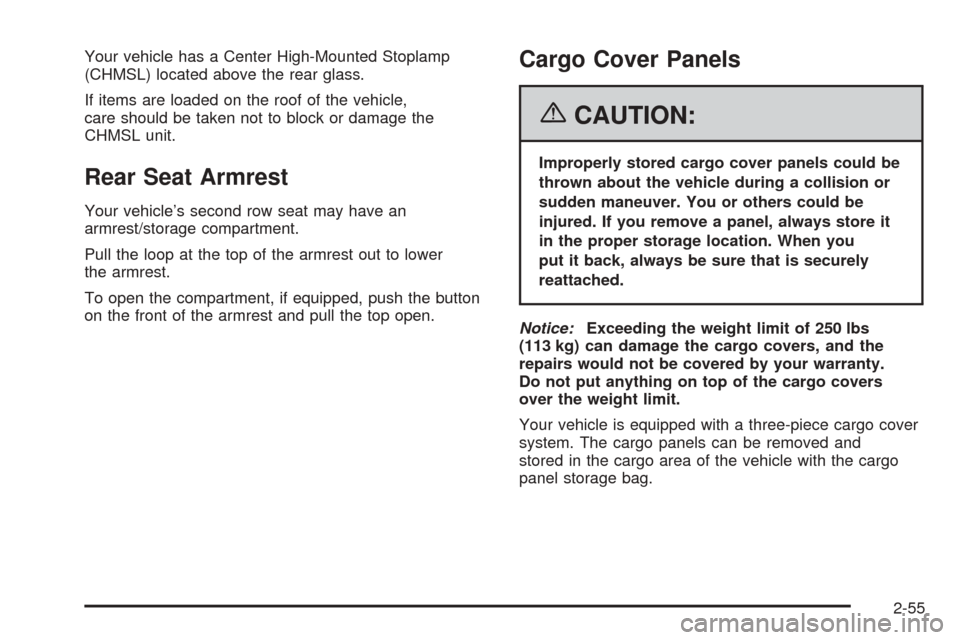

Your vehicle has a Center High-Mounted Stoplamp
(CHMSL) located above the rear glass.
If items are loaded on the roof of the vehicle,
care should be taken not to block or damage the
CHMSL unit.
Rear Seat Armrest
Your vehicle’s second row seat may have an
armrest/storage compartment.
Pull the loop at the top of the armrest out to lower
the armrest.
To open the compartment, if equipped, push the button
on the front of the armrest and pull the top open.
Cargo Cover Panels
{CAUTION:
Improperly stored cargo cover panels could be
thrown about the vehicle during a collision or
sudden maneuver. You or others could be
injured. If you remove a panel, always store it
in the proper storage location. When you
put it back, always be sure that is securely
reattached.
Notice:Exceeding the weight limit of 250 lbs
(113 kg) can damage the cargo covers, and the
repairs would not be covered by your warranty.
Do not put anything on top of the cargo covers
over the weight limit.
Your vehicle is equipped with a three-piece cargo cover
system. The cargo panels can be removed and
stored in the cargo area of the vehicle with the cargo
panel storage bag.
2-55

Cargo Panel Storage System
The three cargo panels can be stored in the cargo area
using the storage strap system. To store the panels,
do the following:1. Secure the storage
strap system in the
cargo storage area by
attaching the six clips
included on the
cargo strap system to
the tie down locations
on either side of
the storage area.
Always use the storage strap system to store the
cargo panels during driving.
Before storing the cargo panels, be sure that the
latches are in the locked position. The latches are in
the locked position when they are parallel to the
front and back edge of the panel.
2-58

Use the following instructions for the proper storage
sequence and location for each panel:
A. Secure the rst secondary strap.
B. Secure the last secondary strap.
C. Put the rest of the strap system towards the
top of the lid and tray.2. Starting with cargo panel 1, load the cargo panel
with latches up and facing away from you.
2-59

7. Close both cross locks at the center of the strap
system to secure tightly.
Panels 3, 2, 1 Loaded
2-62

3. Take the short strap and surround the folded
webbing, forming a package.
4. Take the long strap and wrap it around the package
Finally, attach the hooks to the webbing.
Cargo Tie Downs
There are cargo tie downs in the rear cargo area that
you can use to strap cargo in. The tie downs are
also used to secure the cargo cover panel storage bag.
For more information see “Cargo Cover Panels”
earlier in this section.
2-67
