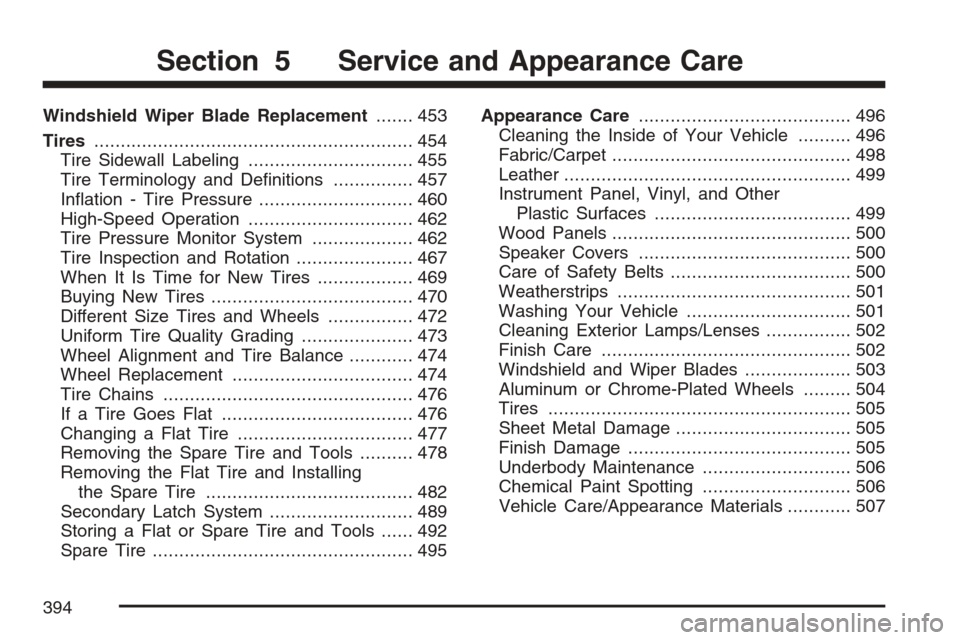

Windshield Wiper Blade Replacement....... 453
Tires............................................................ 454
Tire Sidewall Labeling............................... 455
Tire Terminology and Denitions............... 457
Ination - Tire Pressure............................. 460
High-Speed Operation............................... 462
Tire Pressure Monitor System................... 462
Tire Inspection and Rotation...................... 467
When It Is Time for New Tires.................. 469
Buying New Tires...................................... 470
Different Size Tires and Wheels................ 472
Uniform Tire Quality Grading..................... 473
Wheel Alignment and Tire Balance............ 474
Wheel Replacement.................................. 474
Tire Chains............................................... 476
If a Tire Goes Flat.................................... 476
Changing a Flat Tire................................. 477
Removing the Spare Tire and Tools.......... 478
Removing the Flat Tire and Installing
the Spare Tire....................................... 482
Secondary Latch System........................... 489
Storing a Flat or Spare Tire and Tools...... 492
Spare Tire................................................. 495Appearance Care........................................ 496
Cleaning the Inside of Your Vehicle.......... 496
Fabric/Carpet............................................. 498
Leather...................................................... 499
Instrument Panel, Vinyl, and Other
Plastic Surfaces..................................... 499
Wood Panels............................................. 500
Speaker Covers........................................ 500
Care of Safety Belts.................................. 500
Weatherstrips............................................ 501
Washing Your Vehicle............................... 501
Cleaning Exterior Lamps/Lenses................ 502
Finish Care............................................... 502
Windshield and Wiper Blades.................... 503
Aluminum or Chrome-Plated Wheels......... 504
Tires......................................................... 505
Sheet Metal Damage................................. 505
Finish Damage.......................................... 505
Underbody Maintenance............................ 506
Chemical Paint Spotting............................ 506
Vehicle Care/Appearance Materials............ 507
Section 5 Service and Appearance Care
394

Federal Communications Commission
(FCC) and Industry and Science
Canada
The Tire Pressure Monitor System (TPMS)
operates on a radio frequency and complies with
Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
The Tire Pressure Monitor System (TPMS)
operates on a radio frequency and complies with
RSS-210 of Industry and Science Canada.
Operation is subject to the following two
conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
Tire Inspection and Rotation
Tires should be rotated every 5,000 to 8,000 miles
(8 000 to 13 000 km).
Any time you notice unusual wear, rotate your
tires as soon as possible and check wheel
alignment. Also check for damaged tires or wheels.
SeeWhen It Is Time for New Tires on page 469
andWheel Replacement on page 474for
more information.
Make sure the spare tire is stored securely. Push,
pull, and then try to rotate or turn the tire. If it
moves, use the ratchet/wheel wrench to tighten the
cable. SeeChanging a Flat Tire on page 477.
The purpose of regular rotation is to achieve more
uniform wear for all tires on the vehicle. The
rst rotation is the most important. SeeScheduled
Maintenance on page 523.
467

When rotating your vehicle’s tires, always use the
correct rotation pattern shown here.
Do not include the spare tire in the tire rotation.
After the tires have been rotated, adjust the
front and rear ination pressures as shown on the
tire and loading information label. SeeLoading
Your Vehicle on page 372andInation - Tire
Pressure on page 460, for more information.
Vehicles that have the Tire Pressure Monitor
System (TPMS) will need to have the TPMS
sensors reset after a tire rotation. See “TPMS
Sensor Identication Codes” underTire Pressure
Monitor System on page 462.Make certain that all wheel nuts are properly
tightened. See “Wheel Nut Torque” under
Capacities and Specications on page 518.
{CAUTION:
Rust or dirt on a wheel, or on the parts to
which it is fastened, can make wheel nuts
become loose after a time. The wheel
could come off and cause an accident.
When you change a wheel, remove any
rust or dirt from places where the wheel
attaches to the vehicle. In an emergency,
you can use a cloth or a paper towel to do
this; but be sure to use a scraper or wire
brush later, if needed, to get all the rust or
dirt off. SeeChanging a Flat Tire on
page 477.
468

Each new wheel should have the same
load-carrying capacity, diameter, width, offset and
be mounted the same way as the one it
replaces.
If you need to replace any of your wheels, wheel
bolts, or wheel nuts, replace them only with
new GM original equipment parts. This way, you
will be sure to have the right wheel, wheel
bolts, and wheel nuts for your vehicle.
{CAUTION:
Using the wrong replacement wheels,
wheel bolts, or wheel nuts on your vehicle
can be dangerous. It could affect the
braking and handling of your vehicle,
make your tires lose air and make you
lose control. You could have a collision in
which you or others could be injured.
Always use the correct wheel, wheel bolts,
and wheel nuts for replacement.Notice:The wrong wheel can also cause
problems with bearing life, brake cooling,
speedometer or odometer calibration,
headlamp aim, bumper height, vehicle ground
clearance, and tire or tire chain clearance
to the body and chassis.
SeeChanging a Flat Tire on page 477for more
information.
Used Replacement Wheels
{CAUTION:
Putting a used wheel on your vehicle is
dangerous. You cannot know how it has
been used or how far it has been driven. It
could fail suddenly and cause a crash. If
you have to replace a wheel, use a new
GM original equipment wheel.
475

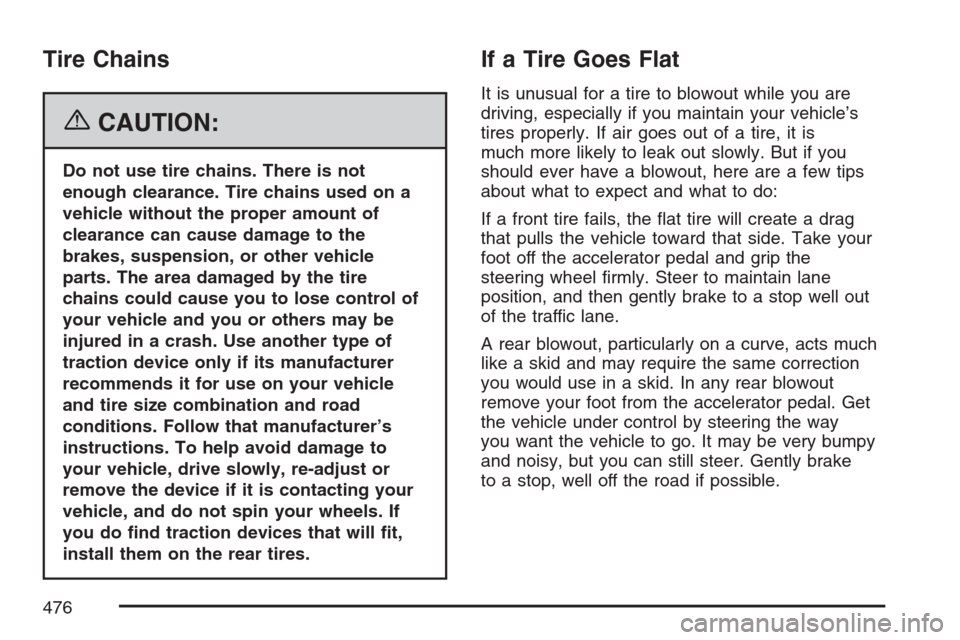

Tire Chains
{CAUTION:
Do not use tire chains. There is not
enough clearance. Tire chains used on a
vehicle without the proper amount of
clearance can cause damage to the
brakes, suspension, or other vehicle
parts. The area damaged by the tire
chains could cause you to lose control of
your vehicle and you or others may be
injured in a crash. Use another type of
traction device only if its manufacturer
recommends it for use on your vehicle
and tire size combination and road
conditions. Follow that manufacturer’s
instructions. To help avoid damage to
your vehicle, drive slowly, re-adjust or
remove the device if it is contacting your
vehicle, and do not spin your wheels. If
you do nd traction devices that will t,
install them on the rear tires.
If a Tire Goes Flat
It is unusual for a tire to blowout while you are
driving, especially if you maintain your vehicle’s
tires properly. If air goes out of a tire, it is
much more likely to leak out slowly. But if you
should ever have a blowout, here are a few tips
about what to expect and what to do:
If a front tire fails, the at tire will create a drag
that pulls the vehicle toward that side. Take your
foot off the accelerator pedal and grip the
steering wheel rmly. Steer to maintain lane
position, and then gently brake to a stop well out
of the traffic lane.
A rear blowout, particularly on a curve, acts much
like a skid and may require the same correction
you would use in a skid. In any rear blowout
remove your foot from the accelerator pedal. Get
the vehicle under control by steering the way
you want the vehicle to go. It may be very bumpy
and noisy, but you can still steer. Gently brake
to a stop, well off the road if possible.
476

{CAUTION:
Lifting a vehicle and getting under it to do
maintenance or repairs is dangerous
without the appropriate safety equipment
and training. The jack provided with your
vehicle is designed only for changing a
at tire. If it is used for anything else, you
or others could be badly injured or killed
if the vehicle slips off the jack. Use the
jack provided with your vehicle only for
changing a at tire.
If a tire goes at, the next part shows how to use
the jacking equipment to change a at tire
safely.
Changing a Flat Tire
If a tire goes at, avoid further tire and wheel
damage by driving slowly to a level place. Turn on
your vehicle’s hazard warning ashers. See
Hazard Warning Flashers on page 194for more
information.
{CAUTION:
Changing a tire can be dangerous. The
vehicle can slip off the jack and roll over
or fall on you or other people. You and
they could be badly injured or even killed.
Find a level place to change your tire. To
help prevent the vehicle from moving:
1. Set the parking brake rmly.
2. Put the shift lever in PARK (P).
3. Turn off the engine and do not restart
while the vehicle is raised.
4. Do not allow passengers to remain in
the vehicle.
To be even more certain the vehicle will
not move, you should put blocks at the
front and rear of the tire farthest away
from the one being changed. That would
be the tire, on the other side, at the
opposite end of the vehicle.
477

6. Use the wheel
wrench hook that
allows you to
pull the hoist cable
towards you, to
assist in reaching
the spare tire.
7. Tilt the tire retainer
at the end of the
cable when the tire
has been lowered,
so it can be
pulled up through
the wheel opening.
8. Put the spare tire near the at tire.Removing the Flat Tire and
Installing the Spare Tire
Use the following pictures and instructions to
remove the at tire and raise the vehicle.
The tools you will be using include the jack (A),
the wheel blocks (B), the jack handle (C), the jack
handle extensions (D), and the wheel wrench (E).
482

Front Tire Flat:If the at tire is on a front tire
of the vehicle, you will need to use the jack
handle (B) and only one jack handle
extension (C). Attach the wheel wrench (D) to
the jack handle extension (C). Attach the
jack handle (B) to the jack (A). Position the jack
on the frame behind the at tire near the
front body mount (E) as shown. Turn the wheel
wrench (D) clockwise to raise the vehicle.
Raise the vehicle far enough off the ground so
there is enough room for the spare tire to
clear the ground.
Front Position
485

Rear Tire Flat:If the at tire is on a rear tire
of the vehicle, you will need to use the
jack handle (B) and both jack handle
extensions (C). Attach the wheel wrench (D) to
the jack handle extensions (C). Attach the
jack handle (B) to the jack (A). Use the jacking
pad provided on the rear axle. Turn the
wheel wrench (D) clockwise to raise the
vehicle. Raise the vehicle far enough off the
ground so there is enough room for the spare
tire to clear the ground.
4. Remove all the
wheel nuts.
5. Take off the at tire.
Rear Position
486

If you are reinstalling the smooth center cap,
place it on the wheel and tap it into place
until it seats ush with the wheel.
Secondary Latch System
Your vehicle has an underbody-mounted tire hoist
assembly equipped with a secondary latch
system. It is designed to stop the spare tire from
suddenly falling off your vehicle. For the secondary
latch to work, the spare must be installed with
the valve stem pointing down. SeeStoring a Flat
or Spare Tire and Tools on page 492.
{CAUTION:
Before beginning this procedure read all
the instructions. Failure to read and follow
the instructions could damage the hoist
assembly and you and others could get
hurt. Read and follow the instructions
listed next.To release the spare tire from the secondary latch,
do the following:
1. Check under the
vehicle to see if the
cable end is
visible. If the cable
is not visible
proceed to Step 6.
2. If it is visible, rst try to tighten the cable by
turning the wheel wrench clockwise until you
hear two clicks or feel it skip twice. You
cannot overtighten the cable.
3. Loosen the cable by turning the wrench
counterclockwise three or four turns.
4. Repeat this procedure at least two times.
If the spare tire lowers to the ground,
continue with Step 5 ofRemoving the Spare
Tire and Tools on page 478.
489
