The main components of your instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on
page 224.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 196.
C. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 194.
D. Instrument Panel Cluster. SeeInstrument
Panel Cluster on page 226.
E. Shift Lever/Tow/Haul Selector Button. See
Automatic Transmission Operation on
page 129andTow/Haul Mode on page 135.
F. Analog Clock. SeeAnalog Clock on page 218.
G. Audio System. SeeAudio System(s) on
page 267. Navigation/Radio System (if
equipped). SeeNavigation/Radio System on
page 302.
H. Exterior Lamps Control. SeeExterior Lamps on
page 204.
I. Dome Override Button. SeeDome Lamp
Override on page 212.
J. Cruise Control Buttons. SeeCruise Control on
page 201.
K. Tilt Lever. SeeTilt Wheel on page 195.L. Horn. SeeHorn on page 194.
M. Audio Steering Wheel Buttons. SeeAudio
Steering Wheel Controls on page 316.
N. Driver Information Center (DIC) Buttons. See
Driver Information Center (DIC) on page 243.
O. Pedal Adjust Button. SeeAdjustable Throttle
and Brake Pedal on page 128. Heated
Windshield Washer Fluid Button (If Equipped).
SeeWindshield Washer on page 200. Power
Running Boards Disable Button (If Equipped).
SeePower Running Boards on page 114.
P. Dual Automatic Climate Controls. SeeDual
Automatic Climate Control System on
page 219. Heated Seats (If Equipped). See
Heated Seats on page 10. Heated and Cooled
Seats (If Equipped). SeeHeated and Cooled
Seats on page 11.
Q. StabiliTrak
®Disable Button. See.StabiliTrak®
System on page 330.Ultrasonic Rear Parking
Assist Disable Button. See.Ultrasonic Rear
Parking Assist (URPA) on page 213.
R. Glove Box. SeeGlove Box on page 165.
193

Service........................................................ 396
Accessories and Modications................... 397
California Proposition 65 Warning.............. 397
Doing Your Own Service Work.................. 398
Adding Equipment to the Outside of
Your Vehicle.......................................... 399
Fuel............................................................. 399
Gasoline Octane........................................ 399
Gasoline Specications.............................. 399
California Fuel........................................... 400
Additives................................................... 400
Fuels in Foreign Countries........................ 401
Filling the Tank......................................... 402
Filling a Portable Fuel Container............... 404
Checking Things Under the Hood.............. 404
Hood Release........................................... 405
Engine Compartment Overview.................. 406
Engine Oil................................................. 407
Engine Oil Life System.............................. 410
Engine Air Cleaner/Filter............................ 412
Automatic Transmission Fluid.................... 415
Engine Coolant.......................................... 419Coolant Surge Tank Pressure Cap............ 422
Engine Overheating................................... 422
Overheated Engine Protection
Operating Mode..................................... 425
Cooling System......................................... 426
Engine Fan Noise..................................... 431
Power Steering Fluid ................................. 431
Windshield Washer Fluid........................... 432
Brakes...................................................... 433
Battery...................................................... 437
Jump Starting............................................ 438
All-Wheel Drive........................................... 443
Rear Axle.................................................... 444
Front Axle................................................... 446
Headlamp Aiming........................................ 447
Bulb Replacement....................................... 450
High Intensity Discharge (HID) Lighting..... 450
Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up Lamps.............. 450
License Plate Lamp................................... 452
Replacement Bulbs................................... 452
Section 5 Service and Appearance Care
393

A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 412.
B. Air Filter Restriction Indicator (If Equipped).
SeeEngine Air Cleaner/Filter on page 412.
C. Coolant Surge Tank and Pressure Cap.
SeeCooling System on page 426andCoolant
Surge Tank Pressure Cap on page 422.
D. Remote Positive (+) Terminal. SeeJump
Starting on page 438.
E. Battery. SeeBattery on page 437.
F. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 407.
G. Automatic Transmission Dipstick (Out of View).
See “Checking the Fluid Level” under
Automatic Transmission Fluid on page 415.
H. Remote Negative (−) Terminal (GND) (Out of
View). SeeJump Starting on page 438.
I. Engine Oil Dipstick (Out of View). See
“Checking Engine Oil” underEngine Oil on
page 407.
J. Engine Cooling Fan (Out of View). SeeCooling
System on page 426.
K. Power Steering Fluid Reservoir (Out of View).
SeePower Steering Fluid on page 431.L. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 433.
M. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 513.
N. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 432.
Engine Oil
If the ENGINE OIL LOW ADD OIL message
appears on the Driver Information Center (DIC), it
means you need to check your engine oil level
right away. For more information, see ENGINE OIL
LOW ADD OIL underDIC Warnings and
Messages on page 248.
You should check your engine oil level regularly;
this is an added reminder.
Checking Engine Oil
It is a good idea to check your engine oil every
time you get fuel. In order to get an accurate
reading, the oil must be warm and the vehicle must
be on level ground.
407

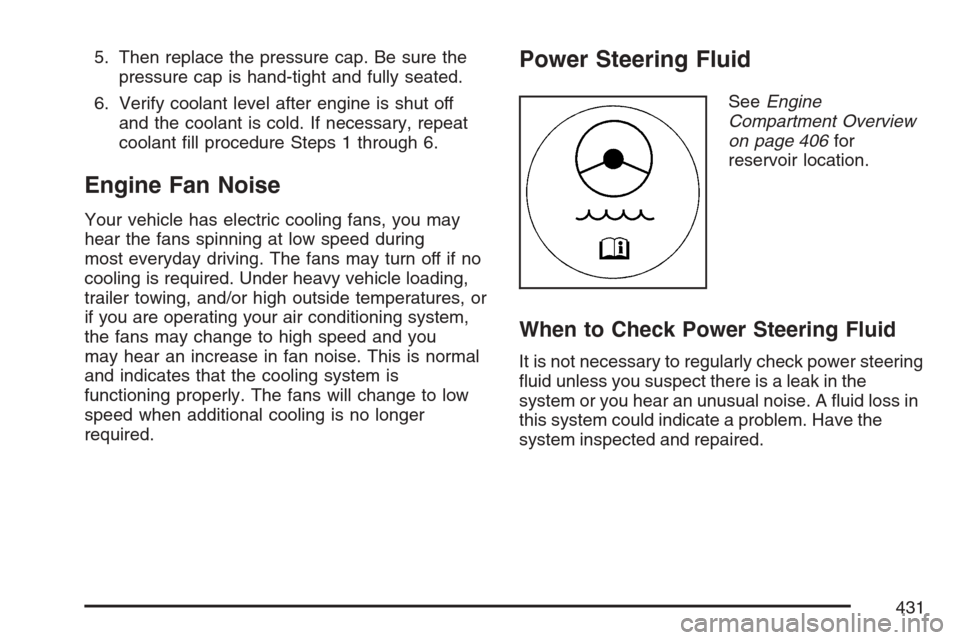

5. Then replace the pressure cap. Be sure the
pressure cap is hand-tight and fully seated.
6. Verify coolant level after engine is shut off
and the coolant is cold. If necessary, repeat
coolant ll procedure Steps 1 through 6.
Engine Fan Noise
Your vehicle has electric cooling fans, you may
hear the fans spinning at low speed during
most everyday driving. The fans may turn off if no
cooling is required. Under heavy vehicle loading,
trailer towing, and/or high outside temperatures, or
if you are operating your air conditioning system,
the fans may change to high speed and you
may hear an increase in fan noise. This is normal
and indicates that the cooling system is
functioning properly. The fans will change to low
speed when additional cooling is no longer
required.
Power Steering Fluid
SeeEngine
Compartment Overview
on page 406for
reservoir location.
When to Check Power Steering Fluid
It is not necessary to regularly check power steering
uid unless you suspect there is a leak in the
system or you hear an unusual noise. A uid loss in
this system could indicate a problem. Have the
system inspected and repaired.
431

How to Check Power Steering Fluid
To check the power steering uid, do the following:
1. Turn the key off and let the engine
compartment cool down.
2. Wipe the cap and the top of the reservoir
clean.
3. Unscrew the cap and wipe the dipstick with a
clean rag.
4. Replace the cap and completely tighten it.
5. Remove the cap again and look at the
uid level on the dipstick.
The level should be at the FULL COLD mark.
If necessary, add only enough uid to bring
the level up to the mark.
What to Use
To determine what kind of uid to use, see
Recommended Fluids and Lubricants on page 533.
Always use the proper uid. Failure to use the
proper uid can cause leaks and damage hoses
and seals.
Windshield Washer Fluid
What to Use
When you need windshield washer uid, be sure
to read the manufacturer’s instructions before
use. If you will be operating your vehicle in an area
where the temperature may fall below freezing,
use a uid that has sufficient protection against
freezing.
Adding Washer Fluid
Your vehicle has a low washer uid message that
comes on when the washer uid is low. The
message is displayed for 15 seconds at the start
of each ignition cycle. When the WASHER
FLUID LOW ADD FLUID message is displayed,
you will need to add washer uid to the windshield
washer uid reservoir.
432

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name,
part number, or specication may be obtained from
your dealer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets
GM Standard GM6094M and
displays the American Petroleum
Institute Certied for Gasoline
Engines starburst symbol.
GM Goodwrench
®oil meets all the
requirements for your vehicle. To
determine the proper viscosity for
your vehicle’s engine, seeEngine
Oil on page 407.
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 419.
Usage Fluid/Lubricant
Hydraulic Brake
SystemDelco®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
WasherGM Optikleen
®Washer Solvent.
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184, in
Canada 89021186).
Automatic
TransmissionDEXRON
®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Chassis
LubricationChassis Lubricant
(GM Part No. U.S. 12377985, in
Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
533

F
Filter
Engine Air Cleaner................................... 412
Finish Damage............................................ 505
Fixed Mast Antenna.................................... 318
Flashers, Hazard Warning........................... 194
Flash-to-Pass.............................................. 198
Flat Tire...................................................... 476
Flat Tire, Changing...................................... 477
Flat Tire, Storing......................................... 492
Fluid
Automatic Transmission............................ 415
Power Steering........................................ 431
Windshield Washer.................................. 432
Fog Lamp Light........................................... 241
Fog Lamps.................................................. 211
Front Axle................................................... 446
Fuel............................................................ 399
Additives.................................................. 400
California Fuel.......................................... 400
Filling a Portable Fuel Container.............. 404
Filling Your Tank...................................... 402
Fuels in Foreign Countries....................... 401Fuel (cont.)
Gage....................................................... 242
Gasoline Octane...................................... 399
Gasoline Specications............................ 399
Fuses
Center Instrument Panel Fuse Block........ 512
Fuses and Circuit Breakers...................... 509
Instrument Panel Fuse Block................... 510
Underhood Fuse Block............................. 513
Windshield Wiper..................................... 509
G
Gage
Engine Coolant Temperature.................... 235
Fuel......................................................... 242
Speedometer........................................... 227
Tachometer.............................................. 227
Garage Door Opener..........................154, 155
Gasoline
Octane..................................................... 399
Specications........................................... 399
Glove Box................................................... 165
GM Mobility Reimbursement Program.......... 547
570

Power (cont.)
Retained Accessory (RAP)....................... 125
Running Boards....................................... 114
Seat............................................................ 8
Steering Fluid.......................................... 431
Windows.................................................. 116
Pretensioners, Safety Belt............................. 38
Programmable Automatic Door Locks.......... 102
Q
Questions and Answers About
Safety Belts............................................... 22
R
Radios........................................................ 267
Care of Your CD and DVD Player............ 318
Care of Your CDs and DVDs................... 318
Navigation/Radio System, see Navigation
Manual................................................. 302
Radio with CD and DVD.......................... 270
Rear Seat Audio...................................... 313
Setting the Time...................................... 269
Theft-Deterrent......................................... 315
Understanding Reception......................... 317
Rainsense™ II Wipers................................. 199Reading Lamps........................................... 212
Rear Axle.................................................... 444
Rear Door Security Locks........................... 103
Rear Safety Belt Comfort Guides.................. 35
Rear Seat Armrest...................................... 168
Rear Seat Audio (RSA)............................... 313
Rear Seat Entertainment System................. 302
Rear Seat Operation..................................... 16
Rear Seat Passengers, Safety Belts.............. 32
Rearview Mirror, Automatic Dimming with
OnStar
®, Compass and Temperature
Display..................................................... 145
Reclining Seatbacks, Power.......................... 14
Recommended Fluids and Lubricants.......... 533
Recovery Hooks.......................................... 371
Recreational Vehicle Towing........................ 379
Remote Keyless Entry System...................... 92
Remote Keyless Entry System, Operation..... 93
Removing the Flat Tire and Installing the
Spare Tire................................................ 482
Removing the Spare Tire and Tools............ 478
Replacement Bulbs..................................... 452
Reporting Safety Defects
Canadian Government............................. 561
General Motors........................................ 561
United States Government....................... 560
575
