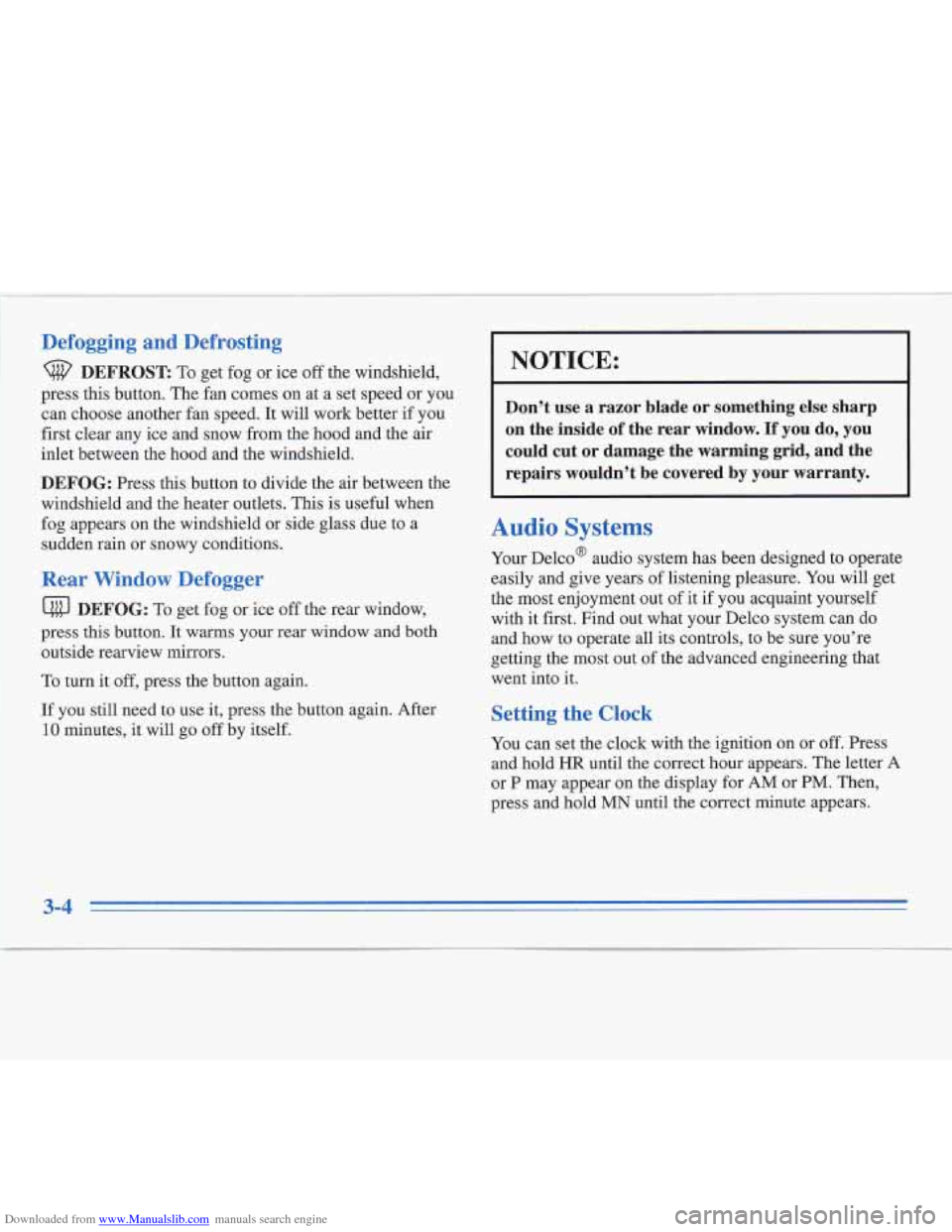

Downloaded from www.Manualslib.com manuals search engine Defogging and Defrosting
DEFROST: To get fog or ice off the windshield,
press this button. The fan comes on at a set speed or you
can choose another fan speed. It will work better if you
first clear any
ice and snow from the hood and the air
inlet between the hood and the windshield.
DEFOG: Press this button to divide the air between the
windshield and the heater outlets. This is useful when
fog appears
on the windshield or side glass due to a
sudden rain or snowy conditions.
Rear Window Defogger
DEFOG: To get fog or ice off the rear window,
press this button.
It warms your rear window and both
outside rearview mirrors.
To turn it off, press the button again.
If you still need to use it, press the button again. After
10 minutes, it will go off by itself,
I NOTICE:
Don’t use a razor blade or something else sharp
on the inside
of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs wouldn’t be covered by your warranty.
Audio Systems
Your Delco@ audio system has been designed to operate
easily and give years of listening pleasure. You will get
the most enjoyment out
of it if you acquaint yourself
with it first. Find out what your Delco system can
do
and how to operate all its controls, to be sure you’re
getting the most out of the advanced engineering that
went into it.
Setting the Clock
You can set the clock with the ignition on or off. Press
and hold
HR until the correct hour appears. The letter A
or P may appear on the display for AM or PM. Then,
press and hold MN until the correct minute appears.
3-4

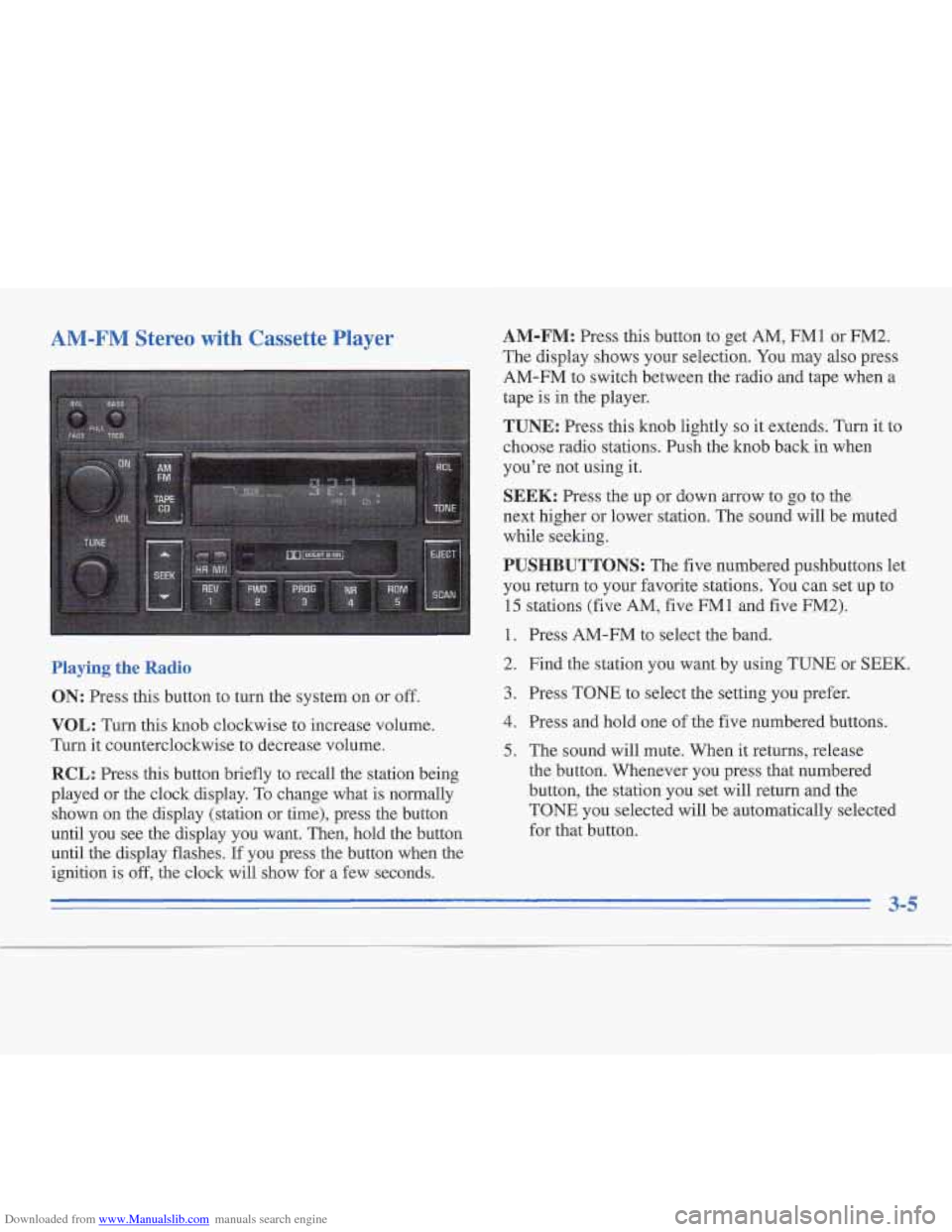

Downloaded from www.Manualslib.com manuals search engine AM-FM Stereo with Cassette Player
Playing the Radio
ON: Press this button to turn the system on or off.
VOL: Turn this knob clockwise to increase volume.
Turn it counterclockwise to decrease volume.
RCL: Press this button briefly to recall the station being
played or the clock display. To change what is normally
shown
on the display (station or time), press the button
until you see the display you want. Then, hold the button
until the display flashes.
If you press the button when the
ignition
is off, the clock will show for a few seconds.
AM-FM: Press this button to get AM, FM1 or FM2.
The display shows your selection. You may also press
AM-FM to switch between the radio and tape when a
tape
is in the player.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations. Push the knob back in when
you’re not using it.
SEEK: Press the up or down arrow to go to the
next higher or lower station. The sound will be muted
while seeking.
PUSHBUTTONS: The five numbered pushbuttons let
you return to your favorite stations. You can set up to
15 stations (five AM, five FMl and five FM2).
1. Press AM-FM to select the band.
2. Find the station you want by using TUNE or
SEEK.
3. Press TONE to select the setting you prefer.
4. Press and hold one of the five numbered buttons.
5. The sound will mute. When it returns, release
the button. Whenever you press that numbered
button,
the station you set will return and the
TONE you selected will be automatically selected
for that button.
3-5

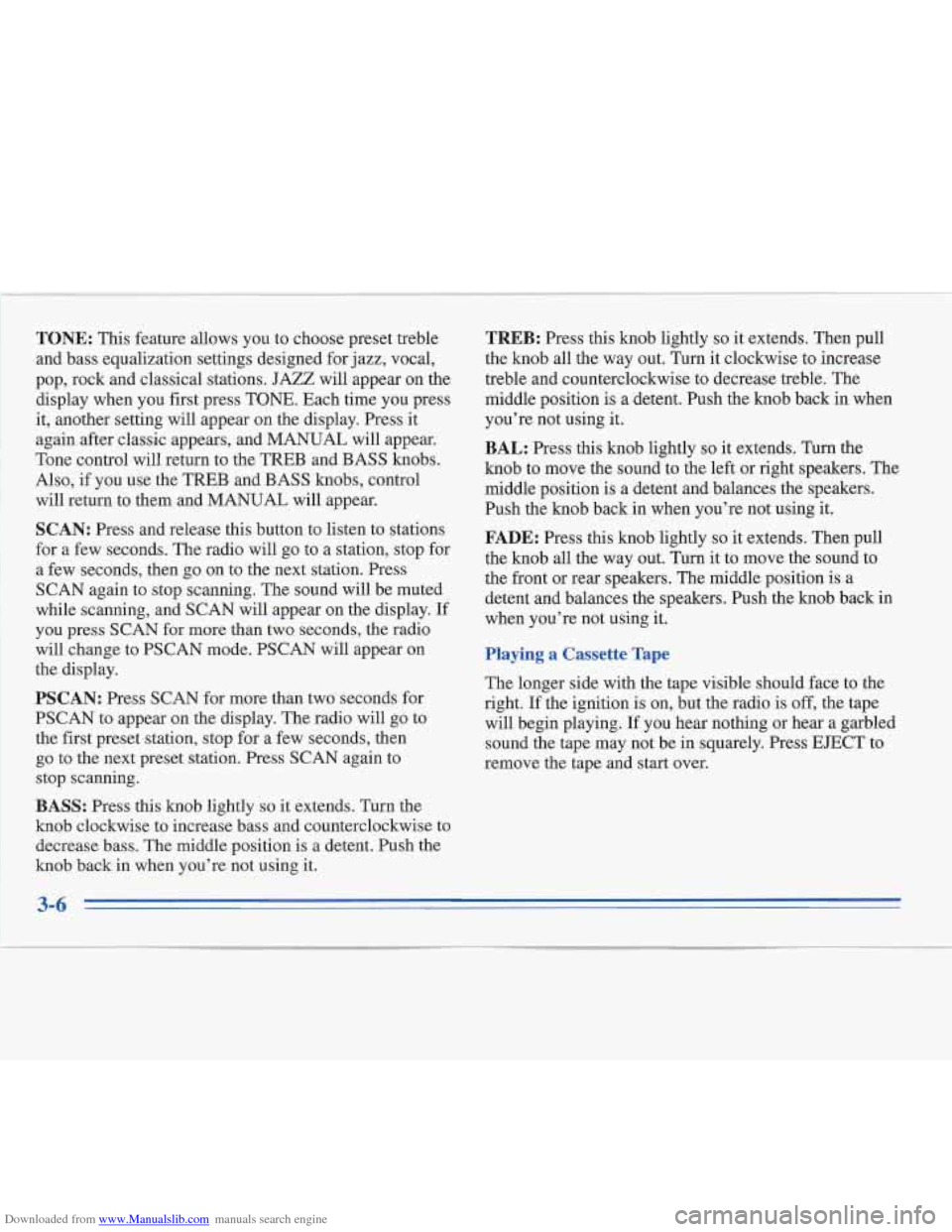

Downloaded from www.Manualslib.com manuals search engine TONE: This feature allows you to choose preset treble
and bass equalization settings designed for jazz, vocal,
pop, rock and classical stations. JAZZ will appear on the
display when you first press TONE. Each time you press
it, another setting will appear on the display. Press
it
again after classic appears, and MANUAL will appear.
Tone control will return to the TREB and BASS knobs.
Also, if you use the TREB and BASS knobs, control
will return to them and MANUAL will appear.
SCAN: Press and release this button to listen to stations
for a few seconds. The radio will go to a station, stop for
a few seconds, then go on to the next station. Press
SCAN again to stop scanning. The sound will be muted
while scanning, and SCAN will appear on the display. If
you press SCAN
for more than two seconds, the radio
will change to PSCAN mode. PSCAN will appear on
the display.
PSCAN: Press SCAN for more than two seconds for
PSCAN to appear on the display. The radio will go to
the first preset station, stop for a few seconds, then
go to the next preset station. Press SCAN again to
stop scanning.
BASS: Press this knob lightly so it extends. Turn the
knob clockwise to increase bass and counterclockwise to
decrease bass. The middle position is a detent. Push the
knob back in when you’re not using
it.
TREB: Press this knob lightly so it extends. Then pull
the knob all the way out. Turn it clockwise to increase
treble and counterclockwise to decrease treble. The
middle position is a detent. Push the knob back in when
you’re not using it.
BAL: Press this knob lightly so it extends. Turn the
knob to move the sound to the left or right speakers. The
middle position is a detent and balances the speakers.
Push the knob back in when you’re not using it.
FADE: Press this knob lightly so it extends. Then pull
the knob all the way out. Turn it to move the sound to
the front or rear speakers. The middle position is a
detent and balances the speakers. Push the knob back in
when you’re not using it.
Playing a Cassette Tape
The longer side with the tape visible should face to the
right. If the ignition is on, but the radio
is off, the tape
will begin playing. If you hear nothing or hear a garbled
sound the tape may not be in squarely. Press EJECT to
remove the tape and start over.
3-6

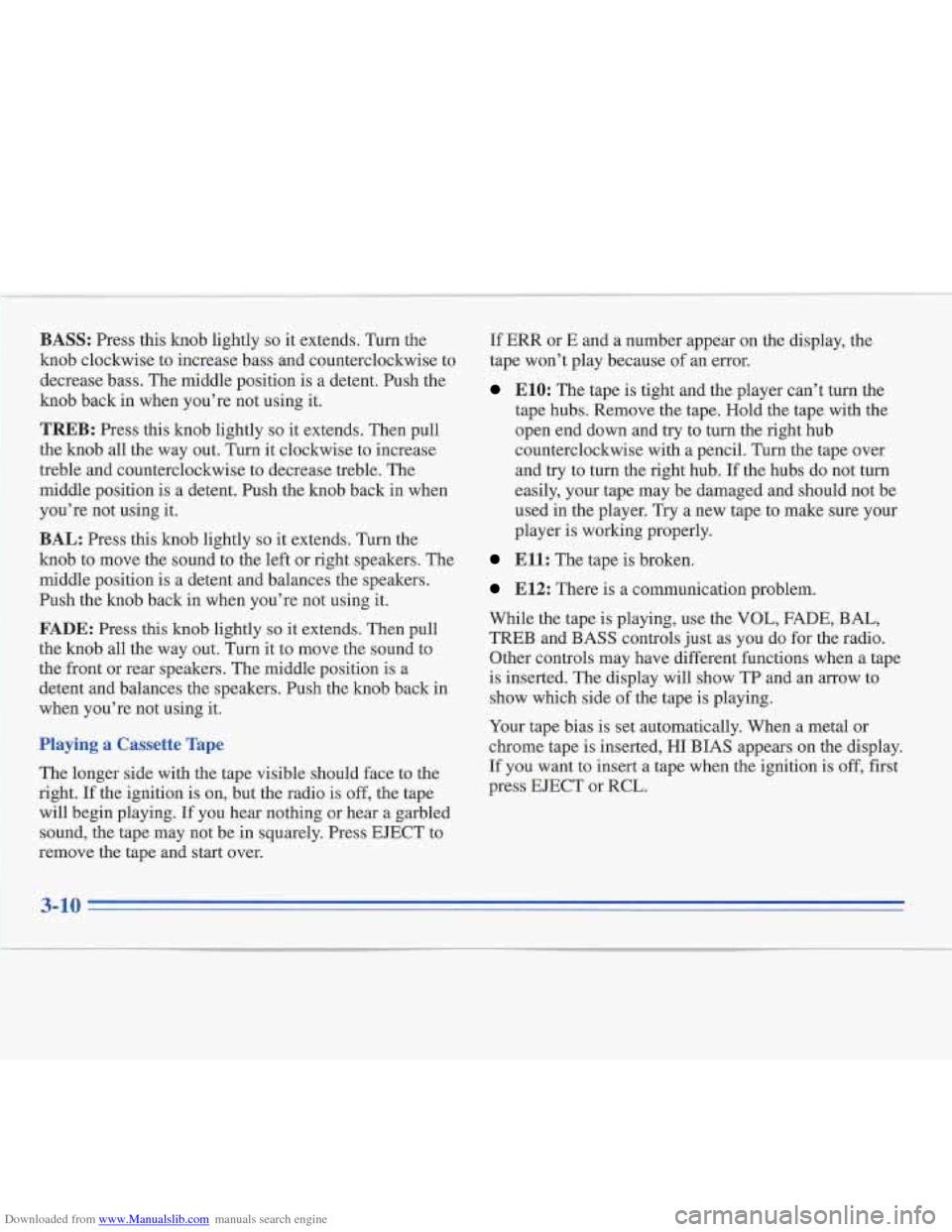

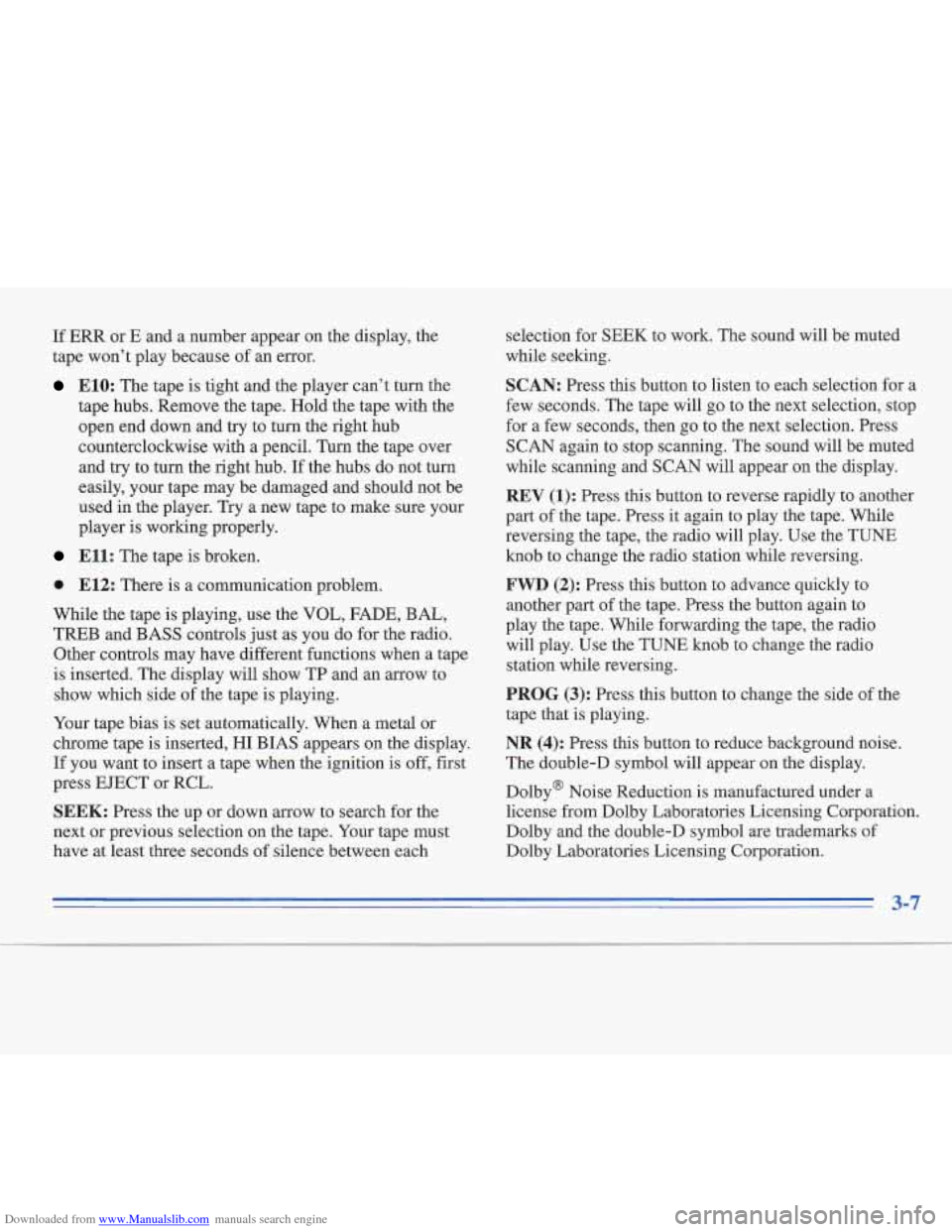

Downloaded from www.Manualslib.com manuals search engine If ERR or E and a number appear on the display, the
tape won’t play because of an error.
E10: The tape is tight and the player can’t turn the
tape hubs. Remove the tape. Hold the tape with the
open end down and try to
turn the right hub
counterclockwise with a pencil. Turn the tape over
and try to turn the right hub. If the hubs do not turn
easily, your tape may be damaged and should not be
used in
the player. Try a new tape to make sure your
player is working properly.
Ell: The tape is broken.
a E12: There is a communication problem.
While the tape is playing, use the VOL, FADE, BAL,
TREB and BASS controls just as you do for the radio.
Other controls may have different functions when a tape
is inserted. The display will show TP and an arrow to
show which side of
the tape is playing.
Your tape bias is set automatically. When a metal
or
chrome tape is inserted, HI BIAS appears on the display.
If you want to insert a tape when the ignition is off, first
press EJECT or RCL.

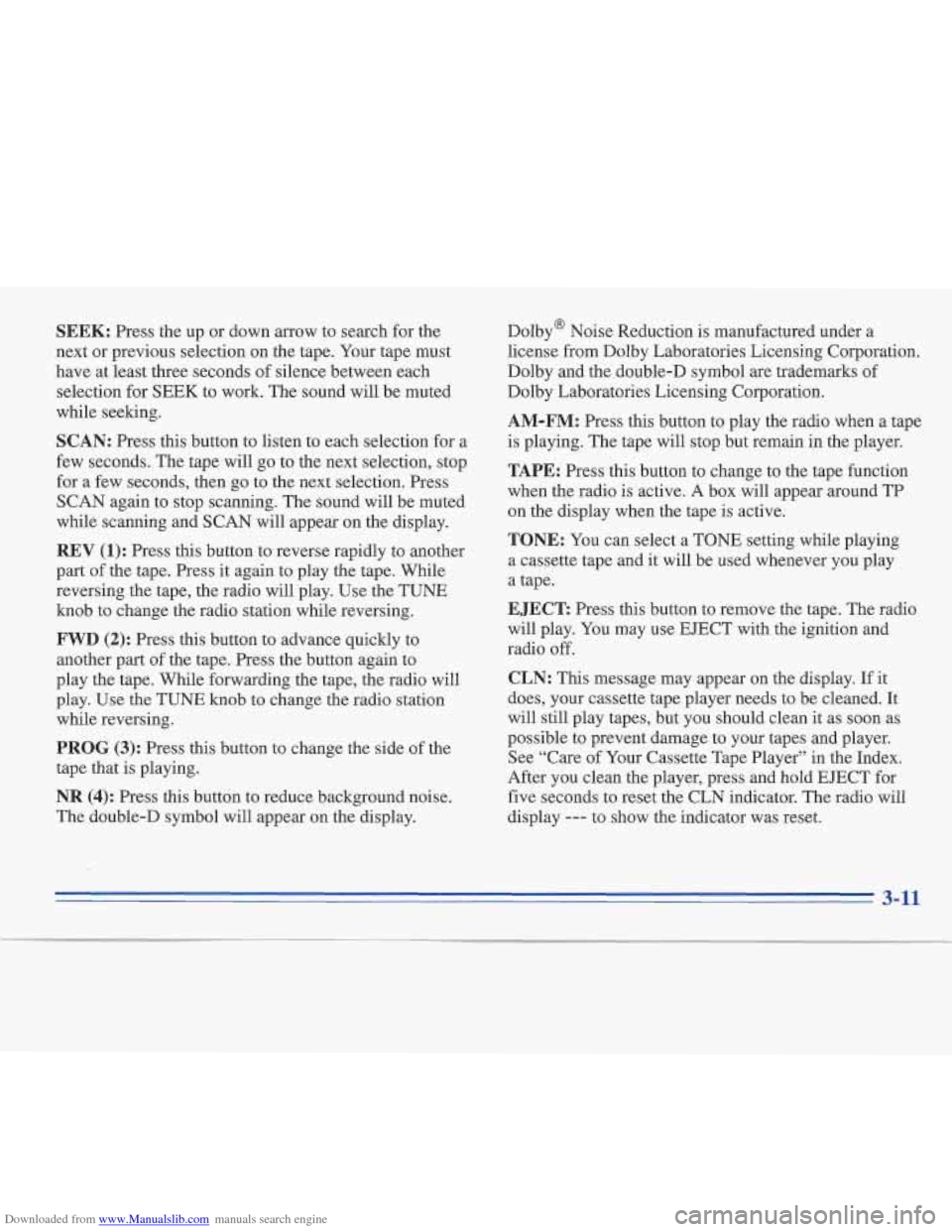

SEEK: Press the up or down arrow to search for the
next or previous selection
on the tape. Your tape must
have at least three seconds of silence between each selection for
SEEK to work. The sound
will be muted
while seeking.
SCAN: Press this button to listen to each selection for a
few seconds. The tape will go to the next selection, stop
for a few seconds, then go to the next selection. Press
SCAN again to stop scanning. The sound will be muted
while scanning and SCAN will appear
on the display.
REV (1): Press this button to reverse rapidly to another
part of the tape. Press it again to play the tape. While
reversing the tape, the radio will play. Use the TUNE
knob to change the radio station while reversing.
FWD (2): Press this button to advance quickly to
another part of the tape. Press the button again to
play the tape. While forwarding the tape, the radio
will play. Use the TUNE knob to change the radio
station while reversing.
PROG (3): Press this button to change the side of the
tape that is playing.
NR (4): Press this button to reduce background noise.
The double-D symbol will appear on the display.
Dolby@ Noise Reduction is manufactured under a
license from Dolby Laboratories Licensing Corporation.
Dolby and the doable-D symbol are trademarks of
Dolby Laboratories Licensing Corporation.
3-7

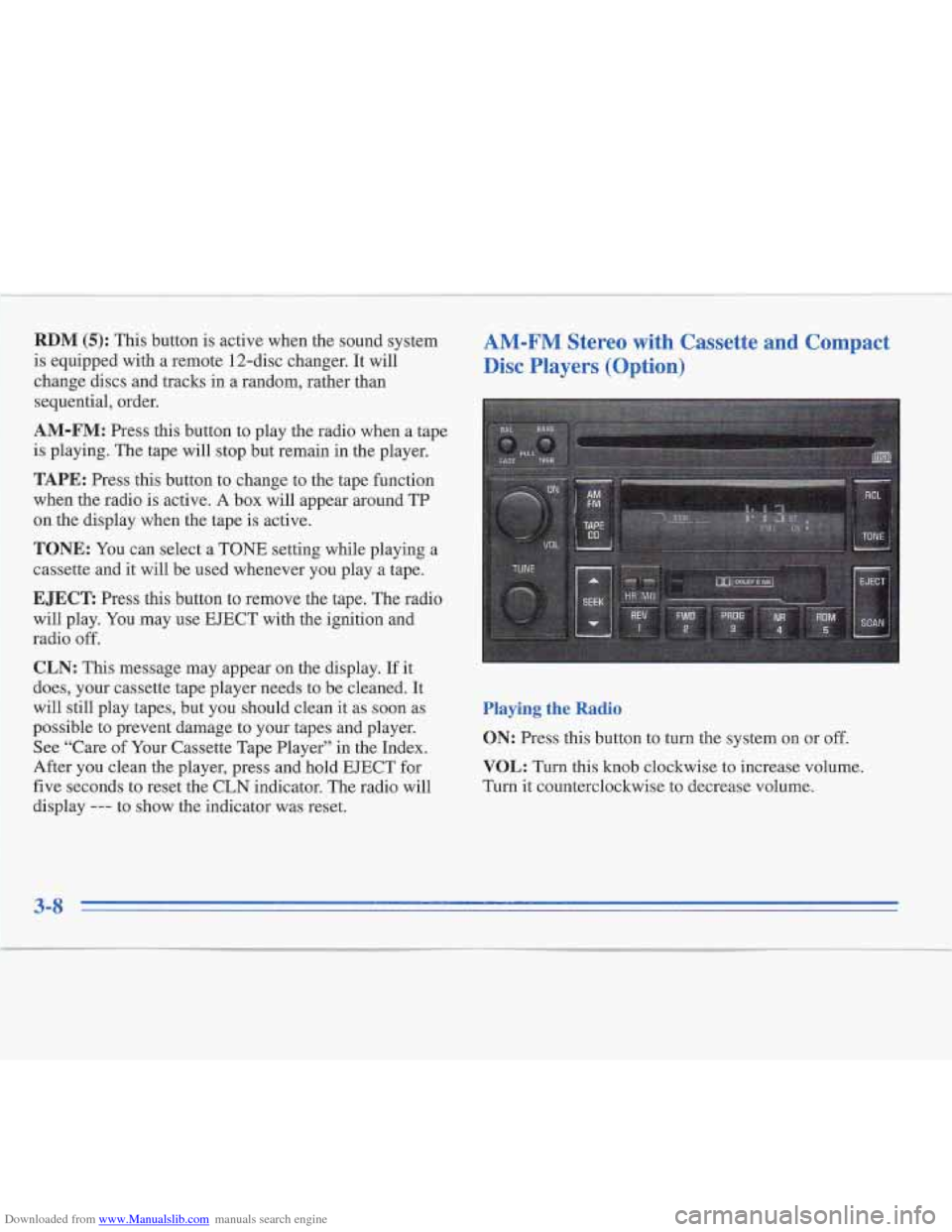

Downloaded from www.Manualslib.com manuals search engine RDM (5): This button is active when the sound system
is equipped with a remote 12-disc changer. It will
change discs and tracks in a random, rather than
sequential, order.
AM-FM: Press this button to play the radio when a tape
is playing. The tape will stop but remain in the player.
TAPE: Press this button to change to the tape function
when the radio is active.
A box will appear around TP
on the display when the tape is active.
TONE: You can select a TONE setting while playing a
cassette and it will be used whenever you play a tape.
E JECE Press this button to remove the tape. The radio
will play. You may use
EJECT with the ignition and
radio
off.
CLN: This message may appear on the display. If it
does, your cassette tape player needs to be cleaned.
It
will still play tapes, but you should clean it as soon as
possible
to prevent damage to your tapes and player.
See “Care of Your Cassette Tape Player” in the Index.
After you clean the player, press and hold
EJECT for
five seconds to reset the
CLN indicator. The radio will
display
--- to show the indicator was reset.
AM-FM Stereo with Cassette and Compact
Disc Players (Option)
Playing the Radio
ON: Press this button to turn the system on or off.
VOL: Turn this knob clockwise to increase volume.
Turn it counterclockwise
to decrease volume.
3-8

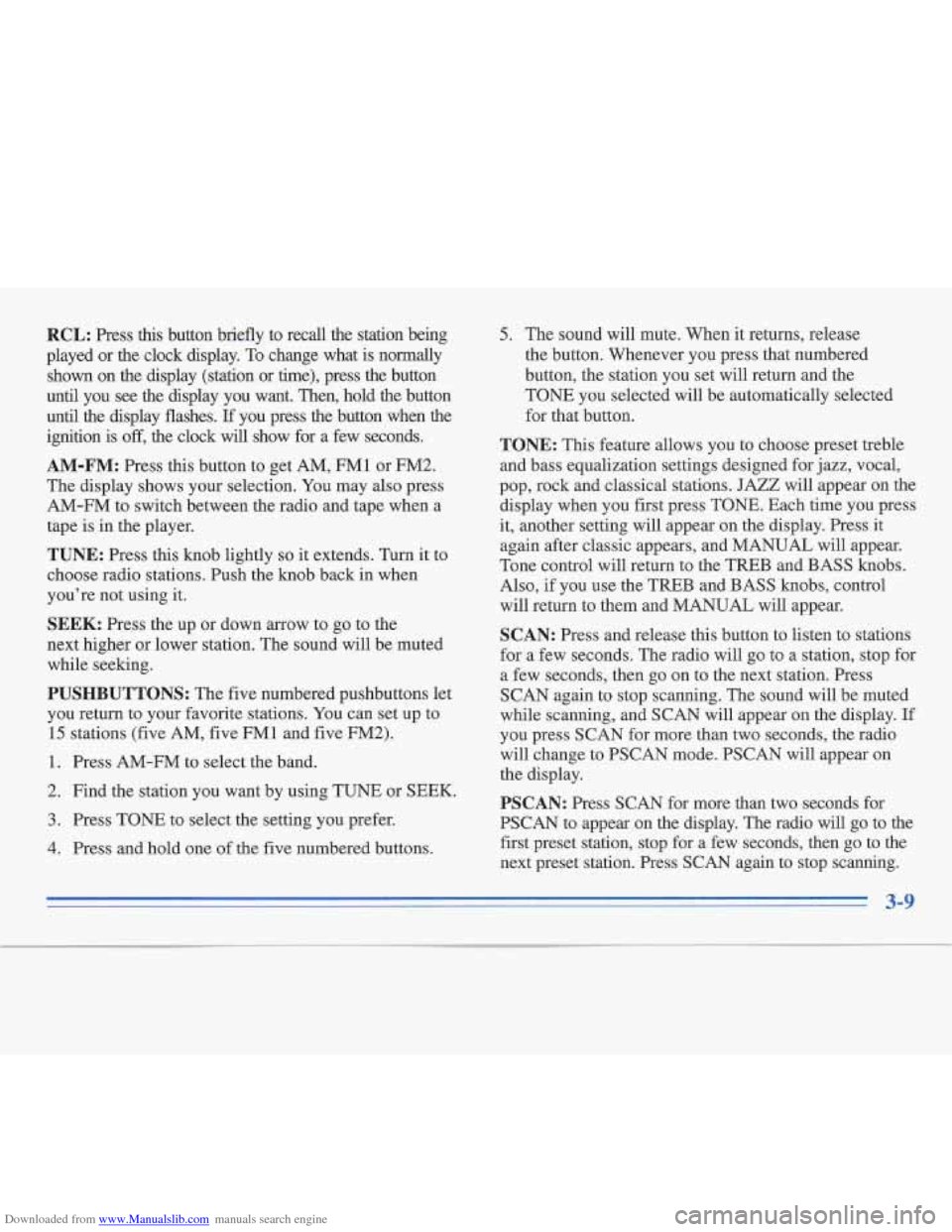

Downloaded from www.Manualslib.com manuals search engine RCL: Press this button briefly to recall the station being
played or
the clock display. To change what is normally
shown on
the display (station or time), press the button
until you see the &splay you want. Then, hold the button
until the display flashes.
If you press the button when the
ignition is
off, the clock will show for a few seconds.
AM-FM: Press this button to get AM, FMl or FM2.
The display shows your selection. You may also press
AM-FM to switch between the radio and tape when a
tape is in the player.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations. Push the knob back in when
you're not using it.
SEEK: Press the up or down arrow to go to the
next higher or lower station. The sound will be muted
while seeking.
PUSHBUTTONS: The five numbered pushbuttons let
you return to your favorite stations. You can set up to
15 stations (five AM, five FM1 and five
FM2).
1. Press AM-FM to select the band.
2. Find the station you want by using TUNE or SEEK.
3. Press TONE to select the setting you prefer.
4. Press and hold one of the five numbered buttons.
5. The sound will mute. When it returns, release
the button. Whenever you press that numbered
button, the station you set will return and the
TONE you selected will be automatically selected
for that button.
TONE: This feature allows you to choose preset treble
and bass equalization settings designed for jazz, vocal,
pop, rock and classical stations. JAZZ will appear on the
display when you first press TONE. Each time you press
it, another setting will appear on the display. Press
it
again after classic appears, and MANUAL will appear.
Tone control will return to the TREB and BASS knobs.
Also, if you use the TREB and BASS knobs, control
will return to them and MANUAL will appear.
SCAN: Press and release this button to listen to stations
for a few seconds. The radio will go to a station, stop for
a few seconds, then go on to the next station. Press
SCAN again to stop scanning. The sound will be muted
while scanning, and SCAN will appear on the display.
If
you press SCAN for more than two seconds, the radio
will change to PSCAN mode. PSCAN will appear on
the display.
PSCAN: Press SCAN for more than two seconds for
PSCAN to appear
on the display. The radio will go to the
first preset station, stop for a few seconds, then go to the
next preset station. Press SCAN again to stop scanning.
3-9

Downloaded from www.Manualslib.com manuals search engine BASS: Press this knob iightiy so it extends. Turn the
knob clockwise to increase bass and counterclockwise to
decrease bass. The rniddle position is a detent. Push
the
knob back in when you’re not using it.
TREB: Press this knob lightly so it extends. Then pull
the knob all the way out. Turn it clockwise to increase
treble and counterclockwise to decrease treble. The
middle position is a detent. Push the knob back in when
you’re not using it.
BAL: Press this knob lightly so it extends. Turn the
knob to move the sound to the left or right speakers. The
middle position
is a detent and balances the speakers.
Push the knob back in when you’re not using it.
FADE: Press this knob lightly so it extends. Then pull
the knob all the way out. Turn it to move the sound to
the front or rear speakers. The middle position is a
detent and balances the speakers. Push the knob back in
when you’re not using it.
Playing a Cassette Tape
The longer side with the tape visible should face to the
right. If the ignition is on, but the radio is off, the tape
will begin playing.
If you hear nothing or hear a garbled
sound, the tape may not be in squarely. Press EJECT to
remove the tape and start over. IfEl?R
or E and a number appear on the display, the
tape won’t play because of an error.
ElO: The tape is tight and the player can’t turn the
tape hubs. Remove the tape. Hold the tape with the
open end down and try to turn the right hub
counterclockwise with a pencil. Turn the tape over
and try to turn the right hub. If the hubs do not turn
easily, your tape may be damaged and should not be
used in the player. Try a new tape to make sure your
player is working properly.
Ell: The tape is broken.
E12: There is a communication problem.
While the tape is playing, use the
VOL, FADE, BAL,,
TREB and BASS controls just as you do for the radio.
Other controls may have different functions when a tape
is inserted. The display will show TP and an arrow to
show which side of the tape is playing.
Your tape bias is set automatically. When
a metal or
chrome tape is inserted, HI BIAS appears on the display.
If you want to insert a tape when the ignition is off, first
press EJECT or RCL.
3-11

Downloaded from www.Manualslib.com manuals search engine SEEK: Press the up or down arrow to search for the
next or previous selection on the tape. Your tape must
have at least three seconds of silence between each
selection for
SEEK to work. The sound will be muted
while seelung.
SCAN: Press this button to listen to each selection for a
few seconds. The tape will go
to the next selection, stop
for a few seconds, then go to the next selection. Press
SCAN again to stop scanning. The sound will be muted
while scanning and SCAN will appear on the display.
REV (1): Press this button to reverse rapidly to another
part of the tape. Press it again to play the tape. While
reversing the tape, the radio will play. Use the
TUNE
knob to change the radio station while reversing.
FWD (2): Press this button to advance quickly to
another part of
the tape. Press the button again to
play the tape. While forwarding the tape, the radio will
play. Use the TUNE knob to change the radio station
while reversing.
PROG (3): Press this button to change the side of the
tape that is playing.
NR (4): Press this button to reduce background noise.
The double-D symbol will appear on the display. Dolby@ Noise Reduction
is manufacturea unaer a
license
from Dolby Laboratories Licensing Corporation.
Dolby and the double-D symbol
are trademarks of
Dolby Laboratories Licensing Corporation.
AM-FM: Press this button to play the radio when a tape
is playing. The tape will stop but remain in the player.
TAPE: Press this button to change to the tape function
when the radio is active. A box will appear around TP
on the display when the tape is active.
TONE: You can select a TONE setting while playing
a cassette tape and it will be used whenever you play
a tape.
EJECT Press this button to remove the tape. The radio
will play. You may use EJECT with the ignition and
radio
off.
CLN: This message may appear on the display. If it
does, your cassette tape player needs to be cleaned. It
will still play tapes, but you should clean it as soon as
possible to prevent damage to your tapes and player.
See “Care of Your Cassette Tape Player” in the Index.
After you clean the player, press and hold EJECT for
five seconds to reset
the CLN indicator. The radio will
display
--- to show the indicator was reset.
3-11

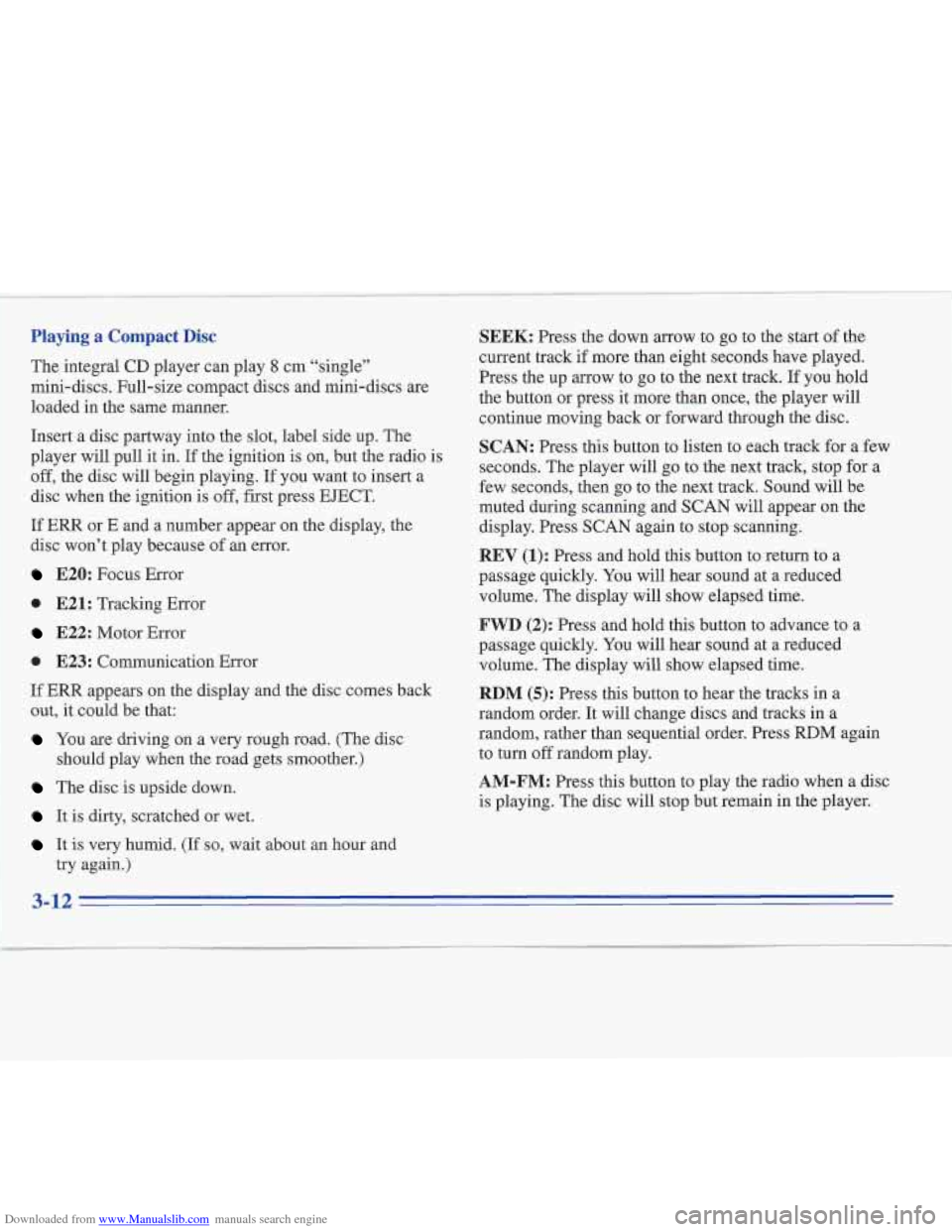

Downloaded from www.Manualslib.com manuals search engine Playing a Compact Disc
The integral CD player can play 8 cm “single”
mini-discs. Full-size compact discs and mini-discs are
loaded in
the same manner.
Insert a disc partway into the slot, label side up. The
player will pull it in.
If the ignition is on, but the radio is
off, the disc will begin playing. If you want to insert a
disc when the ignition
is off, first press EJECT.
If
ERR or E and a number appear on the display, the
disc won’t play because of an error.
E20: Focus Error
0 E21: Tracking Error
E22: Motor Error
0 E23: Communication Error
If ERR appears on the display and the disc comes back
out, it could be that:
You are driving on a very rough road. (The disc
should play when the road gets smoother.)
The disc is upside down.
It is dirty, scratched or wet.
It is very humid. (If so, wait about an hour and
try again.)
SEEK: Press the down arrow to go to the start of the
current track if more than eight seconds have played.
Press the up arrow to go to the next track. If you hold
the button or press it more than once, the player will
continue moving back or forward through the disc.
SCAN: Press this button to listen to each track for a few
seconds. The player will go to the next track, stop for a
few seconds, then go to the next track. Sound will be
muted during scanning and SCAN will appear on the
display. Press SCAN again to stop scanning.
REV (1): Press and hold this button to return to a
passage quickly.
You will hear sound at a reduced
volume. The display will show elapsed time.
FWD (2): Press and hold this button to advance to a
passage quickly.
You will hear sound at a reduced
volume. The display will show elapsed time.
RDM (5): Press this button to hear the tracks in a
random order. It will change discs and tracks in a
random, rather than sequential order. Press
RDM again
to turn
off random play.
AM-FM: Press this button to play the radio when a disc
is playing. The disc will stop but remain
in the player.
3-12

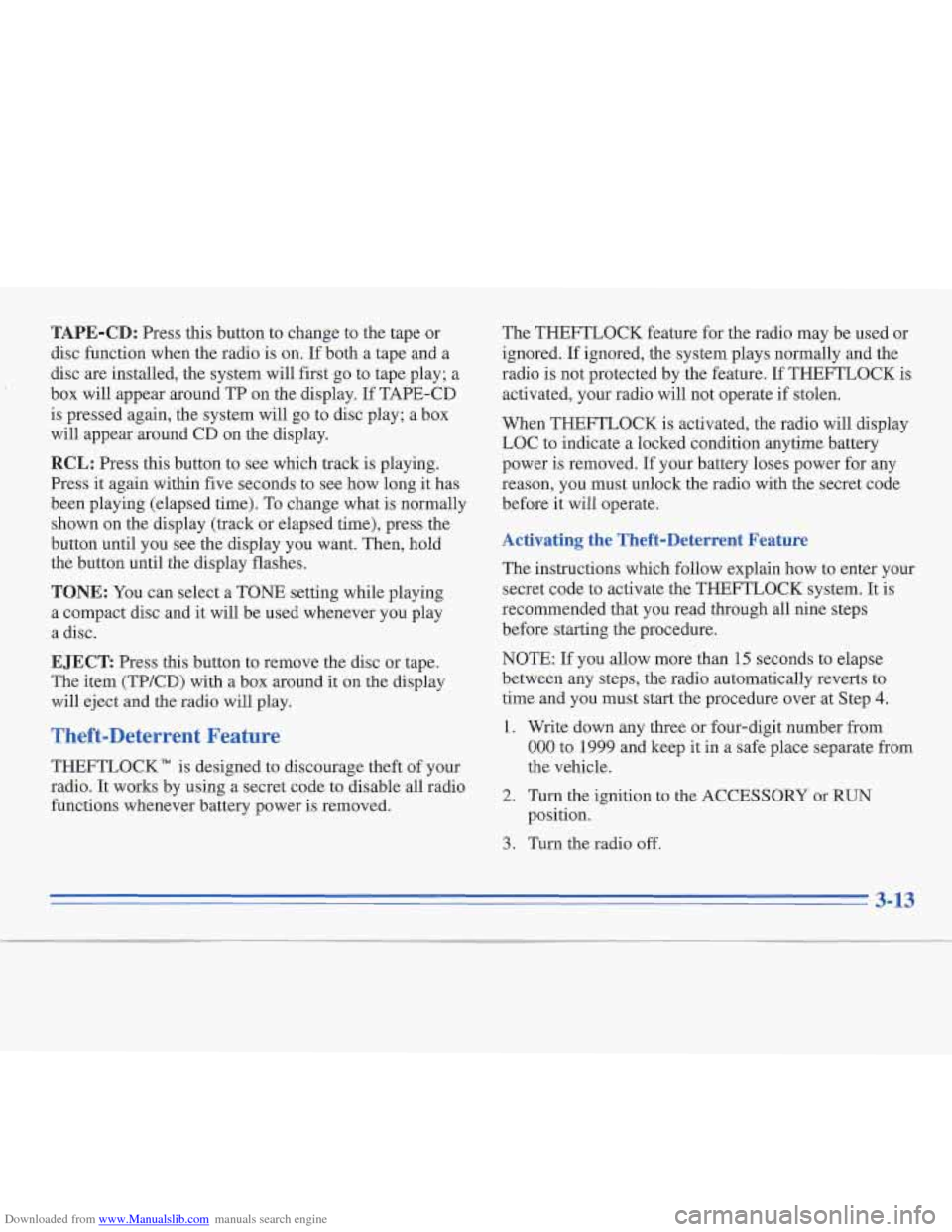

Downloaded from www.Manualslib.com manuals search engine TAPE-CD: Press this button to change to the tape or
disc function when the radio is on.
If both a tape and a
disc are installed, the system will first go to tape play; a
box will appear around TP on the display. If TAPE-CD
is pressed again, the system will go to disc play; a box
will appear around CD on the display.
RCL: Press this button to see which track is playing.
Press it again within five seconds to see how long it has
been playing (elapsed time). To change what is normally
shown on the display (track or elapsed time), press the
button until you see the display you want. Then, hold
the button until the display flashes.
TONE: You can select a TONE setting while playing
a compact disc and it will be used whenever you play
a disc.
EJECT Press this button to remove the disc or tape.
The item (TPKD) with a box around it on the display
will eject and the radio will play.
Theft-Deterrent Feature
THEFTLOCK” is designed to discourage theft of your
radio. It works by using a secret code to disable all radio
functions whenever battery power
is removed. The
THEFTLOCK feature for the radio may be used
or
ignored. If ignored, the system plays normally and the
radio is not protected by the feature. If THEFTLOCK is
activated, your radio will not operate if stolen.
When THEFTLOCK is activated, the radio will display LOC to indicate a locked condition anytime battery
power is removed. If your battery loses power for any
reason, you must unlock the radio with the secret code
before it will operate.
Activating the Theft-Deterrent Feature
The instructions which follow explain how to enter your
secret code to activate the THEFTLOCK system. It
is
recommended that you read through all nine steps
before starting the procedure.
NOTE: If you allow more than
15 seconds to elapse
between any steps, the radio automatically reverts to
time and you must start the procedure over at Step
4.
1. Write down any three or four-digit number from
000 to 1999 and keep it in a safe place separate from
the vehicle.
2. Turn the ignition to the ACCESSORY or RUN
position.
3. Turn the radio off.
3-13
