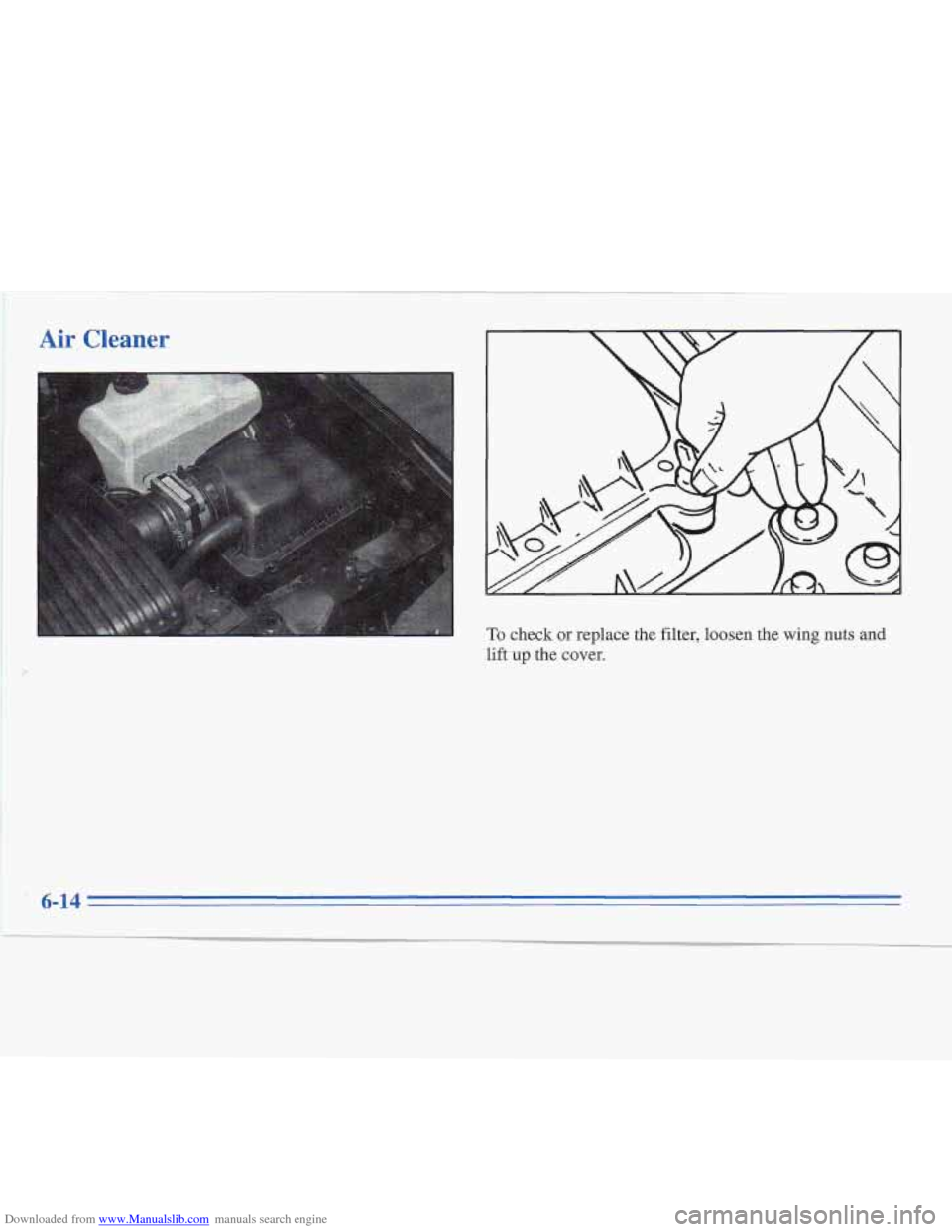

Air Cleaner
To check or replace the filter, loosen the wing nuts. and
lift up the cove^,
6-14

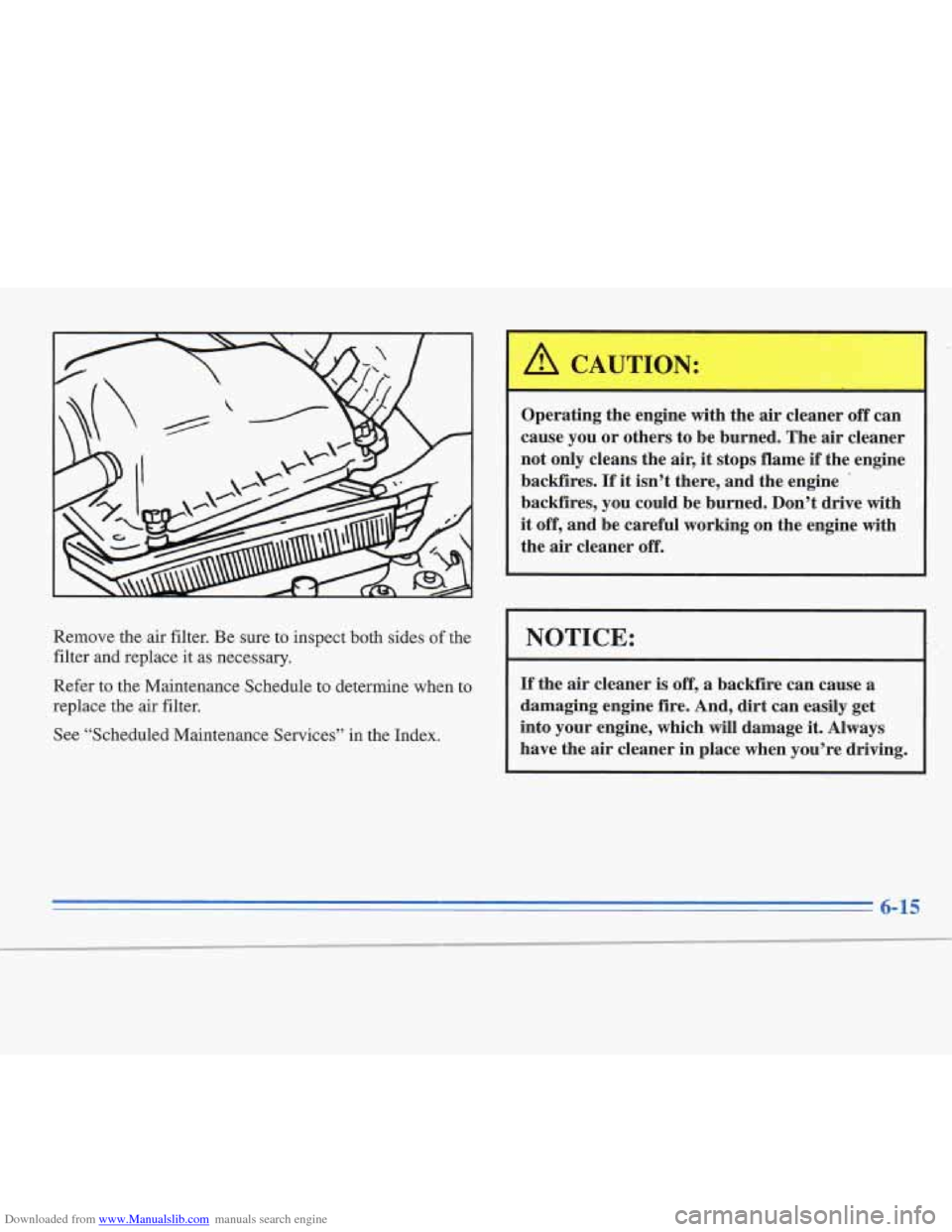

Downloaded from www.Manualslib.com manuals search engine Remove the air filter. Be sure to inspect both sides of the
filter and replace it as necessary.
Refer
to the Maintenance Schedule to determine when to
replace the air filter.
See “Scheduled Maintenance Services”
in the Index.
/!A CAUTION:
Operating the engine with the air cleaner off can
cause you or others to be burned. The air cleaner
not only cleans the
air, it stops flame if the engine
backfires.
If it isn’t there, and the engine *
backfires, you could be burned. Don’t drive with
it off, and be careful working on the engine with
the
air cleaner off.
NOTICE:
If the air cleaner is off, a backfire can cause a
damaging engine fire. And,
dirt can easily get
into your engine, which will damage
it. Always
have the air cleaner in place when you’re driving.
6-15

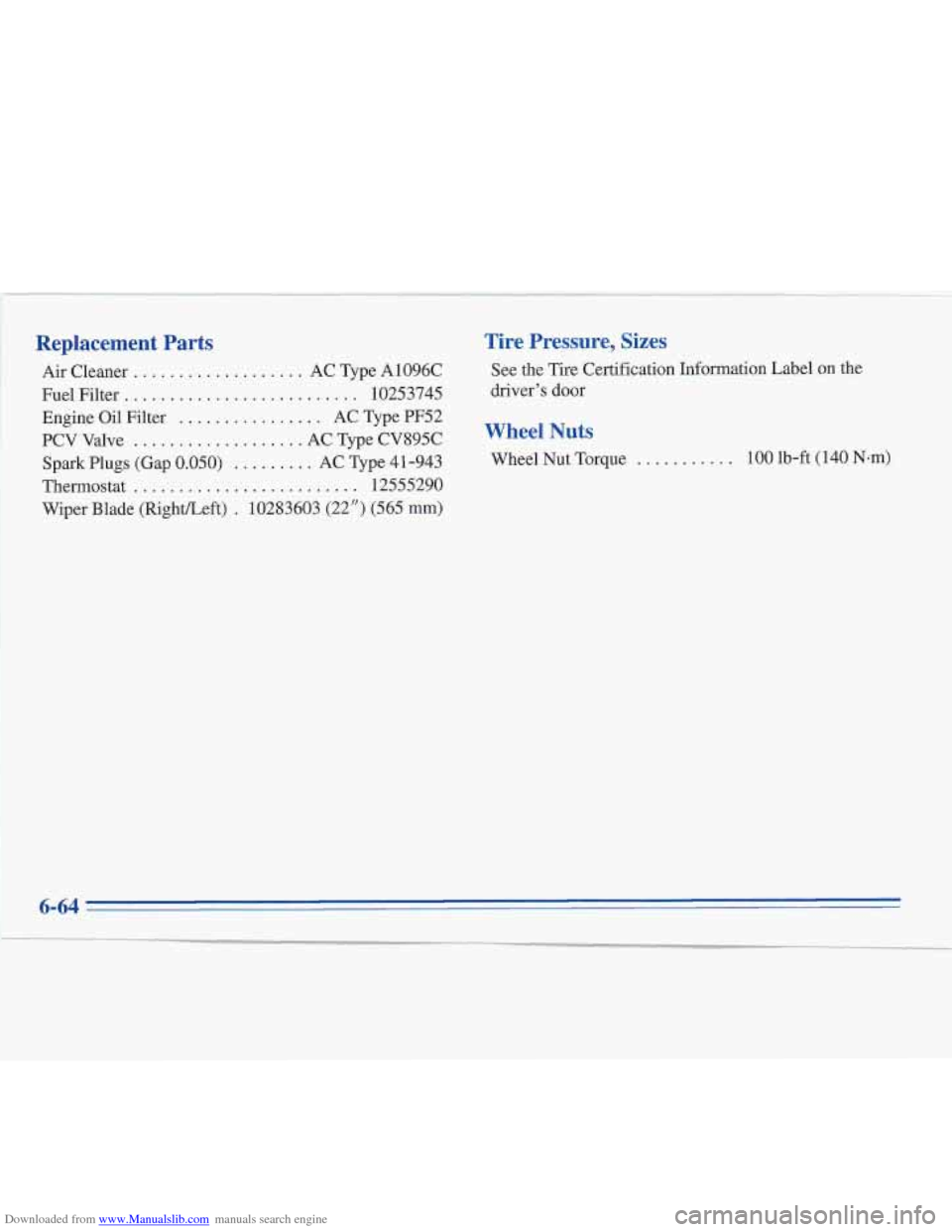

Downloaded from www.Manualslib.com manuals search engine Replacement Parts
Air Cleaner ................... AC Type A1096C
Fuel Filter
.......................... 10253745
Engine Oil Filter
................ AC Type PF52
PCV Valve ................... AC Type CV895C
Spark Plugs (Gap 0.050)
......... AC Type 41-943
Thermostat
......................... 12555290
Wiper Blade (RightLeft)
. 10283603 (22") (565 mm)
Tire Pressure, Sizes
See the Tire Certification Information Label on the
driver's
door
Wheel Nuts
Wheel Nut Torque ........... 100 lb-ft (140 N-m)
6-64

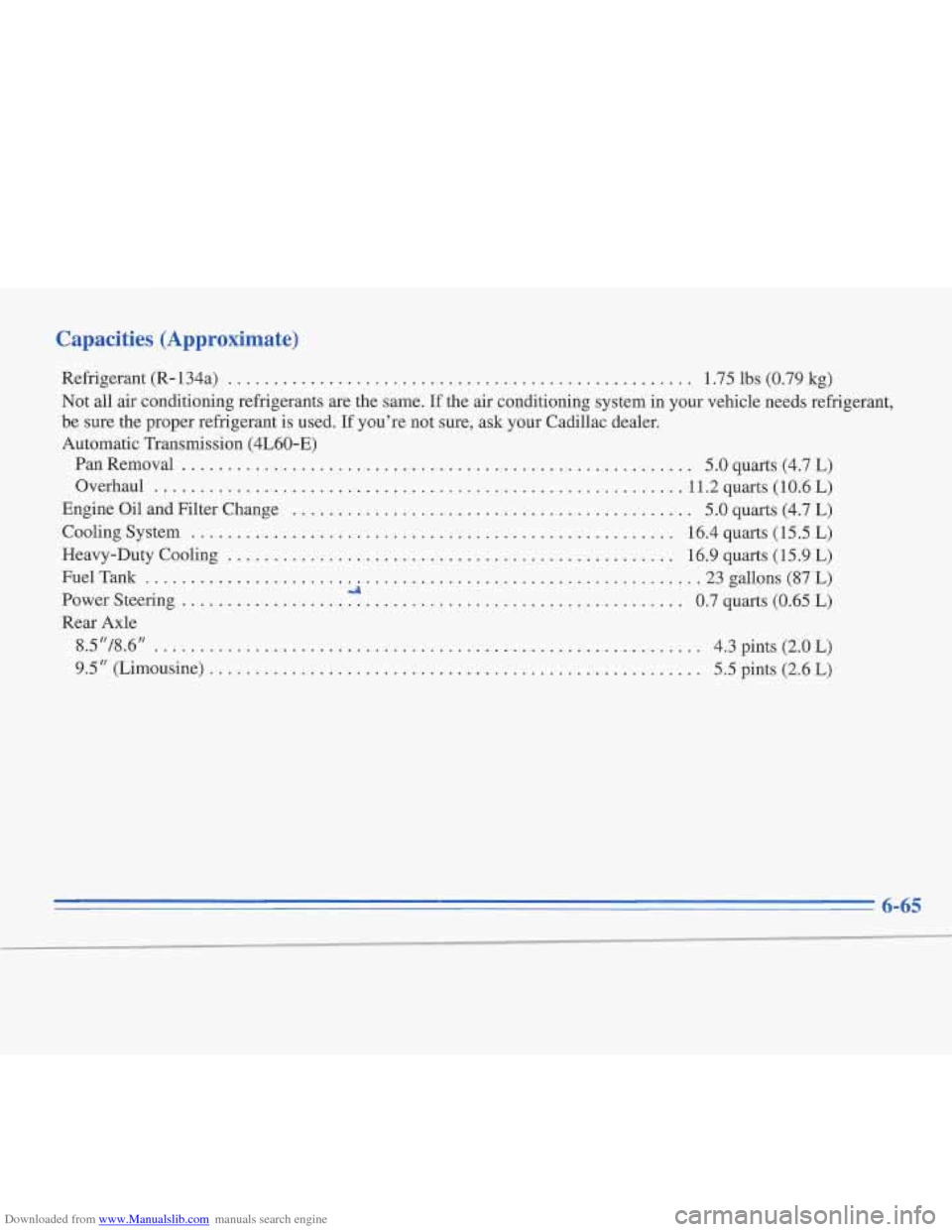

Downloaded from www.Manualslib.com manuals search engine Capacities (Approximate)
Refrigerant (R-134a) ................................................... 1.75 lbs (0.79 kg)
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs refrigerant,
be sure the proper refrigerant is used.
If you're not sure, ask your Cadillac dealer.
Automatic Transmission (4L60-E) Pan Removal
........................................................ 5.0 quarts (4.7 L)
Overhaul .......................................................... 11.2 quarts (10.6 L)
Engine Oil and Filter Change ............................................ 5.0 quarts (4.7 L)
Cooling System ..................................................... 16.4 quarts (15.5 L)
Heavy-Duty Cooling ................................................. 16.9 quarts (1 5.9 L)
FuelTank ...................... ....................................... 23gallons(87L)
Power Steering
....................................................... 0.7 quarts (0.65 L)
Rear Axle
8.5"/8.6"
............................................................ 4.3 pints (2.0L)
9.5" (Limousine) ...................................................... 5.5 pints (2.6 L)
6-65
