Downloaded from www.Manualslib.com manuals search engine Few automobiles are fortunate enough to have the rich heritage \
that is Cadillac. The name Cadillac is appropriately that of
Antoine de La Mothe Cadillac, the French military commander who founded the city of Detroit in
1701. What better name for
the oldest automobile manufacturer in Detroit.
Henry M. Leland, known as the master of precision,
initiated
bs precision manufacturing techniques at the
founding of Cadillac in 1902. His exacting standards
prompted the motto by which Cadillac has been guided
over the years
- “Craftsmanship A Creed - Accuracy
A Law.”
The introduction of the first four cylinder engine in 1905
led the industry and enabled Cadillacs to travel at speeds
up to
50 mph.
For attention to quality and innovation, the Royal
Automobile Club of England awarded the prestigious
Dewar Trophy to Cadillac twice . . . first in 1908 for
achieving perfect interchangeability of parts and again
for introducing the electric self starter, electric lighting
and ignition system
on 19 12 models. Cadillac is the
only American manufacturer to win this honor and
the only manufacturer
in the world to win it twice. As
commonplace as standardized parts are today, in 1908
parts were still individually hand fitted both in
production and service.
V

Downloaded from www.Manualslib.com manuals search engine Servicing Your Air Bag-Equipped Cadillac
Air bags affect how your Cadillac should be serviced.
There are parts
of the air bag system in several places
around your vehicle. You don’t want the system to
inflate while someone is working on your vehicle. Your
Cadillac dealer and the Fleetwood Service Manual have
information about servicing your vehicle and the air bag
system. To purchase a service manual, see “Service and
Owner Publications” in the Index.
I A CAUTION:
For up to 10 seconds after the ignition key is
turned off and the battery is disconnected, an air
bag can still inflate during improper service. You
can be injured if you are close to an air bag when
it inflates. Avoid wires wrapped with yellow tape
or yellow connectors. They are probably part
of
the air bag system. Be sure to follow proper
service procedures, and make sure the person
performing work for you
is qualified to do so.
The air bag system does not need regular maintenance.
Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely to be
seriously injured
if they don’t wear safety belts.
A pregnant woman should wear a lap-shoulder belt, and
the lap portion should be worn as low as possible, below
the rounding, throughout the pregnancy.
1-23

Downloaded from www.Manualslib.com manuals search engine Section 2 Features and Controls
Here you can learn about the many standard and optional
features on your Cadillac, and information on starting,
shifbng and braking.
Also explained are the instrument
panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
Keys
~~~
A CAUTION:
Leaving young children in a vehicle with the
ignition key is dangerous for many reasons.
A child
or others could be badly injured or even killed.
They could operate power windows or other
controls
or even make the vehicle move. If they
turned the ignition to
ON and moved the shift
lever out
of PARK (P), that would release the
parking brake. Don’t leave the keys in
a vehicle
with young children.
2-1

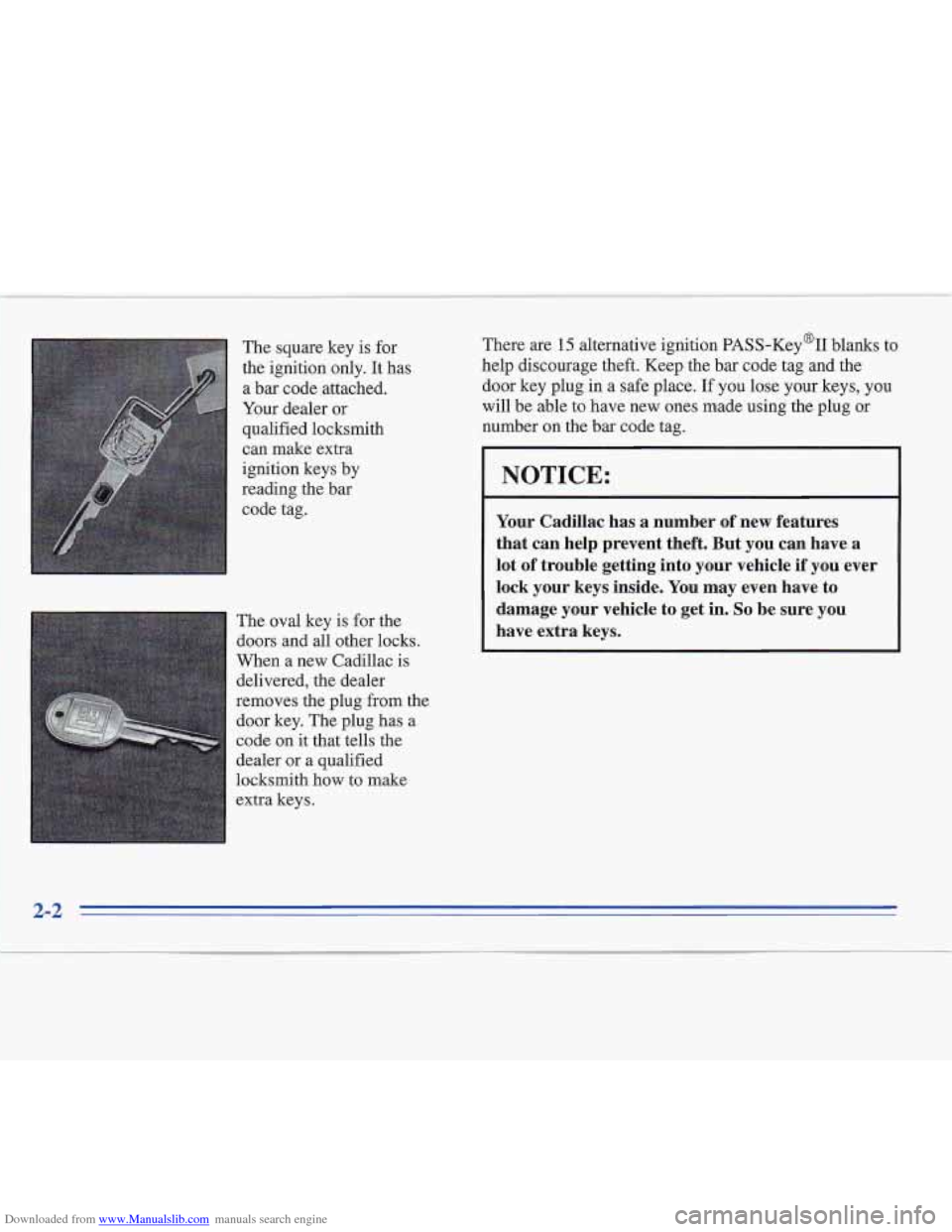

Downloaded from www.Manualslib.com manuals search engine The square key is for
the ignition only.
It has
a bar code .attached.
Your dealer or
qualified locksmith
can make extra
ignition keys by
reading the bar
code tag.
The oval key is for the
doors and all other locks.
When a new Cadillac is
delivered, the dealer
removes
the plug from the
door key. The plug has a
code on
it that tells the
dealer or a qualified
locksmith how to make
extra keys. There are
15 alternative ignition
PASS-Key%I blanks to
help discourage theft. Keep the bar code tag and the
door key plug in a safe place.
If you lose your keys, you
will be able
to have new ones made using the plug or
number on the bar code tag.
NOTICE:
Your Cadillac has a number of new features
that can help prevent theft. But you can have a
lot of trouble getting into your vehicle if you ever
lock your keys inside. You may even have to
damage your vehicle to get in.
So be sure you
have extra keys.

Downloaded from www.Manualslib.com manuals search engine Remote Trunk Release
This remote trunk release
button is in the glove box.
This button works when the ignition is on.
If you stop
your vehicle and
turn the ignition key to OFF you can
still use the remote trunk release because your vehicle
has Retained Accessory Power (RAP).
The electrical
power to the
trunk release will not shut off until you
open a door or
10 minutes have passed. If you want this
power for another
10 minutes, just turn the key to RUN
and then back to
OFF.
Trunk Lid Automatic Pull-Down Feature
NOTICE:
Don’t slam the trunk lid down. If you slam it, you
could damage the pull-down feature.
Your car has an automatic pull-down feature that
helps close the trunk electronically. Your fingers
can be trapped under the trunk lid
as it goes
down. Your fingers could be injured, and you
would need someone to help you free them. Keep
your fingers away from the trunk lid as you close
it and as it is going down.

Downloaded from www.Manualslib.com manuals search engine Theft Parking at Night
Vehicle theft is big business, especially in some cities.
Although your Cadillac has a number of theft-deterrent
features, we know that nothing we put
on it can make it
impossible to steal. However, there are ways you can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it’s an
easy target for joy riders or professional thieves
-- so
don’t do it.
When you park your Cadillac and open the driver’s
door, you’ll hear a chime reminding you to remove your
key from the ignition and take it with you. Always do
this. Your
steering wheel will be locked, and so will
your ignition and transmission. And remember to lock
the doors. Park in
a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle, it’s best to lock
it up and take your keys.
But what if you have to leave your ignition key? What if
you have to leave something valuable in your vehicle?
Put your valuables in a storage area, like your trunk
or glove box.
0 Lock the glove box.
Lock all the doors except the driver’s.
Then take the door key and Keyless Entry key chain
with you.

Downloaded from www.Manualslib.com manuals search engine Tbeft-Deterrent System (Option)
SECURITY
SYSTEM
If your Cadillac has this
option, it has a
theft-deterrent alarm system
and a
fuel filler door lock
release.
If the ignition is off,
the SECURITY SYSTEM
light will flash as you open
the door, reminding you to
activate the system.
1. Open the door.
2. Lock the door with the power door locks or the
Keyless Entry System. The SECURITY SYSTEM
light should come on and stay on.
3. Close all the doors. The SECURITY SYSTEM light
should go
off.
The horn will sound and the lamps will flash when the
door or trunk are opened without the key or the Keyless
Entry System or if the locks are damaged.
Remember, the Theft-Deterrent System won’t activate if
you lock the doors with a key or manual door lock. It
arms only
if you use the power door locks or the
Keyless Entry System.
To avoid setting off the alarm by accident:
The vehicle should be locked with the door key after
the doors are closed
if you don’t want to activate
the system.
Always unlock a door with a key or the Keyless
Entry System. Unlocking a door any other way will
activate the alarm.
If you activate the alarm by accident, unlock any door
with your key or the Keyless Entry System. The alarm
won’t
stop if you try to unlock a door any other way.

Downloaded from www.Manualslib.com manuals search engine Testing the Alarm
1.
2.
3.
From inside the vehicle, roll down your window,
then get out of your vehicle, keeping the door open.
From outside the vehicle with the door open, lock
the vehicle using the power door lock or the Keyless
Entry System and close the door.
Once the interior lamps are
off, reach in and unlock
the door using the manual lock. Open the door and
the horn will sound and your headlamps will flash.
If the alarm does not sound when it should, check to see if
the horn works. The
horn fuse may be blown. To replace
the fuse, see “Fuses and Circuit Breakers” in the Index. \
To reduce the possibility of theft, always arm the
Theft-Deterrent System when leaving your vehicle.
PASS-K~J~ 11
Your vehicle is equipped
with the PASS-Key
I1
(Personalized Automotive
Security System)
theft-deterrent system.
PASS-Key
I1 is a passive
theft-deterrent system. It
works when you insert or
remove the key from
the ignition.
PASS-Key
II uses a resistor pellet in the ignition key
that matches a decoder in your vehicle.
When the PASS-Key
11 system senses that someone is
using the wrong key, it shuts down
the vehicle’s starter and
fuel systems. For about three minutes, the starter won’t
work and fuel won’t go to the engine.
If someone tries to
start your vehicle again or uses another key during this
time, the vehicle will not start. This discourages someone
from randomly trying different keys
with different resistor
pellets
in an attempt to make a match.
2-12
I

Downloaded from www.Manualslib.com manuals search engine The ignition key must be clean and dry before it’s inserted
in the ignition or the engine may not start. If the engine
does not
start and the PASS KEY FAULT light comes on,
the key may be
drty or wet. Turn the ignition off.
Clean and dry the key. Wait about three minutes and try
again. The PASS KEY FAULT light may remain on
during this time. If the starter still won’t work, and the
key appears to be clean and dry, wait about three
minutes and try another ignition key. At this time, you
may also want to check the fuse (see “Fuses and Circuit
Breakers” in the Index).
If the starter won’t work with
the other key, your vehicle needs service.
If your vehicle
does start, the first ignition key may be faulty. See your
Cadillac dealer or a locksmith who can service the
PASS-Key
II.
If you accidentally use a key that has a damaged or
missing resistor pellet, the starter won’t work and the
PASS
KEY FAULT light will flash. But you don’t have
to wait three minutes before trying another ignition key.
See your Cadillac dealer or a locksmith who can service
the PASS-Key
11 to have a new key made.
If you’re ever driving and the PASS KEY FAULT light
comes on and stays on, you will be able to restart your
engine if you turn
it off. Your PASS-Key I1 system,
however, is not working properly and must be serviced
by your Cadillac dealer. Your vehicle
is not protected by
the PASS-Key
11 system.
If
you lose or damage a PASS-Key 11 ignition key, see
your Cadillac dealer or a locksmith who can service
PASS-Key
11 to have a new key made.
2-13

Downloaded from www.Manualslib.com manuals search engine Ignition Key Positions
NOTICE:
Your modern Cadillac doesn’t need an elaborate
“break-in.” But
it will perform better in the long
run
if you follow these guidelines:
Keep your speed at 55 mph (88 km/h) or
less for the first
500 miles (804 km).
Don’t drive at any one speed -- fast or
slow
-- for the first 500 miles (804 km).
Don’t make full-throttle starts.
200 miles (322 km) or so. During this time
your new brake linings aren’t yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every
time you get new brake linings.
* Don’t tow a trailer during break-in. See
“Towing a Trailer” in the Index for more
information.
Avoid making hard stops for the first
C
A E
With the ignition key in the ignition switch, you can turn
the switch to five different positions.
ACCESSORY (A): This position lets you use things
like the radio and the windshield wipers when the
engine is off.
To use the ACCESSORY position, push in
the key and turn it toward you. Your steering wheel will
remain locked, just
as it was before you inserted the key.
