Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Keys, Doors, and Windows 15
2. Use the mechanical keyblade in the slot to remove
the battery cover by hand.
3. Remove the battery cover. 4. Pull the seal by pulling on
the tab to access the
battery.
5. Remove the old battery. Do not use a metal object.
6. Insert the new battery, positive side facing up.
Replace with a CR2450 or
equivalent battery.
7. Place the seal back into the groove around the battery
compartment.
8. Replace the battery cover by snapping it back into the
remote key.
9. Reinsert the mechanical key.
Remote Start
This feature starts the heating
or air conditioning systems
and the rear window defogger
from outside the vehicle.
If the outside temperature is
below 7°C (45°F), and the rear
window defogger is on, the
area of the windshield beneath the windshield wipers
will warm up to melt
accumulated snow or ice.
Use remote start to heat or
cool the interior when the
vehicle is plugged in to
maximize electric range by
utilizing electricity from the
electrical outlet. Normal
system operation will return
after the vehicle has been
turned on.
/:
This button is on the
remote key.
The climate control system will
use the previous settings
during a remote start. The
rear defog may come on
during a remote start based
on cold ambient conditions.
The rear defog indicator light
will not come on during a
remote start.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
140 Lighting
IntelliBeam System
If equipped, this system turns
the high-beam headlamps on
and off according to
surrounding traffic conditions.
The system turns the
high-beam headlamps on when
it is dark enough and there is
no other traffic present.
This light
bappears on the
instrument cluster when the
IntelliBeam system is enabled.
Turning the IntelliBeam On
and Off
To enable and disable the
IntelliBeam system on the
infotainment home screen,
select Virtual Control App >
Lights >
bAuto High Beams
when the headlights are set in
the Auto position.
Driving with IntelliBeam
The system only activates the
high beams when driving over
40 km/h (25 mph). The blue high-beam on light
appears on the instrument
cluster when the high beams
are on.
There is a sensor near the top
center of the windshield that
automatically controls the
system. Keep this area of the
windshield clear of debris to
allow for best system
performance.
The high-beam headlamps
remain on, under the
automatic control, until one of
the following situations
occurs:
.The system detects an
approaching vehicle's
headlamps.
.The system detects a
preceding vehicle's taillamps.
.The outside light is bright
enough that high-beam
headlamps are not required.
.The vehicle speed drops
below 20 km/h (12 mph).
The high beams may not turn
off automatically if the system
cannot detect another
vehicle's lamps because of any
of the following:
.The other vehicle's lamps
are missing, damaged,
obstructed from view,
or otherwise undetected.
.The other vehicle's lamps
are covered with dirt, snow,
and/or road spray.
.The other vehicle's lamps
cannot be detected due to
dense exhaust, smoke, fog,
snow, road spray, mist,
or other airborne
obstructions.
.The vehicle windshield is
dirty, cracked, or obstructed
by something that blocks the
view of the light sensor.
.The vehicle is loaded such
that the front end points
upward, causing the light
sensor to aim high and not
detect headlamps and
taillamps.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Lighting 141
.The vehicle is being driven
on winding or hilly roads.
The automatic high-beam
headlamps may need to be
disabled if any of the above
conditions exist.
Adaptive Headlight
System
If equipped, the Adaptive
Headlight system allows the
high-beam headlamps to
function as the main driving
light at night.
The system turns on all the
high-beam headlamp LED
segments when it is dark
enough and there is no other
traffic present.
This light
bdisplays on the
instrument cluster when the
Adaptive Headlight system is
enabled.
Turning the Adaptive
Headlight System On and Off
To enable and disable the
Adaptive Headlight system on
the infotainment home screen, select Virtual Control App >
Lights >
bAuto High Beams
when the headlights are set in
the Auto position.
Driving with Adaptive
Headlight System
The system only activates the
high beams when driving over
40 km/h (25 mph).
There is a sensor near the top
center of the windshield that
automatically detects the
lights of oncoming and
preceding vehicles. Keep this
area of the windshield clear of
debris to allow for best
system performance.
The headlamp high-beam
alters according to the traffic
situation, preventing high
beam light from glaring
towards oncoming or
preceding traffic. This gives
the best light distribution
without glaring other road
users. The Adaptive Headlight
system remains on until one of
the following situations
occurs:
.The fog lamps are turned on.
.The system detects a
preceding vehicle’s taillamps.
.The vehicle speed drops
below approximately
20 km/h (12 mph).
The high beams may not turn
off automatically if the system
cannot detect another vehicle
lamps because of any of the
following:
.The other vehicle’s lamps
are missing, damaged,
obstructed from view,
or otherwise undetected.
.The other vehicle’s lamps
are covered with dirt, snow,
and/or road spray.
.The other vehicle’s lamps
cannot be detected due to
dense exhaust, smoke, fog,
snow, road spray, mist,
or other airborne
obstructions.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
148 Lighting

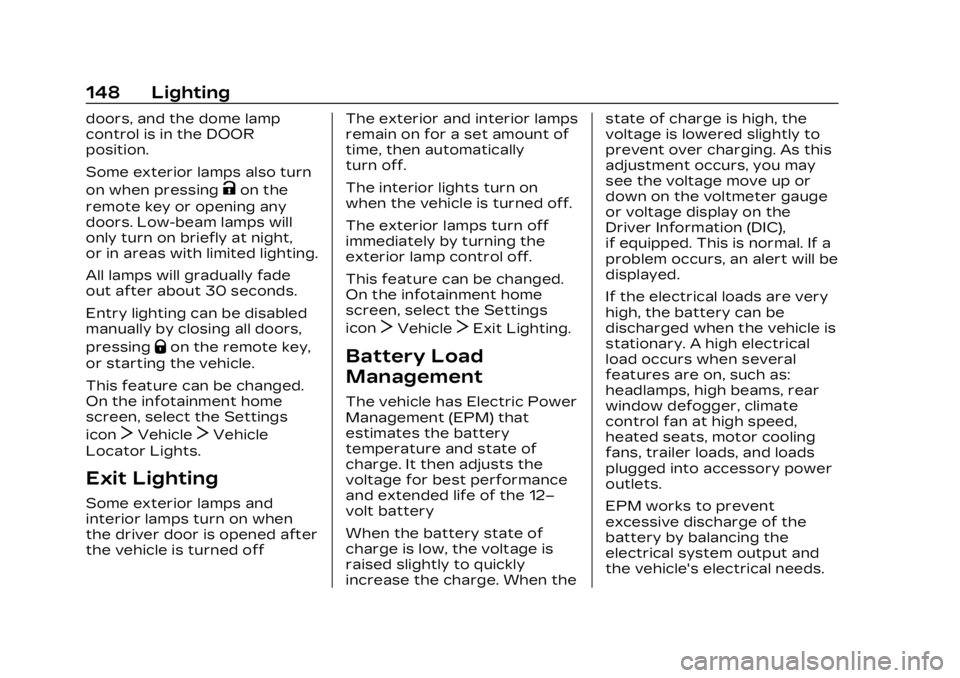

doors, and the dome lamp
control is in the DOOR
position.
Some exterior lamps also turn
on when pressing
Kon the
remote key or opening any
doors. Low-beam lamps will
only turn on briefly at night,
or in areas with limited lighting.
All lamps will gradually fade
out after about 30 seconds.
Entry lighting can be disabled
manually by closing all doors,
pressing
Qon the remote key,
or starting the vehicle.
This feature can be changed.
On the infotainment home
screen, select the Settings
icon
TVehicleTVehicle
Locator Lights.
Exit Lighting
Some exterior lamps and
interior lamps turn on when
the driver door is opened after
the vehicle is turned off The exterior and interior lamps
remain on for a set amount of
time, then automatically
turn off.
The interior lights turn on
when the vehicle is turned off.
The exterior lamps turn off
immediately by turning the
exterior lamp control off.
This feature can be changed.
On the infotainment home
screen, select the Settings
icon
TVehicleTExit Lighting.
Battery Load
Management
The vehicle has Electric Power
Management (EPM) that
estimates the battery
temperature and state of
charge. It then adjusts the
voltage for best performance
and extended life of the 12–
volt battery
When the battery state of
charge is low, the voltage is
raised slightly to quickly
increase the charge. When thestate of charge is high, the
voltage is lowered slightly to
prevent over charging. As this
adjustment occurs, you may
see the voltage move up or
down on the voltmeter gauge
or voltage display on the
Driver Information (DIC),
if equipped. This is normal. If a
problem occurs, an alert will be
displayed.
If the electrical loads are very
high, the battery can be
discharged when the vehicle is
stationary. A high electrical
load occurs when several
features are on, such as:
headlamps, high beams, rear
window defogger, climate
control fan at high speed,
heated seats, motor cooling
fans, trailer loads, and loads
plugged into accessory power
outlets.
EPM works to prevent
excessive discharge of the
battery by balancing the
electrical system output and
the vehicle's electrical needs.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Climate Controls 187

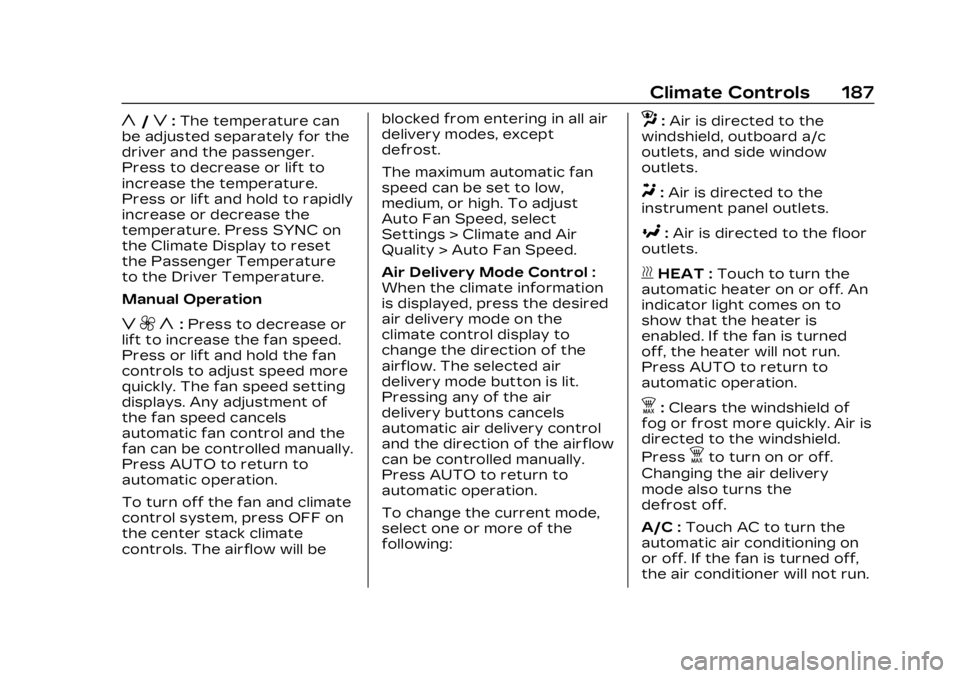

y/z:The temperature can
be adjusted separately for the
driver and the passenger.
Press to decrease or lift to
increase the temperature.
Press or lift and hold to rapidly
increase or decrease the
temperature. Press SYNC on
the Climate Display to reset
the Passenger Temperature
to the Driver Temperature.
Manual Operation
z 9 y: Press to decrease or
lift to increase the fan speed.
Press or lift and hold the fan
controls to adjust speed more
quickly. The fan speed setting
displays. Any adjustment of
the fan speed cancels
automatic fan control and the
fan can be controlled manually.
Press AUTO to return to
automatic operation.
To turn off the fan and climate
control system, press OFF on
the center stack climate
controls. The airflow will be blocked from entering in all air
delivery modes, except
defrost.
The maximum automatic fan
speed can be set to low,
medium, or high. To adjust
Auto Fan Speed, select
Settings > Climate and Air
Quality > Auto Fan Speed.
Air Delivery Mode Control :
When the climate information
is displayed, press the desired
air delivery mode on the
climate control display to
change the direction of the
airflow. The selected air
delivery mode button is lit.
Pressing any of the air
delivery buttons cancels
automatic air delivery control
and the direction of the airflow
can be controlled manually.
Press AUTO to return to
automatic operation.
To change the current mode,
select one or more of the
following:
z:
Air is directed to the
windshield, outboard a/c
outlets, and side window
outlets.
Y: Air is directed to the
instrument panel outlets.
[: Air is directed to the floor
outlets.
vHEAT : Touch to turn the
automatic heater on or off. An
indicator light comes on to
show that the heater is
enabled. If the fan is turned
off, the heater will not run.
Press AUTO to return to
automatic operation.
d: Clears the windshield of
fog or frost more quickly. Air is
directed to the windshield.
Press
dto turn on or off.
Changing the air delivery
mode also turns the
defrost off.
A/C : Touch AC to turn the
automatic air conditioning on
or off. If the fan is turned off,
the air conditioner will not run.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
188 Climate Controls
Press AUTO to return to
automatic operation and the
air conditioner runs as needed.

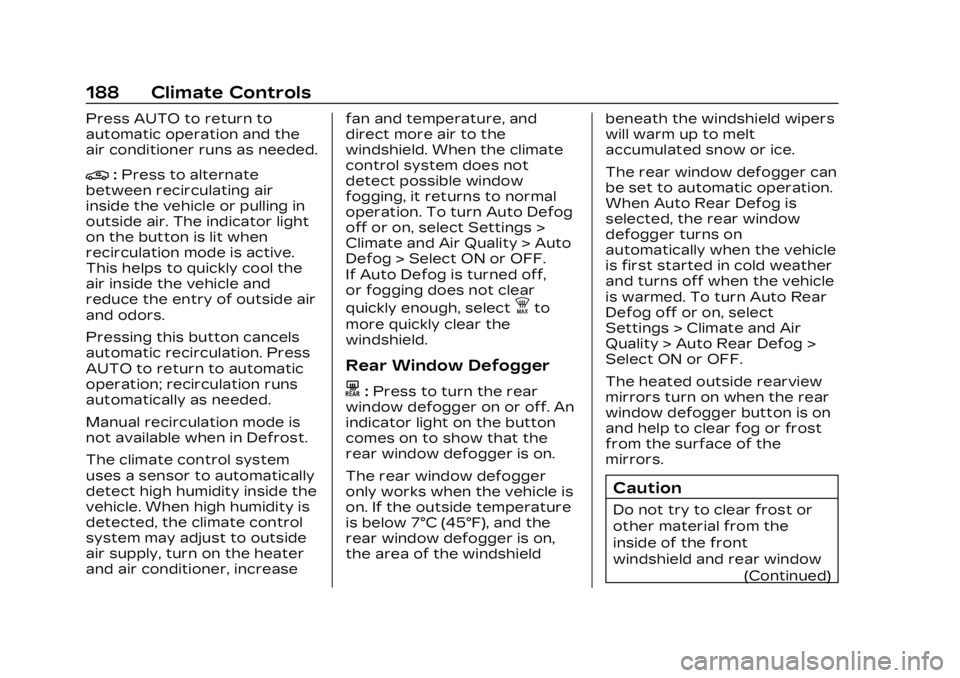

@:Press to alternate
between recirculating air
inside the vehicle or pulling in
outside air. The indicator light
on the button is lit when
recirculation mode is active.
This helps to quickly cool the
air inside the vehicle and
reduce the entry of outside air
and odors.
Pressing this button cancels
automatic recirculation. Press
AUTO to return to automatic
operation; recirculation runs
automatically as needed.
Manual recirculation mode is
not available when in Defrost.
The climate control system
uses a sensor to automatically
detect high humidity inside the
vehicle. When high humidity is
detected, the climate control
system may adjust to outside
air supply, turn on the heater
and air conditioner, increase fan and temperature, and
direct more air to the
windshield. When the climate
control system does not
detect possible window
fogging, it returns to normal
operation. To turn Auto Defog
off or on, select Settings >
Climate and Air Quality > Auto
Defog > Select ON or OFF.
If Auto Defog is turned off,
or fogging does not clear
quickly enough, select
dto
more quickly clear the
windshield.
Rear Window Defogger
K: Press to turn the rear
window defogger on or off. An
indicator light on the button
comes on to show that the
rear window defogger is on.
The rear window defogger
only works when the vehicle is
on. If the outside temperature
is below 7°C (45°F), and the
rear window defogger is on,
the area of the windshield beneath the windshield wipers
will warm up to melt
accumulated snow or ice.
The rear window defogger can
be set to automatic operation.
When Auto Rear Defog is
selected, the rear window
defogger turns on
automatically when the vehicle
is first started in cold weather
and turns off when the vehicle
is warmed. To turn Auto Rear
Defog off or on, select
Settings > Climate and Air
Quality > Auto Rear Defog >
Select ON or OFF.
The heated outside rearview
mirrors turn on when the rear
window defogger button is on
and help to clear fog or frost
from the surface of the
mirrors.
Caution
Do not try to clear frost or
other material from the
inside of the front
windshield and rear window
(Continued)

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Climate Controls 189
Caution (Continued)
with a razor blade or
anything else that is sharp.
This may damage the rear
window defogger grid and
affect the radio's ability to
pick up stations clearly. The
repairs would not be
covered by the vehicle
warranty.
Sensor
The solar sensor, on top of the
instrument panel near the
windshield, monitors the
solar heat.The climate control system
uses the sensor information to
adjust the temperature, fan
speed, recirculation, and air
delivery mode for best
comfort.
If the sensor is covered, the
automatic climate control
system may not work properly.
Remote Start Climate
Control Operation :
The
climate control system may
run when the vehicle is started
remotely. The system uses the
driver’s previous settings to
heat or cool the inside of the
vehicle. The rear defog may
come on during remote start
based on cold ambient
conditions. The rear defog
indicator light does not come
on during a remote start.
If equipped with heated or
cooled seats, they may come
on during a remote start. See
Remote Start 015 and
Heated and Ventilated Front
Seats 045. Afterblow Feature
If equipped, under certain
conditions, the fan may stay
on or may turn on and off
several times after you turn
off and lock the vehicle. This is
normal.
Air Vents
Use the multi-function joystick
control on the front center
and side air vents to change
the direction of the airflow.
Air vents blow warm air on the
side windows in cold weather.
If floor, defog, or defrost
modes are selected, a small
amount of air will come from
the vents close to the window.
To fully open the front A/C
vents, turn the multi-function
joystick control knob until the
indicator points straight up.
To close the front A/C vents,
turn the multi-function joystick
control until the indicator
points to the nine o'clock
position.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
194 Driving and Operating
Acceleration/Braking/
Coasting
Avoid rapid accelerations and
decelerations.
Use cruise control when
appropriate.
Plan ahead for decelerations,
and coast whenever possible.
Do not rush to traffic signals,
and do not shift to N (Neutral)
to coast.
Use the One-Pedal Driving
feature when appropriate to
help recover energy during
coasting and braking.
One-Pedal mode recovers
more energy while coasting
and braking than D (Drive)
mode. See One-Pedal Driving
0214.
Use the steering wheel Regen
on Demand paddle during
deceleration to help recover
energy. See Regenerative
Braking 0220. Terrain and Vehicle Speed
Higher speeds and grade
changes use more energy and
can significantly reduce
electric range.
Climate Setting
Using the heat and air
conditioning systems
decreases the energy
available for electric driving.
Optimal energy efficiency is
achieved when the heat, air
conditioning, and fan are
turned off.
Use the heated and ventilated
seat features (if equipped)
instead of the climate control
system. Heating and
ventilating the seat uses less
energy than heating and
cooling the interior. See
Heated and Ventilated Front
Seats
045 and
Heated Rear Seats 049.
Use the Remote Start Climate
Control feature to heat or cool
the interior while the vehicle is
plugged in to use electricity from the electrical outlet
instead of using energy from
the battery. See Remote Start
0
15.
In hot weather, avoid parking
in direct sunlight. Use
sunshades inside the vehicle.
Keep the inside of the
windows clean to reduce
fogging. Turn off the front
defroster and rear defogger
when they are not needed.
Avoid driving with the
windows open at highway
speeds.
Use the Battery Gauge on the
Instrument Cluster to view the
effect of climate control
settings on your estimated
range. See Battery Gauge
(High Voltage) 0110.
Outside Temperature
On colder days, it is best to
plug in the vehicle overnight,
and then remote start the
vehicle.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Driving and Operating 239
Warning (Continued)
.Never remove your hands
from the steering wheel
when Super Cruise is not
operating.
.Always make sure traffic
conditions are safe before
using Super Cruise.
.Always keep the entire
vehicle and the sensors
clean. Sensors are on the
front, sides, and rear of
the vehicle.
.Always observe posted
speed limits. Only use
Super Cruise at or below
the posted speed limit.
Super Cruise should not be
used in complex or uncertain
driving conditions, including:
.Not in construction zones.
.Not when approaching or
exiting toll plazas. (Continued)
Warning (Continued)
.Not when approaching an
intersection that is
controlled with a traffic
light, stop sign, or other
traffic control device.
.Not when lane markings
are not present or cannot
be detected. For example,
there is too much glare,
weather conditions are
poor, or lanes are poorly
marked.
.Not on slippery or icy
roads.
.Not in adverse weather
conditions, including rain,
sleet, fog, ice, or snow.
.Not on winding or hilly
roads.
.Not for city driving.
.Not during heavy or
emergency braking.
.Not on surface streets.(Continued)
Warning (Continued)
.Not on a road shoulder,
service drive, or under an
elevated freeway.
.Not when towing a trailer.
.Not in a highway exit lane.
When Super Cruise is
Available
Super Cruise Indicator
Super Cruise is designed to
operate only when:
.ACC is on. See Adaptive
Cruise Control (Advanced)
0 225.
.Teen Driver is not active.
.The GPS detects the vehicle
is on a compatible highway.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
370 Vehicle Care
Caution (Continued)
.Do not heavily saturate
the upholstery when
cleaning.
.Do not use solvents or
cleaners containing
solvents.
.Do not use disinfecting
wipes that are scented or
contain bleach. Do not use
wipes or cleaners that
show a color transfer to
the wipe or change the
appearance of the interior
surface when used.
.Do not use scented or
gel-type hand sanitizers.
If hand sanitizer comes in
contact with interior
surfaces of the vehicle,
blot immediately and clean
with a soft cloth
dampened with a mild
soap and water solution.
Interior Glass
To clean, use a microfiber
cloth fabric dampened with
water. Wipe droplets left
behind with a clean dry cloth.
If necessary, use a commercial
glass cleaner after cleaning
with plain water.
Caution
To prevent scratching, never
use abrasive cleaners on
automotive glass. Abrasive
cleaners or aggressive
cleaning may damage the
rear window defogger.
Cleaning the windshield with
water during the first three to
six months of ownership will
reduce tendency to fog.
Speaker Covers
Vacuum around a speaker
cover gently, so that the
speaker will not be damaged.
Clean spots with water and
mild soap.
Coated Moldings
Coated moldings should be
cleaned.
.When lightly soiled, wipe
with a sponge or soft,
lint-free cloth dampened
with water.
.When heavily soiled, use
warm soapy water.
Vinyl/Rubber
If equipped with vinyl floor and
rubber floor mats, use a soft
cloth and/or brush dampened
with water to remove dust and
loose dirt. For more thorough
cleaning, use a mild soap and
water solution.
{Warning
Do not use cleaners that
contain silicone, wax-based
products, or cleaners that
increase gloss on vinyl/
rubber floor and mats.
These cleaners can
permanently change the (Continued)
