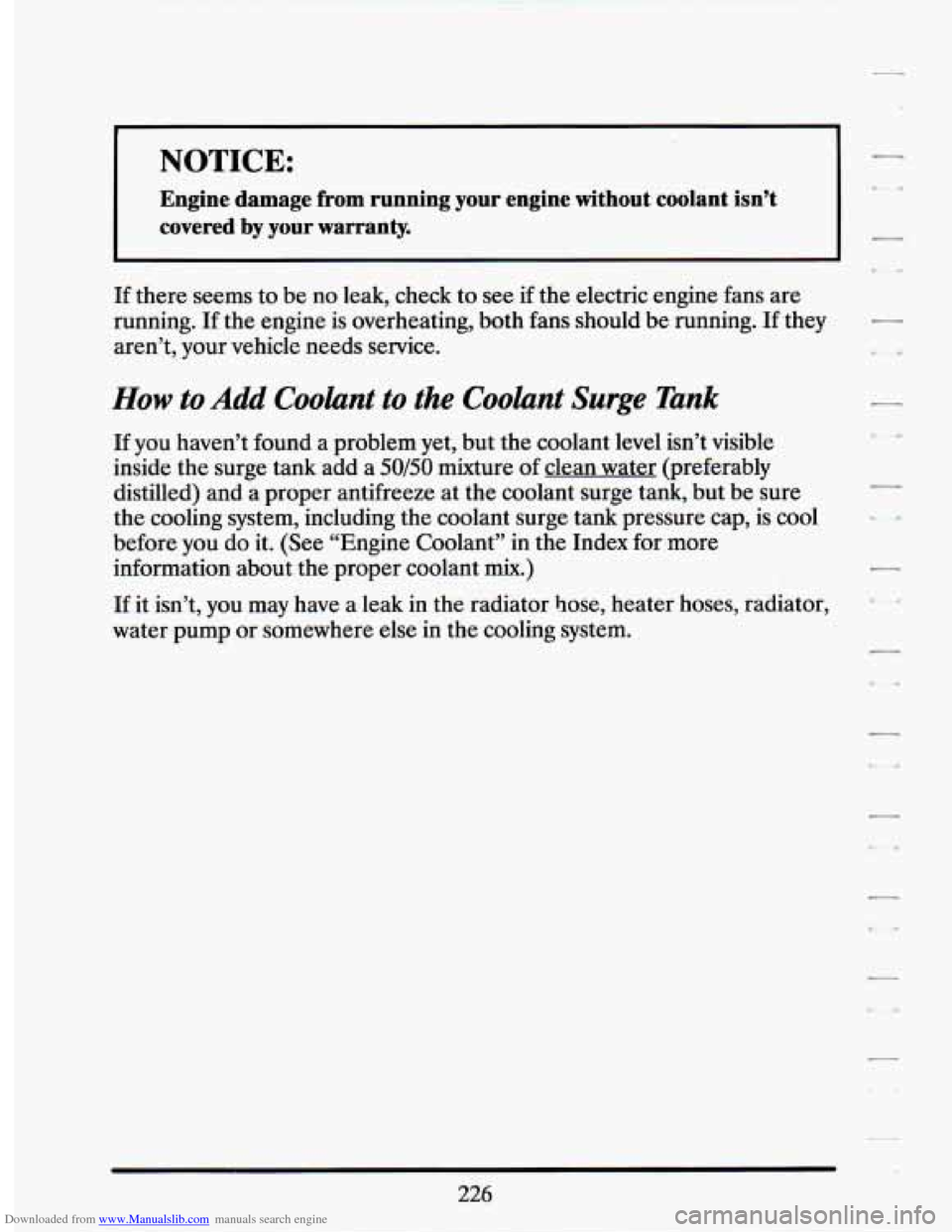

Engine damage from running your engine without coolant isn’t
covered
by your warranty.
If there seems to be no leak, check to see if the electric engine fans are
running.
If the engine is overheating, both fans should be running. If they
aren’t, your vehicle needs service.
How to Add Coolant to the Coolant Surge Tank
If you haven’t found a problem yet, but the coolant level isn’t visible
inside the surge tank add a
50/50 mixture of clean water (preferably
distilled) and a proper antifreeze at the coolant surge tank, but be sure
the cooling system, including the coolant surge tank pressure cap, is cool
before you do it.
(See “Engine Coolant” in the Index for more
information about the proper coolant mix.)
If it isn’t, you may have a leak in the radiator fiose, heater hoses, radiator, -
water pump or somewhere else in the cooling system. -
225
Page 338 of 399

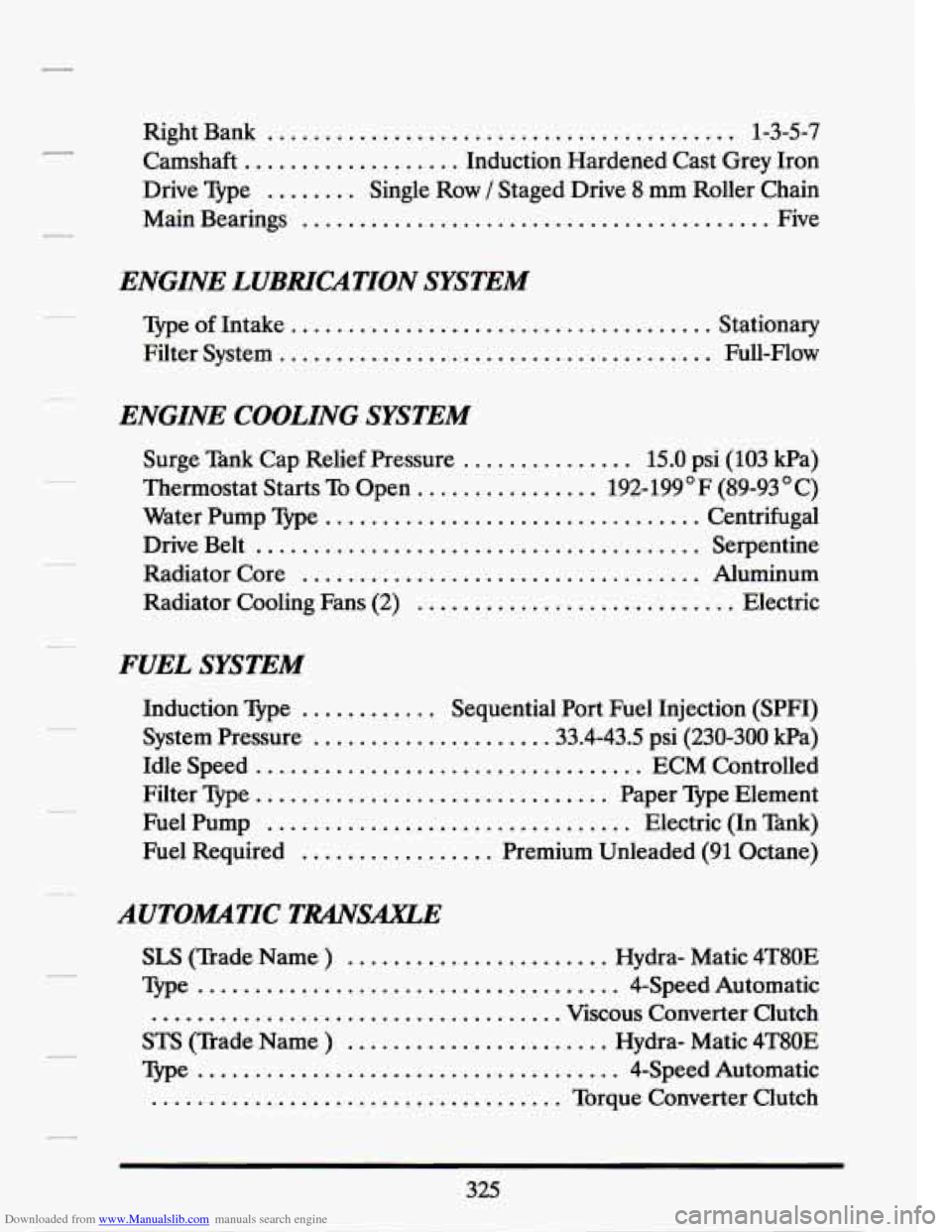

Downloaded from www.Manualslib.com manuals search engine Right Bank ......................................... 1-3-5-7
Camshaft
................... Induction Hardened Cast Grey Iron
Drive Type
........ Single Row / Staged Drive 8 mm Roller Chain
Main Bearings
......................................... Five
ENGINE LUBRICATION SYSTEM
Type of Intake ..................................... Stationary
Filter System
...................................... Full-Flow
ENGINE COOLING SYSTEM
Surge Tank Cap Relief Pressure ............... 15.0 psi (103 kPa)
Water Pump
Type ................................. Centrifugal
Drive Belt
....................................... Serpentine
Radiator Core
................................... Aluminum
Radiator Cooling Fans (2)
............................ Electric
Thermostat Starts
To Open
................ 192-199°F (89-93 "C)
FUEL SYSTEM
Induction Type ............ Sequential Port Fuel Injection (SPFI)
System Pressure .................... .33.4-43.5 psi (230-300 kPa)
Idle Speed
.................................. ECM Controlled
Filter Type
............................... Paper Type Element
Fuel Pump
................................. Electric (In Tank)
Fuel Required
................. Premium Unleaded (91 Octane)
AUTOMTIC TRANSAXZE
SLS (Trade Name ) ....................... Hydra- Matic 4TSOE
Type
..................................... 4-Speed Automatic
.................................... Viscous Converter Clutch
STS (Trade Name
) ....................... Hydra- Matic 4T80E
Type ..................................... 4-Speed Automatic
.................................... Torque Converter Clutch
325
