oil filter CADILLAC SEVILLE 1995 4.G Owners Manual

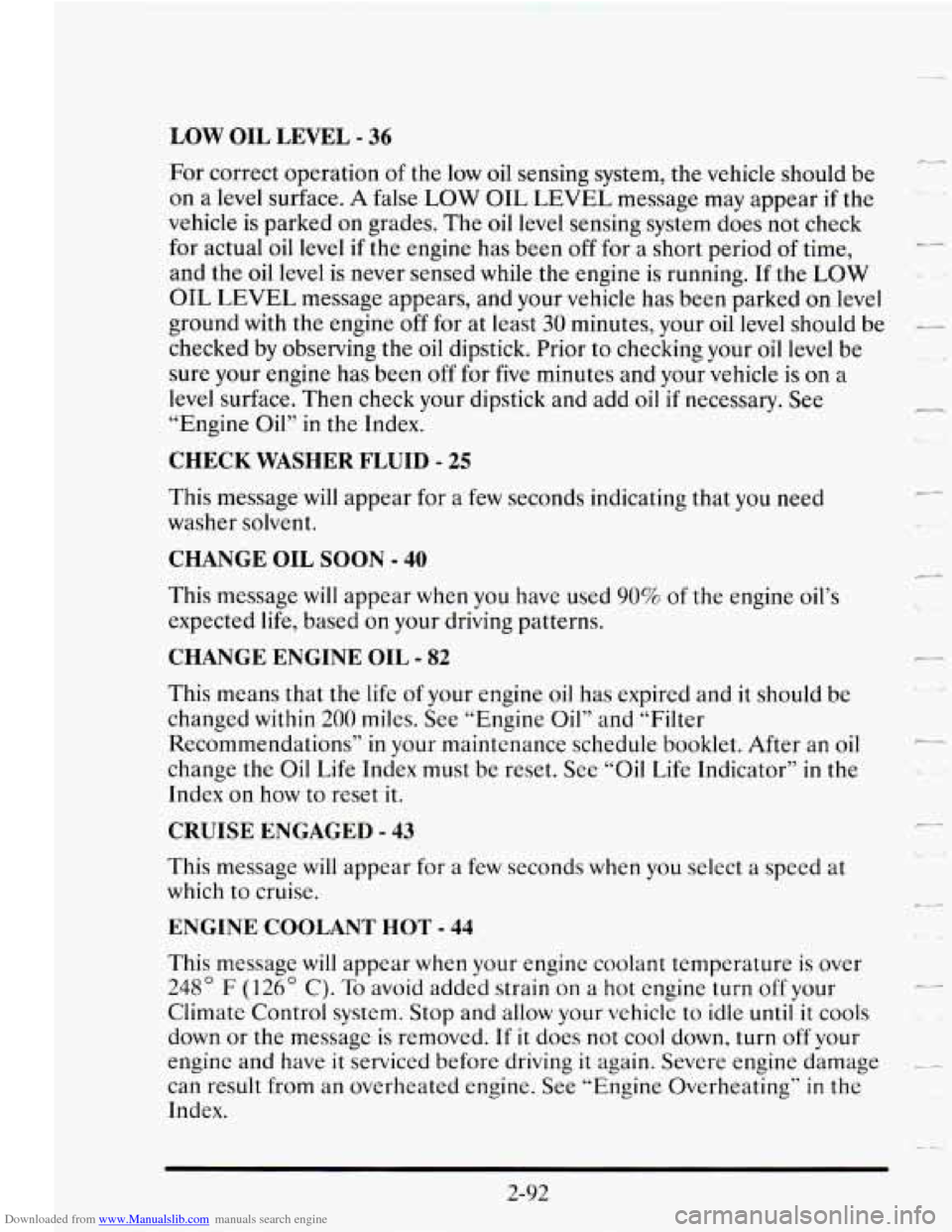

Downloaded from www.Manualslib.com manuals search engine LOW OIL LEVEL - 36
For correct operation of the low oil sensing system, the vehicle should be
on a level surface.
A false LOW OIL LEVEL message may appear if the
vehicle is parked
on grades. The oil level sensing system does not check
for actual oil level
if the engine has been off for a short period of time,
and the
oil level is never sensed while the engine is running. If the LOW
OIL LEVEL message appears, and your vehicle has been parked on level
ground with the engine
off for at least 30 minutes, your oil level should be -
checked by observing the oil dipstick. Prior to checking your oil level be
sure your engine has been
off for five minutes and your vehicle is on a
level surface. Then check
your dipstick and add oil if necessary. See
“Engine Oil”
in the Index.
CHECK WASHER FLUID - 25
This message will appear for a few seconds indicating that you need
washer solvent.
CHANGE OIL SOON - 40
This message will appear when you have used 90% of the engine oil’s
expected life, based on your driving patterns.
CHANGE ENGINE OIL - 82
This means that the life of your engine oil has expired and it should be
changed
within 200 miles. See “Engine Oil” and “Filter
Recommendations” in your maintenance schedule booklet. After an
oil
change the Oil Life Index must be reset. See “Oil Life Indicator” in the
Index on how to reset it.
CRUISE ENGAGED - 43
This message will appear for a few seconds when you select a speed at
which to cruise.
ENGINE COOLANT HOT - 44
This message will appear when your engine coolant temperature is over
248” F (126O C). To avoid added strain on a hot engine turn off your
Climate Control system. Stop and allow your vehicle to idle
until it cools
down or the message is removed.
If it does not cool down, turn off your
engine and have
it serviced before driving it again. Severe engine damage
can result from an overheated engine. See “Engine Overheating”
in the
Index.
Y-
2-92

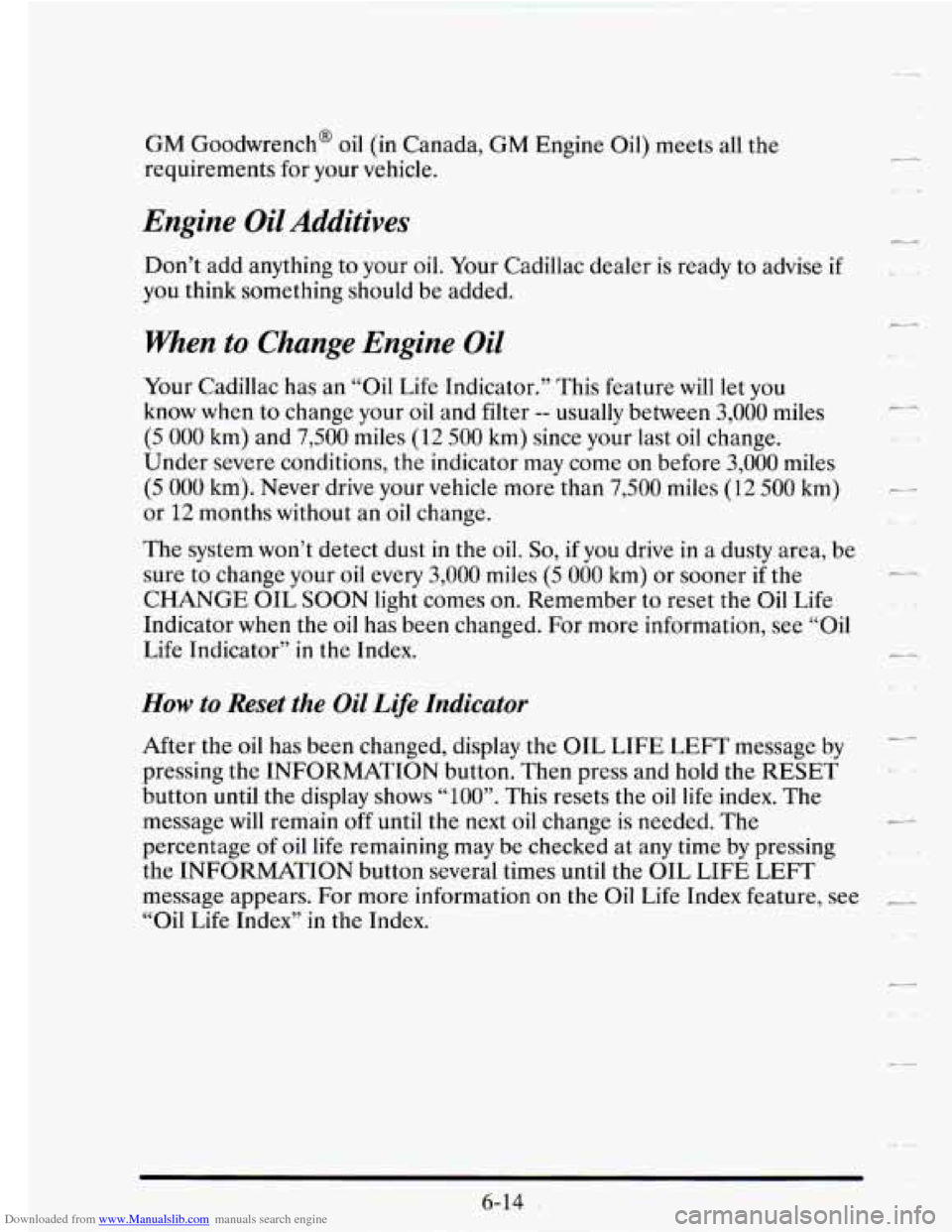

Downloaded from www.Manualslib.com manuals search engine GM Goodwrench@ oil (in Canada, GM Engine Oil) meets all the
requirements
for your vehicle.
Engine Oil Additives
Don’t add anything to your oil. Your Cadillac dealer is ready to advise if
you think something should be added.
When to Change Engine Oil
Your Cadillac has an “Oil Life Indicator.” This feature will let you
know when to change your oil and filter
-- usually between 3,000 miles
(5 000 km) and 7,500 miles (12 500 km) since your last oil change.
Under severe conditions, the indicator may come on before
3,000 miles
(5 000 km). Never drive your vehicle more than 7,500 miles (12 500 km)
or 12 months without an oil change.
The system
won’t detect dust in the oil. So, if you drive in a dusty area, be
sure to change
your oil every 3,000 miles (5 000 km) or sooner if the
CHANGE OIL
SOON light comes on. Remember to reset the Oil Life
Indicator when the oil has been changed. For more information, see
“Oil
Life Indicator” in the Index.
How to Reset the Oil Life Indicator
After the oil has been changed, display the OIL LIFE LEFT message by
pressing the INFORMATION button. Then press and hold the
RESET
button until the display shows “100”. This resets the oil life index. The
message will remain
off until the next oil change is needed. The
percentage of oil life remaining may be checked at any time by pressing
the INFORMATION button several times until the
OIL LIFE LEFT
message appears. For more information on the Oil Life Index feature, see
__
“Oil Life Index” in the Index.
-.

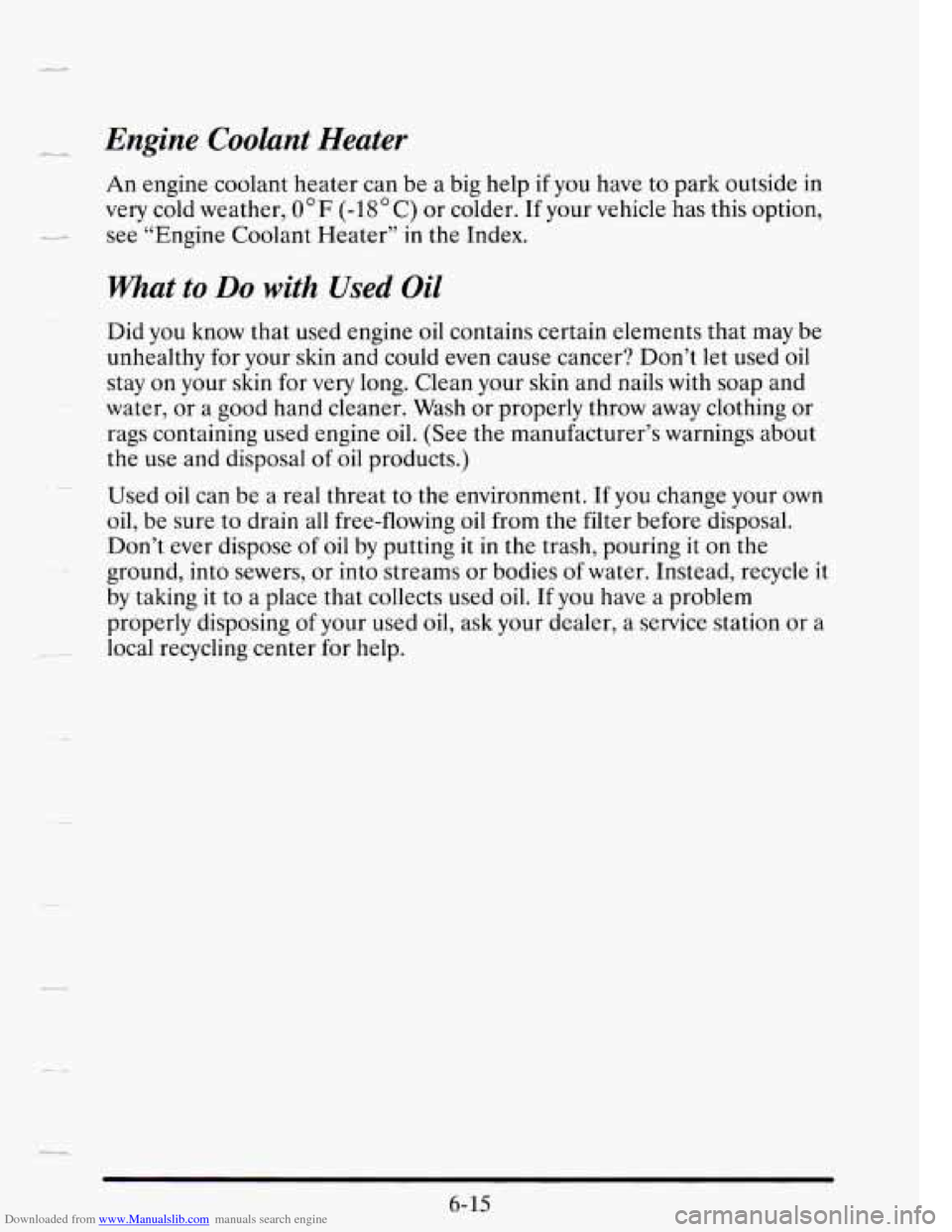

Downloaded from www.Manualslib.com manuals search engine - Engine Coolant Heater
An engine coolant heater can be a big help if you have to park outside in
very cold weather,
O°F (-HOC) or colder. If your vehicle has this option,
c- see “Engine Coolant Heater” in the Index.
What to Do with Used Oil
Did you know that used engine oil contains certain elements that may be
unhealthy for your skin and could even cause cancer? Don’t let used oil
stay on your skin
for very long. Clean your skin and nails with soap and
:water, or a good hand cleaner. Wash or properly throw away clothing or
rags containing used engine oil. (See the manufacturer’s warnings about
the use and disposal
of oil products.)
-
-__+
Used oil can be a real threat to the environment. If you change your own
oil, be sure
to drain all free-flowing oil from the filter before disposal.
Don’t ever dispose of oil by putting it in the trash, pouring it on the
ground, into sewers, or
into streams or bodies of water. Instead, recycle it
by taking it to a place that collects used oil. If you have a problem
properly disposing
of your used oil, ask your dealer, a service station or a
local recycling center for help.
6-15

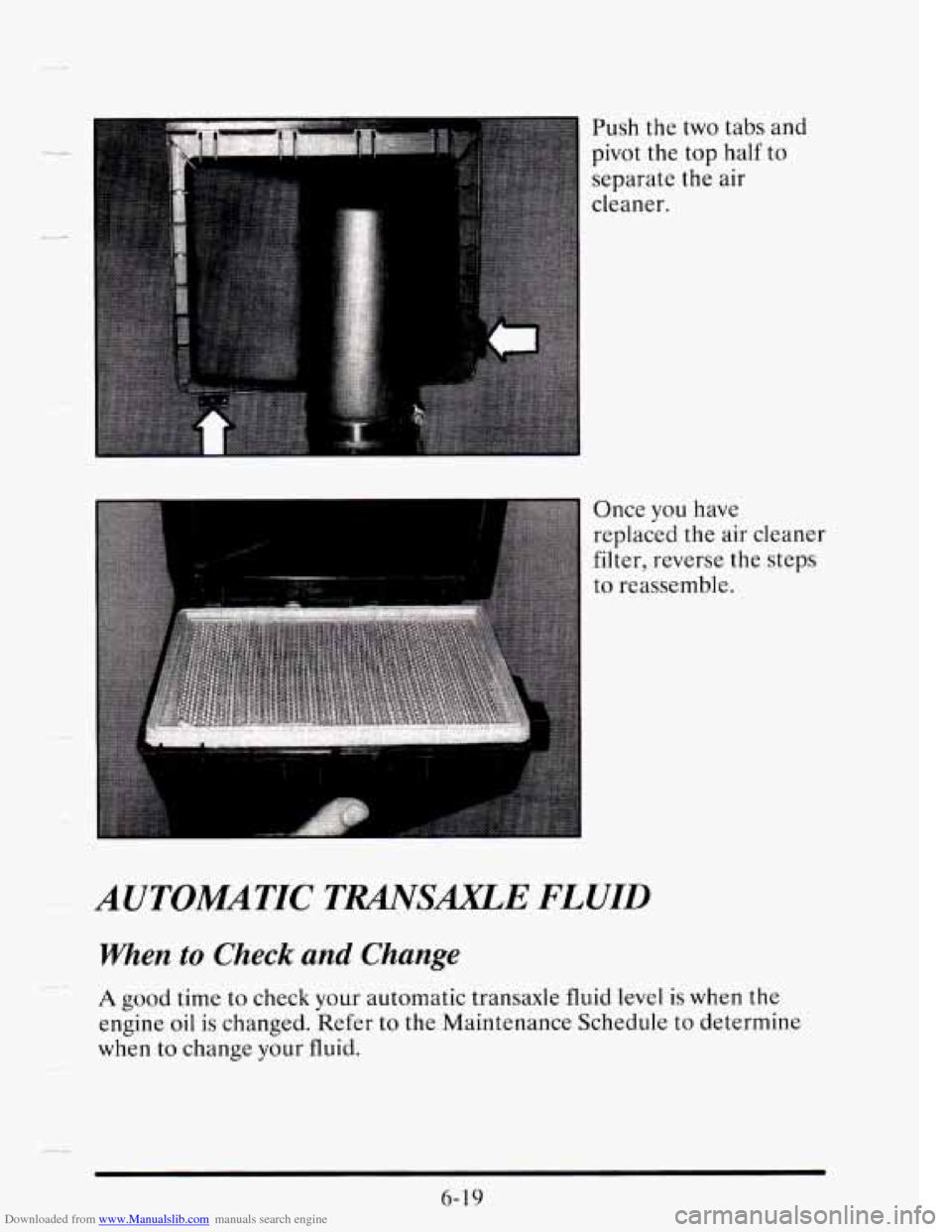

Downloaded from www.Manualslib.com manuals search engine Push the two tabs and
pivot the top half to
separate the air
cleaner.
Once you have
replaced
the air cleaner
filter, reverse the steps
to reassemble.
AUTOMATIC TRANSAXLE FLUID
when to Check and Change
A good time to check your automatic transaxle fluid level is when the
engine oil is changed. Refer to the Maintenance Schedule to determine
when
to change your fluid.
6-19

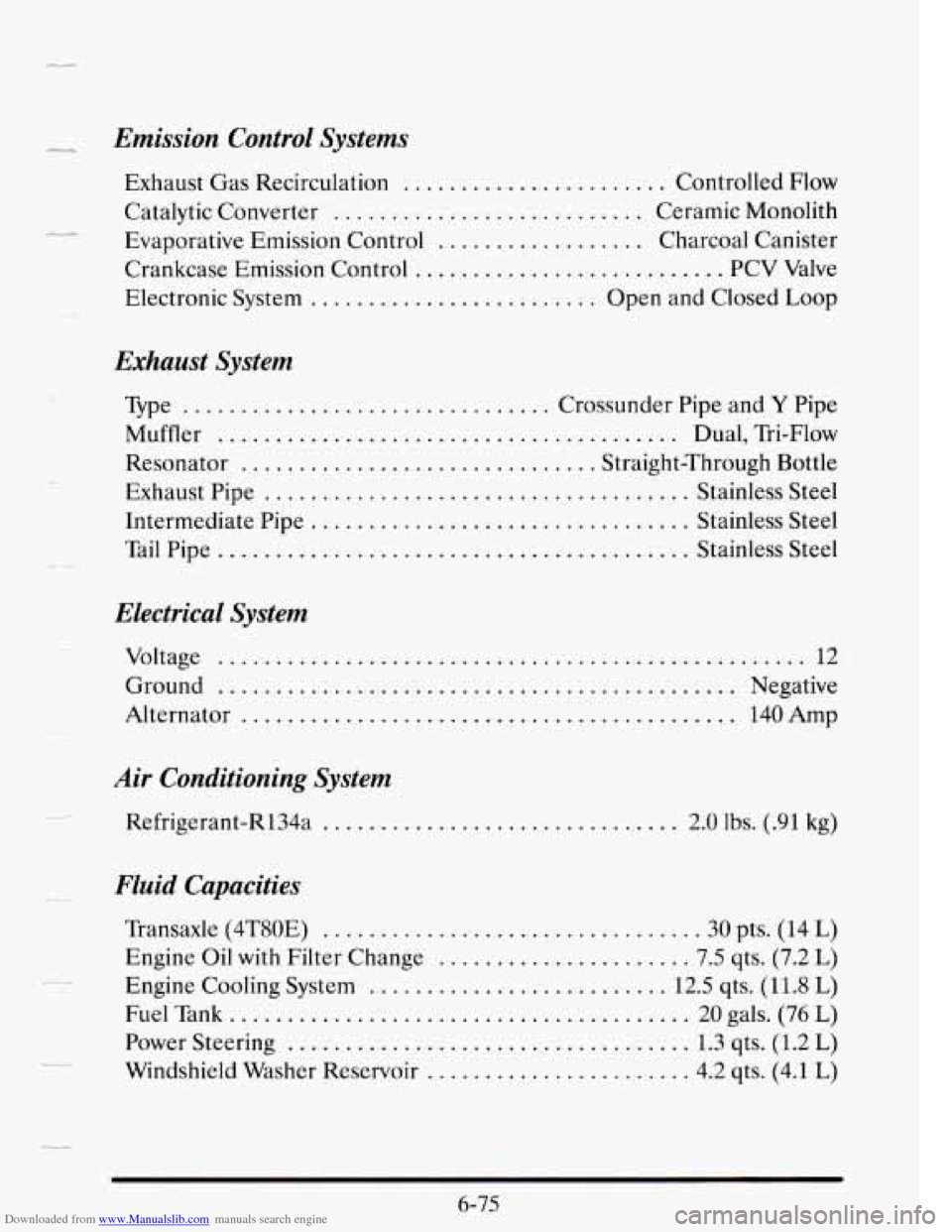

Downloaded from www.Manualslib.com manuals search engine Emission Control Systems
C.._
Exhaust Gas Recirculation ....................... Controlled Flow
Catalytic Converter ........................... Ceramic Monolith
Evaporative Emission Control
.................. Charcoal Canister
Crankcase Emission Control
........................... PCV Valve
Electronic System
......................... Open and Closed Loop
Exhaust System
Type ................................ Crossunder Pipe and Y Pipe
Muffler
........................................ Dual, Tri-Flow
Resonator
............................... Straight-Through Bottle
Exhaust Pipe
..................................... Stainless Steel
Intermediate Pipe
................................. Stainless Steel
Tail Pipe
......................................... Stainless Steel
Electrical System
Voltage ................................................... 12
Ground
.............................................. Negative
Alternator
........................................... 140Amp
Air Conditioning System
Refrigerant-R134a ............................... 2.0 lbs. (.91 kg)
Fluid Capacities
Transaxle (4T80E) ................................ .30 pts. (14 L)
Engine Oil with Filter Change ...................... 7.5 qts. (7.2 L)
Engine Cooling System .......................... 12.5 qts. (1 1.8 L)
Fuel Tank. ....................................... 20 gals. (76 L)
Power Steering ................................... 1.3 qts. (1.2 L)
Windshield Washer Reservoir ....................... 4.2 qts. (4.1 L)

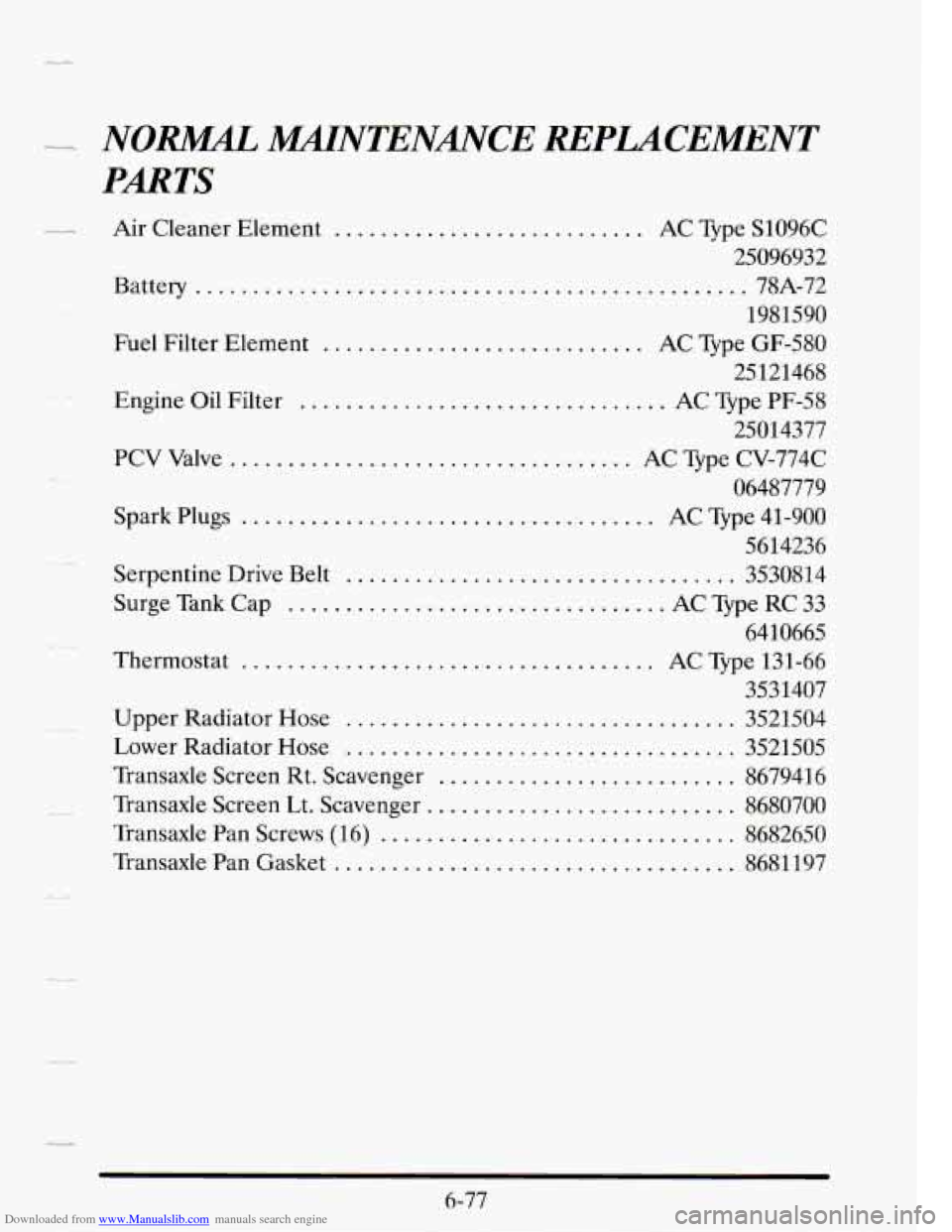

Downloaded from www.Manualslib.com manuals search engine _4 NOW MNTENMCE REPLACEMENT
PARTS
-c
-_
Air Cleaner Element ........................... AC Type S1096C
25096932
Battery
................................................ 78A-72
1981590
Fuel Filter Element ............................ AC Type GF-580
25121468
25014377
PCVValve
................................... AC Type CV-774C
06487779
5614236
Serpentine Drive Belt
.................................. 3530814
6410665
3531407
Upper Radiator Hose
.................................. 3521504
Lower Radiator Hose
.................................. 3521505
Transaxle Screen Rt. Scavenger
.......................... 8679416
Engine
Oil Filter
................................ AC Type PF-58
Spark Plugs
.................................... AC Type 41-900
Surge Tank Cap
................................. AC Type RC 33
Thermostat
.................................... AC Type 131-66
Transaxle Screen Lt. Scavenger
........................... 8680700
Transaxle Pan Screws (16)
............................... 8682650
Transaxle Pan Gasket
................................... 8681 197

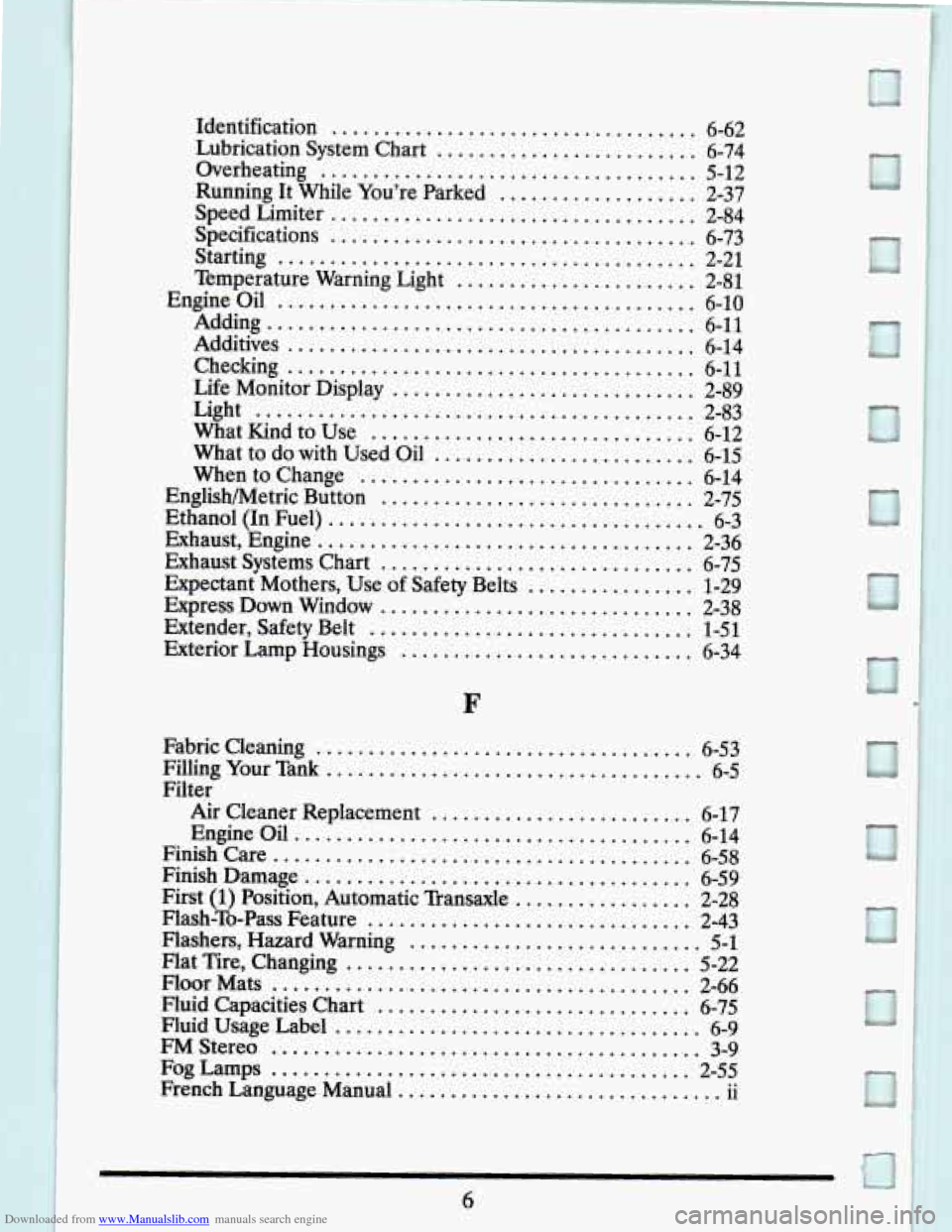

Downloaded from www.Manualslib.com manuals search engine Identification ................................... 6-62
Lubrication System Chart ......................... 6-74
Overheating ....................................
Running It While You’re Parked ................... 2-37
Speed Limiter ................................... 2-84
Specifications ................................... 6-73
Temperature Warning Light ....................... 2-81 5-12
........................................ Starting 2-21
Engine Oil 6-10
Adding 6-11
Additives 6-14
Checking 6-11
Light 2-83
........................................
.........................................
.......................................
.......................................
Life
Monitor Display ............................. 2-89
What Kind to Use ............................... 6-12
What to do with Used Oil ......................... 6-15
When to Change ................................ 6-14
Englishmetric Button .............................. 2-75
Ethanol (In Fuel) .................................... 6-3
Exhaust, Engine .................................... 2-36
Exhaust Systems Chart .............................. 6-75
Expectant Mothers, Use of Safety Belts ................ 1-29
Express Down Window .............................. 2-38
Extender, Safety Belt ............................... 1-51
Exterior Lamp Housings ............................ 6-34
..........................................
F
Fabric Cleaning .................................... 6-53
Filling Your Tank .................................... 6-5
Air Cleaner Replacement ......................... 6-17
First (1) Position. Automatic Transaxle ................. 2-28
Flash-To-Pass Feature ............................... 2-43
Flashers. Hazard Warning ............................ 5-1
Fluid Capacities Chart .............................. 6-75
Fluid Usage Label ................................... 6-9
Filter
Engine Oil
...................................... 6-14
Finish Care 6-58
Finish Damage 6-59
........................................
.....................................
Flat Tire. Changing .................................. 5-22
Floor Mats 2-66 ........................................
.........................................
........................................ FM Stereo 3-9
French Language Manual 11
Fog Lamps 2-55 .. ...............................
