CADILLAC SEVILLE 1997 4.G Owners Manual

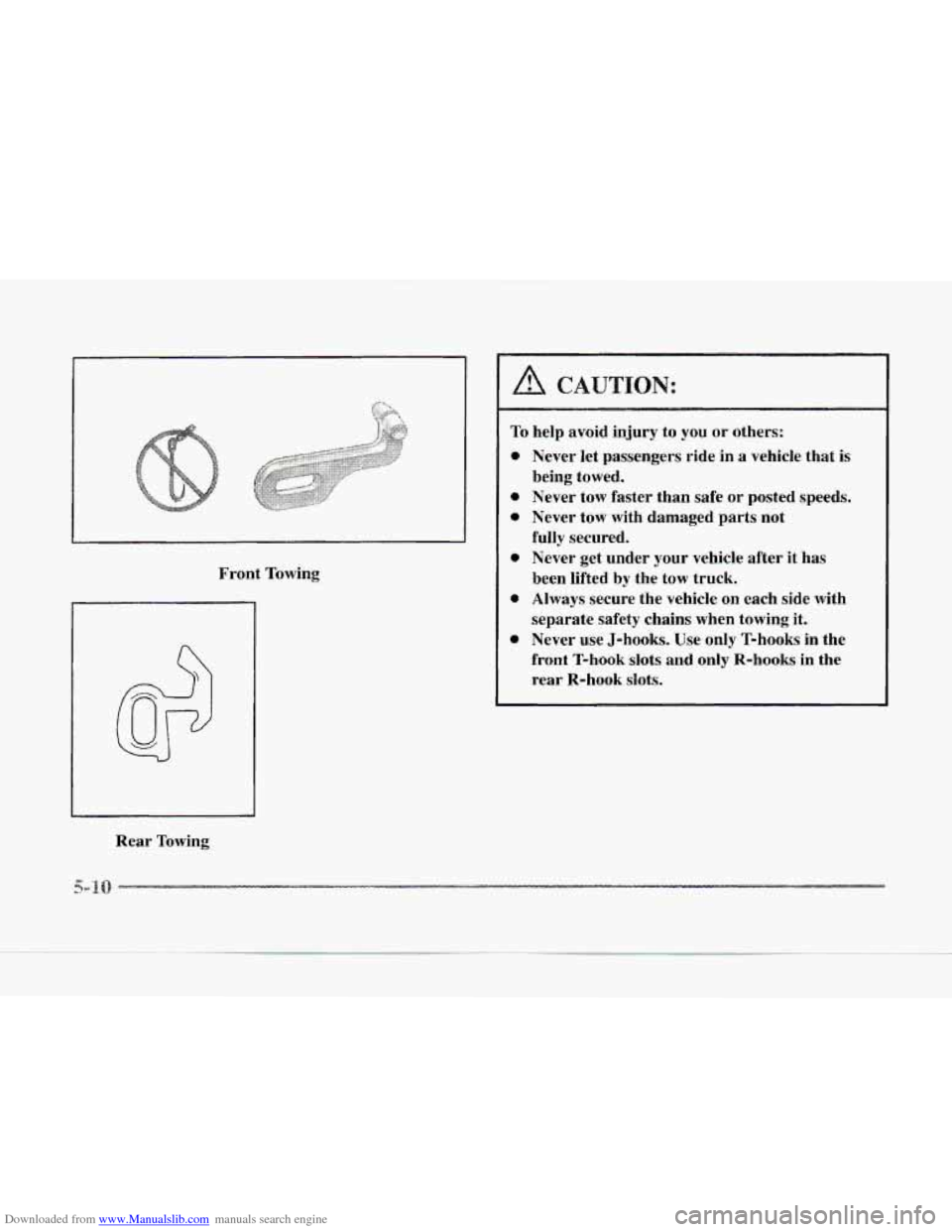

Downloaded from www.Manualslib.com manuals search engine Front Towing
Rear Towing
A CAUTION:
To help avoid injury to you or others:
Never let passengers ride in a vehicle that is
being towed.
Never tow faster than safe or posted speeds.
Never tow with damaged parts not
fully secured.
Never
get under your vehicle after it has
been lifted by the tow truck.
Always secure the vehicle on each side with
separate safety chains when towing it.
Never
use J-hooks. Use only T-hooks in the
front
T-hook slots and only R-hooks in the
rear R-hook slots.

Downloaded from www.Manualslib.com manuals search engine c
c

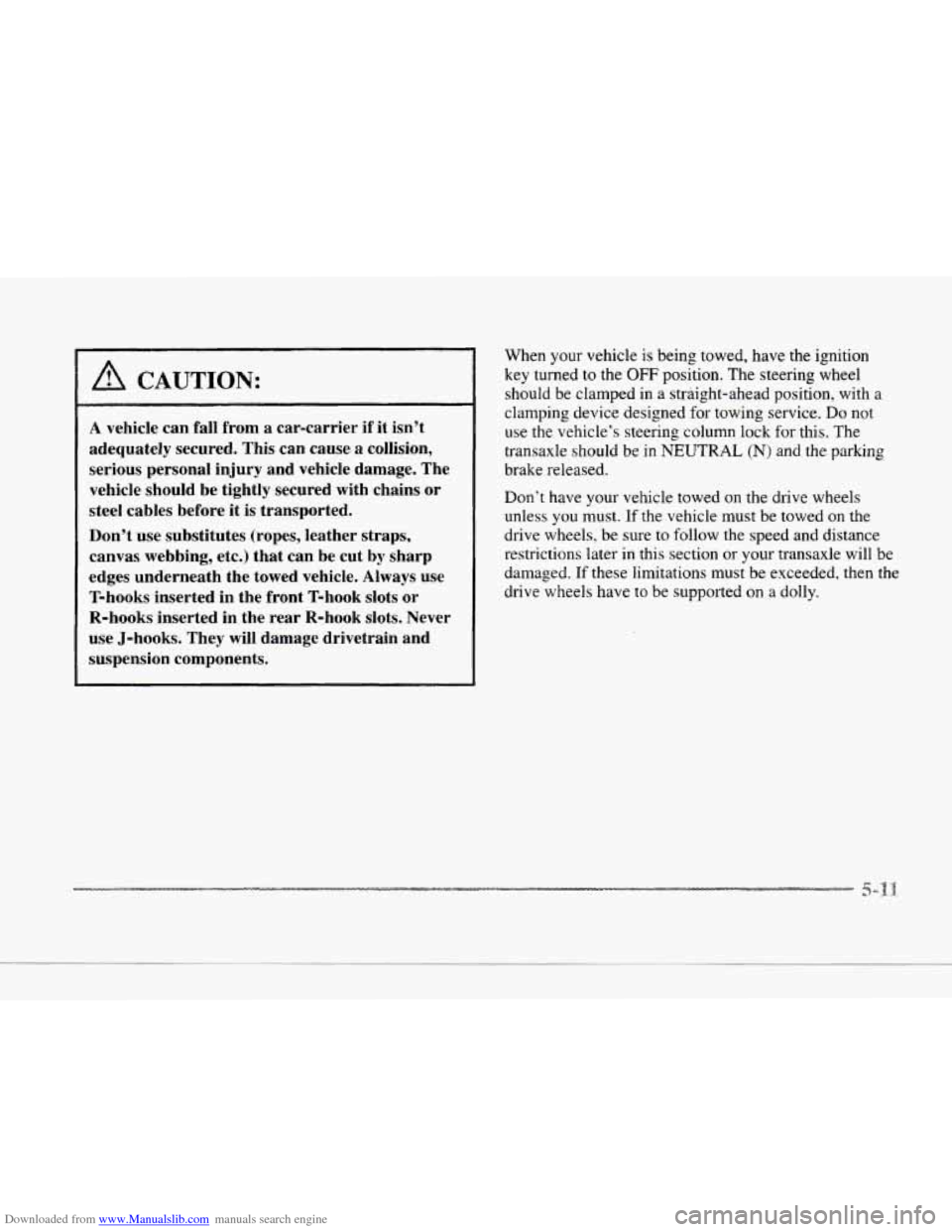

A CAUTION:
A vehicle can fall from a car-carrier if it isn’t
adequately secured. This can cause
a collision,
serious personal injury and vehicle damage. The
vehicle should be tightly secured with chains or
steel cables before it
is transported.
Don’t
use substitutes (ropes, leather straps,
canvas webbing, etc.) that can be cut by sharp
edges underneath the towed vehicle. Always use
T-hooks inserted in the front T-hook
slots or
R-hooks inserted in the rear R-hook slots. Never
use J-hooks. They will damage drivetrain and
suspension components.
When your vehicle is being towed, have the ignition
key turned to the
OFF position. The steering wheel
should be clamped in a straight-ahead position, with a
clamping device designed for towing service.
Do not
use the vehicle’s steering column lock for this. The
transaxle should be in
NEUTRAL (N) and the parking
brake released.
Don’t have your vehicle towed
on the drive wheels
unless
you must. If the vehicle must be towed on the
drive wheels, be sure to follow the speed and distance
restrictions later in this section or your transaxle will be
damaged.
If these limitations must be exceeded, then the
drive wheels have to be supported
on a dolly.

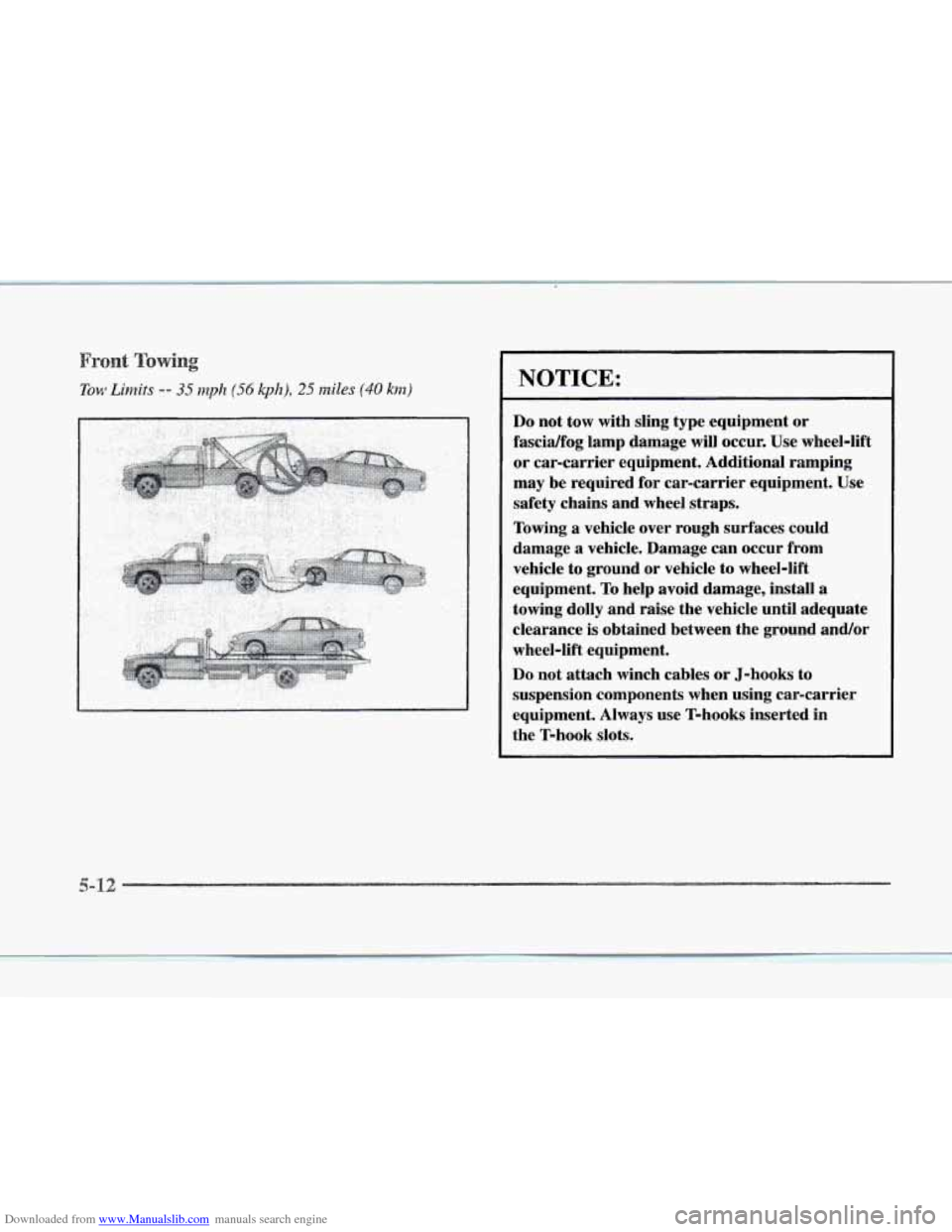

Downloaded from www.Manualslib.com manuals search engine Tow Limits -- 35 nzplz (56 kph), 25 miles (40 knz) NOTICE:
Do not tow with sling type equipment or
fascia/fog lamp damage will occur. Use wheel-lift
or car-carrier equipment. Additional ramping
may be required for car-carrier equipment. Use
safety chains and wheel straps.
Towing
a vehicle over rough surfaces could
damage
a vehicle. Damage can occur from
vehicle to ground or vehicle to wheel-lift
equipment.
To help avoid damage, install a
towing dolly and raise the vehicle until adequate
clearance
is obtained between the ground and/or
wheel-lift equipment.
Do not attach winch cables or J-hooks to
suspension components when using car-carrier
equipment. Always use T-hooks inserted in
the T-hook slots.
I
E

Downloaded from www.Manualslib.com manuals search engine r
r
r
r
I- t
r
r
. .. .

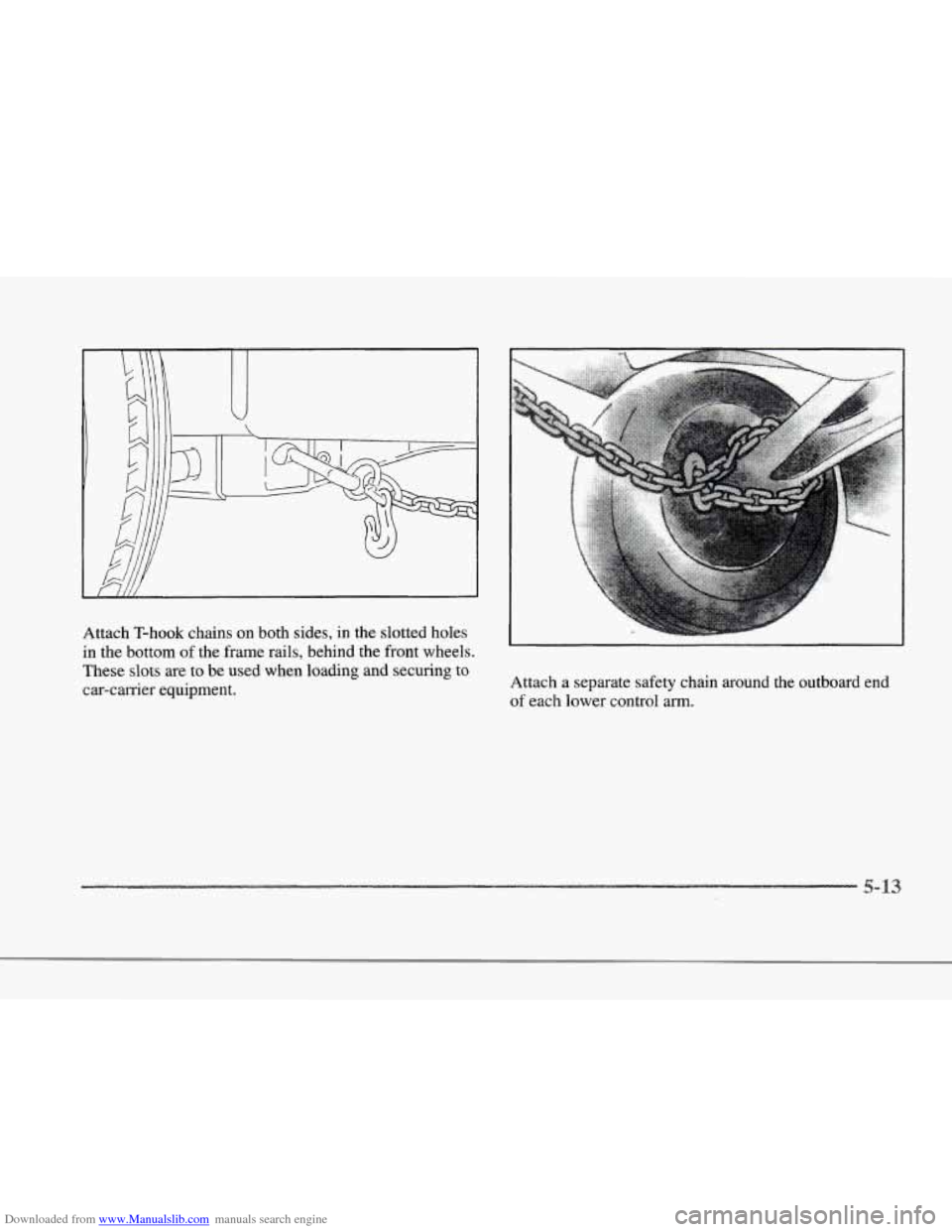

Attach T-hook chains on both sides, in the slotted holes
in the bottom
of the frame rails, behind the front wheels.
These slots are to be used when loading and securing to
car-calrier equipment. Attach
a separate
safety chain around the outboard end
of each lower control am.

Downloaded from www.Manualslib.com manuals search engine in

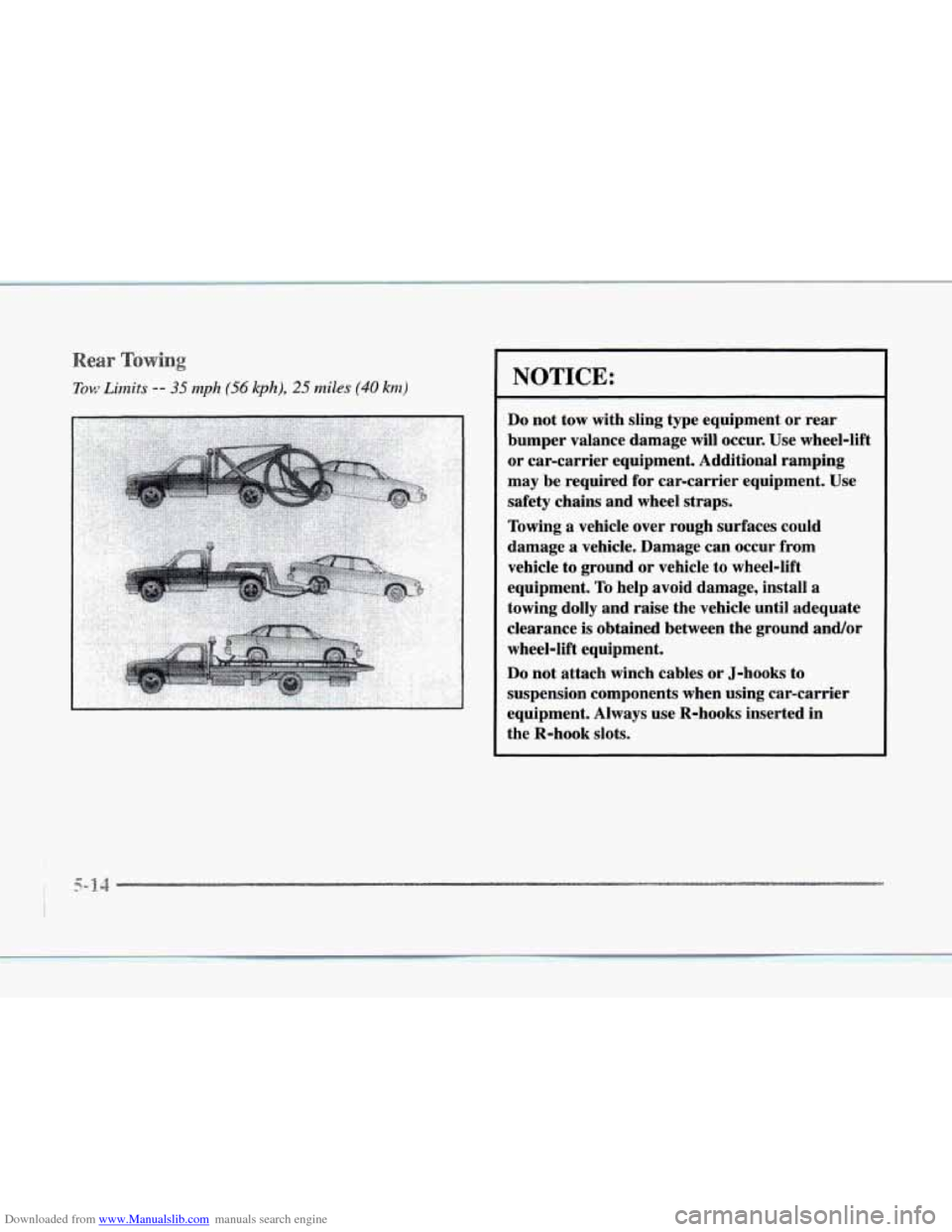

Tow Limits -- 35 mph (56 kph), 25 miles (40 knz) NOTICE:
Do not tow with sling type equipment or rear
bumper valance damage will occur. Use wheel-lift
or car-carrier equipment. Additional ramping
may be required for car-carrier equipment. Use
safety chains and wheel straps.
Towing
a vehicle over rough surfaces could
damage
a vehicle. Damage can occur from
vehicle to ground or vehicle to wheel-lift
equipment. To help avoid damage, install
a
towing dolly and raise the vehicle until adequate
clearance is obtained between the ground and/or
wheel-lift equipment.
Do not attach winch cables or J-hooks to
suspension components when using car-carrier
equipment. Always use
R-hooks inserted in
the R-hook slots.

Downloaded from www.Manualslib.com manuals search engine c
c

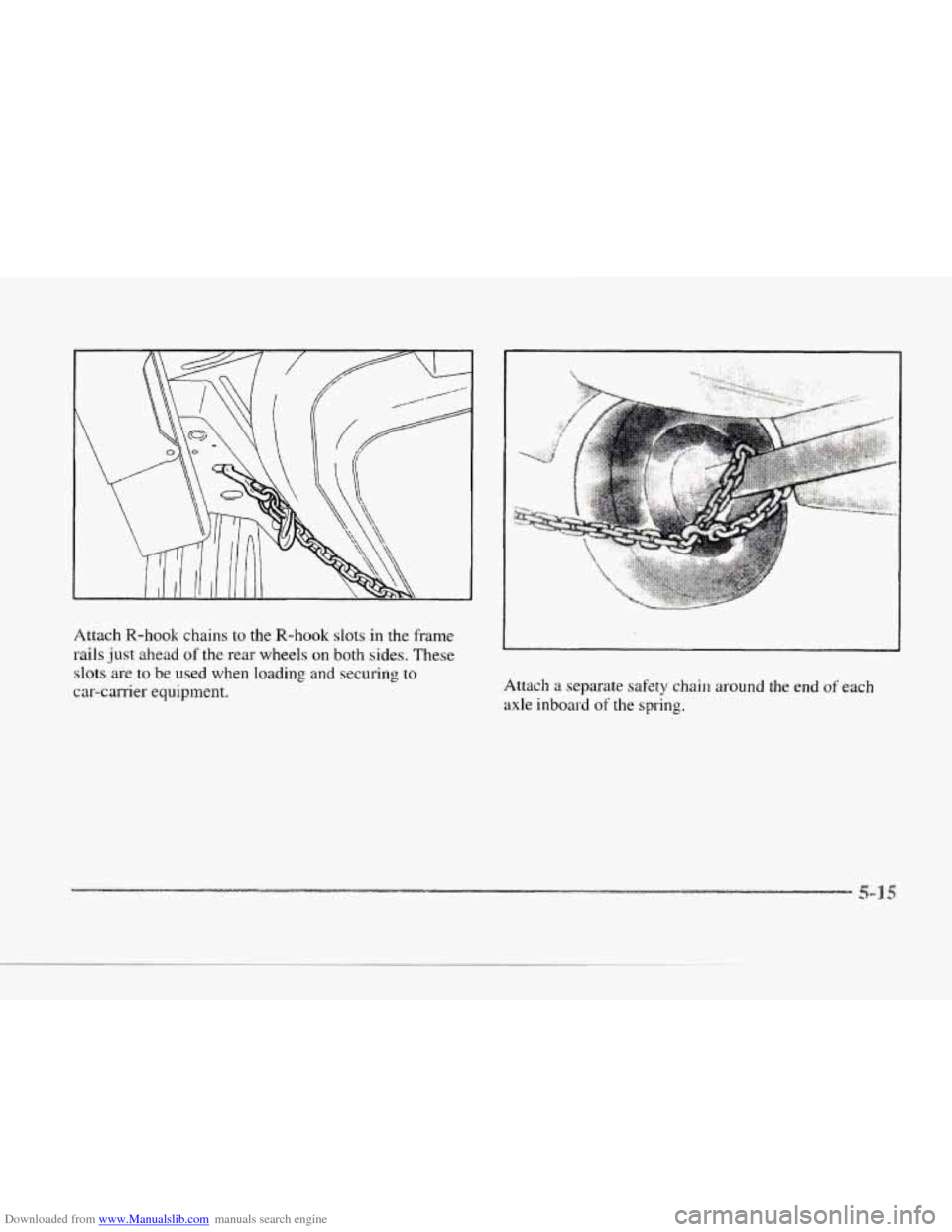

Attach R-hook chains to the R-hook slots in the frame
rails just ahead of the rear wheels on both sides. These
slots are to be used when loading and securing to
car-carrier equipment. Attach a separate safety chain
around the end of each
axle
inboard of the spring.

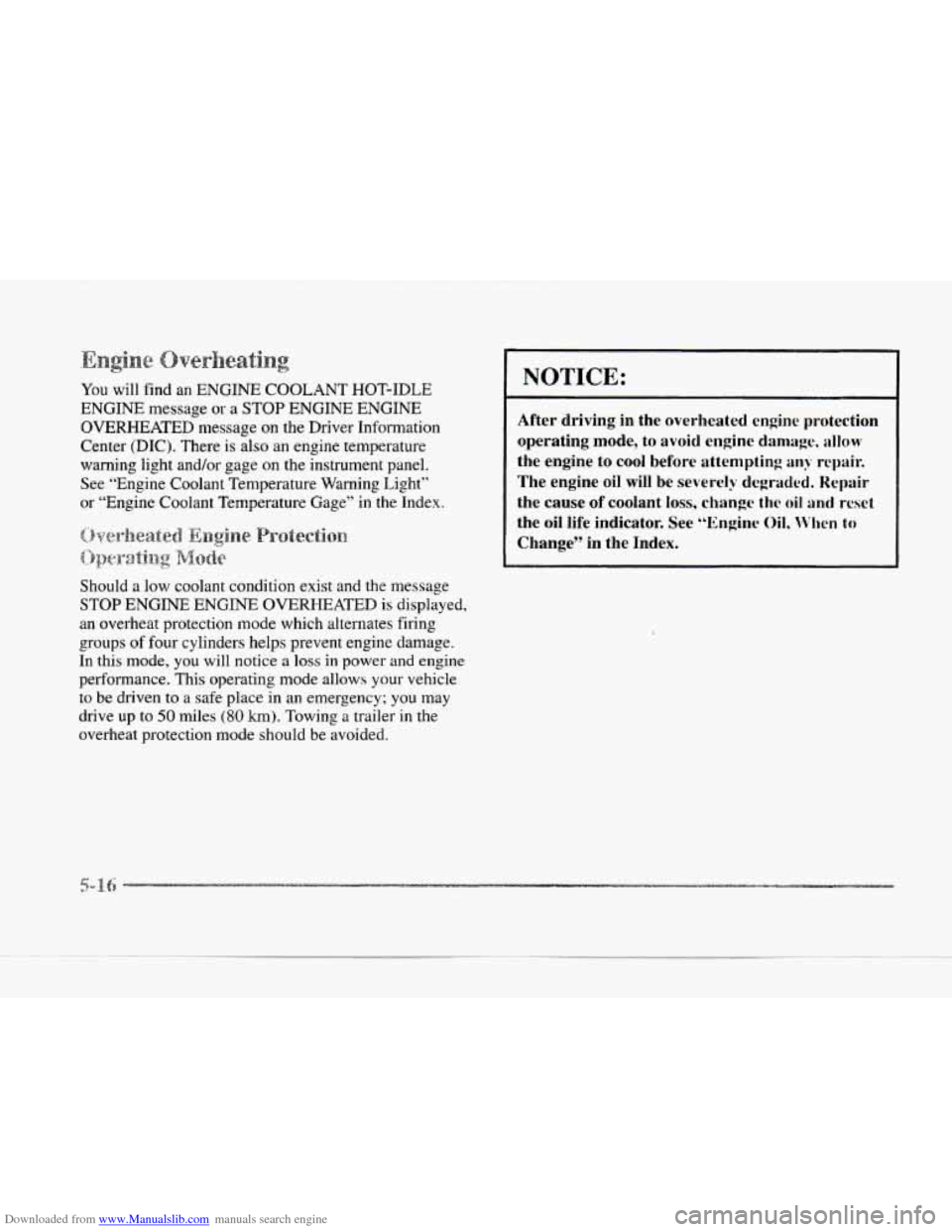

Downloaded from www.Manualslib.com manuals search engine You will find an ENGINE COOLANT HOT-IDLE
ENGINE message or a STOP ENGINE ENGINE
OVERHEATED message
on the Driver Information
Center
(DIC). There is also an engine temperature
warning light and/or gage on the instrument panel.
See “Engine Coolant Temperature Warning Light”
or “Engine Coolant Temperature Gage” in the Index
Should a low coolant condition exist and the message
STOP ENGINE ENGINE OVERI-IEATED is displayed,
an overheat protection mode which alternates firing
groups of four cylinders helps prevent engine damage.
In this mode,
you will notice a loss in power and engine
performance. This operating mode allows your vehicle
to be driven
to a safe place in an emergency; you may
drive up
to 50 miles (80 km). Towing a trailer in the
overheat protection mode should be avoided.
NOTICE:
After driving in the overheated engine protection
operating mode, to avoid engine damage.
allow
the engine to cool before attempting any repair.
The engine
oil will be severely degraded. Kcpair
the cause
of coolant loss, change the oil and reset
the
oil life indicator. See “Engine Oil, lli’hcn to
Change” in the Index.

Downloaded from www.Manualslib.com manuals search engine lr Y
r
r
r
P
r
r
~~ ~

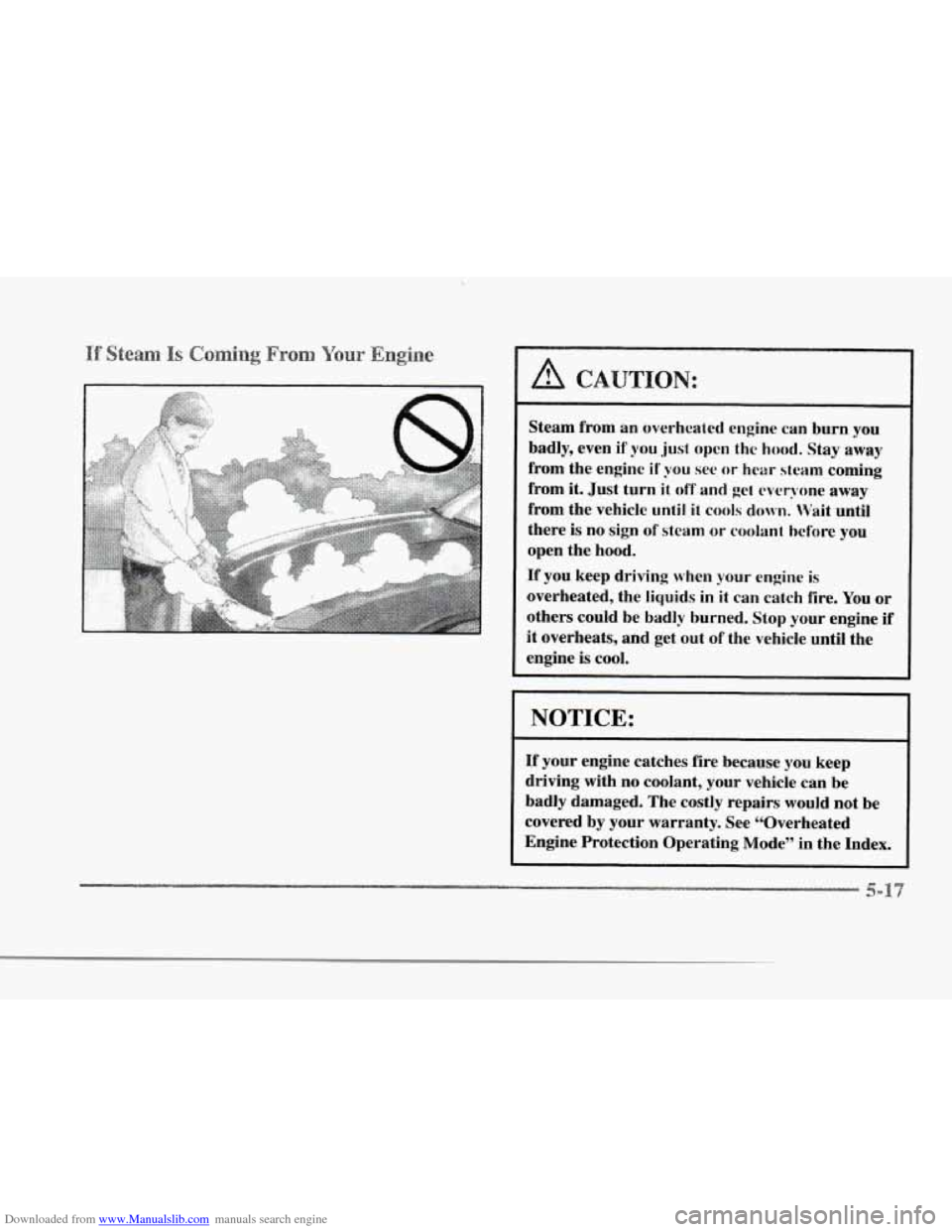

Steam from an overheated engine can burn you
badly,
even if you ,just open the hood. Stay away
from the engine
if you see or hcur steam coming
from
it. Just turn it off and get c’veryone away
from the vehicle until
it cools down. Wait until
there is no sign
of steam or coolant before you
open the hood.
If you keep driving when your engine is
overheated, the liquids in it can catch fire.
You or
others could be
badly burned. Stop your engine if
it overheats, and get out of the vehicle until the
engine
is cool.
I NOTICE:
If your engine catches fire because you keep
driving with no coolant, your vehicle can be
badly damaged. The costly repairs would not be
covered by your warranty. See “Overheated
Engine Protection Operating
Mode” in the Index.

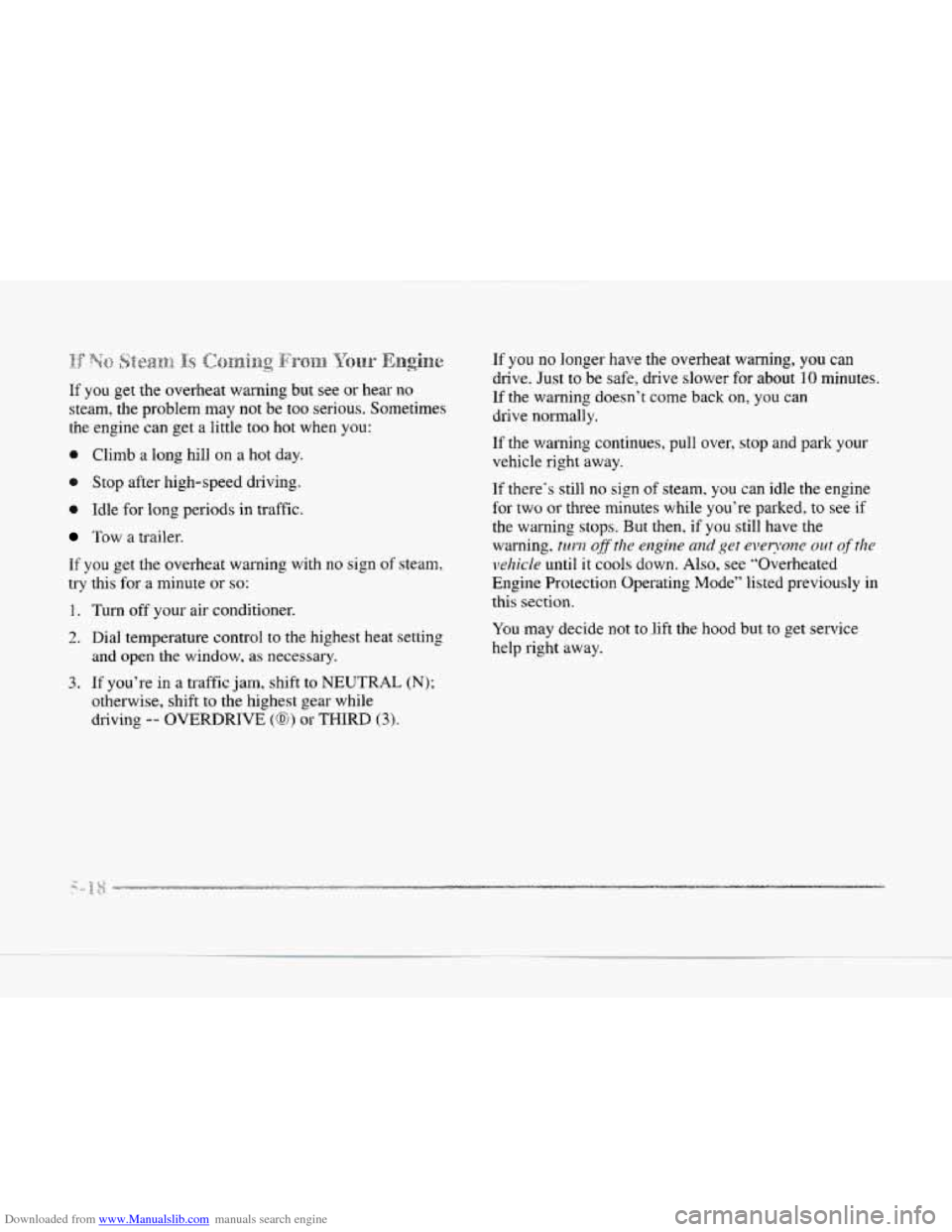

Downloaded from www.Manualslib.com manuals search engine If you get the overheat warning but see or hear no
steam, the problem may not be
too serious. Sometimes
the engine can get a little too hot when you:
0 Climb a long hill on a hot day.
Stop after high-speed driving.
@ Idle for long periods in traffic.
Tow a trailer.
If you get the overheat warning with no sign of steam,
try
this for a minute or so:
1.. Turn off your air conditioner.
2. Dial temperature control to the highest heat setting
3. If you’re in a traffic jam, shift to NEUTRAL (N);
and open the window, as necessary.
otherwise, shift
to the highest gear while
driving
-- OVERDRIVE (@) or THIRD (3).
If you no longer have the overheat warning, you can
drive. Just to be safe, drive slower for about
10 minutes.
If the warning doesn’t come back on, you can
drive normally.
If the warning continues, pull over, stop and park your
vehicle
right away.
If there‘s still no sign of steam, you can idle the engine
€or
two or three minutes while you’re parked, to see if
the warning stops. But then,
if you still have the
warning.
tcrm off the engine urzd get evenorze ow of the
vehide until it cools down. Also, see “Overheated
Engine Protection Operating Mode” listed previously
in
this section.
You may decide not to lift the hood but to get service
help right away.

Downloaded from www.Manualslib.com manuals search engine When you decide it's safe to lift the hood, here's what
you'll
see: I A CAUTION:
... ..
' . ..
.. , . . .: An electric fan under the hood can start up even
.. . -.. : .. .. -. . ...:. when the engine is not running and can injure
. ..... . . .. . you. Keep hands, clothing and
tools away from
.. i . .. . . .. . . . .. . .
.. .. .. .. . ,.. :. .
..
any underhood electric fan.
I I
If the coolant inside the coolant surge tank is boiling.
don't do anything else
until it cools down.
A. Coolant Surge Tank with Pressure Cap
B. Electric Engine Fans
