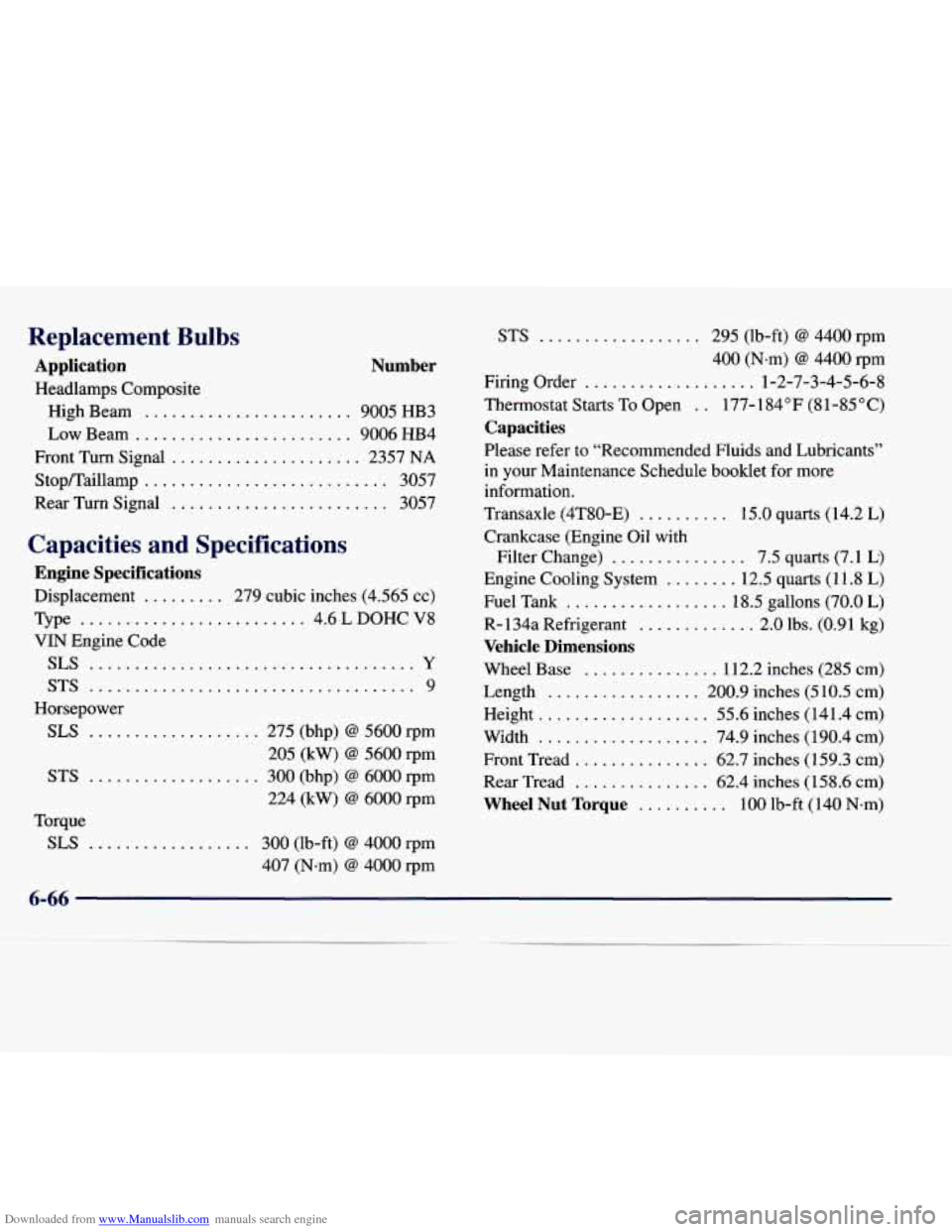

Page 341 of 378
Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Application Number
Headlamps Composite High Beam
....................... 9005 HB3
Low Beam ........................ 9006 HB4
Front Turn Signal ..................... 2357 NA
Stop/Taillamp ........................... 3057
Rear Turn Signal
........................ 3057
Capacities and Specifications
Engine Specifications
Displacement ......... 279 cubic inches (4.565 cc)
Type
......................... 4.6 L DOHC V8
VIN Engine Code
SLS .................................... Y
STS .................................... 9
Horsepower
SLS ................... 275 (bhp) @ 5600 rpm
STS
................... 300 (bhp) @ 6000 rpm
205 (kW)
@ 5600 rpm
224 (kW)
@ 6000 rpm
Torque
SLS .................. 300 (lb-ft) @ 4000 rpm
407 (N-m)
@ 4000 rpm STS
.................. 295 (lb-ft) 63 4400 rpm
Firing Order
................... 1-2-7-3-4-5-6-8
400
(N-m)
@ 4400 rpm
Thermostat Starts To Open
, , 177- 184°F (8 1-85 “C)
Capacities
Please refer to “Recommended Fluids and Lubricants”
in your Maintenance Schedule booklet for more
information.
Transaxle
(4T80-E) .......... 15.0 quarts (14.2 L)
Crankcase (Engine Oil with Filter Change)
............... 7.5 quarts (7.1 L)
Engine Cooling System ........ 12.5 quarts (1 1.8 L)
R- 134a Refrigerant ............. 2.0 lbs. (0.9 1 kg)
Vehicle Dimensions
Wheel Base ............... 112.2 inches (285 cm)
Length
................. 200.9 inches (510.5 cm)
Height
................... 55.6 inches (141.4 cm)
Width
................... 74.9 inches (190.4 cm)
Front Tread
............... 62.7 inches (1 59.3 cm)
Rear Tread
............... 62.4 inches (158.6 cm)
Wheel Nut Torque .......... 100 lb-ft (140 N-m)
Fuel Tank
.................. 18.5 gallons (70.0 L)
6-66

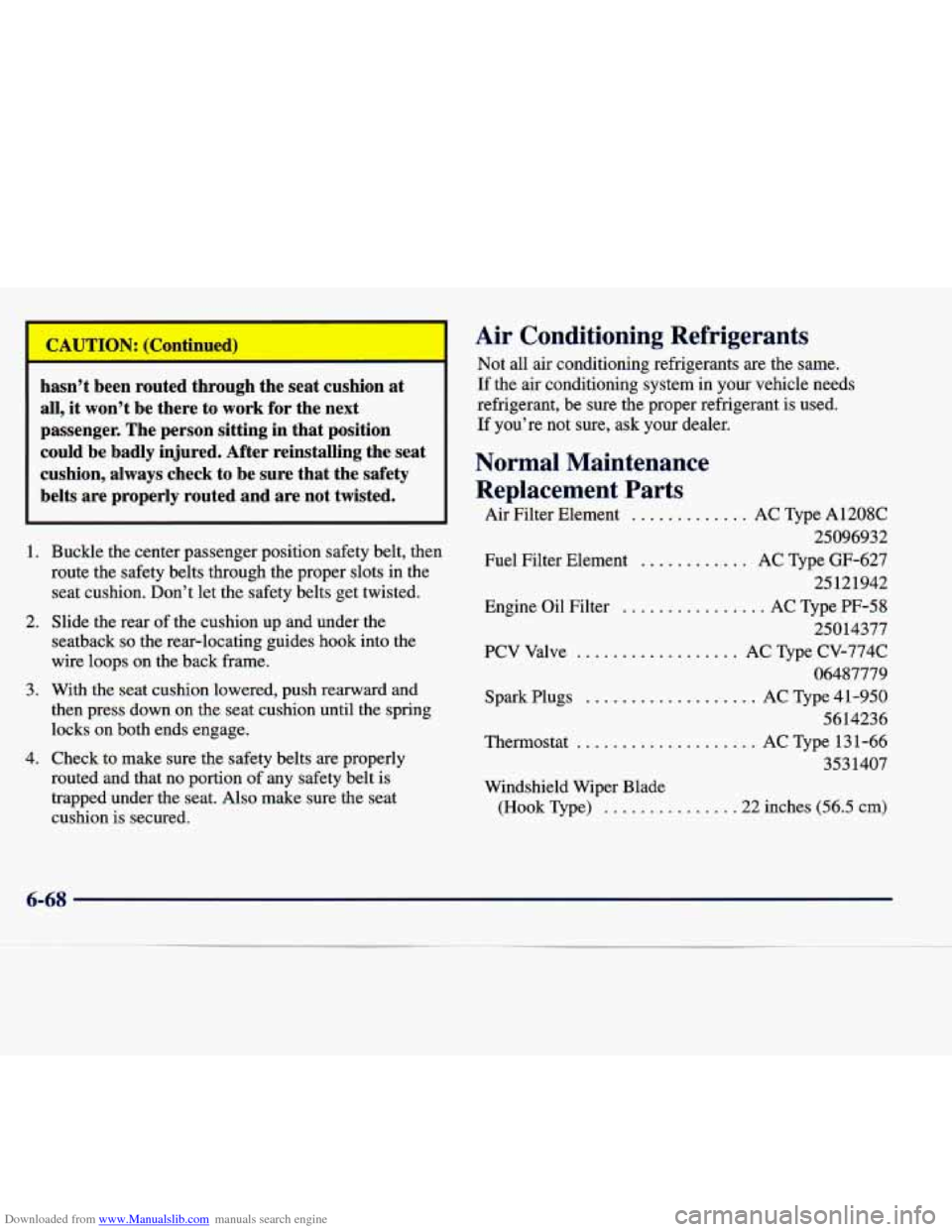

Page 343 of 378
Downloaded from www.Manualslib.com manuals search engine Air Conditioning Refrigerants
hasn’t been routed through the seat cushion at all, it won’t be there to work for the next
passenger. The person sitting in that position
could be badly injured. After reinstalling the seat
cushion, always check to be sure that the
safety
belts are properly routed and are not twisted.
1.
2.
3.
4. Buckle the center passenger position safety belt, then
route the safety belts through the proper slots in the
seat cushion. Don’t let the safety belts get twisted.
Slide the rear of the cushion up and under the
seatback
so the rear-locating guides hook into the
wire loops on the back frame.
With the seat cushion lowered, push rearward and
then press down on the seat cushion until the spring
locks on both ends engage.
Check to make sure the safety belts are properly
routed and that no portion of any safety belt is trapped under the seat. Also make sure the seat
cushion is secured. Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you’re not
sure, ask your dealer.
Normal Maintenance
Replacement Parts
Air Filter Element ............. AC Type A1208C
25096932
Fuel Filter Element
............ AC Type GF-627
25121942
Engine Oil Filter
................ AC Type PF-58 25014377
PCV Valve
. . ............ AC Type CV-774C
06487779
Spark Plugs
................. AC Type 41-950
5614236
Thermostat
.................... AC Type 13 1-66
3531407
Windshield Wiper Blade (Hook Type)
.............. .22 inches (56.5 cm)
6-68

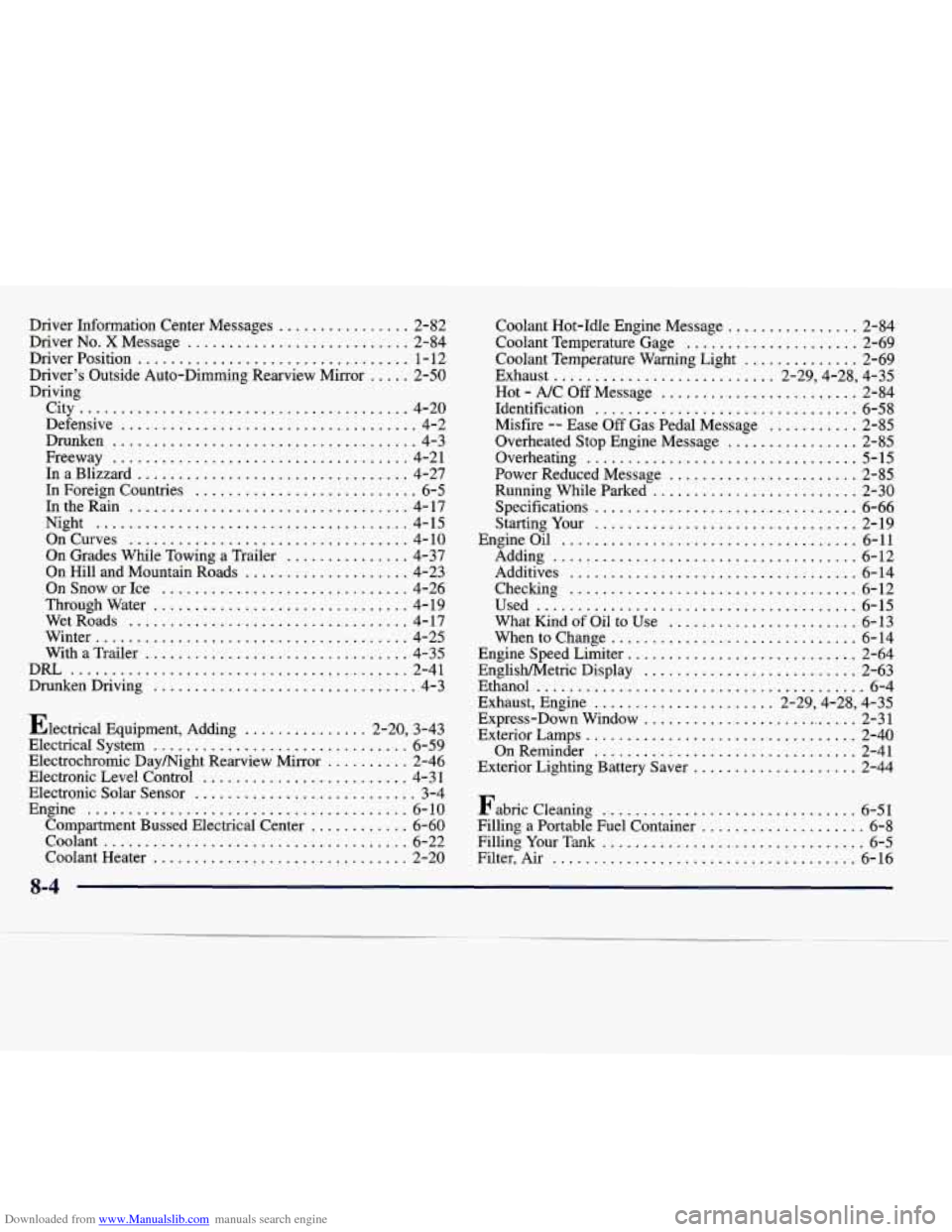

Page 365 of 378
Downloaded from www.Manualslib.com manuals search engine Driver Information Center Messages ................ 2-82
Driver
No . X Message ........................... 2-84
Driver Position
................................. 1-12
Driver’s Outside Auto-Dimming Rearview Mirror
..... 2-50
Driving City
........................................ 4-20
Defensive
.................................... 4-2
Drunken
..................................... 4-3
Freeway
.................................... 4-2 1
InaBlizzard ................................. 4-27
In Foreign Countries
........................... 6-5
In the Rain
.................................. 4-17
Night
...................................... 4-15
OnCurves
.................................. 4-1 0
On Grades While Towing a Trailer ............... 4-37
On
Hill and Mountain Roads .................... 4-23
On Snow or Ice
.............................. 4-26
Through Water
............................... 4- 19
WetRoads .................................. 4-17
Winter
...................................... 4-25
With a Trailer
................................ 4-35
DRL
......................................... 2-41
DrunkenDriving
................................ 4-3
Electrical Equipment. Adding
............... 2-20. 3-43
Electrical System
............................... 6-59
Electrochromic Daymight Rearview Mirror
.......... 2-46
Electronic Level Control ......................... 4-3 1
Electronic Solar Sensor
........................... 3-4
Engine
....................................... 6- 10
Compartment Bussed Electrical Center
............ 6-60
Coolant
..................................... 6-22
Coolant Heater
............................... 2-20 Coolant Hot-Idle Engine Message
................ 2-84
Coolant Temperature Gage
..................... 2-69
Coolant Temperature Warning Light
.............. 2-69
Exhaust
........................... 2-29’4-28’4-35
Hot
- A/C Off Message ........................ 2-84
Identification
................................ 6-58
Misfire .. Ease Off Gas Pedal Message ........... 2-85
Overheated Stop Engine Message
................ 2-85
Overheating
................................. 5-15
Power Reduced Message
....................... 2-85
Running While Parked
......................... 2-30
Specifications
................................ 6-66
StartingYour
................................ 2-19
Engine Oil
.................................... 6-11
Adding
..................................... 6-12
Additives
................................... 6-14
Checking
................................... 6-12
Used
....................................... 6-15
What Kind
of Oil to Use ....................... 6-13
Whentochange
.............................. 6-14
Engine Speed Limiter
............................ 2-64
EnglisWMetric Display
.......................... 2-63
Ethanol
........................................ 6-4
Exhaust. Engine
...................... 2-29,4-28, 4-35
Express-Down Window
........................... 2-31
Exterior Lamps
................................. 2-40
Exterior Lighting Battery Saver
.................... 2-44
OnReminder
................................ 2-41
Fabric Cleaning
............................... 6-51
Filling a Portable Fuel Container
.................... 6-8
Filter. Air
..................................... 6-16
FillingYourTank
................................ 6-5
8-4
