trunk CADILLAC SEVILLE 2002 5.G Owners Manual

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-5 Keys
2
-7 Door Locks
2
-10 Remote Keyless Entry System
2
-14 Trunk
2
-17 Theft
2
-18 Theft-Deterrent System
2
-20 PASS-Key
III
2
-22 New Vehicle ªBreak-Inº
2
-22 Ignition Positions
2
-24 Starting Your Engine
2
-25 Engine Coolant Heater (If Equipped)
2
-27 Automatic Transaxle Operation
2
-31 Parking Brake
2
-33 Shifting Into PARK (P)
2
-35 Shifting Out of PARK (P)
2
-35 Parking Over Things That Burn
2
-36 Engine Exhaust2
-36 Running Your Engine While You're Parked
2
-37 Tilt Wheel
2
-39 Turn Signal/Multifunction Lever
2
-46 Exterior Lamps
2
-51 Interior Lamps
2
-53 Mirrors
2
-58 Storage Compartments
2
-59 Sun Visors
2
-66 Sunroof (Option)
2
-67 HomeLink
Transmitter (If Equipped)
2
-70 The Instrument Panel -- Your
Information System
2
-75 Warning Lights, Gages and Indicators
2
-88 Driver Information Center (DIC)
2
-99 Vehicle Programming and
Personalization Features
2
-113 Navigation (Option)
2
-114 Ultrasonic Rear Parking Assist (URPA)

2-6
Master Key Valet Key
There is a master key that works all of the lock cylinders
(driver's door, trunk, ignition and glove box).
There is also a VALET key which only operates the
driver's door and the ignition.
Your vehicle has the PASS
-Key
III vehicle theft
system. Both the master and VALET key have a
transponder in the key head that matches a decoder in
the vehicle's instrument panel. If a replacement key or
any additional key is needed, you must purchase this key
from your dealer. The key will have PK3 stamped on it.
Keep the bar code tag that came with the original keys.
Give this tag to your dealer if you need a new key made.Any new PASS
-Key III key must be programmed
before it will start your vehicle. See ªPASS
-Key IIIº in
the Index for more information on programming your
new key.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. You can have a lot of
trouble getting into your vehicle if you ever lock
your key inside and you may have to damage
your vehicle to get in. Be sure you have an
extra key.
In an emergency, contact Cadillac Roadside Assistance.
See ªRoadside Assistanceº in the Index.
If your vehicle is equipped with the OnStar system with
an active subscription and you lock your keys inside
the vehicle, OnStar may be able to send a command to
unlock your vehicle. See ªOnStarº in the Index for
more information.

2-10 Anti-Lockout Feature
Leaving the key in the ignition with any door open will
disable the power door lock switches as well as the lock
button on the remote keyless entry transmitter. If you
close the doors, you can lock them using the remote
keyless entry transmitter. It is always recommended that
you remove the ignition key when locking your vehicle.
The anti
-lockout feature can be overridden by holding
the power door lock switch for three seconds or longer.
Leaving Your Vehicle
If you are leaving the vehicle, open the door, set the
locks from the inside, get out and close the door.
Remote Keyless Entry System
If your vehicle has this feature, you can lock and unlock
your doors or unlock your trunk from about 3 feet (1 m)
up to 30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
Your keyless entry system Remote Keyless Entry (RKE)
system is intended to be used as an added vehicle
entry device. It is not intended to replace a door key.
It operates on a radio frequency subject to Federal
Communications Commission (FCC) Rules and with
Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.

2-12
Press this button again within one to five seconds
to unlock the other doors. It will also disarm the
theft
-deterrent system and turn on the interior lamps
at night.
You can program your vehicle so the parking lamps
will not flash. For more information, see ªVehicle
Programming and Personalization Featuresº in
the Index.
(Fuel Door): Press this button to open the fuel door.
The valet lockout switch must be in OFF for this feature
to work. See ªValet Lockout Switchº in the Index for
more information.
(Trunk): Press this button to open the trunk.
The valet lockout switch must be in OFF for this feature
to work. See ªValet Lockout Switchº in the Index for
more information.
The remote keyless entry transmitter can be used to
recall the memory settings for up to two drivers.
For more information, see ªVehicle Programming and
Personalization Featuresº and ªMemory Seat, Mirrors
and Steering Wheelº in the Index.
Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring
any remaining transmitters with you when you go to
your dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock
your vehicle. Each vehicle can have a maximum of
four transmitters matched to it.
Vehicles are delivered with two transmitters.
See your dealer for information on how to obtain
additional transmitters.

2-14

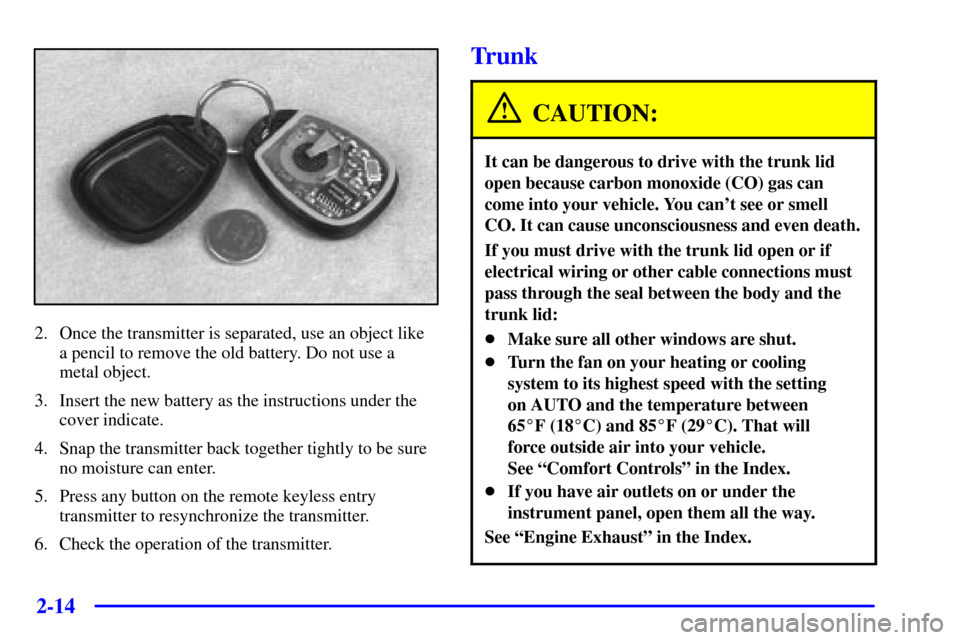

2. Once the transmitter is separated, use an object like
a pencil to remove the old battery. Do not use a
metal object.
3. Insert the new battery as the instructions under the
cover indicate.
4. Snap the transmitter back together tightly to be sure
no moisture can enter.
5. Press any button on the remote keyless entry
transmitter to resynchronize the transmitter.
6. Check the operation of the transmitter.
Trunk
CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on AUTO and the temperature between
65F (18C) and 85F (29C). That will
force outside air into your vehicle.
See ªComfort Controlsº in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.

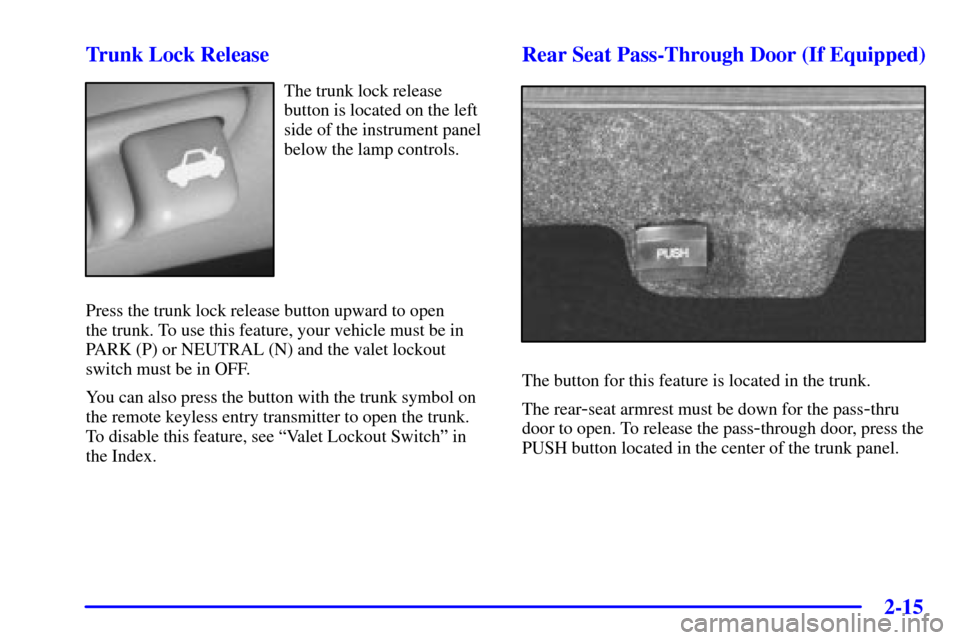

2-15 Trunk Lock Release
The trunk lock release
button is located on the left
side of the instrument panel
below the lamp controls.
Press the trunk lock release button upward to open
the trunk. To use this feature, your vehicle must be in
PARK (P) or NEUTRAL (N) and the valet lockout
switch must be in OFF.
You can also press the button with the trunk symbol on
the remote keyless entry transmitter to open the trunk.
To disable this feature, see ªValet Lockout Switchº in
the Index.
Rear Seat Pass-Through Door (If Equipped)
The button for this feature is located in the trunk.
The rear
-seat armrest must be down for the pass-thru
door to open. To release the pass
-through door, press the
PUSH button located in the center of the trunk panel.

2-16 Trunk Release Handle
NOTICE:
The trunk release handle was not designed to be
used to tie down the trunk lid or as an anchor
point when securing items in the trunk. Improper
use of the trunk release handle could damage it.
There is a glow-in-the-dark trunk release handle
located inside the trunk on the latch. This handle will
glow following exposure to light. Pull the release handle
upward to open the trunk from the inside.

2-17
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's
door, you'll hear a chime reminding you to remove
your key from the ignition and take it with you.
Always do this. Your ignition and transaxle will be
locked. And remember to lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
Even if you park in a lot where someone will be
watching your vehicle, it's still best to lock it up and
take your keys. But what if you have to leave your
ignition key?

If possible, park in a busy, well
-lit area.

Put your valuables in a storage area, like your
trunk or glove box.

Be sure to close and lock the storage area.

Close all windows.

Move the valet lockout switch to ON.

Lock the glove box.

Lock all doors except the driver's.

Give the valet key to the valet. Then take the
master key with you.

2-18
Theft-Deterrent System
The SECURITY light is
located on the instrument
panel cluster.
If the ignition is off and any door is open, the SECURITY
light will flash, reminding you to arm the system.
To arm the system, do the following:
1. Open the door.
2. Lock the door using the power door lock switch with
the door open or the remote keyless entry transmitter.
The SECURITY light should come on and stay on.
3. Close all the doors. The SECURITY light should
go off within approximately 30 seconds.
If a door or a trunk is opened without a key or a remote
keyless entry transmitter, the horn will sound and the
lamps will flash for about 30 seconds.Remember, the theft
-deterrent system won't arm if you
lock the doors with a key or use the manual door lock.
It activates only if you use a power door lock with the
door open or the remote keyless entry transmitter.
To avoid activating the alarm by accident do
the following:

The vehicle should be locked with the door key or
the manual door lock after the doors are closed if
you don't want to arm the theft
-deterrent system.

Always unlock a door with a key or use the remote
keyless entry transmitter system. Pressing the unlock
button on the remote keyless entry transmitter
disables the theft
-deterrent system. Unlocking a
door any other way will activate the alarm when a
door or the trunk is opened.
If you activate the alarm by accident, unlock the driver's
door with your key. You can also turn off the alarm
by using the unlock button on the remote keyless
entry transmitter system, or by starting the car with
a valid key.
Changes or modifications made to this system by
other than an authorized service facility could void
authorization to use the theft system.

2-19 Testing the Alarm
1. From inside the vehicle, roll down the window,
then get out of the vehicle, keeping the door open.
2. From outside of the vehicle, with the door open,
lock the vehicle using the power door lock or the
remote keyless entry system and close the door.
Wait 30 seconds until the SECURITY lamp goes off.
3. Reach in and unlock the door using the manual
lock and open the door. The horn will sound and
the hazard lights will flash.
You can turn off the alarm by unlocking the driver's
door with your key, using the unlock button on the
remote keyless entry transmitter or by starting the
car with a valid key.
If the alarm does not sound when it should, check to
see if the horn works. The horn fuse may be blown.
To replace the fuse, see ªFuses and Circuit Breakersº
in the Index. If the fuse does not need to be replaced,
you may need to have your vehicle serviced.
To reduce the possibility of theft, always arm the
theft
-deterrent system when leaving your vehicle.
Valet Lockout Switch
The valet lockout switch
is located inside the
glove box.
Press the switch to ON to disable the use of the trunk,
fuel door, garage door opener and cellular telephone
(option). The remote keyless entry transmitter cannot
open the trunk or the fuel door if the valet lockout
switch is in ON.
Press this switch to OFF to enable the use of the
trunk, fuel door, garage door opener and cellular
telephone (option).
Locking the glove box with your key will also help
to secure your vehicle.
