CADILLAC SRX 2004 1.G User Guide

But don’t have a seatback reclined if your vehicle is
moving.
{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts can’t do their job
when you’re reclined like this.
The shoulder belt can’t do its job. In a crash,
you could go into it, receiving neck or other
injuries.
The lap belt can’t do its job either. In a crash
the belt could go up over your abdomen. The
belt forces would be there, not at your pelvic
bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
1-5

Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
The front seat head restraints move up and down.
Press the button located at the bottom of the head
restraint and raise or lower the head restraint.
The head restraints tilt forward and rearward, also.The second row outboard head rests work the same as
the front seat head restraints except they do not tilt.
The third row head rests are not adjustable. They are
removable. They must be removed before the third
row seat can be folded. To remove the third row head
rests, press the button located on the top of the
seatback and pull up on the head rest.
A. Correct Position B. Incorrect Position
Store the head rests in the storage compartment behind
the third row. Open the cover and insert the head
rest posts through the slats in the storage area. Position
and snap the head rests in the provided storage tray.
1-6

Rear Seats
Rear Seat Operation
Adjusting the Second Row Seat
The second row seat can be adjusted forward or
rearward. Pull up on the lever under the seat cushion
and slide the seat with your body. Release the lever and
try to move the seat forward and rearward to be sure
it is locked into place.
Entering or Exiting the Third Row Seat
The passenger’s side of the second row seat has an
easy entry feature. This makes it easy to get in and out
of the third row seat, if your vehicle has one.
To operate the seat, pull the release handle located on
the top of the seatback. Fold the seatback down
then pull the release handle on the top of the seatback
to release the seat to tumble forward.
Be sure to return the seat to the passenger position
when nished. Push and pull on the seat to make sure
it is locked in place.
1-7

Stowable Seat
If your vehicle has a third row seat, it is a power
folding seat.
The head rests need to be removed before folding the
third row seat. SeeHead Restraints on page 1-6for
instructions for removing the third row seat head rests.
The seatback will not fold all of the way down if the
head rests are not removed.The buttons that are used to operate the power folding
third row seat are located inside of the liftgate and
behind the second row seat on the passenger’s side of
the vehicle.
Two buttons are located inside the liftgate. One button
is to tilt the seatback forward for added storage
space or when storing a at tire. The other button is the
power folding seat button. The button behind the
second row seat is also a power folding seat button.
Use either of these to fold the third row seat into a
at oor.
Before folding or unfolding the third row seat, all of the
following conditions must be met:
The liftgate or passenger’s side rear door must
be open.
The unlock button on either the remote keyless
entry transmitter or the door must be pressed
three times to enable the rear seat for two minutes,
or the ignition must be in ON or ACCESSORY.
The vehicle must be in PARK (P).
The vehicle cannot have a low battery.
Inside Liftgate
1-8

To fold the seat press one of the power folding seat
buttons. After the seat has folded, the panel on the seat
must be folded forward to create the at oor.
If the seat’s path is blocked it will stop and back away.
Press the button again to return the seat to its
previous position.
Before returning the third row seat to the passenger
seating position, the panel must be folded back
upon itself. Press one of the power folding seat buttons
and the seat will unfold into the seating position.Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she can not
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers’ belts are
fastened properly too.
1-9

{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up.
SeeSafety Belt Reminder
Light on page 3-39.In most states and in all Canadian provinces, the law
says to wear safety belts. Here’s why:They work.
You never know if you’ll be in a crash. If you do have a
crash, you don’t know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person wouldn’t survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up
does matter... a lot!
1-10

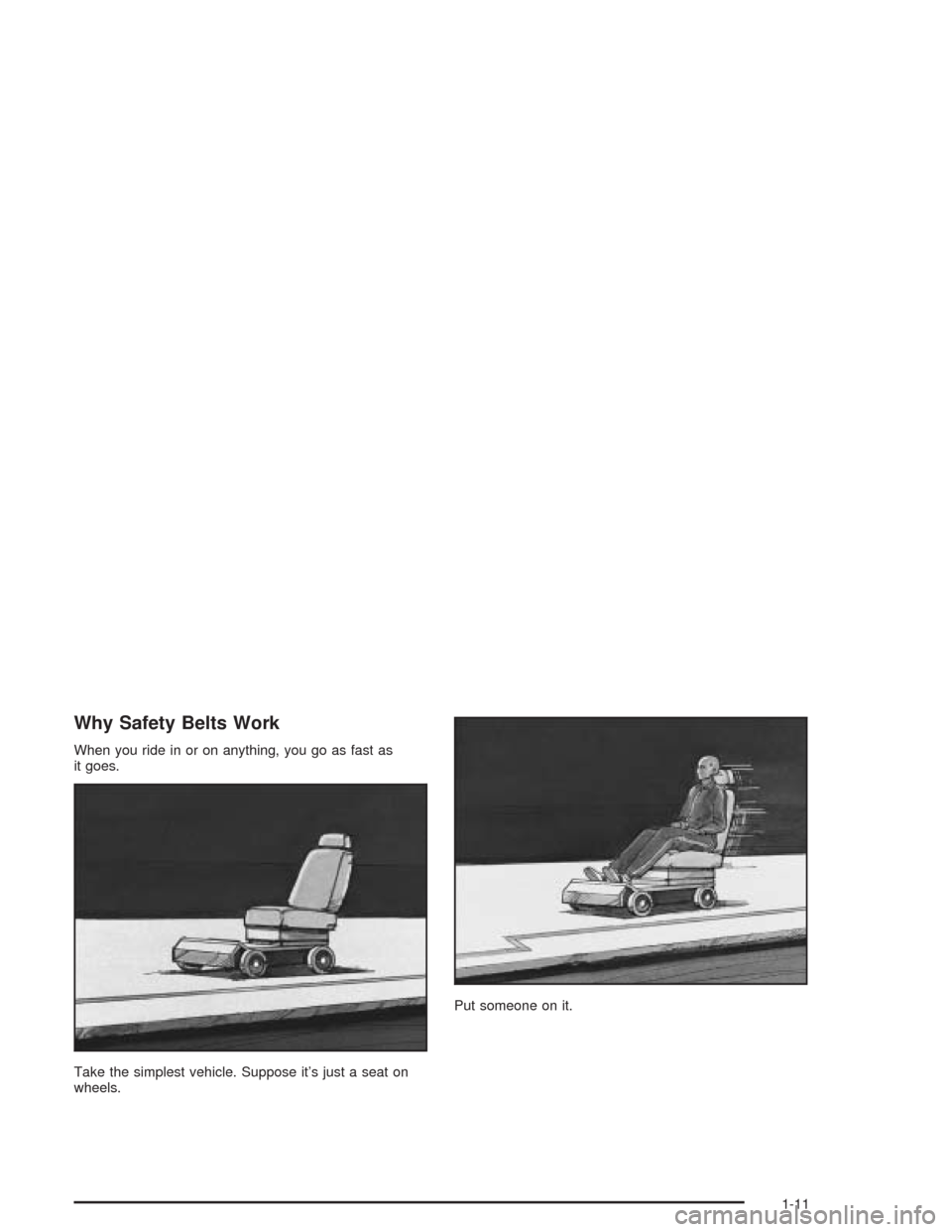

Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it’s just a seat on
wheels.Put someone on it.
1-11

Get it up to speed. Then stop the vehicle. The rider
doesn’t stop.The person keeps going until stopped by something.
In a real vehicle, it could be the windshield...
1-12

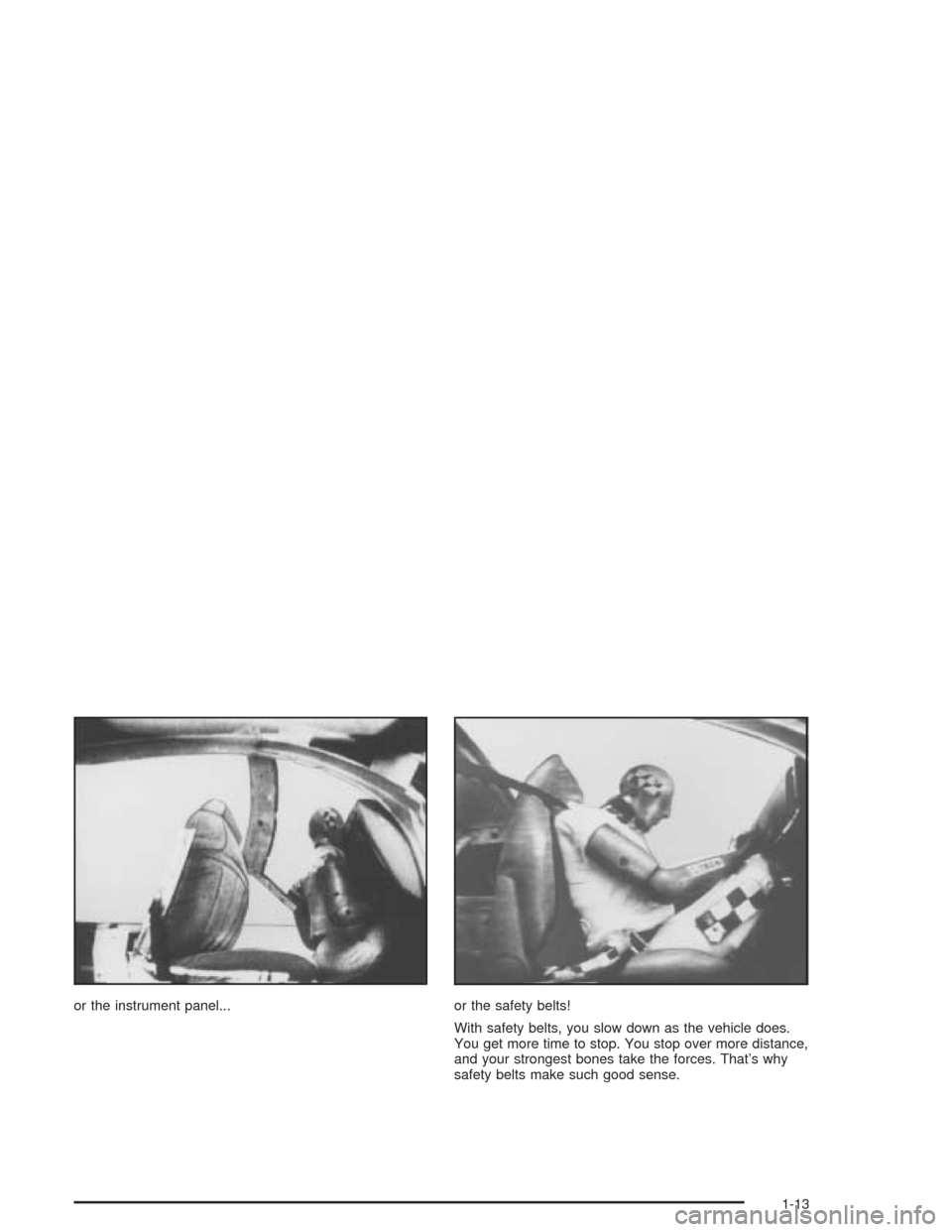

or the instrument panel... or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That’s why
safety belts make such good sense.
1-13

Questions and Answers About
Safety Belts
Q:Won’t I be trapped in the vehicle after an
accident if I’m wearing a safety belt?
A:Youcouldbe – whether you’re wearing a safety
belt or not. But you can unbuckle a safety belt,
even if you’re upside down. And your chance
of being conscious during and after an accident, so
youcanunbuckle and get out, ismuchgreater if
you are belted.
Q:If my vehicle has air bags, why should I have to
wear safety belts?
A:Air bags are in many vehicles today and will be in
most of them in the future. But they are
supplemental systems only; so they workwith
safety belts – not instead of them. Every air bag
system ever offered for sale has required the use of
safety belts. Even if you’re in a vehicle that has
air bags, you still have to buckle up to get the most
protection. That’s true not only in frontal collisions,
but especially in side and other collisions.
Q:If I’m a good driver, and I never drive far from
home, why should I wear safety belts?
A:You may be an excellent driver, but if you’re in an
accident – even one that isn’t your fault – you and
your passengers can be hurt. Being a good
driver doesn’t protect you from things beyond your
control, such as bad drivers.
Most accidents occur within 25 miles (40 km) of
home. And the greatest number of serious injuries
and deaths occur at speeds of less than 40 mph
(65 km/h).
Safety belts are for everyone.
1-14
