6. Locate in the garage, the garage door opener
receiver (motor-head unit). Locate the “Learn”
or “Smart” button. This can usually be found where
the hanging antenna wire is attached to the
motor-head unit.
7. Firmly press and release the “Learn” or “Smart”
button. The name and color of the button may
vary by manufacturer.
You will have 30 seconds to start Step 8.
8. Return to the vehicle. Firmly press and hold the
programmed HomeLink
®button for two seconds,
then release. Repeat the press/hold/release
sequence a second time, and depending on the
brand of the garage door opener (or other rolling
code device), repeat this sequence a third time
to complete the programming.
HomeLink
®should now activate your rolling-code
equipped device.
To program the remaining two HomeLink
®buttons,
begin with Step 2 of “Programming HomeLink®.” You do
not want to repeat Step 1, as this will erase all
previous programming.
Gate Operator and Canadian
Programming
Canadian radio-frequency laws require transmitter
signals to “time out” or quit after several seconds of
transmission. This may not be long enough for
HomeLink
®to pick up the signal during programming.
Similarly, some U.S. gate operators are manufactured to
“time out” in the same manner.
If you live in Canada, or you are having difficulty
programming a gate operator by using the
“Programming HomeLink
®” procedures (regardless of
where you live), replace Step 3 under “Programming
HomeLink
®” with the following:
Continue to press and hold the HomeLink
®button while
you press and release every two seconds (cycle)
your hand-held transmitter until the frequency signal has
been successfully accepted by HomeLink
®. The
indicator light will ash slowly at rst and then rapidly.
Proceed with Step 4 under “Programming HomeLink
®”
to complete.
2-45

Using HomeLink®
Press and hold the appropriate HomeLink®button for at
least half of a second. The indicator light will come
on while the signal is being transmitted.
Erasing HomeLink®Buttons
To erase programming from the three buttons do the
following:
1. Press and hold down the two outside buttons until
the indicator light begins to ash, after 20 seconds.
Do not hold the two outside buttons for longer
than 30 seconds.
2. Release both buttons.
HomeLink
®is now in the train (learning) mode and can
be programmed at any time beginning with Step 2
under “Programming HomeLink
®” shown earlier in this
section.
Individual buttons cannot be erased, but they can be
reprogrammed. See “Reprogramming a Single
HomeLink
®Button” following this section.
Reprogramming a Single HomeLink®
Button
To program a device to HomeLink®using a HomeLink®
button previously trained, follow these steps:
1. Press and hold the desired HomeLink
®button.
Do not release the button.
2. The indicator light will begin to ash after
20 seconds. While still holding the HomeLink
®
button, proceed with Step 2 under “Programming
HomeLink®” shown earlier in this section.
Resetting Defaults
To reset HomeLink®to default settings do the following:
1. Hold down the two outside buttons for about
20 seconds until the indicator light begins to ash.
2. Continue to hold both buttons until the HomeLink
®
indicator light turns off.
3. Release both buttons.
For questions or comments, contact HomeLink
®at
1-800-355-3515, or on the Internet at
www.homelink.com.
2-46

Storage Areas
Glove Box
To open the glove box, lift up on the lever. Use your
door key to lock or unlock it.
Cupholder(s)
Your vehicle has cupholders located between the front
seats. Slide the cover back to expose them. There
are also cupholders in the armrest of the second row
seat. Press the panel on the front of the armrest
to expose the cupholders. On the outboard sides of the
third row there may also be cupholders.
Cell Phone Storage Area
Your vehicle has a closeable cell phone/sunglasses
storage area inside both of the front doors. Press
the button to open the door.
Front Storage Area
Your vehicle has a closeable storage area inside both of
the front doors. Press the button to open the door.
Center Console Storage Area
Your vehicle has a center console storage area located
between the front seats. It includes storage areas, and
accessory power outlet(s) on the rear of the console.
Map Pocket
There are map pockets located near the bottom of the
front doors.
Assist Handles
Your vehicle has assist handles located above the doors.
2-47

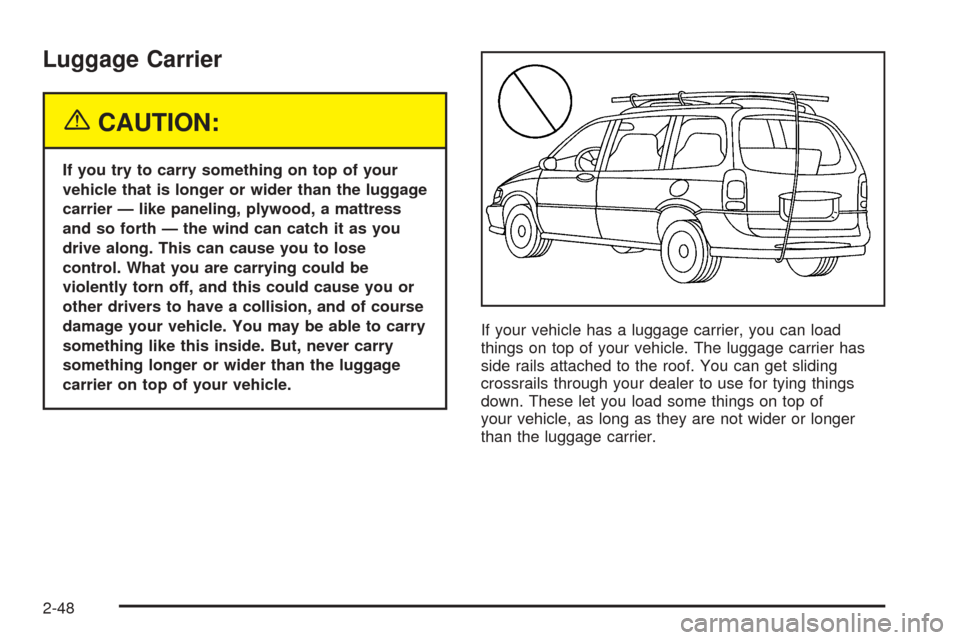

Luggage Carrier
{CAUTION:
If you try to carry something on top of your
vehicle that is longer or wider than the luggage
carrier — like paneling, plywood, a mattress
and so forth — the wind can catch it as you
drive along. This can cause you to lose
control. What you are carrying could be
violently torn off, and this could cause you or
other drivers to have a collision, and of course
damage your vehicle. You may be able to carry
something like this inside. But, never carry
something longer or wider than the luggage
carrier on top of your vehicle.If your vehicle has a luggage carrier, you can load
things on top of your vehicle. The luggage carrier has
side rails attached to the roof. You can get sliding
crossrails through your dealer to use for tying things
down. These let you load some things on top of
your vehicle, as long as they are not wider or longer
than the luggage carrier.
2-48

Convenience Net
If your vehicle has a convenience net, the convenience
net attaches to the oor or back wall of the rear of
the vehicle using six anchor points. The net can be used
like a hammock across the rear of the vehicle or
hooked on the oor. Put small loads, like grocery bags,
behind the net. It can help keep them from falling
over during sharp turns or quick starts and stops.
The net is not for larger, heavier loads. Store them in
the rear of the vehicle as far forward as you can.
Cargo Cover
If your vehicle has a cargo cover, you can use it to
cover items in the rear of the vehicle. Pull the cover from
the passenger’s side to the driver’s side and slide the
ends into the slots to secure it. When it is not in
use, take the ends out of the slots and allow the cover
to roll back up.
Cargo Management System
Your vehicle may have a cargo management system.
It provides extra storage space for the rear of the
vehicle.
The cargo management system has three
compartments. The one closest to the front of the
vehicle opens from behind the second row. The center
compartment has a divider. The compartment closest
to the rear of the vehicle has a removable storage bin.
2-49

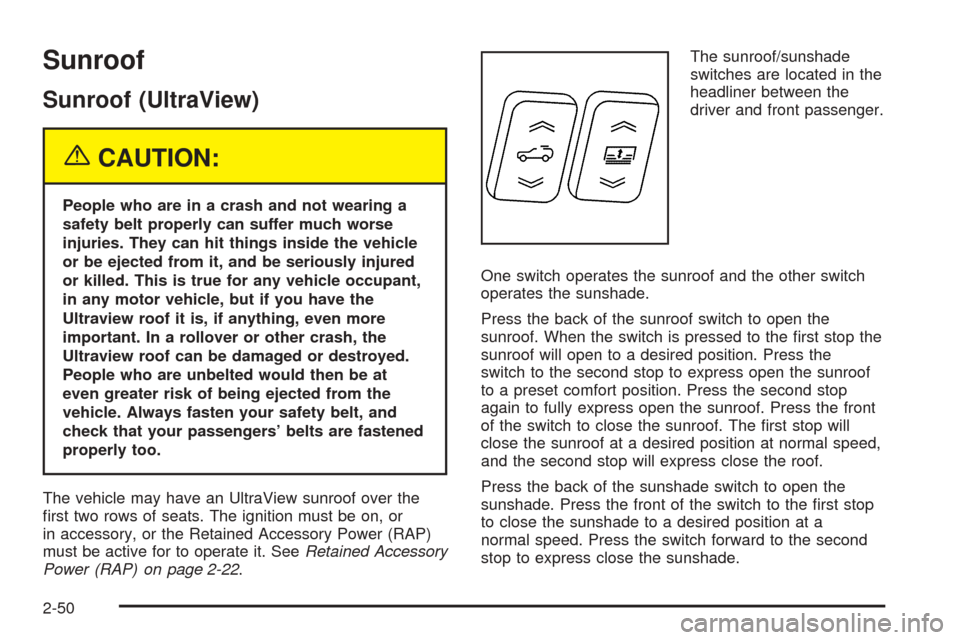

Sunroof
Sunroof (UltraView)
{CAUTION:
People who are in a crash and not wearing a
safety belt properly can suffer much worse
injuries. They can hit things inside the vehicle
or be ejected from it, and be seriously injured
or killed. This is true for any vehicle occupant,
in any motor vehicle, but if you have the
Ultraview roof it is, if anything, even more
important. In a rollover or other crash, the
Ultraview roof can be damaged or destroyed.
People who are unbelted would then be at
even greater risk of being ejected from the
vehicle. Always fasten your safety belt, and
check that your passengers’ belts are fastened
properly too.
The vehicle may have an UltraView sunroof over the
rst two rows of seats. The ignition must be on, or
in accessory, or the Retained Accessory Power (RAP)
must be active for to operate it. SeeRetained Accessory
Power (RAP) on page 2-22.The sunroof/sunshade
switches are located in the
headliner between the
driver and front passenger.
One switch operates the sunroof and the other switch
operates the sunshade.
Press the back of the sunroof switch to open the
sunroof. When the switch is pressed to the rst stop the
sunroof will open to a desired position. Press the
switch to the second stop to express open the sunroof
to a preset comfort position. Press the second stop
again to fully express open the sunroof. Press the front
of the switch to close the sunroof. The rst stop will
close the sunroof at a desired position at normal speed,
and the second stop will express close the roof.
Press the back of the sunshade switch to open the
sunshade. Press the front of the switch to the rst stop
to close the sunshade to a desired position at a
normal speed. Press the switch forward to the second
stop to express close the sunshade.
2-50

Anti-Pinch Feature
If an object is in the path of the sunroof when it is
closing, the anti-pinch feature will detect the object and
stop the sunroof from closing at the point of the
obstruction. The sunroof will then reverse. To close the
sunroof once it has re-opened, remove the obstruction
and press the front of the sunroof switch.
Resynchronization
To resynchronize the sunroof and sunshade, do the
following.
1. With the engine running, press and hold both the
sunroof switch in the open position and the
sunshade switch in the closed position for
six seconds.
2. Release both buttons.
3. When the sunroof reaches the fully closed position,
the sunshade will close.
4. After the sunroof and sunshade have fully closed,
continue to hold the sunroof switch in the closed
position for an additional three or four seconds
to complete the Teach Process.
Sunroof (UltraView Plus)
{CAUTION:
People who are in a crash and not wearing a
safety belt properly can suffer much worse
injuries. They can hit things inside the vehicle
or be ejected from it, and be seriously injured
or killed. This is true for any vehicle occupant,
in any motor vehicle, but if you have the
Ultraview roof it is, if anything, even more
important. In a rollover or other crash, the
Ultraview roof can be damaged or destroyed.
People who are unbelted would then be at
even greater risk of being ejected from the
vehicle. Always fasten your safety belt, and
check that your passengers’ belts are fastened
properly too.
The vehicle may have an UltraView sunroof over the
rst two rows of seats and a smaller sunroof over
the third row seat. Both have sunshades, but the back
sunroof does not open.
2-51

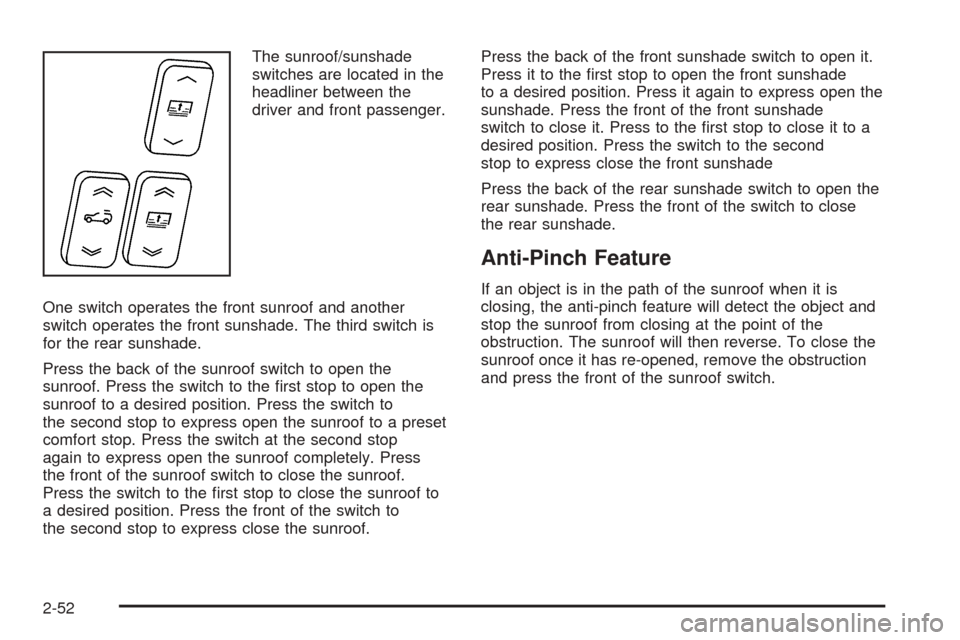

The sunroof/sunshade
switches are located in the
headliner between the
driver and front passenger.
One switch operates the front sunroof and another
switch operates the front sunshade. The third switch is
for the rear sunshade.
Press the back of the sunroof switch to open the
sunroof. Press the switch to the rst stop to open the
sunroof to a desired position. Press the switch to
the second stop to express open the sunroof to a preset
comfort stop. Press the switch at the second stop
again to express open the sunroof completely. Press
the front of the sunroof switch to close the sunroof.
Press the switch to the rst stop to close the sunroof to
a desired position. Press the front of the switch to
the second stop to express close the sunroof.Press the back of the front sunshade switch to open it.
Press it to the rst stop to open the front sunshade
to a desired position. Press it again to express open the
sunshade. Press the front of the front sunshade
switch to close it. Press to the rst stop to close it to a
desired position. Press the switch to the second
stop to express close the front sunshade
Press the back of the rear sunshade switch to open the
rear sunshade. Press the front of the switch to close
the rear sunshade.
Anti-Pinch Feature
If an object is in the path of the sunroof when it is
closing, the anti-pinch feature will detect the object and
stop the sunroof from closing at the point of the
obstruction. The sunroof will then reverse. To close the
sunroof once it has re-opened, remove the obstruction
and press the front of the sunroof switch.
2-52

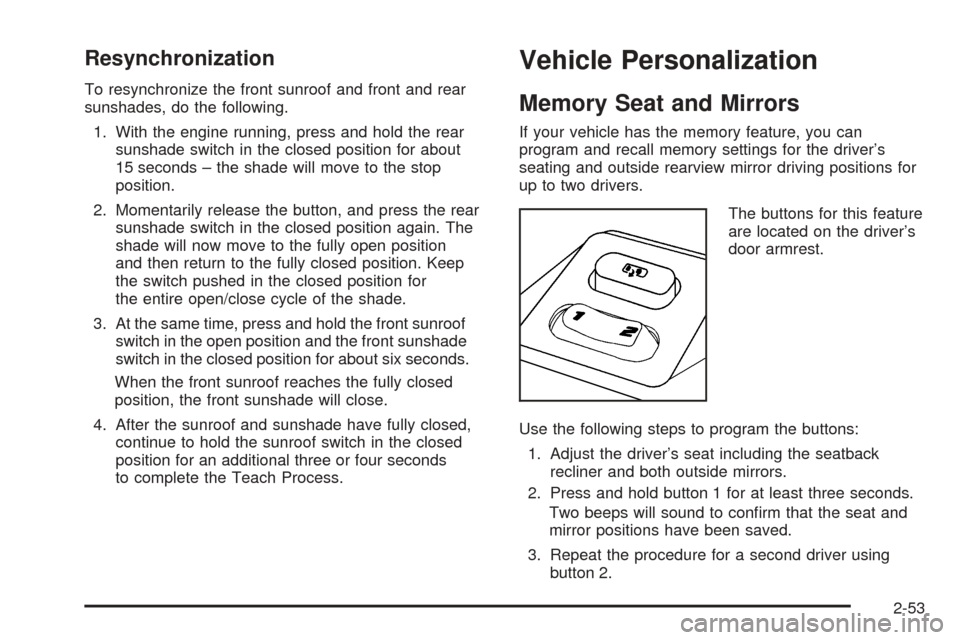

Resynchronization
To resynchronize the front sunroof and front and rear
sunshades, do the following.
1. With the engine running, press and hold the rear
sunshade switch in the closed position for about
15 seconds – the shade will move to the stop
position.
2. Momentarily release the button, and press the rear
sunshade switch in the closed position again. The
shade will now move to the fully open position
and then return to the fully closed position. Keep
the switch pushed in the closed position for
the entire open/close cycle of the shade.
3. At the same time, press and hold the front sunroof
switch in the open position and the front sunshade
switch in the closed position for about six seconds.
When the front sunroof reaches the fully closed
position, the front sunshade will close.
4. After the sunroof and sunshade have fully closed,
continue to hold the sunroof switch in the closed
position for an additional three or four seconds
to complete the Teach Process.
Vehicle Personalization
Memory Seat and Mirrors
If your vehicle has the memory feature, you can
program and recall memory settings for the driver’s
seating and outside rearview mirror driving positions for
up to two drivers.
The buttons for this feature
are located on the driver’s
door armrest.
Use the following steps to program the buttons:
1. Adjust the driver’s seat including the seatback
recliner and both outside mirrors.
2. Press and hold button 1 for at least three seconds.
Two beeps will sound to conrm that the seat and
mirror positions have been saved.
3. Repeat the procedure for a second driver using
button 2.
2-53

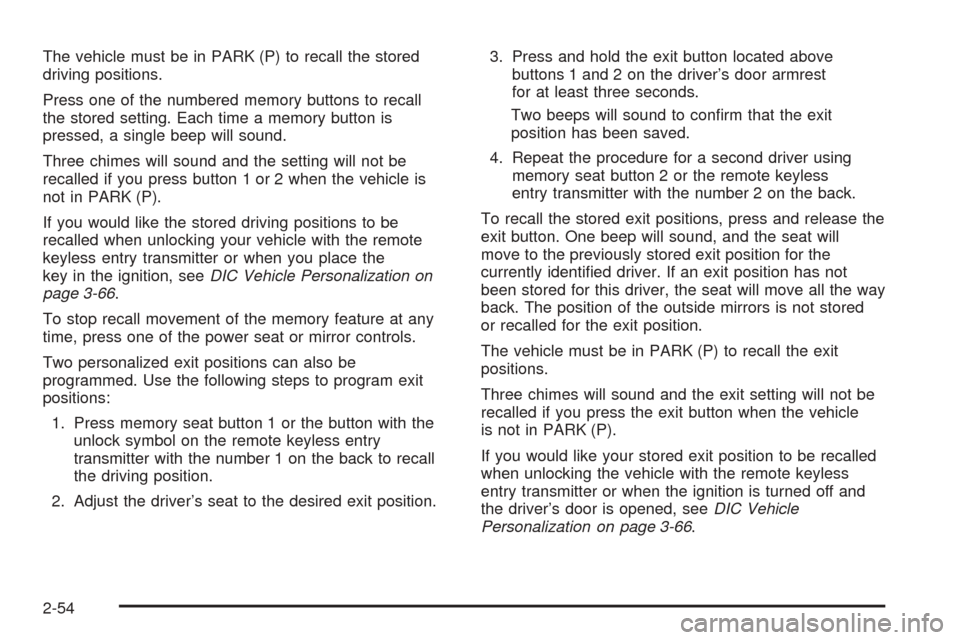

The vehicle must be in PARK (P) to recall the stored
driving positions.
Press one of the numbered memory buttons to recall
the stored setting. Each time a memory button is
pressed, a single beep will sound.
Three chimes will sound and the setting will not be
recalled if you press button 1 or 2 when the vehicle is
not in PARK (P).
If you would like the stored driving positions to be
recalled when unlocking your vehicle with the remote
keyless entry transmitter or when you place the
key in the ignition, seeDIC Vehicle Personalization on
page 3-66.
To stop recall movement of the memory feature at any
time, press one of the power seat or mirror controls.
Two personalized exit positions can also be
programmed. Use the following steps to program exit
positions:
1. Press memory seat button 1 or the button with the
unlock symbol on the remote keyless entry
transmitter with the number 1 on the back to recall
the driving position.
2. Adjust the driver’s seat to the desired exit position.3. Press and hold the exit button located above
buttons 1 and 2 on the driver’s door armrest
for at least three seconds.
Two beeps will sound to conrm that the exit
position has been saved.
4. Repeat the procedure for a second driver using
memory seat button 2 or the remote keyless
entry transmitter with the number 2 on the back.
To recall the stored exit positions, press and release the
exit button. One beep will sound, and the seat will
move to the previously stored exit position for the
currently identied driver. If an exit position has not
been stored for this driver, the seat will move all the way
back. The position of the outside mirrors is not stored
or recalled for the exit position.
The vehicle must be in PARK (P) to recall the exit
positions.
Three chimes will sound and the exit setting will not be
recalled if you press the exit button when the vehicle
is not in PARK (P).
If you would like your stored exit position to be recalled
when unlocking the vehicle with the remote keyless
entry transmitter or when the ignition is turned off and
the driver’s door is opened, seeDIC Vehicle
Personalization on page 3-66.
2-54
