CAUTION: (Continued)
For more information about carbon monoxide, see
Engine Exhaust on page 2-36.
Snow can trap exhaust gases under your vehicle.
This can cause deadly CO (carbon monoxide) gas
to get inside. CO could overcome you and kill you.
You cannot see it or smell it, so you might not
know it is in your vehicle. Clear away snow from
around the base of your vehicle, especially any
that is blocking the exhaust.
Run the engine for short periods only as needed to
keep warm, but be careful.
To save fuel, run the engine for only short periods as
needed to warm the vehicle and then shut the engine off
and close the window most of the way to save heat.
Repeat this until help arrives but only when you
feel really uncomfortable from the cold. Moving
about to keep warm also helps.
If it takes some time for help to arrive, now and then
when you run the engine, push the accelerator
pedal slightly so the engine runs faster than the idle
speed. This keeps the battery charged to restart
the vehicle and to signal for help with the headlamps.
Do this as little as possible to save fuel.
If Your Vehicle is Stuck in Sand,
Mud, Ice, or Snow
Slowly and cautiously spin the wheels to free the
vehicle when stuck in sand, mud, ice, or snow. See
Rocking Your Vehicle to Get It Out on page 4-30.
If the vehicle has a traction system, it can often help to
free a stuck vehicle. Refer to the vehicle’s traction system
in the Index. If stuck too severely for the traction system
to free the vehicle, turn the traction system off and use
the rocking method.
{CAUTION:
If you let your vehicle’s tires spin at high speed,
they can explode, and you or others could be
injured. The vehicle can overheat, causing an
engine compartment re or other damage. Spin the
wheels as little as possible and avoid going above
35 mph (55 km/h) as shown on the speedometer.
For information about using tire chains on the vehicle,
seeTire Chains on page 5-72.
4-29

Service............................................................5-3
Accessories and Modications..........................5-3
California Proposition 65 Warning.....................5-4
California Perchlorate Materials Requirements.....5-4
Doing Your Own Service Work.........................5-4
Adding Equipment to the Outside of
the Vehicle.................................................5-5
Fuel................................................................5-5
Gasoline Octane............................................5-5
Gasoline Specications....................................5-6
California Fuel...............................................5-6
Additives.......................................................5-7
Fuels in Foreign Countries...............................5-7
Filling the Tank..............................................5-8
Filling a Portable Fuel Container.....................5-10
Checking Things Under the Hood....................5-10
Hood Release..............................................5-11
Engine Compartment Overview.......................5-12
Engine Oil...................................................5-16
Engine Oil Life System..................................5-19
Engine Air Cleaner/Filter................................5-20
Automatic Transmission Fluid.........................5-22
Cooling System............................................5-22
Engine Coolant.............................................5-23
Coolant Surge Tank Pressure Cap..................5-29
Engine Overheating.......................................5-29Overheated Engine Protection
Operating Mode.........................................5-31
Power Steering Fluid.....................................5-31
Windshield Washer Fluid................................5-32
Brakes........................................................5-34
Battery........................................................5-37
Jump Starting...............................................5-38
All-Wheel Drive..............................................5-42
Rear Axle.......................................................5-43
Front Axle......................................................5-44
Headlamp Aiming...........................................5-45
Bulb Replacement..........................................5-45
High Intensity Discharge (HID) Lighting............5-46
Halogen Bulbs..............................................5-46
Windshield Wiper Blade Replacement..............5-46
Tires..............................................................5-48
Winter Tires.................................................5-49
Tire Sidewall Labeling...................................5-50
Tire Terminology and Denitions.....................5-53
Ination - Tire Pressure.................................5-56
High-Speed Operation...................................5-58
Tire Pressure Monitor System.........................5-59
Tire Pressure Monitor Operation.....................5-60
Tire Inspection and Rotation...........................5-64
When It Is Time for New Tires.......................5-65
Section 5 Service and Appearance Care
5-1

How to Check Lubricant
A. Drain Plug
B. Filler Plug
To get an accurate reading, the vehicle should be on a
level surface.
If the level is below the bottom of the ller plug hole,
located on the front axle, you may need to add
some lubricant.
What to Use
Refer to the Maintenance Schedule to determine what
kind of lubricant to use. SeeRecommended Fluids
and Lubricants on page 6-13.
Headlamp Aiming
Headlamp aim has been preset at the factory and
should need no further adjustment.
However, if your vehicle is damaged in a crash, the
headlamp aim may be affected. Aim adjustment to the
low-beam headlamps may be necessary if oncoming
drivers ash their high-beam headlamps at you
(for vertical aim).
If the headlamps need to be re-aimed, it is
recommended that you take the vehicle to your
dealer/retailer for service.
Bulb Replacement
It is recommended that all bulbs be replaced by your
dealer/retailer.
5-45

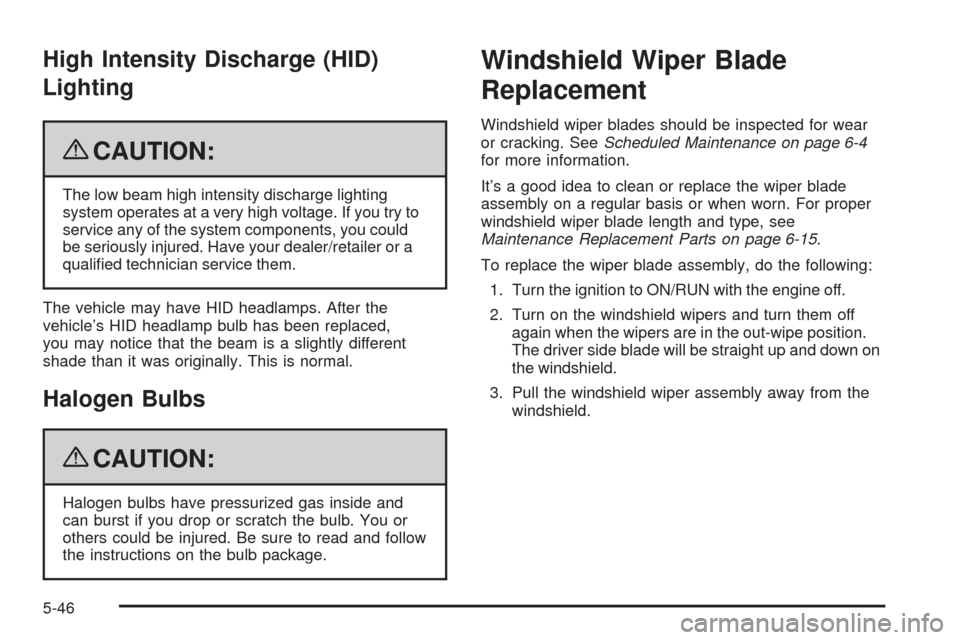

High Intensity Discharge (HID)
Lighting
{CAUTION:
The low beam high intensity discharge lighting
system operates at a very high voltage. If you try to
service any of the system components, you could
be seriously injured. Have your dealer/retailer or a
qualied technician service them.
The vehicle may have HID headlamps. After the
vehicle’s HID headlamp bulb has been replaced,
you may notice that the beam is a slightly different
shade than it was originally. This is normal.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and follow
the instructions on the bulb package.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for wear
or cracking. SeeScheduled Maintenance on page 6-4
for more information.
It’s a good idea to clean or replace the wiper blade
assembly on a regular basis or when worn. For proper
windshield wiper blade length and type, see
Maintenance Replacement Parts on page 6-15.
To replace the wiper blade assembly, do the following:
1. Turn the ignition to ON/RUN with the engine off.
2. Turn on the windshield wipers and turn them off
again when the wipers are in the out-wipe position.
The driver side blade will be straight up and down on
the windshield.
3. Pull the windshield wiper assembly away from the
windshield.
5-46

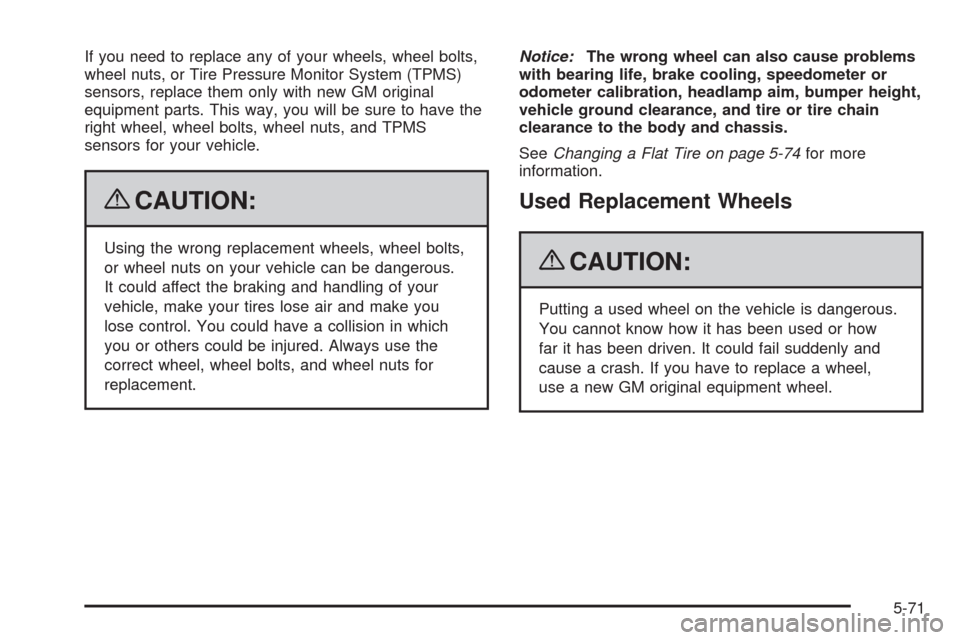

If you need to replace any of your wheels, wheel bolts,
wheel nuts, or Tire Pressure Monitor System (TPMS)
sensors, replace them only with new GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts, wheel nuts, and TPMS
sensors for your vehicle.
{CAUTION:
Using the wrong replacement wheels, wheel bolts,
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose air and make you
lose control. You could have a collision in which
you or others could be injured. Always use the
correct wheel, wheel bolts, and wheel nuts for
replacement.Notice:The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper height,
vehicle ground clearance, and tire or tire chain
clearance to the body and chassis.
SeeChanging a Flat Tire on page 5-74for more
information.
Used Replacement Wheels
{CAUTION:
Putting a used wheel on the vehicle is dangerous.
You cannot know how it has been used or how
far it has been driven. It could fail suddenly and
cause a crash. If you have to replace a wheel,
use a new GM original equipment wheel.
5-71

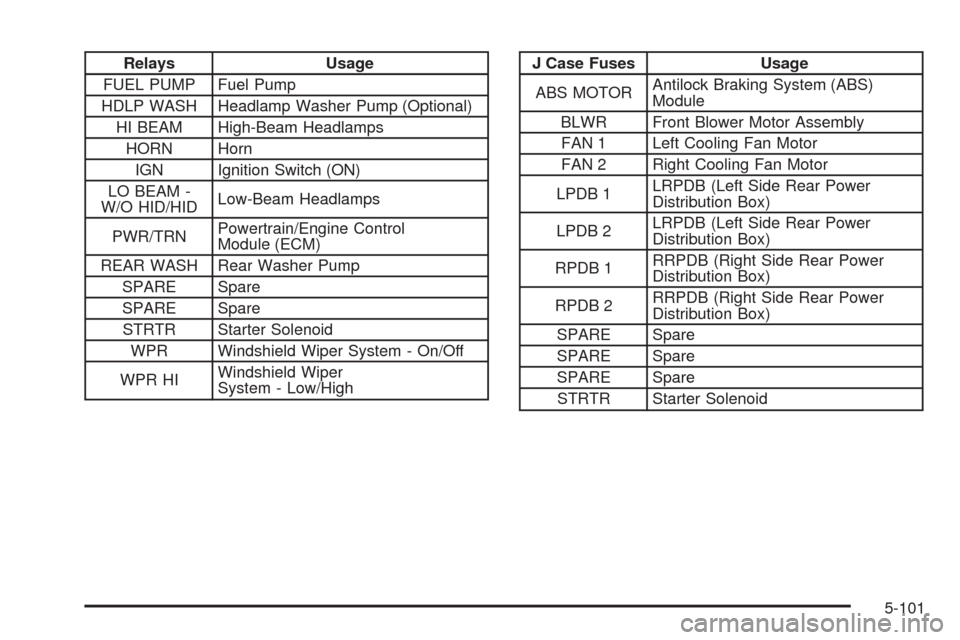

Relays Usage
FUEL PUMP Fuel Pump
HDLP WASH Headlamp Washer Pump (Optional)
HI BEAM High-Beam Headlamps
HORN Horn
IGN Ignition Switch (ON)
LO BEAM -
W/O HID/HIDLow-Beam Headlamps
PWR/TRNPowertrain/Engine Control
Module (ECM)
REAR WASH Rear Washer Pump
SPARE Spare
SPARE Spare
STRTR Starter Solenoid
WPR Windshield Wiper System - On/Off
WPR HIWindshield Wiper
System - Low/HighJ Case Fuses Usage
ABS MOTORAntilock Braking System (ABS)
Module
BLWR Front Blower Motor Assembly
FAN 1 Left Cooling Fan Motor
FAN 2 Right Cooling Fan Motor
LPDB 1LRPDB (Left Side Rear Power
Distribution Box)
LPDB 2LRPDB (Left Side Rear Power
Distribution Box)
RPDB 1RRPDB (Right Side Rear Power
Distribution Box)
RPDB 2RRPDB (Right Side Rear Power
Distribution Box)
SPARE Spare
SPARE Spare
SPARE Spare
STRTR Starter Solenoid
5-101

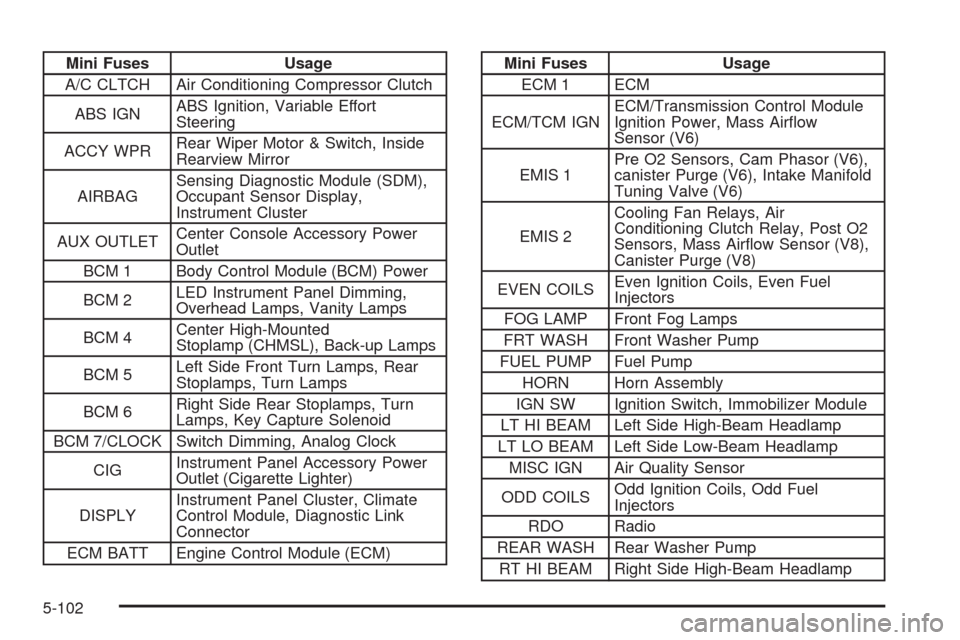

Mini Fuses Usage
A/C CLTCH Air Conditioning Compressor Clutch
ABS IGNABS Ignition, Variable Effort
Steering
ACCY WPRRear Wiper Motor & Switch, Inside
Rearview Mirror
AIRBAGSensing Diagnostic Module (SDM),
Occupant Sensor Display,
Instrument Cluster
AUX OUTLETCenter Console Accessory Power
Outlet
BCM 1 Body Control Module (BCM) Power
BCM 2LED Instrument Panel Dimming,
Overhead Lamps, Vanity Lamps
BCM 4Center High-Mounted
Stoplamp (CHMSL), Back-up Lamps
BCM 5Left Side Front Turn Lamps, Rear
Stoplamps, Turn Lamps
BCM 6Right Side Rear Stoplamps, Turn
Lamps, Key Capture Solenoid
BCM 7/CLOCK Switch Dimming, Analog Clock
CIGInstrument Panel Accessory Power
Outlet (Cigarette Lighter)
DISPLYInstrument Panel Cluster, Climate
Control Module, Diagnostic Link
Connector
ECM BATT Engine Control Module (ECM)Mini Fuses Usage
ECM 1 ECM
ECM/TCM IGNECM/Transmission Control Module
Ignition Power, Mass Airow
Sensor (V6)
EMIS 1Pre O2 Sensors, Cam Phasor (V6),
canister Purge (V6), Intake Manifold
Tuning Valve (V6)
EMIS 2Cooling Fan Relays, Air
Conditioning Clutch Relay, Post O2
Sensors, Mass Airow Sensor (V8),
Canister Purge (V8)
EVEN COILSEven Ignition Coils, Even Fuel
Injectors
FOG LAMP Front Fog Lamps
FRT WASH Front Washer Pump
FUEL PUMP Fuel Pump
HORN Horn Assembly
IGN SW Ignition Switch, Immobilizer Module
LT HI BEAM Left Side High-Beam Headlamp
LT LO BEAM Left Side Low-Beam Headlamp
MISC IGN Air Quality Sensor
ODD COILSOdd Ignition Coils, Odd Fuel
Injectors
RDO Radio
REAR WASH Rear Washer Pump
RT HI BEAM Right Side High-Beam Headlamp
5-102

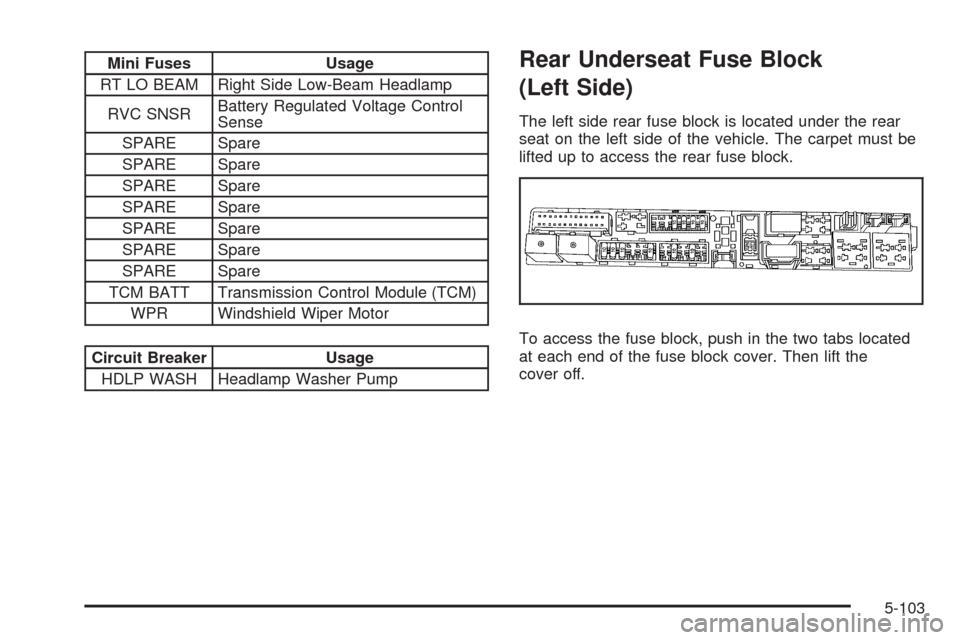

Mini Fuses Usage
RT LO BEAM Right Side Low-Beam Headlamp
RVC SNSRBattery Regulated Voltage Control
Sense
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
TCM BATT Transmission Control Module (TCM)
WPR Windshield Wiper Motor
Circuit Breaker Usage
HDLP WASH Headlamp Washer Pump
Rear Underseat Fuse Block
(Left Side)
The left side rear fuse block is located under the rear
seat on the left side of the vehicle. The carpet must be
lifted up to access the rear fuse block.
To access the fuse block, push in the two tabs located
at each end of the fuse block cover. Then lift the
cover off.
5-103

Audio System.................................................3-68
Audio Steering Wheel Controls......................3-90
Navigation/Radio System,
see Navigation Manual..............................3-88
Radio Reception..........................................3-91
Rear Seat Audio (RSA)................................3-88
Setting the Clock.........................................3-69
Theft-Deterrent Feature................................3-90
XM™ Satellite Radio Antenna System............3-92
Audio System(s).............................................3-72
Rear Side Window Antenna..........................3-92
Automatic Transmission
Fluid..........................................................5-22
Operation...................................................2-27
B
Battery..........................................................5-37
Electric Power Management..........................3-19
Exterior Lighting Battery Saver......................3-18
Brake
Emergencies................................................ 4-5
Brake Fluid....................................................5-34
Brakes..........................................................5-34
System Warning Light..................................3-36
Braking........................................................... 4-3
Braking in Emergencies..................................... 4-5Break-In, New Vehicle.....................................2-22
Bulb Replacement...........................................5-45
Halogen Bulbs............................................5-46
Headlamp Aiming........................................5-45
High Intensity Discharge (HID) Lighting...........5-46
Buying New Tires...........................................5-66
C
Calibration.....................................................2-38
California Fuel.................................................. 5-6
California Perchlorate Materials Requirements....... 5-4
California Proposition 65 Warning....................... 5-4
Canadian Owners............................................... iii
Capacities and Specications..........................5-109
Carbon Monoxide...........................2-12, 2-36, 4-27
Care of
Safety Belts................................................5-92
Cargo Cover..................................................2-55
Cargo Management System.............................2-55
CD, MP3 .......................................................3-81
Center Console Storage Area...........................2-54
Chains, Tire...................................................5-72
Charging System Light....................................3-35
Check
Engine Lamp..............................................3-39
Checking Things Under the Hood......................5-10
2

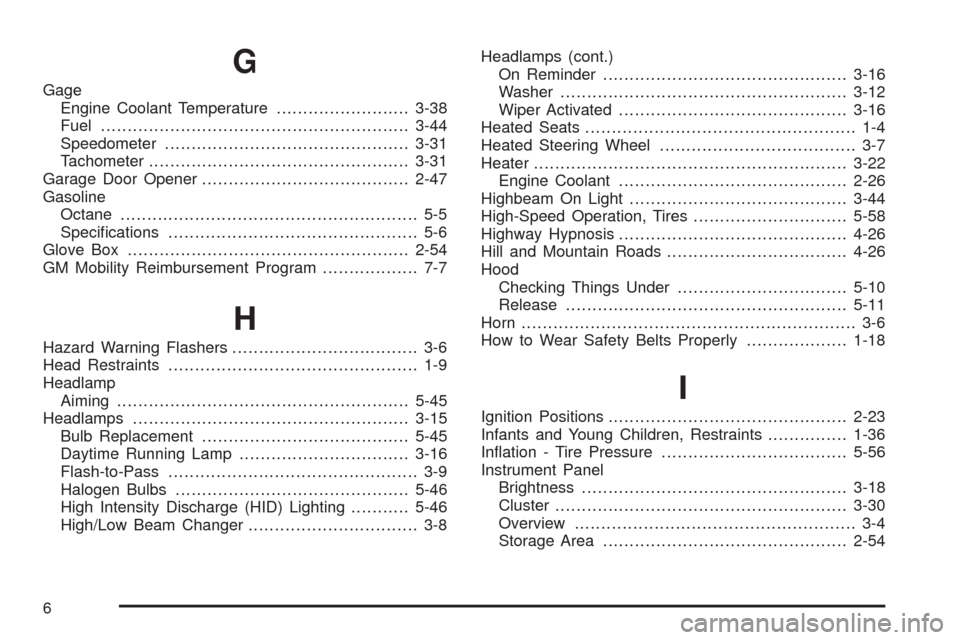

G
Gage
Engine Coolant Temperature.........................3-38
Fuel..........................................................3-44
Speedometer..............................................3-31
Tachometer.................................................3-31
Garage Door Opener.......................................2-47
Gasoline
Octane........................................................ 5-5
Specications............................................... 5-6
Glove Box.....................................................2-54
GM Mobility Reimbursement Program.................. 7-7
H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-9
Headlamp
Aiming .......................................................5-45
Headlamps....................................................3-15
Bulb Replacement.......................................5-45
Daytime Running Lamp................................3-16
Flash-to-Pass............................................... 3-9
Halogen Bulbs............................................5-46
High Intensity Discharge (HID) Lighting...........5-46
High/Low Beam Changer................................ 3-8Headlamps (cont.)
On Reminder..............................................3-16
Washer......................................................3-12
Wiper Activated...........................................3-16
Heated Seats................................................... 1-4
Heated Steering Wheel..................................... 3-7
Heater...........................................................3-22
Engine Coolant...........................................2-26
Highbeam On Light.........................................3-44
High-Speed Operation, Tires.............................5-58
Highway Hypnosis...........................................4-26
Hill and Mountain Roads..................................4-26
Hood
Checking Things Under................................5-10
Release.....................................................5-11
Horn ............................................................... 3-6
How to Wear Safety Belts Properly...................1-18
I
Ignition Positions.............................................2-23
Infants and Young Children, Restraints...............1-36
Ination - Tire Pressure...................................5-56
Instrument Panel
Brightness..................................................3-18
Cluster.......................................................3-30
Overview..................................................... 3-4
Storage Area..............................................2-54
6
