Black plate (67,1)Cadillac SRX Owner Manual - 2011
Seats and Restraints 3-67
{WARNING
A child in a rear-facing child
restraint can be seriously
injured or killed if the right
front passenger airbag inflates.
This is because the back of the
rear-facing child restraint would
be very close to the inflating
airbag. A child in a forward-facing
child restraint can be seriously
injured or killed if the right front
passenger airbag inflates and the
passenger seat is in a forward
position.
Even if the passenger sensing
system has turned off the right
front passenger frontal airbag,
no system is fail-safe. No one
can guarantee that an airbag will
not deploy under some unusual
circumstance, even though it is
turned off.(Continued)
WARNING (Continued)
Secure rear-facing child
restraints in a rear seat, even if
the airbag is off. If you secure a
forward-facing child restraint in
the right front seat, always move
the front passenger seat as far
back as it will go. It is better to
secure the child restraint in a
rear seat.
SeePassenger Sensing System
on page 3‑39 for additional
information.
If the vehicle does not have a
rear seat that will accommodate
a rear‐facing child restraint, a
rear‐facing child restraint should
not be installed in the vehicle,
even if the airbag is off. If the child restraint has the LATCH
system, see
Lower Anchors and
Tethers for Children (LATCH
System) on page 3‑56 for how and
where to install the child restraint
using LATCH. If a child restraint is
secured using a safety belt and
it uses a top tether, see Lower
Anchors and Tethers for Children
(LATCH System) on page 3‑56 for
top tether anchor locations.
Do not secure a child seat in a
position without a top tether anchor
if a national or local law requires
that the top tether be anchored, or if
the instructions that come with the
child restraint say that the top strap
must be anchored.
In Canada, the law requires that
forward-facing child restraints have
a top tether, and that the tether be
attached.

Black plate (68,1)Cadillac SRX Owner Manual - 2011
3-68 Seats and Restraints
You will be using the lap-shoulder
belt to secure the child restraint in
this position. Follow the instructions
that came with the child restraint.
1. Move the seat as far back asit will go before securing the
forward-facing child restraint.
When the passenger sensing
system has turned off the right
front passenger frontal airbag
and seat‐mounted side impact
airbag, the off indicator on
the passenger airbag status
indicator should light and stay
lit when you start the vehicle.
See Passenger Airbag Status
Indicator on page 5‑18.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder portions of
the vehicle's safety belt through
or around the restraint. The child
restraint instructions will show
you how.
4. Push the latch plate into thebuckle until it clicks.
Position the release button on
the buckle, so that the safety
belt could be quickly unbuckled
if necessary.5. Pull the shoulder belt all the wayout of the retractor to set the
lock. When the retractor lock is
set, the belt can be tightened but
not pulled out of the retractor.

Black plate (69,1)Cadillac SRX Owner Manual - 2011
Seats and Restraints 3-69
6. To tighten the belt, push downon the child restraint, pull the
shoulder portion of the belt to
tighten the lap portion of the belt,
and feed the shoulder belt back
into the retractor. When installing
a forward-facing child restraint,
it may be helpful to use your
knee to push down on the child
restraint as you tighten the belt.
Try to pull the belt out of the
retractor to make sure the
retractor is locked. If the
retractor is not locked,
repeat Steps 5 and 6. If the vehicle does not have a
rear seat and the child restraint
has a top tether, follow the
child restraint manufacturer's
instructions regarding the use
of the top tether. See
Lower
Anchors and Tethers for
Children (LATCH System) on
page 3‑56 for more information.
7. Before placing a child in the child restraint, make sure it is
securely held in place. To check,
grasp the child restraint at the
safety belt path and attempt to
move it side to side and back
and forth. When the child
restraint is properly installed,
there should be no more than
2.5 cm (1 in) of movement. If the airbags are off, the off
indicator in the passenger airbag
status indicator will come on and
stay on when the vehicle is started.
If a child restraint has been installed
and the on indicator is lit, see
“If the On Indicator is Lit for a Child
Restraint”
underPassenger Sensing
System on page 3‑39 for more
information.
To remove the child restraint,
unbuckle the vehicle safety belt and
let it return to the stowed position.

Black plate (70,1)Cadillac SRX Owner Manual - 2011
3-70 Seats and Restraints
2NOTES

Black plate (1,1)Cadillac SRX Owner Manual - 2011
Storage 4-1
Storage
Storage Compartments
Glove Box . . . . . . . . . . . . . . . . . . . . 4-1
Cupholders . . . . . . . . . . . . . . . . . . . 4-2
Front Storage . . . . . . . . . . . . . . . . . 4-2
Armrest Storage . . . . . . . . . . . . . . 4-2
Center Console Storage . . . . . . 4-2
Additional Storage Features
Cargo Cover . . . . . . . . . . . . . . . . . . 4-3
Cargo Tie Downs . . . . . . . . . . . . . 4-5
Cargo ManagementSystem . . . . . . . . . . . . . . . . . . . . . . 4-5
Cargo Net . . . . . . . . . . . . . . . . . . . . . 4-9
Convenience Net . . . . . . . . . . . . 4-10
Roof Rack System
Roof Rack System . . . . . . . . . . . 4-11
Storage
Compartments
Glove Box
Lift the glove box handle up to open
it. Use the key to lock and unlock
the glove box.
The glove box is air conditioned
and can be used to store items at a
lower temperature. The vehicle air conditioning must be turned on for
the maximum cool air to enter the
glove box. Move the slide control
across the small hole to turn the
cool air flow off. Close the opening
to keep cold air from entering the
vehicle.

Black plate (2,1)Cadillac SRX Owner Manual - 2011
4-2 Storage

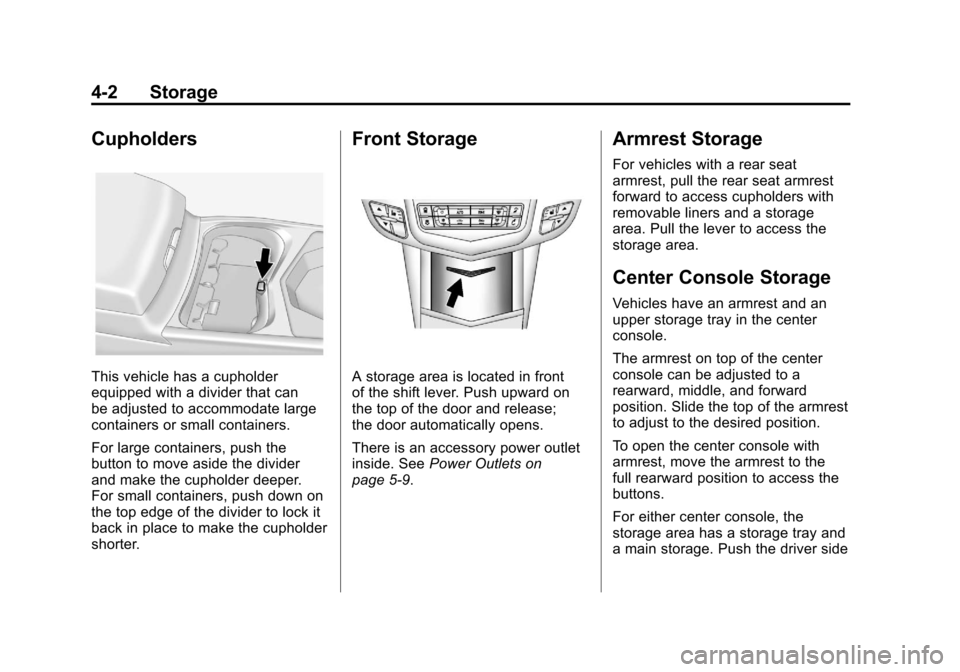

Cupholders
This vehicle has a cupholder
equipped with a divider that can
be adjusted to accommodate large
containers or small containers.
For large containers, push the
button to move aside the divider
and make the cupholder deeper.
For small containers, push down on
the top edge of the divider to lock it
back in place to make the cupholder
shorter.
Front Storage
A storage area is located in front
of the shift lever. Push upward on
the top of the door and release;
the door automatically opens.
There is an accessory power outlet
inside. SeePower Outlets on
page 5‑9.
Armrest Storage
For vehicles with a rear seat
armrest, pull the rear seat armrest
forward to access cupholders with
removable liners and a storage
area. Pull the lever to access the
storage area.
Center Console Storage
Vehicles have an armrest and an
upper storage tray in the center
console.
The armrest on top of the center
console can be adjusted to a
rearward, middle, and forward
position. Slide the top of the armrest
to adjust to the desired position.
To open the center console with
armrest, move the armrest to the
full rearward position to access the
buttons.
For either center console, the
storage area has a storage tray and
a main storage. Push the driver side

Black plate (3,1)Cadillac SRX Owner Manual - 2011
Storage 4-3

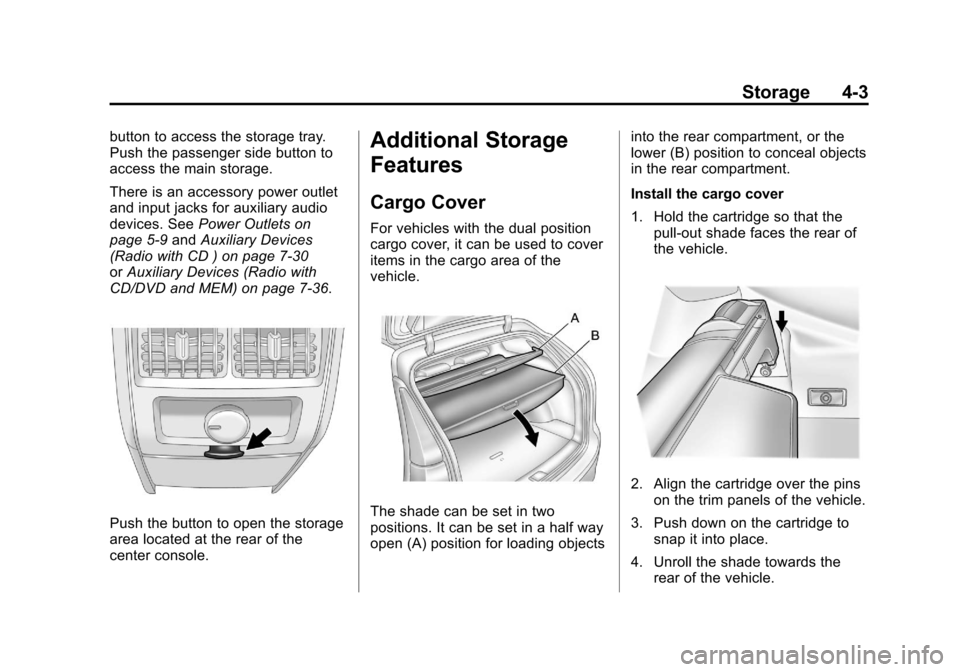

button to access the storage tray.
Push the passenger side button to
access the main storage.
There is an accessory power outlet
and input jacks for auxiliary audio
devices. SeePower Outlets on
page 5‑9 andAuxiliary Devices
(Radio with CD ) on page 7‑30
or Auxiliary Devices (Radio with
CD/DVD and MEM) on page 7‑36.
Push the button to open the storage
area located at the rear of the
center console.
Additional Storage
Features
Cargo Cover
For vehicles with the dual position
cargo cover, it can be used to cover
items in the cargo area of the
vehicle.
The shade can be set in two
positions. It can be set in a half way
open (A) position for loading objects into the rear compartment, or the
lower (B) position to conceal objects
in the rear compartment.
Install the cargo cover
1. Hold the cartridge so that the
pull‐out shade faces the rear of
the vehicle.
2. Align the cartridge over the pinson the trim panels of the vehicle.
3. Push down on the cartridge to snap it into place.
4. Unroll the shade towards the rear of the vehicle.

Black plate (4,1)Cadillac SRX Owner Manual - 2011
4-4 Storage

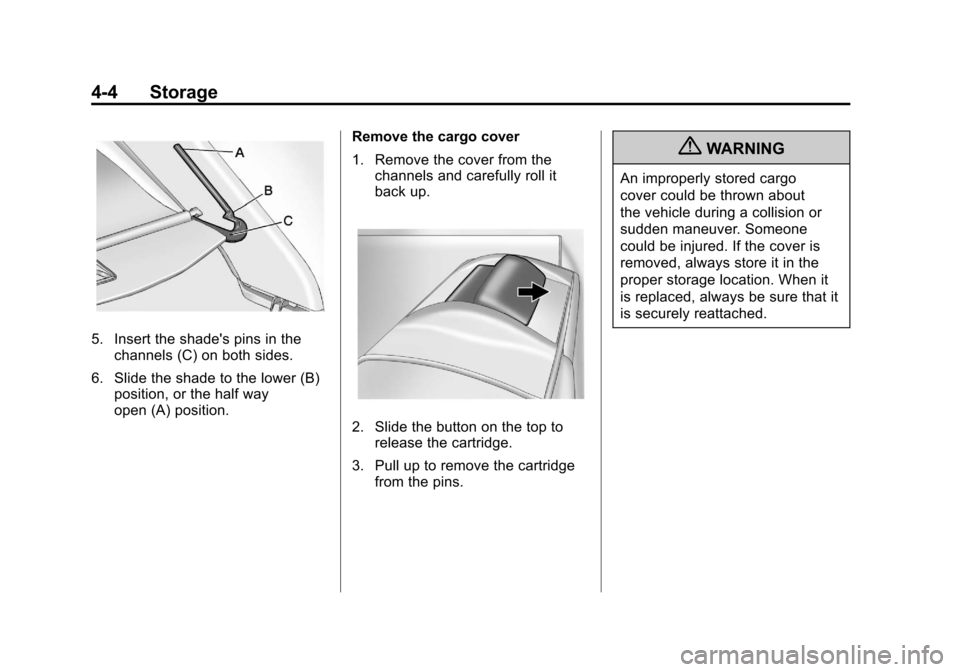

5. Insert the shade's pins in thechannels (C) on both sides.
6. Slide the shade to the lower (B) position, or the half way
open (A) position. Remove the cargo cover
1. Remove the cover from the
channels and carefully roll it
back up.
2. Slide the button on the top torelease the cartridge.
3. Pull up to remove the cartridge from the pins.
{WARNING
An improperly stored cargo
cover could be thrown about
the vehicle during a collision or
sudden maneuver. Someone
could be injured. If the cover is
removed, always store it in the
proper storage location. When it
is replaced, always be sure that it
is securely reattached.

Black plate (5,1)Cadillac SRX Owner Manual - 2011
Storage 4-5

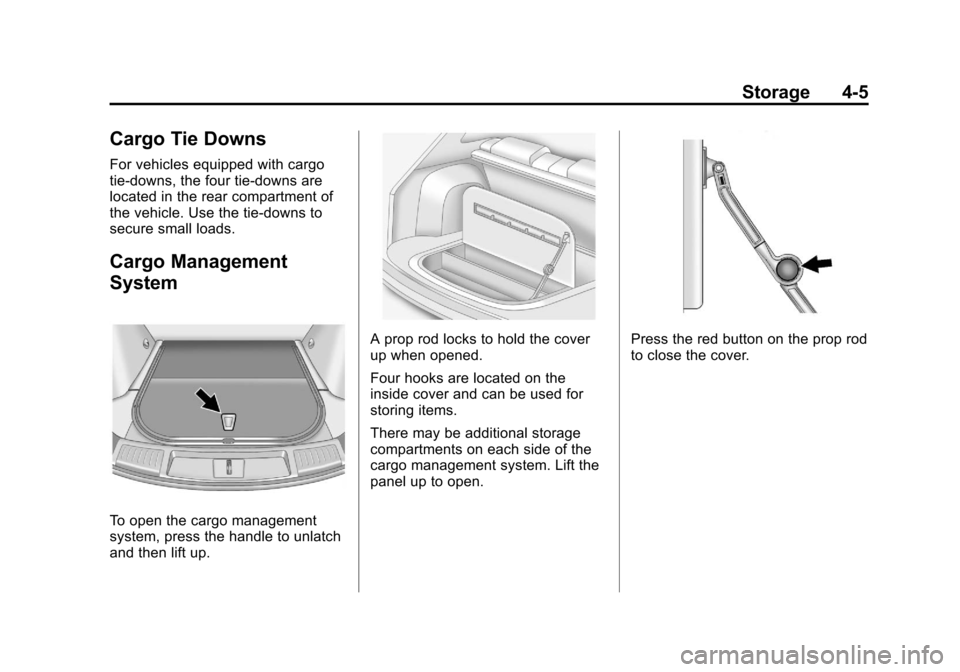

Cargo Tie Downs
For vehicles equipped with cargo
tie‐downs, the four tie-downs are
located in the rear compartment of
the vehicle. Use the tie-downs to
secure small loads.
Cargo Management
System
To open the cargo management
system, press the handle to unlatch
and then lift up.
A prop rod locks to hold the cover
up when opened.
Four hooks are located on the
inside cover and can be used for
storing items.
There may be additional storage
compartments on each side of the
cargo management system. Lift the
panel up to open.Press the red button on the prop rod
to close the cover.

Black plate (6,1)Cadillac SRX Owner Manual - 2011
4-6 Storage

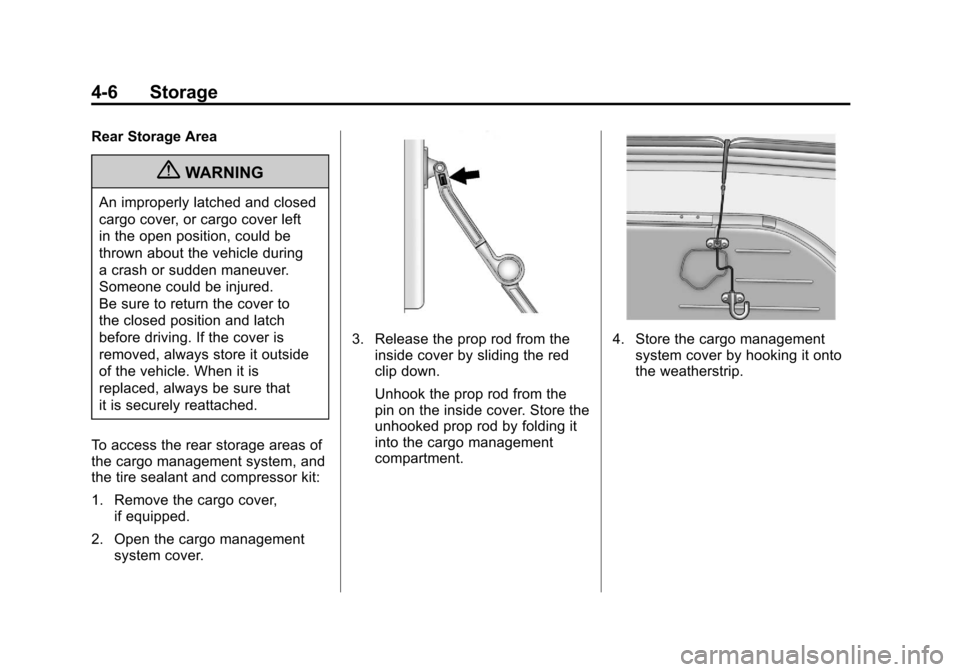

Rear Storage Area
{WARNING
An improperly latched and closed
cargo cover, or cargo cover left
in the open position, could be
thrown about the vehicle during
a crash or sudden maneuver.
Someone could be injured.
Be sure to return the cover to
the closed position and latch
before driving. If the cover is
removed, always store it outside
of the vehicle. When it is
replaced, always be sure that
it is securely reattached.
To access the rear storage areas of
the cargo management system, and
the tire sealant and compressor kit:
1. Remove the cargo cover, if equipped.
2. Open the cargo management system cover.
3. Release the prop rod from the
inside cover by sliding the red
clip down.
Unhook the prop rod from the
pin on the inside cover. Store the
unhooked prop rod by folding it
into the cargo management
compartment.4. Store the cargo managementsystem cover by hooking it onto
the weatherstrip.
