Black plate (7,1)Cadillac SRX Owner Manual - 2011
Vehicle Care 10-7
A.Engine Air Cleaner/Filter on
page 10‑16.
B. Power Steering Reservoir and Cap. See Power Steering Fluid
on page 10‑24.
C. Engine Oil Fill Cap. See Engine
Oil on page 10‑10.
D. Engine Oil Dipstick (Out of View). See Engine Oil on
page 10‑10.
E. Brake Master Cylinder Reservoir. See Brakes on
page 10‑25.
F. Battery (Out of View). See Battery on page 10‑28. G. Engine Coolant Surge Tank and
Pressure Cap. See Engine
Coolant on page 10‑19.
H. Remote Positive (+) Terminal. See Jump Starting on
page 10‑94.
I. Remote Negative (−) Terminal (Out of View). See Jump
Starting on page 10‑94.
J. Engine Compartment Fuse
Block on page 10‑46.
K. Windshield Washer Fluid Reservoir. See Washer Fluid on
page 10‑24.

Black plate (9,1)Cadillac SRX Owner Manual - 2011
Vehicle Care 10-9
A.Engine Air Cleaner/Filter on
page 10‑16.
B. Power Steering Reservoir and Cap (Under engine cover).
See Power Steering Fluid on
page 10‑24.
C. Engine Oil Fill Cap. See Engine
Oil on page 10‑10.
D. Engine Oil Dipstick (Out of View). See Engine Oil on
page 10‑10.
E. Engine Cover on page 10‑9.
F. Transmission Fluid Cap and Dipstick. See Automatic
Transmission Fluid on
page 10‑15.
G. Brake Master Cylinder Reservoir. See Brakes on
page 10‑25. H. Engine Coolant Surge Tank and
Pressure Cap. See Engine
Coolant on page 10‑19.
I. Battery (Out of View). See Battery on page 10‑28.
J. Remote Positive (+) Terminal. See Jump Starting on
page 10‑94.
K. Remote Negative (−) Terminal (Out of View). See Jump
Starting on page 10‑94.
L. Engine Compartment Fuse
Block on page 10‑46.
M. Windshield Washer Fluid Reservoir. See Washer Fluid on
page 10‑24.Engine Cover
Engine Cover (3.0 L V6)
A. Oil Fill Cap
B. Engine Cover Bolt
C. Engine Cover

Black plate (95,1)Cadillac SRX Owner Manual - 2011
Vehicle Care 10-95
4. Open the hood on theother vehicle and locate the
positive (+) and negative (−)
terminal locations on that
vehicle.
Open the hood on your vehicle
and find the remote positive (+)
and remote negative (−) jump
starting terminals.
Your vehicle is equipped with a
remote positive (+) terminal (A)
and a remote negative (−)
terminal (B). The remote positive (+) terminal is located
in the engine compartment on
the driver side of the vehicle,
above the rear of the battery.
The remote negative (−) terminal
is a stud located in the engine
compartment on the driver side
of the vehicle, on the front tie
bar. See
Engine Compartment
Overview on page 10‑6 for more
information on location.
To uncover the remote
positive (+) terminal, lift open
the access panel on the battery
cover indicated by the (+) sign.
{WARNING
An electric fan can start up even
when the engine is not running
and can injure you. Keep hands,
clothing and tools away from any
underhood electric fan.
{WARNING
Using an open flame near a
battery can cause battery gas to
explode. People have been hurt
doing this, and some have been
blinded. Use a flashlight if you
need more light.
Be sure the battery has enough
water. You do not need to add
water to the battery installed in
your new vehicle. But if a battery
has filler caps, be sure the right
amount of fluid is there. If it is low,
add water to take care of that
first. If you do not, explosive gas
could be present.
Battery fluid contains acid that
can burn you. Do not get it on
you. If you accidentally get it in
your eyes or on your skin, flush
the place with water and get
medical help immediately.

Black plate (97,1)Cadillac SRX Owner Manual - 2011
Vehicle Care 10-97
10. Now start the vehicle withthe good battery and run the
engine for a while.
11. Try to start the vehicle that had the dead battery. If it will
not start after a few tries, it
probably needs service.
Notice: If the jumper cables are
connected or removed in the
wrong order, electrical shorting
may occur and damage the
vehicle. The repairs would not be
covered by the vehicle warranty.
Always connect and remove the
jumper cables in the correct
order, making sure that the
cables do not touch each other
or other metal.
Jumper Cable Removal
A. Heavy, Unpainted Metal Engine Part or Remote Negative (−)
Terminal
B. Good Battery or Remote Positive (+) and Remote
Negative (−) Terminals
C. Dead Battery or Remote Positive (+) Terminal To disconnect the jumper cables
from both vehicles, do the following:
1. Disconnect the black
negative (−) cable from the
vehicle that had the dead
battery.
2. Disconnect the black negative (−) cable from the
vehicle with the good battery.
3. Disconnect the red positive (+) cable from the vehicle with the
good battery.
4. Disconnect the red positive (+) cable from the other vehicle.
5. Close the access panel on the battery cover, if applicable.

Black plate (9,1)Cadillac SRX Owner Manual - 2011
Customer Information 13-9
Cadillac Owner Privileges™
.Emergency Fuel Delivery:
Delivery of enough fuel for the
vehicle to get to the nearest
service station.
.Lock‐Out Service:Service to
unlock the vehicle if you are
locked out. A remote unlock may
be available if you have OnStar.
For security reasons, the driver
must present identification
before this service is given.
.Emergency Tow From a Public
Road or Highway: Tow to
the nearest Cadillac dealer for
warranty service, or if the vehicle
was in a crash and cannot be
driven. Assistance is also given
when the vehicle is stuck in the
sand, mud, or snow.
.Flat Tire Change: Service to
change a flat tire with spare tire.
The spare tire, if equipped,
must be in good condition and properly inflated. It is your
responsibility for the repair or
replacement of the tire if it is not
covered by the warranty.
.Battery Jump Start:
Service to
jump start a dead battery.
.Trip Routing Service: Detailed
maps of North America are
provided when requested
either with the most direct
route or the most scenic route.
Additional travel information
is also available. Allow three
weeks for delivery.
.Trip Interruption Benefits
and Service: If your trip is
interrupted due to a warranty
failure, incidental expenses
may be reimbursed during
the 5 years/160 000 km
(100,000 miles) Powertrain
warranty period. Items
considered are hotel, meals,
and rental car.
Cadillac Technician Roadside
Service (U.S. only)
Cadillac's exceptional Roadside
Service is more than an auto club
or towing service. It provides every
Cadillac owner in the United States
with the advantage of contacting
a Cadillac advisor and, where
available, a Cadillac trained dealer
technician who can provide on-site
service.
A dealer technician will travel to
your location within a 30 mile
radius of a participating Cadillac
dealership. If beyond this radius, we
will arrange to have your car towed
to the nearest Cadillac dealership.
Each technician travels with a
specially equipped service vehicle
complete with the necessary
Cadillac parts and tools required
to handle most roadside repairs.

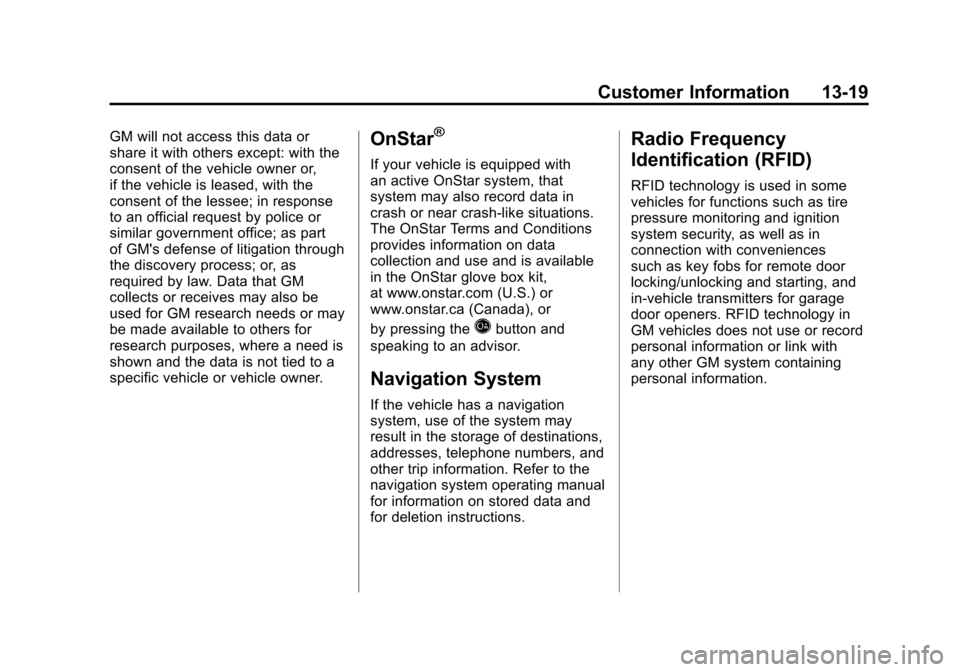

Black plate (19,1)Cadillac SRX Owner Manual - 2011
Customer Information 13-19
GM will not access this data or
share it with others except: with the
consent of the vehicle owner or,
if the vehicle is leased, with the
consent of the lessee; in response
to an official request by police or
similar government office; as part
of GM's defense of litigation through
the discovery process; or, as
required by law. Data that GM
collects or receives may also be
used for GM research needs or may
be made available to others for
research purposes, where a need is
shown and the data is not tied to a
specific vehicle or vehicle owner.OnStar®
If your vehicle is equipped with
an active OnStar system, that
system may also record data in
crash or near crash‐like situations.
The OnStar Terms and Conditions
provides information on data
collection and use and is available
in the OnStar glove box kit,
at www.onstar.com (U.S.) or
www.onstar.ca (Canada), or
by pressing the
Qbutton and
speaking to an advisor.
Navigation System
If the vehicle has a navigation
system, use of the system may
result in the storage of destinations,
addresses, telephone numbers, and
other trip information. Refer to the
navigation system operating manual
for information on stored data and
for deletion instructions.
Radio Frequency
Identification (RFID)
RFID technology is used in some
vehicles for functions such as tire
pressure monitoring and ignition
system security, as well as in
connection with conveniences
such as key fobs for remote door
locking/unlocking and starting, and
in-vehicle transmitters for garage
door openers. RFID technology in
GM vehicles does not use or record
personal information or link with
any other GM system containing
personal information.

Black plate (7,1)Cadillac SRX Owner Manual - 2011
INDEX i-7
I
Ignition Positions . . . . . . . . . . . . . . 9-18
Ignition Transmission LockCheck . . . . . . . . . . . . . . . . . . . . . . . 10-30
Immobilizer . . . . . . . . . . . . . . . . . . . . 2-20
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . 3-49
Instrument Cluster . . . . . . . . . . . . . 5-11
Introduction . . . . . . . . . . . . . . . . . . .iii, 7-1
J
Jump Starting . . . . . . . . . . . . . . . . . 10-94
K
Key and Lock Messages . . . . . . . 5-36
Keyless Entry Remote (RKE) System . . . . . . . . 2-4
Keyless Entry System . . . . . . . . . . 2-3
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
L
Labeling, Tire Sidewall . . . . . . . . 10-55
Lamp Messages . . . . . . . . . . . . . . . 5-37
Lamps Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Courtesy . . . . . . . . . . . . . . . . . . . . . . . 6-6
Daytime Running (DRL) . . . . . . . 6-3
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Exterior Controls . . . . . . . . . . . . . . . 6-1
Front Fog . . . . . . . . . . . . . . . . . . . . . . 6-6
License Plate . . . . . . . . . . . . . . . 10-44
Malfunction Indicator . . . . . . . . . 5-19
On Reminder . . . . . . . . . . . . . . . . . 5-28
Reading . . . . . . . . . . . . . . . . . . . . . . . 6-7
Lap-Shoulder Belt . . . . . . . . . . . . . 3-24
LATCH System Replacing Parts After aCrash . . . . . . . . . . . . . . . . . . . . . . . 3-64
Latch, Lower Anchors and Tethers for Children . . . . . . . . . . 3-56
Liftgate Carbon Monoxide . . . . . . . 2-14, 2-15 Light
Adaptive Forward Lighting
(AFL) Light . . . . . . . . . . . . . . . . . . 5-27
Brake System Warning . . . . . . . 5-22
Electric Parking Brake . . . . . . . . 5-23
StabiliTrak
®OFF . . . . . . . . . . . . . 5-24
Lighter, Cigarette . . . . . . . . . . . . . . . 5-9
Lighting
Adaptive Forward . . . . . . . . . . . . . . 6-3
Entry . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Illumination Control . . . . . . . . . . . . 6-6
Lights Airbag Readiness . . . . . . . . . . . . . 5-17
Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . 5-23
Charging System . . . . . . . . . . . . . 5-19
Cruise Control . . . . . . . . . . . . . . . . 5-28
Engine Oil Pressure . . . . . . . . . . 5-26
Flash-to-Pass . . . . . . . . . . . . . . . . . . 6-2
Front Fog Lamps . . . . . . . . . . . . . 5-28
Fuel Economy . . . . . . . . . . . . . . . . 5-26

Black plate (10,1)Cadillac SRX Owner Manual - 2011
i-10 INDEX
R
Radio FrequencyIdentification (RFID) . . . . . . . . 13-19
Statement . . . . . . . . . . . . . . . . . . 13-20
Radios AM-FM Radio . . . . . . . . . . . . . . . . . 7-12
CD/DVD Player . . . . . . . . . . . . . . . 7-22
Reception . . . . . . . . . . . . . . . . . . . . 7-19
Satellite . . . . . . . . . . . . . . . . . . . . . . . 7-15
Reading Lamps . . . . . . . . . . . . . . . . . 6-7
Rear Axle Limited-Slip . . . . . . . . . . . . . . . . . . . 9-37
Rear Climate Control System . . . 8-5
Rear Seat Audio (RSA) System . . . . . . . . . . . . . . . . . . . . . . . 7-49
Rear Seat Entertainment
System . . . . . . . . . . . . . . . . . . . . . . . 7-38
Rear Seat Audio (RSA) . . . . . . . 7-49
Rear Seat Pass-Through Door . . . . . . . . . . 3-14
Rear Seats . . . . . . . . . . . . . . . . . . . . 3-12 Heated . . . . . . . . . . . . . . . . . . . . . . . 3-13
Rear Vision Camera (RVC) . . . . 9-43
Rear Window Washer/Wiper . . . . 5-5
Rearview Mirrors . . . . . . . . . . . . . . 2-23 Automatic Dimming . . . . . . . . . . . 2-24 Reclining Seatbacks . . . . . . . . . . . . 3-8
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . 11-7
Recommended Fuel . . . . . . . . . . . 9-47
Records Maintenance . . . . . . . . . . . . . . . . .11-10
Recreational Vehicle
Towing . . . . . . . . . . . . . . . . . . . . . . 10-98
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . 13-7
Remote Keyless Entry
(RKE) System . . . . . . . . . . . . . 2-3, 2-4
Remote Vehicle Start . . . . . . . . . . 2-10
Replacement Bulbs . . . . . . . . . . . 10-45
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . 3-46
Maintenance . . . . . . . . . . . . . . . . . . 11-9
Replacing Airbag System . . . . . . 3-46
Replacing LATCH System Parts After a Crash . . . . . . . . . . . 3-64
Replacing Safety Belt
System Parts After a
Crash . . . . . . . . . . . . . . . . . . . . . . . . 3-29 Reporting Safety Defects
Canadian Government . . . . . . 13-17
General Motors . . . . . . . . . . . . . 13-17
U.S. Government . . . . . . . . . . . 13-16
Restraints Where to Put . . . . . . . . . . . . . . . . . 3-53
Retained Accessory
Power (RAP) . . . . . . . . . . . . . . . . . 9-22
Reverse Tilt Mirrors . . . . . . . . . . . . 2-23
Ride Control Systems Limited Slip Rear Axle . . . . . . . . 9-37
Messages . . . . . . . . . . . . . . . . . . . . 5-37
Selective . . . . . . . . . . . . . . . . . . . . . 9-37
Roads Driving, Wet . . . . . . . . . . . . . . . . . . . 9-7
Roadside Service . . . . . . . 13-8, 13-10
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . 2-28
Roof Rack System . . . . . . . . . . . . . 4-11
Rotation, Tires . . . . . . . . . . . . . . . . 10-68
Routing, Engine Drive Belt . . . . . 12-4
Running the Vehicle While Parked . . . . . . . . . . . . . . . . . . . . . . . 9-25

Black plate (11,1)Cadillac SRX Owner Manual - 2011
INDEX i-11
S
Safety Belts . . . . . . . . . . . . . . . . . . . 3-14Care . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29
Extender . . . . . . . . . . . . . . . . . . . . . . 3-28
How to Wear Safety BeltsProperly . . . . . . . . . . . . . . . . . . . . . 3-18
Lap-Shoulder Belt . . . . . . . . . . . . 3-24
Messages . . . . . . . . . . . . . . . . . . . . 5-38
Reminders . . . . . . . . . . . . . . . . . . . . 5-15
Replacing After a Crash . . . . . . 3-29
Use During Pregnancy . . . . . . . . 3-28
Safety Defects Reporting Canadian Government . . . . . . 13-17
General Motors . . . . . . . . . . . . . 13-17
U.S. Government . . . . . . . . . . . 13-16
Safety Locks . . . . . . . . . . . . . . . . . . . 2-13
Safety System Check . . . . . . . . . . 3-29
Satellite Radio . . . . . . . . . . . . . . . . . 7-15
Scheduled Maintenance . . . . . . . 11-2
Scheduling Appointments . . . . . 13-11
Sealant Kit, Tire . . . . . . . . . . . . . . 10-79
Seats
Adjustment, Front . . . . . . . . . . . . . . 3-4
Head Restraints . . . . . . . . . . . . . . . 3-2
Heated and VentilatedFront . . . . . . . . . . . . . . . . . . . . . . . . 3-11 Seats (cont.)
Heated Front . . . . . . . . . . . . . . . . . 3-10
Heated, Rear . . . . . . . . . . . . . . . . . 3-13
Lumbar Adjustment, Front . . . . . 3-7
Power Adjustment, Front . . . . . . 3-4
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Reclining Seatbacks . . . . . . . . . . . 3-8
Securing Child Restraints . . . . . . . . . . . . . . 3-64, 3-66
Security Light . . . . . . . . . . . . . . . . . . . . . . . . . . 5-27
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 2-19
Selective Ride Control . . . . . . . . . 9-37
Service Accessories andModifications . . . . . . . . . . . . . . . . 10-3
Doing Your Own Work . . . . . . . . 10-4
Engine Soon Light . . . . . . . . . . . . 5-19
Maintenance Records . . . . . . .11-10
Maintenance, General Information . . . . . . . . . . . . . . . . . . 11-1
Parts Identification Label . . . . . 12-1
Publications Ordering Information . . . . . . . . . . . . . . . . 13-15
Scheduling Appointments . . . .13-11
Vehicle Messages . . . . . . . . . . . . 5-38 Servicing the
Airbag-Equipped Vehicle . . . . . 3-44
Shift Lock Control Function Check, Automatic
Transmission . . . . . . . . . . . . . . . . 10-29
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . 9-22
Out of Park . . . . . . . . . . . . . . . . . . . 9-24
Signals, Turn and Lane-Change . . . . . . . . . . . . . . . . . 6-5
Spare Tire
Compact . . . . . . . . . . . . . . . . . . . . 10-93
Specifications and Capacities . . . . . . . . . . . . . . . . . . . . 12-2
Speedometer . . . . . . . . . . . . . . . . . . 5-12
StabiliTrak
®OFF Light . . . . . . . . . 5-24
StabiliTrak®System . . . . . . . . . . . 9-35
Start Assist, Hills . . . . . . . . . . . . . . 9-33
Start Vehicle, Remote . . . . . . . . . 2-10
Starter Switch Check . . . . . . . . . 10-29
Starting the Gasoline Engine . . . . . . . . . . . . . . . . . . . . . . . 9-19
Starting the Vehicle Messsages . . . . . . . . . . . . . . . . . . . 5-38

Black plate (13,1)Cadillac SRX Owner Manual - 2011
INDEX i-13
TractionControl System (TCS) . . . . . . . . 9-34
Control System (TCS)/
StabiliTrak
®Light . . . . . . . . . . . . 5-25
Limited-Slip Rear Axle . . . . . . . . 9-37
Off Light . . . . . . . . . . . . . . . . . . . . . . 5-24
Selective Ride Control . . . . . . . . 9-37
Trailer Sway Control (TSC) . . . . . . . . . . 9-62
Trailer Towing . . . . . . . . . . . . . . . . . 9-58
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 9-26
Fluid, Automatic . . . . . . . . . . . . 10-15
Messages . . . . . . . . . . . . . . . . . . . . 5-39
Transportation Program, Courtesy . . . . . . . . . . . . . . . . . . . . 13-11
Turbo Gauge . . . . . . . . . . . . . . . . . . 5-14
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Twilight Sentinel . . . . . . . . . . . . . . . . 6-4
U
Ultrasonic Parking Assist . . . . . . 9-40
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 10-73
Universal Remote System . . . . . 5-46 Operation . . . . . . . . . . . . . . . . . . . . . 5-49
Programming . . . . . . . . . . . . . . . . . 5-46
Using this Manual . . . . . . . . . . . . . . . . iv
V
Vehicle Canadian Owners . . . . . . . . . . . . . . . iii
Control . . . . . . . . . . . . . . . . . . . . . . . . 9-3
Load Limits . . . . . . . . . . . . . . . . . . . 9-12
Messages . . . . . . . . . . . . . . . . . . . . 5-32
Personalization . . . . . . . . . . . . . . . 5-40
Remote Start . . . . . . . . . . . . . . . . . 2-10
Security . . . . . . . . . . . . . . . . . . . . . . 2-19
Towing . . . . . . . . . . . . . . . . . . . . . . 10-98 Vehicle Care
Storing the Tire Sealant
and Compressor Kit . . . . . . . 10-86
Tire Pressure . . . . . . . . . . . . . . . 10-61
Vehicle Identification Number (VIN) . . . . . . . . . . . . . . . . . 12-1
Service Parts IdentificationLabel . . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Reminder Messages . . . . . . . . . . . . . . . . . . . . 5-40
Ventilation, Air . . . . . . . . . . . . . . . . . . 8-6
Visors . . . . . . . . . . . . . . . . . . . . . . . . . 2-27
