Black plate (27,1)Cadillac SRX Owner Manual - 2011
Keys, Doors and Windows 2-27

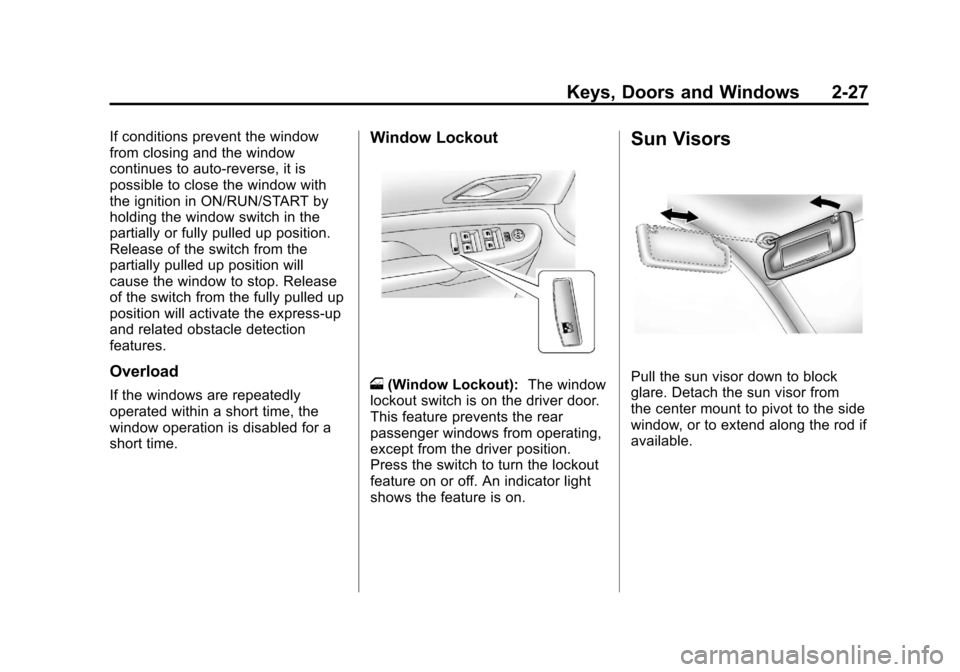

If conditions prevent the window
from closing and the window
continues to auto-reverse, it is
possible to close the window with
the ignition in ON/RUN/START by
holding the window switch in the
partially or fully pulled up position.
Release of the switch from the
partially pulled up position will
cause the window to stop. Release
of the switch from the fully pulled up
position will activate the express-up
and related obstacle detection
features.
Overload
If the windows are repeatedly
operated within a short time, the
window operation is disabled for a
short time.
Window Lockout
o(Window Lockout): The window
lockout switch is on the driver door.
This feature prevents the rear
passenger windows from operating,
except from the driver position.
Press the switch to turn the lockout
feature on or off. An indicator light
shows the feature is on.
Sun Visors
Pull the sun visor down to block
glare. Detach the sun visor from
the center mount to pivot to the side
window, or to extend along the rod if
available.

Black plate (28,1)Cadillac SRX Owner Manual - 2011
2-28 Keys, Doors and Windows

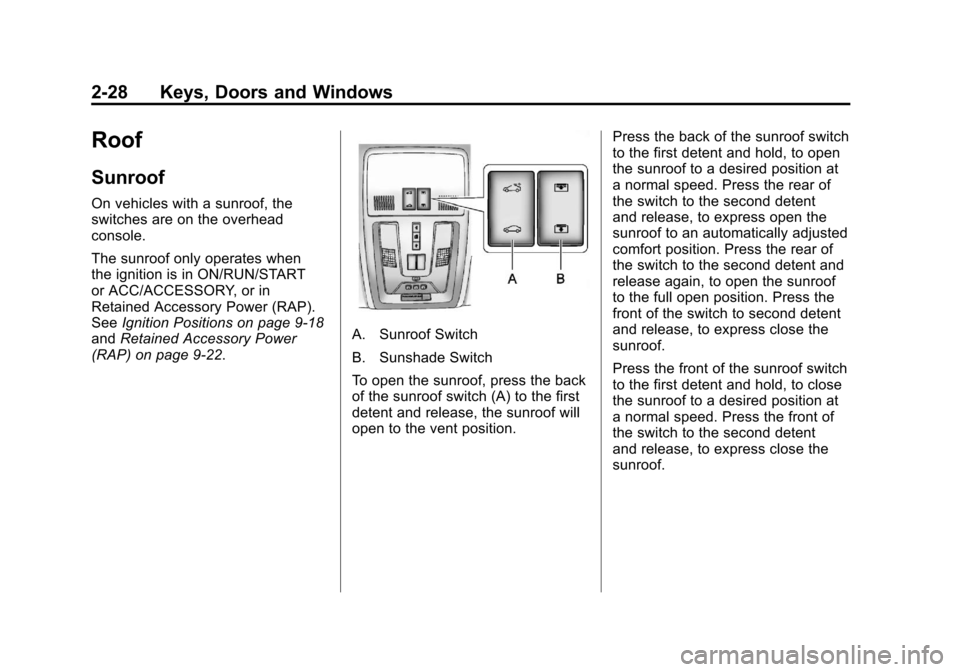

Roof
Sunroof
On vehicles with a sunroof, the
switches are on the overhead
console.
The sunroof only operates when
the ignition is in ON/RUN/START
or ACC/ACCESSORY, or in
Retained Accessory Power (RAP).
SeeIgnition Positions on page 9‑18
and Retained Accessory Power
(RAP) on page 9‑22.
A. Sunroof Switch
B. Sunshade Switch
To open the sunroof, press the back
of the sunroof switch (A) to the first
detent and release, the sunroof will
open to the vent position. Press the back of the sunroof switch
to the first detent and hold, to open
the sunroof to a desired position at
a normal speed. Press the rear of
the switch to the second detent
and release, to express open the
sunroof to an automatically adjusted
comfort position. Press the rear of
the switch to the second detent and
release again, to open the sunroof
to the full open position. Press the
front of the switch to second detent
and release, to express close the
sunroof.
Press the front of the sunroof switch
to the first detent and hold, to close
the sunroof to a desired position at
a normal speed. Press the front of
the switch to the second detent
and release, to express close the
sunroof.

Black plate (29,1)Cadillac SRX Owner Manual - 2011
Keys, Doors and Windows 2-29

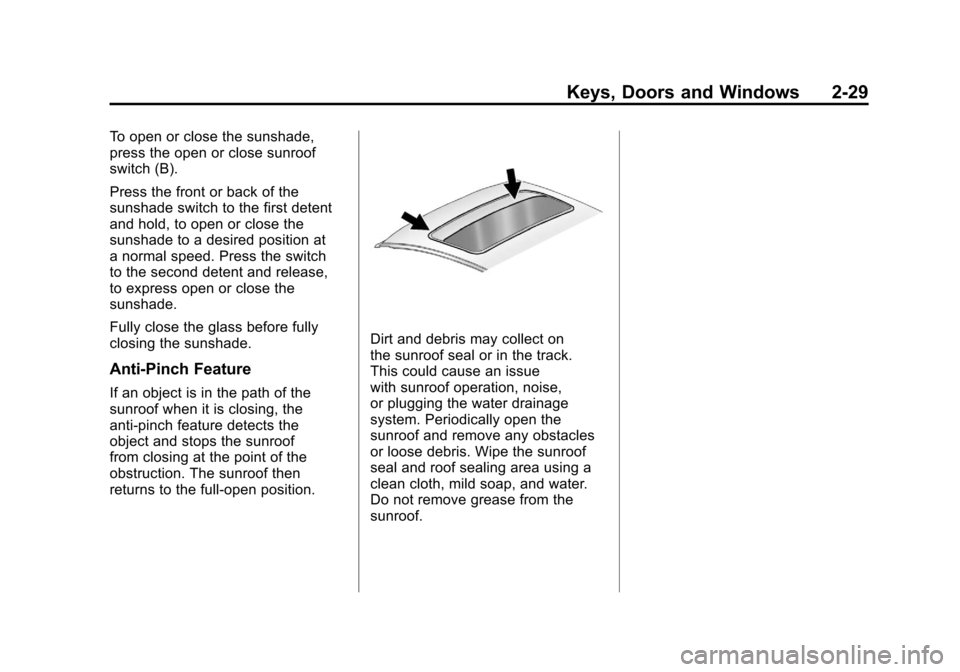

To open or close the sunshade,
press the open or close sunroof
switch (B).
Press the front or back of the
sunshade switch to the first detent
and hold, to open or close the
sunshade to a desired position at
a normal speed. Press the switch
to the second detent and release,
to express open or close the
sunshade.
Fully close the glass before fully
closing the sunshade.
Anti-Pinch Feature
If an object is in the path of the
sunroof when it is closing, the
anti-pinch feature detects the
object and stops the sunroof
from closing at the point of the
obstruction. The sunroof then
returns to the full-open position.
Dirt and debris may collect on
the sunroof seal or in the track.
This could cause an issue
with sunroof operation, noise,
or plugging the water drainage
system. Periodically open the
sunroof and remove any obstacles
or loose debris. Wipe the sunroof
seal and roof sealing area using a
clean cloth, mild soap, and water.
Do not remove grease from the
sunroof.

Black plate (30,1)Cadillac SRX Owner Manual - 2011
2-30 Keys, Doors and Windows
2NOTES

Black plate (1,1)Cadillac SRX Owner Manual - 2011
Seats and Restraints 3-1
Seats and
Restraints
Head Restraints
Head Restraints . . . . . . . . . . . . . . . 3-2
Front Seats
Seat Adjustment . . . . . . . . . . . . . . 3-4
Power Seat Adjustment . . . . . . . 3-4
Lumbar Adjustment . . . . . . . . . . . 3-7
Thigh Support Adjustment . . . . 3-8
Reclining Seatbacks . . . . . . . . . . 3-8
Heated Front Seats . . . . . . . . . . 3-10
Heated and Ventilated FrontSeats . . . . . . . . . . . . . . . . . . . . . . . 3-11
Rear Seats
Rear Seats . . . . . . . . . . . . . . . . . . 3-12
Heated Rear Seats . . . . . . . . . . 3-13
Rear SeatPass-Through Door . . . . . . . . 3-14
Safety Belts
Safety Belts . . . . . . . . . . . . . . . . . . 3-14
How to Wear Safety BeltsProperly . . . . . . . . . . . . . . . . . . . . 3-18
Lap-Shoulder Belt . . . . . . . . . . . 3-24
Safety Belt Use During Pregnancy . . . . . . . . . . . . . . . . . . 3-28
Safety Belt Extender . . . . . . . . . 3-28
Safety System Check . . . . . . . . 3-29
Safety Belt Care . . . . . . . . . . . . . 3-29
Replacing Safety Belt System Parts After a Crash . . . . . . . . . 3-29
Airbag System
Airbag System . . . . . . . . . . . . . . . 3-30
Where Are the Airbags? . . . . . 3-33
When Should an Airbag
Inflate? . . . . . . . . . . . . . . . . . . . . . 3-34
What Makes an Airbag
Inflate? . . . . . . . . . . . . . . . . . . . . . 3-36
How Does an Airbag Restrain? . . . . . . . . . . . . . . . . . . . 3-36
What Will You See After an Airbag Inflates? . . . . . . . . . . . . 3-37
Passenger Sensing System . . . . . . . . . . . . . . . . . . . . . 3-39
Servicing the Airbag-Equipped Vehicle . . . . . . . . . . . . . . . . . . . . . 3-44
Adding Equipment to the Airbag-Equipped Vehicle . . . 3-44
Airbag System Check . . . . . . . . 3-46
Replacing Airbag System Parts After a Crash . . . . . . . . . 3-46

Black plate (2,1)Cadillac SRX Owner Manual - 2011
3-2 Seats and Restraints
Child Restraints
Older Children . . . . . . . . . . . . . . . 3-47
Infants and YoungChildren . . . . . . . . . . . . . . . . . . . . 3-49
Child Restraint Systems . . . . . 3-51
Where to Put the Restraint . . . 3-53
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . 3-56
Replacing LATCH System Parts After a Crash . . . . . . . . . 3-64
Securing Child Restraints (Rear Seat) . . . . . . . . . . . . . . . . . 3-64
Securing Child Restraints (Front Passenger Seat) . . . . 3-66Head Restraints
Front Seats
The vehicle's front seats have
adjustable head restraints in all
outboard seating positions.
{WARNING
With head restraints that are
not installed and adjusted
properly, there is a greater
chance that occupants will suffer
a neck/spinal injury in a crash.
Do not drive until the head
restraints for all occupants are
installed and adjusted properly.
Adjust the head restraint so that the
top of the restraint is at the same
height as the top of the occupant's
head. This position reduces the
chance of a neck injury in a crash.

Black plate (3,1)Cadillac SRX Owner Manual - 2011
Seats and Restraints 3-3
1. To raise or lower the headrestraint, press the release
button while pulling up or
pushing down on the head
restraint.
2. Release the button then pull up or push down on the head
restraint to make sure it is
locked in place.
The front head restraints are
designed not to be removed.
Rear Seats
The rear seats have adjustable
head restraints in the outboard
seating positions.
1. Pull the head restraint up to raise it.
2. To lower the head restraint, press the release button while
pushing the head restraint down.
3. Release the button.
4. Push down on the head restraint to make sure it is locked in
place.
The center seating position has
an integrated headrest that can be
adjusted the same way as the head
restraints.
If you are installing a child restraint
in the rear seat, see “Securing a
Child Restraint Designed for the
LATCH System” underLower
Anchors and Tethers for Children
(LATCH System) on page 3‑56.

Black plate (4,1)Cadillac SRX Owner Manual - 2011
3-4 Seats and Restraints
Front Seats
Seat Adjustment
{WARNING
You can lose control of the
vehicle if you try to adjust a
manual driver seat while the
vehicle is moving. The sudden(Continued)
WARNING (Continued)
movement could startle and
confuse you, or make you push
a pedal when you do not want to.
Adjust the driver seat only when
the vehicle is not moving.
To adjust a manual seat:
1. Pull the handle at the front of the seat cushion.
2. Move the seat forward or rearward to adjust the seat
position.
3. Release the handle to stop the seat from moving.
4. Try to move the seat back and forth to be sure it is locked in
place.
Power Seat Adjustment
To adjust a power seat, if equipped:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the front or rear
part of the seat cushion by
moving the front or rear of the
control up or down.
.Raise or lower the seat by
moving the control up or down.
To adjust the seatback, see
Reclining Seatbacks on page 3‑8.

Black plate (5,1)Cadillac SRX Owner Manual - 2011
Seats and Restraints 3-5

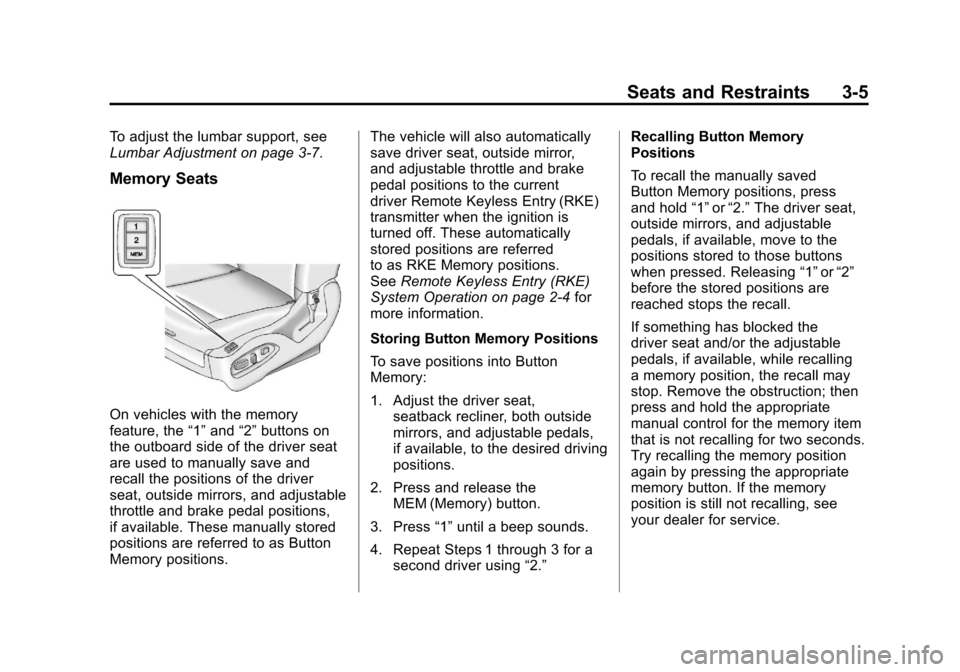

To adjust the lumbar support, see
Lumbar Adjustment on page 3‑7.
Memory Seats
On vehicles with the memory
feature, the“1”and “2”buttons on
the outboard side of the driver seat
are used to manually save and
recall the positions of the driver
seat, outside mirrors, and adjustable
throttle and brake pedal positions,
if available. These manually stored
positions are referred to as Button
Memory positions. The vehicle will also automatically
save driver seat, outside mirror,
and adjustable throttle and brake
pedal positions to the current
driver Remote Keyless Entry (RKE)
transmitter when the ignition is
turned off. These automatically
stored positions are referred
to as RKE Memory positions.
See
Remote Keyless Entry (RKE)
System Operation on page 2‑4 for
more information.
Storing Button Memory Positions
To save positions into Button
Memory:
1. Adjust the driver seat, seatback recliner, both outside
mirrors, and adjustable pedals,
if available, to the desired driving
positions.
2. Press and release the MEM (Memory) button.
3. Press “1”until a beep sounds.
4. Repeat Steps 1 through 3 for a second driver using “2.”Recalling Button Memory
Positions
To recall the manually saved
Button Memory positions, press
and hold
“1”or“2.” The driver seat,
outside mirrors, and adjustable
pedals, if available, move to the
positions stored to those buttons
when pressed. Releasing “1”or“2”
before the stored positions are
reached stops the recall.
If something has blocked the
driver seat and/or the adjustable
pedals, if available, while recalling
a memory position, the recall may
stop. Remove the obstruction; then
press and hold the appropriate
manual control for the memory item
that is not recalling for two seconds.
Try recalling the memory position
again by pressing the appropriate
memory button. If the memory
position is still not recalling, see
your dealer for service.

Black plate (6,1)Cadillac SRX Owner Manual - 2011
3-6 Seats and Restraints
Recalling RKE Memory Positions
(Memory Remote Recall)
The Memory Remote Recall feature
can recall the driver seat, outside
mirrors, and adjustable pedals,
if available, to previously stored
RKE Memory positions when
entering the vehicle.
Every time the ignition is
placed in OFF, the positions
of the driver seat, outside mirrors,
and adjustable pedals, if available,
are automatically stored to the RKE
transmitter that was used to start
the vehicle. These positions are
called RKE Memory positions and
may be different than the previously
mentioned Button Memory positions
saved to the“1”or“2” buttons. To automatically recall RKE
Memory positions, unlock the driver
door with the RKE transmitter, and
open the driver door. On vehicles
with Keyless Access, opening the
driver door when an RKE transmitter
is present will activate the RKE
Memory recall. If the driver door
is already open, pressing the
RKE transmitter
Kbutton will also
activate the RKE Memory recall.
The driver seat, outside mirrors,
and pedals, if available, will move to
the previously saved RKE Memory
positions.
This feature is turned on or off using
the vehicle personalization menu.
See “Memory Remote Recall”
under Vehicle Personalization on
page 5‑40 for more information. To stop recall movement, press
one of the memory, power mirror,
or power seat controls, or the
adjustable pedal switch, if available.
If something has blocked the
driver seat and/or the adjustable
pedals, if available, while recalling
a memory position, the recall
may stop. Remove the obstruction;
then press and hold the appropriate
manual control for the memory item
that is not recalling for two seconds.
Try recalling the memory position
again by opening the driver door
and pressing the RKE transmitter
K
button. If the memory position is
still not recalling, see your dealer
for service.
