Black plate (3,1)Cadillac SRX Owner Manual - 2011

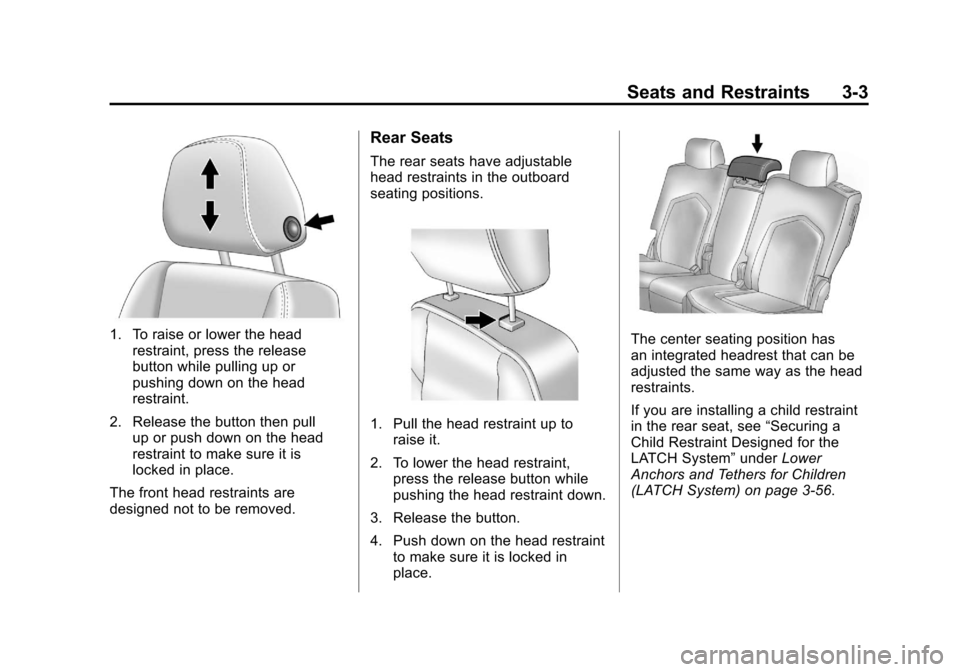

Seats and Restraints 3-3
1. To raise or lower the headrestraint, press the release
button while pulling up or
pushing down on the head
restraint.
2. Release the button then pull up or push down on the head
restraint to make sure it is
locked in place.
The front head restraints are
designed not to be removed.
Rear Seats
The rear seats have adjustable
head restraints in the outboard
seating positions.
1. Pull the head restraint up to raise it.
2. To lower the head restraint, press the release button while
pushing the head restraint down.
3. Release the button.
4. Push down on the head restraint to make sure it is locked in
place.
The center seating position has
an integrated headrest that can be
adjusted the same way as the head
restraints.
If you are installing a child restraint
in the rear seat, see “Securing a
Child Restraint Designed for the
LATCH System” underLower
Anchors and Tethers for Children
(LATCH System) on page 3‑56.

Black plate (62,1)Cadillac SRX Owner Manual - 2011

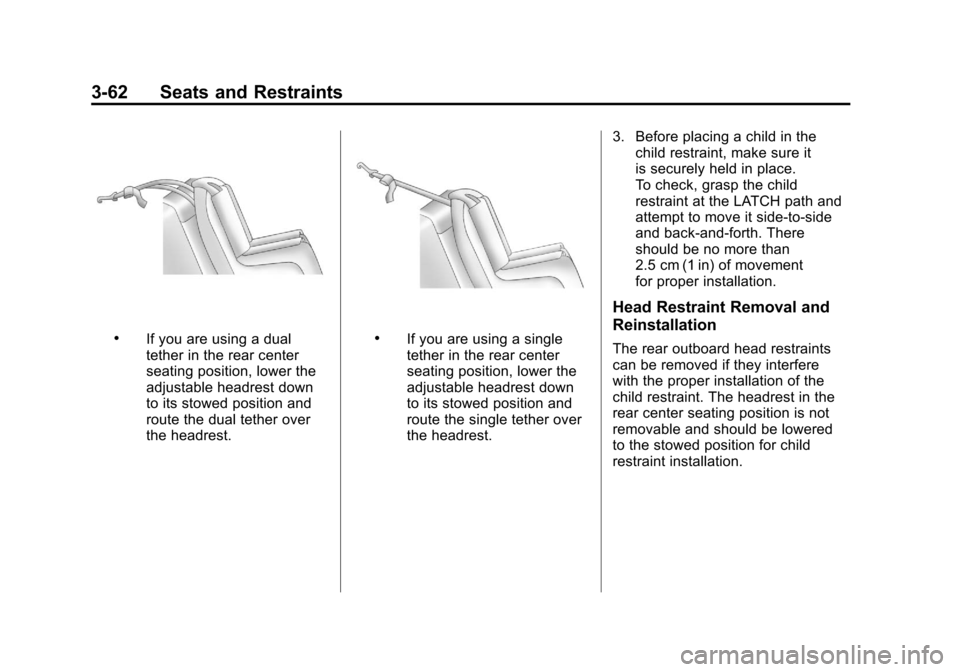

3-62 Seats and Restraints
.If you are using a dual
tether in the rear center
seating position, lower the
adjustable headrest down
to its stowed position and
route the dual tether over
the headrest..If you are using a single
tether in the rear center
seating position, lower the
adjustable headrest down
to its stowed position and
route the single tether over
the headrest.3. Before placing a child in the
child restraint, make sure it
is securely held in place.
To check, grasp the child
restraint at the LATCH path and
attempt to move it side‐to‐side
and back‐and‐forth. There
should be no more than
2.5 cm (1 in) of movement
for proper installation.
Head Restraint Removal and
Reinstallation
The rear outboard head restraints
can be removed if they interfere
with the proper installation of the
child restraint. The headrest in the
rear center seating position is not
removable and should be lowered
to the stowed position for child
restraint installation.
