Storage 4-3
Additional Storage
Features
Cargo Cover

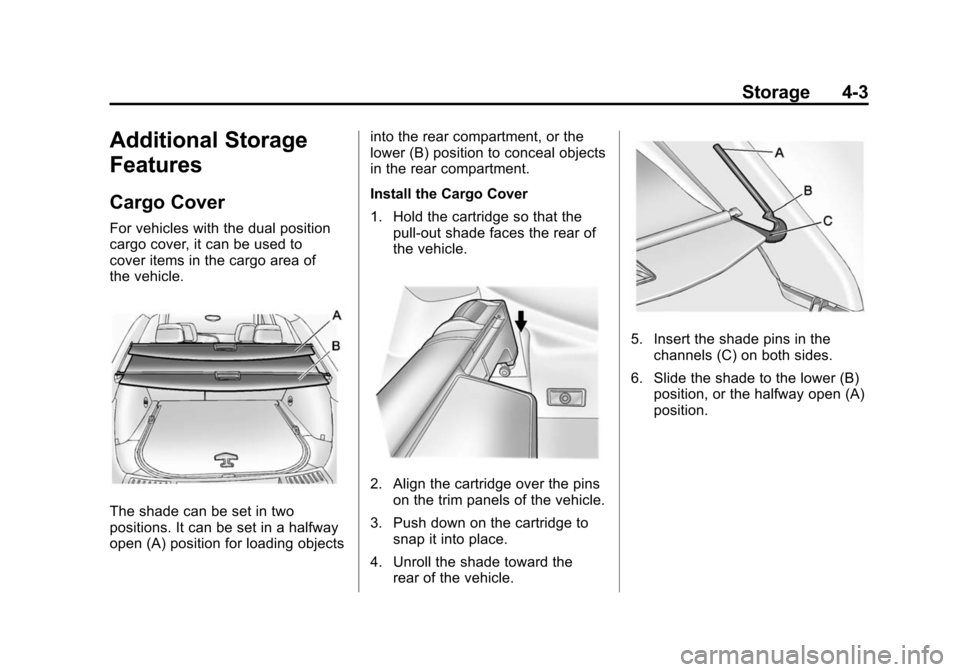

For vehicles with the dual position
cargo cover, it can be used to
cover items in the cargo area of
the vehicle.
The shade can be set in two
positions. It can be set in a halfway
open (A) position for loading objectsinto the rear compartment, or the
lower (B) position to conceal objects
in the rear compartment.
Install the Cargo Cover
1. Hold the cartridge so that the
pull‐out shade faces the rear of
the vehicle.
2. Align the cartridge over the pinson the trim panels of the vehicle.
3. Push down on the cartridge to snap it into place.
4. Unroll the shade toward the rear of the vehicle.
5. Insert the shade pins in the
channels (C) on both sides.
6. Slide the shade to the lower (B) position, or the halfway open (A)
position.

Black plate (4,1)Cadillac SRX Owner Manual (Include Mex) - 2012
4-4 Storage
Remove the Cargo Cover
1. Remove the cover from thechannels and carefully roll it
back up.

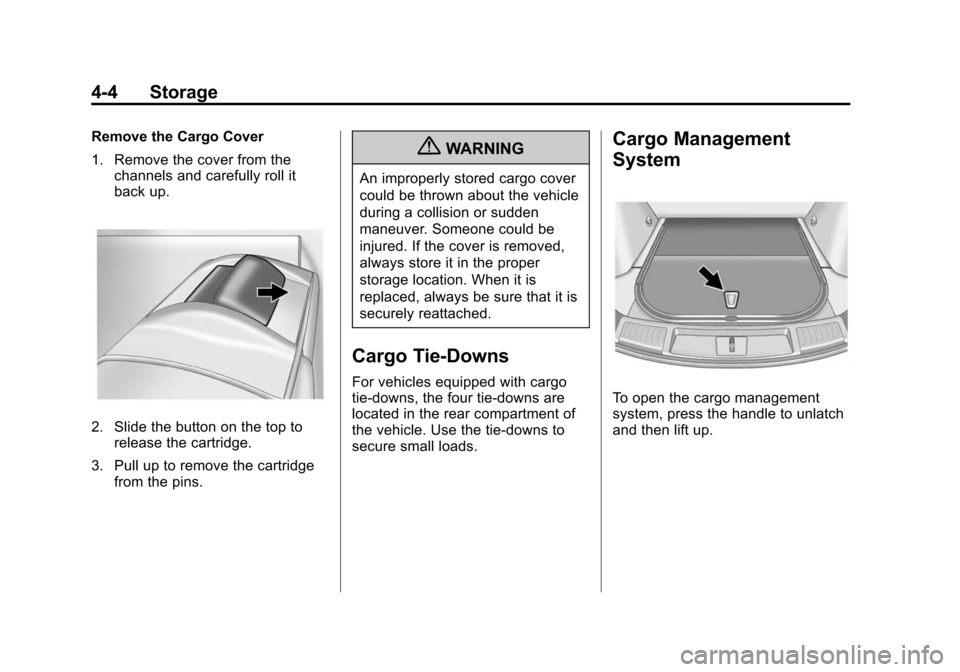

2. Slide the button on the top torelease the cartridge.
3. Pull up to remove the cartridge from the pins.
{WARNING
An improperly stored cargo cover
could be thrown about the vehicle
during a collision or sudden
maneuver. Someone could be
injured. If the cover is removed,
always store it in the proper
storage location. When it is
replaced, always be sure that it is
securely reattached.
Cargo Tie-Downs
For vehicles equipped with cargo
tie‐downs, the four tie-downs are
located in the rear compartment of
the vehicle. Use the tie-downs to
secure small loads.
Cargo Management
System
To open the cargo management
system, press the handle to unlatch
and then lift up.

Black plate (5,1)Cadillac SRX Owner Manual (Include Mex) - 2012
Storage 4-5
A prop rod locks to hold the cover
up when opened.
Four hooks are located on the
inside cover and can be used for
storing items.
There may be additional storage
compartments on each side of the
cargo management system. Lift the
panel up to open.Press the red button on the prop rod
to close the cover.
Rear Storage Area
{WARNING
An improperly latched and closed
cargo cover, or cargo cover left in
the open position, could be
thrown about the vehicle during a
crash or sudden maneuver.
Someone could be injured.(Continued)
WARNING (Continued)
Be sure to return the cover to the
closed position and latch before
driving. If the cover is removed,
always store it outside of the
vehicle. When it is replaced,
always be sure that it is
securely reattached.
To access the rear storage areas of
the cargo management system, and
the tire sealant and compressor kit:
1. Remove the cargo cover, if equipped.
2. Open the cargo management system cover.

Black plate (6,1)Cadillac SRX Owner Manual (Include Mex) - 2012
4-6 Storage
3. Release the prop rod from theinside cover by sliding the red
clip down.
Unhook the prop rod from the
pin on the inside cover. Store the
unhooked prop rod by folding it
into the cargo management
compartment.4. Store the cargo managementsystem cover by hooking it onto
the weatherstrip.
U-Rail
For vehicles with a u-rail system,
the fence can be moved to different
positions on the u-rail track to
secure cargo.

Black plate (7,1)Cadillac SRX Owner Manual (Include Mex) - 2012
Storage 4-7

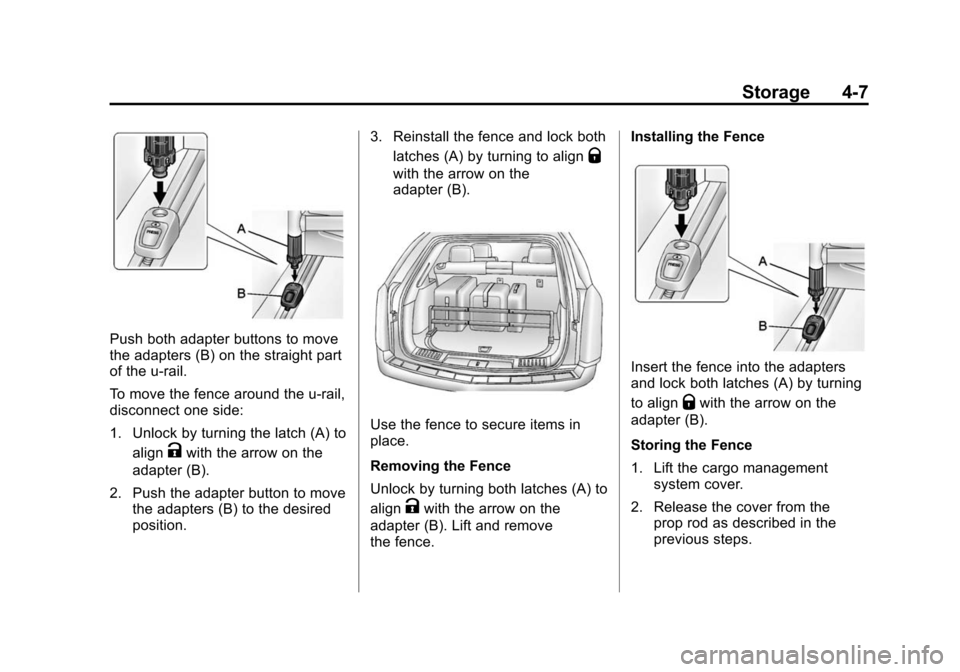

Push both adapter buttons to move
the adapters (B) on the straight part
of the u-rail.
To move the fence around the u-rail,
disconnect one side:
1. Unlock by turning the latch (A) toalign
Kwith the arrow on the
adapter (B).
2. Push the adapter button to move the adapters (B) to the desired
position. 3. Reinstall the fence and lock both
latches (A) by turning to align
Q
with the arrow on the
adapter (B).
Use the fence to secure items in
place.
Removing the Fence
Unlock by turning both latches (A) to
align
Kwith the arrow on the
adapter (B). Lift and remove
the fence. Installing the Fence
Insert the fence into the adapters
and lock both latches (A) by turning
to align
Qwith the arrow on the
adapter (B).
Storing the Fence
1. Lift the cargo management system cover.
2. Release the cover from the prop rod as described in the
previous steps.

Black plate (8,1)Cadillac SRX Owner Manual (Include Mex) - 2012
4-8 Storage

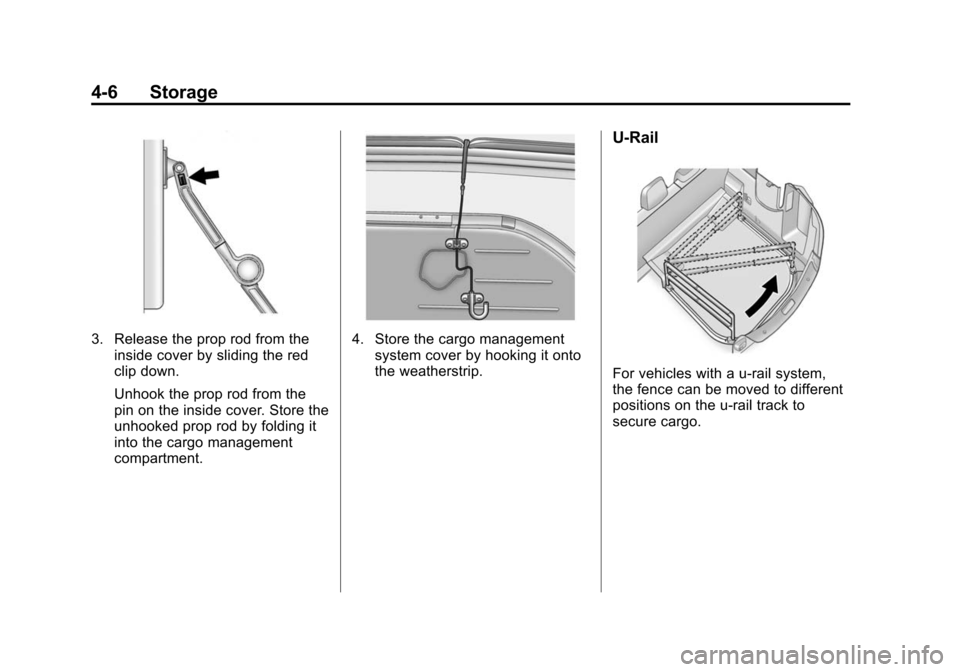

3. Insert the top of the fence intothe lower two clips (A).
4. Turn the bottom of the fence up and insert it into the upper two
clips (B).

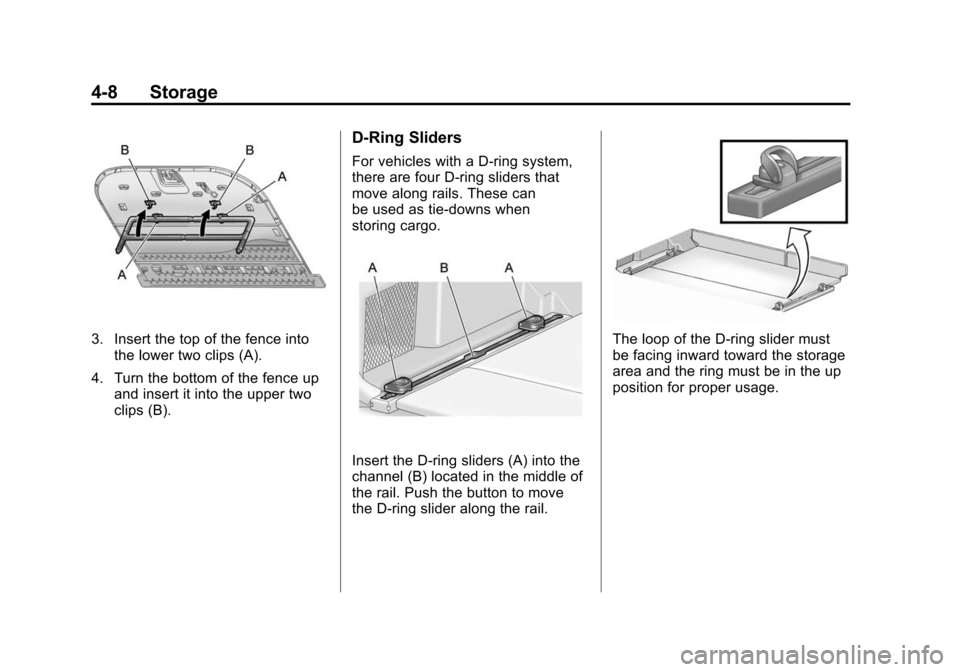

D-Ring Sliders
For vehicles with a D-ring system,
there are four D-ring sliders that
move along rails. These can
be used as tie-downs when
storing cargo.
Insert the D-ring sliders (A) into the
channel (B) located in the middle of
the rail. Push the button to move
the D-ring slider along the rail.
The loop of the D-ring slider must
be facing inward toward the storage
area and the ring must be in the up
position for proper usage.

Black plate (9,1)Cadillac SRX Owner Manual (Include Mex) - 2012
Storage 4-9
Cargo Net
{WARNING
Do not stack items higher than
the upper end of the cargo net or
hang anything from the net. Avoid
items that have sharp edges or
that apply excessive force to the
net. If items are not properly
stored, damage to the net could
occur and items can be thrown
about the vehicle. You or others
could be injured. Always store
items behind the net.
For vehicles equipped with a cargo
net, it can be used to store light
loads, keeping them from falling
over or being thrown into the cabin
during heavy braking.
The net should not be overloaded or

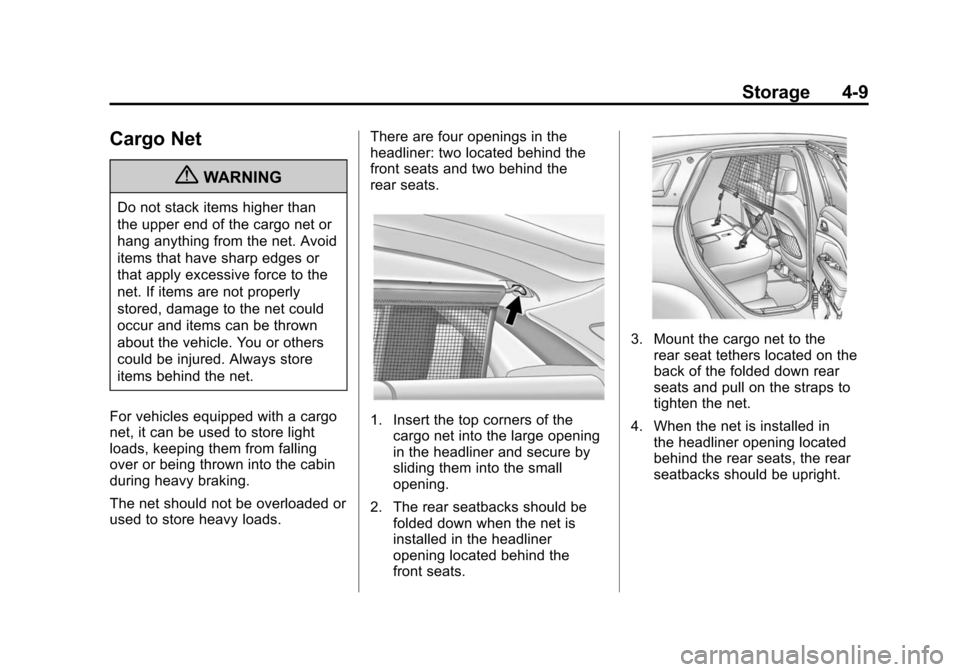

used to store heavy loads. There are four openings in the
headliner: two located behind the
front seats and two behind the
rear seats.
1. Insert the top corners of the
cargo net into the large opening
in the headliner and secure by
sliding them into the small
opening.
2. The rear seatbacks should be folded down when the net is
installed in the headliner
opening located behind the
front seats.
3. Mount the cargo net to therear seat tethers located on the
back of the folded down rear
seats and pull on the straps to
tighten the net.
4. When the net is installed in the headliner opening located
behind the rear seats, the rear
seatbacks should be upright.

Black plate (10,1)Cadillac SRX Owner Manual (Include Mex) - 2012
4-10 Storage
5. Mount the cargo net to the cargotie-downs located on the lower
side panels.6. Pull on the straps to tightenthe net.
Cargo Net Storage
The cargo net can be removed from
the vehicle and stored in the cargo
management system.
1. Disconnect the net from the roofopenings and the tethers.
2. Press the red button on the center of the net to fold it in half. 3. Roll up the cargo net, storing it
into the attached vinyl bag.
4. Open the cargo management system cover.
5. For vehicles with an inflator kit, store the cargo net in the
available space next to the kit.
Convenience Net
This vehicle may have a
convenience net located in the rear
of the vehicle. Attach it to the cargo
tie‐downs for storing small loads.
Do not use the net to store heavy
loads.

Black plate (11,1)Cadillac SRX Owner Manual (Include Mex) - 2012
Storage 4-11
Roof Rack System
{WARNING
If something is carried on top of
the vehicle that is longer or wider
than the roof rack—like paneling,
plywood, or a mattress —the
wind can catch it while the vehicle
is being driven. The item being
carried could be violently torn off,
and this could cause a collision
and damage the vehicle. Never
carry something longer or wider
than the roof rack on top of the
vehicle unless using a GM
certified accessory carrier.

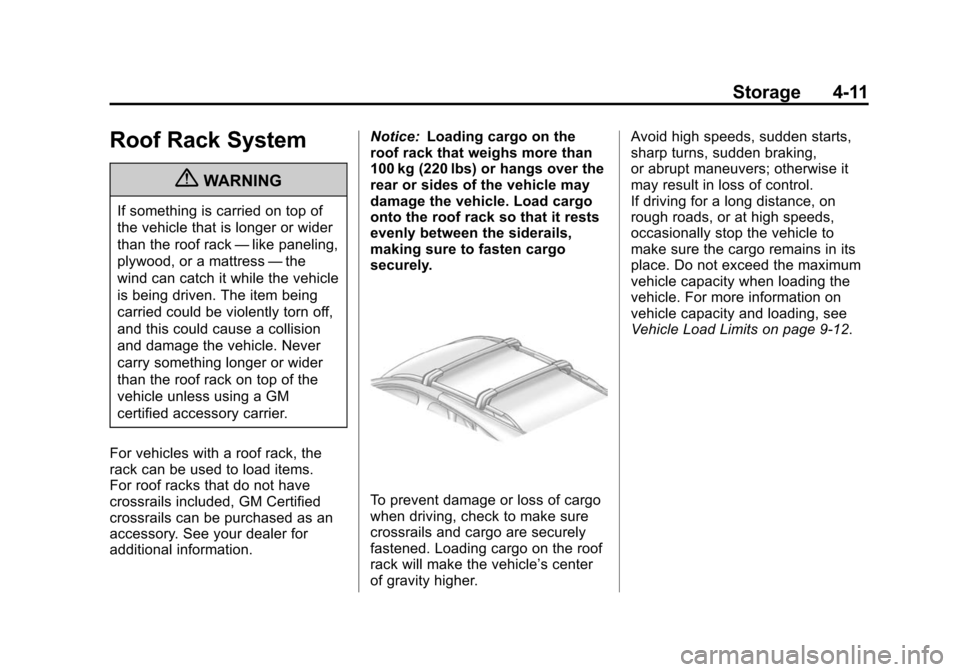

For vehicles with a roof rack, the
rack can be used to load items.
For roof racks that do not have
crossrails included, GM Certified
crossrails can be purchased as an
accessory. See your dealer for
additional information. Notice:
Loading cargo on the
roof rack that weighs more than
100 kg (220 lbs) or hangs over the
rear or sides of the vehicle may
damage the vehicle. Load cargo
onto the roof rack so that it rests
evenly between the siderails,
making sure to fasten cargo
securely.
To prevent damage or loss of cargo
when driving, check to make sure
crossrails and cargo are securely
fastened. Loading cargo on the roof
rack will make the vehicle’ s center
of gravity higher. Avoid high speeds, sudden starts,
sharp turns, sudden braking,
or abrupt maneuvers; otherwise it
may result in loss of control.
If driving for a long distance, on
rough roads, or at high speeds,
occasionally stop the vehicle to
make sure the cargo remains in its
place. Do not exceed the maximum
vehicle capacity when loading the
vehicle. For more information on
vehicle capacity and loading, see
Vehicle Load Limits on page 9‑12.
