USB port CADILLAC SRX 2013 2.G Owners Manual

Black plate (2,1)Cadillac SRX Owner Manual - 2013 - CRC - 11/9/12
4-2 Storage

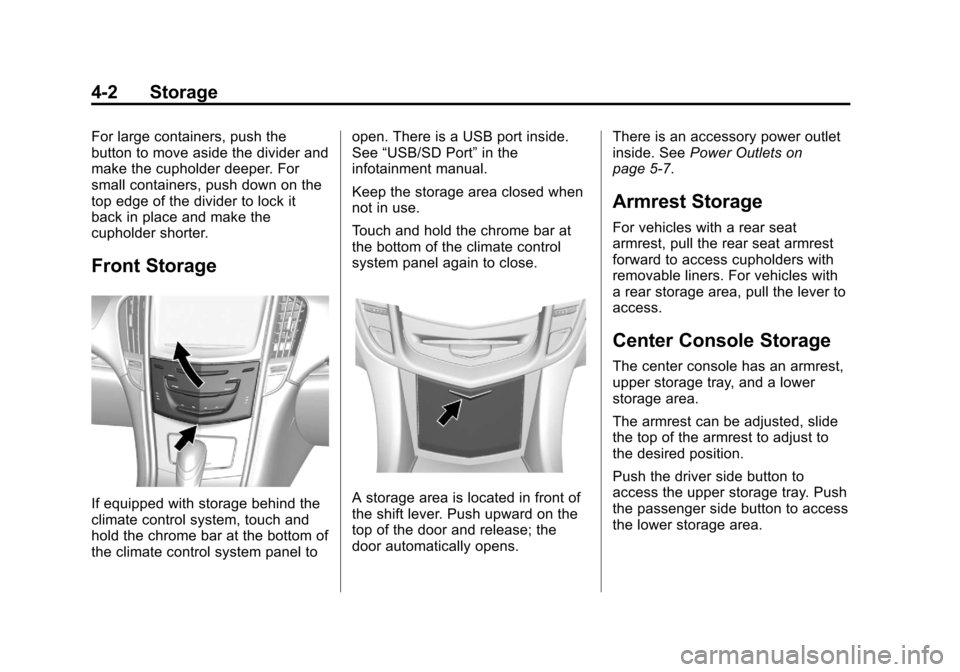

For large containers, push the
button to move aside the divider and
make the cupholder deeper. For
small containers, push down on the
top edge of the divider to lock it
back in place and make the
cupholder shorter.
Front Storage
If equipped with storage behind the
climate control system, touch and
hold the chrome bar at the bottom of
the climate control system panel toopen. There is a USB port inside.
See
“USB/SD Port” in the
infotainment manual.
Keep the storage area closed when
not in use.
Touch and hold the chrome bar at
the bottom of the climate control
system panel again to close.A storage area is located in front of
the shift lever. Push upward on the
top of the door and release; the
door automatically opens. There is an accessory power outlet
inside. See
Power Outlets on
page 5‑7.
Armrest Storage
For vehicles with a rear seat
armrest, pull the rear seat armrest
forward to access cupholders with
removable liners. For vehicles with
a rear storage area, pull the lever to
access.
Center Console Storage
The center console has an armrest,
upper storage tray, and a lower
storage area.
The armrest can be adjusted, slide
the top of the armrest to adjust to
the desired position.
Push the driver side button to
access the upper storage tray. Push
the passenger side button to access
the lower storage area.

Black plate (3,1)Cadillac SRX Owner Manual - 2013 - CRC - 11/9/12
Storage 4-3

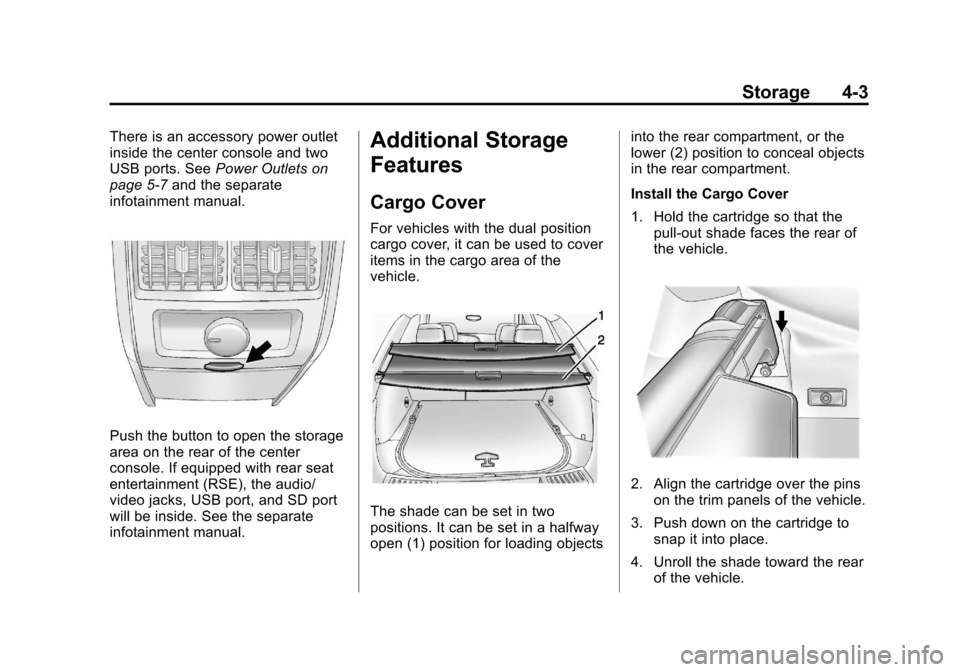

There is an accessory power outlet
inside the center console and two
USB ports. SeePower Outlets on
page 5‑7 and the separate
infotainment manual.
Push the button to open the storage
area on the rear of the center
console. If equipped with rear seat
entertainment (RSE), the audio/
video jacks, USB port, and SD port
will be inside. See the separate
infotainment manual.
Additional Storage
Features
Cargo Cover
For vehicles with the dual position
cargo cover, it can be used to cover
items in the cargo area of the
vehicle.
The shade can be set in two
positions. It can be set in a halfway
open (1) position for loading objects into the rear compartment, or the
lower (2) position to conceal objects
in the rear compartment.
Install the Cargo Cover
1. Hold the cartridge so that the
pull-out shade faces the rear of
the vehicle.
2. Align the cartridge over the pinson the trim panels of the vehicle.
3. Push down on the cartridge to snap it into place.
4. Unroll the shade toward the rear of the vehicle.
