Seats and Restraints 3-3
The front seat outboard head
restraints are not designed to be
removed.
Rear Seats
The vehicle's rear seats have
adjustable head restraints in the
outboard seating positions.
The height of the head restraint can
be adjusted. Pull the head restraint
up to raise it. Try to move the head
restraint to make sure that it is
locked in place.To lower the head restraint, press
the button, located on the top of the
seatback, and push the head
restraint down. Try to move the
head restraint after the button is
released to make sure that it is
locked in place.
The vehicle's rear seat has an
adjustable headrest in the center
seating position that can be
adjusted the same way as the
outboard head restraints.
If you are installing a child restraint
in the rear seat, see
“Securing a
Child Restraint Designed for the
LATCH System” underLower
Anchors and Tethers for Children
(LATCH System) on page 3‑41.

Black plate (47,1)Cadillac SRX Owner Manual - 2013 - CRC - 11/9/12
Seats and Restraints 3-47

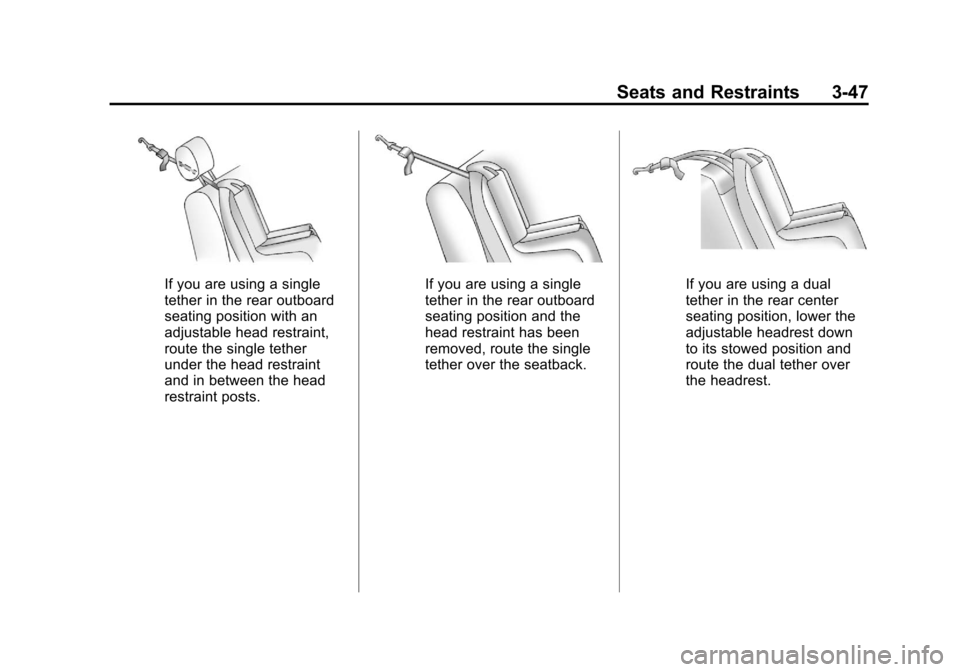

If you are using a single
tether in the rear outboard
seating position with an
adjustable head restraint,
route the single tether
under the head restraint
and in between the head
restraint posts.If you are using a single
tether in the rear outboard
seating position and the
head restraint has been
removed, route the single
tether over the seatback.If you are using a dual
tether in the rear center
seating position, lower the
adjustable headrest down
to its stowed position and
route the dual tether over
the headrest.

Black plate (48,1)Cadillac SRX Owner Manual - 2013 - CRC - 11/9/12
3-48 Seats and Restraints

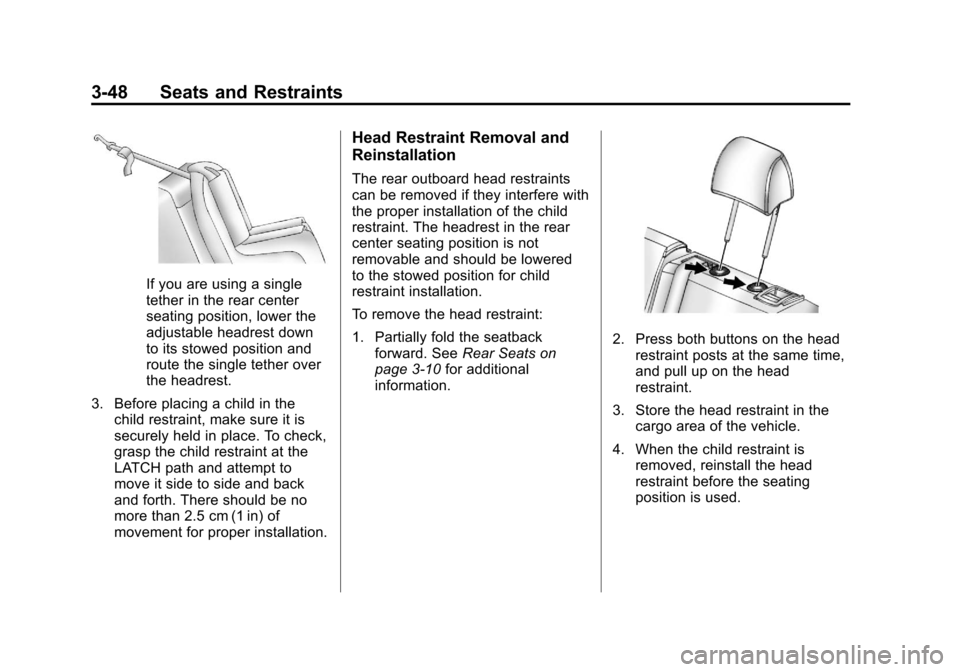

If you are using a single
tether in the rear center
seating position, lower the
adjustable headrest down
to its stowed position and
route the single tether over
the headrest.
3. Before placing a child in the child restraint, make sure it is
securely held in place. To check,
grasp the child restraint at the
LATCH path and attempt to
move it side to side and back
and forth. There should be no
more than 2.5 cm (1 in) of
movement for proper installation.
Head Restraint Removal and
Reinstallation
The rear outboard head restraints
can be removed if they interfere with
the proper installation of the child
restraint. The headrest in the rear
center seating position is not
removable and should be lowered
to the stowed position for child
restraint installation.
To remove the head restraint:
1. Partially fold the seatbackforward. See Rear Seats on
page 3‑10 for additional
information.
2. Press both buttons on the head restraint posts at the same time,
and pull up on the head
restraint.
3. Store the head restraint in the cargo area of the vehicle.
4. When the child restraint is removed, reinstall the head
restraint before the seating
position is used.
