Anti-Pinch:If an object is in the path of the
sunroof while it is closing, the anti-pinch feature
will detect the object and stop the sunroof
from closing at the point of the obstruction. The
sunroof will then return to the full-open or
vent position. To close the sunroof once it has
re-opened, refer to the two options previously
described under the “Close” feature instructions.
Vehicle Personalization
Your vehicle has personalization that allows you to
program certain features to a preferred setting
for up to two drivers. The back of the keyless
access transmitters are labelled 1 or 2. Additional
keyless access transmitters programmed to
the vehicle, as 3 and/or 4, do not have a number
on the back and are not capable of being
personalized. The number of programmable
features varies depending upon which vehicle
options are purchased.
On all vehicles, features such as climate control
settings, radio and XM™ preset settings, exterior
lighting at unlock and remote lock unlock
conrmation, and language have already been
programmed for your convenience. Your vehicle
also has an automatic door locking featurethat is always on. You cannot turn the automatic
door locking feature off. SeeProgrammable
Automatic Door Locks on page 99.
Some vehicles have additional features that can
be programmed including the seat, steering
column, and outside rearview mirror position.
If your vehicle has the base audio system,
the following information explains the vehicle
personalization on your vehicle.
If your vehicle has the Navigation system, see
“Personalization” in the Index of the Navigation
System manual for information on vehicle
personalization.
If your vehicle has the ability to program additional
personalization features, the driver’s preferences
are recalled by pressing any button on the keyless
access transmitter, 1 or 2, by selecting
Driver 1 or 2 on the radio display, or when a valid
keyless access transmitter is detected upon
opening the driver’s door.
If more than one valid keyless access transmitter
is detected upon opening the driver’s door, the
driver preferences for the lowest driver number will
be recalled.
148

For vehicles with the Navigation system, memory
features are programmed and recalled through
the navigation display. See “Personalization” in the
Index of the Navigation System manual for more
information on programming and recalling the
memory settings using the Navigation system.
For vehicles with the Navigation system, you can
also recall the memory features by using voice
recognition, if your vehicle has this feature.
See “Voice Recognition” in the Index of the
Navigation System manual for more information.
Entering the Driver Selection
Submenu
To enter the memory programming mode for your
driver settings, use the following procedure:
1. Be sure the ignition is either on, in Acc., or in
RAP and place the transmission in PARK (P)
or make sure that the vehicle speed is
less than 6 mph (9 km/h).
2. Press any button on the appropriate keyless
access transmitter to identify yourself as
Driver 1 or Driver 2.3. Turn on the radio by pressing the
power/volume knob.
4. Press the CNFG radio button to enter the
main menu of the radio.
5. Turn the tune/select knob and scroll to
SETUP.
6. Press the tune/select knob to enter the
SETUP menu.
7. Turn the tune/select knob and scroll to
DRIVER SELECTION.
8. Press the tune/select knob to enter the
DRIVER SELECTION submenu. The following
items will appear:DRIVER 1
DRIVER 2
RECALL DRIVER SETTINGS
STORE DRIVER SETTINGS
170

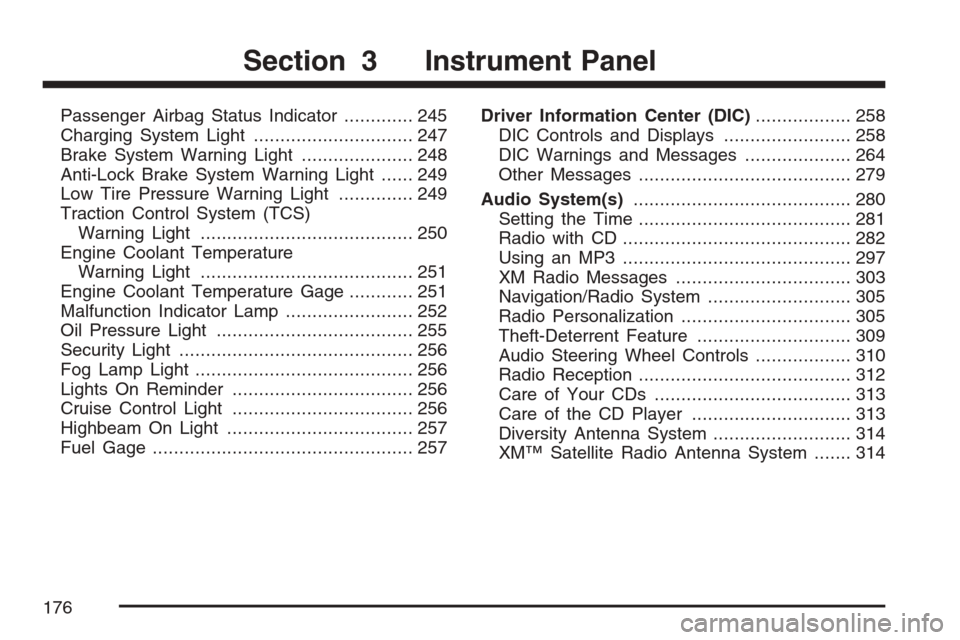

Passenger Airbag Status Indicator............. 245
Charging System Light.............................. 247
Brake System Warning Light..................... 248
Anti-Lock Brake System Warning Light...... 249
Low Tire Pressure Warning Light.............. 249
Traction Control System (TCS)
Warning Light........................................ 250
Engine Coolant Temperature
Warning Light........................................ 251
Engine Coolant Temperature Gage............ 251
Malfunction Indicator Lamp........................ 252
Oil Pressure Light..................................... 255
Security Light............................................ 256
Fog Lamp Light......................................... 256
Lights On Reminder.................................. 256
Cruise Control Light.................................. 256
Highbeam On Light................................... 257
Fuel Gage................................................. 257Driver Information Center (DIC).................. 258
DIC Controls and Displays........................ 258
DIC Warnings and Messages.................... 264
Other Messages........................................ 279
Audio System(s)......................................... 280
Setting the Time........................................ 281
Radio with CD........................................... 282
Using an MP3........................................... 297
XM Radio Messages................................. 303
Navigation/Radio System........................... 305
Radio Personalization................................ 305
Theft-Deterrent Feature............................. 309
Audio Steering Wheel Controls.................. 310
Radio Reception........................................ 312
Care of Your CDs..................................... 313
Care of the CD Player.............................. 313
Diversity Antenna System.......................... 314
XM™ Satellite Radio Antenna System....... 314
Section 3 Instrument Panel
176

The main components of your instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on
page 237.
B. Instrument Panel Brightness Control. See
Instrument Panel Brightness on page 220.
Driver Information Center (DIC) Buttons. See
DIC Controls and Displays on page 258.
HUD Controls (If Equipped). SeeHead-Up
Display (HUD) on page 223.
C. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 182.
Headlamp Controls. SeeHeadlamps on
page 211. Cruise Control. SeeCruise Control
on page 193. Adaptive Cruise Control (If
Equipped). SeeAdaptive Cruise Control on
page 197. Forward Collision Alert (FCA)
(If Equipped). SeeForward Collision Alert
(FCA) System on page 184.
D. Instrument Panel Cluster. SeeInstrument
Panel Cluster on page 242.
E. Windshield Wiper/Washer Lever. See
Windshield Wipers on page 189.
F. Navigation/Radio System. SeeAudio System(s)
on page 280andNavigation/Radio System
on page 305.G. Audio Steering Wheel Controls (If Equipped).
SeeAudio Steering Wheel Controls on
page 310. Adaptive Cruise Control Gap Button
(If Equipped). SeeAdaptive Cruise Control
on page 197. Heated Steering Wheel Button (If
Equipped). SeeHeated Steering Wheel on
page 181.
H. Power Tilt Wheel and Telescopic Steering
Column.Power Tilt Wheel and Telescopic
Steering Column on page 181.
I. Horn. SeeHorn on page 180.
J. Ignition Switch. SeeIgnition Positions on
page 111.
K. Climate Control System. SeeDual Climate
Control System on page 230.
L. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 180.
M. Cupholders. SeeCupholder(s) on page 146.
N. Traction Control System Button. SeeTraction
Control System (TCS) on page 323.
O. Shift Lever. SeeAutomatic Transmission
Operation on page 116.
P. Glove Box. SeeGlove Box on page 146.
179

OIL PRESSURE (STS-V Only)
This display shows the oil pressure in either
pounds per square inch (psi) or kilopascals (kPa).
TRANS (Transmission) FLUID TEMP
(Temperature) (STS-V Only)
This display shows the transmission uid
temperature in either degrees Fahrenheit (°F) or
degrees Celsius (°C).
Trip Information Display Menu Items
The following display menu items can be displayed
by pressing the trip Information button.
Odometer
Press the trip information button until the odometer
appears on the DIC display. The odometer
shows the total distance the vehicle has been
driven in either miles (mi) or kilometers (km).
Trip Odometer
Press the trip information button until trip
odometer A or B appears on the DIC display.
The trip odometer shows the current distance
traveled since the last reset for each trip odometer
in either miles (mi) or kilometers (km). Both
odometers can be used at the same time.For base level vehicles, each trip odometer can be
reset to zero separately by pressing and holding
the bottom of the trip information button while
the desired trip odometer is displayed. For uplevel
vehicles, reset each trip odometer by pressing
the reset button or by pressing and holding the trip
information button while the desired trip odometer
is displayed.
DIC Warnings and Messages
These messages appear if there is a problem
detected in one of your vehicle’s systems. The text
messages are the same for both the base audio
and Navigation systems unless otherwise
indicated.
You must acknowledge a message to clear it from
the screen for further use. To clear a message,
press the reset button.
Be sure to take any message that appears on the
screen seriously and remember that clearing
the message will only make the message
disappear, not the problem.
264

Navigation/Radio System
Your vehicle could have a navigation radio
system.
The navigation system has built-in features
intended to minimize driver distraction. Technology
alone, no matter how advanced, can never
replace your own judgment. See the Navigation
System manual for some tips to help you
reduce distractions while driving.
Radio Personalization
Accessing the Radio’s Main Menu
(Base Audio System)
There are two different procedures for accessing
the radio’s main menu depending upon whether
or not your vehicle has the Navigation system.To access the main menu of the radio, do one of
the following:
Using the Base audio system, press the
CNFG button located on the radio or press the
tune/select knob located on the right side of
the radio. Then turn the tune/select knob
clockwise or counterclockwise to scroll through
the menu items.
If your vehicle has the Navigation system, see
the Navigation System manual supplied with
your vehicle for more information on accessing
the main menu and for descriptions of the
menu items for the Navigation system.
305

The main menu for the Base audio system
consists of the following menu items:
eBASS - MID - TREBLE
xBALANCE - FADER
eEQ EQUALIZER
H/A (HOME/AWAY) PRESETS
AUTOSTORE PRESETS
CAT CATEGORY
TA TRAFFIC ANNOUNCE
RECALL RDS (Radio Data System)
MESSAGE
AF ALTERNATE FREQ. (Frequency)
ASEEK LOCAL/DISTANT
8SET CLOCK
BSET DATE
4INFO (Information)
LANG LANGUAGE
SETUP
Radio Main Menu Item Descriptions
(Base Audio System)
The following descriptions are for the Base audio
system. For information pertaining to the
Navigation audio system, see “Audio System” in
the Index of the Navigation System manual
supplied with your vehicle.
eBASS - MID (Midrange) - TREBLE:This
menu item lets you adjust the levels for the bass,
midrange and treble features of the audio
system. See “Setting the Tone (Bass/Treble)”
underRadio with CD on page 282for more
information.
xBALANCE - FADER:This menu item lets you
adjust the levels for the balance and fader
features of the audio system. See “Adjusting the
Speakers (Balance/Fade)” underRadio with CD on
page 282for more information.
eEQ (Equalizer):This menu item lets you
choose among ve preset equalizations for the
audio system. See “Audio Equalizer” underRadio
with CD on page 282for more information.
306

If your vehicle has the navigation system, press
this button to initiate voice recognition. See “Voice
Recognition” in the Navigation System manual
for more information. While in Voice Recognition,
say “OnStar” to interact with the OnStar
®system.
See theOnStar®System on page 132in this
manual for more information.
+
u— (Volume):Press this button to increase
or to decrease the volume.
+
tu−(Seek) (STS Only):Press either arrow
to go to the next or the previous radio station
and stay there. The radio seeks stations only with
a strong signal that are in the selected band.
When a CD is playing, press the minus sign to go
to the start of the current track, if more than
10 seconds have played. Press the plus sign to go
to the next track. If either the minus or the plus
button are pressed more than once, the player
continues moving backward or forward through
the CD.
Press and hold the SEEK plus or minus button,
until a beep sounds. The CD fast forwards or fast
reverses through the CD. Press either button
again to play the passage.
¨(Seek) (STS-V Only):Press the seek arrow
to go to the next radio station and stay there.
The system will only seek radio stations with
strong frequencies.
While the seek arrow is pressed and held for
two seconds, the system will scan the radio
stations that are in the selected band. If listening
to a CD, the system will advance to the next
track of that particular CD.
While a CD is playing in the six-disc CD changer,
press this arrow to go to the next available CD,
if multiple CDs are loaded.
1-6 (Preset Stations):Press this button to play
stations that are programmed on the radio
preset pushbuttons. The radio only seeks preset
stations with a strong signal that are in the
selected band.
While a CD is playing, press this button to go to
the next track.
While a CD is playing in the six-disc CD changer,
press this button to go to the next available
CD, if multiple CDs are loaded.
311

Appearance Care (cont.)
Vehicle Care/Appearance Materials.......... 484
Washing Your Vehicle.............................. 480
Weatherstrips........................................... 480
Windshield and Wiper Blades................... 481
Wood Panels........................................... 479
Ashtray(s).................................................... 229
Audio System(s).......................................... 280
Audio Steering Wheel Controls................. 310
Care of Your CD Player........................... 313
Care of Your CDs.................................... 313
Diversity Antenna System......................... 314
Navigation/Radio System, see
Navigation Manual................................ 305
Audio Systems
Radio Personalization............................... 305
Audio System(s)
Radio with CD......................................... 282
Setting the Time...................................... 281
Theft-Deterrent Feature............................ 309
Understanding Radio Reception............... 312
XM™ Satellite Radio Antenna System...... 314
Automatic Transmission
Fluid........................................................ 388
Operation................................................. 116B
Battery........................................................ 408
Electric Power Management..................... 221
Exterior Lighting Battery Saver................. 219
Inadvertent Power Saver.......................... 222
Load Management................................... 221
Before Leaving on a Long Trip.................... 340
Brake
Anti-Lock Brake System (ABS)................. 321
Emergencies............................................ 323
Panic Assist............................................. 327
Parking.................................................... 121
System Warning Light.............................. 248
Brakes........................................................ 405
Braking....................................................... 320
Braking in Emergencies............................... 323
Break-In, New Vehicle................................. 111
Bulb Replacement....................................... 417
Back-Up Lamps....................................... 418
Halogen Bulbs......................................... 418
High Intensity Discharge (HID) Lighting.... 418
Replacement Bulbs.................................. 419
Buying New Tires........................................ 441
546

M
Magnetic Ride Control................................. 325
Maintenance Schedule
Additional Required Services.................... 508
At Each Fuel Fill...................................... 513
At Least Once a Month............................ 513
At Least Once a Year.............................. 514
Introduction.............................................. 502
Maintenance Footnotes............................ 510
Maintenance Record................................ 521
Maintenance Requirements...................... 502
Normal Maintenance Replacement
Parts.................................................... 518
Owner Checks and Services.................... 512
Recommended Fluids and Lubricants....... 516
Scheduled Maintenance........................... 505
Using....................................................... 503
Your Vehicle and the Environment............ 503
Malfunction Indicator Light........................... 252
Memory Mirrors........................................... 169
Memory Seat............................................... 169
Memory Steering Wheel Controls................ 169
Message
DIC Warnings and Messages................... 264Mirrors
Automatic Dimming Rearview................... 127
Automatic Dimming Rearview Mirror with
Intellibeam™ and OnStar®.................... 127
Automatic Dimming Rearview with
OnStar
®................................................ 127
Automatic Dimming Rearview with
OnStar
®and Compass......................... 128
Manual Rearview Mirror with Compass
and Temperature.................................... 14
Memory................................................... 169
Outside Automatic Dimming Mirror........... 131
Outside Convex Mirror............................. 131
Outside Parallel Park Assist Mirror........... 131
Outside Power Heated Mirrors................. 130
MP3 ............................................................ 297
MyGMLink.com............................................ 528
N
Navigation/Radio System, see
Navigation Manual................................... 305
New Vehicle Break-In.................................. 111
Normal Maintenance Replacement Parts..... 518
553
