CADILLAC STS 2008 1.G Owners Manual

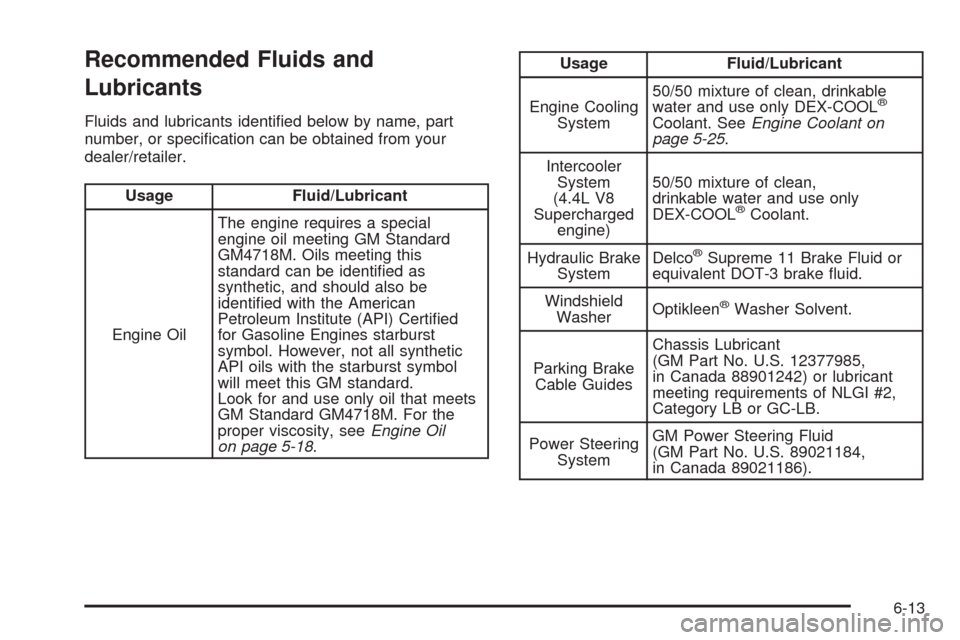

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name, part
number, or specication can be obtained from your
dealer/retailer.
Usage Fluid/Lubricant
Engine OilThe engine requires a special
engine oil meeting GM Standard
GM4718M. Oils meeting this
standard can be identied as
synthetic, and should also be
identied with the American
Petroleum Institute (API) Certied
for Gasoline Engines starburst
symbol. However, not all synthetic
API oils with the starburst symbol
will meet this GM standard.
Look for and use only oil that meets
GM Standard GM4718M. For the
proper viscosity, seeEngine Oil
on page 5-18.
Usage Fluid/Lubricant
Engine Cooling
System50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 5-25.
Intercooler
System
(4.4L V8
Supercharged
engine)50/50 mixture of clean,
drinkable water and use only
DEX-COOL
®Coolant.
Hydraulic Brake
SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
WasherOptikleen
®Washer Solvent.
Parking Brake
Cable GuidesChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
6-13

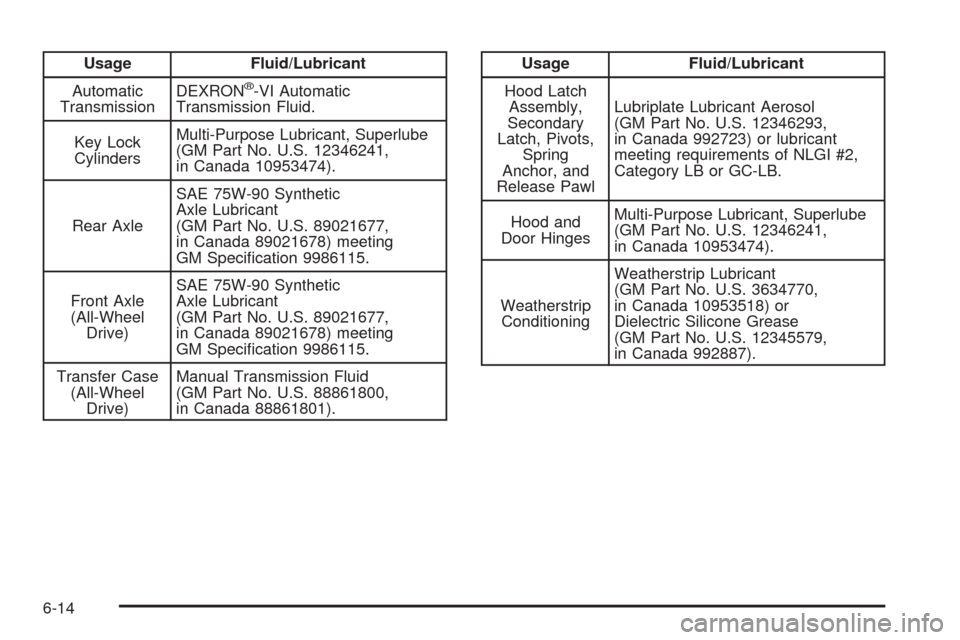

Usage Fluid/Lubricant
Automatic
TransmissionDEXRON
®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Rear AxleSAE 75W-90 Synthetic
Axle Lubricant
(GM Part No. U.S. 89021677,
in Canada 89021678) meeting
GM Specication 9986115.
Front Axle
(All-Wheel
Drive)SAE 75W-90 Synthetic
Axle Lubricant
(GM Part No. U.S. 89021677,
in Canada 89021678) meeting
GM Specication 9986115.
Transfer Case
(All-Wheel
Drive)Manual Transmission Fluid
(GM Part No. U.S. 88861800,
in Canada 88861801).
Usage Fluid/Lubricant
Hood Latch
Assembly,
Secondary
Latch, Pivots,
Spring
Anchor, and
Release PawlLubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and
Door HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Weatherstrip
ConditioningWeatherstrip Lubricant
(GM Part No. U.S. 3634770,
in Canada 10953518) or
Dielectric Silicone Grease
(GM Part No. U.S. 12345579,
in Canada 992887).
6-14

Normal Maintenance Replacement Parts
Replacement parts identied below by name, part number, or specication can be obtained from your dealer/retailer.
Part GM Part Number ACDelco®Part Number
Engine Air Cleaner/Filter Element
3.6L and 4.6L Engines 25735595 or 25798271 A2944C
4.4L (V-Series) Engine 15813300 A3078C
Engine Oil Filter
3.6L Engine 25177917 PF2129
4.4L (V-Series) Engine 89017527
1PF261
4.6L Engine 89017342 PF61
Passenger Compartment Air Filter 88957450 CF13C
Spark Plugs
3.6L Engine 12597464 41-990
4.4L (V-Series) Engine 12592619 41-991
4.6L Engine 12571535 41-987
Windshield Wiper Blade
Driver’s Side – 22 inches (56.5 cm) 88958361 —
Passenger’s Side – 21 inches (53.0 cm) 88958359 —
1Notice: If your vehicle is an STS-V model, the engine uses a special oil lter. The use of any other engine
oil lter could lead to lter failure and result in severe engine damage. Damage caused by use of the
wrong engine oil lter would not be covered by your new vehicle warranty.
6-15

Engine Drive Belt Routing
3.6L V6 Engine
4.4L V8 Engine
6-16

4.6L V8 Engine
6-17

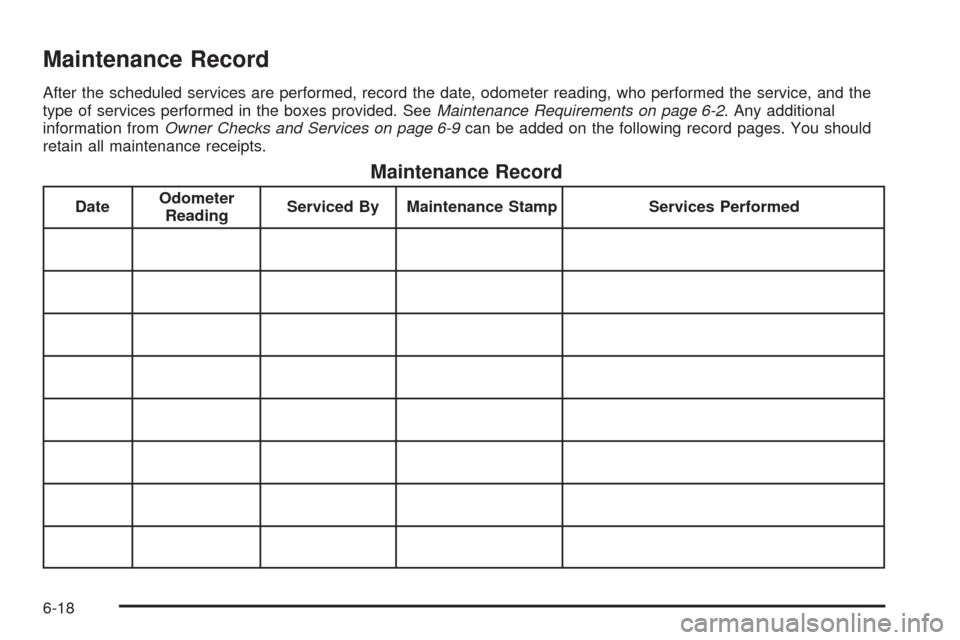

Maintenance Record
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. SeeMaintenance Requirements on page 6-2. Any additional
information fromOwner Checks and Services on page 6-9can be added on the following record pages. You should
retain all maintenance receipts.
Maintenance Record
DateOdometer
ReadingServiced By Maintenance Stamp Services Performed
6-18

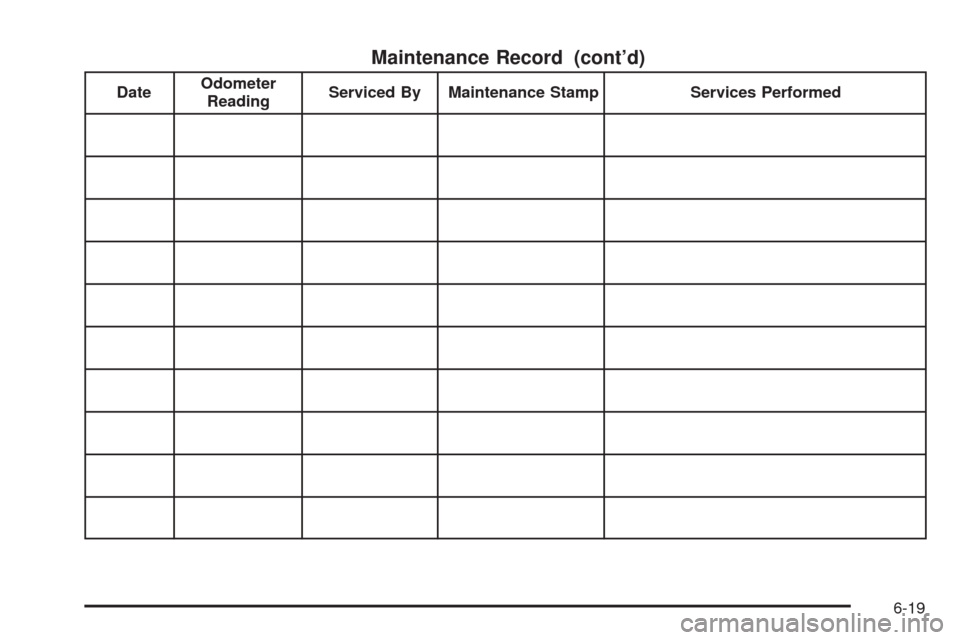

Maintenance Record (cont’d)
DateOdometer
ReadingServiced By Maintenance Stamp Services Performed
6-19

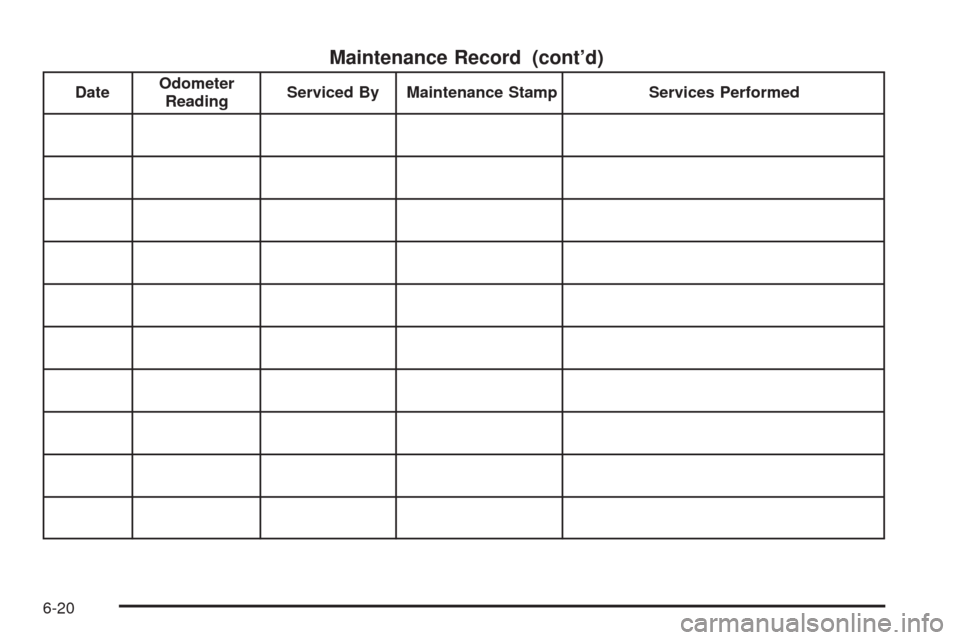

Maintenance Record (cont’d)
DateOdometer
ReadingServiced By Maintenance Stamp Services Performed
6-20

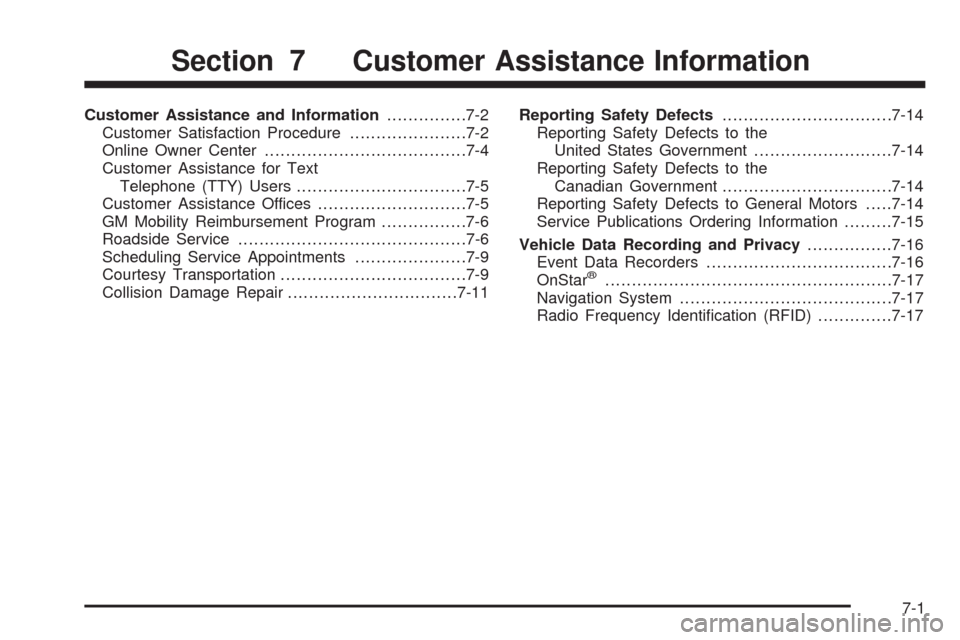

Customer Assistance and Information...............7-2
Customer Satisfaction Procedure......................7-2
Online Owner Center......................................7-4
Customer Assistance for Text
Telephone (TTY) Users................................7-5
Customer Assistance Offices............................7-5
GM Mobility Reimbursement Program................7-6
Roadside Service...........................................7-6
Scheduling Service Appointments.....................7-9
Courtesy Transportation...................................7-9
Collision Damage Repair................................7-11Reporting Safety Defects................................7-14
Reporting Safety Defects to the
United States Government..........................7-14
Reporting Safety Defects to the
Canadian Government................................7-14
Reporting Safety Defects to General Motors.....7-14
Service Publications Ordering Information.........7-15
Vehicle Data Recording and Privacy................7-16
Event Data Recorders...................................7-16
OnStar
®......................................................7-17
Navigation System........................................7-17
Radio Frequency Identication (RFID)..............7-17
Section 7 Customer Assistance Information
7-1

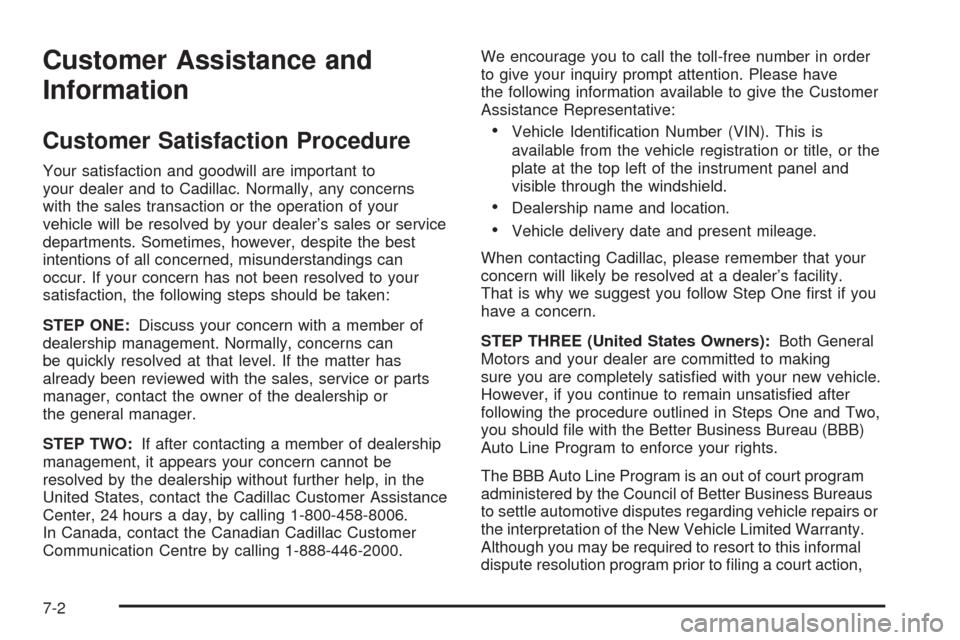

Customer Assistance and
Information
Customer Satisfaction Procedure
Your satisfaction and goodwill are important to
your dealer and to Cadillac. Normally, any concerns
with the sales transaction or the operation of your
vehicle will be resolved by your dealer’s sales or service
departments. Sometimes, however, despite the best
intentions of all concerned, misunderstandings can
occur. If your concern has not been resolved to your
satisfaction, the following steps should be taken:
STEP ONE:Discuss your concern with a member of
dealership management. Normally, concerns can
be quickly resolved at that level. If the matter has
already been reviewed with the sales, service or parts
manager, contact the owner of the dealership or
the general manager.
STEP TWO:If after contacting a member of dealership
management, it appears your concern cannot be
resolved by the dealership without further help, in the
United States, contact the Cadillac Customer Assistance
Center, 24 hours a day, by calling 1-800-458-8006.
In Canada, contact the Canadian Cadillac Customer
Communication Centre by calling 1-888-446-2000.We encourage you to call the toll-free number in order
to give your inquiry prompt attention. Please have
the following information available to give the Customer
Assistance Representative:
Vehicle Identication Number (VIN). This is
available from the vehicle registration or title, or the
plate at the top left of the instrument panel and
visible through the windshield.
Dealership name and location.
Vehicle delivery date and present mileage.
When contacting Cadillac, please remember that your
concern will likely be resolved at a dealer’s facility.
That is why we suggest you follow Step One rst if you
have a concern.
STEP THREE (United States Owners):Both General
Motors and your dealer are committed to making
sure you are completely satised with your new vehicle.
However, if you continue to remain unsatised after
following the procedure outlined in Steps One and Two,
you should le with the Better Business Bureau (BBB)
Auto Line Program to enforce your rights.
The BBB Auto Line Program is an out of court program
administered by the Council of Better Business Bureaus
to settle automotive disputes regarding vehicle repairs or
the interpretation of the New Vehicle Limited Warranty.
Although you may be required to resort to this informal
dispute resolution program prior to ling a court action,
7-2
