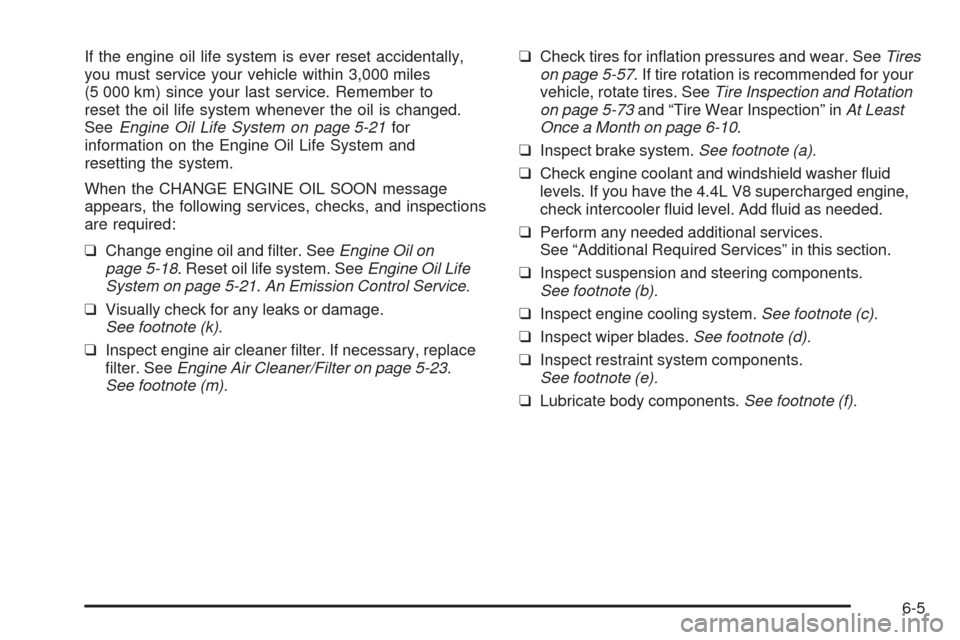

If the engine oil life system is ever reset accidentally,
you must service your vehicle within 3,000 miles
(5 000 km) since your last service. Remember to
reset the oil life system whenever the oil is changed.
SeeEngine Oil Life System on page 5-21for
information on the Engine Oil Life System and
resetting the system.
When the CHANGE ENGINE OIL SOON message
appears, the following services, checks, and inspections
are required:
❑Change engine oil and lter. SeeEngine Oil on
page 5-18. Reset oil life system. SeeEngine Oil Life
System on page 5-21.An Emission Control Service.
❑Visually check for any leaks or damage.
See footnote (k).
❑Inspect engine air cleaner lter. If necessary, replace
lter. SeeEngine Air Cleaner/Filter on page 5-23.
See footnote (m).❑Check tires for ination pressures and wear. SeeTires
on page 5-57. If tire rotation is recommended for your
vehicle, rotate tires. SeeTire Inspection and Rotation
on page 5-73and “Tire Wear Inspection” inAt Least
Once a Month on page 6-10.
❑Inspect brake system.See footnote (a).
❑Check engine coolant and windshield washer uid
levels. If you have the 4.4L V8 supercharged engine,
check intercooler uid level. Add uid as needed.
❑Perform any needed additional services.
See “Additional Required Services” in this section.
❑Inspect suspension and steering components.
See footnote (b).
❑Inspect engine cooling system.See footnote (c).
❑Inspect wiper blades.See footnote (d).
❑Inspect restraint system components.
See footnote (e).
❑Lubricate body components.See footnote (f).
6-5

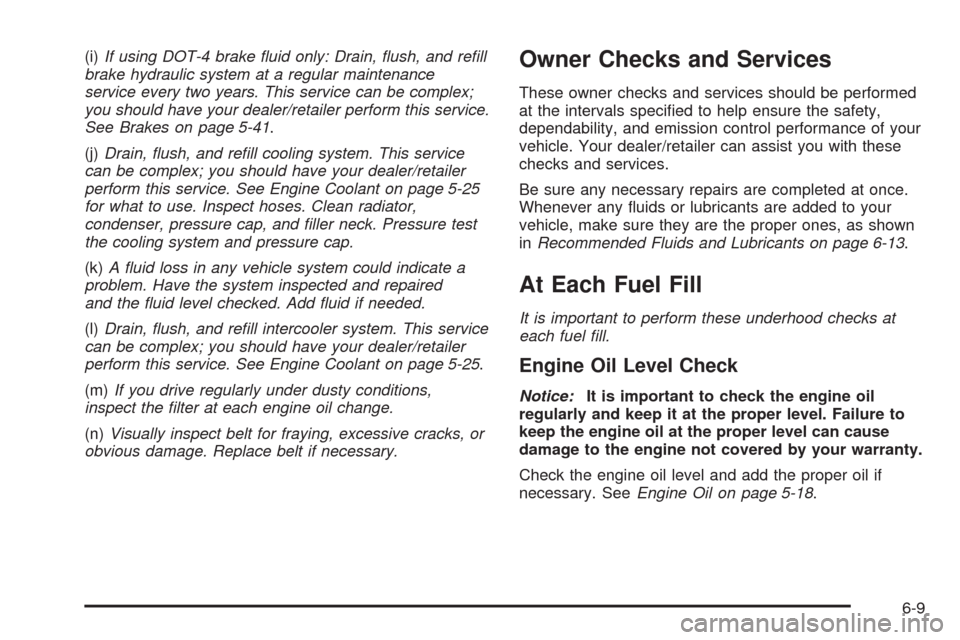

(i)If using DOT-4 brake fluid only: Drain, flush, and refill
brake hydraulic system at a regular maintenance
service every two years. This service can be complex;
you should have your dealer/retailer perform this service.
See Brakes on page 5-41.
(j)Drain, flush, and refill cooling system. This service
can be complex; you should have your dealer/retailer
perform this service. See Engine Coolant on page 5-25
for what to use. Inspect hoses. Clean radiator,
condenser, pressure cap, and filler neck. Pressure test
the cooling system and pressure cap.
(k)A fluid loss in any vehicle system could indicate a
problem. Have the system inspected and repaired
and the fluid level checked. Add fluid if needed.
(l)Drain, flush, and refill intercooler system. This service
can be complex; you should have your dealer/retailer
perform this service. See Engine Coolant on page 5-25.
(m)If you drive regularly under dusty conditions,
inspect the filter at each engine oil change.
(n)Visually inspect belt for fraying, excessive cracks, or
obvious damage. Replace belt if necessary.Owner Checks and Services
These owner checks and services should be performed
at the intervals specied to help ensure the safety,
dependability, and emission control performance of your
vehicle. Your dealer/retailer can assist you with these
checks and services.
Be sure any necessary repairs are completed at once.
Whenever any uids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
inRecommended Fluids and Lubricants on page 6-13.
At Each Fuel Fill
It is important to perform these underhood checks at
each fuel fill.
Engine Oil Level Check
Notice:It is important to check the engine oil
regularly and keep it at the proper level. Failure to
keep the engine oil at the proper level can cause
damage to the engine not covered by your warranty.
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 5-18.
6-9

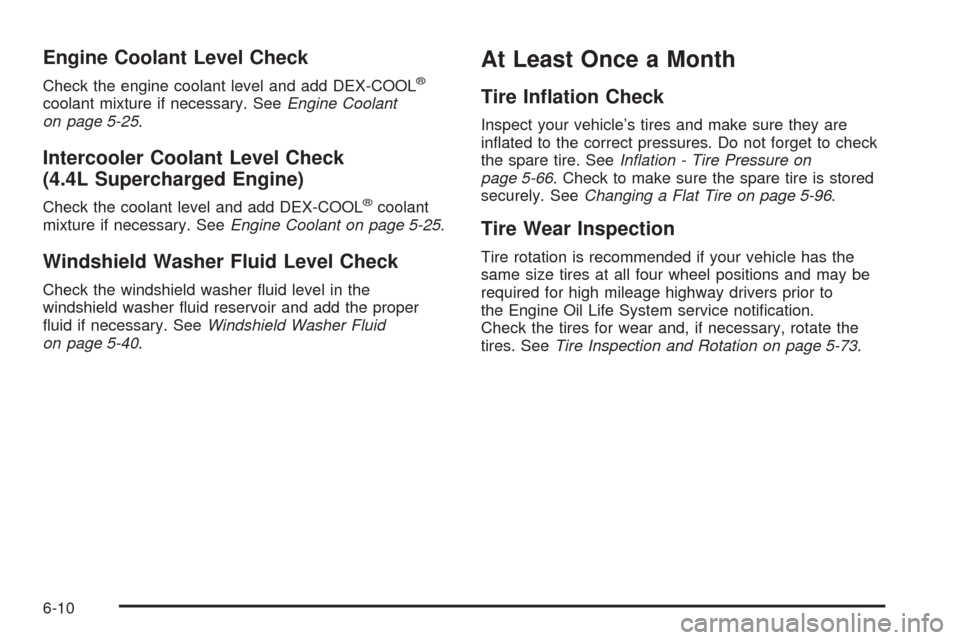

Engine Coolant Level Check
Check the engine coolant level and add DEX-COOL®
coolant mixture if necessary. SeeEngine Coolant
on page 5-25.
Intercooler Coolant Level Check
(4.4L Supercharged Engine)
Check the coolant level and add DEX-COOL®coolant
mixture if necessary. SeeEngine Coolant on page 5-25.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in the
windshield washer uid reservoir and add the proper
uid if necessary. SeeWindshield Washer Fluid
on page 5-40.
At Least Once a Month
Tire Ination Check
Inspect your vehicle’s tires and make sure they are
inated to the correct pressures. Do not forget to check
the spare tire. SeeInflation - Tire Pressure on
page 5-66. Check to make sure the spare tire is stored
securely. SeeChanging a Flat Tire on page 5-96.
Tire Wear Inspection
Tire rotation is recommended if your vehicle has the
same size tires at all four wheel positions and may be
required for high mileage highway drivers prior to
the Engine Oil Life System service notication.
Check the tires for wear and, if necessary, rotate the
tires. SeeTire Inspection and Rotation on page 5-73.
6-10

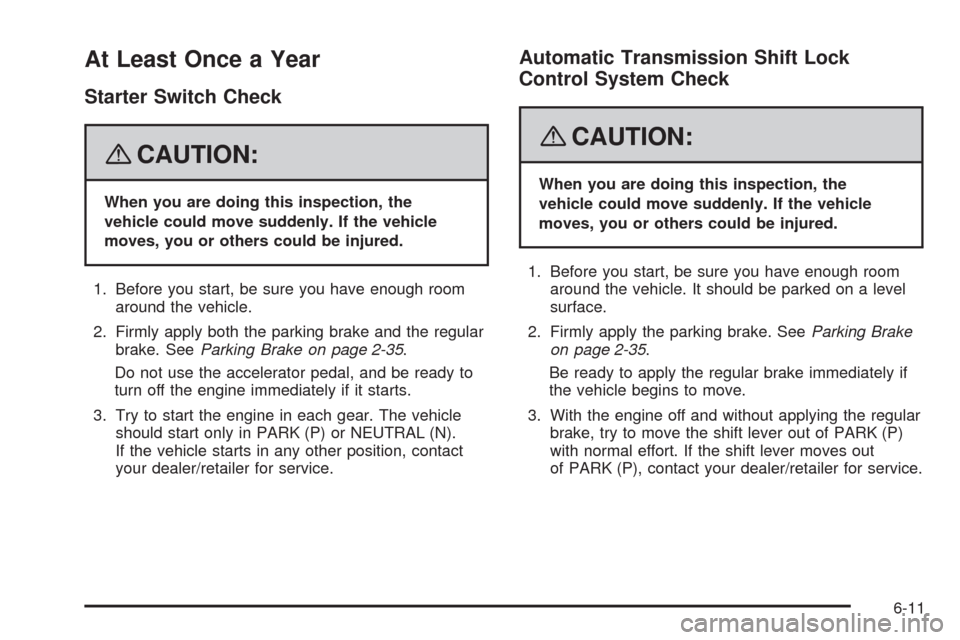

At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. SeeParking Brake on page 2-35.
Do not use the accelerator pedal, and be ready to
turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The vehicle
should start only in PARK (P) or NEUTRAL (N).
If the vehicle starts in any other position, contact
your dealer/retailer for service.
Automatic Transmission Shift Lock
Control System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake. SeeParking Brake
on page 2-35.
Be ready to apply the regular brake immediately if
the vehicle begins to move.
3. With the engine off and without applying the regular
brake, try to move the shift lever out of PARK (P)
with normal effort. If the shift lever moves out
of PARK (P), contact your dealer/retailer for service.
6-11

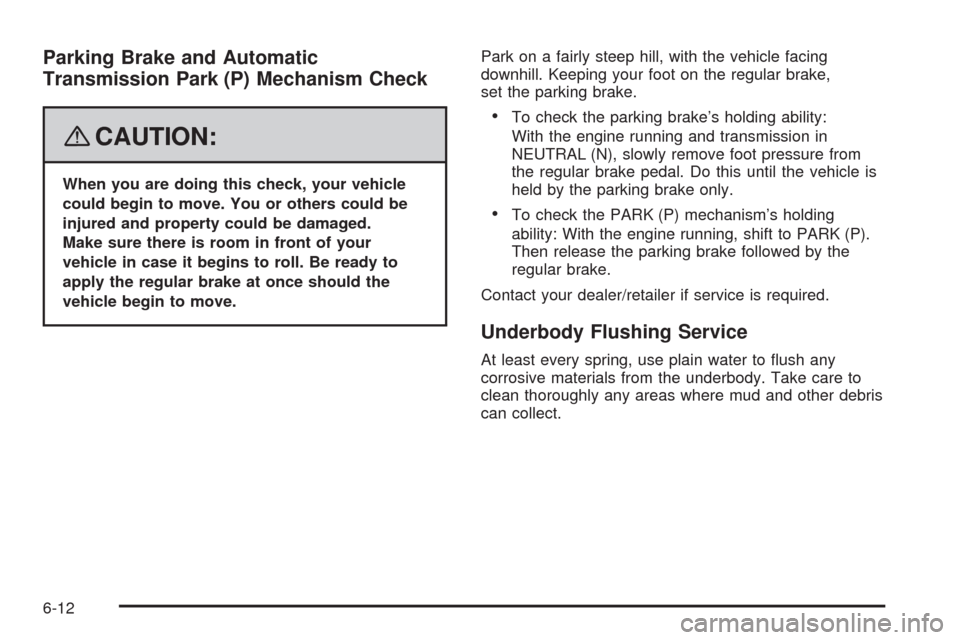

Parking Brake and Automatic
Transmission Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged.
Make sure there is room in front of your
vehicle in case it begins to roll. Be ready to
apply the regular brake at once should the
vehicle begin to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake,
set the parking brake.
To check the parking brake’s holding ability:
With the engine running and transmission in
NEUTRAL (N), slowly remove foot pressure from
the regular brake pedal. Do this until the vehicle is
held by the parking brake only.
To check the PARK (P) mechanism’s holding
ability: With the engine running, shift to PARK (P).
Then release the parking brake followed by the
regular brake.
Contact your dealer/retailer if service is required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
6-12

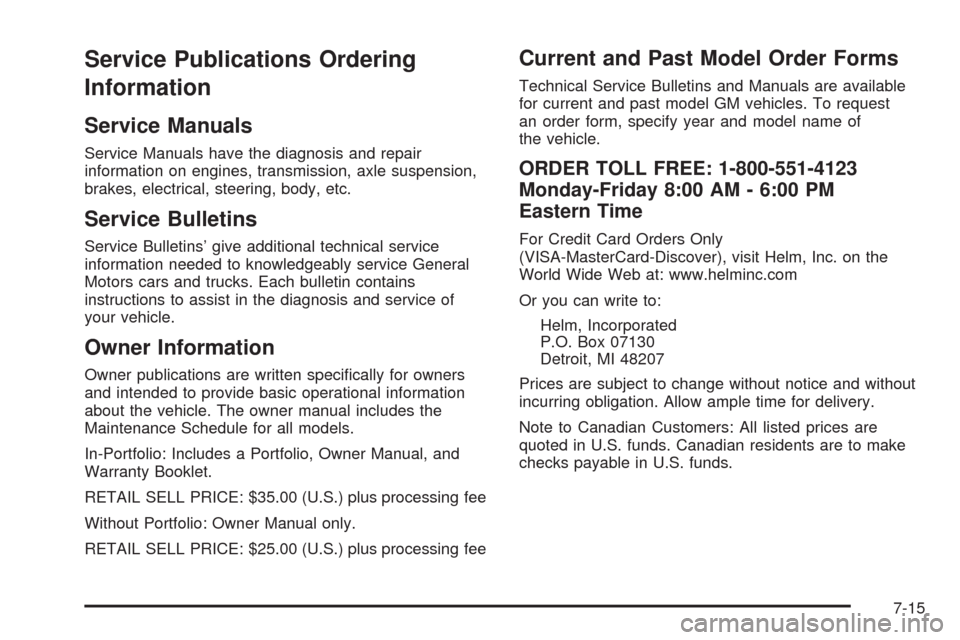

Service Publications Ordering
Information
Service Manuals
Service Manuals have the diagnosis and repair
information on engines, transmission, axle suspension,
brakes, electrical, steering, body, etc.
Service Bulletins
Service Bulletins’ give additional technical service
information needed to knowledgeably service General
Motors cars and trucks. Each bulletin contains
instructions to assist in the diagnosis and service of
your vehicle.
Owner Information
Owner publications are written specically for owners
and intended to provide basic operational information
about the vehicle. The owner manual includes the
Maintenance Schedule for all models.
In-Portfolio: Includes a Portfolio, Owner Manual, and
Warranty Booklet.
RETAIL SELL PRICE: $35.00 (U.S.) plus processing fee
Without Portfolio: Owner Manual only.
RETAIL SELL PRICE: $25.00 (U.S.) plus processing fee
Current and Past Model Order Forms
Technical Service Bulletins and Manuals are available
for current and past model GM vehicles. To request
an order form, specify year and model name of
the vehicle.
ORDER TOLL FREE: 1-800-551-4123
Monday-Friday 8:00 AM - 6:00 PM
Eastern Time
For Credit Card Orders Only
(VISA-MasterCard-Discover), visit Helm, Inc. on the
World Wide Web at: www.helminc.com
Or you can write to:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
Prices are subject to change without notice and without
incurring obligation. Allow ample time for delivery.
Note to Canadian Customers: All listed prices are
quoted in U.S. funds. Canadian residents are to make
checks payable in U.S. funds.
7-15

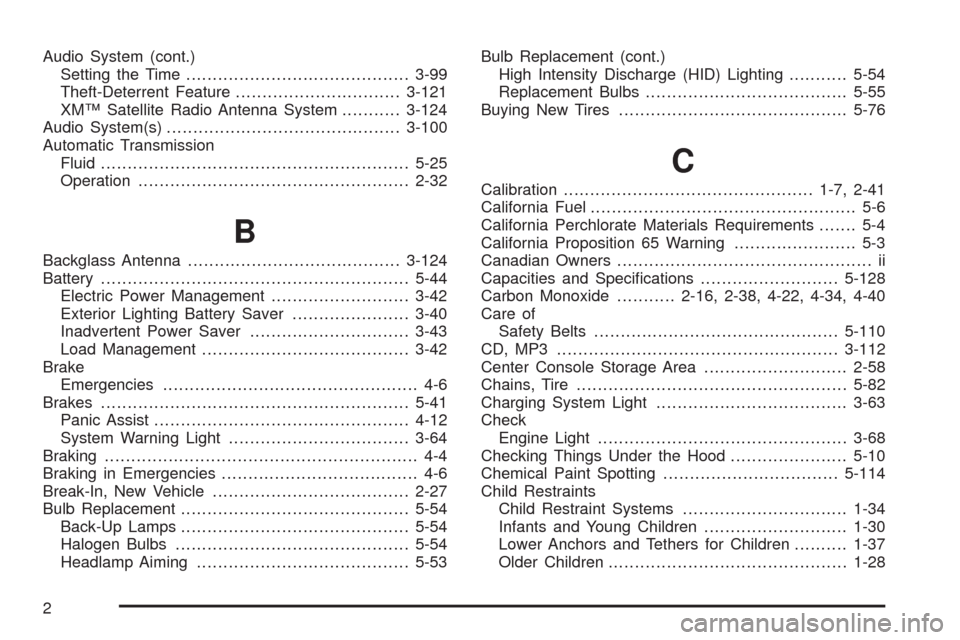

Audio System (cont.)
Setting the Time..........................................3-99
Theft-Deterrent Feature...............................3-121
XM™ Satellite Radio Antenna System...........3-124
Audio System(s)............................................3-100
Automatic Transmission
Fluid..........................................................5-25
Operation...................................................2-32
B
Backglass Antenna........................................3-124
Battery..........................................................5-44
Electric Power Management..........................3-42
Exterior Lighting Battery Saver......................3-40
Inadvertent Power Saver..............................3-43
Load Management.......................................3-42
Brake
Emergencies................................................ 4-6
Brakes..........................................................5-41
Panic Assist................................................4-12
System Warning Light..................................3-64
Braking........................................................... 4-4
Braking in Emergencies..................................... 4-6
Break-In, New Vehicle.....................................2-27
Bulb Replacement...........................................5-54
Back-Up Lamps...........................................5-54
Halogen Bulbs............................................5-54
Headlamp Aiming........................................5-53Bulb Replacement (cont.)
High Intensity Discharge (HID) Lighting...........5-54
Replacement Bulbs......................................5-55
Buying New Tires...........................................5-76
C
Calibration...............................................1-7, 2-41
California Fuel.................................................. 5-6
California Perchlorate Materials Requirements....... 5-4
California Proposition 65 Warning....................... 5-3
Canadian Owners................................................ ii
Capacities and Specications..........................5-128
Carbon Monoxide...........2-16, 2-38, 4-22, 4-34, 4-40
Care of
Safety Belts..............................................5-110
CD, MP3 .....................................................3-112
Center Console Storage Area...........................2-58
Chains, Tire...................................................5-82
Charging System Light....................................3-63
Check
Engine Light...............................................3-68
Checking Things Under the Hood......................5-10
Chemical Paint Spotting.................................5-114
Child Restraints
Child Restraint Systems...............................1-34
Infants and Young Children...........................1-30
Lower Anchors and Tethers for Children..........1-37
Older Children.............................................1-28
2

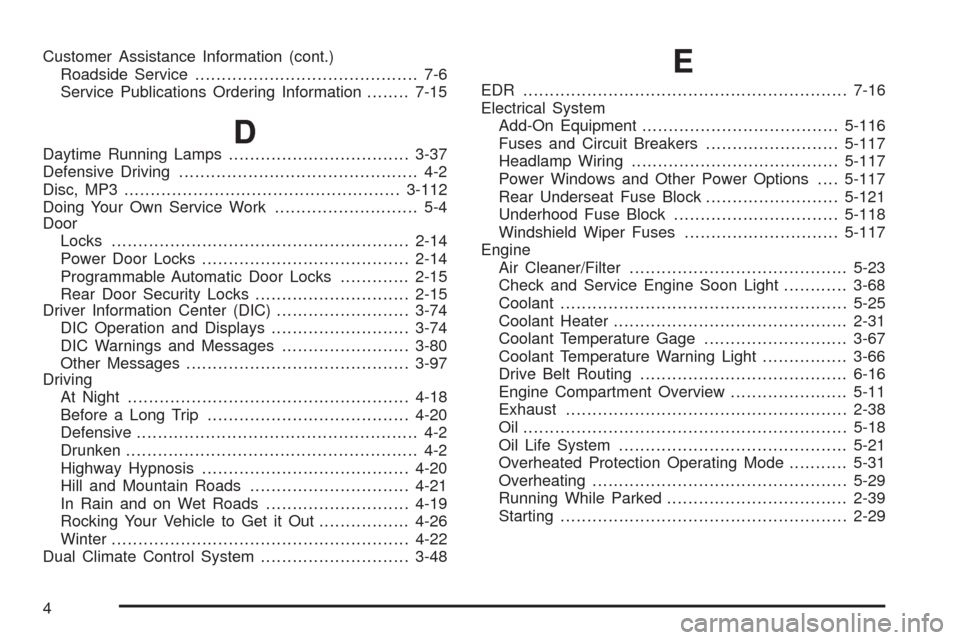

Customer Assistance Information (cont.)
Roadside Service.......................................... 7-6
Service Publications Ordering Information........7-15
DDaytime Running Lamps..................................3-37
Defensive Driving............................................. 4-2
Disc, MP3....................................................3-112
Doing Your Own Service Work........................... 5-4
Door
Locks........................................................2-14
Power Door Locks.......................................2-14
Programmable Automatic Door Locks.............2-15
Rear Door Security Locks.............................2-15
Driver Information Center (DIC).........................3-74
DIC Operation and Displays..........................3-74
DIC Warnings and Messages........................3-80
Other Messages..........................................3-97
Driving
At Night.....................................................4-18
Before a Long Trip......................................4-20
Defensive..................................................... 4-2
Drunken....................................................... 4-2
Highway Hypnosis.......................................4-20
Hill and Mountain Roads..............................4-21
In Rain and on Wet Roads...........................4-19
Rocking Your Vehicle to Get it Out.................4-26
Winter........................................................4-22
Dual Climate Control System............................3-48
E
EDR .............................................................7-16
Electrical System
Add-On Equipment.....................................5-116
Fuses and Circuit Breakers.........................5-117
Headlamp Wiring.......................................5-117
Power Windows and Other Power Options....5-117
Rear Underseat Fuse Block.........................5-121
Underhood Fuse Block...............................5-118
Windshield Wiper Fuses.............................5-117
Engine
Air Cleaner/Filter.........................................5-23
Check and Service Engine Soon Light............3-68
Coolant......................................................5-25
Coolant Heater............................................2-31
Coolant Temperature Gage...........................3-67
Coolant Temperature Warning Light................3-66
Drive Belt Routing.......................................6-16
Engine Compartment Overview......................5-11
Exhaust.....................................................2-38
Oil .............................................................5-18
Oil Life System...........................................5-21
Overheated Protection Operating Mode...........5-31
Overheating................................................5-29
Running While Parked..................................2-39
Starting......................................................2-29
4

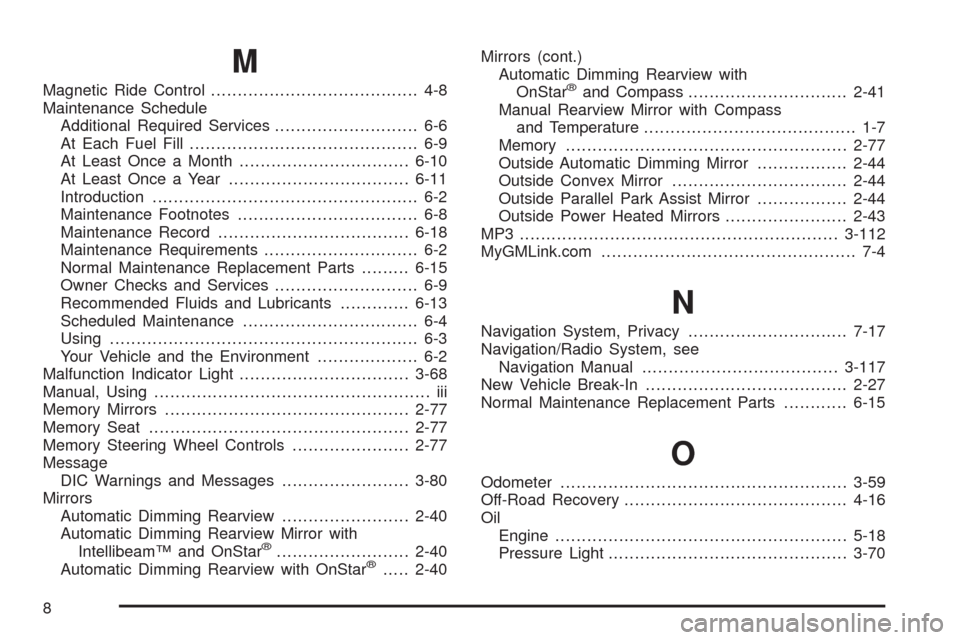

M
Magnetic Ride Control....................................... 4-8
Maintenance Schedule
Additional Required Services........................... 6-6
At Each Fuel Fill........................................... 6-9
At Least Once a Month................................6-10
At Least Once a Year..................................6-11
Introduction.................................................. 6-2
Maintenance Footnotes.................................. 6-8
Maintenance Record....................................6-18
Maintenance Requirements............................. 6-2
Normal Maintenance Replacement Parts.........6-15
Owner Checks and Services........................... 6-9
Recommended Fluids and Lubricants.............6-13
Scheduled Maintenance................................. 6-4
Using.......................................................... 6-3
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Light................................3-68
Manual, Using.................................................... iii
Memory Mirrors..............................................2-77
Memory Seat.................................................2-77
Memory Steering Wheel Controls......................2-77
Message
DIC Warnings and Messages........................3-80
Mirrors
Automatic Dimming Rearview........................2-40
Automatic Dimming Rearview Mirror with
Intellibeam™ and OnStar
®.........................2-40
Automatic Dimming Rearview with OnStar®.....2-40Mirrors (cont.)
Automatic Dimming Rearview with
OnStar
®and Compass..............................2-41
Manual Rearview Mirror with Compass
and Temperature........................................ 1-7
Memory.....................................................2-77
Outside Automatic Dimming Mirror.................2-44
Outside Convex Mirror.................................2-44
Outside Parallel Park Assist Mirror.................2-44
Outside Power Heated Mirrors.......................2-43
MP3 ............................................................3-112
MyGMLink.com................................................ 7-4
N
Navigation System, Privacy..............................7-17
Navigation/Radio System, see
Navigation Manual.....................................3-117
New Vehicle Break-In......................................2-27
Normal Maintenance Replacement Parts............6-15
O
Odometer......................................................3-59
Off-Road Recovery..........................................4-16
Oil
Engine.......................................................5-18
Pressure Light.............................................3-70
8

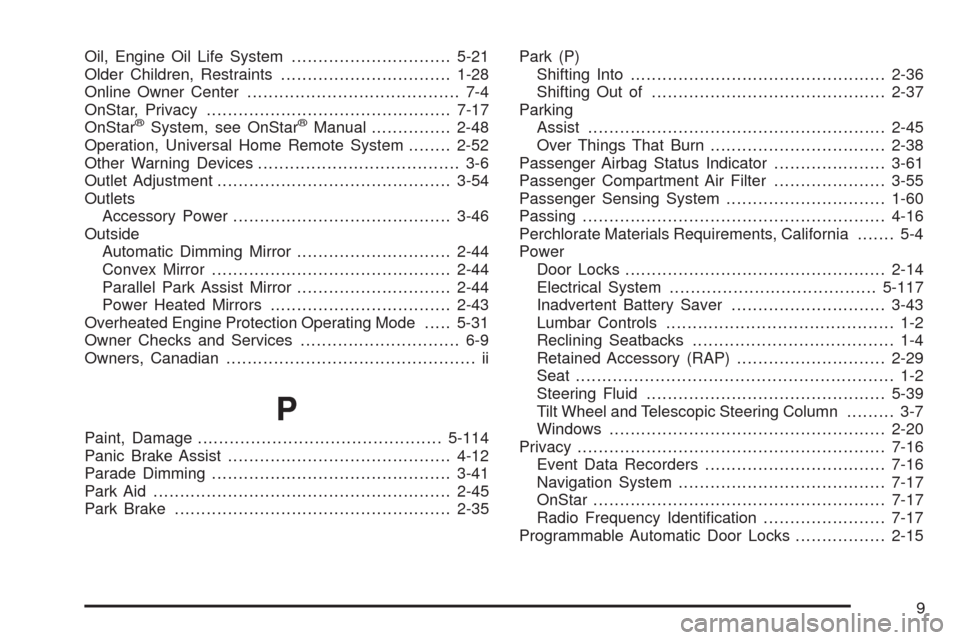

Oil, Engine Oil Life System..............................5-21
Older Children, Restraints................................1-28
Online Owner Center........................................ 7-4
OnStar, Privacy..............................................7-17
OnStar
®System, see OnStar®Manual...............2-48
Operation, Universal Home Remote System........2-52
Other Warning Devices...................................... 3-6
Outlet Adjustment............................................3-54
Outlets
Accessory Power.........................................3-46
Outside
Automatic Dimming Mirror.............................2-44
Convex Mirror.............................................2-44
Parallel Park Assist Mirror.............................2-44
Power Heated Mirrors..................................2-43
Overheated Engine Protection Operating Mode.....5-31
Owner Checks and Services.............................. 6-9
Owners, Canadian............................................... ii
P
Paint, Damage..............................................5-114
Panic Brake Assist..........................................4-12
Parade Dimming.............................................3-41
Park Aid........................................................2-45
Park Brake....................................................2-35Park (P)
Shifting Into................................................2-36
Shifting Out of............................................2-37
Parking
Assist........................................................2-45
Over Things That Burn.................................2-38
Passenger Airbag Status Indicator.....................3-61
Passenger Compartment Air Filter.....................3-55
Passenger Sensing System..............................1-60
Passing.........................................................4-16
Perchlorate Materials Requirements, California....... 5-4
Power
Door Locks.................................................2-14
Electrical System.......................................5-117
Inadvertent Battery Saver.............................3-43
Lumbar Controls........................................... 1-2
Reclining Seatbacks...................................... 1-4
Retained Accessory (RAP)............................2-29
Seat............................................................ 1-2
Steering Fluid.............................................5-39
Tilt Wheel and Telescopic Steering Column......... 3-7
Windows....................................................2-20
Privacy..........................................................7-16
Event Data Recorders..................................7-16
Navigation System.......................................7-17
OnStar.......................................................7-17
Radio Frequency Identication.......................7-17
Programmable Automatic Door Locks.................2-15
9
