(i)If using DOT-4 brake fluid only: Drain, flush, and refill
brake hydraulic system at a regular maintenance service
every two years. This service can be complex; you should
have your dealer/retailer perform this service. See Brakes
on page 5-39.
(j)Drain, flush, and refill cooling system. This service can
be complex; you should have your dealer/retailer perform
this service. See Engine Coolant on page 5-27 for what to
use. Inspect hoses. Clean radiator, condenser, pressure
cap, and filler neck. Pressure test the cooling system and
pressure cap.
(k)A fluid loss in any vehicle system could indicate a
problem. Have the system inspected and repaired
and the fluid level checked. Add fluid if needed.
(l)Drain, flush, and refill intercooler system. This service
can be complex; you should have your dealer/retailer
perform this service. See Engine Coolant on page 5-27.
(m)If driving regularly under dusty conditions, inspect
the filter at each engine oil change.
(n)Visually inspect belt for fraying, excessive cracks, or
obvious damage. Replace belt if necessary.(p)If the vehicle has the 3.6L V6 (VIN Code V) engine,
replace the engine air cleaner filter every 40,000 miles
(64 000 km).
(q)Check vent hose at transfer case for kinks and proper
installation. Check to be sure vent hose is unobstructed,
clear, and free of debris. During any maintenance, if a
power washer is used to clean mud and dirt from the
underbody, care should be taken to not directly spray the
transfer case output seals. High pressure water can
overcome the seals and contaminate the transfer case
fluid. Contaminated fluid will decrease the life of the
transfer case and should be replaced.
(r)Change transfer case fluid if the vehicle is mainly
driven under one or more of these conditions:
In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as high performance operation or taxi,
police, or delivery service.
6-9

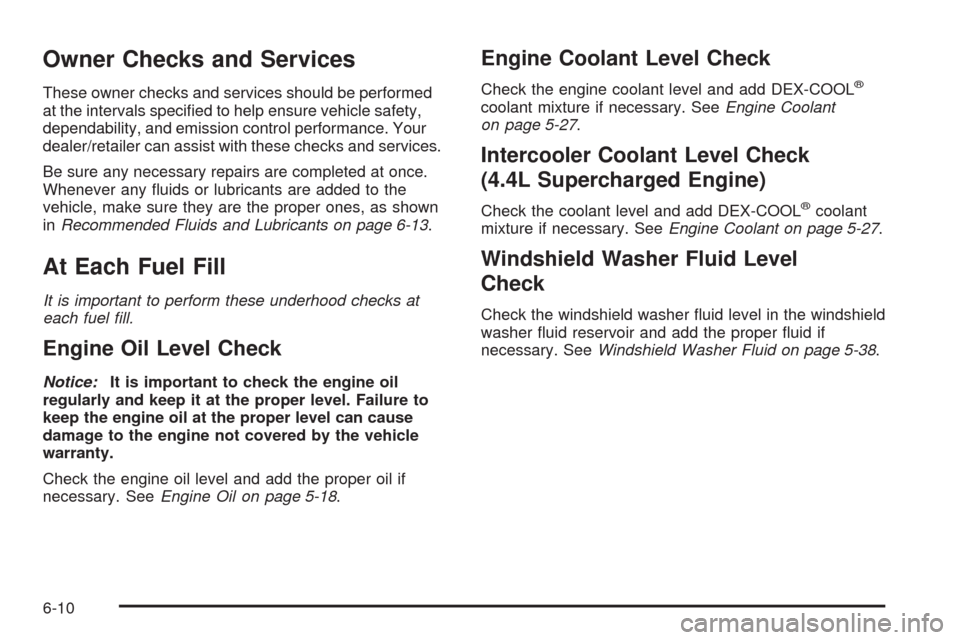

Owner Checks and Services
These owner checks and services should be performed
at the intervals specied to help ensure vehicle safety,
dependability, and emission control performance. Your
dealer/retailer can assist with these checks and services.
Be sure any necessary repairs are completed at once.
Whenever any uids or lubricants are added to the
vehicle, make sure they are the proper ones, as shown
inRecommended Fluids and Lubricants on page 6-13.
At Each Fuel Fill
It is important to perform these underhood checks at
each fuel fill.
Engine Oil Level Check
Notice:It is important to check the engine oil
regularly and keep it at the proper level. Failure to
keep the engine oil at the proper level can cause
damage to the engine not covered by the vehicle
warranty.
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 5-18.
Engine Coolant Level Check
Check the engine coolant level and add DEX-COOL®
coolant mixture if necessary. SeeEngine Coolant
on page 5-27.
Intercooler Coolant Level Check
(4.4L Supercharged Engine)
Check the coolant level and add DEX-COOL®coolant
mixture if necessary. SeeEngine Coolant on page 5-27.
Windshield Washer Fluid Level
Check
Check the windshield washer uid level in the windshield
washer uid reservoir and add the proper uid if
necessary. SeeWindshield Washer Fluid on page 5-38.
6-10

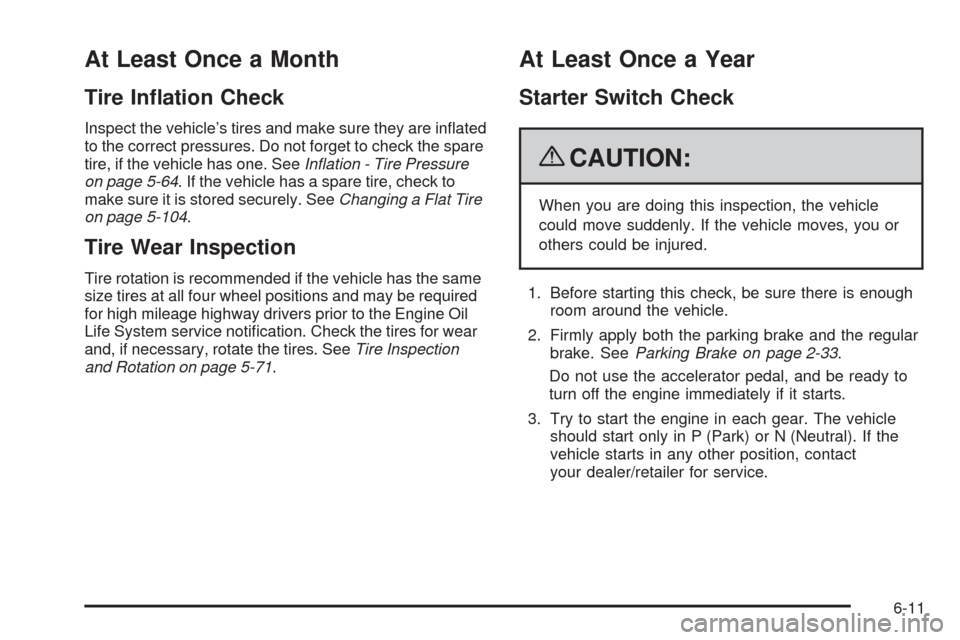

At Least Once a Month
Tire Ination Check
Inspect the vehicle’s tires and make sure they are inated
to the correct pressures. Do not forget to check the spare
tire, if the vehicle has one. SeeInflation - Tire Pressure
on page 5-64. If the vehicle has a spare tire, check to
make sure it is stored securely. SeeChanging a Flat Tire
on page 5-104.
Tire Wear Inspection
Tire rotation is recommended if the vehicle has the same
size tires at all four wheel positions and may be required
for high mileage highway drivers prior to the Engine Oil
Life System service notication. Check the tires for wear
and, if necessary, rotate the tires. SeeTire Inspection
and Rotation on page 5-71.
At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the vehicle
could move suddenly. If the vehicle moves, you or
others could be injured.
1. Before starting this check, be sure there is enough
room around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. SeeParking Brake on page 2-33.
Do not use the accelerator pedal, and be ready to
turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The vehicle
should start only in P (Park) or N (Neutral). If the
vehicle starts in any other position, contact
your dealer/retailer for service.
6-11

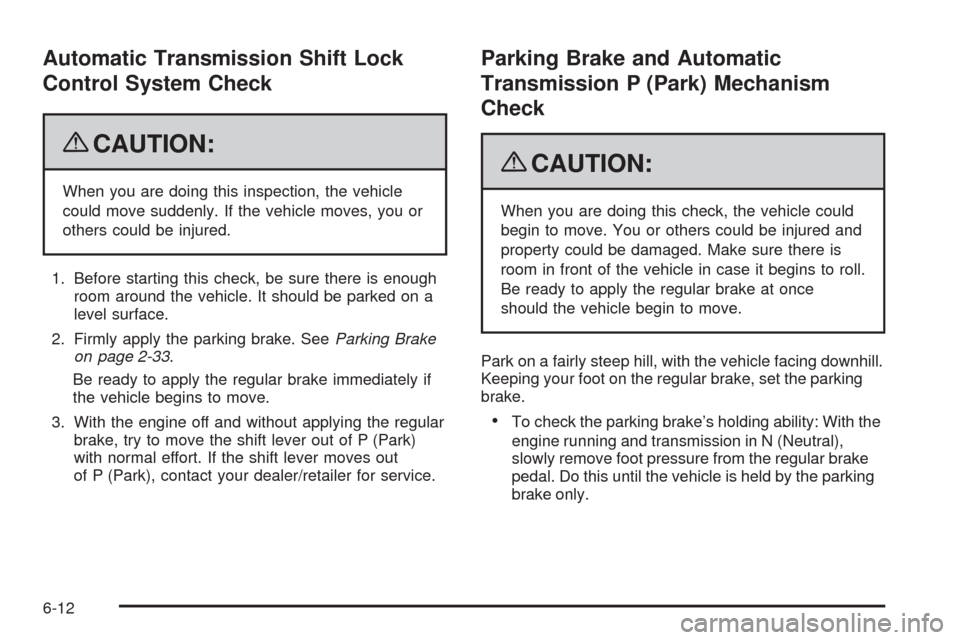

Automatic Transmission Shift Lock
Control System Check
{CAUTION:
When you are doing this inspection, the vehicle
could move suddenly. If the vehicle moves, you or
others could be injured.
1. Before starting this check, be sure there is enough
room around the vehicle. It should be parked on a
level surface.
2. Firmly apply the parking brake. SeeParking Brake
on page 2-33.
Be ready to apply the regular brake immediately if
the vehicle begins to move.
3. With the engine off and without applying the regular
brake, try to move the shift lever out of P (Park)
with normal effort. If the shift lever moves out
of P (Park), contact your dealer/retailer for service.
Parking Brake and Automatic
Transmission P (Park) Mechanism
Check
{CAUTION:
When you are doing this check, the vehicle could
begin to move. You or others could be injured and
property could be damaged. Make sure there is
room in front of the vehicle in case it begins to roll.
Be ready to apply the regular brake at once
should the vehicle begin to move.
Park on a fairly steep hill, with the vehicle facing downhill.
Keeping your foot on the regular brake, set the parking
brake.
To check the parking brake’s holding ability: With the
engine running and transmission in N (Neutral),
slowly remove foot pressure from the regular brake
pedal. Do this until the vehicle is held by the parking
brake only.
6-12

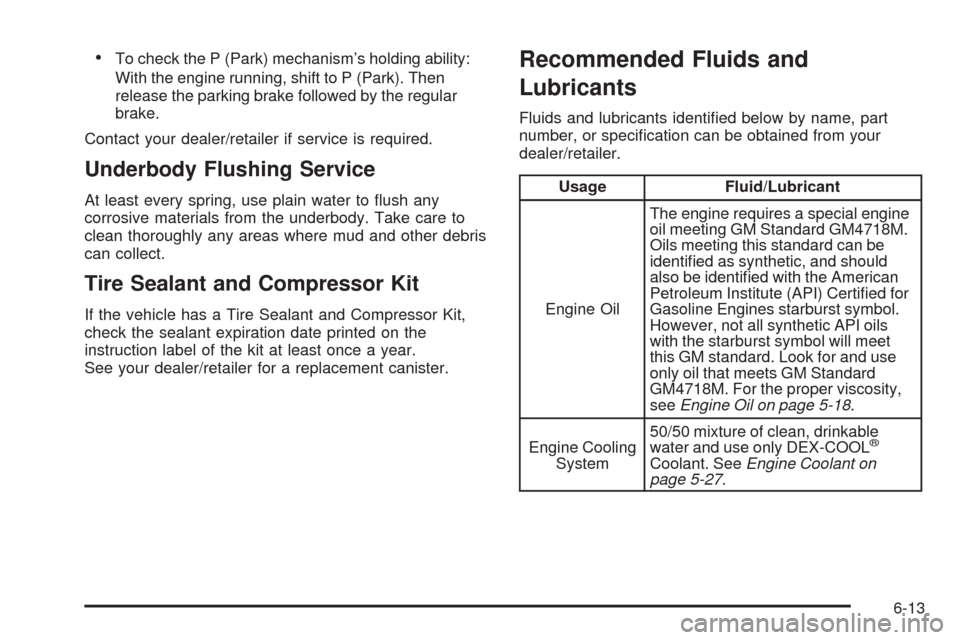

To check the P (Park) mechanism’s holding ability:
With the engine running, shift to P (Park). Then
release the parking brake followed by the regular
brake.
Contact your dealer/retailer if service is required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
Tire Sealant and Compressor Kit
If the vehicle has a Tire Sealant and Compressor Kit,
check the sealant expiration date printed on the
instruction label of the kit at least once a year.
See your dealer/retailer for a replacement canister.
Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name, part
number, or specication can be obtained from your
dealer/retailer.
Usage Fluid/Lubricant
Engine OilThe engine requires a special engine
oil meeting GM Standard GM4718M.
Oils meeting this standard can be
identied as synthetic, and should
also be identied with the American
Petroleum Institute (API) Certied for
Gasoline Engines starburst symbol.
However, not all synthetic API oils
with the starburst symbol will meet
this GM standard. Look for and use
only oil that meets GM Standard
GM4718M. For the proper viscosity,
seeEngine Oil on page 5-18.
Engine Cooling
System50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 5-27.
6-13

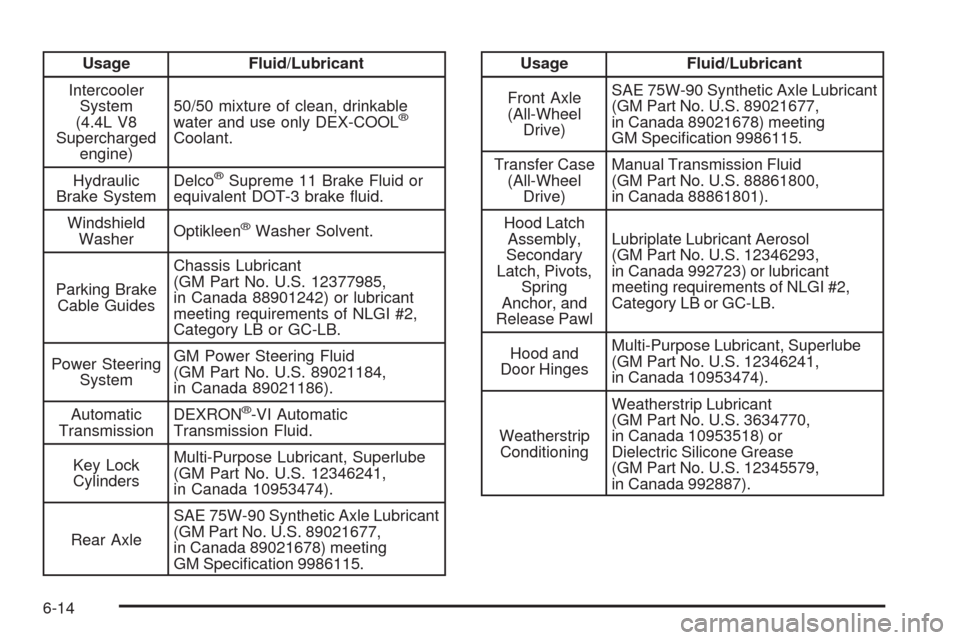

Usage Fluid/Lubricant
Intercooler
System
(4.4L V8
Supercharged
engine)50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant.
Hydraulic
Brake SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
WasherOptikleen
®Washer Solvent.
Parking Brake
Cable GuidesChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
Automatic
TransmissionDEXRON
®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Rear AxleSAE 75W-90 Synthetic Axle Lubricant
(GM Part No. U.S. 89021677,
in Canada 89021678) meeting
GM Specication 9986115.
Usage Fluid/Lubricant
Front Axle
(All-Wheel
Drive)SAE 75W-90 Synthetic Axle Lubricant
(GM Part No. U.S. 89021677,
in Canada 89021678) meeting
GM Specication 9986115.
Transfer Case
(All-Wheel
Drive)Manual Transmission Fluid
(GM Part No. U.S. 88861800,
in Canada 88861801).
Hood Latch
Assembly,
Secondary
Latch, Pivots,
Spring
Anchor, and
Release PawlLubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and
Door HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Weatherstrip
ConditioningWeatherstrip Lubricant
(GM Part No. U.S. 3634770,
in Canada 10953518) or
Dielectric Silicone Grease
(GM Part No. U.S. 12345579,
in Canada 992887).
6-14

Maintenance Replacement Parts
Replacement parts identied below by name, part number, or specication can be obtained from your dealer/retailer.
Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter Element
3.6L and 4.6L Engines 25798271 A2944C
4.4L (V-Series) Engine 15813300 A3078C
Engine Oil Filter
3.6L Engine 25177917 PF2129
4.4L (V-Series) Engine 89017527
1PF261
4.6L Engine 89017342 PF61
Passenger Compartment Air Filter 88957450 CF13C
Spark Plugs
3.6L Engine 92220447 41-990
4.4L (V-Series) Engine 12592619 41-991
4.6L Engine 12571535 41-987
Wiper Blades
Driver Side – 22 in (56.5 cm) 88958361 —
Passenger Side – 21 in (53.0 cm) 88958359 —
1Notice: If the vehicle is an STS-V model, the engine uses a special oil lter. The use of any other engine
oil lter could lead to lter failure and result in severe engine damage. Damage caused by use of the
wrong engine oil lter would not be covered by the vehicle warranty.
6-15

Engine Drive Belt Routing
3.6L V6 Engine
4.4L V8 Engine
6-16

4.6L V8 Engine
6-17

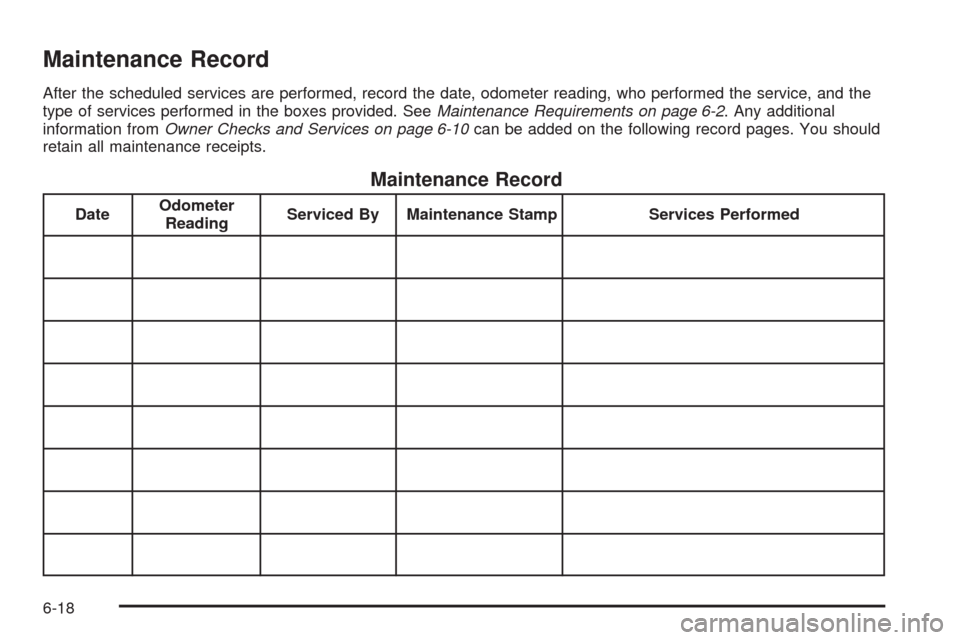

Maintenance Record
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. SeeMaintenance Requirements on page 6-2. Any additional
information fromOwner Checks and Services on page 6-10can be added on the following record pages. You should
retain all maintenance receipts.
Maintenance Record
DateOdometer
ReadingServiced By Maintenance Stamp Services Performed
