Page 161 of 514
Push the control forward or rearward to move the
steering wheel towards the front or rear of the vehicle.
To set the memory position, seeVehicle Personalization
on page 2-61andMemory Seat, Mirrors and Steering
Wheel on page 2-77.
Heated Steering Wheel
For vehicles with a heated steering wheel, the button for
this feature is located on the steering wheel.
(:Press to turn the heated steering wheel on or off.
A light on the button displays when the feature is
turned on.
The steering wheel takes about three minutes to start
heating.
Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:
G: Turn and Lane-Change Signals
O: Headlamps
3: Headlamp High/Low-Beam Changer
#: Fog Lamps
I: Cruise Control
Adaptive Cruise Control (If Equipped).
Forward Collision Alert (FCA) (If Equipped).
Flash-To-Pass Feature.
Information for these features is on the pages following.
3-7
Page 201 of 514

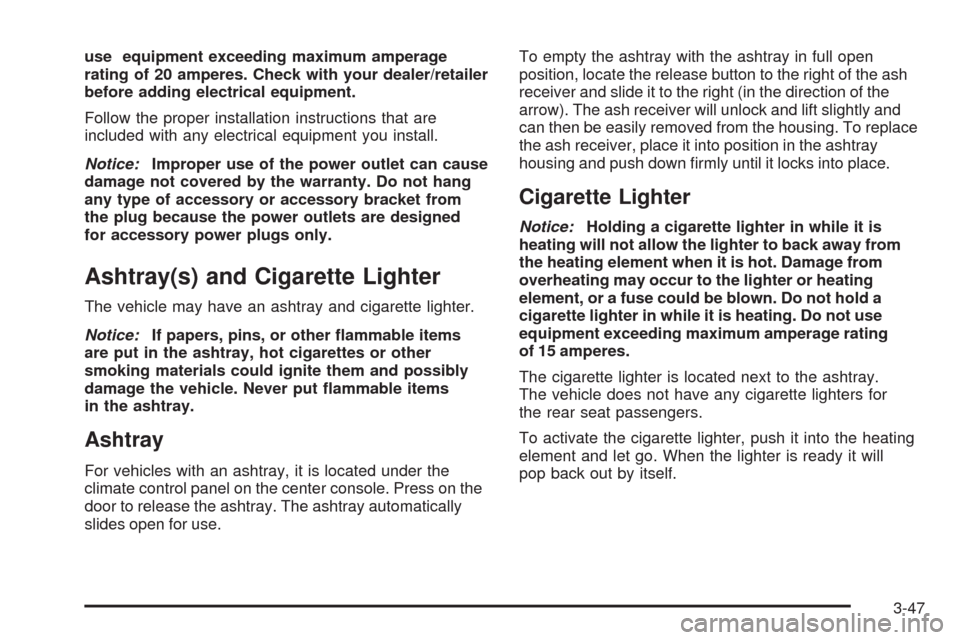

use equipment exceeding maximum amperage
rating of 20 amperes. Check with your dealer/retailer
before adding electrical equipment.
Follow the proper installation instructions that are
included with any electrical equipment you install.
Notice:Improper use of the power outlet can cause
damage not covered by the warranty. Do not hang
any type of accessory or accessory bracket from
the plug because the power outlets are designed
for accessory power plugs only.
Ashtray(s) and Cigarette Lighter
The vehicle may have an ashtray and cigarette lighter.
Notice:If papers, pins, or other ammable items
are put in the ashtray, hot cigarettes or other
smoking materials could ignite them and possibly
damage the vehicle. Never put ammable items
in the ashtray.
Ashtray
For vehicles with an ashtray, it is located under the
climate control panel on the center console. Press on the
door to release the ashtray. The ashtray automatically
slides open for use.To empty the ashtray with the ashtray in full open
position, locate the release button to the right of the ash
receiver and slide it to the right (in the direction of the
arrow). The ash receiver will unlock and lift slightly and
can then be easily removed from the housing. To replace
the ash receiver, place it into position in the ashtray
housing and push down rmly until it locks into place.
Cigarette Lighter
Notice:Holding a cigarette lighter in while it is
heating will not allow the lighter to back away from
the heating element when it is hot. Damage from
overheating may occur to the lighter or heating
element, or a fuse could be blown. Do not hold a
cigarette lighter in while it is heating. Do not use
equipment exceeding maximum amperage rating
of 15 amperes.
The cigarette lighter is located next to the ashtray.
The vehicle does not have any cigarette lighters for
the rear seat passengers.
To activate the cigarette lighter, push it into the heating
element and let go. When the lighter is ready it will
pop back out by itself.
3-47
Page 202 of 514
Climate Controls
Dual Climate Control System
The heating, cooling, and ventilation can be controlled
for the vehicle with this system.
Automatic Operation
A. Driver and Passenger
Side Power Buttons
B. Ventilated Seat
C. AUTO
D. Recirculation
E. Air ConditioningF. Heated Seat
G. Fan Control
H. Defrost
I. Rear Window Defogger
J. Air Delivery Mode
ControlAUTO (Automatic):The system automatically
controls the fan speed, air delivery, air conditioning
and recirculation modes in order to heat or cool the
vehicle to the desired temperature.
To place the system in automatic mode:
1. Press the AUTO button.
2. Adjust the temperature to a comfortable setting,
generally, between 70°F (21°C) and 80°F (27°C).
Choosing the coldest or warmest temperature
setting will not cause the system to heat or cool
any faster. If the system is set at the warmest
temperature setting, the system will try to
continuously heat the vehicle and will not adjust
the system down as the vehicle warms up.
To avoid blowing cold air in cold weather, the
system delays turning on the fan until warm air
is available. The system starts out blowing air
at the oor, but can automatically change modes
as the vehicle warms up to maintain the chosen
temperature setting. The length of time needed for
warm up depends on the outside temperature and
the length of time that has elapsed since the vehicle
was last driven.
3. Wait for the system to regulate. This may take from
10 to 30 minutes. Then adjust the temperature,
if necessary.
The display can be changed from English to metric units
through the Driver Information Center (DIC). SeeDIC
Operation and Displays on page 3-72. Vehicles With Heated and Ventilated Seats Shown,
Vehicles Without Similar
3-48
Page 207 of 514
Rear Climate Control System
The vehicle has a rear climate control system. The base
model includes air outlets in the rear of the center console
for cooling and under-seat air outlets for heating. The
temperature, amount of air ow, and the air delivery mode
is controlled automatically by the front climate control
system.
Some vehicles may have an optional climate control
panel for the rear passenger, located on the back of the
center console.
A. Temperature Control
B. Air Delivery Mode
ControlC. Heated Seat
D. Heated Seat
Indicator
9(Off):Turns off the air ow to the rear seat
passengers. With the air delivery off there may be an
increase in the air rush sound of the front system.Temperature Control:Turn clockwise or
counterclockwise to increase or decrease the
temperature.
Air Delivery Mode Control:Turn to change the
direction of the air ow for the rear seat passengers.
To change the current mode, select one of the following:
Y(Vent):Air is directed to the console outlets.
\(Bi-Level):Air is directed to the console and the
oor outlets.
[(Floor):Air is directed to the oor outlets.
The front climate control system automatically controls
the amount of air ow to the rear seat passengers,
regardless of optional equipment. Air ow to the rear
system turns off when defrost is selected on the front
climate control panel, in order to direct air to clear the
windshield.
z(Heated Seat):Press to turn on rear heated seats.
There are two buttons, each with three indicator lights,
located between the climate control knobs on the rear
climate control panel.
Keep the area under the front seats clear of any objects
so the air in the vehicle can circulate effectively.
3-53
