remote start CADILLAC STS V 2007 1.G User Guide

Programmable Modes
Mode 1:ON
Mode 2:OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 1. The mode to
which the vehicle was programmed may have
been changed since it left the factory.
To program the vehicle to a different mode, use
the following procedure:
1. Enter the PERSONAL SETTINGS MENU by
following the instructions listed previously
under “Entering the Personal Settings Menu.”
2. Turn the tune/select knob until REMOTE
START is highlighted.
3. Press the tune/select knob to switch back and
forth between on and off.
When REMOTE START is on, a check mark will
appear next to the feature name. You can
then choose to activate any or all of the following
features by turning the tune/select knob to
highlight the feature, then pressing the knob to
turn it on.CLIMATE CONTROL:The climate control system
will engage when the vehicle is started using
the remote start feature. It will be at the same
climate control setting that was last used by the
driver using that keyless entry transmitter.
REAR WINDOW DEFOG:If this feature is active,
the rear defogger will engage when the vehicle
is started using the remote start feature.
SEAT TEMP (Temperature) CONTROL:If your
vehicle has this feature and this feature is
active, the seats will be heated or cooled when
the vehicle is started using the remote start
feature.
The mode you selected is now set. You can either
exit the programming mode by following the
instructions later in this section or program the
next feature available on your vehicle by pressing
the F6 (BACK) button, located on the radio, to
return to the PERSONAL SETTINGS MENU.
153

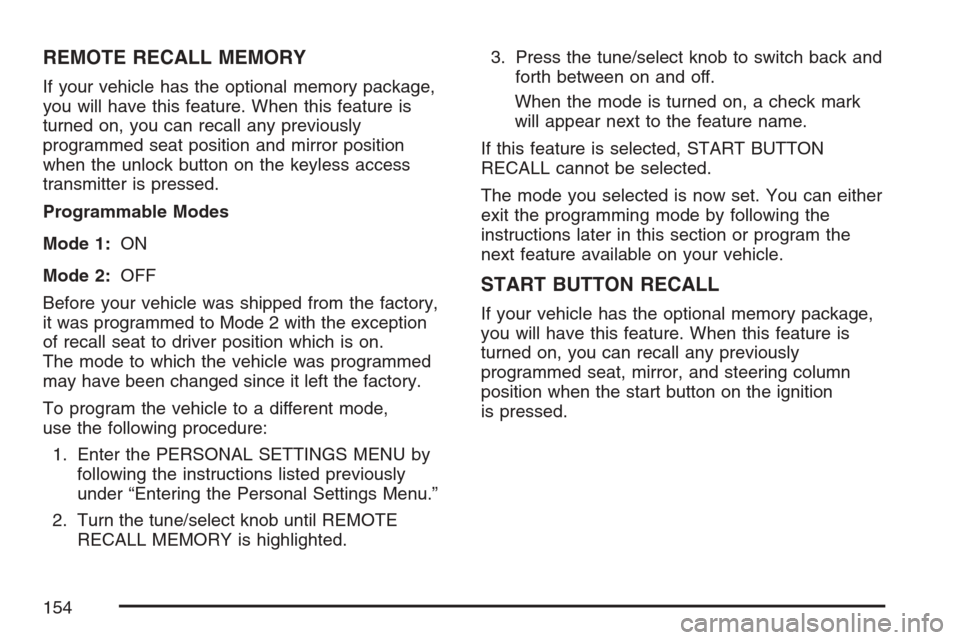

REMOTE RECALL MEMORY
If your vehicle has the optional memory package,
you will have this feature. When this feature is
turned on, you can recall any previously
programmed seat position and mirror position
when the unlock button on the keyless access
transmitter is pressed.
Programmable Modes
Mode 1:ON
Mode 2:OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 2 with the exception
of recall seat to driver position which is on.
The mode to which the vehicle was programmed
may have been changed since it left the factory.
To program the vehicle to a different mode,
use the following procedure:
1. Enter the PERSONAL SETTINGS MENU by
following the instructions listed previously
under “Entering the Personal Settings Menu.”
2. Turn the tune/select knob until REMOTE
RECALL MEMORY is highlighted.3. Press the tune/select knob to switch back and
forth between on and off.
When the mode is turned on, a check mark
will appear next to the feature name.
If this feature is selected, START BUTTON
RECALL cannot be selected.
The mode you selected is now set. You can either
exit the programming mode by following the
instructions later in this section or program the
next feature available on your vehicle.
START BUTTON RECALL
If your vehicle has the optional memory package,
you will have this feature. When this feature is
turned on, you can recall any previously
programmed seat, mirror, and steering column
position when the start button on the ignition
is pressed.
154

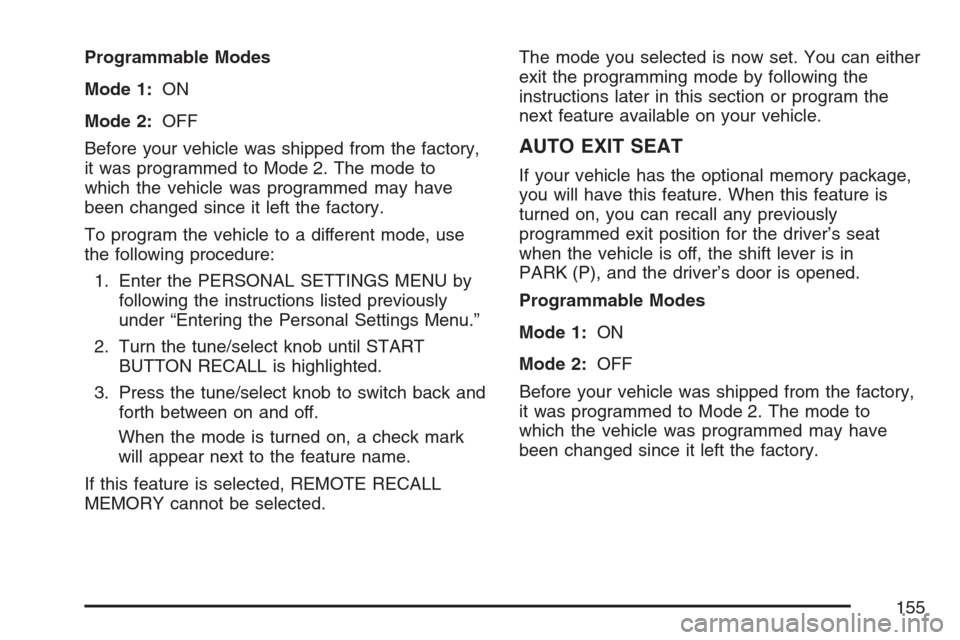

Programmable Modes
Mode 1:ON
Mode 2:OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 2. The mode to
which the vehicle was programmed may have
been changed since it left the factory.
To program the vehicle to a different mode, use
the following procedure:
1. Enter the PERSONAL SETTINGS MENU by
following the instructions listed previously
under “Entering the Personal Settings Menu.”
2. Turn the tune/select knob until START
BUTTON RECALL is highlighted.
3. Press the tune/select knob to switch back and
forth between on and off.
When the mode is turned on, a check mark
will appear next to the feature name.
If this feature is selected, REMOTE RECALL
MEMORY cannot be selected.The mode you selected is now set. You can either
exit the programming mode by following the
instructions later in this section or program the
next feature available on your vehicle.
AUTO EXIT SEAT
If your vehicle has the optional memory package,
you will have this feature. When this feature is
turned on, you can recall any previously
programmed exit position for the driver’s seat
when the vehicle is off, the shift lever is in
PARK (P), and the driver’s door is opened.
Programmable Modes
Mode 1:ON
Mode 2:OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 2. The mode to
which the vehicle was programmed may have
been changed since it left the factory.
155

The mode you selected is now set. You can either
exit the programming mode by following the
instructions later in this section or program the
next feature available on your vehicle by pressing
the F6 (BACK) button, located on the radio, to
return to the PERSONAL SETTINGS MENU.
Exiting the Personal Settings Menu
Once you have nished making your selections on
the base audio system, you will automatically
return to the main audio screen after 15 seconds.
You can also press the F6 (BACK) button,
located on the radio, to return to the main audio
screen.
Memory Seat, Mirrors and Steering
Wheel
If your vehicle has the memory feature, you can
program and recall memory settings for the
following features for up to two drivers:
The driver’s seat position
The outside rearview mirrors position
The power tilt wheel and telescopic steering
column positionThe following settings and presets are set
automatically:
The language, radio and XM™ presets, tone,
volume, playback mode (AM/FM or CD), last
displayed stations, and compact disc
position
The last climate control setting
The Head-Up Display (HUD) position, if your
vehicle has this feature
Other personalization settings, for example,
remote start settings
SeeVehicle Personalization on page 148.
For vehicles with the base audio system, memory
features are programmed and recalled through
the radio from the DRIVER SELECTION and the
DRIVER EXIT SETTINGS submenus. See
“Entering the Driver Selection Submenu” and
“Entering the Driver Exit Settings Submenu” later
in this section for more information on recalling
and programming the memory settings using the
base audio system.
169

Driver Selection Submenu Items
DRIVER 1/DRIVER 2
The numbers on the back of each keyless access
transmitter correspond to DRIVER 1 and
DRIVER 2. If you would like to recall or store
driver settings for the driver that does not
correspond to the number on the back of the
keyless access transmitter that you are using,
use the following procedure:
1. Enter the memory programming mode for
your driver settings by following the
instructions listed previously under “Entering
the Driver Selection Submenu.”
2. From the DRIVER SELECTION submenu,
turn the tune/select knob to highlight the
driver number that you want, either DRIVER 1
or DRIVER 2.
3. Set your choice by pressing in the
tune/select knob.
If you would like to recall or store driver settings for
the selected driver, see “RECALL DRIVER
SETTINGS” or “STORE DRIVER SETTINGS”
later in this section.
If you would like to recall or store exit settings for
the selected driver, see “RECALL EXIT SETTINGS”
or “STORE EXIT SETTINGS” later in this section.
RECALL DRIVER SETTINGS
To recall driver settings, use the following
procedure:
1. Enter the memory programming mode for
your driver settings by following the
instructions listed previously under “Entering
the Driver Selection Submenu.”
2. From the DRIVER SELECTION submenu, turn
the tune/select knob to scroll to RECALL
DRIVER SETTINGS and press in the knob.
If the vehicle is in PARK (P), one beep will
sound and your previously saved driving
position will then be recalled.
If the vehicle is not in PARK (P), three beeps
will sound and your previously saved
driving position will not be recalled.
A memory recall can be stopped by pressing any
memory seat or mirror position button.
If you would like the stored driving positions to be
recalled when unlocking your vehicle with the
keyless access transmitter or when starting your
vehicle, see “REMOTE RECALL MEMORY”
or “START BUTTON RECALL” underVehicle
Personalization on page 148.
171

The recirculation mode is cancelled when the
system enters the defog mode. If recirculation is
selected while in the defog mode, it is cancelled
after 10 minutes.
If there is fogging on the side windows, remain in
defog or defrost mode until they clear.
0(Defrost):Press this button to direct most of
the air to the windshield, with some air directed
to the side windows and outboard panel outlets. In
this mode, the system automatically turns off
recirculation and runs the air-conditioning
compressor, unless the outside temperature is at
or below freezing. Recirculation cannot be
selected while in the defrost mode.
This mode can also cause the fan speed and air
temperature to increase.
Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog or frost from the rear window.
The rear window defogger only works when the
ignition is on or during remote start, if
programmed. See “Personal Settings Menu” under
Vehicle Personalization on page 148for additional
information.
=(Rear Window Defogger):Press this button
to turn the rear window defogger on or off. Be
sure to clear as much snow from the rear window
as possible.
The rear window defogger turns off about
10 minutes after the button is pressed. If the
vehicle’s speed is above 30 mph (48 km/h), the
rear defogger stays on continuously. If turned
on again, the defogger only runs for about
ve minutes before turning off. The defogger can
also be turned off by pressing the button again
or by turning off the engine.
The heated outside rearview mirrors also heat to
help clear fog or frost from the surface of the
mirror when the rear window defogger is on. See
Outside Power Heated Mirrors on page 130.
Notice:Do not use a razor blade or sharp
object to clear the inside rear window. Do not
adhere anything to the defogger grid lines
in the rear glass. These actions may damage
the rear defogger. Repairs would not be
covered by your warranty.
236

NO FOBS DETECTED
This message displays if the vehicle does not
detect the presence of a keyless access
transmitter when you have attempted to start the
vehicle or a vehicle door has just closed. The
following conditions may cause this message
to appear:
Driver-added equipment plugged into the
accessory power outlet on the center console
is causing interference. Examples of these
devices are cell phones and cell phone
chargers, two-way radios, power inverters, or
similar items. Try moving the keyless
access transmitter away from these devices
when starting the vehicle. In addition,
PDA devices and remote garage and gate
openers may also generate Electromagnetic
Interference (EMI) that may interfere with
the keyless access transmitter. Do not carry
the keyless access transmitter in the same
pocket or bag as these devices.
The vehicle is experiencing Electromagnetic
Interference (EMI). Some locations, such as
airports, automatic toll booths, and some
gas stations, have EMI elds which may
interfere with the keyless access transmitter.
If moving the transmitter
to different locations
within the vehicle does
not help, place the
transmitter in the center
console transmitter
pocket with the buttons
facing forward and
then press the
START button.
The vehicle’s battery voltage is low. The
battery voltage must be above 10 volts for
the keyless access transmitter to be
detected properly.
272

SERVICE TIRE MONITOR
If your vehicle has a Tire Pressure Monitor (TPM)
system, this message displays if a part on the
system is not working properly. If you drive your
vehicle while any of the four sensors are
missing or inoperable, the warning comes on in
about 20 minutes. A sensor would be missing, for
example, if you put different wheels on your
vehicle without transferring the sensors. If the
warning comes on and stays on, there may be a
problem with the TPM. See your dealer.
SERVICE THEFT SYSTEM
This message displays when there is a problem
with the hood open and closed switches. The
switches may need to be replaced. When
this message is displayed, the theft-deterrent
system will still be protecting the interior of
the vehicle, however, the hood area will not be
protected at this time. Also, the remote start
function will not work when this message appears.
See your dealer for service.
SERVICE TRANSMISSION
This message displays when there is a problem
with the transmission of your vehicle. Have
your vehicle serviced by your dealer.
SERVICE VEHICLE SOON
This message displays when a non-emissions
related malfunction occurs. Have your vehicle
serviced by your dealer as soon as possible.
SPEED LIMITED TO XXX
This message displays when your vehicle speed is
limited to XXX, mph in English mode and km/h
in Metric mode, because the vehicle detects
a problem in the suspension system. Have your
vehicle serviced by your dealer.
STABILITY SYS (System) ACTIVE
This message displays any time the StabiliTrak®
System is actively assisting you with directional
control of the vehicle. Slippery road conditions may
exist when this message is displayed, so adjust
your driving accordingly. This message may
stay on for a few seconds after StabiliTrak
®stops
assisting you with directional control of the
vehicle. SeeStabiliTrak
®System on page 326for
more information.
276

Notice:If you leave your radio or other
accessories on during the jump starting
procedure, they could be damaged. The repairs
would not be covered by your warranty.
Always turn off your radio and other
accessories when jump starting your vehicle.
3. Turn off the ignition on both vehicles.
Unplug unnecessary accessories plugged into
the cigarette lighter or the accessory power
outlets. Turn off the radio and all lamps
that are not needed. This will avoid sparks
and help save both batteries. And it could
save the radio.4. Open the hoods and locate the positive (+)
and negative (−) terminal locations of the
other vehicle, as well as the positive (+)
terminal location on your vehicle’s battery.
SeeEngine Compartment Overview on
page 373for more information on the location
of the battery.
Your vehicle has a remote negative (−)
ground location, as shown in the illustration.
410

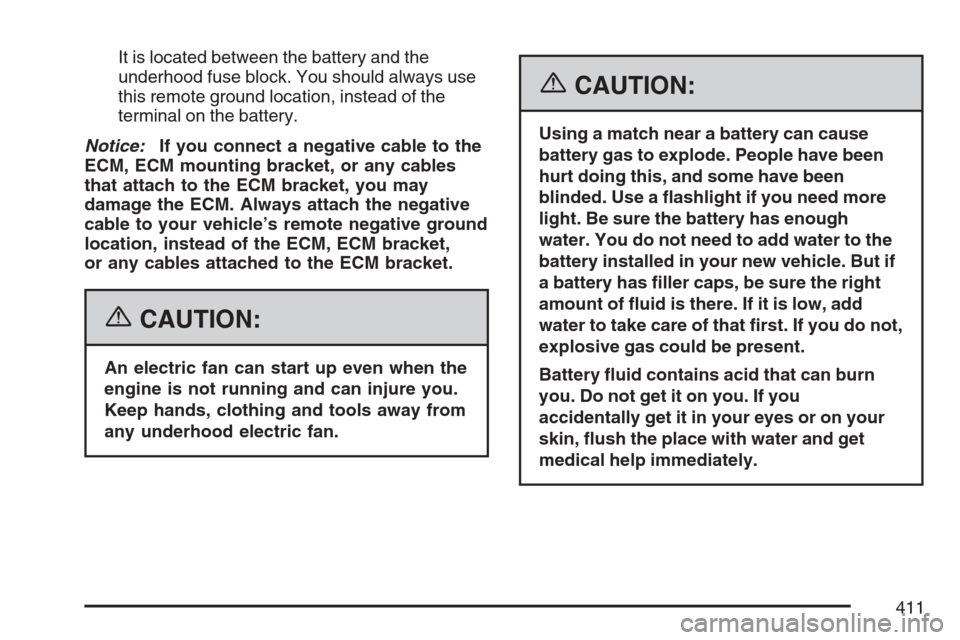

It is located between the battery and the
underhood fuse block. You should always use
this remote ground location, instead of the
terminal on the battery.
Notice:If you connect a negative cable to the
ECM, ECM mounting bracket, or any cables
that attach to the ECM bracket, you may
damage the ECM. Always attach the negative
cable to your vehicle’s remote negative ground
location, instead of the ECM, ECM bracket,
or any cables attached to the ECM bracket.
{CAUTION:
An electric fan can start up even when the
engine is not running and can injure you.
Keep hands, clothing and tools away from
any underhood electric fan.
{CAUTION:
Using a match near a battery can cause
battery gas to explode. People have been
hurt doing this, and some have been
blinded. Use a ashlight if you need more
light. Be sure the battery has enough
water. You do not need to add water to the
battery installed in your new vehicle. But if
a battery has ller caps, be sure the right
amount of uid is there. If it is low, add
water to take care of that rst. If you do not,
explosive gas could be present.
Battery uid contains acid that can burn
you. Do not get it on you. If you
accidentally get it in your eyes or on your
skin, ush the place with water and get
medical help immediately.
411
