Parking Brake
The parking brake
pedal is located on the
lower portion of the
instrument panel to
the left of the steering
wheel.
This vehicle has a push-to-release parking brake
pedal. To set the parking brake, hold the
regular brake pedal down with your right foot and
push the parking brake pedal down with your
left foot.
If the ignition is on, the brake system warning light
on the instrument panel cluster should come
on. If it does not, you need to have your vehicle
serviced. SeeBrake System Warning Light
on page 248for more information.To release the parking brake, hold the brake pedal
down with your right foot and push the parking
brake pedal with your left foot. When you lift your
left foot, the parking brake releases.
Notice:Driving with the parking brake on can
overheat the brake system and cause
premature wear or damage to brake system
parts. Verify that the parking brake is fully
released and the brake warning light is
off before driving.
A warning chime will sound if the parking brake
is set, the ignition is on and the vehicle begins
to move. To stop the chime, fully release the
parking brake.
If you are towing a trailer and parking on a hill,
seeTowing a Trailer on page 357for more
information.
121

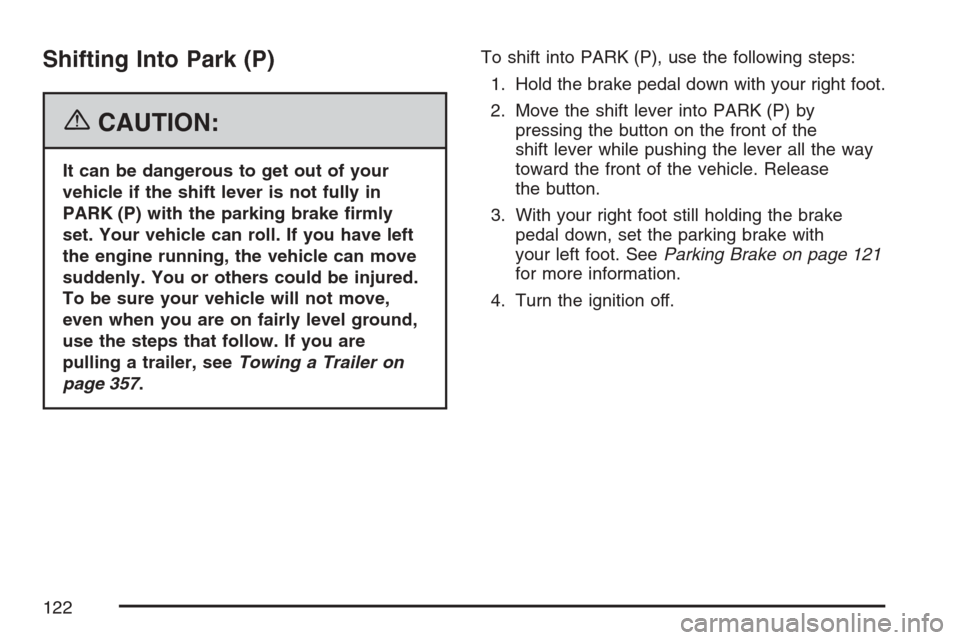

Shifting Into Park (P)
{CAUTION:
It can be dangerous to get out of your
vehicle if the shift lever is not fully in
PARK (P) with the parking brake rmly
set. Your vehicle can roll. If you have left
the engine running, the vehicle can move
suddenly. You or others could be injured.
To be sure your vehicle will not move,
even when you are on fairly level ground,
use the steps that follow. If you are
pulling a trailer, seeTowing a Trailer on
page 357.To shift into PARK (P), use the following steps:
1. Hold the brake pedal down with your right foot.
2. Move the shift lever into PARK (P) by
pressing the button on the front of the
shift lever while pushing the lever all the way
toward the front of the vehicle. Release
the button.
3. With your right foot still holding the brake
pedal down, set the parking brake with
your left foot. SeeParking Brake on page 121
for more information.
4. Turn the ignition off.
122

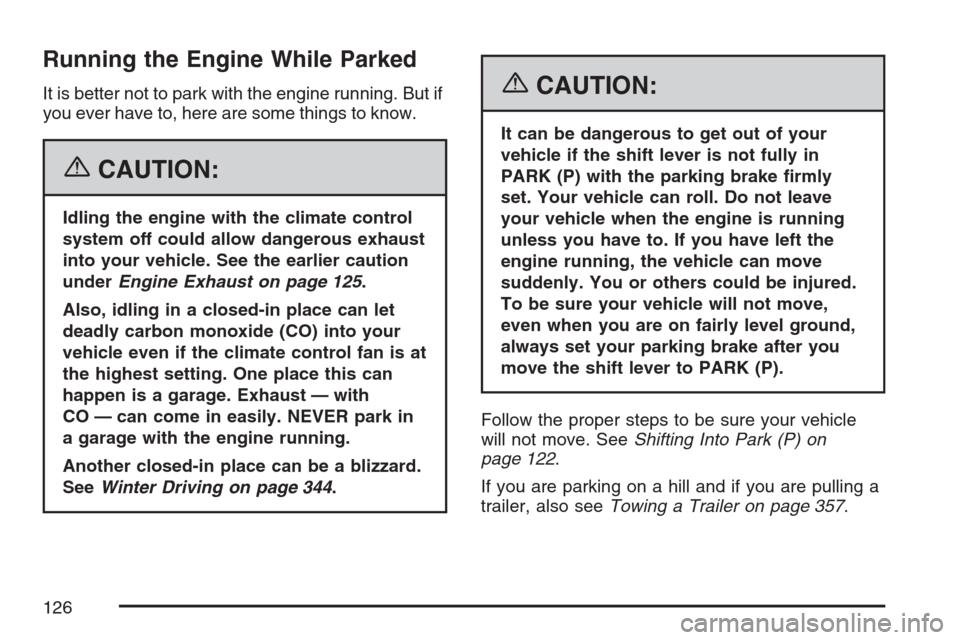

Running the Engine While Parked
It is better not to park with the engine running. But if
you ever have to, here are some things to know.
{CAUTION:
Idling the engine with the climate control
system off could allow dangerous exhaust
into your vehicle. See the earlier caution
underEngine Exhaust on page 125.
Also, idling in a closed-in place can let
deadly carbon monoxide (CO) into your
vehicle even if the climate control fan is at
the highest setting. One place this can
happen is a garage. Exhaust — with
CO — can come in easily. NEVER park in
a garage with the engine running.
Another closed-in place can be a blizzard.
SeeWinter Driving on page 344.
{CAUTION:
It can be dangerous to get out of your
vehicle if the shift lever is not fully in
PARK (P) with the parking brake rmly
set. Your vehicle can roll. Do not leave
your vehicle when the engine is running
unless you have to. If you have left the
engine running, the vehicle can move
suddenly. You or others could be injured.
To be sure your vehicle will not move,
even when you are on fairly level ground,
always set your parking brake after you
move the shift lever to PARK (P).
Follow the proper steps to be sure your vehicle
will not move. SeeShifting Into Park (P) on
page 122.
If you are parking on a hill and if you are pulling a
trailer, also seeTowing a Trailer on page 357.
126

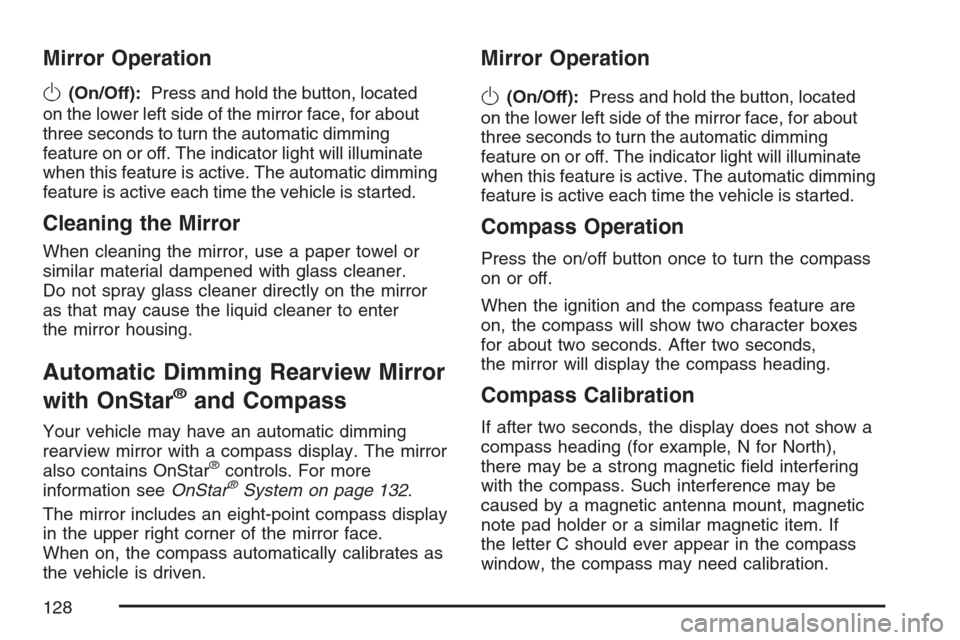

Mirror Operation
O
(On/Off):Press and hold the button, located
on the lower left side of the mirror face, for about
three seconds to turn the automatic dimming
feature on or off. The indicator light will illuminate
when this feature is active. The automatic dimming
feature is active each time the vehicle is started.
Cleaning the Mirror
When cleaning the mirror, use a paper towel or
similar material dampened with glass cleaner.
Do not spray glass cleaner directly on the mirror
as that may cause the liquid cleaner to enter
the mirror housing.
Automatic Dimming Rearview Mirror
with OnStar
®and Compass
Your vehicle may have an automatic dimming
rearview mirror with a compass display. The mirror
also contains OnStar
®controls. For more
information seeOnStar®System on page 132.
The mirror includes an eight-point compass display
in the upper right corner of the mirror face.
When on, the compass automatically calibrates as
the vehicle is driven.
Mirror Operation
O
(On/Off):Press and hold the button, located
on the lower left side of the mirror face, for about
three seconds to turn the automatic dimming
feature on or off. The indicator light will illuminate
when this feature is active. The automatic dimming
feature is active each time the vehicle is started.
Compass Operation
Press the on/off button once to turn the compass
on or off.
When the ignition and the compass feature are
on, the compass will show two character boxes
for about two seconds. After two seconds,
the mirror will display the compass heading.
Compass Calibration
If after two seconds, the display does not show a
compass heading (for example, N for North),
there may be a strong magnetic eld interfering
with the compass. Such interference may be
caused by a magnetic antenna mount, magnetic
note pad holder or a similar magnetic item. If
the letter C should ever appear in the compass
window, the compass may need calibration.
128

Cleaning the Mirror
When cleaning the mirror, use a paper towel or
similar material dampened with glass cleaner.
Do not spray glass cleaner directly on the mirror
as that may cause the liquid cleaner to enter
the mirror housing.
Outside Power Heated Mirrors
The power mirror
control is on the driver’s
door armrest and
controls the driver’s
side and passenger’s
side mirrors.
Move the selector switch left or right to choose the
driver’s side or passenger’s side mirror. Use the
arrows located on the control pad to adjustthe position of each mirror. Adjust each mirror so
you can see the side of your vehicle and the
area behind your vehicle. Return the selector
switch to the center position when nished
adjusting. This will prevent unwanted mirror
movement in case the control pad is accidentally
bumped while driving.
The preferred mirror positions can be stored with
the memory option. SeeMemory Seat, Mirrors
and Steering Wheel on page 169.
The mirrors can be manually folded inward to
prevent damage when going through car washes
or conned spaces. To fold, push the mirror
toward the vehicle. To return the mirror to its
original position, push outward. Be sure to return
both mirrors to their original unfolded position
before driving.
When the rear window defogger is turned on, both
outside rear view mirrors are heated to help
clear them of ice, snow, or condensation. See
“Rear Window Defogger” underDual Climate
Control System on page 230.
130

Power Tilt Wheel and Telescopic
Steering Column
The power tilt and
telescope wheel control
is located on the
outboard side of the
steering column.
To operate the power tilt feature, move the control
up or down to tilt the steering wheel up or down.
To set the memory position, seeVehicle
Personalization on page 148andMemory Seat,
Mirrors and Steering Wheel on page 169.
To operate the power telescope feature, move the
control forward or rearward and the steering
wheel moves toward the front or rear of the
vehicle.
Heated Steering Wheel
Your vehicle may have a heated steering wheel.
The button for this
feature is located on
the steering wheel.
Press the bottom of the button to turn the heated
steering wheel on or off. A light on the button
will display while the feature is on.
The steering wheel will take about three minutes
to reach its maximum temperature.
181

Raise or lower the lever until the arrow starts to
ash to signal a lane change. Hold it there until the
lane change is complete. The lever returns to its
original position when it is released.
Rapid ashing of arrows when signaling for a turn
or lane change may be caused by a burned-out
signal bulb. Other driver’s will not see the signal.
Replace burned-out bulbs to help avoid possible
accidents. Check the fuse and for burned-out bulbs
if the arrow fails to work when signaling a turn.
SeeFuses and Circuit Breakers on page 487for
more information.
Turn Signal On Chime
If the turn signal is left on for about 1 mile (1.6 km),
a warning chime will sound and the TURN
SIGNAL ON message will appear on the Driver
Information Center (DIC) display. See “Turn Signal
On” underDIC Warnings and Messages on
page 264for more information.
Headlamp High/Low-Beam Changer
Push forward on the turn signal/multifunction
lever to change the headlamps from low to high
beam. Pull the lever back and then release it
to change from high to low beam.
If you turn the vehicle off with the high beams on,
the next time you start your vehicle the low
beams will be on.
To re-activate high beams, pull lever toward you
and then push it forward again.
This light on the
instrument panel cluster
will be on, indicating
high-beam usage.
183

Unnecessary Warnings
FCA may occasionally provide an unnecessary
warning to guard rails, signs, and other stationary
objects. This is normal operation, your vehicle
does not need service.
Other Messages
There are three messages that may appear on the
Driver Information Center (DIC). They are
CLEAN RADAR, RADAR CRUISE NOT READY
and SERVICE RADAR CRUISE. SeeDIC
Warnings and Messages on page 264.
Cleaning the System
The radar can become blocked by snow, ice, or
dirt. If so, you may need to turn off the engine and
clean the lens. See “Cleaning the System”
underAdaptive Cruise Control on page 197.
Flash-to-Pass
This feature allows you to use the high-beam
headlamps to signal the driver in front of you that
you want to pass.
Pull and hold the turn signal/multifunction lever
toward you to use this feature. When you do this,
the following will occur:
If the headlamps are off, in low-beam or in
Daytime Running Lamps (DRL) mode, the
high-beam headlamps will turn on. They will
stay on as long as you hold the lever
there. Release the lever to turn them off.
If the headlamps are in high-beam mode, they
will switch to low beam. To return to
high-beam, push the lever away from you.
188

Windshield Wipers
The lever on the right side of the steering column
operates the windshield wipers.
7(Mist):Pull the lever down and release it for
a single wiping cycle. The lever will return to its
original position. For more cycles, hold the
lever down before releasing it.
9(Off):Put the lever in this position to turn off
the wipers.
&(Delay):Put the lever in this position to set a
delay between wipes. Turn the delay adjustment
band to set the length of the delay.
x(Delay Adjustment):Use this band to set the
length of the delay between wipes when using the
delay feature. The closer you move the band
toward mist, the longer the delay. The windshield
wiper lever must be in delay for this feature to work.
6(Low Speed):Put the lever in this position
for slow, steady wiping cycles.
1(High Speed):Put the lever in this position
for rapid wiping cycles.
If the windshield wipers are in use for about
six seconds while you are driving, the exterior
lamps will come on automatically if the exterior
lamp control is in AUTO. SeeWiper Activated
Headlamps on page 215for more information.
Be sure to clear ice and snow from the wiper
blades before using them. If they’re frozen to the
windshield, gently loosen or thaw them. If the
blades do become damaged, install new blades.
For more information, seeWindshield Wiper Blade
Replacement on page 419.
189

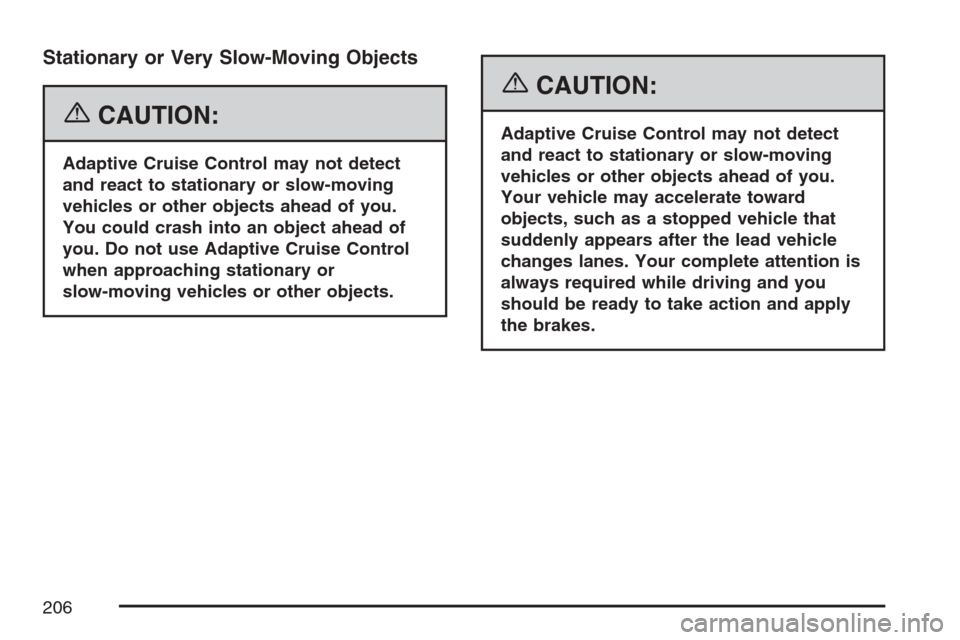

Stationary or Very Slow-Moving Objects
{CAUTION:
Adaptive Cruise Control may not detect
and react to stationary or slow-moving
vehicles or other objects ahead of you.
You could crash into an object ahead of
you. Do not use Adaptive Cruise Control
when approaching stationary or
slow-moving vehicles or other objects.
{CAUTION:
Adaptive Cruise Control may not detect
and react to stationary or slow-moving
vehicles or other objects ahead of you.
Your vehicle may accelerate toward
objects, such as a stopped vehicle that
suddenly appears after the lead vehicle
changes lanes. Your complete attention is
always required while driving and you
should be ready to take action and apply
the brakes.
206
