CADILLAC STS V 2007 1.G Owners Manual

F2[(Next Folder):Press this pushbutton to go
to the rst track in the next folder.
Press and hold this pushbutton to advance quickly
within a track. Release this pushbutton to play
the passage. FWD and the elapsed time of
the track displays.
Pressing this button while in folder random mode
takes you to the next folder and plays the
tracks in that folder in random order.
F3 RDM (Random):To play the tracks on the CD
in random, rather than sequential order, press
and release this pushbutton until RDM TRCK
displays. Once all of the tracks in the current folder
or playlist have played, the system moves on to
the next folder or playlist and plays all of the tracks
in random order.
To play the tracks in the current folder in random,
rather than sequential order, press and release
this pushbutton until RDM FLDR displays.
This feature does not work with playlists.
While in random, pressing and releasing either
single seek arrow goes to the next or previous
random track.Press and release this pushbutton until NORMAL
displays to turn off random play.
F4 RPT (Repeat):To repeat the current track,
press and release this pushbutton until RPT
TRCK displays.
To repeat the tracks in the current folder,
press and release this pushbutton until RPT
FLDR displays.
Press and release this pushbutton until NORMAL
displays to turn off repeated play.
F6 DISP (Display):Press this pushbutton to
switch between the elapsed time of the track and
the MP3 playback information.
©¨(Seek):Press the left arrow to go to the
start of the previous track. Press the right arrow to
go to the start of the next track. Pressing either
arrow for more than two seconds searches
the previous or next tracks at two tracks per
second. Release the button to stop searching and
to play the track.
301

©¨(Scan):Press the double arrow button to
scan the tracks in each folder. The radio goes to
the next track, plays for 10 seconds, then goes
to the next track. Press this button again to
stop scanning.
w(Tune):Turning the tune knob will fast track
reverse or advance through the tracks in all
folders or playlists. The track number and le
name displays for each track. Turning this knob
while in random fast tracks reverse or advances
the tracks in sequential order.
4(Information):Press this button, while an MP3
CD is loaded, to view the Title, Artist, Album,
or Folder names. To view this information, perform
the following:
1. Press the tune/select knob to enter the
main menu.
2. Turn the tune/select knob until INFO displays.
3. Press the tune/select knob to select INFO.
The display changes to show the additional
MP3 information.4. Press one of the following pushbuttons to
view that specic information.
F1 TTLE (Title):To display the title name.
F2 ATST (Artist):To display the
artist name.
F3 ALBM (Album):To display the
album name.
F4 FLDR (Folder):To display the
folder name.
5. Press the BACK (F6) button to exit the
display. To return to the original display,
repeatedly press the BACK (F6) button or wait
for the display to time out.
SRCE (Source):Press this button to select a
source, either radio or CD. The CD must be loaded
to select the source and to play. CD displays if
a CD is loaded. If a CD is not loaded, the display
does not change from the radio source.
Z(Eject):Press this button to stop a CD when
it is playing or to eject a CD when it is not
playing. Eject can be activated with the ignition
and the radio off.
302

XM Radio Messages
Radio Display Message Condition Action Required
XL (Explicit Language
Channels)XL on the radio display,
after the channel name,
indicates content with
explicit language.These channels, or any others, can be blocked at a
customer’s request, by calling 1-800-852-XMXM (9696).
XM Updating Updating encryption code The encryption code in the receiver is being updated, and no
action is required. This process should take no longer than
30 seconds.
No XM Signal Loss of signal The system is functioning correctly, but the vehicle is in a
location that is blocking the XM™ signal. When the vehicle is
moved into an open area, the signal should return.
Loading XM Acquiring channel audio
(after 4 second delay)The audio system is acquiring and processing audio and text
data. No action is needed. This message should disappear
shortly.
Channel Off Air Channel not in service This channel is not currently in service. Tune in to
another channel.
Channel Unavail Channel no
longer availableThis previously assigned channel is no longer assigned.
Tune to another station. If this station was one of the presets,
choose another station for that preset button.
No Artist Info Artist Name/Feature
not availableNo artist information is available at this time on this channel.
The system is working properly.
303

Radio Display Message Condition Action Required
No Title Info Song/Program Title
not availableNo song title information is available at this time on this
channel. The system is working properly.
No CAT Info Category Name
not availableNo category information is available at this time on this
channel. The system is working properly.
CAT Not Found No channel available for
the chosen categoryThere are no channels available for the selected category.
The system is working properly.
No Information No Text/Informational
message availableNo text or informational messages are available at this time
on this channel. The system is working properly.
XM Theftlocked Theft lock active The XM™ receiver in your vehicle could have previously
been in another vehicle. For security purposes, XM™
receivers cannot be swapped between vehicles. If this
message is received after having your vehicle serviced,
check with your dealer.
XM Radio ID Radio ID label (channel 0) If tuned to channel 0, this message alternates with the XM™
Radio 8 digit radio ID label. This label is needed to activate
the service.
Unknown Radio ID not known
(should only be if
hardware failure)If this message is received when tuned to channel 0,
there could be a receiver fault. Consult with your dealer.
Check XM Receivr Hardware failure If this message does not clear within a short period of time,
the receiver could have a fault. Consult with your dealer.
304

Navigation/Radio System
Your vehicle could have a navigation radio
system.
The navigation system has built-in features
intended to minimize driver distraction. Technology
alone, no matter how advanced, can never
replace your own judgment. See the Navigation
System manual for some tips to help you
reduce distractions while driving.
Radio Personalization
Accessing the Radio’s Main Menu
(Base Audio System)
There are two different procedures for accessing
the radio’s main menu depending upon whether
or not your vehicle has the Navigation system.To access the main menu of the radio, do one of
the following:
Using the Base audio system, press the
CNFG button located on the radio or press the
tune/select knob located on the right side of
the radio. Then turn the tune/select knob
clockwise or counterclockwise to scroll through
the menu items.
If your vehicle has the Navigation system, see
the Navigation System manual supplied with
your vehicle for more information on accessing
the main menu and for descriptions of the
menu items for the Navigation system.
305

The main menu for the Base audio system
consists of the following menu items:
eBASS - MID - TREBLE
xBALANCE - FADER
eEQ EQUALIZER
H/A (HOME/AWAY) PRESETS
AUTOSTORE PRESETS
CAT CATEGORY
TA TRAFFIC ANNOUNCE
RECALL RDS (Radio Data System)
MESSAGE
AF ALTERNATE FREQ. (Frequency)
ASEEK LOCAL/DISTANT
8SET CLOCK
BSET DATE
4INFO (Information)
LANG LANGUAGE
SETUP
Radio Main Menu Item Descriptions
(Base Audio System)
The following descriptions are for the Base audio
system. For information pertaining to the
Navigation audio system, see “Audio System” in
the Index of the Navigation System manual
supplied with your vehicle.
eBASS - MID (Midrange) - TREBLE:This
menu item lets you adjust the levels for the bass,
midrange and treble features of the audio
system. See “Setting the Tone (Bass/Treble)”
underRadio with CD on page 282for more
information.
xBALANCE - FADER:This menu item lets you
adjust the levels for the balance and fader
features of the audio system. See “Adjusting the
Speakers (Balance/Fade)” underRadio with CD on
page 282for more information.
eEQ (Equalizer):This menu item lets you
choose among ve preset equalizations for the
audio system. See “Audio Equalizer” underRadio
with CD on page 282for more information.
306

H/A (Home/Away) PRESETS:This menu item
lets you switch back and forth between your home
and away preset radio stations. See “Presets
Home/Away” underRadio with CD on page 282
for more information.
AUTOSTORE PRESETS:This menu item lets
you automatically store radio stations with
the strongest signals as presets. See “Autostore
Presets” underRadio with CD on page 282
for more information.
CAT (Category):This menu item lets you select
radio stations based on preset categories. See
“Activating Program Type (PTY) Stations”
underRadio with CD on page 282for more
information.
TA (Traffic Announcement):This menu item lets
you turn the TA feature on and off. See “TA
(Traffic Announcement)” underRadio with CD on
page 282for more information.
RECALL RDS MESSAGE:This menu item lets
you view an RDS radio station message broadcast
by a radio station. See “MSG (Message)” under
Radio with CD on page 282for more information.AF (Alternate Frequency):This menu item lets
you turn the AF feature on and off. See “Activating
Program Type (PTY) Stations (RDS and XM™)”
underRadio with CD on page 282for more
information.
ASEEK LOCAL/DISTANT:This feature instructs
the audio system to seek only local radio
stations with the strongest signal or to seek all
radio stations with a strong signal in a large area.
Use LOCAL while in urban areas where there
are several strong radio station signals and you
want to limit the number of stations to those
with the strongest signals only. Use DISTANT
while in rural areas where there are fewer
radio station signals available.
See “Local/Distant Selection” underRadio with CD
on page 282for more information.
8SET CLOCK:Use this menu item to set
the time.
SeeSetting the Time on page 281for more
information.
307

BSET DATE:Use this menu item to set
the date.
SeeSetting the Time on page 281for more
information.
4(Information):This menu item is used to
display XM™ satellite radio service and CD MP3
playback information. See “
4(Information)”
underRadio with CD on page 282for more
information.
LANG (Language):To change the language
displayed on the radio, select LANGUAGE
by pressing the tune/select knob. Turn the
tune/select knob to scroll through the following
available languages:
ENGLISH
GERMAN
FRENCH
SPANISH
JAPANESE
To make your selection, press the tune/select
knob. If you accidentally select a language that you
did not want, ENGLISH is always at the top of
the language list.SETUP:When you select this menu item, the
following submenu is available:

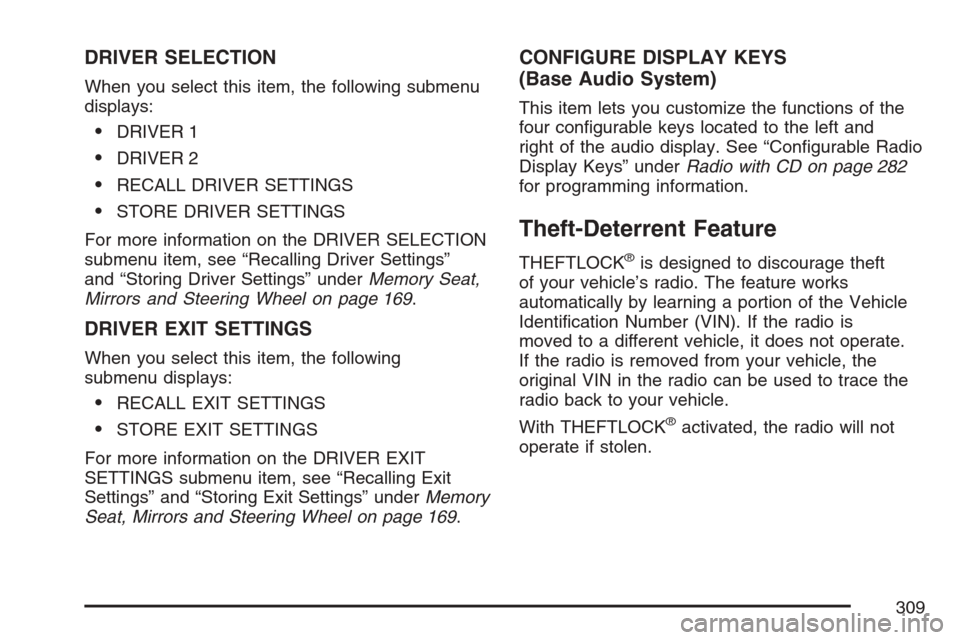

PERSONAL SETTINGS MENU
DRIVER SELECTION
DRIVER EXIT SETTINGS
CONFIGURE DISPLAY KEYS
SETUP Submenu Items
The following choices are available for
programming using the Base audio system.
PERSONAL SETTINGS MENU
This item turns the entire list of personalization
features on or off. This item allows you to program
certain features to a preferred setting for up to
two people. The number of available features
varies depending upon which options are
purchased. While this item is on, a check mark
appears after it. For more information on the
PERSONAL SETTINGS MENU item, seeVehicle
Personalization on page 148.
308

DRIVER SELECTION
When you select this item, the following submenu
displays:
DRIVER 1
DRIVER 2
RECALL DRIVER SETTINGS
STORE DRIVER SETTINGS
For more information on the DRIVER SELECTION
submenu item, see “Recalling Driver Settings”
and “Storing Driver Settings” underMemory Seat,
Mirrors and Steering Wheel on page 169.
DRIVER EXIT SETTINGS
When you select this item, the following
submenu displays:
RECALL EXIT SETTINGS
STORE EXIT SETTINGS
For more information on the DRIVER EXIT
SETTINGS submenu item, see “Recalling Exit
Settings” and “Storing Exit Settings” underMemory
Seat, Mirrors and Steering Wheel on page 169.
CONFIGURE DISPLAY KEYS
(Base Audio System)
This item lets you customize the functions of the
four congurable keys located to the left and
right of the audio display. See “Congurable Radio
Display Keys” underRadio with CD on page 282
for programming information.
Theft-Deterrent Feature
THEFTLOCK®is designed to discourage theft
of your vehicle’s radio. The feature works
automatically by learning a portion of the Vehicle
Identication Number (VIN). If the radio is
moved to a different vehicle, it does not operate.
If the radio is removed from your vehicle, the
original VIN in the radio can be used to trace the
radio back to your vehicle.
With THEFTLOCK
®activated, the radio will not
operate if stolen.
309

Audio Steering Wheel ControlsSome audio controls
can be adjusted at the
steering wheel. They
include the following:
0(Mute):Press this button to silence the system.
Press this button again, or any other radio
button, to turn the sound on.
SRCE (Source):Press this button to switch
between FM1, FM2, AM, or XM1 or XM2
(if equipped) radio or CD.
g(OnStar®/Voice Recognition):If your vehicle
has the Radio with CD or Radio with Six-Disc
CD audio system, press this button to interact with
the OnStar
®system.
Left Side Controls For
Both STS and STS-VRight Side Controls
For STS
Right Side Controls
For STS-V
310
