To raise the position of the lumbar support, press
and hold the top of the control. To lower the
position of lumbar support, press and hold the
bottom of the control. Let go of the control when
the lower seatback reaches the desired level
of support.
Your vehicle may have a memory function which
allows seat settings to be saved and recalled.
SeeMemory Seat, Mirrors and Steering Wheel on
page 169for more information.
Heated Seats
Your vehicle may have
heated front seats.
The buttons are located
on the climate control
panel.
z(Heated Seat and Seatback):This button is
for the heated seat and seatback. Press the
up arrow once to turn on the heated seat at the
highest setting. Press the down arrow once to turn
on the heated seat at the lowest setting.
Pressing the up or down arrows a second time will
raise or lower the setting. To turn off the heated
seat keep pressing the down arrow until the
indicator for heated seat on the climate control
display is off.
A light bar in the climate control display shows the
setting: high, medium, or low. The longest bar
shows the high range and the shortest bar shows
the low range.
The heated seat will automatically shut off when
the vehicle is turned off.
10

Heated and Ventilated Seats
Your vehicle may have
heated and ventilated
front seats. The buttons
are located on the
climate control panel.
z(Heated Seat and Seatback):This part of the
button is for the heated seat and seatback.
{(Ventilated Seat):This part of the button is for
the ventilated seat.
There are three settings for each feature. A light bar
in the climate control display shows the setting;
high, medium or low. The longest bar shows
the high range and the shortest bar shows the
low range.Pressing either the heated seat or ventilated part
of the seat button will start that feature at the
highest setting. Each time you press the button,
the feature will decrease one setting.
To turn the feature off, keep pressing the button
until the display lights turn off.
The heated or ventilated seats will automatically
shut off when the vehicle is turned off.
Power Reclining Seatbacks
The front seats have
power reclining
seatbacks. Use the
vertical power seat
control located on the
outboard side of the
seat to operate them.
To recline the seatback, press the control
toward the rear of the vehicle.
To raise the seatback, press the control toward
the front of the vehicle.
11

Matching Transmitter(s) to Your
Vehicle
Each Keyless Access System is coded to allow
only transmitters programmed to your vehicle
to work. If a transmitter is lost or stolen, a
replacement can be purchased and programmed
through your dealer. Your dealer can reprogram
your vehicle so lost or stolen transmitters no longer
work with your vehicle. Each vehicle can have a
maximum of four transmitters matched to it.
To match a new transmitter to your vehicle when
you have a recognized transmitter, do the
following. Two recognized transmitters are required
for Canadian owners.
1. The vehicle must be off.
2. Have the recognized transmitter and the new,
unrecognized transmitter(s) with you.
3. Insert the vehicle key into the key lock
cylinder located on the outside of the
driver’s door.4. Turn the key to the unlock position
ve times within ve seconds.
5. The Driver Information Center (DIC)
will display READY FOR FOB X,
where X can be 2, 3 or 4.
90

6. Place the new, unrecognized transmitter into
the transmitter pocket with the transmitter
buttons facing the front of the vehicle.
The transmitter pocket is inside the center
console storage area located between
the driver and front passenger seats.7. Once the transmitter is programmed,
a beep will sound. The DIC will display
READY FOR X, where X can be 3 or 4,
or MAX # FOBS LEARNED.
8. Remove the transmitter from the transmitter
pocket and press the unlock button on the
keyless access transmitter two times.
The Canadian immobilizer standard requires
Canadian owners to see their dealer for matching
new transmitters when a recognized transmitter
is not available. United States owners are
permitted to match a new transmitter to their
vehicle when a recognized transmitter is
not available.
91

4. Turn the key to the unlock position ve times
within ve seconds.
5. The DIC message will display OFF/ACC TO
LEARN.
6. Press the Acc. button (ignition switch).
7. The DIC will read WAIT 10 MINUTES and will
count down to zero, one minute at a time.
8. The DIC will display OFF/ACC TO LEARN
again.
9. Press the Acc. button (ignition switch) again.
10. The DIC will again read WAIT 10 MINUTES
and will count down to zero, one minute
at a time.
11. The DIC will display OFF/ACC TO
LEARN again.
12. Press the Acc. button (ignition switch) again.
13. The DIC will again read WAIT 10 MINUTES
and will count down to zero, one minute
at a time.14. A beep will sound and the DIC will read
READY FOR FOB 1. At this time, all
previously known transmitters have been
erased.
15. Once the transmitter is recognized and
programmed, a beep will sound and the
DIC will display READY FOR FOB 2.
16. Remove the keyless access transmitter and
press the unlock button twice to initialize it.
If you have additional transmitters to program, this
process can be repeated until four transmitters
have been programmed. The DIC will then display
MAX # FOBS LEARNED and will exit the
programming mode.
When you are done programming transmitters,
press the unlock button on each keyless access
transmitter twice. After performing this process,
transmitters previously programmed will no longer
work with your vehicle and must be reprogrammed.
93

Battery Replacement
Under normal use, the battery in your keyless
access transmitter should last about three years.
The battery is weak if the transmitter will not
work at the normal range in any location. If you
have to get close to your vehicle before the
transmitter works, it is probably time to change the
battery. The DIC may display KEY FOB
BATTERY LOW.
A weak battery may also cause the DIC to display
NO FOBS DETECTED when you try to start
the vehicle. If this happens, place the transmitter
in the center console storage area transmitter
pocket with the buttons facing to the front of the
vehicle. Then, with the vehicle in PARK (P)
or NEUTRAL (N), press the brake pedal and the
start button. SeeStarting the Engine on page 113,
for additional information about your vehicle’s
electronic keyless ignition with push button start.
Although this will start the vehicle, it is
recommended that you replace the transmitter
battery as soon as possible.Notice:When replacing the battery, use care
not to touch any of the circuitry. Static
from your body transferred to these surfaces
may damage the transmitter.
94

Do not use the remote start feature if your vehicle
is low on fuel. Your vehicle may run out of fuel.
The remote start feature provides two separate
starts, each with 10 minutes of engine running. If
you press the lock button and then hold the
remote start button on the keyless access
transmitter again for at least three seconds before
the rst 10 minutes of engine running time has
expired, 10 minutes is added to the remaining
minutes. For example, if the remote start is
initiated again after ve minutes of the engine run
time, 10 minutes is added and you now have
15 minutes with the engine running. Once
two remote starts or 20 minutes of the engine
running have been provided, the vehicle must be
started using the keyless access with pushbutton
start feature, if the engine needs to be restarted.
SeeStarting the Engine on page 113for more
information regarding the keyless ignition.The remote start feature will not operate if any of
the following occur:
The check engine light is displayed. See
“Check Engine Light” underMalfunction
Indicator Lamp on page 252.
The valet lockout switch is on.
The keyless access transmitter is in the
vehicle.
The vehicle’s hood is open.
The vehicle personalization feature is not
enabled.
An unauthorized vehicle entry or a vehicle
theft was attempted.
Your keyless access transmitter, with the remote
start button, provides an increased range of
operation. However, the range may be less while
the vehicle is running. As a result, you may
need to be closer to your vehicle to turn it off than
you were to turn it on.
There are other conditions which can affect the
performance of the transmitter, seeKeyless
Access System on page 87.
97

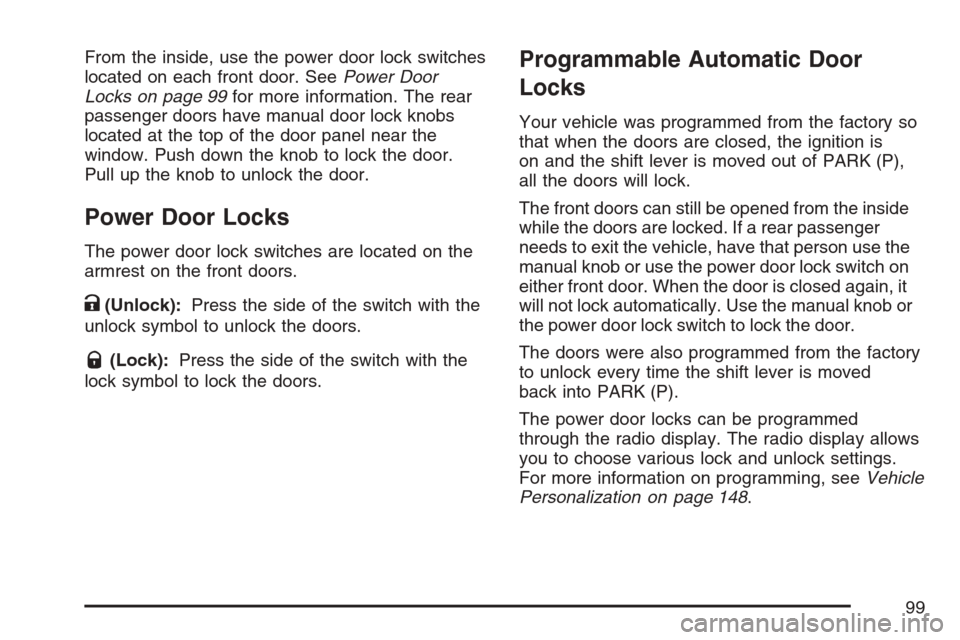

From the inside, use the power door lock switches
located on each front door. SeePower Door
Locks on page 99for more information. The rear
passenger doors have manual door lock knobs
located at the top of the door panel near the
window. Push down the knob to lock the door.
Pull up the knob to unlock the door.
Power Door Locks
The power door lock switches are located on the
armrest on the front doors.
K(Unlock):Press the side of the switch with the
unlock symbol to unlock the doors.
Q(Lock):Press the side of the switch with the
lock symbol to lock the doors.
Programmable Automatic Door
Locks
Your vehicle was programmed from the factory so
that when the doors are closed, the ignition is
on and the shift lever is moved out of PARK (P),
all the doors will lock.
The front doors can still be opened from the inside
while the doors are locked. If a rear passenger
needs to exit the vehicle, have that person use the
manual knob or use the power door lock switch on
either front door. When the door is closed again, it
will not lock automatically. Use the manual knob or
the power door lock switch to lock the door.
The doors were also programmed from the factory
to unlock every time the shift lever is moved
back into PARK (P).
The power door locks can be programmed
through the radio display. The radio display allows
you to choose various lock and unlock settings.
For more information on programming, seeVehicle
Personalization on page 148.
99

9/Acc. (OFF/ACCESSORY):When this button
is pressed, the engine will turn off even if the shifter
is not in PARK (P). If the shifter is in PARK (P), the
ignition mode will change to RAP, if all doors are
closed. The ignition mode will change to off, if a
front door is opened. SeeRetained Accessory
Power (RAP) on page 112for more information.
If the shifter is not in PARK (P), the ignition mode
will change to Acc. SeeShifting Into Park (P) on
page 122.
When the engine is off, press this button to place
the vehicle in accessory mode. ACCESSORY
ACTIVE will display on the Driver Information
Center (DIC). This mode allows you to use things
like the radio and the windshield wipers while the
engine is off. Use accessory mode if you must have
your vehicle in motion while the engine is off, for
example, if your vehicle is being towed. If the door
is open while in accessory mode, the key in
reminder chime will sound continuously.
If the push-button start is not working, your vehicle
may be near a strong radio antenna signal causing
interference to the keyless access system. SeeDIC
Warnings and Messages on page 264for more
information.After being in Acc. for about 20 minutes, the vehicle
will automatically enter RAP or will turn off,
depending on if the doors are opened or closed.
Retained Accessory Power (RAP)
The following accessories on your vehicle may be
used for up to 20 minutes after the engine is
turned off:
Radio
Power Windows
Audio Steering Wheel Controls
Power to these accessories stops after 20 minutes
or if one of the front doors is opened. If you
want power for another 20 minutes, close all the
doors and press to Acc. to place the vehicle
in accessory mode. Press the button again and
the vehicle will return to RAP.
112

Starting the Engine
Move the shift lever to PARK (P) or NEUTRAL (N).
To restart when you are already moving, use
NEUTRAL (N).
Notice:Do not try to shift to PARK (P) if your
vehicle is moving. If you do, you could
damage the transmission. Shift to PARK (P)
only when your vehicle is stopped.
The keyless access transmitter must be inside the
vehicle for the ignition to work.
Cell phone chargers can interfere with the
operation of the Keyless Access System. Battery
chargers should not be plugged in when starting
or turning off the engine.
To start you vehicle, do the following:
1. With your foot on the brake pedal, press the
START button located on the instrument panel.
If there is not a keyless access transmitter in
the vehicle or if there is something causing
interference with it, the DIC will display
NO FOBS DETECTED. SeeDIC Warnings
and Messages on page 264for more
information.2. When the engine begins cranking, let go of
the button and the engine cranks automatically
until it starts. If the battery in the keyless
access transmitter is weak, the DIC displays
KEY FOB BATTERY LOW. You can still
drive the vehicle.
See “Battery Replacement” underKeyless
Access System Operation on page 88
for more information. If the fob battery is
dead, you need to insert the fob into the fob
slot to enable engine starting. See “No
Fobs Detected” underDIC Warnings and
Messages on page 264.
3. Do not race the engine immediately after
starting it. Operate the engine and transmission
gently until the oil warms up and lubricates all
moving parts.
4. If the engine does not start and no DIC
message is displayed, wait 15 seconds
before trying again to let the cranking motor
cool down.
113
