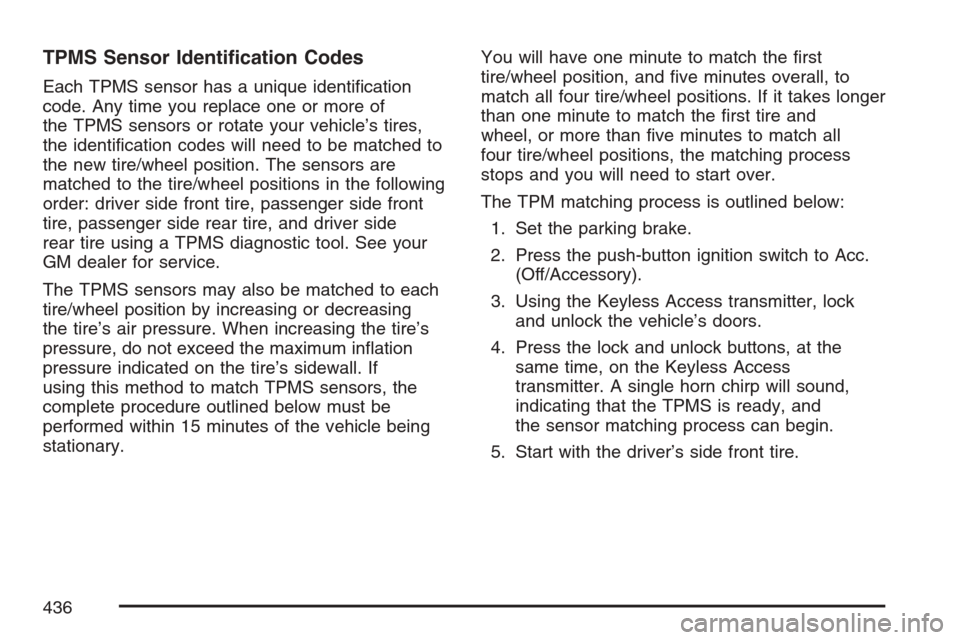

TPMS Sensor Identi cation Codes
Each TPMS sensor has a unique identi cation
code. Any time you replace one or more of
the TPMS sensors or rotate your vehicle’s tires,
the identi cation codes will need to be matched to
the new tire/wheel position. The sensors are
matched to the tire/wheel positions in the following
order: driver side front tire, passenger side front
tire, passenger side rear tire, and driver side
rear tire using a TPMS diagnostic tool. See your
GM dealer for service.
The TPMS sensors may also be matched to each
tire/wheel position by increasing or decreasing
the tire’s air pressure. When increasing the tire’s
pressure, do not exceed the maximum in ation
pressure indicated on the tire’s sidewall. If
using this method to match TPMS sensors, the
complete procedure outlined below must be
performed within 15 minutes of the vehicle being
stationary.You will have one minute to match the rst
tire/wheel position, and ve minutes overall, to
match all four tire/wheel positions. If it takes longer
than one minute to match the rst tire and
wheel, or more than ve minutes to match all
four tire/wheel positions, the matching process
stops and you will need to start over.
The TPM matching process is outlined below:
1. Set the parking brake.
2. Press the push-button ignition switch to Acc.
(Off/Accessory).
3. Using the Keyless Access transmitter, lock
and unlock the vehicle’s doors.
4. Press the lock and unlock buttons, at the
same time, on the Keyless Access
transmitter. A single horn chirp will sound,
indicating that the TPMS is ready, and
the sensor matching process can begin.
5. Start with the driver’s side front tire.
436
Driver’s Side

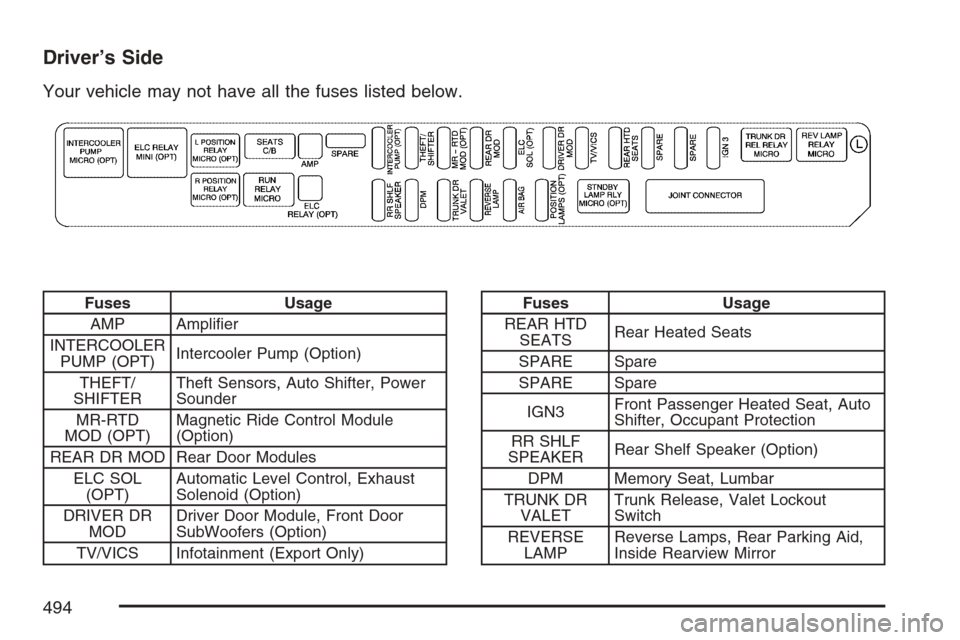

Your vehicle may not have all the fuses listed below.
Fuses Usage
AMP Ampli er
INTERCOOLER
PUMP (OPT)Intercooler Pump (Option)
THEFT/
SHIFTERTheft Sensors, Auto Shifter, Power
Sounder
MR-RTD
MOD (OPT)Magnetic Ride Control Module
(Option)
REAR DR MOD Rear Door Modules
ELC SOL
(OPT)Automatic Level Control, Exhaust
Solenoid (Option)
DRIVER DR
MODDriver Door Module, Front Door
SubWoofers (Option)
TV/VICS Infotainment (Export Only)Fuses Usage
REAR HTD
SEATSRear Heated Seats
SPARE Spare
SPARE Spare
IGN3Front Passenger Heated Seat, Auto
Shifter, Occupant Protection
RR SHLF
SPEAKERRear Shelf Speaker (Option)
DPM Memory Seat, Lumbar
TRUNK DR
VALETTrunk Release, Valet Lockout
Switch
REVERSE
LAMPReverse Lamps, Rear Parking Aid,
Inside Rearview Mirror
494
