wiring CADILLAC STS V 2007 1.G Owners Manual

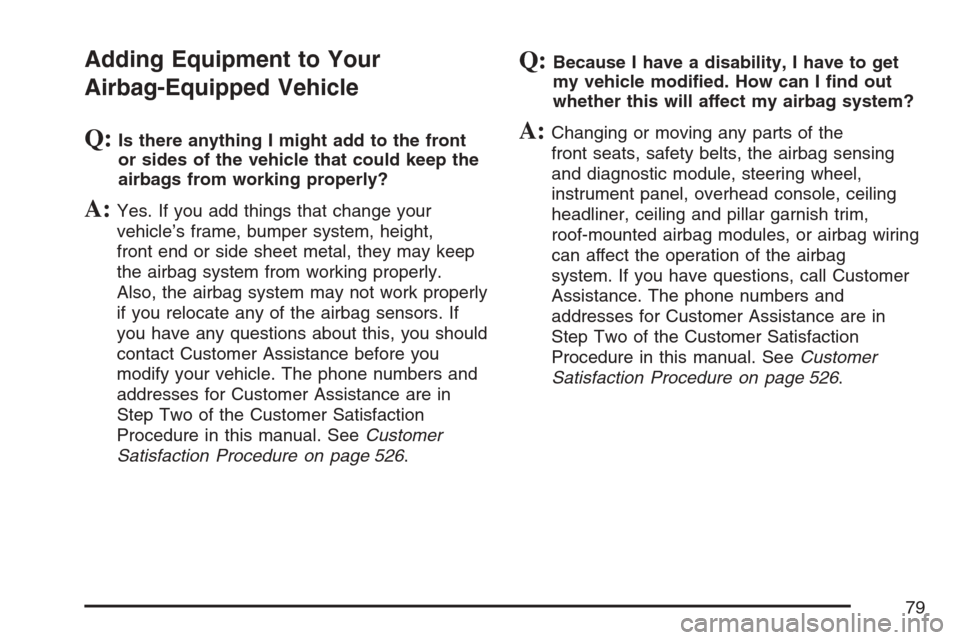

Adding Equipment to Your
Airbag-Equipped Vehicle
Q:Is there anything I might add to the front
or sides of the vehicle that could keep the
airbags from working properly?
A:Yes. If you add things that change your
vehicle’s frame, bumper system, height,
front end or side sheet metal, they may keep
the airbag system from working properly.
Also, the airbag system may not work properly
if you relocate any of the airbag sensors. If
you have any questions about this, you should
contact Customer Assistance before you
modify your vehicle. The phone numbers and
addresses for Customer Assistance are in
Step Two of the Customer Satisfaction
Procedure in this manual. SeeCustomer
Satisfaction Procedure on page 526.
Q:Because I have a disability, I have to get
my vehicle modied. How can I nd out
whether this will affect my airbag system?
A:Changing or moving any parts of the
front seats, safety belts, the airbag sensing
and diagnostic module, steering wheel,
instrument panel, overhead console, ceiling
headliner, ceiling and pillar garnish trim,
roof-mounted airbag modules, or airbag wiring
can affect the operation of the airbag
system. If you have questions, call Customer
Assistance. The phone numbers and
addresses for Customer Assistance are in
Step Two of the Customer Satisfaction
Procedure in this manual. SeeCustomer
Satisfaction Procedure on page 526.
79

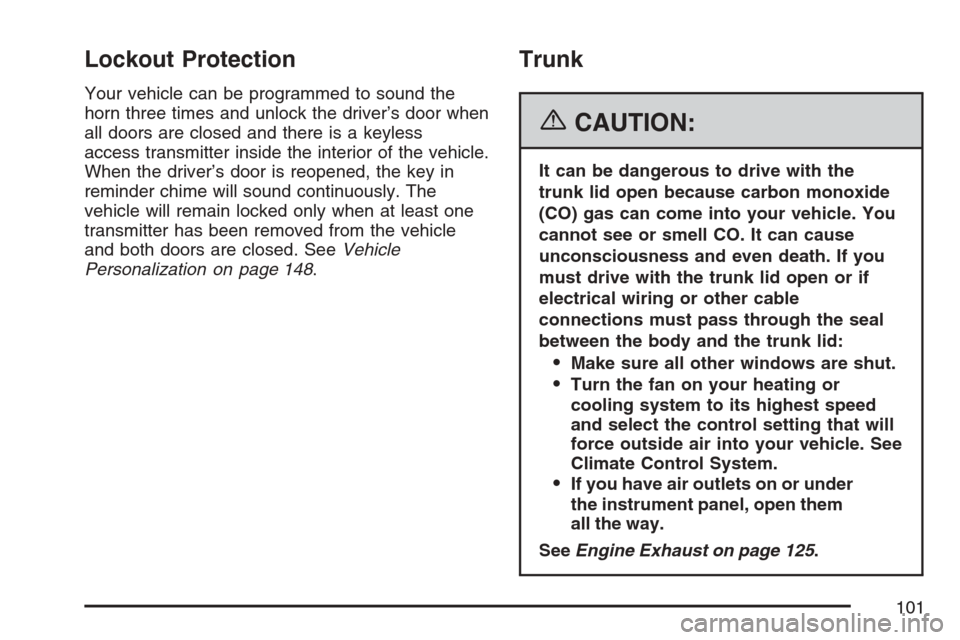

Lockout Protection
Your vehicle can be programmed to sound the
horn three times and unlock the driver’s door when
all doors are closed and there is a keyless
access transmitter inside the interior of the vehicle.
When the driver’s door is reopened, the key in
reminder chime will sound continuously. The
vehicle will remain locked only when at least one
transmitter has been removed from the vehicle
and both doors are closed. SeeVehicle
Personalization on page 148.
Trunk
{CAUTION:
It can be dangerous to drive with the
trunk lid open because carbon monoxide
(CO) gas can come into your vehicle. You
cannot see or smell CO. It can cause
unconsciousness and even death. If you
must drive with the trunk lid open or if
electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
Make sure all other windows are shut.
Turn the fan on your heating or
cooling system to its highest speed
and select the control setting that will
force outside air into your vehicle. See
Climate Control System.
If you have air outlets on or under
the instrument panel, open them
all the way.
SeeEngine Exhaust on page 125.
101

Passenger Safety Belt
Reminder Light
Several seconds after the ignition button is
pressed to START, a chime will sound for several
seconds to remind the front passenger to
buckle their safety belt. This would only occur if
the passenger airbag is enabled. SeePassenger
Sensing System on page 74for more information.
The passenger safety belt light will also come
on and stay on for several seconds, then it
will ash for several more.
This chime and light will
be repeated if the
passenger remains
unbuckled and
the vehicle is in motion.
If the passenger’s safety belt is buckled, neither
the chime nor the light will come on.
Airbag Readiness Light
There is an airbag readiness light on the
instrument panel, which shows the airbag symbol.
The system checks the airbag’s electrical
system for malfunctions. The light tells you if there
is an electrical problem. The system check
includes the airbag sensors, the airbag modules,
the wiring and the diagnostic module. For
more information on the airbag system, seeAirbag
System on page 64.
This light will come on
when you start your
vehicle, and it will ash
for a few seconds.
Then the light should go
out. This means the
system is ready.
If the airbag readiness light stays on after you
start the vehicle or comes on when you are driving,
your airbag system may not work properly.
Have your vehicle serviced right away.
244

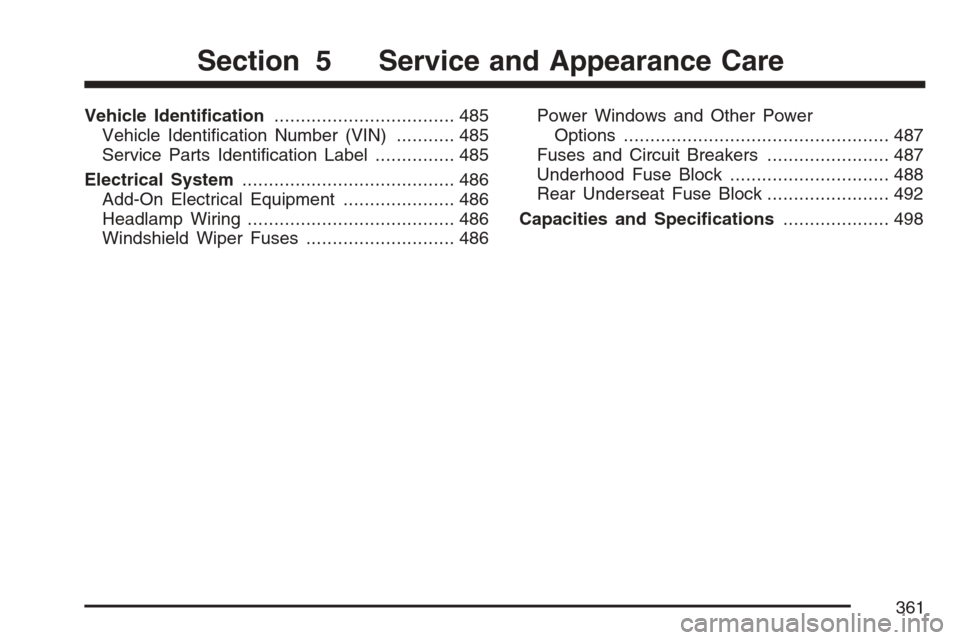

Vehicle Identication.................................. 485
Vehicle Identication Number (VIN)........... 485
Service Parts Identication Label............... 485
Electrical System........................................ 486
Add-On Electrical Equipment..................... 486
Headlamp Wiring....................................... 486
Windshield Wiper Fuses............................ 486Power Windows and Other Power
Options.................................................. 487
Fuses and Circuit Breakers....................... 487
Underhood Fuse Block.............................. 488
Rear Underseat Fuse Block....................... 492
Capacities and Specications.................... 498
Section 5 Service and Appearance Care
361

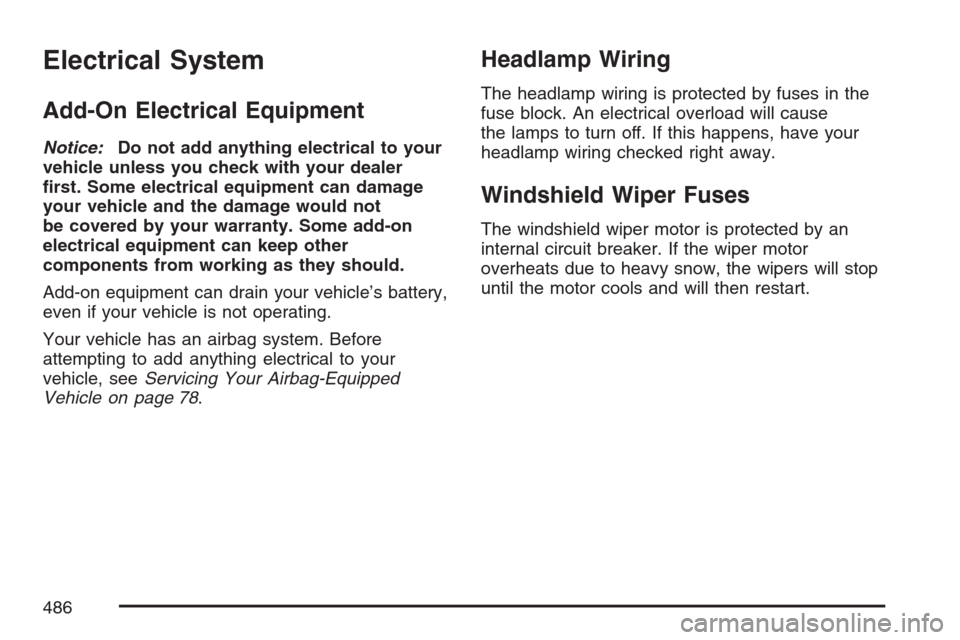

Electrical System
Add-On Electrical Equipment
Notice:Do not add anything electrical to your
vehicle unless you check with your dealer
rst. Some electrical equipment can damage
your vehicle and the damage would not
be covered by your warranty. Some add-on
electrical equipment can keep other
components from working as they should.
Add-on equipment can drain your vehicle’s battery,
even if your vehicle is not operating.
Your vehicle has an airbag system. Before
attempting to add anything electrical to your
vehicle, seeServicing Your Airbag-Equipped
Vehicle on page 78.
Headlamp Wiring
The headlamp wiring is protected by fuses in the
fuse block. An electrical overload will cause
the lamps to turn off. If this happens, have your
headlamp wiring checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by an
internal circuit breaker. If the wiper motor
overheats due to heavy snow, the wipers will stop
until the motor cools and will then restart.
486

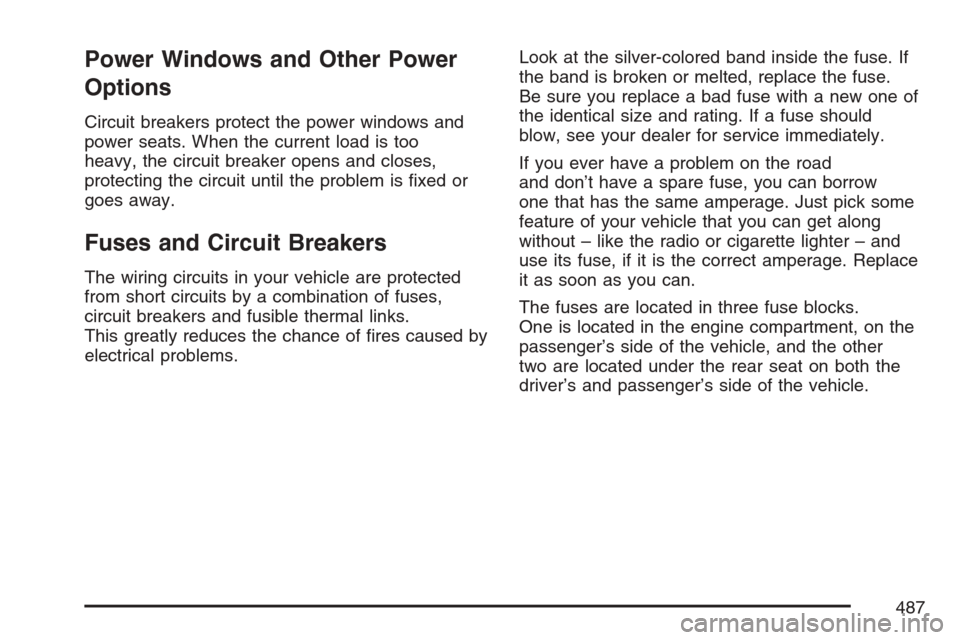

Power Windows and Other Power
Options
Circuit breakers protect the power windows and
power seats. When the current load is too
heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is xed or
goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected
from short circuits by a combination of fuses,
circuit breakers and fusible thermal links.
This greatly reduces the chance of res caused by
electrical problems.Look at the silver-colored band inside the fuse. If
the band is broken or melted, replace the fuse.
Be sure you replace a bad fuse with a new one of
the identical size and rating. If a fuse should
blow, see your dealer for service immediately.
If you ever have a problem on the road
and don’t have a spare fuse, you can borrow
one that has the same amperage. Just pick some
feature of your vehicle that you can get along
without – like the radio or cigarette lighter – and
use its fuse, if it is the correct amperage. Replace
it as soon as you can.
The fuses are located in three fuse blocks.
One is located in the engine compartment, on the
passenger’s side of the vehicle, and the other
two are located under the rear seat on both the
driver’s and passenger’s side of the vehicle.
487

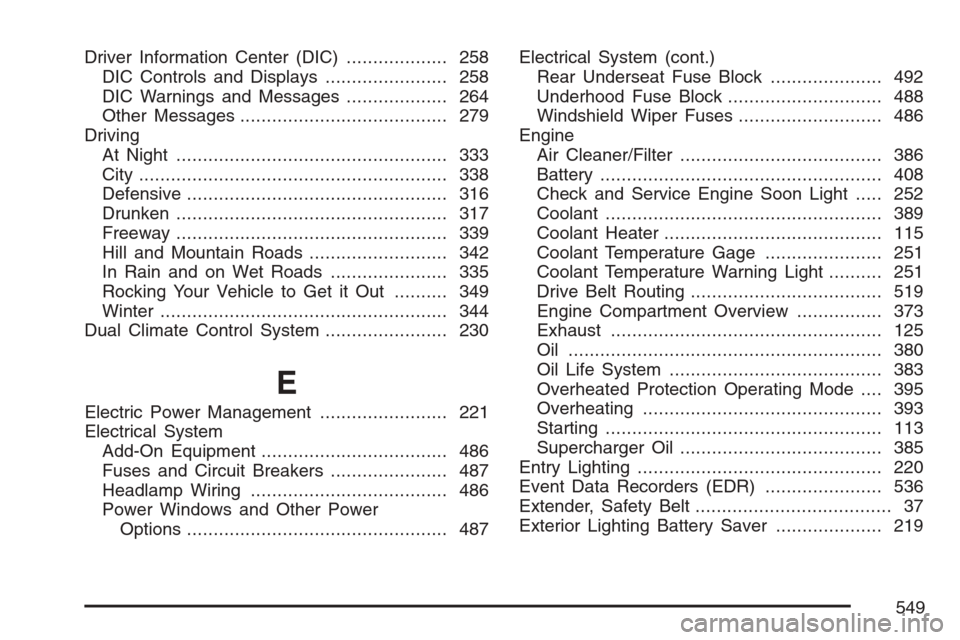

Driver Information Center (DIC)................... 258
DIC Controls and Displays....................... 258
DIC Warnings and Messages................... 264
Other Messages....................................... 279
Driving
At Night................................................... 333
City.......................................................... 338
Defensive................................................. 316
Drunken................................................... 317
Freeway................................................... 339
Hill and Mountain Roads.......................... 342
In Rain and on Wet Roads...................... 335
Rocking Your Vehicle to Get it Out.......... 349
Winter...................................................... 344
Dual Climate Control System....................... 230
E
Electric Power Management........................ 221
Electrical System
Add-On Equipment................................... 486
Fuses and Circuit Breakers...................... 487
Headlamp Wiring..................................... 486
Power Windows and Other Power
Options................................................. 487Electrical System (cont.)
Rear Underseat Fuse Block..................... 492
Underhood Fuse Block............................. 488
Windshield Wiper Fuses........................... 486
Engine
Air Cleaner/Filter...................................... 386
Battery..................................................... 408
Check and Service Engine Soon Light..... 252
Coolant.................................................... 389
Coolant Heater......................................... 115
Coolant Temperature Gage...................... 251
Coolant Temperature Warning Light.......... 251
Drive Belt Routing.................................... 519
Engine Compartment Overview ................ 373
Exhaust................................................... 125
Oil ........................................................... 380
Oil Life System........................................ 383
Overheated Protection Operating Mode.... 395
Overheating............................................. 393
Starting.................................................... 113
Supercharger Oil...................................... 385
Entry Lighting.............................................. 220
Event Data Recorders (EDR)...................... 536
Extender, Safety Belt..................................... 37
Exterior Lighting Battery Saver.................... 219
549

F
Filter
Engine Air Cleaner................................... 386
Finish Damage............................................ 483
Flashers, Hazard Warning........................... 180
Flash-to-Pass.............................................. 188
Flat Tire...................................................... 451
Flat Tire, Changing...................................... 464
Flat Tire, Storing......................................... 473
Fluid
Automatic Transmission............................ 388
Power Steering........................................ 403
Windshield Washer.................................. 404
Fog Lamp Light........................................... 256
Fog Lamps.................................................. 217
Forward Collision Alert (FAC) System.......... 184
Front Axle................................................... 417
Fuel............................................................ 365
Additives.................................................. 367
California Fuel.......................................... 366
Filling a Portable Fuel Container.............. 371
Filling Your Tank...................................... 368
Fuels in Foreign Countries....................... 368
Gage....................................................... 257
Gasoline Octane...................................... 365
Gasoline Specications............................ 366Fuses
Fuses and Circuit Breakers...................... 487
Rear Underseat Fuse Block..................... 492
Underhood Fuse Block............................. 488
Windshield Wiper..................................... 486
G
Gage
Engine Coolant Temperature.................... 251
Fuel......................................................... 257
Speedometer........................................... 243
Tachometer.............................................. 243
Garage Door Opener..........................135, 136
Gasoline
Octane..................................................... 365
Specications........................................... 366
Glove Box................................................... 146
GM Mobility Reimbursement Program.......... 530
H
Hazard Warning Flashers............................ 180
Head Restraints............................................ 13
Headlamp Wiring......................................... 486
550
