jump start CADILLAC XLR 2007 1.G Owners Manual

Service........................................................ 363
Accessories and Modications................... 363
California Proposition 65 Warning.............. 364
Doing Your Own Service Work.................. 364
Adding Equipment to the Outside of Your
Vehicle................................................... 365
Fuel............................................................. 365
Gasoline Octane........................................ 366
Gasoline Specications.............................. 366
California Fuel........................................... 367
Additives................................................... 367
Fuels in Foreign Countries........................ 368
Filling the Tank......................................... 369
Filling a Portable Fuel Container............... 371
Checking Things Under the Hood.............. 372
Hood Release........................................... 373
Engine Compartment Overview.................. 374
Engine Oil................................................. 377
Engine Oil Life System.............................. 380
Supercharger Oil....................................... 382
Engine Air Cleaner/Filter............................ 382
Automatic Transmission Fluid.................... 384
Engine Coolant.......................................... 385
Coolant Surge Tank Pressure Cap.............. 388Engine Overheating................................... 388
Overheated Engine Protection
Operating Mode..................................... 390
Cooling System......................................... 391
Power Steering Fluid ................................. 396
Windshield Washer Fluid........................... 397
Brakes...................................................... 399
Battery...................................................... 402
Jump Starting............................................ 403
Rear Axle.................................................... 407
Headlamp Aiming........................................ 408
Headlamp Vertical Aiming.......................... 410
Bulb Replacement....................................... 412
Windshield Replacement............................ 412
Windshield Wiper Blade Replacement....... 412
Tires............................................................ 413
Winter Tires (XLR-V) ................................. 414
Tire Sidewall Labeling............................... 415
Tire Terminology and Denitions............... 417
Run-Flat Tires........................................... 420
Ination - Tire Pressure............................. 422
Tire Pressure Monitor System................... 423
Tire Inspection and Rotation...................... 426
Section 6 Service and Appearance Care
361

Battery
Your vehicle has a maintenance free battery.
When it is time for a new battery, get one that has
the replacement number shown on the original
battery’s label. We recommend an ACDelco
®
replacement battery.
For battery replacement, see your dealer or the
service manual. To purchase a service manual,
seeService and Owner PublicationsinService
Publications Ordering Information on page 497.
Warning:Battery posts, terminals, and related
accessories contain lead and lead compounds,
chemicals known to the State of California
to cause cancer and reproductive harm. Wash
hands after handling.
Vehicle Storage
If you are not going to drive your vehicle for 25 days
or more, remove the black, negative (−) cable from
the battery. This will help keep your battery from
running down.
{CAUTION:
Batteries have acid that can burn you and
gas that can explode. You can be badly
hurt if you are not careful. SeeJump
Starting on page 403for tips on working
around a battery without getting hurt.
You must close all doors and the trunk before
reconnecting the battery. After reconnecting
the battery, you must press the unlock button on
the keyless access transmitter. Failure to
follow this procedure may result in the alarm
sounding. Pressing unlock on the keyless access
transmitter would stop the alarm.
402

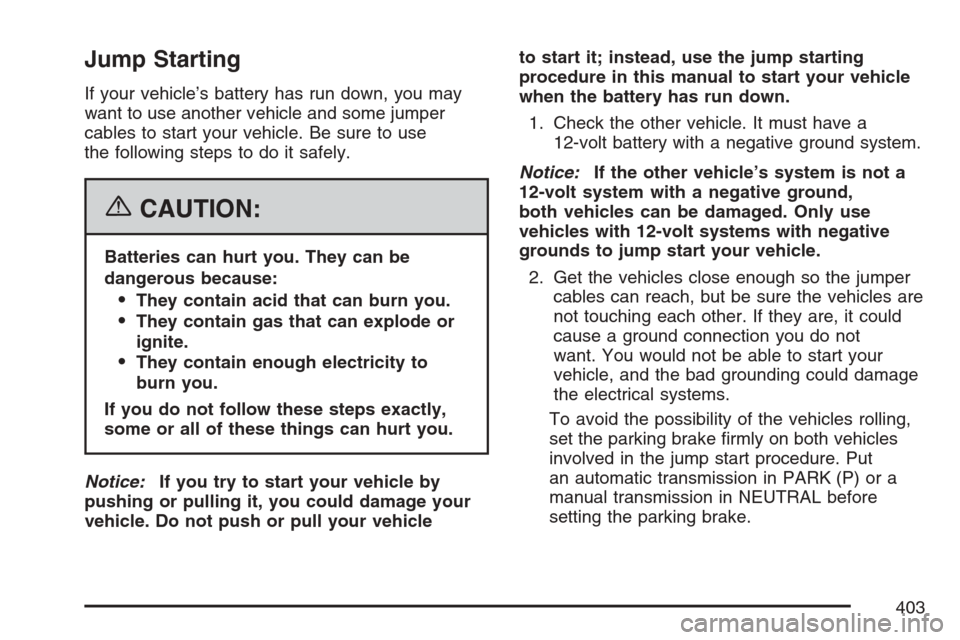

Jump Starting
If your vehicle’s battery has run down, you may
want to use another vehicle and some jumper
cables to start your vehicle. Be sure to use
the following steps to do it safely.
{CAUTION:
Batteries can hurt you. They can be
dangerous because:
They contain acid that can burn you.
They contain gas that can explode or
ignite.
They contain enough electricity to
burn you.
If you do not follow these steps exactly,
some or all of these things can hurt you.
Notice:If you try to start your vehicle by
pushing or pulling it, you could damage your
vehicle. Do not push or pull your vehicleto start it; instead, use the jump starting
procedure in this manual to start your vehicle
when the battery has run down.
1. Check the other vehicle. It must have a
12-volt battery with a negative ground system.
Notice:If the other vehicle’s system is not a
12-volt system with a negative ground,
both vehicles can be damaged. Only use
vehicles with 12-volt systems with negative
grounds to jump start your vehicle.
2. Get the vehicles close enough so the jumper
cables can reach, but be sure the vehicles are
not touching each other. If they are, it could
cause a ground connection you do not
want. You would not be able to start your
vehicle, and the bad grounding could damage
the electrical systems.
To avoid the possibility of the vehicles rolling,
set the parking brake rmly on both vehicles
involved in the jump start procedure. Put
an automatic transmission in PARK (P) or a
manual transmission in NEUTRAL before
setting the parking brake.
403

Notice:If you leave your radio or other
accessories on during the jump starting
procedure, they could be damaged. The repairs
would not be covered by your warranty.
Always turn off your radio and other
accessories when jump starting your vehicle.
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the
cigarette lighter or the accessory power outlet.
Turn off the radio and all lamps that are not
needed. This will avoid sparks and help save
both batteries. And it could save the radio!
4. Open the hoods and locate the batteries. Find
the positive (+) and negative (−) terminal
locations on each vehicle. SeeEngine
Compartment Overview on page 374for more
information on location.
{CAUTION:
An electric fan can start up even when the
engine is not running and can injure you.
Keep hands, clothing and tools away from
any underhood electric fan.
{CAUTION:
Using a match near a battery can cause
battery gas to explode. People have been
hurt doing this, and some have been
blinded. Use a ashlight if you need more
light.
Be sure the battery has enough water.
You do not need to add water to the
battery installed in your new vehicle. But
if a battery has ller caps, be sure the
right amount of uid is there. If it is low,
add water to take care of that rst. If you
do not, explosive gas could be present.
Battery uid contains acid that can burn
you. Do not get it on you. If you
accidentally get it in your eyes or on your
skin, ush the place with water and get
medical help immediately.
404

8. Now connect the black negative (−) cable to
the negative (−) terminal of the good battery.
Use a remote negative (−) terminal if the
vehicle has one.
Do not let the other end touch anything until
the next step. The other end of the negative (−)
cable does not go to the dead battery. It
goes to a heavy, unpainted metal engine part
or to a remote negative (−) terminal on the
vehicle with the dead battery.
9. Connect the other end of the negative (−) cable
at least 18 inches (45 cm) away from the dead
battery, but not near engine parts that move.
The electrical connection is just as good there,
and the chance of sparks getting back to the
battery is much less.
10. Now start the vehicle with the good battery
and run the engine for a while.
11. Try to start the vehicle that had the dead
battery. If it will not start after a few tries, it
probably needs service.Notice:If the jumper cables are connected or
removed in the wrong order, electrical
shorting may occur and damage the vehicle.
The repairs would not be covered by your
warranty. Always connect and remove
the jumper cables in the correct order, making
sure that the cables do not touch each other
or other metal.
A. Heavy, Unpainted Metal Engine Part
B. Good Battery
C. Dead Battery
Jumper Cable Removal
406

Roadside Service
Cadillac’s exceptional Roadside Service is more
than an auto club or towing service. It provides
every Cadillac owner with the advantage of
contacting a Cadillac advisor and, where available,
a Cadillac trained dealer technician who can
provide on-site service.
Each technician travels with a specially equipped
service vehicle complete with the necessary
Cadillac parts and tools required to handle most
roadside repairs.
Cadillac Roadside Service
®can be reached by
dialing1-800-882-1112, 24 hours a day, 365 days
a year. This service is provided at no charge
for any situation covered by the base warranty
coverage and at a nominal charge if the Cadillac is
no longer covered by the base warranty.
Roadside Service is available only in the United
States and Canada.
Cadillac Owner Privileges™
Roadside Service provides several Cadillac
Owner Privileges™ at “no charge,” throughout
yourCadillac Warranty Period — 48 months/
50,000 miles (80 000 km).
Emergency Road Service is performed on site for
the following situations:
Towing Service
Battery Jump Starting
Lock Out Assistance
Fuel Delivery
Flat Tire Change (Covers change only)
Trip Interruption — If your trip is interrupted
due to a warranty failure, incidental expenses
may be reimbursed during the
48 months/50,000 miles (80 000 km) warranty
period. Items covered are hotel, meals,
and rental car.
487

Heated Seats.................................................. 9
Heater......................................................... 178
Highbeam On Light..................................... 202
Highway Hypnosis....................................... 346
Hill and Mountain Roads............................. 347
Hood
Checking Things Under............................ 372
Release................................................... 373
Horn............................................................ 140
How to Use This Manual................................ 4
How to Wear Safety Belts Properly............... 18
I
Ignition Positions........................................... 88
Infants and Young Children, Restraints.......... 31
Ination - Tire Pressure............................... 422
Instrument Panel
Overview.................................................. 138
Instrument Panel (I/P)
Brightness................................................ 170
Cluster..................................................... 186
J
Jump Starting.............................................. 403
K
Keyless Access System........................ 67, 280
Keyless Access System, Operation................ 68
Keys............................................................. 65
L
Labeling, Tire Sidewall................................. 415
Lamps
Battery Run-Down Protection................... 171
Courtesy.................................................. 170
Exterior.................................................... 164
Exterior Lighting Battery Saver................. 169
Fog .......................................................... 168
Reading................................................... 171
Twilight Sentinel
®..................................... 168
LATCH System
Child Restraints......................................... 39
Lifting Your Vehicle, Tires............................ 435
Light
Airbag Readiness..................................... 188
Anti-Lock Brake System Warning............. 193
Brake System Warning............................. 192
Charging System..................................... 191
Fog Lamp................................................ 201
Highbeam On.......................................... 202
505
