CADILLAC XLR V 2006 1.G Owners Manual

Alerting the Driver
The alert symbol will ash
on the HUD and a warning
beep will sound when
driver action is required.
Driver action is required when:
Adaptive Cruise Control cannot apply sufficient
braking because you are approaching a vehicle
too rapidly.
The vehicle speed drops below about
20 mph (32 km/h).
A temporary condition prohibits Adaptive Cruise
Control from operating. SeeDIC Warnings and
Messages on page 3-67for more information.
A malfunction is detected in the system. See
DIC Warnings and Messages on page 3-67for
more information.SeeDefensive Driving on page 5-2for more information.
{CAUTION:
Adaptive Cruise Control has only limited
braking ability to slow your vehicle. In some
cases, Adaptive Cruise Control may not have
time to slow your vehicle enough to avoid a
collision. Be ready to take action and apply
the brakes yourself. SeeDefensive Driving
on page 5-2.
3-21

Approaching and Following a Vehicle
The vehicle ahead symbol
will only appear on the
HUD when a vehicle ahead
is detected in your path.
If this symbol does not appear, or disappears briey,
Adaptive Cruise Control will not respond to vehicles
you may see ahead.
{CAUTION:
When the Adaptive Cruise Control radar is
blocked by snow, ice, or dirt, it may not detect
a vehicle ahead. Adaptive Cruise Control may
not have time to slow your vehicle enough to
avoid a collision. Do not use Adaptive Cruise
Control when the radar is blocked by snow,
ice, or dirt. Keep your radar clean. See
“Cleaning the System” later in this section.Adaptive Cruise Control will automatically slow your
vehicle down when approaching a slower moving vehicle.
It will then adjust your speed to follow the vehicle in front
at the selected follow distance. Your speed will increase
or decrease to follow the vehicle in front of you but will not
exceed the set speed. The system may apply limited
braking if necessary. When braking is active, your brake
lights will come on. It may feel or sound different than if
you were applying the brakes yourself. This is normal.
Stationary or Very Slow-Moving Objects
{CAUTION:
Adaptive Cruise Control may not detect and
react to stationary or slow-moving vehicles
or other objects ahead of you. You could
crash into an object ahead of you. Do not use
Adaptive Cruise Control when approaching
stationary or slow-moving vehicles or other
objects.
3-22

{CAUTION:
Adaptive Cruise Control may not detect and
react to stationary or slow-moving vehicles or
other objects ahead of you. Your vehicle may
accelerate toward objects, such as a stopped
vehicle that suddenly appears after the lead
vehicle changes lanes. Your complete attention
is always required while driving and you should
be ready to take action and apply the brakes.
Low-Speed Deactivation
If your speed falls below 20 mph (32 km/h) while
following a vehicle ahead, Adaptive Cruise Control
will begin to disengage. The driver alert symbol on
the HUD will ash and the warning beep will sound.
The driver must take action since Adaptive Cruise
Control will not slow the vehicle to a stop.
Passing a Vehicle
If you need to increase speed to pass a vehicle, use the
accelerator pedal. While your foot is on the accelerator
pedal, the system will not automatically apply the
brakes. Once you pass the vehicle and remove your
foot from the accelerator pedal, Adaptive Cruise Control
will return to normal operation and be able to apply
the brakes, if needed.
{CAUTION:
If you rest your foot on the accelerator pedal,
the system will not automatically apply the
brakes. You could crash into a vehicle ahead
of you. Do not rest your foot on the accelerator
pedal when using Adaptive Cruise Control.
3-23

Curves in the Road
{CAUTION:
Due to Adaptive Cruise Control limitations in
curves, it may respond to a vehicle in another
lane, or may not have time to react to a vehicle
in your lane. You could crash into a vehicle
ahead of you, or lose control of your vehicle.
Give extra attention in curves and be ready
to use the brakes if necessary. Select an
appropriate speed while driving in curves.
Adaptive Cruise Control may operate differently in a
sharp curve.
The system may reduce your speed in a curve if the
curve is too sharp. The TIGHT CURVE message
will also display on the HUD. SeeHead-Up Display
(HUD) on page 3-34for more information.When following a vehicle and entering a curve, Adaptive
Cruise Control could lose track of the vehicle in your
lane and accelerate your vehicle. When this happens,
the vehicle ahead symbol will not appear on the HUD.
3-24

Adaptive Cruise Control may detect a vehicle that is not
in your lane and apply the brakes.
Adaptive Cruise Control may, occasionally, provide a
driver alert and/or braking that you consider unnecessary.
It could respond to signs, guardrails and other stationary
objects when entering or exiting a curve. This is normal
operation. Your vehicle does not need service.
Highway Exit Ramps
{CAUTION:
Adaptive Cruise Control may lose track of
the vehicle ahead and accelerate up to your
set speed while entering or on highway
exit ramps. You could be startled by this
acceleration and even lose control of the
vehicle. Disengage Adaptive Cruise Control
before entering a highway exit ramp. Do not
use Adaptive Cruise Control while entering
or on exit ramps.
3-25

Other Vehicle Lane Changes
If another vehicle enters the same lane as you,
Adaptive Cruise Control will not detect the vehicle
until it is completely in the lane. Be ready to take
action and apply the brakes yourself.
Using Adaptive Cruise Control on Hills
How well Adaptive Cruise Control will work on hills
depends on your speed, vehicle load, traffic conditions
and the steepness of the hills. It may not detect a
vehicle in your lane while driving on hills.When going up steep hills, you may want to use the
accelerator pedal to maintain your speed. When going
downhill, you may have to brake to keep your speed
down. Applying the brake disengages the system. You
may choose not to use Adaptive Cruise Control on
steep hills.
Disengaging Adaptive Cruise Control
To disengage the system, apply the brake pedal or
move the Adaptive Cruise Control switch to off.
Adaptive Cruise Control information will not appear
on the HUD when the system is not engaged.
Erasing Set Speed Memory
When you turn the Adaptive Cruise Control switch or
the ignition off, the set speed memory is erased.
Other Messages
There are three messages that may appear in the
Driver Information Center (DIC). They are SERVICE
RADAR CRUISE, CRUISE NOT READY and CLEAN
RADAR CRUISE. These messages will only appear
to indicate a problem if Adaptive Cruise Control is active.
SeeDIC Warnings and Messages on page 3-67for
more information.
You may also see CRUISE SPEED LIMITED displayed
in the HUD. SeeHead-Up Display (HUD) on page 3-34
for more information.
3-26

Cleaning the System
The radar can become blocked by snow, ice or dirt.
If so, you may need to turn off the engine and clean
the lens.
The lens is located on the driver’s side of the front fascia.Clean the surface with a 50/50 mixture of isopropyl
alcohol and water on a dampened cloth. After cleaning
the fascia lens, try to engage Adaptive Cruise Control.
If this does not x the problem, you may have to remove
the fascia lens and clean the inside of the fascia lens
and radar lens.
To clean the inside of the fascia lens and radar lens,
insert a screwdriver or similar object into one of the small
slots on the inboard side of the lens and pop the lens out.
Clean the surface with a 50/50 mixture of isopropyl
alcohol and water on a dampened cloth. After cleaning
the lens, set the lens back in place and press until it
snaps in.
3-27

Exterior Lamps
The exterior lamp control is located to the left of the
steering wheel on the multifunction lever.
O(Exterior Lamp Control):Turn the band with this
symbol on it to operate the exterior lamps.The exterior lamp band has four positions:
O(Off):Turning the band to this position turns off
all lamps.
AUTO (Automatic):Turning the band to this position
sets the exterior lamps in automatic mode. AUTO mode
will turn the exterior lamps on and off depending on
how much light is available outside the vehicle. Turning
the band to AUTO mode also enables the Adaptive
Forward Lighting system. SeeAdaptive Forward Lighting
System on page 3-31.
To override AUTO mode, turn the control to off.
To reset to AUTO mode turn the control to exterior
lamps and then back to AUTO. Automatic mode will also
reset when your vehicle is turned off and then back
on again when the control is left in the AUTO position.
SeeTwilight Sentinel
®on page 3-32.
3-28

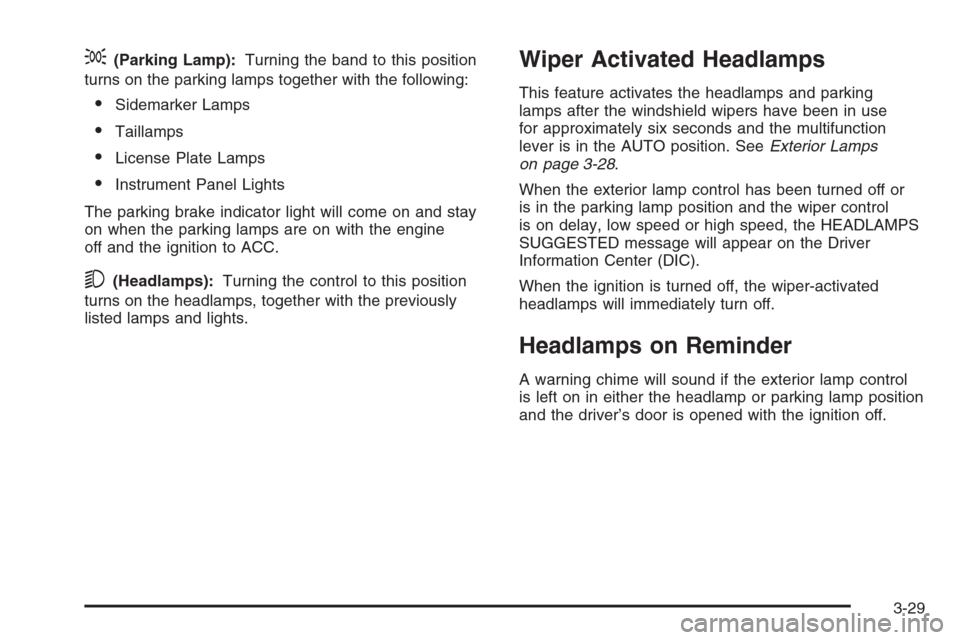

;(Parking Lamp):Turning the band to this position
turns on the parking lamps together with the following:
Sidemarker Lamps
Taillamps
License Plate Lamps
Instrument Panel Lights
The parking brake indicator light will come on and stay
on when the parking lamps are on with the engine
off and the ignition to ACC.
5(Headlamps):Turning the control to this position
turns on the headlamps, together with the previously
listed lamps and lights.
Wiper Activated Headlamps
This feature activates the headlamps and parking
lamps after the windshield wipers have been in use
for approximately six seconds and the multifunction
lever is in the AUTO position. SeeExterior Lamps
on page 3-28.
When the exterior lamp control has been turned off or
is in the parking lamp position and the wiper control
is on delay, low speed or high speed, the HEADLAMPS
SUGGESTED message will appear on the Driver
Information Center (DIC).
When the ignition is turned off, the wiper-activated
headlamps will immediately turn off.
Headlamps on Reminder
A warning chime will sound if the exterior lamp control
is left on in either the headlamp or parking lamp position
and the driver’s door is opened with the ignition off.
3-29

Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier
for others to see the front of your vehicle during the day.
DRL can be helpful in many different driving conditions,
but they can be especially helpful in the short periods
after dawn and before sunset. Fully functional daytime
running lamps are required on all vehicles rst sold
in Canada.
The DRL system will make the front turn signal lamps
come on when the following conditions are met:
It is still daylight and the ignition is on,
the exterior lamp control is in the off position and
the transmission is not in PARK (P).
When DRL are on, only the front turn signal lamps will
be on. No other exterior lamps such as the parking
lamps, taillamps, etc. will be on when the DRL are being
used. Your instrument panel will not be lit up either.
When it is dark enough outside, the front turn signal
lamps will turn off and normal low-beam headlamps
will turn on.When it is bright enough outside, the regular lamps will
go off, and the front turn signal lamps will take over.
If you start your vehicle in a dark garage, the automatic
headlamp system will come on immediately. Once you
leave the garage, it will take approximately one minute for
the automatic headlamp system to change to DRL if it is
light outside. During that delay, your instrument panel
cluster may not be as bright as usual. Make sure your
instrument panel brightness knob is in the full bright
position. SeeInstrument Panel Brightness on page 3-33
for more information.
If it is dark enough outside and the exterior lamp control
is off, a HEADLAMPS SUGGESTED message will
display on the Driver’s Information Center (DIC).
This message informs the driver that turning on the
exterior lamps is recommended. SeeDIC Warnings
and Messages on page 3-67.
Turning the exterior lamp control to off a second
time, or turning on the headlamps will remove the
HEADLAMPS SUGGESTED message in the DIC.
If the parking lamps or the fog lamps were turned on
instead, the HEADLAMPS SUGGESTED message
will continue to be displayed.
As with any vehicle, you should turn on the regular
headlamp system when you need it.
3-30
