Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level
and change as recommended.
Have you purchased the GM Protection Plan? The
Plan supplements your new vehicle warranties.
See your Warranty and Owner Assistance booklet
or your dealer for details.
Maintenance Requirements
Notice:Maintenance intervals, checks,
inspections, replacement parts, and
recommended uids and lubricants as
prescribed in this manual are necessary to
keep your vehicle in good working condition.
Any damage caused by failure to follow
scheduled maintenance may not be covered by
warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep
your vehicle in good working condition, but also
helps the environment. All recommended
maintenance is important. Improper vehicle
maintenance can even affect the quality of the air
we breathe. Improper uid levels or the wrong
tire ination can increase the level of emissions
from your vehicle. To help protect our environment,
and to keep your vehicle in good condition, be
sure to maintain your vehicle properly.
462

Scheduled Maintenance
When the CHANGE OIL NOW message in the
Driver Information Center (DIC) comes on, it
means that service is required for your vehicle.
Have your vehicle serviced as soon as possible
within the next 600 miles (1 000 km). It is possible
that, if you are driving under the best conditions,
the engine oil life system may not indicate
that vehicle service is necessary for over a year.
However, your engine oil and lter must be
changed at least once a year and at this time the
system must be reset. Your GM Goodwrench
®
dealer has GM-trained service technicians who will
perform this work using genuine GM parts and
reset the system.If the engine oil life system is ever reset
accidentally, you must service your vehicle within
3,000 miles (5 000 km) since your last service.
Remember to reset the oil life system whenever
the oil is changed. SeeEngine Oil Life System on
page 380for information on the Engine Oil Life
System and resetting the system.
When the CHANGE OIL NOW message appears,
certain services, checks, and inspections are
required. Required services are described in the
following for “MaintenanceI” and “MaintenanceII.”
Generally, it is recommended that your rst
service be MaintenanceI, your second service be
MaintenanceII, and that you alternate
MaintenanceIand MaintenanceIIthereafter.
However, in some cases, MaintenanceIImay be
required more often.
465

MaintenanceI— Use MaintenanceIif the
CHANGE OIL NOW message comes on within
10 months since the vehicle was purchased
or MaintenanceIIwas performed.MaintenanceII— Use MaintenanceIIif the
previous service performed was MaintenanceI.
Always use MaintenanceIIwhenever the message
comes on 10 months or more since the last
service or if the message has not come on at all
for one year.
Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 377. Reset oil life system.
SeeEngine Oil Life System on page 380.An Emission Control Service.••
Visually check for any leaks or damage.See footnote (a).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine Air
Cleaner/Filter on page 382.See footnote (h).•
Check engine coolant and windshield washer uid levels. If you have the 4.4L
V8 supercharged engine, check intercooler uid level. Add uid as needed.••
Perform any needed additional services. See “Additional Required Services” in
this section.••
Inspect wiper blades.See footnote (b).•
Inspect restraint system components.See footnote (c).•
Lubricate body components.See footnote (d).•
Replace passenger compartment air lter.See footnote (e).•
466

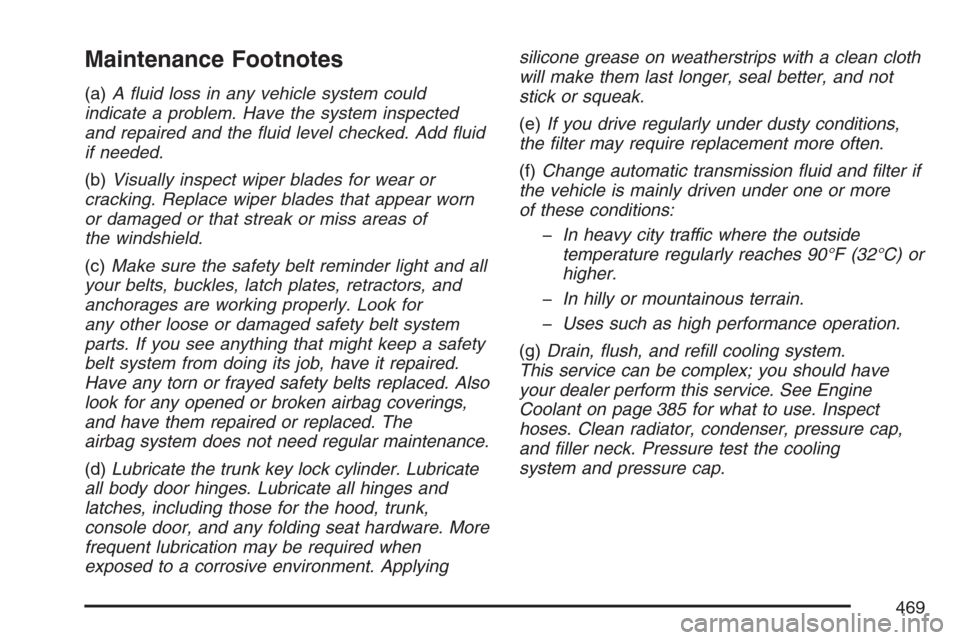

Maintenance Footnotes
(a)A uid loss in any vehicle system could
indicate a problem. Have the system inspected
and repaired and the uid level checked. Add uid
if needed.
(b)Visually inspect wiper blades for wear or
cracking. Replace wiper blades that appear worn
or damaged or that streak or miss areas of
the windshield.
(c)Make sure the safety belt reminder light and all
your belts, buckles, latch plates, retractors, and
anchorages are working properly. Look for
any other loose or damaged safety belt system
parts. If you see anything that might keep a safety
belt system from doing its job, have it repaired.
Have any torn or frayed safety belts replaced. Also
look for any opened or broken airbag coverings,
and have them repaired or replaced. The
airbag system does not need regular maintenance.
(d)Lubricate the trunk key lock cylinder. Lubricate
all body door hinges. Lubricate all hinges and
latches, including those for the hood, trunk,
console door, and any folding seat hardware. More
frequent lubrication may be required when
exposed to a corrosive environment. Applyingsilicone grease on weatherstrips with a clean cloth
will make them last longer, seal better, and not
stick or squeak.
(e)If you drive regularly under dusty conditions,
the lter may require replacement more often.
(f)Change automatic transmission uid and lter if
the vehicle is mainly driven under one or more
of these conditions:
In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C) or
higher.
In hilly or mountainous terrain.
Uses such as high performance operation.
(g)Drain, ush, and rell cooling system.
This service can be complex; you should have
your dealer perform this service. See Engine
Coolant on page 385 for what to use. Inspect
hoses. Clean radiator, condenser, pressure cap,
and ller neck. Pressure test the cooling
system and pressure cap.
469

(h)If you drive regularly under dusty conditions,
inspect the lter at each engine oil change.
(j)Visually inspect belt for fraying, excessive
cracks, or obvious damage. Replace belt if
necessary.
(k)Drain, ush, and rell intercooler system. This
service can be complex; you should have your
dealer perform this service. See Engine Coolant on
page 385 for what to use. Inspect hoses. Clean
pressure cap and ller neck. Pressure test
the system and pressure cap.
(l)For supercharged engines only: Have your
dealer check the supercharger oil level and add
the proper supercharger oil as needed (or every
36 months, whichever occurs rst). See
Recommended Fluids and Lubricants on page 473.
Owner Checks and Services
These owner checks and services should be
performed at the intervals specied to help ensure
the safety, dependability, and emission control
performance of your vehicle. Your GM
Goodwrench
®dealer can assist you with these
checks and services.Be sure any necessary repairs are completed at
once. Whenever any uids or lubricants are added
to your vehicle, make sure they are the proper
ones, as shown inRecommended Fluids and
Lubricants on page 473.
At Each Fuel Fill
It is important to perform these underhood checks
at each fuel ll.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 377for
further details.
Notice:It is important to check your oil
regularly and keep it at the proper level. Failure
to keep your engine oil at the proper level
can cause damage to your engine not covered
by your warranty.
Engine Coolant Level Check
Check the engine coolant level and add
DEX-COOL®coolant mixture if necessary. See
Engine Coolant on page 385for further details.
470

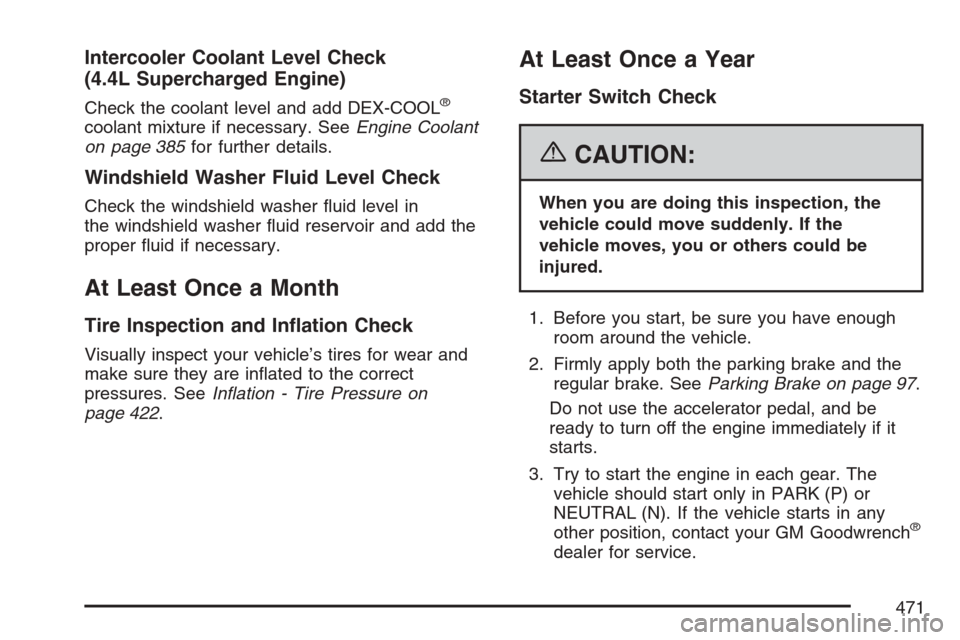

Intercooler Coolant Level Check
(4.4L Supercharged Engine)
Check the coolant level and add DEX-COOL®
coolant mixture if necessary. SeeEngine Coolant
on page 385for further details.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in
the windshield washer uid reservoir and add the
proper uid if necessary.
At Least Once a Month
Tire Inspection and Ination Check
Visually inspect your vehicle’s tires for wear and
make sure they are inated to the correct
pressures. SeeInation - Tire Pressure on
page 422.
At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the
vehicle moves, you or others could be
injured.
1. Before you start, be sure you have enough
room around the vehicle.
2. Firmly apply both the parking brake and the
regular brake. SeeParking Brake on page 97.
Do not use the accelerator pedal, and be
ready to turn off the engine immediately if it
starts.
3. Try to start the engine in each gear. The
vehicle should start only in PARK (P) or
NEUTRAL (N). If the vehicle starts in any
other position, contact your GM Goodwrench
®
dealer for service.
471

Transmission Shift Lock Control System
Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the
vehicle moves, you or others could be
injured.
1. Before you start, be sure you have enough
room around the vehicle. It should be parked
on a level surface.
2. Firmly apply the parking brake. SeeParking
Brake on page 97.
Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off and without applying the
regular brake, try to move the shift lever out
of PARK (P) with normal effort. If the shift
lever moves out of PARK (P), contact your GM
Goodwrench
®dealer for service.
Parking Brake and Transmission Park (P)
Mechanism Check
{CAUTION:
When you are doing this check, your
vehicle could begin to move. You or
others could be injured and property
could be damaged. Make sure there is
room in front of your vehicle in case it
begins to roll. Be ready to apply the
regular brake at once should the vehicle
begin to move.
472

Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular
brake, set the parking brake.
To check the parking brake’s holding ability:
With the engine running and transmission in
NEUTRAL (N), slowly remove foot pressure
from the regular brake pedal. Do this until the
vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding
ability: With the engine running, shift to
PARK (P). Then release the parking brake
followed by the regular brake.
Contact your GM Goodwrench
®dealer if service is
required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take
care to clean thoroughly any areas where mud and
other debris can collect.
Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name,
part number, or specication may be obtained from
your dealer.
Usage Fluid/Lubricant
Engine OilThe engine requires a special
engine oil meeting GM Standard
GM4718M. Oils meeting this
standard may be identied as
synthetic, and should also be
identied with the American
Petroleum Institute (API) Certied
for Gasoline Engines starburst
symbol. However, not all synthetic
API oils with the starburst symbol
will meet this GM standard. You
should look for and use only an oil
that meets GM Standard GM4718M.
GM Goodwrench
®oil meets all the
requirements for your vehicle. For
the proper viscosity, seeEngine Oil
on page 377.
Engine Cooling
System50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 385.
473

Center Console Storage Area...................... 122
Chains, Tire................................................. 435
Charging System Light................................ 191
Check
Engine Light............................................ 196
Checking Things Under the Hood................ 372
Chemical Paint Spotting.............................. 450
Child Restraints
Child Restraint Systems............................. 35
Infants and Young Children........................ 31
Lower Anchors and Tethers for Children..... 39
Older Children........................................... 28
Securing a Child Restraint in the
Passenger Seat Position......................... 40
Cigarette Lighter.......................................... 178
Cleaning
Aluminum or Chrome-Plated Wheels........ 448
Exterior Lamps/Lenses............................. 446
Fabric/Carpet........................................... 443
Finish Care.............................................. 447
Inside of Your Vehicle.............................. 441
Instrument Panel, Vinyl, and Other Plastic
Surfaces............................................... 444
Leather.................................................... 444
Speaker Covers....................................... 445
Tires........................................................ 449
Underbody Maintenance........................... 449Cleaning (cont.)
Washing Your Vehicle .............................. 446
Weatherstrips........................................... 445
Windshield and Wiper Blades................... 447
Wood Panels........................................... 445
Climate Control System
Air Filter, Passenger Compartment........... 184
Dual......................................................... 178
Outlet Adjustment..................................... 184
Collision Damage Repair............................. 492
Competitive Driving, Racing or Other........... 338
Control of a Vehicle..................................... 326
Convenience Net......................................... 123
Coolant
Engine Temperature Gage........................ 195
Surge Tank Pressure Cap........................ 388
Cooled Seats.................................................. 9
Cooling System........................................... 391
Courtesy Lamps.......................................... 170
Cruise Control............................................. 147
Cruise Control, Adaptive .............................. 150
Cupholder(s)................................................ 122
Customer Assistance Information
Courtesy Transportation........................... 488
Customer Assistance for Text Telephone
(TTY) Users.......................................... 485
Customer Assistance Offices.................... 485
501

E
Edit
Avoid Point/Area...................................... 257
Memory Point.......................................... 250
Waypoint.................................................. 254
Electrical System
Add-On Equipment................................... 452
Fuses and Circuit Breakers...................... 453
Instrument Panel Fuse Block................... 453
Power Windows and Other Power
Options................................................. 452
Underhood Fuse Block............................. 455
Windshield Wiper Fuses........................... 452
Engine
Air Cleaner/Filter...................................... 382
Battery..................................................... 402
Check and Service Engine Soon Light..... 196
Coolant.................................................... 385
Coolant Temperature Gage...................... 195
Drive Belt Routing.................................... 476
Engine Compartment Overview................ 374
Exhaust................................................... 102
Oil ........................................................... 377
Oil Life System........................................ 380
Oil Pressure Gage................................... 200
Overheated Protection Operating Mode.... 390Engine (cont.)
Overheating............................................. 388
Starting...................................................... 89
Supercharger Oil...................................... 382
Enter Destination......................................... 259
Entry/Exit Lighting....................................... 170
Event Data Recorders (EDR)...................... 491
Extender, Safety Belt..................................... 27
Exterior Lamps............................................ 164
Exterior Lighting Battery Saver.................... 169
F
Filter
Engine Air Cleaner................................... 382
Finish Damage............................................ 449
Flashers, Hazard Warning........................... 140
Flash-to-Pass.............................................. 143
Flat Tire...................................................... 440
Floor Mats................................................... 122
Fluid
Automatic Transmission............................ 384
Power Steering........................................ 396
Windshield Washer.................................. 397
Fog Lamp Light........................................... 201
Fog Lamps.................................................. 168
503
