odometer CADILLAC XT4 2022 Owners Manual

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
INSTRUMENTS AND CONTROLS 91
Instruments and
Controls
Controls
Steering Wheel Adjustment . . . . . . . 92
Steering Wheel Controls . . . . . . . . . . 92
Heated Steering Wheel . . . . . . . . . . . . 92
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Windshield Wiper/Washer . . . . . . . . 93
Rear Window Wiper/Washer . . . . . . 95
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Power Outlets . . . . . . . . . . . . . . . . . . . . . . 96
Wireless Charging . . . . . . . . . . . . . . . . . 97
Warning Lights, Gauges, and
Indicators
Warning Lights, Gauges, andIndicators . . . . . . . . . . . . . . . . . . . . . . . 100
Instrument Cluster . . . . . . . . . . . . . . . 100
Speedometer . . . . . . . . . . . . . . . . . . . . . . 102
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . 102
Trip Odometer . . . . . . . . . . . . . . . . . . . . 103
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 103
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . 103
Engine Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Seat Belt Reminders . . . . . . . . . . . . . . 104
Airbag Readiness Light . . . . . . . . . . 105 Passenger Airbag Status
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 105
Charging System Light . . . . . . . . . . . 106
Malfunction Indicator Lamp (Check Engine Light) . . . . . . . . . . . 106
Brake System Warning Light . . . . 108
Electric Parking Brake Light . . . . . 108
Service Electric Parking Brake Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Antilock Brake System (ABS) Warning Light . . . . . . . . . . . . . . . . . . 109
Gear Shifting Light . . . . . . . . . . . . . . . 109
Performance Shifting Light . . . . . . 110
All-Wheel-Drive Light . . . . . . . . . . . . 110
Lane Keep Assist (LKA) Light . . . 110
Vehicle Ahead Indicator . . . . . . . . . 111
Pedestrian Ahead Indicator . . . . . . 111
Traction Off Light . . . . . . . . . . . . . . . . 111
StabiliTrak OFF Light . . . . . . . . . . . . 111
Traction Control System (TCS)/ StabiliTrak Light . . . . . . . . . . . . . . . . 112
Engine Coolant Temperature Warning Light (Uplevel) . . . . . . . . 112
Driver Mode Control Light . . . . . . . 112
Tire Pressure Light . . . . . . . . . . . . . . . 113
Engine Oil Pressure Light . . . . . . . . 113
Low Fuel Warning Light . . . . . . . . . 114
Security Light . . . . . . . . . . . . . . . . . . . . . 114
High-Beam On Light . . . . . . . . . . . . . 114
Lamps On Reminder . . . . . . . . . . . . . 114 Cruise Control Light . . . . . . . . . . . . . . 114
Door Ajar Light . . . . . . . . . . . . . . . . . . . 115
Information Displays
Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . . . . . 115
Head-Up Display (HUD) . . . . . . . . . 117
Vehicle Messages
Vehicle Messages . . . . . . . . . . . . . . . . . 120
Engine Power Messages . . . . . . . . . . 121
Vehicle Speed Messages . . . . . . . . . 121
Vehicle Personalization
Vehicle Personalization . . . . . . . . . . 121
Universal Remote System
Universal Remote System . . . . . . . . 126
Universal Remote System Programming . . . . . . . . . . . . . . . . . . . 126
Universal Remote System Operation . . . . . . . . . . . . . . . . . . . . . . . . 128

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
102 INSTRUMENTS AND CONTROLS
.Audio
.Navigation
.Phone
.Options
Audio
In the Audio menu browse for music,
select from the favorites, or change
the audio source. Use the thumbwheel
to change the station or go to the next
or previous track.
Navigation
If there is an active route, press the
thumbwheel to cancel or resume route
guidance, or turn the voice prompts
on or off.
Phone
In the Phone menu, if there is no
active phone call, view recent calls,
or scroll through contacts. If there is
an active call, mute the phone or
switch to handset operation.
Options
Use the thumbwheel to scroll through
items in the Options menu. Units :
Choose English or metric units
by pressing the thumbwheel while the
desired item is highlighted.
Info Page Options : Press the
thumbwheel to select the items to be
displayed in the Info app. See Driver
Information Center (DIC) 0115.
Display : Press the thumbwheel to
enter the Display menu. Select to turn
on or off the speedometer, time, fuel
range, or, if equipped, compass or
speed sign.
Speed Warning : The Speed Warning
display allows the driver to set a
warning at a speed that they do not
want to exceed. To set the Speed
Warning press the thumbwheel when
Speed Warning is displayed. Use the
thumbwheel to adjust the value and
press to set the speed.
Once the speed is set, this feature can
be turned off by pressing the
thumbwheel while viewing this page.
If the selected speed limit is exceeded,
a pop-up warning is displayed with a
chime. Head-up Display (HUD) (Uplevel) :
If equipped, this feature allows for
adjusting the angle of the HUD image
and changing or turning off the Speed
Limit Sign.
HUD Rotation (Uplevel): Press the
thumbwheel while Adjust Rotation is
highlighted to enter Adjust Mode.
Scroll to adjust the angle of the HUD
display. Press the thumbwheel to
confirm and save the setting. This
feature may only be available in
P (Park).
Speed Sign: If equipped, press the
thumbwheel while Speed Sign is
highlighted to turn it on or off.
Software Information :
Displays open
source software information.
Speedometer
The speedometer shows the vehicle
speed in either kilometers per hour
(km/h) or miles per hour (mph).
Odometer
The odometer shows how far the
vehicle has been driven, in either
kilometers or miles.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
INSTRUMENTS AND CONTROLS 103
Trip Odometer
The trip odometer shows how far the
vehicle has been driven since the trip
odometer was last reset.
The trip odometer is accessed and
reset through the Driver Information
Center (DIC). SeeDriver Information
Center (DIC) 0115.
Tachometer
The tachometer displays the engine
speed in revolutions per minute (rpm).
For vehicles with the Stop/Start
system, when the ignition is on, the
tachometer indicates the vehicle
status. When pointing to AUTO STOP,
the engine is off but the vehicle is on
and can move. The engine could auto
start at any time. When the indicator
points to OFF, the vehicle is off.
When the engine is on, the
tachometer will indicate the engine’s
revolutions per minute (rpm). The
tachometer may vary by several
hundred rpm, during Auto Stop mode,
when the engine is shutting off and
restarting.
Fuel Gauge
When the ignition is on, the fuel
gauge indicates about how much fuel
is left in the tank.
There is an arrow near the fuel gauge
pointing to the side of the vehicle the
fuel door is on.
When the indicator nears empty, the
low fuel light comes on. There still is
a little fuel left, but the vehicle should
be refueled soon. Here are three things that some
owners ask about. None of these show
a problem with the fuel gauge:
.It takes a little more, or less fuel to
fill up than the gauge indicated. For
example, the gauge may have
indicated the tank was half full, but
it actually took a little more, or less
than half the tank's capacity to fill
the tank.
.The gauge moves a little while
turning a corner, speeding up or
braking.
.The gauge takes a few seconds to
stabilize after the ignition is turned
on and goes back to empty when
the ignition is turned off.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
116 INSTRUMENTS AND CONTROLS
While in the Info Page Options menu,
the info pages can be restored to the
default factory settings by pressing
and holding
Ron the left steering
wheel controls and the thumbwheel
on the right steering wheel controls at
the same time.
For uplevel clusters, this will also
reset the Display settings. See
Instrument Cluster 0100.
Speed : Shows the vehicle speed in
either kilometers per hour (km/h) or
miles per hour (mph).
Trip 1 or Trip 2 and Average Fuel
Economy : The Trip display shows the
current distance traveled, in either
kilometers (km) or miles (mi), since
the trip odometer was last reset. The
trip odometer can be reset by pressing
Vand selecting yes or no while this
display is active.
Shows the approximate average liters
per 100 kilometers (L/100 km),
kilometers per liter (km/L), or miles
per gallon (mpg). This number is
calculated based on the number of
L/100 km or km/L recorded since the
last time this menu item was reset. This number reflects only the
approximate average fuel economy
that the vehicle has right now, and
will change as driving conditions
change. The Average Fuel Economy
can be reset by pressing
Vand
selecting yes or no while this display
is active.
Fuel Range : Shows the approximate
distance the vehicle can be driven
without refueling. LOW will be
displayed when the vehicle is low on
fuel. The fuel range estimate is based
on an average of the vehicle's fuel
economy over recent driving history
and the amount of fuel remaining in
the fuel tank.
Oil Life : Shows an estimate of the
oil's remaining useful life.
If REMAINING OIL LIFE 99% is
displayed, that means 99% of the
current oil life remains.
When the remaining oil life is low, the
CHANGE ENGINE OIL SOON message
will appear on the display. The oil
should be changed as soon as
possible. See Engine Oil0290. In
addition to the engine oil life system monitoring the oil life, additional
maintenance is recommended. See
Maintenance Schedule
0368.
The Oil Life display must be reset
after each oil change. It will not reset
itself. Do not reset the Oil Life display
accidentally at any time other than
when the oil has just been changed.
It cannot be reset accurately until the
next oil change. To reset, see Engine
Oil Life System 0292.
Tire Pressure : Shows the
approximate pressures of all four tires.
Tire pressure is displayed in either
kilopascal (kPa) or in pounds per
square inch (psi). If the pressure is
low, the value for that tire is shown in
amber. See Tire Pressure Monitor
System 0327 and
Tire Pressure Monitor Operation 0328.
Air Filter Life : Shows an estimate of
the engine air filter’s remaining useful
life and the state of the system.
Engine Air Filter Life 95% means 95%
of the current air filter life remains.
Messages will display based on the
engine air filter life and the state of
the system. When the REPLACE AT
NEXT OIL CHANGE message displays,

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
VEHICLE CARE 337
loading, either separately or in
combination, can cause heat
buildup and possible tire failure.
Wheel Alignment and Tire
Balance
The tires and wheels were aligned and
balanced at the factory to provide the
longest tire life and best overall
performance. Adjustments to wheel
alignment and tire balancing are not
necessary on a regular basis. Consider
an alignment check if there is unusual
tire wear or the vehicle is significantly
pulling to one side or the other. Some
slight pull to the left or right,
depending on the crown of the road
and/or other road surface variations
such as troughs or ruts, is normal.
If the vehicle is vibrating when driving
on a smooth road, the tires and
wheels may need to be rebalanced.
See your dealer for proper diagnosis.
Wheel Replacement
Replace any wheel that is bent,
cracked, or badly rusted or corroded.
If wheel nuts keep coming loose, the
wheel, wheel bolts, and wheel nutsshould be replaced. If the wheel leaks
air, replace it. Some aluminum wheels
can be repaired. See your dealer if any
of these conditions exist.
Your dealer will know the kind of
wheel that is needed.
Each new wheel should have the same
load-carrying capacity, diameter,
width, offset, and be mounted the
same way as the one it replaces.
Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor System
(TPMS) sensors with new GM original
equipment parts.
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel nuts
can be dangerous. It could affect
the braking and handling of the
vehicle. Tires can lose air, and
cause loss of control, causing a
crash. Always use the correct wheel,
wheel bolts, and wheel nuts for
replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or odometer
calibration, headlamp aim, bumper
height, vehicle ground clearance,
and tire or tire chain clearance to
the body and chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used one
is dangerous. How it has been used
or how far it has been driven may
be unknown. It could fail suddenly
and cause a crash. When replacing
wheels, use a new GM original
equipment wheel.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
SERVICE AND MAINTENANCE 379

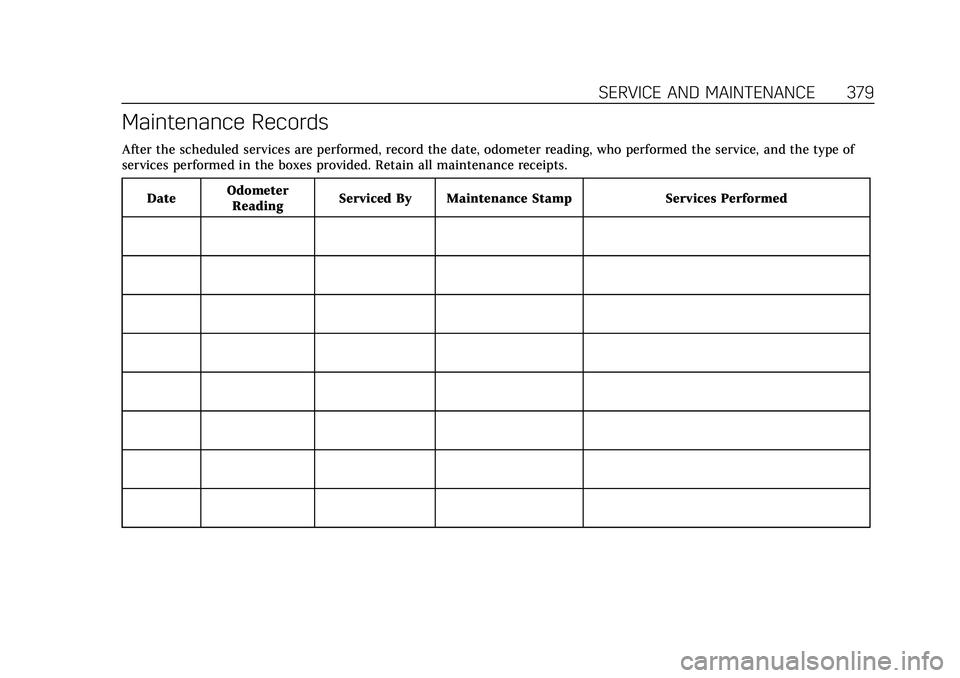

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of
services performed in the boxes provided. Retain all maintenance receipts.Date Odometer
Reading Serviced By Maintenance Stamp Services Performed

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
388 CUSTOMER INFORMATION
General Motors of Canada also has a
Mobility program. See
cadillaccanada.ca, or call
1-800-GM-DRIVE (800-463-7483) for
details. TTY users call 1-800-263-3830.
Roadside Service
U.S.: 1-800-224-1400.
Canada: 1-800-882-1112.
Text Telephone (TTY) Users
(U.S. Only): 1-888-889-2438.
Service is available 24 hours a day,
365 days a year.
Calling for Service
When calling Roadside Service, have
the following information ready:
.Your name, home address, and
home telephone number
.Telephone number of your location
.Location of the vehicle
.Model, year, color, and license plate
number of the vehicle
.Odometer reading, Vehicle
Identification Number (VIN), and
delivery date of the vehicle
.Description of the problem
Coverage
Services are provided for the duration
of the vehicle’s powertrain warranty.
In the U.S., anyone driving the vehicle
is covered. In Canada, a person driving
the vehicle without permission from
the owner is not covered.
Roadside Service is not a part of the
New Vehicle Limited Warranty.
General Motors North America and
Cadillac reserve the right to make any
changes or discontinue the Roadside
Service program at any time without
notification.
General Motors North America and
Cadillac reserve the right to limit
services or payment to an owner or
driver if they decide the claims are
made too often, or the same type of
claim is made many times.
Cadillac Owner Privileges™
.Emergency Fuel Delivery: Delivery
of enough fuel for the vehicle to get
to the nearest service station.
.Lock-Out Service: Service to unlock
the vehicle if you are locked out.
A remote unlock may be available if you have OnStar. For security
reasons, the driver must present
identification before this service is
given.
.Emergency Tow from a Public
Road or Highway:
Tow to the
nearest Cadillac dealer for warranty
service, or if the vehicle was in a
crash and cannot be driven.
Assistance is not given when the
vehicle is stuck in the sand, mud,
or snow.
.Flat Tire Change: Service to change
a flat tire with a spare tire. The
spare tire, if equipped, must be in
good condition and properly
inflated. It is your responsibility for
the repair or replacement of the tire
if it is not covered by the warranty.
.Battery Jump Start: Service to
jump start a dead battery.
.Trip Interruption Benefits and
Service: If your trip is interrupted
due to a warranty failure, incidental
expenses may be reimbursed during
the Powertrain warranty period.
Items considered are hotel, meals,

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
410 INDEX
F
Filter,Engine Air Cleaner . . . . . . . . . . . . . . . . 294
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . 131
Flashers, Hazard Warning . . . . . . . . . . 132
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Fluid Automatic Transmission . . . . . . . . . 293
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . 28
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393
Front Pedestrian Braking (FPB) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Front Seats Heated and Ventilated . . . . . . . . . . . . 44
Front Storage . . . . . . . . . . . . . . . . . . . . . . . . 86
Front Turn Signal Lamps . . . . . . . . . . 305
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Economy, Driving for Better . . . . . 204
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . . . . . . 274 Fuel (cont'd)
Filling the Tank . . . . . . . . . . . . . . . . . . . 272
Foreign Countries . . . . . . . . . . . . . . . . . 272
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Low Fuel Warning Light . . . . . . . . . 114
Management, Active . . . . . . . . . . . . . . 225
Prohibited Fuels . . . . . . . . . . . . . . . . . . 271
Recommended . . . . . . . . . . . . . . . . . . . . 271
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Fuses and Circuit Breakers . . . . . . . 308
Instrument Panel Fuse Block . . . . 314
G
Garage Door Opener . . . . . . . . . . . . . . . . 126 Programming . . . . . . . . . . . . . . . . . . . . . . 126
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . 304
Gauges Engine Coolant Temperature . . . . 104
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Speedometer . . . . . . . . . . . . . . . . . . . . . . 102
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 103
Trip Odometer . . . . . . . . . . . . . . . . . . . . 103 Gauges (cont'd)
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . . . . . . 100
Gear Shifting Light . . . . . . . . . . . . . . . . . 109
General Information Service and Maintenance . . . . . . . . 367
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . 286
Global Positioning System (GPS) . . . . . . . . . . . . . . . . . . . . . . 161
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387
Guidance Problems with the Route . . . . . . . . . 162H
Hazard Warning Flashers . . . . . . . . . . 132
HD Radio Technology . . . . . . . . . . . . . . 144
Head Restraints . . . . . . . . . . . . . . . . . . . . . . 37
Head-up Display . . . . . . . . . . . . . . . . . . . . 117
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 131
Bulb Replacement . . . . . . . . . . . . . . . . 305
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . . . . . 131
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . 131

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
INDEX 413
N
NavigationConnected Services . . . . . . . . . . . . . . . 403
Destination . . . . . . . . . . . . . . . . . . . . . . . . 155
Using the System . . . . . . . . . . . . . . . . . 151
Navigation Symbols . . . . . . . . . . . . . . . . 154
New Vehicle Break-In . . . . . . . . . . . . . . . 218
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Off-Road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207 Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Oil
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Engine Oil Life System . . . . . . . . . . . 292
Pressure Light . . . . . . . . . . . . . . . . . . . . . 113
Older Children, Restraints . . . . . . . . . . . 65
Online Owner Center . . . . . . . . . . . . . . . 387
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396
OnStar Additional Information . . . . 399
OnStar Emergency . . . . . . . . . . . . . . . . . . 398
OnStar Overview . . . . . . . . . . . . . . . . . . . . 397
OnStar Security . . . . . . . . . . . . . . . . . . . . . 398
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Overheating, Engine . . . . . . . . . . . . . . . . 298 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Instrument Panel . . . . . . . . . . . . . . . . . . . . 4
P
Park
Shifting Into . . . . . . . . . . . . . . . . . . . . . . 224
Shifting Out of . . . . . . . . . . . . . . . . . . . . 225
Park Assist . . . . . . . . . . . . . . . . . . . . .252, 254
Parking Brake and P (Park)Mechanism Check . . . . . . . . . . . . . . . 302
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Over Things That Burn . . . . . . . . . . . 225
Parking Assist Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 256
Parking or Backing Assistance Systems . . . . . . . . . . . . . . . 252
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Passenger Compartment Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Passenger Sensing System . . . . . . . . . . 60
Pedestrian Ahead Indicator . . . . . . . . 111
Perchlorate Materials Requirements, California . . . . . . . . . 286
Performance Shifting Light . . . . . . . . 110
Personalization
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 Phone
Apple CarPlay and
Android Auto . . . . . . . . . . . . . . . . . . . . 174
Bluetooth . . . . . . . . . . . . . . . . . . . . 169, 170
Port USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Positioning
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Power Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . 18
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Protection, Battery . . . . . . . . . . . . . . . . 135
Retained Accessory (RAP) . . . . . . . . 224
Seat Adjustment . . . . . . . . . . . . . . . . . . . 38
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Pregnancy, Using Seat Belts . . . . . . . . . 52
Privacy Vehicle Data Recording . . . . . . . . . . 395
Problems with Route Guidance . . . . 162
Program Courtesy Transportation . . . . . . . . . 390
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . 271
Proposition 65 Warning, California . . . . . . . . . . . . . . . . . . . . .301, 351,
Back Cover
Publication Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . 393

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
416 INDEX
System (cont'd)Rear Cross Traffic Alert . . . . . . . . . . 260
Roof Rack . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Surround Vision . . . . . . . . . . . . . . . . . . 253
Systems Driver Assistance . . . . . . . . . . . . . . . . . 250
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . 103
Teen Driver . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Text Telephone (TTY) Users . . . . . . . 387
Theft-Deterrent Systems . . . . . . . . . . . . 27Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . 27
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318 All-Season . . . . . . . . . . . . . . . . . . . . . . . . . 319
Buying New Tires . . . . . . . . . . . . . . . . . 334
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Compact Spare . . . . . . . . . . . . . . . . . . . . 350
Designations . . . . . . . . . . . . . . . . . . . . . . 322
Different Size . . . . . . . . . . . . . . . . . . . . . . 335
If a Tire Goes Flat . . . . . . . . . . . . . . . . 338
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . 331
Pressure . . . . . . . . . . . . . . . . . . . . . 325, 326
Pressure Light . . . . . . . . . . . . . . . . . . . . . 113
Pressure Monitor Operation . . . . . . 328
Pressure Monitor System . . . . . . . . 327 Tires (cont'd)
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . 332
Sealant and Compressor Kit . . . . . 340
Sealant and Compressor Kit,
Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Sidewall Labeling . . . . . . . . . . . . . . . . . 320
Terminology and Definitions . . . . 323
Uniform Tire Quality Grading . . . . 335
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . . . . . . 337
Wheel Replacement . . . . . . . . . . . . . . 337
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . 271
Towing Driving Characteristics . . . . . . . . . . . 274
Equipment . . . . . . . . . . . . . . . . . . . . . . . . 281
General Information . . . . . . . . . . . . . . 274
Recreational Vehicle . . . . . . . . . . . . . . 355
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Trailer Sway Control (TSC) . . . . . . . 283
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Traction Control System(TCS)/StabiliTrak Light . . . . . . . . . 112
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Traction Control/Electronic
Stability Control . . . . . . . . . . . . . . . . . . . 235
Trademarks and License Agreements . . . . . . . . . . . . . . . . . . . . . . . . 186
Trailer Sway Control (TSC) . . . . . . . . . . . . . . . 283
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 227
Fluid, Automatic . . . . . . . . . . . . . . . . . . 293
Transportation Program,
Courtesy . . . . . . . . . . . . . . . . . . . . . . . . . . . 390
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . 103
Turn and Lane-Change Signals . . . . 132
U
Umbrella Storage . . . . . . . . . . . . . . . . . . . . 88
Uniform Tire Quality Grading . . . . . . 335
Universal Remote System . . . . . . . . . . 126 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Programming . . . . . . . . . . . . . . . . . . . . . . 126
Updates Map Data . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Using the Navigation System . . . . . . 151
Using the System . . . . . . . . . . . . . . . . . . . 139
Using This Manual . . . . . . . . . . . . . . . . . . . . 2
