Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Seats and Restraints 95
To reinstall the head restraint:
1. Insert the head restraintposts into the holes in the
top of the seatback. The
notches on the posts
should face the driver side
of the vehicle.
2. Push the head restraint down. If necessary, press
the height adjustment
release button to further
lower the head restraint.
See Head Restraints 045.
3. Try to move the head restraint to make sure that
it is locked in place.
Replacing LATCH
System Parts After a
Crash
{Warning
A crash can damage the
LATCH system in the
vehicle. A damaged LATCH
system may not properly
secure the child restraint,
resulting in serious injury or
even death in a crash. To
help make sure the LATCH
system is working properly
after a crash, see your
dealer to have the system
inspected and any
necessary replacements
made as soon as possible.
If the vehicle has the LATCH
system and it was being used
during a crash, new LATCH
system parts may be needed.
New parts and repairs may be
necessary even if the LATCH
system was not being used at
the time of the crash.
Securing Child
Restraints (With the
Seat Belt in the
Rear Seat)
When securing a child
restraint with the seat belts in
a rear seat position, study the
instructions that came with
the child restraint to make
sure it is compatible with this
vehicle.
If the child restraint has the
LATCH system, see Lower
Anchors and Tethers for
Children (LATCH System) 086
for how and where to install
the child restraint using
LATCH. If a child restraint is
secured in the vehicle using a
seat belt and it uses a top
tether, see Lower Anchors
and Tethers for Children
(LATCH System) 086 for top
tether anchor locations.
Do not secure a child seat in a
position without a top tether
anchor if a national or local law
requires that the top tether be

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Seats and Restraints 97
4. Pull the shoulder belt allthe way out of the
retractor to set the lock.
When the retractor lock is
set, the belt can be
tightened but not pulled
out of the retractor.5. To tighten the belt, pushdown on the child restraint,
pull the shoulder portion of
the belt to tighten the lap
portion of the belt, and
feed the shoulder belt
back into the retractor.
When installing a
forward-facing child
restraint, it may be helpful
to use your knee to push
down on the child restraint
as you tighten the belt.
Try to pull the belt out of
the retractor to make sure
the retractor is locked. If the retractor is not
locked, repeat
Steps 4 and 5.
6. If the child restraint has a top tether, follow the child
restraint manufacturer's
instructions regarding the
use of the top tether. See
Lower Anchors and
Tethers for Children
(LATCH System) 086.
7. Before placing a child in the child restraint, make
sure it is securely held in
place. To check, grasp the
child restraint at the seat
belt path and attempt to
move it side to side and
back and forth. When the
child restraint is properly
installed, there should be
no more than 2.5 cm (1 in)
of movement.
To remove the child restraint,
unbuckle the vehicle seat belt
and let it return to the stowed
position. If the top tether is
attached to a top tether
anchor, disconnect it.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
100 Seats and Restraints
5. Pull the shoulder belt allthe way out of the
retractor to set the lock.
When the retractor lock is
set, the belt can be
tightened but not pulled
out of the retractor.6. To tighten the belt, pushdown on the child restraint,
pull the shoulder portion of
the belt to tighten the lap
portion of the belt, and
feed the shoulder belt
back into the retractor.
There must be finger
clearance between the
push button and the child
restraint. If there is not
clearance between the
buckle push button and the
child restraint, move the
seat upward and repeat prior installation steps.
Otherwise secure the child
restraint in a rear seat.
When installing a
forward-facing child
restraint, it may be helpful
to use your knee to push
down on the child restraint
as you tighten the belt.
Try to pull the belt out of
the retractor to make sure
the retractor is locked.
If the retractor is not
locked, repeat
Steps 5 and 6.
7. Before placing a child in the child restraint, make
sure it is securely held in
place. To check, grasp the
child restraint at the seat
belt path and attempt to
move it side to side and
back and forth. When the
child restraint is properly
installed, there should be
no more than 2.5 cm (1 in)
of movement.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
102 Storage
Storage
Storage Compartments
StorageCompartments . . . . . . . . . . . . 102
Glove Box . . . . . . . . . . . . . . . . . . . . 102
Cupholders . . . . . . . . . . . . . . . . . . 102
Front Storage . . . . . . . . . . . . . . 103
Sunglasses Storage . . . . . . 103
Rear Storage . . . . . . . . . . . . . . . 103
Center Console Storage . . . . . . . . . . . . . . . . . . . . . 105
Umbrella Storage . . . . . . . . . . 105
Additional Storage
Features
Cargo Cover . . . . . . . . . . . . . . . . 106
Cargo Tie-Downs . . . . . . . . . . 106
Roof Rack System
Roof Rack System . . . . . . . . . 106
Storage
Compartments
{
Warning
Do not store heavy or sharp
objects in storage
compartments. In a crash,
these objects may cause the
cover to open and could
result in injury.
Glove Box
Lift the handle to open the
glove box. Close until it
latches. Use the vehicle key to
lock or unlock. See Keys 08.
Cupholders
The front cupholders are in
the center console.
If equipped, lower the armrest
to access the rear cupholders.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
104 Storage

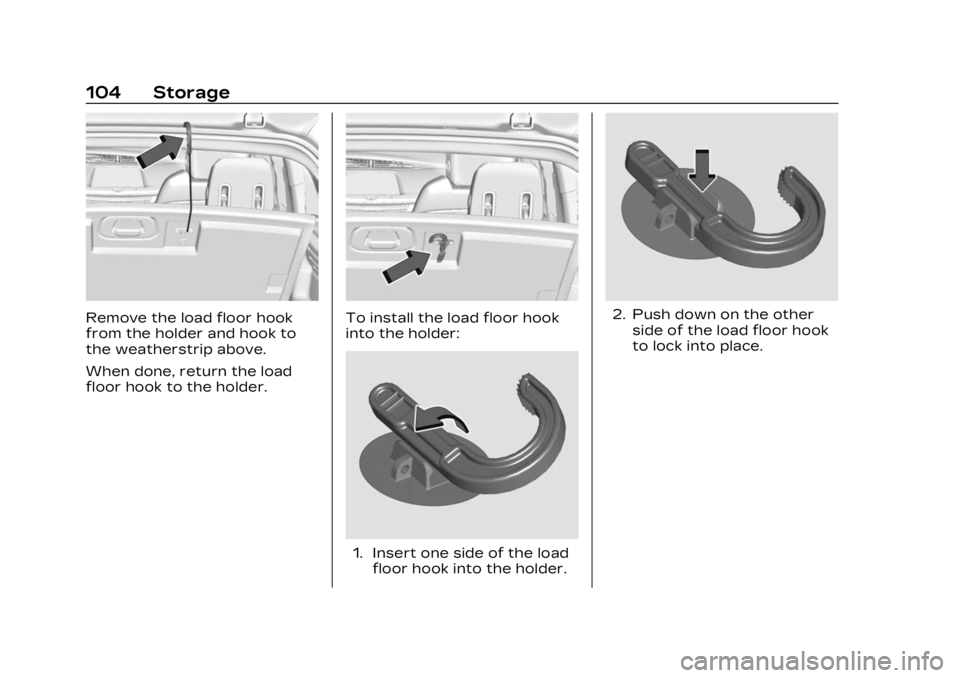

Remove the load floor hook
from the holder and hook to
the weatherstrip above.
When done, return the load
floor hook to the holder.To install the load floor hook
into the holder:
1. Insert one side of the loadfloor hook into the holder.
2. Push down on the otherside of the load floor hook
to lock into place.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Storage 107
{Warning
Before driving and
occasionally during a trip,
check that cargo is securely
fastened, rests evenly
between the cross rails and
does not block the vehicle's
lamps or windows. Never
load cargo directly on the
roof of the vehicle or allow
cargo to hang over the rear
or sides of the vehicle.
Never load cargo without
first properly installing cross
rails and other accessories
designed to carry cargo.
Personal injury, death or
damage to the vehicle or
other property may occur.
If driving for a long distance,
on rough roads, or at high
speeds, occasionally stop the
vehicle to make sure the cargo
remains in its place.
Cargo Weight Limits
Do not exceed the maximum
cargo weight for the roof rack
system, including the weight
of the cross rails and any
other accessories used to
carry the cargo such as bike
racks or roof boxes. The
maximum cargo weight that
can be loaded onto the roof
rack system is 100 kg (220 lb)
or the weight designated in
the instructions that came
with the cross rails or other
roof rack accessories,
whichever is less.
{Warning
Never load the roof rack
with more weight than
specified in this section.
Loading cargo on the roof
rack will make the vehicle's
center of gravity higher. To
avoid losing control of the
vehicle, avoid overloading,
high speeds, sudden starts,
sharp turns, sudden braking, (Continued)
Warning (Continued)
or abrupt maneuvers when
carrying cargo on the
roof rack.
The weight of any cargo
carried on the roof rack
system must be included in
calculating the loaded weight
of the vehicle. Do not exceed
the maximum vehicle capacity
when loading the vehicle,
including cargo carried on
the roof rack system and
passengers and cargo carried
in the vehicle. For more
information on vehicle
capacity and loading, see
Vehicle Load Limits 0242.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
108 Instruments and Controls
Instruments and
Controls
Controls
Steering WheelAdjustment . . . . . . . . . . . . . . . . . 109
Heated Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . 110
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Windshield Wiper/ Washer . . . . . . . . . . . . . . . . . . . . . . 110
Rear Window Wiper/ Washer . . . . . . . . . . . . . . . . . . . . . . 113
Compass . . . . . . . . . . . . . . . . . . . . . . 114
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Power Outlets . . . . . . . . . . . . . . . 115
Wireless Charging . . . . . . . . . . 115
Warning Lights, Gauges,
and Indicators
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . 118
Instrument Cluster . . . . . . . . . 119
Speedometer . . . . . . . . . . . . . . . . 122
Odometer . . . . . . . . . . . . . . . . . . . . 122
Trip Odometer . . . . . . . . . . . . . . 122
Tachometer . . . . . . . . . . . . . . . . . . 122
Fuel Gauge . . . . . . . . . . . . . . . . . . . 122 Engine Coolant
Temperature Gauge . . . . . 123
Seat Belt Reminders . . . . . . 123
Airbag Readiness Light . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . 125
Charging System Light . . . 126
Malfunction Indicator Lamp (Check Engine
Light) . . . . . . . . . . . . . . . . . . . . . . . . . 126
Brake System Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Electric Parking Brake Light . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Service Electric Parking Brake Light . . . . . . . . . . . . . . . . . 129
Antilock Brake System (ABS) Warning Light . . . . . 129
Gear Shifting Light . . . . . . . . 130
Performance Shifting Light . . . . . . . . . . . . . . . . . . . . . . . . . 130
All-Wheel-Drive Light . . . . . 130
Lane Keep Assist (LKA) Light . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Vehicle Ahead Indicator . . . . . . . . . . . . . . . . . . . . . 131
Pedestrian Ahead Indicator . . . . . . . . . . . . . . . . . . . . . 131
Traction Off Light . . . . . . . . . . 131 StabiliTrak OFF Light . . . . . 132
Traction Control System
(TCS)/StabiliTrak
Light . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Engine Coolant
Temperature Warning
Light (Uplevel) . . . . . . . . . . . . . 133
Driver Mode Control Light . . . . . . . . . . . . . . . . . . . . . . . . . 133
Tire Pressure Light . . . . . . . 134
Engine Oil Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . 134
Low Fuel Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . 135
Security Light . . . . . . . . . . . . . . . 135
High-Beam On Light . . . . . . 135
Lamps On Reminder . . . . . . 136
Cruise Control Light . . . . . . 136
Door Ajar Light . . . . . . . . . . . . . 136
Information Displays
Driver Information Center (DIC) . . . . . . . . . . . . . . . . 136
Head-Up Display (HUD) . . . 139
Vehicle Messages
Vehicle Messages . . . . . . . . . 143
Engine Power Messages . . . . . . . . . . . . . . . . . . . 143
Vehicle Speed Messages . . . . . . . . . . . . . . . . . . . 144

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Instruments and Controls 109
Universal Remote System
Universal RemoteSystem . . . . . . . . . . . . . . . . . . . . . . 144
Universal Remote System Programming . . . . . . . . . . . . . . 144
Universal Remote System
Operation . . . . . . . . . . . . . . . . . . . 147Controls
Steering Wheel
Adjustment
Manual Steering Wheel
To adjust the steering wheel:
1. Pull the lever down.
2. Move the steering wheel up or down.
3. Pull or push the steering wheel closer or away
from you.
4. Pull the lever up to lock the steering wheel in place. Do not adjust the steering
wheel while driving.
Power Tilt and Telescoping
Steering Wheel
Press the control to move the
tilt and telescoping steering
wheel up and down or forward
and rearward.
Do not adjust the steering
wheel while driving.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Instruments and Controls 111
With the ignition on or in
accessory mode, move the
windshield wiper lever to
select the wiper speed.
HI :Use for fast wipes.
LO : Use for slow wipes.
AUTO : If equipped with
Rainsense, use this setting for
intermittent wipes when
Rainsense is disabled,
or Rainsense wipes when
Rainsense is enabled. For
intermittent wipes, move the
windshield wiper lever to
AUTO, then turn the band up
for more frequent wipes or
down for less frequent wipes.
If Rainsense is turned on, see
“Rainsense” later in this
section.
INT : If equipped with
intermittent wipers only, move
the windshield wiper lever to
INT. Turn the band up for
more frequent wipes or down
for less frequent wipes.
OFF : Use to turn the
wipers off.
1X : For a single wipe, briefly
move the wiper lever down.
For several wipes, hold the
wiper lever down.
f: Pull the windshield wiper
lever toward you to spray
windshield washer fluid and
activate the wipers. The
wipers will continue until the
lever is released or the
maximum wash time is
reached. When the windshield wiper lever is released,
additional wipes may occur
depending on how long the
windshield washer has been
activated. See Washer Fluid
0
343 for information on filling
the windshield washer fluid
reservoir.
{Warning
In freezing weather, do not
use the washer until the
windshield is warmed.
Otherwise the washer fluid
can form ice on the
windshield, blocking your
vision.
{Warning
Before driving the vehicle,
always clear snow and ice
from the hood, windshield,
washer nozzles, roof, and
rear of the vehicle, including
all lamps and windows.
(Continued)

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Instruments and Controls 115
Clock
Set the time and date using
the infotainment system. See
"Time/Date" under Settings
0203.
Power Outlets
The accessory power outlet
can be used to plug in
electrical equipment, such as a
cell phone or MP3 player.
The vehicle has three
accessory power outlets: one
at the front of the center console, one under the
armrest, and one in the rear
cargo area.
Certain accessory power
plugs may not be compatible
with the accessory power
outlet and could overload
vehicle or adapter fuses. If a
problem is experienced, see
your dealer.
When adding electrical
equipment, be sure to follow
the proper installation
instructions included with the
equipment. See Add-On
Electrical Equipment
0325.
Caution
Hanging heavy equipment
from the power outlet can
cause damage not covered
by the vehicle warranty. The
power outlets are designed
for accessory power plugs
only, such as cell phone
charge cords. Always unplug electrical
equipment when not in use
and do not plug in equipment
that exceeds the maximum
15 amps rating.
Wireless Charging
If equipped and enabled, the
vehicle has wireless charging
in front of the center console.
The system operates at 145
kHz and wirelessly charges
one Qi compatible
smartphone. The power
output of the system is
capable of charging at a rate
up to 3 amp (15 W), as
requested by the compatible
smartphone. See Radio
Frequency Statement
0446.
{Warning
Wireless charging may
affect the operation of an
implanted pacemaker or
other medical devices. If you
have one, it is recommended
(Continued)
