18 Keys, Doors, and Windows
2. Separate the two halves ofthe remote key using a flat
tool inserted into the
bottom center of the
remote key. Do not use the
key slot.3. Remove the old battery.Do not use a metal object.
4. Insert the new battery on the back housing, positive
side facing down. Replace
with a CR2032 or
equivalent battery.
5. Ensure that the silicone mat is correctly positioned
with no gaps or wrinkles.
6. Set remote key button side down on a hard surface
and press the other half
straight down to force the
halves together.
7. Reinsert the key.
Remote Vehicle Start
This feature allows the engine
to be started from outside of
the vehicle.
/: This button is on the
remote key for remote start.
The climate control system will
determine the best mode and
temperature setting for
operation during the remote
start. Once the vehicle is
started with the ENGINE
START/STOP button, the
climate control system will
begin to operate at the last
customer selected operating
mode and temperature. The
rear defog may come on
during remote start based on
cold ambient conditions. The
rear fog indicator light does
not come on during remote
start.
If the vehicle has auto heated
or ventilated seats they may
come on during a remote start.
See Heated and Ventilated
Front Seats 053.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
50 Seats and Restraints
4. To turn massage off or toactivate massage at last
massage type and
intensity settings, press
massage on/off control (6).
The massage feature will turn
off after approximately
20 minutes. Press the
massage on/off control (6) to
restart the massage feature.
Memory Seats
Overview
If equipped, the memory seat
feature allows drivers to save
their unique driving positions and a shared exit position. See
“Saving Seating Positions”
later in this section. The saved
positions can be recalled
manually by all drivers, see
“Manually Recalling Seating
Positions”
later in this section,
and drivers with remote key
1 and 2 can also recall them
automatically. See “Auto Seat
Entry Memory Recall” or“Auto
Seat Exit Memory Recall” later
in this section. To enable
automatic recalls, turn on Seat
Entry Memory and/or Seat
Exit Memory. See “Enabling
Automatic Recalls” later in this
section. The memory recalls
may be canceled at any time
during the recall. See “Cancel
Memory Seating Recalls” later
in this section.
Identifying Driver Number
The vehicle identifies the
current driver by their remote
key number 1–8. The current
remote key number may be
identified by Driver
Information Center (DIC) welcome message,
“You are
driver x for memory recalls.”
This message is displayed the
first few times the vehicle is
turned on when a different
remote key is used. For Seat
Entry Memory to work
properly, save positions to the
1 or 2 memory button
matching the driver number of
this welcome message. To aid
in identifying remote key IDs, it
is recommended to only carry
one remote key when entering
the vehicle. Perform the
following if the welcome
message is not displayed:
1. Move all keys and remote keys away from the
vehicle.
2. Start the vehicle with another remote key. A DIC
welcome message should
display indicating the
driver number of the other
remote key. Turn the
vehicle off and remove the
other key or remote key
from the vehicle.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Seats and Restraints 53
Cancel Memory Seating
Recalls
.During any memory recall:
Press a power seat control
Press SET memory button
.During Manual memory
recall:
Release 1, 2, or
Bmemory
button
.During Auto Seat Entry
Memory Recall:
Turn vehicle off
Press SET, 1, 2, or
B
memory buttons
.During Auto Seat Exit
Memory Recall:
Press SET, 1, 2, or
B
memory buttons
Obstructions
If something has blocked the
seat while recalling a memory
position, the recall may stop.
Remove the obstruction and
try the recall again. If the
memory position still does not
recall, see your dealer.
Heated and
Ventilated Front
Seats
{Warning
If temperature change or
pain to the skin cannot be
felt, the seat heater may
cause burns. To reduce the
risk of burns, use care when
using the seat heater,
especially for long periods of
time. Do not place anything
on the seat that insulates
against heat, such as a
blanket, cushion, cover,
or similar item. This may
cause the seat heater to
overheat. An overheated
seat heater may cause a
burn or may damage
the seat.
Uplevel Buttons Shown, Base Buttons Similar
If equipped, the buttons are
near the climate controls on
the center stack. To operate,
the engine must be running.
Press
Jorzto heat the
driver or passenger cushion
and seatback.
Press
Cor{to ventilate the
driver or passenger seat.
Press the button once for the
highest setting. With each
press of the button, the seat
will change to the next lower

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
74 Seats and Restraints
indicator will light and stay lit
as a reminder that the airbags
are active.
For some children, including
children in child restraints, and
for very small adults, the
passenger sensing system
may or may not turn off the
front outboard passenger
frontal airbag and knee airbag,
depending upon the person's
seating posture and body
build. Everyone in the vehicle
who has outgrown child
restraints should wear a seat
belt properly—whether or not
there is an airbag for that
person.
{Warning
If the airbag readiness light
ever comes on and stays on,
it means that something may
be wrong with the airbag
system. To help avoid injury
to yourself or others, have
the vehicle serviced right
(Continued)
Warning (Continued)
away. See Airbag Readiness
Light0124 for more
information, including
important safety
information.
If the On Indicator Is Lit
for a Child Restraint
The passenger sensing
system is designed to turn off
the front outboard passenger
frontal airbag and knee airbag,
if the system determines that
an infant is present in a child
restraint. If a child restraint
has been installed and the ON
indicator is lit:
1. Turn the vehicle off.
2. Remove the child restraint from the vehicle.
3. Remove any additional items from the seat such
as blankets, cushions, seat
covers, seat heaters,
or seat massagers. 4. Reinstall the child restraint
following the directions
provided by the child
restraint manufacturer and
refer to Securing Child
Restraints (With the Seat
Belt in the Rear Seat) 095
or Securing Child
Restraints (With the Seat
Belt in the Front Seat)
0 98.
Make sure the seat belt
retractor is locked by
pulling the shoulder belt all
the way out of the
retractor when installing
the child restraint, even if
the child restraint is
equipped with a seat belt
lock off. When the
retractor lock is set, the
belt can be tightened but
not pulled out of the
retractor.
5. If, after reinstalling the child restraint and
restarting the vehicle, the
ON indicator is still lit, turn
the vehicle off. Then
slightly recline the vehicle

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Seats and Restraints 75
seatback and adjust the
seat cushion, if adjustable,
to make sure that the
vehicle seatback is not
pushing the child restraint
into the seat cushion.
Also make sure the child
restraint is not trapped
under the vehicle head
restraint. If this happens,
adjust the head restraint.
See Head Restraints045.
6. Restart the vehicle.
The passenger sensing
system may or may not turn
off the airbag for a child in a
child restraint depending upon
the child’s size. It is better to
secure the child restraint in a
rear seat. Never put a
rear-facing child restraint in
the front seat, even if the ON
indicator is not lit.If the Off Indicator Is Lit
for an Adult-Sized
Occupant
If a person of adult size is
sitting in the front outboard
passenger seat, but the OFF
indicator is lit, it could be
because that person is not
sitting properly in the seat or
that the child restraint locking
feature is engaged. Use the
following steps to allow the
system to detect that person
and enable the front outboard
passenger frontal airbag and
knee airbag: 1. Turn the vehicle off.
2. Remove any additional
material from the seat,
such as blankets, cushions,
seat covers, seat heaters,
or seat massagers.
3. Place the seatback in the fully upright position.
4. Have the person sit upright in the seat,
centered on the seat
cushion, with legs
comfortably extended.
5. If the shoulder portion of the belt is pulled out all the
way, the child restraint
locking feature will be
engaged. This may
unintentionally cause the
passenger sensing system
to turn the airbag off for
some adult-sized
occupants. If this happens,
unbuckle the belt, let the
belt go back all the way,
and then buckle the belt
again without pulling the
belt out all the way.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
76 Seats and Restraints
6. Restart the vehicle andhave the person remain in
this position for two to
three minutes after the ON
indicator is lit.
{Warning
If the front outboard
passenger airbag is turned
off for an adult-sized
occupant, the airbag will not
be able to inflate and help
protect that person in a
crash, resulting in an
increased risk of serious
injury or even death. An
adult-sized occupant should
not ride in the front
outboard passenger seat,
if the passenger airbag OFF
indicator is lit.
Additional Factors
Affecting System
Operation
Seat belts help keep the
passenger in position on the
seat during vehicle maneuvers and braking, which helps the
passenger sensing system
maintain the passenger airbag
status. See
“Seat Belts” and
“Child Restraints” in the Index
for additional information
about the importance of
proper restraint use.
A thick layer of additional
material, such as a blanket or
cushion, or aftermarket
equipment such as seat
covers, seat heaters, and seat
massagers can affect how well
the passenger sensing system
operates. We recommend that
you not use seat covers or
other aftermarket equipment
except when approved by GM
for your specific vehicle. See
Adding Equipment to the
Airbag-Equipped Vehicle 077
for more information about
modifications that can affect
how the system operates.
The ON indicator may be lit if
an object, such as a briefcase,
handbag, grocery bag, laptop,
or other electronic device, is put on an unoccupied seat.
If this is not desired, remove
the object from the seat.
{Warning
Stowing articles under the
passenger seat or between
the passenger seat cushion
and seatback may interfere
with the proper operation of
the passenger sensing
system.
Servicing the
Airbag-Equipped
Vehicle
Airbags affect how the vehicle
should be serviced. There are
parts of the airbag system in
several places around the
vehicle. Your dealer and the
service manual have
information about servicing
the vehicle and the airbag
system. To purchase a service
manual, see Publication
Ordering Information
0445.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
90 Seats and Restraints

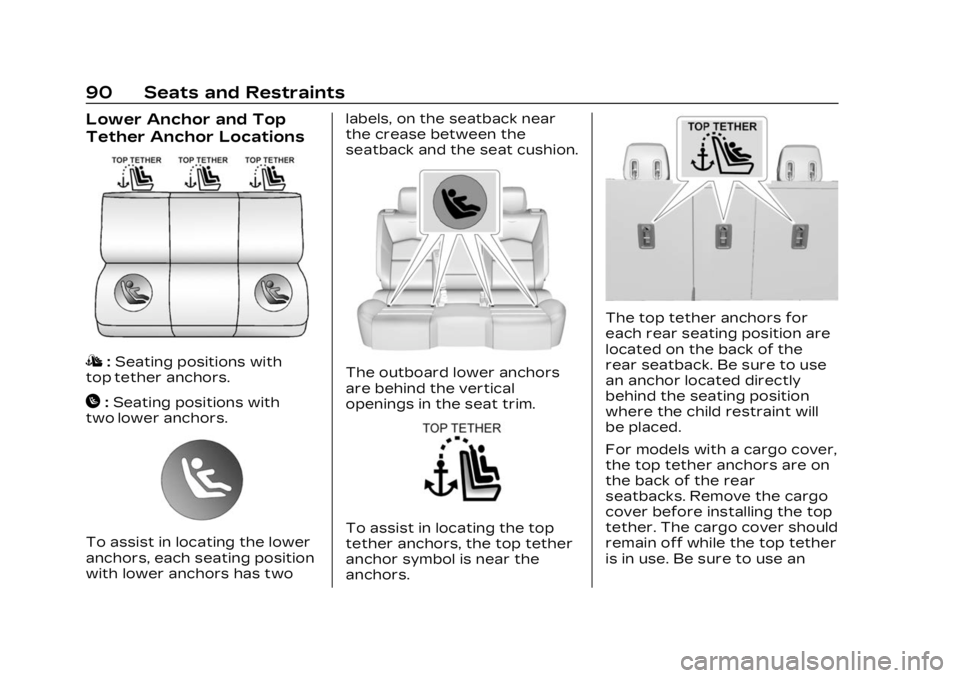

Lower Anchor and Top
Tether Anchor Locations
I:Seating positions with
top tether anchors.
H: Seating positions with
two lower anchors.
To assist in locating the lower
anchors, each seating position
with lower anchors has two labels, on the seatback near
the crease between the
seatback and the seat cushion.
The outboard lower anchors
are behind the vertical
openings in the seat trim.
To assist in locating the top
tether anchors, the top tether
anchor symbol is near the
anchors.
The top tether anchors for
each rear seating position are
located on the back of the
rear seatback. Be sure to use
an anchor located directly
behind the seating position
where the child restraint will
be placed.
For models with a cargo cover,
the top tether anchors are on
the back of the rear
seatbacks. Remove the cargo
cover before installing the top
tether. The cargo cover should
remain off while the top tether
is in use. Be sure to use an

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
92 Seats and Restraints
Warning (Continued)
Buckle any unused seat
belts behind the child
restraint so children cannot
reach them. Pull the
shoulder belt all the way out
of the retractor to set the
lock, and tighten the belt
behind the child restraint
after the child restraint has
been installed.
Caution
Do not let the LATCH
attachments rub against the
vehicle’s seat belts. This may
damage these parts.
If necessary, move buckled
seat belts to avoid rubbing
the LATCH attachments.
Do not fold the rear
seatback when the seat is
occupied. Do not fold the
empty rear seat with a seat
belt buckled. This could(Continued)
Caution (Continued)
damage the seat belt or the
seat. Unbuckle and return
the seat belt to its stowed
position, before folding
the seat.
If you need to secure more
than one child restraint in the
rear seat, see Where to Put
the Restraint 085.
1. Attach and tighten the lower attachments to the
lower anchors. If the child
restraint does not have
lower attachments or the
desired seating position
does not have lower
anchors, secure the child
restraint with the top
tether and the seat belt.
Refer to the child restraint
manufacturer instructions
and the instructions in this
manual.
1.1. Find the lower anchors for the desired seating
position. 1.2. Put the child restraint
on the seat.
For rear outboard
seating positions, if the
head restraint
interferes with the
proper installation of
the child restraint, the
head restraint may be
removed. See “Head
Restraint Removal and
Reinstallation” at the
end of this section.
1.3. Attach and tighten the lower attachments on
the child restraint to
the lower anchors.
2. If the child restraint manufacturer recommends
that the top tether be
attached, adjust the top
tether to its full length and
attach it to the anchor.
Refer to the child restraint
instructions and the
following steps:
2.1. Find the top tether anchor.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Seats and Restraints 93
2.2. Open the cover,if equipped, to access
the top tether anchors.
2.3.Remove the cargo cover before installing
the top tether. The
cargo cover can be
replaced after the top
tether is properly
installed.
2.4.Route and tighten the top tether according to
your child restraint
instructions and the
following instructions:
If the position you are
using does not have a
headrest or head
restraint and you are using a single tether,
route the tether over
the seatback.
If the position you are
using does not have a
headrest or head
restraint and you are
using a dual tether,
route the tether over
the seatback.
If the position you are
using has an adjustable
headrest or head
restraint, adjust it
accordingly to allow
proper fitment. If you
are using a single
tether, route the tether
in between the
headrest or head
restraint posts.
If the position you are
using has an adjustable
headrest or head
restraint, adjust it
accordingly to allow
proper fitment. If you
are using a dual tether,

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
94 Seats and Restraints
route the tether
around the headrest or
head restraint posts.
If the child restraint is
installed next to a
center seat, make sure
the top tether does not
interfere with the
center seating position
shoulder belt/retractor.
If it does, find another
suitable seating
position to install the
child restraint.
3. Before placing a child in the child restraint, make
sure it is securely held in
place. To check, grasp the
child restraint at the
LATCH path and attempt
to move it side to side and
back and forth. There
should be no more than
2.5 cm (1 in) of movement
for proper installation.Head Restraint Removal
and Reinstallation
The second row outboard
head restraints can be
removed if they interfere with
the proper installation of the
child restraint.
To remove the second row
head restraint:
1. Partially fold the seatback forward. See Rear Seats
055 for additional
information.
2. Press both buttons on the head restraint posts at the
same time, and pull up on
the head restraint.
3. Store the head restraint in a secure place.
4. When the child restraint is removed, reinstall the head
restraint before the
seating position is used.
{Warning
With head restraints that
are not installed and
adjusted properly, there is a
greater chance that
occupants will suffer a neck/
spinal injury in a crash. Do
not drive until the head
restraints for all occupants
are installed and adjusted
properly.
