247 CADILLAC XT4 2024 Owners Manual

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17180837) - 2024 - CRC - 2/28/23
Instruments and Controls 103
Caution (Continued)
run smoothly. This could lead to costly
repairs that might not be covered by the
vehicle warranty.
Caution
Modifications to the engine, transmission,
exhaust, intake, or fuel system, or the
use of replacement tires that do not
meet the original tire specifications, can
cause this light to come on. This could
lead to costly repairs not covered by the
vehicle warranty. This could also affect
the vehicle’s ability to pass an Emissions
Inspection/Maintenance test. See
Accessories and Modifications0261.
If the light is flashing : A malfunction has
been detected that could damage the
emission control system and increase vehicle
emissions. Diagnosis and service may be
required.
To help prevent damage, reduce vehicle
speed and avoid hard accelerations and
uphill grades. If towing a trailer, reduce the
amount of cargo being hauled as soon as
possible. If the light continues to flash, find a safe
place to park. Turn the vehicle off and wait
at least 10 seconds before restarting the
engine. If the light is still flashing, follow
the previous guidelines and see your dealer
for service as soon as possible.
If the light is on steady :
A malfunction has
been detected. Diagnosis and service may be
required.
Check the following:
.If fuel has been added to the vehicle
using the capless funnel adapter, make
sure that it has been removed. See
“Filling the Tank with a Portable Gas Can”
under Filling the Tank 0248. The
diagnostic system can detect if the
adapter has been left installed in the
vehicle, allowing fuel to evaporate into
the atmosphere. A few driving trips with
the adapter removed may turn off the
light.
.Poor fuel quality can cause inefficient
engine operation and poor driveability,
which may go away once the engine is
warmed up. If this occurs, change the fuel
brand. It may require at least one full
tank of the proper fuel to turn the light
off. See Recommended Fuel 0247.
If the light remains on, see your dealer.
Emissions Inspection and Maintenance
Programs
If the vehicle requires an Emissions
Inspection/Maintenance test, the test
equipment will likely connect to the
vehicle's Data Link Connector (DLC).
The DLC is under the instrument panel to
the left of the steering wheel. Connecting
devices that are not used to perform an
Emissions Inspection/Maintenance test or to
service the vehicle may affect vehicle
operation. See Add-On Electrical Equipment
0 259. See your dealer if assistance is
needed.
The vehicle may not pass inspection if:
.The light is on when the engine is
running.
.The light does not come on when the
ignition is on while the engine is off.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17180837) - 2024 - CRC - 2/28/23
162 Driving and Operating
Driving and Operating
Driving Information
Driver Behavior . . . . . . . . . . . . . . . . . . . . . . . . 163
Driving Environment . . . . . . . . . . . . . . . . . . . 163
Vehicle Design . . . . . . . . . . . . . . . . . . . . . . . . . 163
Driving for Better Fuel Economy . . . . . . . 163
Distracted Driving . . . . . . . . . . . . . . . . . . . . . 164
Defensive Driving . . . . . . . . . . . . . . . . . . . . . . 164
Impaired Driving . . . . . . . . . . . . . . . . . . . . . . . 165
Control of a Vehicle . . . . . . . . . . . . . . . . . . . 165
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 166
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . 166
Driving on Wet Roads . . . . . . . . . . . . . . . . . 167
Hill and Mountain Roads . . . . . . . . . . . . . . 167
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . 168
If the Vehicle Is Stuck . . . . . . . . . . . . . . . . . 169
Vehicle Load Limits . . . . . . . . . . . . . . . . . . . . 170
Starting and Operating
New Vehicle Break-In . . . . . . . . . . . . . . . . . . 173
Ignition Positions . . . . . . . . . . . . . . . . . . . . . . 174
Starting the Engine . . . . . . . . . . . . . . . . . . . . 175
Stop/Start System . . . . . . . . . . . . . . . . . . . . . 176
Winter Cover . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Engine Heater . . . . . . . . . . . . . . . . . . . . . . . . . 178
Retained Accessory Power (RAP) . . . . . . . 179
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . 179Shifting out of Park . . . . . . . . . . . . . . . . . . . 180
Parking over Things That Burn . . . . . . . . 180
Active Fuel Management . . . . . . . . . . . . . . 180
Extended Parking . . . . . . . . . . . . . . . . . . . . . . 180
Engine Exhaust
Engine Exhaust . . . . . . . . . . . . . . . . . . . . . . . . 181
Running the Vehicle While Parked . . . . . 181
Automatic Transmission
Automatic Transmission . . . . . . . . . . . . . . . . 181
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . 185
Drive Systems
All-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . . . 186
Brakes
Electric Brake Boost . . . . . . . . . . . . . . . . . . . . 187
Antilock Brake System (ABS) . . . . . . . . . . . 187
Electric Parking Brake . . . . . . . . . . . . . . . . . . 187
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Hill Start Assist (HSA) . . . . . . . . . . . . . . . . . 189
Ride Control Systems
Traction Control/Electronic Stability
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Driver Mode Control . . . . . . . . . . . . . . . . . . 190
Cruise Control
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . 192
Speed Limiter . . . . . . . . . . . . . . . . . . . . . . . . . 194
Adaptive Cruise Control (Advanced) . . . 196 Super Cruise . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Advanced Driver Assistance Systems
Advanced Driver Assistance Systems . . . 223
Assistance Systems for Parking or
Backing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Rear Vision Camera (RVC) . . . . . . . . . . . . . . 225
Surround Vision System . . . . . . . . . . . . . . . 225
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Automatic Parking Assist (APA) . . . . . . . . 228
Reverse Automatic Braking (RAB) . . . . . . 230
Rear Pedestrian Alert . . . . . . . . . . . . . . . . . . 231
Rear Cross Traffic Alert (RCTA) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Assistance Systems for Driving . . . . . . . . 233
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Automatic Emergency Braking (AEB) . . . 235
Front Pedestrian Braking (FPB) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Side Blind Zone Alert (SBZA) . . . . . . . . . . 240
Lane Change Alert (LCA) . . . . . . . . . . . . . . . 241
Blind Zone Steering Assist (BZSA) . . . . . . 243
Traffic Sign Assistant . . . . . . . . . . . . . . . . . . 243
Lane Keep Assist (LKA) . . . . . . . . . . . . . . . . 245
Fuel
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Recommended Fuel . . . . . . . . . . . . . . . . . . . . 247
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 247
Fuels in Foreign Countries . . . . . . . . . . . . . 248

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17180837) - 2024 - CRC - 2/28/23
Driving and Operating 247
The LKA system does not need service. Clean
the outside of the windshield behind the
rearview mirror.
LKA assistance and/or LDW alerts may occur
due to tar marks, shadows, cracks in the
road, temporary or construction lane
markings, or other road imperfections. This
is normal system operation; the vehicle does
not need service. Turn LKA off if these
conditions continue.
Fuel
Top Tier Fuel
GM recommends the use of TOP TIER
Detergent Gasoline to keep the engine clean,
reduce engine deposits, and maintain
optimal vehicle performance. Look for the
TOP TIER Logo or see www.toptiergas.com
for a list of TOP TIER Detergent Gasoline
marketers and applicable countries.
Recommended Fuel
Premium unleaded gasoline meeting ASTM
specification D4814 with a posted octane
rating (R+M)/2 of 91 or greater is
recommended. If unavailable, unleaded
gasoline with a posted octane rating of
87 may be used, but will result in reduced
performance and driveability. If heavy
knocking is heard when using gasoline rated
at 91 or greater, the engine needs service.Do not use any fuel labeled E85 or FlexFuel.
Do not use gasoline with ethanol levels
greater than 15% by volume.
Prohibited Fuels
Caution
Do not use fuels with any of the
following conditions; doing so may
damage the vehicle and void its
warranty:
.For vehicles that are not FlexFuel, fuel
labeled greater than 15% ethanol by
volume, such as mid-level ethanol
blends (16–50% ethanol), E85,
or FlexFuel.
.Fuel with any amount of methanol,
methylal, ferrocene, and aniline. These
fuels can corrode metal fuel system
parts or damage plastic and rubber
parts.
.Fuel containing metals such as
methylcyclopentadienyl manganese
tricarbonyl (MMT), which can damage
the emissions control system and
spark plugs.
(Continued)

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17180837) - 2024 - CRC - 2/28/23
248 Driving and Operating
Caution (Continued)
.Fuel with a posted octane rating of
less than the recommended fuel. Using
this fuel will lower fuel economy and
performance, and may decrease the
life of the emissions catalyst.
Fuels in Foreign Countries
The U.S., Canada, and Mexico post fuel
octane ratings in anti-knock index (AKI). For
fuel not to use in a foreign country, see
Prohibited Fuels0247.
Fuel Additives
TOP TIER Detergent Gasoline is highly
recommended for use with your vehicle.
If your country does not have TOP TIER
Detergent Gasoline, add ACDelco Fuel
System Treatment Plus−Gasoline to the
vehicle’s gasoline fuel tank at every oil
change or 15 000 km (9,000 mi), whichever
occurs first. TOP TIER Detergent Gasoline and
ACDelco Fuel System Treatment Plus
−Gasoline will help keep your vehicle’s
engine fuel deposit free and performing
optimally.
Filling the Tank
An arrow on the fuel gauge indicates which
side of the vehicle the fuel door is on. See
Fuel Gauge 097.
{Warning
Fuel vapors and fuel fires burn violently
and can cause injury or death.
Follow these guidelines to help avoid
injuries to you and others:
.Read and follow all the instructions on
the fuel pump island.
.Turn off the engine when refueling.
.Keep sparks, flames, and smoking
materials away from fuel.
.Do not leave the fuel pump
unattended.
.Avoid using electronic devices while
refueling.
.Do not re-enter the vehicle while
pumping fuel.
.Keep children away from the fuel
pump and never let children
pump fuel.
(Continued)
Warning (Continued)
.Before touching the fill nozzle, touch a
metallic object to discharge static
electricity from your body.
.Fuel can spray out if the fill nozzle is
inserted too quickly. This spray can
happen if the tank is nearly full, and is
more likely in hot weather. Insert the
fill nozzle slowly and wait for any hiss
noise to stop before beginning to
flow fuel.
To open the fuel door, push and release the
rearward center edge of the door.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17180837) - 2024 - CRC - 2/28/23
250 Driving and Operating
Trailer Towing
General Towing Information
Only use towing equipment that has been
designed for the vehicle. Contact your dealer
or trailering dealer for assistance with
preparing the vehicle to tow a trailer. Read
the entire section before towing a trailer.
To tow a disabled vehicle, seeTransporting
a Disabled Vehicle 0317. To tow the vehicle
behind another vehicle such as a motor
home, see Recreational Vehicle Towing
0 318.
Only use unleaded gasoline with an octane
rating of 89 or higher. Using gasoline with a
lower octane rating while towing may
damage the engine and may not be covered
by the vehicle warranty. See Recommended
Fuel 0247.
Driving Characteristics and
Towing Tips
{Warning
You can lose control when towing a
trailer if the correct equipment is not
used or the vehicle is not driven properly.
(Continued)
Warning (Continued)
For example, if the trailer is too heavy or
the trailer brakes are inadequate for the
load, the vehicle may not stop as
expected. You and others could be
seriously injured. The vehicle may also be
damaged, and the repairs would not be
covered by the vehicle warranty. Pull a
trailer only if all the steps in this section
have been followed. Ask your dealer for
advice and information about towing a
trailer with the vehicle.
Driving with a Trailer
Trailering is different than just driving the
vehicle by itself. Trailering means changes in
handling, acceleration, braking, durability,
and fuel economy. Successful, safe trailering
takes correct equipment, and it has to be
used properly.
The following information has many
time-tested, important trailering tips and
safety rules. Many of these are important
for your safety and that of your passengers.
Read this section carefully before pulling a
trailer. When towing a trailer:
.Become familiar with and follow all state
and local laws that apply to trailer
towing. These requirements vary from
state to state.
.State laws may require the use of
extended side view mirrors. If your
visibility is limited or restricted while
towing, install extended side view mirrors,
even if not required.
.Do not tow a trailer during the first
800 km (500 mi) of vehicle use to prevent
damage to the engine, axle, or other
parts.
.GM recommends performing an oil
change to the vehicle before heavy
towing.
.Do not drive over 80 km/h (50 mph) and
do not make starts at full throttle during
the first 800 km (500 mi) of trailer
towing.
.Vehicles can tow in D (Drive). If the
transmission downshifts too often, a
lower gear may be selected using Manual
Mode. See
Manual Mode 0185.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17180837) - 2024 - CRC - 2/28/23

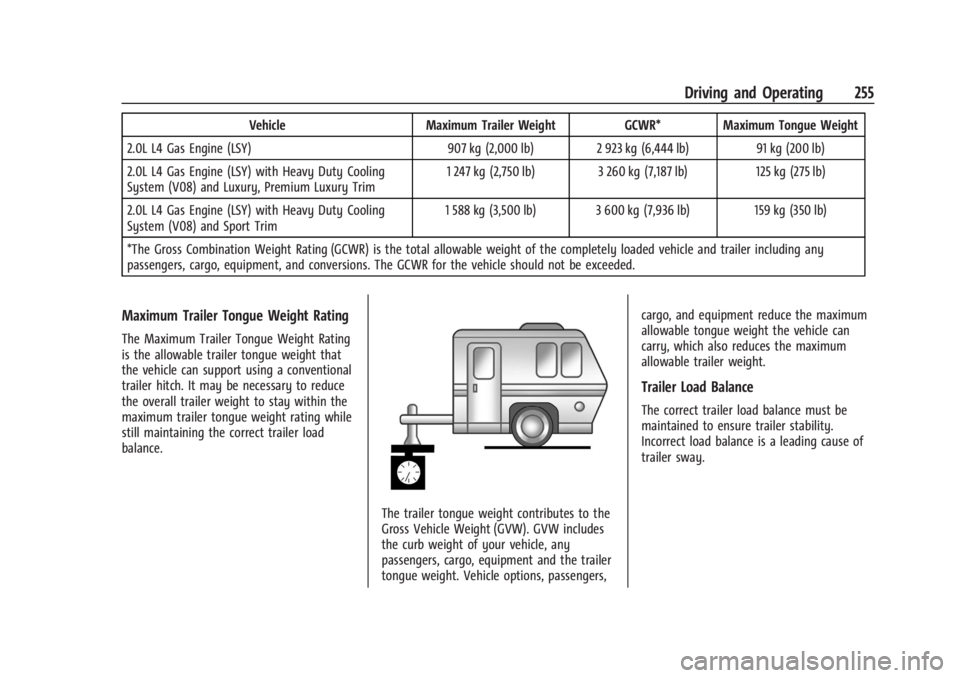

Driving and Operating 255
VehicleMaximum Trailer Weight GCWR* Maximum Tongue Weight
2.0L L4 Gas Engine (LSY) 907 kg (2,000 lb) 2 923 kg (6,444 lb) 91 kg (200 lb)
2.0L L4 Gas Engine (LSY) with Heavy Duty Cooling
System (V08) and Luxury, Premium Luxury Trim 1 247 kg (2,750 lb) 3 260 kg (7,187 lb) 125 kg (275 lb)
2.0L L4 Gas Engine (LSY) with Heavy Duty Cooling
System (V08) and Sport Trim 1 588 kg (3,500 lb) 3 600 kg (7,936 lb) 159 kg (350 lb)
*The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle and trailer including any
passengers, cargo, equipment, and conversions. The GCWR for the vehicle should not be exceeded.
Maximum Trailer Tongue Weight Rating
The Maximum Trailer Tongue Weight Rating
is the allowable trailer tongue weight that
the vehicle can support using a conventional
trailer hitch. It may be necessary to reduce
the overall trailer weight to stay within the
maximum trailer tongue weight rating while
still maintaining the correct trailer load
balance.
The trailer tongue weight contributes to the
Gross Vehicle Weight (GVW). GVW includes
the curb weight of your vehicle, any
passengers, cargo, equipment and the trailer
tongue weight. Vehicle options, passengers, cargo, and equipment reduce the maximum
allowable tongue weight the vehicle can
carry, which also reduces the maximum
allowable trailer weight.
Trailer Load Balance
The correct trailer load balance must be
maintained to ensure trailer stability.
Incorrect load balance is a leading cause of
trailer sway.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17180837) - 2024 - CRC - 2/28/23
330 Service and Maintenance
Because of the way people use vehicles,
maintenance needs vary. There may need to
be more frequent checks and services. The
Additional Required Services - Normal are for
vehicles that:
.Carry passengers and cargo within
recommended limits on the Tire and
Loading Information label. SeeVehicle
Load Limits 0170.
.Are driven on reasonable road surfaces
within legal driving limits.
.Use the recommended fuel. See
Recommended Fuel 0247.
Refer to the information in the Maintenance
Schedule Additional Required Services -
Normal Service.
The Additional Required Services - Severe are
for vehicles that are:
.Mainly driven in heavy city traffic in hot
weather.
.Mainly driven in hilly or mountainous
terrain.
.Frequently towing a trailer.
.Used for high speed or competitive
driving.
.Used for taxi, police, or delivery service. Refer to the information in the Maintenance
Schedule Additional Required Services -
Severe Service.
{Warning
Performing maintenance work can be
dangerous and can cause serious injury.
Perform maintenance work only if the
required information, proper tools, and
equipment are available. If they are not,
see your dealer to have a trained
technician do the work. See
Doing Your
Own Service Work 0261.
Maintenance Schedule
Tire Rotation and Required Services
Every 12 000 km (7,500 mi)
Tires are rotated to achieve a more uniform
wear for all tires. The first rotation is the
most important.
Anytime unusual wear is noticed, rotate the
tires as soon as possible, check for proper
tire inflation pressure, and check for
damaged tires or wheels. If the unusual
wear continues after the rotation, check the wheel alignment. See
When It Is Time for
New Tires 0298 and
Wheel Replacement 0302.
.Perform Multi-Point Vehicle Inspection.
See Multi-Point Vehicle Inspection (MPVI)
0 332.
.Lubricate body components. See Exterior
Care 0321.
Additional Required Services —Normal
Service
Every 12 000 km (7,500 mi)
.Check engine oil level and oil
life percentage. If needed, change engine
oil and filter, and reset oil life system. Or
when the CHANGE ENGINE OIL SOON
message displays, have the engine oil and
filter changed within the next 1 000 km
(600 mi). If driven under the best
conditions, the engine oil life system may
not indicate the need for vehicle service
for up to a year. The engine oil and filter
must be changed at least once a year and
the oil life system must be reset. Your
trained dealer technician can perform this
work. If the engine oil life system is reset
accidentally, service the vehicle within
5 000 km (3,000 mi) since the last service.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17180837) - 2024 - CRC - 2/28/23
364 Index
Engine (cont'd)Power Messages . . . . . . . . . . . . . . . . . . . . . . . . 118
Running While Parked . . . . . . . . . . . . . . . . . . 181
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Equipment, Towing . . . . . . . . . . . . . . . . . . . . . . 256
Event Data Recorders . . . . . . . . . . . . . . . . . . . . 350
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Extended Parking . . . . . . . . . . . . . . . . . . . . . . . . 180
Extender, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . . 51
Exterior Lamp Controls . . . . . . . . . . . . . . . . . . . . . . . . . 122
Lamps Off Reminder . . . . . . . . . . . . . . . . . . . 124
Lighting Battery Saver . . . . . . . . . . . . . . . . . 129
F
Filter
Engine Air Cleaner . . . . . . . . . . . . . . . . . . . . . 267
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124
Flashers, Hazard Warning . . . . . . . . . . . . . . . . . 127
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
Fluid Automatic Transmission . . . . . . . . . . . . . . . 266
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Frequency Statement
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Front Heated and Ventilated Seats . . . . . . . . . . . . 42
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Economy, Driving for Better . . . . . . . . . . . 163
Filling a Portable Fuel Container . . . . . . . 249
Filling the Tank . . . . . . . . . . . . . . . . . . . . . . . . 248
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 248
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Low Fuel Warning Light . . . . . . . . . . . . . . . 109
Management, Active . . . . . . . . . . . . . . . . . . . 180
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 247
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . 247
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Fuses Engine Compartment Fuse Block . . . . . . . 281
Fuses and Circuit Breakers . . . . . . . . . . . . . 280
Instrument Panel Fuse Block . . . . . . . . . . . 284
G
Garage Door Opener . . . . . . . . . . . . . . . . . . . . . . 119Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Gauges
Engine Coolant Temperature . . . . . . . . . . . . 99 Gauges (cont'd)
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 98
Engine Oil Temperature . . . . . . . . . . . . . . . . . 99
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Warning Lights and Indicators . . . . . . . . . . 94
Gear Shifting Light . . . . . . . . . . . . . . . . . . . . . . . 105
General Information Service and Maintenance . . . . . . . . . . . . . . 329
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Global Positioning System (GPS) . . . . . . . . . . 141
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
Guidance Problems with the Route . . . . . . . . . . . . . . 142
H
Hazard Warning Flashers . . . . . . . . . . . . . . . . . 127
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Head-Up Display (HUD) . . . . . . . . . . . . . . . . . . . 115
HeadlampsAdaptive Forward Lighting (AFL) . . . . . . . 125
Aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17180837) - 2024 - CRC - 2/28/23
368 Index
Pregnancy, Using Seat Belts . . . . . . . . . . . . . . . 51
PrivacyVehicle Data Recording . . . . . . . . . . . . . . . . 349
Problems with Route Guidance . . . . . . . . . . .142
Program Courtesy Transportation . . . . . . . . . . . . . . . 345
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . . . 247
Proposition 65 Warning
California . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Proposition 65 Warning, California . . . . . . . . 315
Publication Ordering Information . . . . . . . . 348
R
Radiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Radio AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Frequency Statement . . . . . . . . . . . . . . . . . . 348
Reception . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Satellite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Reading Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . .128
Rear Camera Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Heated Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Window Washer/Wiper . . . . . . . . . . . . . . . . . 90
Rearview Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 28 Automatic Dimming . . . . . . . . . . . . . . . . . . . . 29 Reclining Seatbacks . . . . . . . . . . . . . . . . . . . . . . . 38
Recognition
Voice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Recommended Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Recommended Fluids and Lubricants . . . . . 334
Records Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
Recreational Vehicle Towing . . . . . . . . . . . . . .318
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
Remote Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Key Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Vehicle Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Replacement Parts
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
Replacing Airbag System . . . . . . . . . . . . . . . . . . . . . . . . . . 62
LATCH System Parts After a Crash . . . . . . 76
Seat Belt System Parts after a Crash . . . . 52
Reporting Safety Defects Canadian Government . . . . . . . . . . . . . . . . . 349
General Motors . . . . . . . . . . . . . . . . . . . . . . . . 349
U.S. Government . . . . . . . . . . . . . . . . . . . . . . . 348
Restraints Where to Put . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Retained Accessory Power (RAP) . . . . . . . . . 179
Reverse Tilt Mirrors . . . . . . . . . . . . . . . . . . . . . . . 28
Roads
Driving, Wet . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Roadside Assistance Program . . . . . . . . . . . . 343
Roof Rack System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Rotation, Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
Routing, Engine Drive Belt . . . . . . . . . . . . . . . 339
Running the Vehicle While Parked . . . . . . . . 181
S
Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Safety Defects Reporting Canadian Government . . . . . . . . . . . . . . . . . 349
General Motors . . . . . . . . . . . . . . . . . . . . . . . . 349
U.S. Government . . . . . . . . . . . . . . . . . . . . . . . 348
Safety System Check . . . . . . . . . . . . . . . . . . . . . .52
Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Scheduling Appointments . . . . . . . . . . . . . . . . 345
Sealant Kit, Tire . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Buckle To Drive . . . . . . . . . . . . . . . . . . . . . . . . . 46
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
How to Wear Seat Belts Properly . . . . . . . 47

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17180837) - 2024 - CRC - 2/28/23
370 Index
SystemAirbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Engine Air Filter Life . . . . . . . . . . . . . . . . . . . 267
Global Positioning . . . . . . . . . . . . . . . . . . . . . . 141
Infotainment . . . . . . . . . . . . . . . . . . . . . . . . . . . 351
Roof Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Teen Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Text Telephone (TTY) Users . . . . . . . . . . . . . . 342
Theft-Deterrent Systems . . . . . . . . . . . . . . . . . . 26
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286 All-Season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . 299
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
Compact Spare . . . . . . . . . . . . . . . . . . . . . . . . 315
Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 300
If a Tire Goes Flat . . . . . . . . . . . . . . . . . . . . . 303
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . 292, 293
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . 108
Pressure Monitor Operation . . . . . . . . . . . 295
Pressure Monitor System . . . . . . . . . . . . . . 294 Tires (cont'd)
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
Sealant and Compressor Kit . . . . . . . . . . . . 304
Sealant and Compressor Kit,
Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
Sidewall Labeling . . . . . . . . . . . . . . . . . . . . . . 288
Terminology and Definitions . . . . . . . . . . . 290
Uniform Tire Quality Grading . . . . . . . . . . 301
Wheel Alignment and Tire Balance . . . . 302
Wheel Replacement . . . . . . . . . . . . . . . . . . . . 302
When It Is Time for New Tires . . . . . . . . . 298
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Towing Driving Characteristics . . . . . . . . . . . . . . . . . 250
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
General Information . . . . . . . . . . . . . . . . . . . 250
Recreational Vehicle . . . . . . . . . . . . . . . . . . . 318
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Trailer Sway Control (TSC) . . . . . . . . . . . . . 258
Traction
Control System (TCS)/ElectronicStability Control Light . . . . . . . . . . . . . . . . 107
Control/Electronic Stability Control . . . . 189
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Trademarks and License Agreements . . . . . . 155
Traffic
Sign Assistant . . . . . . . . . . . . . . . . . . . . . . . . . 243 Trailer
Sway Control (TSC) . . . . . . . . . . . . . . . . . . . . 258
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Fluid, Automatic . . . . . . . . . . . . . . . . . . . . . . . 266
Transportation Program, Courtesy . . . . . . . 345
Transporting
a Disabled Vehicle . . . . . . . . . . . . . . . . . . . . . . 317
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
TTY Users Customer Assistance . . . . . . . . . . . . . . . . . . . 342
Turn and Lane-Change Signals . . . . . . . . . . . . 127
U
Umbrella Storage . . . . . . . . . . . . . . . . . . . . . . . . . 84
Uniform Tire Quality Grading . . . . . . . . . . . . 301
Universal Remote System . . . . . . . . . . . . . . . . . 119 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Updates
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138
Using Infotainment System . . . . . . . . . . . . . . . . . . 133
Navigation System . . . . . . . . . . . . . . . . . . . . . 139
This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
