326 Driving and Operating
5. Release the brake pedal.
Leaving After Parking on
a Hill
1. Apply and hold the brakepedal:
.Start the engine.
.Shift into the
desired gear.
.Release the parking
brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the chocks.
4. Stop and have someone pick up and store the
chocks.
Maintenance When Trailer
Towing
The vehicle needs service
more often when used to tow
trailers. See Maintenance
Schedule 0429. It is especially
important to check the engine
oil, axle lubricant, belts, cooling
system, and brake system
before and during each trip. Check periodically that all nuts
and bolts on the trailer hitch
are tight.
Engine Cooling When
Trailer Towing
The cooling system may
temporarily overheat during
severe operating conditions.
See Engine Overheating
0
356.
Trailer Towing
Caution
Towing a trailer improperly
can damage the vehicle and
result in costly repairs not
covered by the vehicle
warranty. To tow a trailer
correctly, follow the
directions in this section and
see your dealer for
important information about
towing a trailer with the
vehicle.
Trailer Weight
{Warning
Never exceed the towing
capacity for your vehicle.
Safe trailering requires
monitoring the weight, speed,
altitude, road grades, outside
temperature, dimensions of
the front of the trailer, and
how frequently the vehicle is
used to tow a trailer.
Trailer Weight Ratings
When towing a trailer, the
combined weight of the
vehicle, vehicle contents,
trailer, and trailer contents
must be below all of the
maximum weight ratings for
the vehicle including:
.Gross Combined Weight
Rating (GCWR)
.Gross Vehicle Weight
Rating (GVWR)

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
Driving and Operating 327
.Maximum Trailer Weight
Rating
.Maximum Trailer Tongue
Weight Rating
.Gross Axle Weight
Rating-Rear (GAWR-RR)
See “Weight-Distributing Hitch
Adjustment” under Towing
Equipment 0331 to determine
if equalizer bars are required
to obtain the maximum trailer
weight rating.
See “Trailer Brakes” under
Towing Equipment 0331 to
determine if brakes are
required based on the trailer
weight.
The only way to be sure the
weight is not exceeding any of
these ratings is to weigh the
tow vehicle and trailer
combination, fully loaded for
the trip, getting individual
weights for each of these
items.
{Warning
You and others could be
seriously injured or killed if
the trailer is too heavy or
the trailer brakes are
inadequate for the load. The
vehicle may be damaged,
and the repairs would not be
covered by the vehicle
warranty.
Only tow a trailer if all the
steps in this section have
been followed. Ask your
dealer for advice and
information about towing a
trailer.
Gross Combined Weight
Rating (GCWR)
GCWR is the total allowable
weight of the completely
loaded vehicle and trailer
including any fuel, passengers,
cargo, equipment, and
accessories. Do not exceed
the GCWR for your vehicle.
The GCWR for the vehicle is
on the tow rating chart later in
this section.
To check that the weight of
the vehicle and trailer are
within the GCWR for the
vehicle:
1. Start with the curb weight from the Trailering
Information Label.
2. Add the weight of the trailer loaded with cargo
and ready for the trip.
3. Add the weight of all passengers.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
332 Driving and Operating
1. Front of Vehicle
2. Body to Ground Distance
When using a
weight-distributing hitch,
measure the front fender
height above the front axle
distance (2) before and after
connecting the trailer. Adjust
the spring bars until the front
fender height distance (2) is
approximately halfway
between the first and second
measurements.
Tires
.Do not tow a trailer while
using a compact spare tire
on the vehicle.
.Tires must be properly
inflated to support loads
while towing a trailer. See
Tires0376 for instructions
on proper tire inflation.
Safety Chains
Always attach chains between
the vehicle and the trailer, and
attach the chains to the holes
on the trailer hitch platform.
Instructions about safety
chains may be provided by the
hitch manufacturer or by the
trailer manufacturer.
Cross the safety chains under
the tongue of the trailer to
help prevent the tongue from
contacting the road if it
becomes separated from the
hitch. Always leave just
enough slack so the
combination can turn. Never
allow safety chains to drag on
the ground.
Trailer Brakes
Loaded trailers over 450 kg
(1,000 lb) must be equipped
with brake systems and with
brakes for each axle. Trailer
braking equipment conforming
to Canadian Standards
Association (CSA) requirement
CAN3-D313, or its equivalent,
is recommended.
State or local regulations may
require trailers to have their
own braking system if the
loaded weight of the trailer
exceeds certain minimums
that can vary from state to
state.
Read and follow the
instructions for the trailer
brakes so they are installed,
adjusted, and maintained
properly.
{Warning
Never attempt to tamper
with the hydraulic brake
system for your trailer
(Continued)

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
Driving and Operating 333
Warning (Continued)
brakes. Do not connect a
trailer's hydraulic brake
system directly to your
vehicle's hydraulic brake
system. If you do, both the
vehicle antilock brakes and
the trailer brakes may not
function, which could result
in a crash.
Trailer Wiring
The trailer wiring harness (if
equipped), with a seven-pin
connector is located at the
rear of the vehicle, and it is
tied to the vehicle's frame.
If the vehicle is not equipped
with a seven-pin trailer
connector, the body harness
has provisions to connect a
trailer harness and a seven-pin
trailer connector which is
available through your dealer.
Use only a round, seven-wire
connector with flat blade
terminals meeting SAE J2863
specifications for proper
electrical connectivity.
The seven-wire harness
contains the following trailer
circuits:Stop/Turn
Signal Left
Yellow/Blue
Stop/Turn
Signal Right Green/Brown
Tail/Parking
Lamps Gray/Brown
or Brown
Reverse
Lamps White/Green
or Gray
Battery Feed Red/Green or
Orange
Ground Black or
White
Electric
Trailer Brake* Blue
* Circuit powered by electric
trailer brake control wiring
provisions.
Electric Trailer Brake
Control Wiring Provisions
Wiring provisions for an
aftermarket electric trailer
brake controller are included
with the vehicle as part of the

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
334 Driving and Operating
trailer wiring package. The
harness contains the following
circuits:Electric
Trailer Brakes Blue
Battery Feed Red/Green or
Red/Blue
Brake Apply
Signal White/Blue
Ground Black or
White
Refer to the aftermarket
electric trailer brake controller
owner's manual to determine
wire color coding of the
electric trailer brake controller.
The wire colors on the brake
controller may be different
from the vehicle. The electric
trailer brake controller should
be installed by your dealer or a
qualified service center.
If equipped, there are four
blunt cut wires inside the front
driver side instrument panel.
It will be necessary to have a technician connect the 12-volt
power to the engine
compartment fuse block.
Trailer Lamps
Always check that all trailer
lamps are working at the
beginning of each trip, and
periodically on longer trips.
Turn Signals When
Towing a Trailer
When properly connected, the
trailer turn signals will
illuminate to indicate the
vehicle is turning, changing
lanes, or stopping. When
towing a trailer, the arrows on
the instrument cluster will
illuminate even if the trailer is
not properly connected or the
bulbs are burned out.
Trailer Sway
Control (TSC)
Vehicles with StabiliTrak/
Electronic Stability Control
(ESC) have a Trailer Sway
Control (TSC) feature. Trailersway is unintended
side-to-side motion of a trailer
while towing. If the vehicle is
towing a trailer and the TSC
detects that sway is
increasing, the vehicle brakes
are selectively applied at each
wheel, to help reduce
excessive trailer sway.
If equipped with the
Integrated Trailer Brake
Control (ITBC) system, and the
trailer has an electric brake
system, StabiliTrak/ESC may
also apply the trailer brakes.
If TSC is enabled, the Traction
Control System (TCS)/
StabiliTrak/ESC warning light
will flash on the instrument
cluster. Reduce vehicle speed
by gradually removing your
foot from the accelerator.
If trailer sway continues,

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
Driving and Operating 335
StabiliTrak/ESC can reduce
engine torque to help slow the
vehicle. TSC will not function if
StabiliTrak/ESC is turned off.
See Traction Control/
Electronic Stability Control
0271.
{Warning
Trailer sway can result in a
crash and in serious injury or
death, even if the vehicle is
equipped with TSC.
If the trailer begins to sway,
reduce vehicle speed by
gradually removing your foot
from the accelerator. Then
pull over to check the trailer
and vehicle to help correct
possible causes, including an
improperly or overloaded
trailer, unrestrained cargo,
improper trailer hitch
configuration, or improperly
inflated or incorrect vehicle
(Continued)
Warning (Continued)
or trailer tires. See Towing
Equipment0331 for trailer
ratings and hitch setup
recommendations.
Trailer Tires
Special Trailer (ST) tires differ
from vehicle tires. Trailer tires
are designed with stiff
sidewalls to help prevent sway
and to support heavy loads.
These features can make it
difficult to determine if the
trailer tire pressures are low
only based on a visual
inspection.
Always check all trailer tire
pressures before each trip
when the tires are cool. Low
trailer tire pressure is a
leading cause of trailer tire
blow-outs.
Trailer tires deteriorate over
time. The trailer tire sidewall
will show the week and year
the tire was manufactured.
Many trailer tire manufacturers recommend
replacing tires more than six
years old.
Overloading is another leading
cause of trailer tire blow-outs.
Never load your trailer with
more weight than the tires are
designed to support. The load
rating is located on the trailer
tire sidewall.
Always know the maximum
speed rating for the trailer
tires before driving. This may
be significantly lower than the
vehicle tire speed rating. The
speed rating may be on the
trailer tire sidewall. If the
speed rating is not shown, the
default trailer tire speed rating
is 105 km/h (65 mph).

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
336 Driving and Operating
Conversions and
Add-Ons
Add-On Electrical
Equipment
{Warning
The Data Link Connector
(DLC) is used for vehicle
service and Emission
Inspection/Maintenance
testing. See Malfunction
Indicator Lamp (Check
Engine Light)0129. A device
connected to the DLC —
such as an aftermarket fleet
or driver-behavior tracking
device —may interfere with
vehicle systems. This could
affect vehicle operation and
cause a crash. Such devices
may also access information
stored in the vehicle’s
systems.
Caution
Some electrical equipment
can damage the vehicle or
cause components to not
work and would not be
covered by the vehicle
warranty. Always check with
your dealer before adding
electrical equipment.
Add-on equipment can drain
the vehicle's 12-volt battery,
even if the vehicle is not
operating.
The vehicle has an airbag
system. Before attempting to
add anything electrical to the
vehicle, see Servicing the
Airbag-Equipped Vehicle 079
and Adding Equipment to the
Airbag-Equipped Vehicle 080.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
Vehicle Care 339
traction control, and stability
control. These accessories or
modifications could even
cause malfunction or damage
not covered by the vehicle
warranty.
Damage to suspension
components caused by
modifying vehicle height
outside of factory settings will
not be covered by the vehicle
warranty.
Damage to vehicle
components resulting from
modifications or the
installation or use of non-GM
certified parts, including
control module or software
modifications, is not covered
under the terms of the vehicle
warranty and may affect
remaining warranty coverage
for affected parts.
GM Accessories are designed
to complement and function
with other systems on the
vehicle. See your dealer to
accessorize the vehicle usinggenuine GM Accessories
installed by a dealer
technician.
Also, see Adding Equipment to
the Airbag-Equipped Vehicle
0
80.
Vehicle Checks
Doing Your Own
Service Work
{Warning
It can be dangerous to work
on your vehicle if you do not
have the proper knowledge,
service manual, tools,
or parts. Always follow
owner’s manual procedures
and consult the service
manual for your vehicle
before doing any
service work.
If doing some of your own
service work, use the proper
service manual. It tells you
much more about how to service the vehicle than this
manual can. To order the
proper service manual, see
Publication Ordering
Information
0452.
This vehicle has an airbag
system. Before attempting to
do your own service work, see
Servicing the Airbag-Equipped
Vehicle 079.
If equipped with remote
vehicle start, open the hood
before performing any service
work to prevent remote
starting the vehicle
accidentally. See Remote
Vehicle Start 019.
Keep a record with all parts
receipts and list the mileage
and the date of any service
work performed. See
Maintenance Records 0436.
Caution
Even small amounts of
contamination can cause
damage to vehicle systems.
(Continued)

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
340 Vehicle Care
Caution (Continued)
Do not allow contaminants
to contact the fluids,
reservoir caps, or dipsticks.
Doing Your Own
Service Work
{Warning
It can be dangerous to work
on your vehicle if you do not
have the proper knowledge,
service manual, tools,
or parts. Always follow
owner’s manual procedures
and consult the service
manual for your vehicle
before doing any
service work.
If doing some of your own
service work, use the proper
service manual. It tells you
much more about how to
service the vehicle than this
manual can. This vehicle has an airbag
system. Before attempting to
do your own service work, see
Servicing the Airbag-Equipped
Vehicle
079.
If equipped with remote
vehicle start, open the hood
before performing any service
work to prevent remote
starting the vehicle
accidentally. See Remote
Vehicle Start 019.
Keep a record with all parts
receipts and list the mileage
and the date of any service
work performed.
Caution
Even small amounts of
contamination can cause
damage to vehicle systems.
Do not allow contaminants
to contact the fluids,
reservoir caps, or dipsticks.
Hood
{Warning
For vehicles with auto
engine stop/start, turn the
vehicle off before opening
the hood. If the vehicle is on,
the engine will start when
the hood is opened. You or
others could be injured.
{Warning
Components under the hood
can get hot from running the
engine. To help avoid the
risk of burning unprotected
skin, never touch these
components until they have
cooled, and always use a
glove or towel to avoid
direct skin contact.
Clear any snow from the hood
before opening.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22

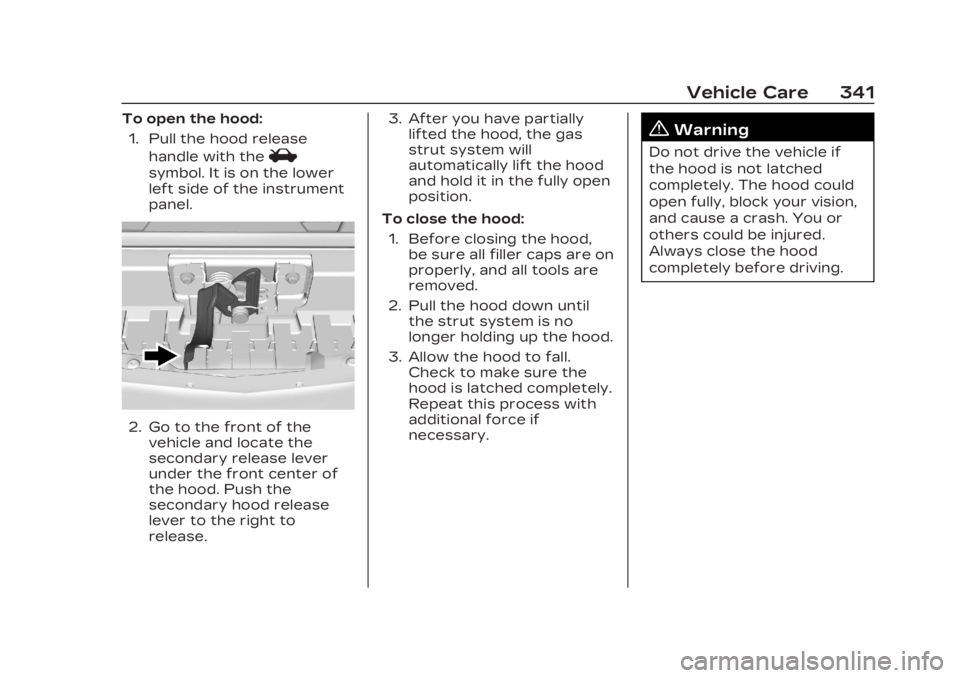

Vehicle Care 341
To open the hood:1. Pull the hood release handle with the
i
symbol. It is on the lower
left side of the instrument
panel.
2. Go to the front of thevehicle and locate the
secondary release lever
under the front center of
the hood. Push the
secondary hood release
lever to the right to
release. 3. After you have partially
lifted the hood, the gas
strut system will
automatically lift the hood
and hold it in the fully open
position.
To close the hood: 1. Before closing the hood, be sure all filler caps are on
properly, and all tools are
removed.
2. Pull the hood down until the strut system is no
longer holding up the hood.
3. Allow the hood to fall. Check to make sure the
hood is latched completely.
Repeat this process with
additional force if
necessary.
{Warning
Do not drive the vehicle if
the hood is not latched
completely. The hood could
open fully, block your vision,
and cause a crash. You or
others could be injured.
Always close the hood
completely before driving.
