90 SEATS AND RESTRAINTS
the top tether be anchored, or if the
instructions that come with the child
restraint say that the top tether must
be anchored.
In Canada, the law requires that
forward-facing child restraints have a
top tether, and that the tether be
attached.
When using the lap-shoulder belt to
secure the child restraint in this
position, follow the instructions that
came with the child restraint and the
following instructions:1. Move the seat as far back as it will go before securing the
forward-facing child restraint. Move
the seat upward or the seatback to
an upright position, if needed, to
get a tight installation of the child
restraint. The push button used to
release the latch plate must be
visible and not obscured by the
child restraint. There must not be
direct contact of the child restraint
to the push button.
When the passenger sensing
system has turned off the front
outboard passenger frontal airbag,
the OFF indicator on the passenger airbag status indicator should light
and stay lit when you start the
vehicle. See
Passenger Airbag Status
Indicator 0114.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder portions of the
vehicle seat belt through or around
the child restraint. The child
restraint instructions will show
you how.
Tilt the latch plate to adjust the
belt if needed.
4. Push the latch plate into the buckleuntil it clicks.
Position the release button on the
buckle, away from the child
restraint, so that the seat belt
could be quickly unbuckled if
necessary.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
SEATS AND RESTRAINTS 91
5. Pull the shoulder belt all the wayout of the retractor to set the lock.
When the retractor lock is set, the
belt can be tightened but not
pulled out of the retractor.6. To tighten the belt, push down onthe child restraint, pull the
shoulder portion of the belt to
tighten the lap portion of the belt,
and feed the shoulder belt back
into the retractor. When installing
a forward-facing child restraint, it
may be helpful to use your knee to
push down on the child restraint as
you tighten the belt.
Try to pull the belt out of the
retractor to make sure the retractor
is locked. If the retractor is not
locked, repeat Steps 5 and 6. 7. Before placing a child in the child
restraint, make sure it is securely
held in place. To check, grasp the
child restraint at the seat belt path
and attempt to move it side to side
and back and forth. When the child
restraint is properly installed, there
should be no more than
2.5 cm (1 in) of movement.
If the airbag is off, the OFF indicator
in the passenger airbag status
indicator will come on and stay on
when the vehicle is started.
If a child restraint has been installed
and the ON indicator is lit, see “If the
On Indicator Is Lit for a Child
Restraint ”under Passenger Sensing
System 067.
To remove the child restraint,
unbuckle the vehicle seat belt and let
it return to the stowed position.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
92 STORAGE
Storage
Storage Compartments
Storage Compartments . . . . . . . . . . . . 92
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . 92
Rear Storage . . . . . . . . . . . . . . . . . . . . . . . 93
Center Console Storage . . . . . . . . . . . . 93
Additional Storage Features
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . 94
Cargo Tie-Downs . . . . . . . . . . . . . . . . . . . 97
Cargo Management System . . . . . . . 97
Convenience Net . . . . . . . . . . . . . . . . . . . 98
Roof Rack System
Roof Rack System . . . . . . . . . . . . . . . . . 98
Storage Compartments{
Warning
Do not store heavy or sharp objects
in storage compartments. In a
crash, these objects may cause the
cover to open and could result in
injury.
Glove Box
Lift the handle to open the glove box.
Close until it latches. Use the vehicle
key to lock or unlock.
Cupholders
Front Cupholders
Cupholders in the center console are
under a cover. Do not place items on
the cover.
To open, slide the cover forward.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
STORAGE 93
To close, press the button and the
cover will close automatically.
Rear Cupholders
If equipped with cupholders in the
back center console, pull on the
handle to access.
If equipped, the rear seat armrest may
have cupholders. Pull the armrest
down to access the cupholders.
Rear Storage
There is storage in the floor of the
rear cargo area. Lift the handle to
access.
Center Console Storage
The SD card is used for navigation. Do
not remove the card from the holder.
See the infotainment section.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21

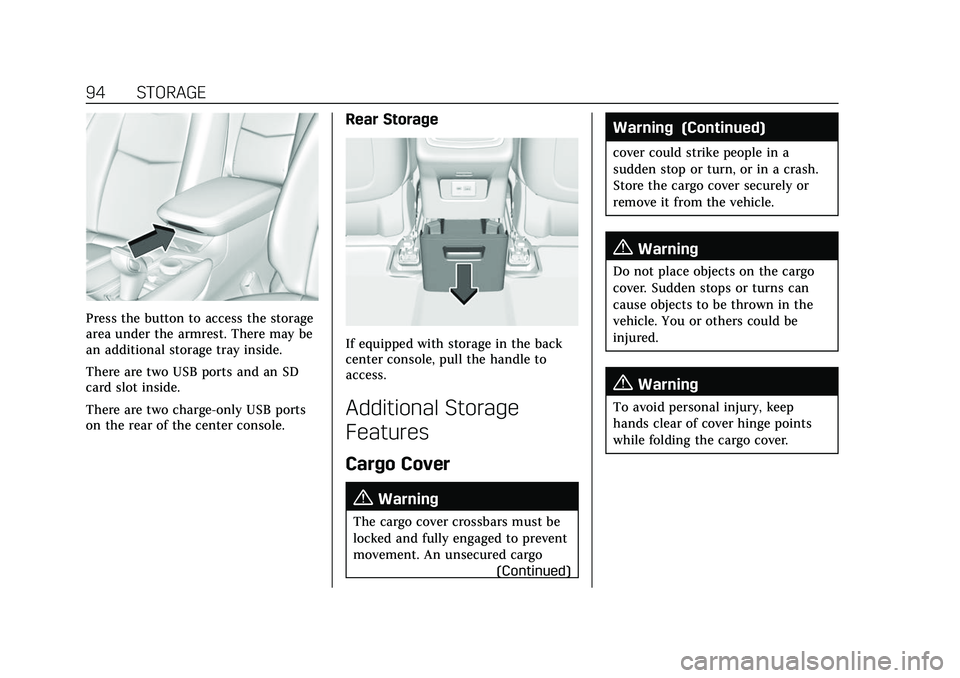

94 STORAGE
Press the button to access the storage
area under the armrest. There may be
an additional storage tray inside.
There are two USB ports and an SD
card slot inside.
There are two charge-only USB ports
on the rear of the center console.
Rear Storage
If equipped with storage in the back
center console, pull the handle to
access.
Additional Storage
Features
Cargo Cover
{Warning
The cargo cover crossbars must be
locked and fully engaged to prevent
movement. An unsecured cargo(Continued)
Warning (Continued)
cover could strike people in a
sudden stop or turn, or in a crash.
Store the cargo cover securely or
remove it from the vehicle.
{Warning
Do not place objects on the cargo
cover. Sudden stops or turns can
cause objects to be thrown in the
vehicle. You or others could be
injured.
{Warning
To avoid personal injury, keep
hands clear of cover hinge points
while folding the cargo cover.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
STORAGE 95
If equipped, the cargo cover is used
to cover items in the cargo area. It is
foldable and stores in the cargo
storage bin under the load floor when
not in use.Installing the Cargo Cover
1. Slide the seat belt into the clip on
the side of the vehicle Do this for
both sides.
2. Remove the cargo cover from the storage bag.
3. Unroll the cargo cover.
4. Hold the cargo cover with the lock buttons facing up and the longest
crossbar facing the front of the
vehicle.
5. Open both crossbars until thecenter hinge locks. Keep fingers
clear of the crossbar hinges to
avoid being pinched.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
96 STORAGE
6. Place one of the forward cargocover ends into the slot and then
compress to fit the other end into
the corresponding slot in the
opposite panel.
7. Pull the cargo cover to the rear of the vehicle.
8. Insert the two rearward ends intothe remaining slots on each side.
9. Attach the cargo cover hooks to thecargo tie-downs.
Removing the Cargo Cover 1. Disconnect the cargo cover hooks from the cargo tie-downs.2. Slide the rear crossbar releasebutton and allow the crossbar to
fold while lifting. Be sure to avoid
finger pinching points as the cover
folds.
3. Repeat for the front crossbar release.
4. Remove the cargo cover from the vehicle.
5. Fold the cargo cover completely and it roll tight.
6. Place the cargo cover in the storage bag.
7. Lift the load floor.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
STORAGE 97
8. Place the cargo cover in thestorage bin.
9. After storing the cargo cover, make sure to properly secure the load
floor.
10. Remove the seat belt from the clips on both sides.
Cargo Tie-Downs
The vehicle has four cargo tie-downs
in the rear compartment.
Cargo Management
System
Caution
To avoid vehicle damage, do not
open the load floor more than
90 degrees.
Lift the load floor to access the cargo
management system storage area.
Cargo Management System Tray
Removal
To access the spare tire, the cargo
management system tray must be
removed.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
98 STORAGE
Remove the cargo management
system tray (2) by pulling on the
handles (1).
Convenience Net
This vehicle may have a convenience
net in the rear of the vehicle. Attach it
to the cargo tie-downs for storing
small loads.
Do not use the net to store heavy
loads.
Roof Rack System
The vehicle may be equipped with
side-rails for a roof rack system. Cargo
must be secured with properlyinstalled cross rails and other
accessories designed to carry cargo.
These can be purchased from your
dealer.
{Warning
Before driving and occasionally
during a trip, check that cargo is
securely fastened, rests evenly
between the cross rails and does
not block the vehicle's lamps or
windows. Never load cargo directly
on the roof of the vehicle or allow
cargo to hang over the rear or sides
of the vehicle. Never load cargo
without first properly installing
cross rails and other accessories
designed to carry cargo. Personal
injury, death or damage to the
vehicle or other property may occur.
If driving for a long distance, on rough
roads, or at high speeds, occasionally
stop the vehicle to make sure the
cargo remains in its place.
Cargo Weight Limits
Do not exceed the maximum cargo
weight for the roof rack system,
including the weight of the cross rails
and any other accessories used to
carry the cargo such as bike racks or
roof boxes. The maximum cargo
weight that can be loaded onto the
roof rack system is 100 kg (220 lb) or
the weight designated in the
instructions that came with the cross
rails or other roof rack accessories,
whichever is less.
{Warning
Never load the roof rack with more
weight than specified in this
section. Loading cargo on the roof
rack will make the vehicle's center
of gravity higher. To avoid losing
control of the vehicle, avoid
overloading, high speeds, sudden
starts, sharp turns, sudden braking,
or abrupt maneuvers when carrying
cargo on the roof rack.
The weight of any cargo carried on the
roof rack system must be included in
calculating the loaded weight of the

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
STORAGE 99
vehicle. Do not exceed the maximum
vehicle capacity when loading the
vehicle, including cargo carried on the
roof rack system and passengers and
cargo carried in the vehicle. For more
information on vehicle capacity and
loading, seeVehicle Load Limits 0226.
