fuse CADILLAC XT6 2022 User Guide

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
344 VEHICLE CARE
To remove the fuse block cover, press
the clips on the cover and lift it
straight up.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.
FusesUsage
F1 Antilock Brake System Fuses
Usage
F2 Starter 1
F3 DC DC Transformer 1

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
VEHICLE CARE 345
FusesUsage
F4 –
F5 DC DC Transformer 2
F6 Amplifier 1
F7 Front Blower
F8 Starter 3
F9 –
F10 –
F11 –
F12 Front Wiper
F13 Starter 2
F14 –
F15 Rear Wiper 1
F16 –
F17 –
F18 Automatic Headlamp Leveling Module
F19 –
F20 –
F21 – Fuses
Usage
F22 Electronic Brake Control Module
F23 Parking/Trailer Lamps
F24 Right Trailer Stoplamp/Turnlamp
F25 Steering Column Lock
F26 –
F27 Left Trailer Stoplamp/ Turnlamp
F28 –
F29 –
F30 Washer Pump
F31 –
F32 Headlamp Left
F33 –
F34 Horn
F35 –
F36 –
F37 Headlamp Right
F38 Not Used/Spare Fuses
Usage
F39 Transmission Control Module 1
F40 Left Rear Bus Electrical Center/DC
DC Ignition
F41 Instrument Cluster
F42 Heating, Ventilation, and Air Conditioning/
Central Gateway
Module/Run/Crank
F43 Head-up Display/ Reflective Light
Auxiliary
F44 Electronic Brake Control Module
Electric Brake
Booster/Run/Crank
F45 –
F46 –
F47 –
F48 Rear Wiper 2

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
346 VEHICLE CARE
FusesUsage
F49 Interior Rearview Mirror/Trailer/Rear
Heated Seats/Run/
Crank
F50 Fuel Tank Zone Module/Run/Crank
F51 Heated Steering Wheel
F52 Folding Seats Switch
F53 Engine Coolant Pump
F54 –
F55 Air Conditioning Clutch
F56 Not Used/Spare
F57 Engine Control Module/Ignition
F58 Transmission Control Module/Ignition
F59 Engine Control Module Battery
F60 – Fuses
Usage
F61 O2 Sensor 1/ Aeroshutter/Mass Air
Flow Sensor
F62 Engine Control Module–Odd
F63 O2 Sensor 2
F64 Engine Control Module–Even
F65 Engine Control Module Powertrain 1
F66 Engine Control Module Powertrain 2
F67 Engine Control Module Powertrain 3
F68 –
F69 –
F70 –
F71 –
F72 –
F73 –
F74 –
F75 – Fuses
Usage
F76 –
F77 –
Relays Usage
K1 Starter 1
K2 Run/Crank
K3 Starter 3
K4 –
K5 Air Conditioning
K6 –
K7 Engine Control Module
K8 Folding Seats
K9 –
K10 Starter 2

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
VEHICLE CARE 347
Instrument Panel Fuse
Block
The instrument panel fuse block is in
the center console between the driver
and passenger seats. To access the
fuses, open the fuse panel door,
or remove the panel from the
passenger side by pulling it out, or see
your dealer.
To reinstall the door, push the door
back into its original location.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.
FusesUsage
F1 Body Control Module 6

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
348 VEHICLE CARE
FusesUsage
F2 Diagnostic Link/ Central Gateway
Module
F3 Electric Steering Column Lock
F4 –
F5 Logistics
F6 Heating, Ventilation, and Air
Conditioning
F7 Body Control Module 3
F8 –
F9 Right Front Heated Seat
F10 Airbag/Seat Belt
F11 Driver Monitoring System Module
F12 Amplifier 2
F13 Body Control Module 7
F14 Not Used/Spare Fuses
Usage
F15 Instrument Panel Switch Bank
F16 Sunroof
F17 Body Control Module 1
F18 Instrument Cluster/ Head-up Display
F19 –
F20 Rear Seat Entertainment
F21 Body Control Module 4
F22 Infotainment/USB Data/Aux Jack
F23 Body Control Module 2
F24 USB Charger/ Wireless Charging
F25 Park Assist/ Electronic Shift
Select
F26 CIM Fuses
Usage
F27 Video/Night Vision Module
F28 Heating, Ventilation, and Air
Conditioning Display
F29 Radio
F30 –
F31 Electric Brake Boost
F32 Spare/DC AC inverter
F33 Driver Power Seat
F34 Passenger Power Seat
F35 Battery IEC 1 Feed
F36 Electric Power Steering
F37 Rear Seat entertainment/USB
Charge/Wireless
Charging Module/
Auxiliary Power
Outlet/Lighter
F38 Body Control Module 8

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
VEHICLE CARE 349
FusesUsage
F39 Steering Wheel Adjustment
Controls/Lightbar
Circuit
Breakers/
Minifuses Usage
F40 –
F41 –
F42 Auxiliary Power Outlet (CB)/Lighter
(mini-fuse)Rear Compartment Fuse
Block
The rear compartment fuse block is in
the cargo area, on the driver side of
the vehicle behind the lower trim
panel. To access the fuses in the Rear
Electrical Center, remove the center
cargo bin, then small side bin. See
Rear Storage 093. See your dealer if
additional assistance is needed.
The label for this fuse block is in the
spare tire area, on the foam under the
cargo floor. The vehicle may not be equipped with
all of the fuses, relays, and features
shown.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
350 VEHICLE CARE
FusesUsage
F1 –
F2 Trailer Battery 1
F3 Driver Seat Belt Motor
F4 Rear Blower
F5 Rear Drive Control
F6 Passenger Seat Belt Motor
F7 Right Window
F8 Rear Defogger
F9 Left Window
F10 Folding Seats 1
F11 Trailer Reverse
F12 –
F13 –
F14 –
F15 –
F16 –
F17 – Fuses
Usage
F18 Trailer Module/ External Object
Calculation Module 2
Ignition
F19 Ventilated Seats/Left Front Heated Seats/
Run/Crank
F20 –
F21 Trailer Connector
F22 –
F23 Spare
F24 Passenger Window Switch
F25 Spare
F26 Trailer Brake
F27 –
F28 Passive Entry/Passive Start
F29 Advanced Driver Assist Map Module
F30 Canister Vent
F31 – Fuses
Usage
F32 Heated Mirror
F33 –
F34 Liftgate Module
F35 Fuel System Control Module
F36 –
F37 –
F38 Window Module
F39 –
F40 Memory Seat Module
F41 Automatic Occupancy Sensor
F42 Trailer Battery 2
F43 –
F44 Third Row Seats
F45 Liftgate Motor
F46 Rear Heated Seats
F47 –
F48 Glass Break Sensor
F49 –

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21

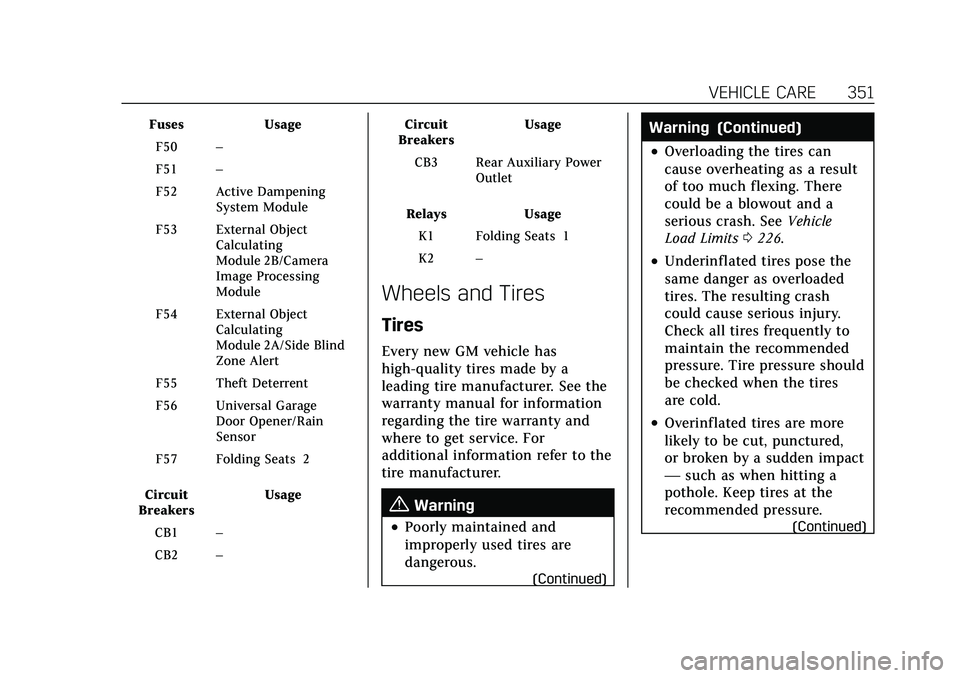

VEHICLE CARE 351
FusesUsage
F50 –
F51 –
F52 Active Dampening System Module
F53 External Object Calculating
Module 2B/Camera
Image Processing
Module
F54 External Object Calculating
Module 2A/Side Blind
Zone Alert
F55 Theft Deterrent
F56 Universal Garage Door Opener/Rain
Sensor
F57 Folding Seats 2
Circuit
Breakers Usage
CB1 –
CB2 – Circuit
Breakers Usage
CB3 Rear Auxiliary Power Outlet
Relays Usage
K1 Folding Seats 1
K2 –
Wheels and Tires
Tires
Every new GM vehicle has
high-quality tires made by a
leading tire manufacturer. See the
warranty manual for information
regarding the tire warranty and
where to get service. For
additional information refer to the
tire manufacturer.
{Warning
.Poorly maintained and
improperly used tires are
dangerous.
(Continued)
Warning (Continued)
.Overloading the tires can
cause overheating as a result
of too much flexing. There
could be a blowout and a
serious crash. See Vehicle
Load Limits 0226.
.Underinflated tires pose the
same danger as overloaded
tires. The resulting crash
could cause serious injury.
Check all tires frequently to
maintain the recommended
pressure. Tire pressure should
be checked when the tires
are cold.
.Overinflated tires are more
likely to be cut, punctured,
or broken by a sudden impact
— such as when hitting a
pothole. Keep tires at the
recommended pressure.
(Continued)

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
INDEX 437
Door (cont'd)Delayed Locking . . . . . . . . . . . . . . . . . . . 18
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . 18
Drive Belt Routing, Engine . . . . . . . . . 411
Drive Systems All-Wheel Drive . . . . . . . . . . . . . . . . . . . 244
Driver Teen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Driver Assistance Systems . . . . . . . . . 276
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . . . . . . . 124
Driver Mode Control . . . . . . . . . . . . . . . . 248
Driver Mode Control Light . . . . . . . . . 121
Driving Assistance Systems . . . . . . . . . . . . . . . 287
Better Fuel Economy . . . . . . . . . . . . . 216
Characteristics and
Towing Tips . . . . . . . . . . . . . . . . . . . . . 305
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Hill and Mountain Roads . . . . . . . . 224
If the Vehicle is Stuck . . . . . . . . . . . . 226
Impaired . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Loss of Control . . . . . . . . . . . . . . . . . . . . 219
Off-Road . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Off-Road Recovery . . . . . . . . . . . . . . . . 219
Vehicle Load Limits . . . . . . . . . . . . . . 226
Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . . 223 Driving (cont'd)
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . . . . . 206
E
Electric Brake Boost . . . . . . . . . . . . . . . . 244
Electric Parking Brake . . . . . . . . . . . . . . 245
Electric Parking Brake Light . . . . . . . 118
Electrical Equipment, Add-On . . . . . 316
Electrical SystemEngine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
Fuses and Circuit Breakers . . . . . . . 343
Instrument Panel Fuse Block . . . . 347
Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 426
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . . . 329
Check Light (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . . . . . 115
Compartment Overview . . . . . . . . . . 322
Coolant Temperature Gauge . . . . . 113
Cooling System . . . . . . . . . . . . . . . . . . . 330
Drive Belt Routing . . . . . . . . . . . . . . . . 411 Engine (cont'd)
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Oil Life System . . . . . . . . . . . . . . . . . . . . 327
Oil Pressure Light . . . . . . . . . . . . . . . . . 122
Overheating . . . . . . . . . . . . . . . . . . . . . . . 334
Power Messages . . . . . . . . . . . . . . . . . . 130
Running While Parked . . . . . . . . . . . 238
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Engine Air Filter Life System . . . . . . 328
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . 144
Equipment, Towing . . . . . . . . . . . . . . . . . 312
Event Data Recorders . . . . . . . . . . . . . . 423
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . 145
Extended Parking . . . . . . . . . . . . . . . . . . . 237
Extender, Seat Belt . . . . . . . . . . . . . . . . . . 60
Exterior Lamp Controls . . . . . . . . . . . . 139
Exterior Lamps Off Reminder . . . . . . 141
Exterior Lighting Battery Saver . . . . 145
F
Filter, Engine Air Cleaner . . . . . . . . . . . . . . . . 329
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . 141
Flashers, Hazard Warning . . . . . . . . . . 142
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 372
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 392

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
438 INDEX
FluidAutomatic Transmission . . . . . . . . . 328
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . 31
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421
Front Pedestrian Braking (FPB) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Front Seats Heated and Ventilated . . . . . . . . . . . . 46
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Economy, Driving for Better . . . . . 216
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . . . . . . 304
Filling the Tank . . . . . . . . . . . . . . . . . . . 303
Foreign Countries . . . . . . . . . . . . . . . . . 302
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Low Fuel Warning Light . . . . . . . . . 122
Management, Active . . . . . . . . . . . . . . 237
Prohibited Fuels . . . . . . . . . . . . . . . . . . 302
Recommended . . . . . . . . . . . . . . 301, 302
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . 301 Fuses
Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
Fuses and Circuit Breakers . . . . . . . 343
Instrument Panel Fuse Block . . . . 347
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
G
Garage Door Opener . . . . . . . . . . . . . . . . 135
Programming . . . . . . . . . . . . . . . . . . . . . . 135
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . 340
Gauges
Engine Coolant Temperature . . . . 113
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Speedometer . . . . . . . . . . . . . . . . . . . . . . 111
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 112
Trip Odometer . . . . . . . . . . . . . . . . . . . . 112
Warning Lights andIndicators . . . . . . . . . . . . . . . . . . . . . . . . 109
General Information Service and Maintenance . . . . . . . . 394
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . 319
Global Positioning
System (GPS) . . . . . . . . . . . . . . . . . . . . . . 172
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415
Guidance Problems with the Route . . . . . . . . . 172
H
Hazard Warning Flashers . . . . . . . . . . 142
HD Radio Technology . . . . . . . . . . . . . . 154
Head Restraints . . . . . . . . . . . . . . . . . . . . . . 40
Head-up Display . . . . . . . . . . . . . . . . . . . . 127
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 141
Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . . . . . 141
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . 141
High-Beam On Light . . . . . . . . . . . . . . 123
High/Low Beam Changer . . . . . . . . . 141
Lamps On Reminder . . . . . . . . . . . . . . 123
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Steering Wheel . . . . . . . . . . . . . . . . . . . . 101
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . 31
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Heating . . . . . . . . . . . . . . . . . . . . . . . . .206, 211
